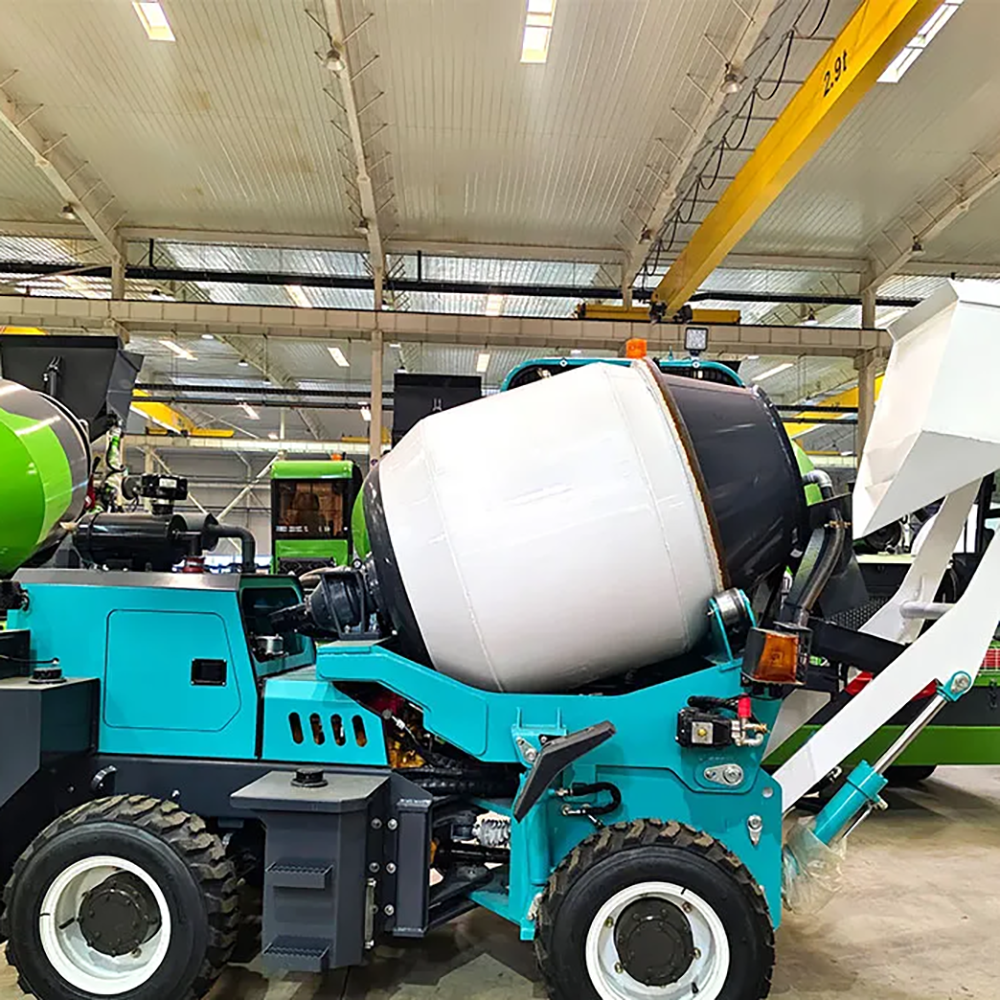

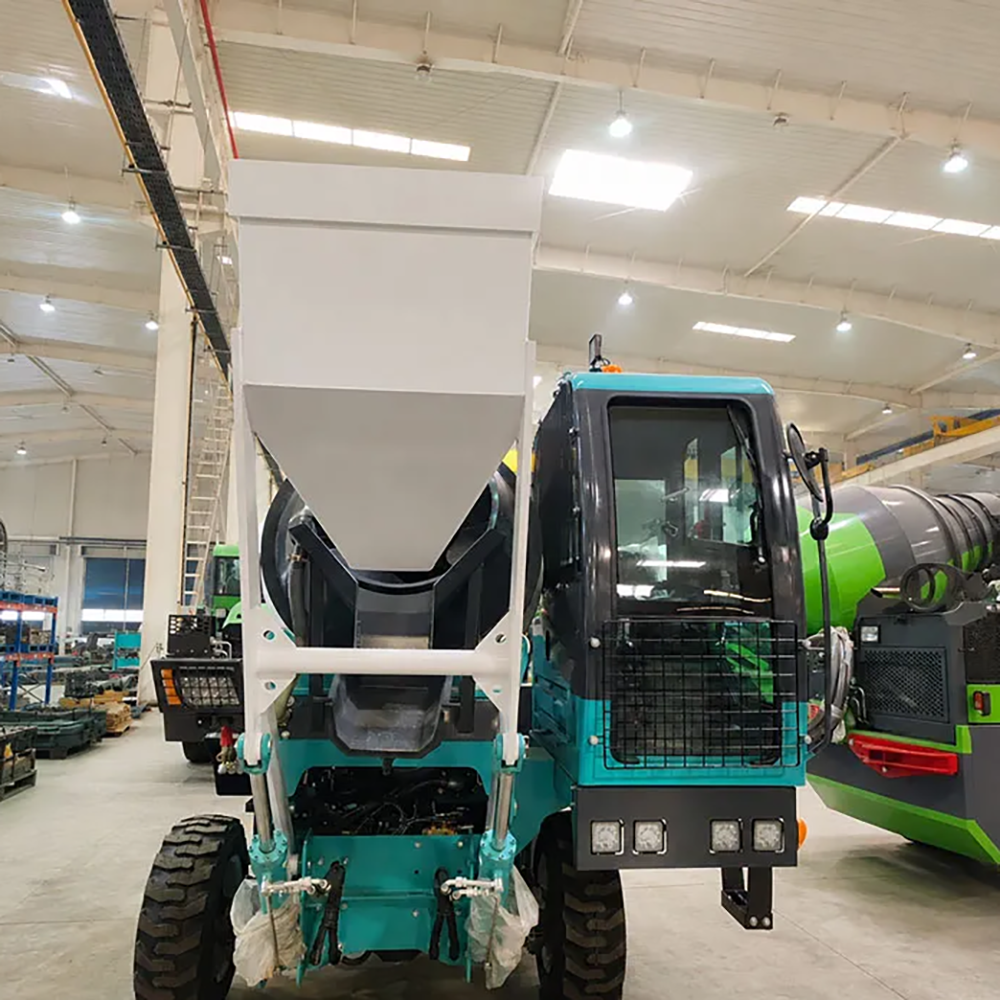

0.8 CBM Self-Loading Concrete Mixer

The 0.8CBM Self-Loading Concrete Mixer is a compact concrete mixer machine designed for small and medium construction projects, rural road work, building repair, foundation work, and remote jobsites that require flexible onsite concrete mixing. With a 0.8m³ concrete yield per batch, 1450L mixing drum geometrical capacity, Xichai 490 diesel engine, torque converter drive form, ZL-265 gearbox, and 180L water tank, this small self loading concrete mixer combines material loading, mixing, site movement, water supply, and concrete discharge in one practical machine. For contractors, builders, and equipment dealers looking for a compact self loading concrete mixer for sale, this model offers a useful balance between small-machine flexibility and higher output than a 0.5CBM mixer.

The 0.8 CBM Self-Loading Concrete Mixer is an efficient, flexible, and economical concrete production solution designed for modern construction requirements.

With integrated loading, accurate weighing, efficient mixing, transportation capability, and excellent mobility, it provides a complete concrete production system in one compact machine.

Whether used for residential construction, rural infrastructure, road projects, agricultural buildings, or remote construction sites, the 0.8 CBM Self-Loading Concrete Mixer delivers reliable performance, improved productivity, and excellent cost efficiency.

Category	Item	Specification
Vehicle Parameters	Overall Dimensions (L × W × H)	5100 × 2350 × 2900 mm
	Wheelbase	1500 mm
	Curb Weight	3700 kg
	Drive Form	Torque Converter
	Maximum Speed	30 km/h
	Maximum Gradeability	30°
	Minimum Turning Radius	3750 mm
	Minimum Ground Clearance	180 mm
Diesel Engine	Model	Xichai 490
	Rated Power	37 kW
Gearbox	Model	ZL-265
	Gearshift	4 Forward, 4 Reverse
Service Refill Capacities	Fuel Tank	62 L
	Total Hydraulic System Capacity	62 L
	Oil	12 L
Parameters of Hydraulic System	Reducer	K100
	Dual Gear Pump	CBFC 50/32
	Hydraulic Motor	BM-125
Water Supply System Parameters	Tank Volume	180 L
	Water Supply	One Water Supply System
Mixing and Unloading	Mixing Drum Structure	Double-cone mixing drum with double-spiral mixing screws and convex bottom
	Mixing Drum Geometrical Capacity	1450 L
	Drum Rotation Speed	13 rpm
	Concrete Yield	0.8 m³ / Batch

0.8 CBM Self-Loading Concrete Mixer

The 0.8 CBM Self-Loading Concrete Mixer is a compact and versatile concrete production machine designed to provide an efficient solution for small and medium-scale construction projects. Integrating self-loading, automatic weighing, concrete mixing, transportation, and discharge functions, this machine allows operators to produce fresh concrete directly at the job site without relying on external batching plants or additional loading equipment.

With a 0.8 cubic meter mixing capacity, the machine offers a balance between compact size and improved production efficiency. It is larger than mini concrete mixers while maintaining excellent mobility and flexibility, making it suitable for projects requiring frequent movement between different working areas.

The 0.8 CBM Self-Loading Concrete Mixer is widely used in:

Residential construction
Rural infrastructure projects
Road and bridge repair
Farm construction
Landscaping projects
Mining and remote construction sites
Small and medium engineering projects

Main advantages include:

0.8 CBM efficient mixing capacity
Integrated loading and mixing system
Reduced labor requirements
High mobility and flexibility
Accurate concrete production
Lower operating costs
Suitable for difficult construction environments

The 0.8 CBM Self-Loading Concrete Mixer provides contractors with a practical and economical concrete solution for modern construction needs.

Integrated Self-Loading Concrete Solution

The main feature of the 0.8 CBM Self-Loading Concrete Mixer is its all-in-one construction design.

A single machine can complete:

Aggregate loading
Material weighing
Concrete mixing
Transportation
Concrete discharge

Traditional concrete production usually requires:

Wheel loader
Concrete batching equipment
Mixer truck
Labor workers

The self-loading mixer combines these functions into one compact unit, significantly improving construction efficiency and reducing equipment investment.

Efficient 0.8 CBM Mixing Capacity

The 0.8 CBM Self-Loading Concrete Mixer is equipped with a 0.8 cubic meter mixing drum, providing higher production capacity while maintaining excellent flexibility.

The mixing system ensures:

Uniform concrete quality
Fast mixing performance
Consistent material distribution
Reliable concrete strength

The drum and mixing blades are designed for efficient blending of:

Cement
Sand
Gravel
Water
Other concrete materials

This allows the machine to produce high-quality concrete for various construction applications.

Automatic Material Loading System

The built-in loading bucket allows the operator to load aggregates directly from material piles.

The self-loading system provides:

Faster material handling
Reduced manual operation
Improved construction efficiency
Better job-site independence

The machine can load:

Sand
Gravel
Crushed stone
Aggregate materials

No additional loader is required, helping reduce equipment costs and simplify construction operations.

Accurate Weighing And Concrete Quality Control

The 0.8 CBM Self-Loading Concrete Mixer uses an advanced weighing system to improve concrete mixing accuracy.

The weighing system helps control:

Aggregate quantity
Cement ratio
Water proportion
Concrete consistency

Accurate material measurement improves:

Concrete strength
Construction quality
Material efficiency

This makes the machine suitable for projects requiring reliable concrete performance.

Excellent Mobility And Site Adaptability

The compact design provides outstanding mobility compared with traditional concrete mixer trucks.

The machine features:

Compact structure
Strong driving capability
Flexible steering
Excellent climbing performance

It can operate in:

Narrow construction spaces
Uneven terrain
Rural areas
Mountain regions
Remote locations

This makes the 0.8 CBM Self-Loading Concrete Mixer especially valuable for projects where access is limited.

Powerful Hydraulic Drive System

The hydraulic system controls the main working functions of the machine.

Hydraulic functions include:

Loading bucket operation
Mixing drum rotation
Concrete discharge
Steering assistance

Advantages include:

Smooth operation
Strong working performance
Reliable control
Reduced mechanical wear

The hydraulic system improves productivity and ensures stable operation under demanding conditions.

Cost-Effective Construction Equipment

The 0.8 CBM Self-Loading Concrete Mixer helps reduce overall construction expenses.

Compared with traditional concrete production methods, it reduces:

Equipment investment
Transportation costs
Labor requirements
Concrete waiting time

It is an economical choice for:

Small contractors
Construction companies
Infrastructure developers
Remote project operators
Wide Application Areas
Residential And Building Construction

The machine is suitable for:

Houses
Small commercial buildings
Foundations
Concrete structures
Road Construction Projects

Applications include:

Rural roads
Road repairs
Pavement construction
Small bridge projects
Agricultural Construction

Used for:

Farm buildings
Storage facilities
Irrigation systems
Agricultural infrastructure
Mining And Remote Projects

Suitable for:

Mining areas
Tunnel projects
Remote construction locations
Landscaping And Municipal Projects

Applications include:

Parks
Gardens
Public facilities
Small concrete works
Easy Operation And Maintenance

The 0.8 CBM Self-Loading Concrete Mixer is designed for simple operation.

Features include:

User-friendly controls
Convenient loading operation
Easy concrete discharge
Accessible maintenance points

Maintenance mainly includes:

Engine inspection
Hydraulic system checks
Drum cleaning
Lubrication maintenance

Regular maintenance ensures:

Longer service life
Stable operation
Reduced downtime
Main Features Of 0.8 CBM Self-Loading Concrete Mixer
0.8 CBM mixing capacity
Self-loading bucket system
Automatic concrete mixing
Integrated transportation function
Hydraulic operating system
Strong mobility
Accurate weighing system
Compact construction design
Easy operation
Low maintenance requirements
Why Choose Our 0.8 CBM Self-Loading Concrete Mixer?
1. Higher Productivity

The 0.8 CBM capacity provides efficient concrete production for small and medium projects.

2. All-In-One Design

Loading, mixing, transporting, and pouring are completed by one machine.

3. Lower Construction Costs

Reduces the need for multiple machines and additional workers.

4. Excellent Mobility

Works efficiently in remote and difficult construction environments.

5. Reliable Quality

Durable components ensure long-term stable performance.

6. Professional Support

We provide customized equipment solutions, technical assistance, spare parts, and after-sales service.

FAQS
1. What is a 0.8 CBM Self-Loading Concrete Mixer?

A 0.8 CBM Self-Loading Concrete Mixer is a compact concrete machine that loads materials, mixes concrete, transports, and discharges concrete independently.

2. What does 0.8 CBM mean?

0.8 CBM refers to the approximate concrete mixing capacity of 0.8 cubic meters per batch.

3. What projects are suitable for this mixer?

It is suitable for buildings, rural roads, farms, landscaping, repair projects, and remote construction sites.

4. Does it need a separate loader?

No. The built-in loading bucket allows independent material loading.

5. How many workers are needed to operate it?

Usually, one trained operator can complete the entire concrete production process.

6. Can it work on uneven terrain?

Yes. Its compact design and strong mobility allow operation on challenging terrain.

7. What materials can it mix?

It can mix cement, sand, gravel, water, and standard concrete ingredients.

8. How can the machine service life be extended?

Regular maintenance, proper lubrication, and timely inspection of hydraulic and engine systems are recommended.
