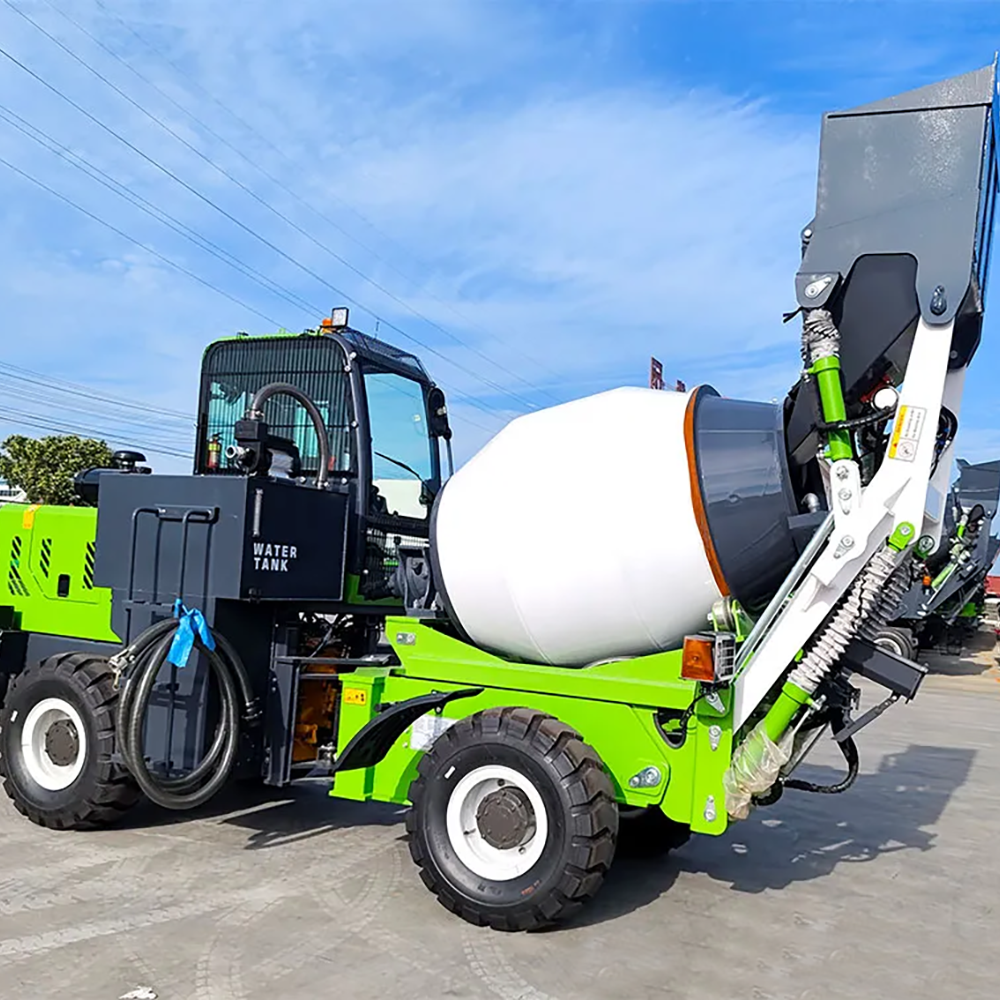

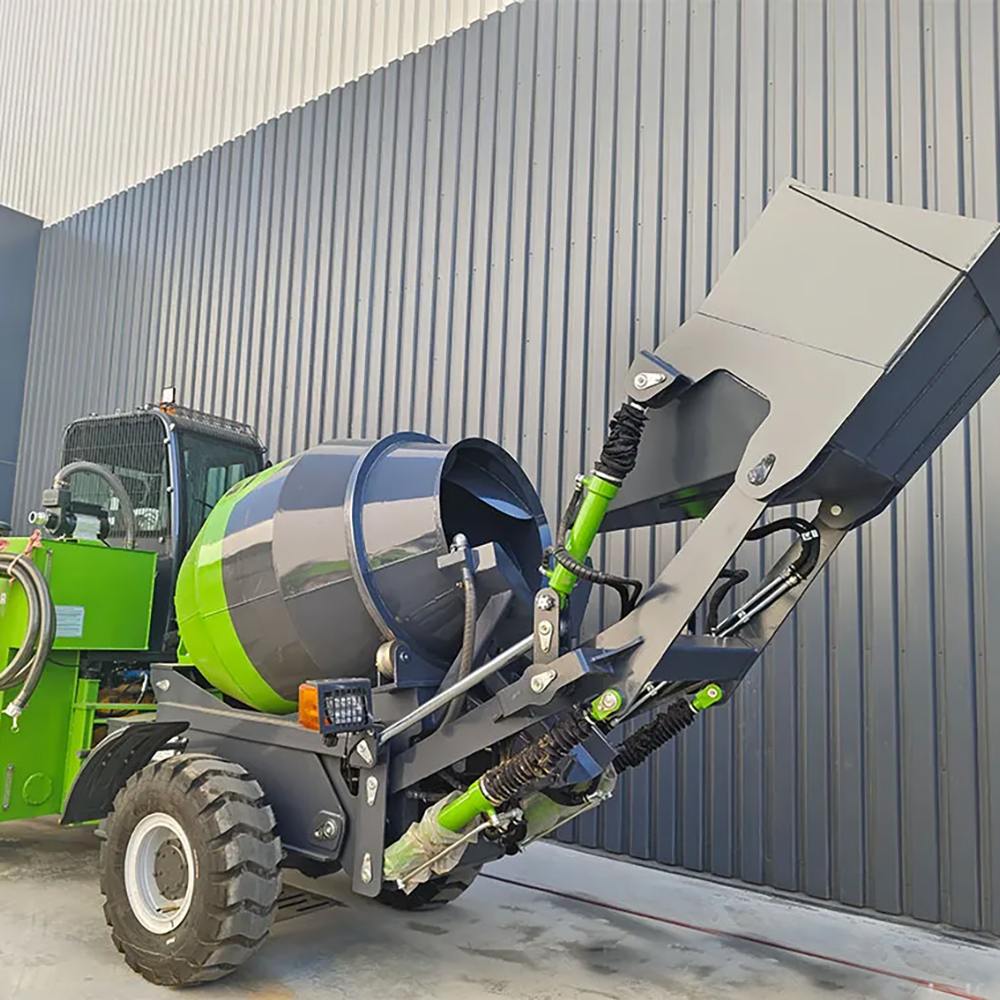

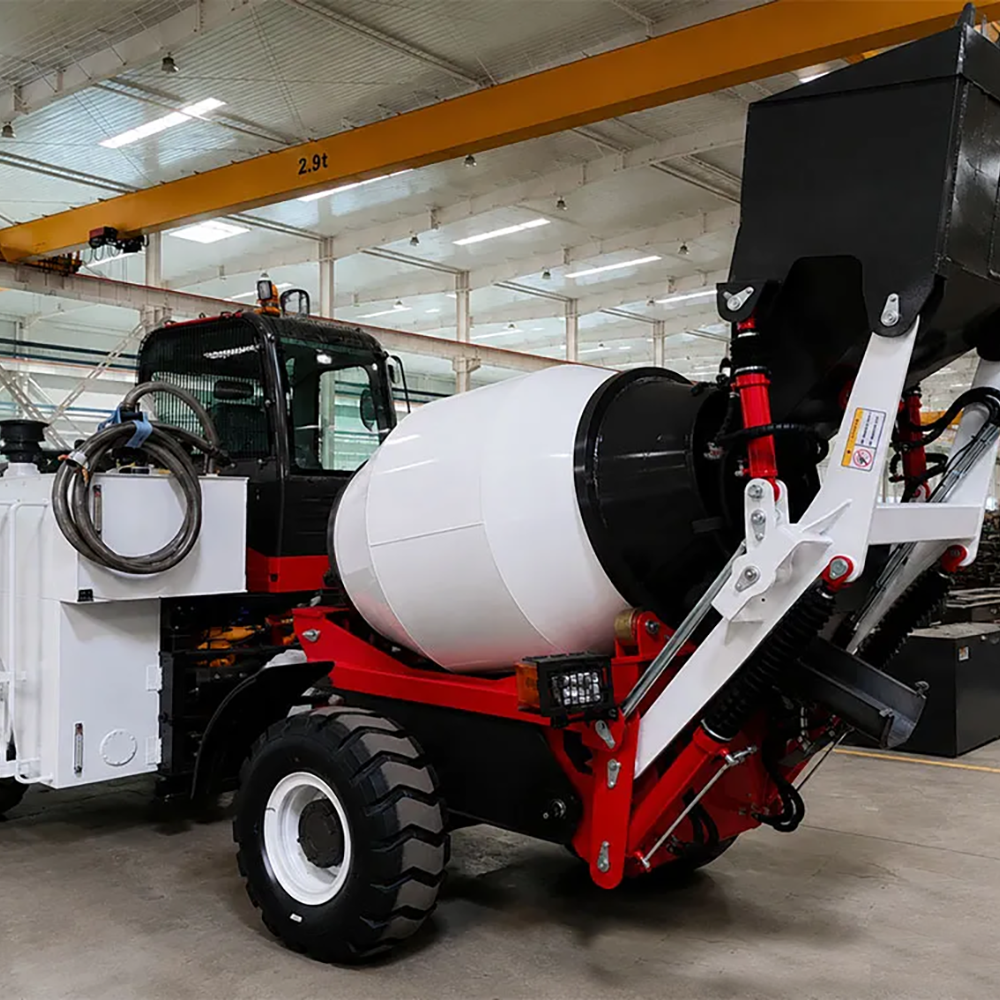

1.2 CBM Self-Loading Concrete Mixer

The 1.2CBM Self-Loading Concrete Mixer is a compact construction concrete mixer machine designed for small and medium jobsites that need onsite concrete loading, mixing, transportation, and unloading in one machine. With a 1.2m³ concrete yield per batch, 1700L mixing drum geometrical capacity, Yunnei 490 turbocharged diesel engine, torque converter drive form, ZL-265 power shift gearbox, and 400L water tank, this 1.2m3 self loading concrete mixer is suitable for building construction, rural road work, foundation projects, small infrastructure jobs, and remote construction sites. For contractors and equipment dealers looking for a practical self loading concrete mixer for sale, this model offers higher output than 0.8CBM mixers while still keeping flexible site movement and compact operation.

The 1.2 CBM Self-Loading Concrete Mixer is an efficient, flexible, and economical concrete production solution designed for modern construction requirements.

With integrated loading, accurate weighing, powerful mixing, transportation capability, and excellent mobility, it eliminates the need for multiple machines and improves construction efficiency.

Whether used for buildings, roads, bridges, agricultural projects, mining sites, or remote infrastructure construction, the 1.2 CBM Self-Loading Concrete Mixer delivers reliable performance, lower operating costs, and excellent long-term value.

Category	Item	Specification
Vehicle Parameters	Overall Dimensions (L × W × H)	7300 × 1800 × 3450 mm
	Wheelbase	2560 mm
	Curb Weight	4920 kg
	Drive Form	Torque Converter
	Maximum Speed	30 km/h
	Maximum Gradeability	30°
	Minimum Turning Radius	4700 mm
	Minimum Ground Clearance	280 mm
Diesel Engine	Model	Yunnei 490 Turbo-Charged
	Rated Power	55 kW
Gearbox	Model	ZL-265 Power Shift Gearbox
	Gearshift	4 Forward, 4 Reverse
Conventional Parameters	Equipment Model	JBC-12
Service Refill Capacities	Fuel Tank	63 L
	Total Hydraulic System Capacity	63 L
	Oil	16 L
Parameters of Hydraulic System	Reducer	KY07-2-0
	Dual Gear Pump	50 / 32
	Motor	Cycloid 125
Water Supply System Parameters	Tank Volume	400 L
	Water Supply	Time Relay
Mixing and Unloading	Mixing Drum Structure	Double-cone mixing drum with double-spiral mixing screws and convex bottom
	Mixing Drum Geometrical Capacity	1700 L
	Drum Rotation Speed	13 rpm
	Concrete Yield	1.2 m³ / Batch

1.2 CBM Self-Loading Concrete Mixer

The 1.2 CBM Self-Loading Concrete Mixer is a multifunctional mobile concrete production machine designed to improve efficiency and flexibility in modern construction projects. Combining self-loading, automatic weighing, concrete mixing, transportation, and discharge functions, this machine provides a complete concrete production solution without requiring additional loading equipment or fixed batching plants.

With a 1.2 cubic meter mixing capacity, the machine offers higher productivity while maintaining excellent mobility. It is an ideal choice for contractors who need a compact yet powerful concrete mixer capable of operating in different environments, including urban construction sites, rural areas, and remote locations.

The 1.2 CBM Self-Loading Concrete Mixer is widely used for:

Residential and commercial construction
Road and bridge projects
Rural infrastructure development
Mining and tunnel construction
Agricultural buildings
Foundation works
Remote engineering projects

Key advantages include:

1.2 CBM efficient mixing capacity
Self-loading and automatic operation
Integrated concrete production system
Reduced labor and equipment costs
High mobility and flexibility
Accurate concrete mixing
Suitable for various construction conditions

The 1.2 CBM Self-Loading Concrete Mixer provides contractors with a reliable and economical solution for producing high-quality concrete directly at the job site.

Integrated Loading, Mixing And Transport System

The biggest advantage of the 1.2 CBM Self-Loading Concrete Mixer is its all-in-one design.

A single machine performs multiple construction processes:

Loading aggregates
Measuring materials
Mixing concrete
Transporting concrete
Discharging concrete

Traditional concrete production often requires multiple machines, including loaders, batching plants, and mixer trucks. The self-loading mixer combines these functions into one compact unit, helping reduce:

Equipment investment
Labor requirements
Transportation expenses
Construction waiting time

This improves overall project efficiency and simplifies site management.

Efficient 1.2 CBM Mixing Capacity

The 1.2 CBM Self-Loading Concrete Mixer is equipped with a 1.2 cubic meter mixing drum, providing excellent balance between production capacity and mobility.

The efficient mixing system ensures:

Uniform concrete quality
Fast mixing cycles
Reliable concrete consistency
Improved construction productivity

The mixing drum is designed to thoroughly blend:

Cement
Sand
Gravel
Water
Additives

The result is high-quality concrete suitable for different construction applications.

Automatic Self-Loading Performance

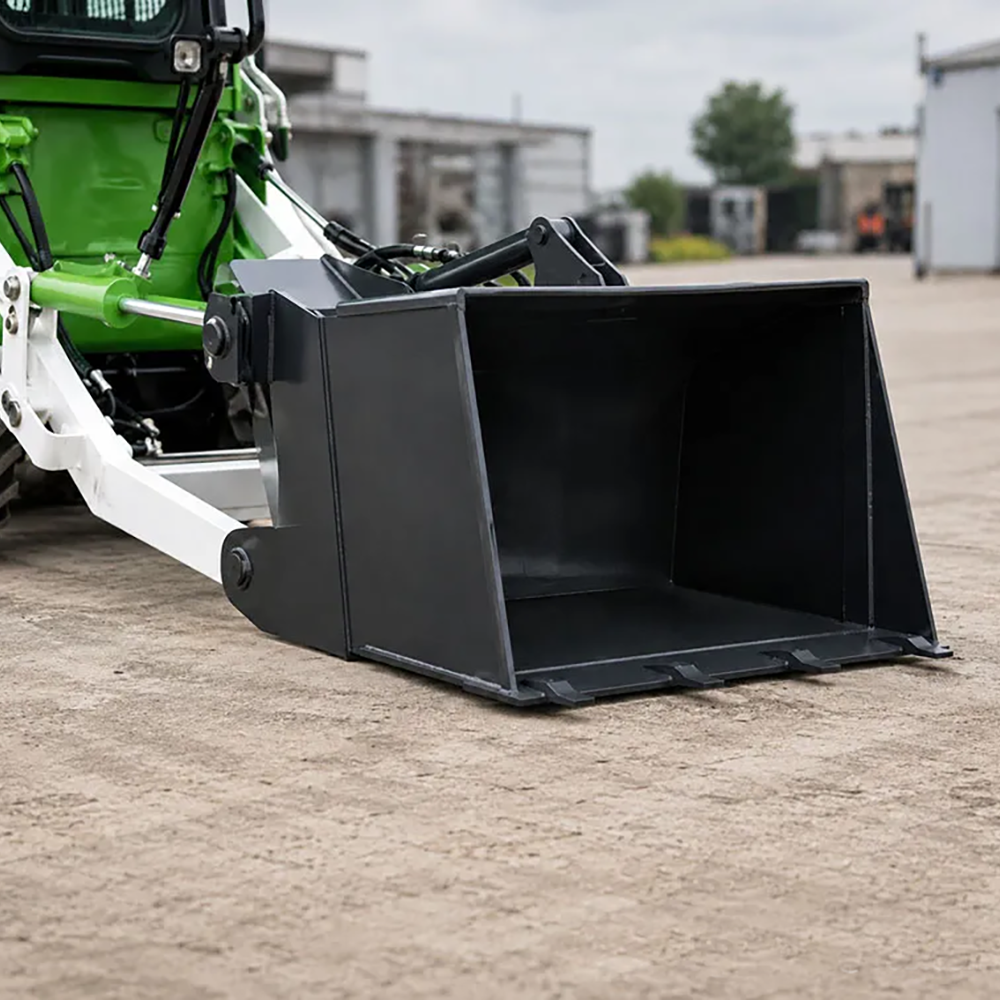

The built-in loading bucket allows the operator to collect and load materials directly from the storage area.

The self-loading system provides:

Independent material loading
Reduced manual handling
Faster concrete preparation
Improved job-site efficiency

It can handle:

Sand
Stone aggregates
Gravel
Other concrete materials

Because no additional loader is required, the 1.2 CBM Self-Loading Concrete Mixer helps reduce project costs and equipment requirements.

Accurate Weighing System For Better Concrete Quality

The advanced weighing system ensures accurate material proportions during concrete production.

The system helps control:

Aggregate quantity
Cement ratio
Water amount
Concrete consistency

Accurate weighing improves:

Concrete strength
Construction quality
Material utilization

This makes the machine suitable for projects requiring stable and reliable concrete performance.

Strong Mobility And Flexible Operation

The 1.2 CBM Self-Loading Concrete Mixer is designed for excellent mobility.

Its compact structure allows operation in:

Narrow construction areas
Uneven terrain
Rural roads
Mountain regions
Remote project sites

Features may include:

Four-wheel drive system
Hydraulic steering
Strong climbing capability
Flexible movement

This enables concrete production in locations where traditional mixer trucks may have difficulty operating.

Powerful Hydraulic System

The hydraulic system provides smooth control of major machine functions.

Hydraulic operations include:

Loading bucket lifting
Mixing drum rotation
Concrete discharge
Steering assistance

Advantages include:

Smooth operation
Strong working capability
High reliability
Reduced mechanical stress

The hydraulic system ensures efficient performance even during continuous construction work.

Cost-Effective Construction Solution

The 1.2 CBM Self-Loading Concrete Mixer helps contractors reduce overall construction costs.

Compared with traditional concrete production methods, it provides:

Lower equipment investment
Reduced labor costs
Less transportation dependence
Faster concrete availability

It is especially suitable for:

Small and medium contractors
Infrastructure companies
Remote project operators
Construction service providers
Wide Application Areas
Building Construction

The machine is widely used for:

Residential buildings
Commercial structures
Foundations
Concrete floors
Road And Bridge Projects

Applications include:

Rural roads
Highway repair
Bridge construction
Pavement works
Mining And Tunnel Projects

Suitable for:

Mining sites
Tunnel construction
Underground engineering
Agricultural Construction

Used for:

Farm buildings
Storage facilities
Irrigation projects
Remote Infrastructure Projects

Ideal for:

Villages
Mountain areas
Off-grid construction sites
Easy Operation And Maintenance

The 1.2 CBM Self-Loading Concrete Mixer is designed for simple operation and convenient maintenance.

Operational advantages include:

User-friendly controls
Short training period
Easy material loading
Convenient concrete discharge

Maintenance includes:

Engine inspection
Hydraulic system checking
Mixing drum cleaning
Lubrication service

Proper maintenance ensures:

Longer equipment lifespan
Stable working performance
Reduced downtime
Main Features Of 1.2 CBM Self-Loading Concrete Mixer
1.2 CBM concrete mixing capacity
Self-loading bucket system
Automatic weighing function
Integrated mixing and transportation
Hydraulic operating system
Four-wheel drive mobility
High-quality mixing drum
Compact construction design
Easy operation and maintenance
Suitable for multiple applications
Why Choose Our 1.2 CBM Self-Loading Concrete Mixer?
1. Higher Production Efficiency

The 1.2 CBM capacity provides faster concrete production for construction projects.

2. Complete Concrete Solution

Loading, mixing, transportation, and discharge are completed by one machine.

3. Reduced Construction Costs

Less equipment and manpower are required compared with traditional concrete methods.

4. Excellent Site Adaptability

Works efficiently in urban, rural, and remote construction environments.

5. Reliable Equipment Quality

Durable components provide long service life and stable operation.

6. Professional Technical Support

We offer customized configurations, installation guidance, spare parts supply, and after-sales service.

FAQS
1. What is a 1.2 CBM Self-Loading Concrete Mixer?

A 1.2 CBM Self-Loading Concrete Mixer is a mobile concrete machine that can load materials, mix concrete, transport, and discharge independently.

2. What does 1.2 CBM mean?

1.2 CBM refers to the concrete mixing capacity of approximately 1.2 cubic meters per batch.

3. What projects are suitable for this mixer?

It is suitable for buildings, roads, bridges, farms, mining projects, and remote construction sites.

4. Does it require a separate loader?

No. The built-in loading bucket allows independent material loading.

5. How many operators are needed?

Usually, one trained operator can complete loading, mixing, transportation, and discharge operations.

6. Can it work on rough terrain?

Yes. Its strong mobility and hydraulic drive system allow operation on uneven construction sites.

7. What materials can it mix?

It can mix cement, sand, gravel, water, and other standard concrete materials.

8. How can the machine be maintained?

Regular inspection of the engine, hydraulic system, mixing drum, and lubrication points is recommended.
