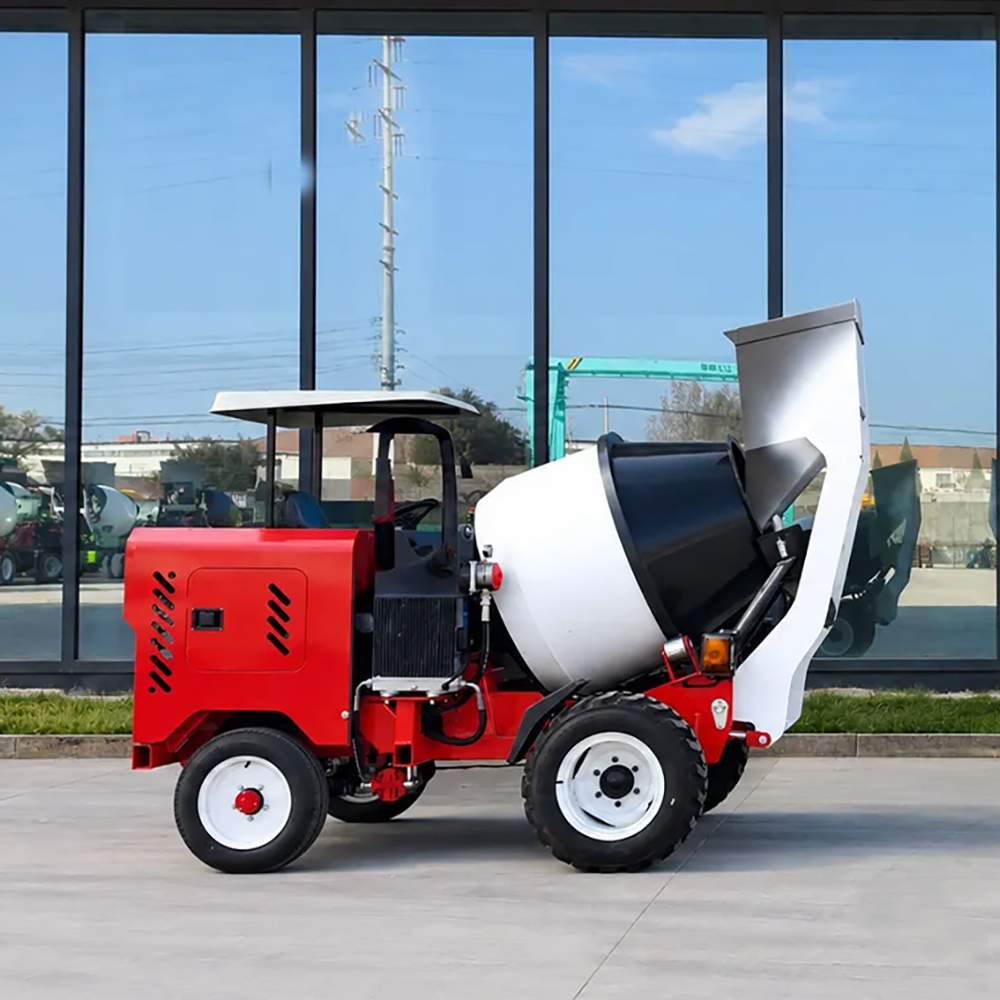

0.5 CBM Self-Loading Concrete Mixer

The 0.5CBM Self-Loading Concrete Mixer is a compact concrete mixing machine designed for small construction sites, rural building projects, road maintenance, and remote jobsites where flexible onsite concrete production is needed. With a 0.5m³ concrete yield per batch, 700L mixing drum geometrical capacity, 16kW diesel engine, manual gearbox, and hydraulic drum slewing system, this small self loading concrete mixer helps complete loading, mixing, transportation, and unloading in one machine. It is suitable for contractors who need a practical concrete mixer machine without relying on separate loaders, electric mixers, or large concrete mixer trucks for every small job. As a construction machinery supplier from China, Kaishun provides compact and practical concrete mixing equipment for global buyers, contractors, dealers, and project users looking for reliable jobsite machinery.

The 0.5 CBM Self-Loading Concrete Mixer is a compact, efficient, and economical concrete production solution designed for small construction projects and challenging working environments.

With self-loading capability, automatic mixing, flexible mobility, and easy operation, it provides a complete concrete production system without requiring additional equipment.

Whether used for rural roads, small buildings, agricultural projects, or remote construction sites, the 0.5 CBM Self-Loading Concrete Mixer delivers reliable performance, improved productivity, and excellent cost efficiency.

Category	Item	Specification

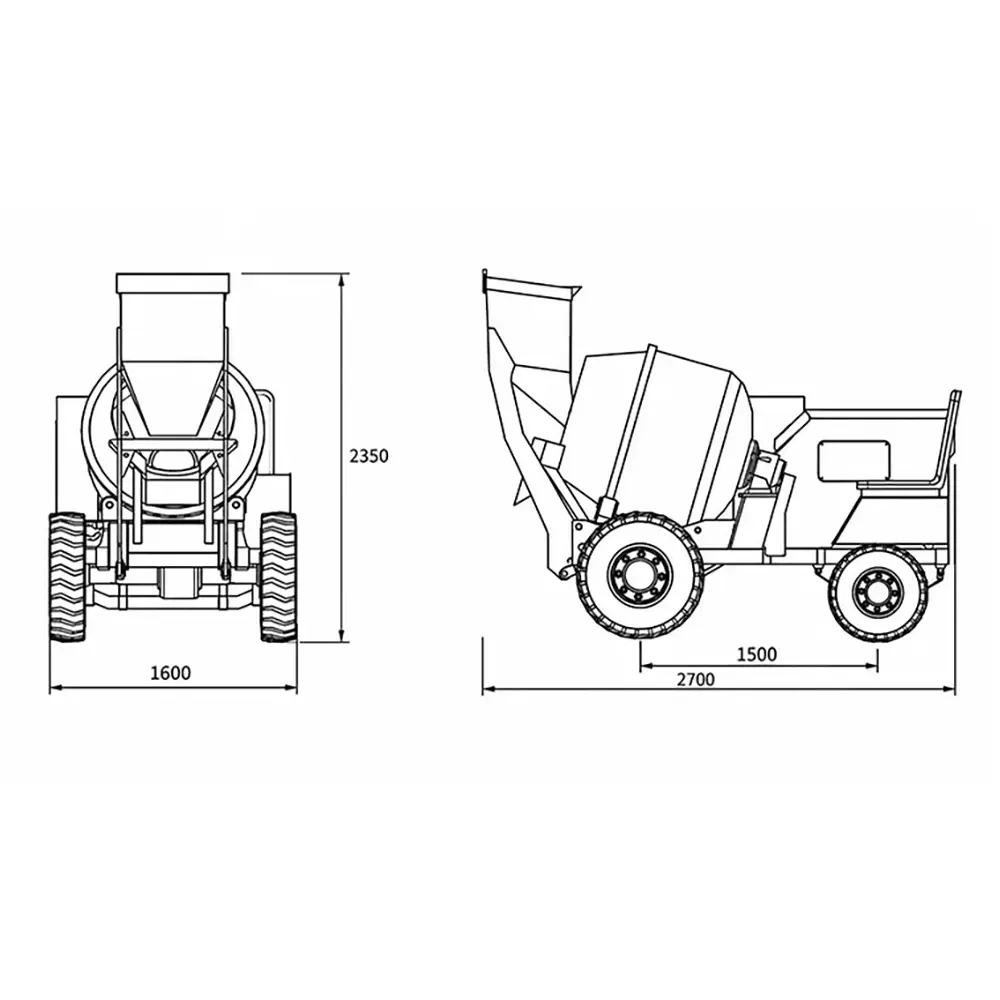

Vehicle Parameters	Overall Dimensions (L × W × H)	4200 × 1600 × 2350 mm
	Wheelbase	1500 mm
	Curb Weight	1860 kg
	Drive Form	Belt Drive
	Maximum Speed	20 km/h
	Maximum Gradeability	30°
	Minimum Turning Radius	4000 mm
	Minimum Ground Clearance	150 mm
Diesel Engine	Model	Changfa Single-Cylinder Diesel Engine
	Rated Power	16 kW
Gearbox	Model	Manual Gearbox
	Gear Position	3 Forward, 1 Reverse
Conventional Parameters	Equipment Model	JBC-04
Service Refill Capacities	Fuel Tank	18 L
	Hydraulic System Total Capacity	20 L
	Engine Oil	3.5 L
Hydraulic System Parameters	Reducer	F-K100
	Double Pump	50 / 32
	Motor	Cycloidal 125

0.5 CBM Self-Loading Concrete Mixer

The 0.5 CBM Self-Loading Concrete Mixer is a compact and multifunctional concrete production machine designed for small and medium construction projects. Combining material loading, weighing, mixing, transportation, and concrete discharge functions into one unit, this mini self-loading mixer provides an efficient solution for producing fresh concrete directly at construction sites.

With a 0.5 cubic meter mixing capacity, this model is specially designed for projects requiring flexible concrete production, limited working space, and easy transportation. It eliminates the need for separate loaders, concrete mixers, and transportation equipment, helping reduce equipment investment and labor costs.

The 0.5 CBM Self-Loading Concrete Mixer is widely used in:

Small building construction
Rural road projects
Farm construction
Foundation works
Landscaping projects
Remote construction sites
Repair and maintenance projects

Key advantages include:

Compact 0.5 CBM mixing capacity
Self-loading operation
Automatic concrete mixing
High mobility
Low operating cost
Simple operation
Suitable for narrow working areas

The 0.5 CBM Self-Loading Concrete Mixer is an ideal choice for contractors who need a reliable and flexible concrete solution for small-scale projects.

Compact Design For Flexible Construction

The biggest advantage of the 0.5 CBM Self-Loading Concrete Mixer is its compact and practical design.

Compared with large concrete mixer trucks and stationary batching plants, this machine requires:

Less working space
Lower transportation costs
Fewer operators
Easier site access

Its compact structure allows operation in:

Narrow construction areas
Mountain roads
Rural locations
Small project sites

The machine can easily move between different job locations, improving construction flexibility and efficiency.

Self-Loading Function

The built-in loading bucket allows the operator to collect and load aggregates directly into the mixer.

The self-loading system provides:

Automatic material loading
Reduced manual handling
Faster concrete preparation
Improved job-site efficiency

Materials such as:

Sand
Gravel
Stone aggregates
Cement materials

can be loaded directly without requiring an additional loader.

This reduces equipment costs and simplifies construction operations.

Efficient 0.5 CBM Mixing Capacity

The 0.5 CBM Self-Loading Concrete Mixer features a 0.5 cubic meter mixing drum, making it suitable for projects requiring smaller concrete batches.

The mixing system ensures:

Uniform concrete quality
Efficient material blending
Consistent concrete strength
Reduced mixing time

The optimized drum structure and mixing blades provide thorough mixing of:

Cement
Water
Sand
Aggregate

This helps produce high-quality concrete for various construction applications.

Integrated Loading, Mixing And Pouring System

The self-loading mixer combines several construction processes into one machine.

One operator can complete:

Aggregate loading
Material weighing
Concrete mixing
Transportation
Concrete discharge

This integrated design offers significant advantages:

Reduced labor requirements
Faster construction speed
Lower equipment investment
Improved project efficiency

It is especially valuable for small contractors and remote construction teams.

Excellent Mobility And Operation Capability

The 0.5 CBM Self-Loading Concrete Mixer is designed for excellent mobility.

Features may include:

Four-wheel drive system
Hydraulic steering
Compact chassis
Strong climbing ability

It can operate effectively on:

Uneven terrain
Construction roads
Rural areas
Remote project locations

The strong mobility allows concrete production even where traditional mixer trucks cannot reach.

Powerful Hydraulic System

The hydraulic system controls important working functions, including:

Loading bucket movement
Mixing drum rotation
Concrete discharge
Steering operation

Advantages include:

Smooth operation
Reliable performance
Easy control
Reduced mechanical wear

The hydraulic system improves working efficiency and ensures stable operation.

Cost-Effective Concrete Production Solution

The 0.5 CBM Self-Loading Concrete Mixer helps reduce construction costs by combining multiple machines into one.

Compared with traditional concrete production methods, it can reduce:

Equipment investment
Transportation expenses
Labor costs
Concrete delivery time

It is an economical choice for:

Small contractors
Rural construction companies
Infrastructure projects
Maintenance teams
Wide Application Areas
Small Building Construction

The machine is suitable for:

Houses
Small commercial buildings
Foundations
Concrete floors
Rural Road Construction

Applications include:

Village roads
Farm roads
Small bridges
Road repair projects
Agricultural Projects

Used for:

Farm buildings
Storage facilities
Irrigation construction
Landscaping Projects

Suitable for:

Parks
Garden construction
Decorative concrete works
Remote Construction Sites

Ideal for:

Mountain areas
Islands
Off-grid locations
Infrastructure projects
Easy Operation And Maintenance

The 0.5 CBM Self-Loading Concrete Mixer is designed for convenient operation.

Benefits include:

Simple control system
Easy operator training
Accessible maintenance points
Reduced downtime

Routine maintenance includes:

Hydraulic system inspection
Engine servicing
Mixing drum cleaning
Lubrication checks

Proper maintenance ensures:

Longer service life
Stable performance
Lower operating costs
Main Features Of 0.5 CBM Self-Loading Concrete Mixer
0.5 CBM compact mixing capacity
Self-loading bucket system
Integrated mixing and transportation
Automatic concrete discharge
Four-wheel drive mobility
Hydraulic operating system
Suitable for small projects
Easy transportation
Low maintenance cost
High construction efficiency
Why Choose Our 0.5 CBM Self-Loading Concrete Mixer?
1. Compact And Flexible Design

The small size allows operation in narrow and difficult construction areas.

2. Complete Concrete Solution

Loading, mixing, transporting, and pouring are completed by one machine.

3. Reduced Construction Costs

Less equipment and manpower are required compared with traditional methods.

4. Reliable Performance

Durable components ensure stable operation and long service life.

5. Suitable For Remote Projects

Excellent mobility makes it ideal for rural and off-grid construction.

6. Professional Support

We provide customized configurations, technical assistance, spare parts, and after-sales service.

FAQS
1. What is a 0.5 CBM Self-Loading Concrete Mixer?

A 0.5 CBM Self-Loading Concrete Mixer is a compact concrete machine that can load materials, mix concrete, transport, and discharge independently.

2. What does 0.5 CBM mean?

0.5 CBM means the mixer drum has a concrete mixing capacity of approximately 0.5 cubic meters per batch.

3. What projects are suitable for this mixer?

It is suitable for small buildings, rural roads, foundations, farms, landscaping, and remote construction projects.

4. Does it require a separate loader?

No. The machine has a built-in loading bucket that allows it to load aggregates independently.

5. How many operators are required?

Usually, one trained operator can complete loading, mixing, transportation, and discharge operations.

6. Can it work on uneven terrain?

Yes. Its compact structure and strong mobility allow operation on various construction terrains.

7. What materials can it mix?

It can mix cement, sand, gravel, water, and other standard concrete materials.

8. How should the machine be maintained?

Regular maintenance of the engine, hydraulic system, mixing drum, and lubrication components is recommended.
