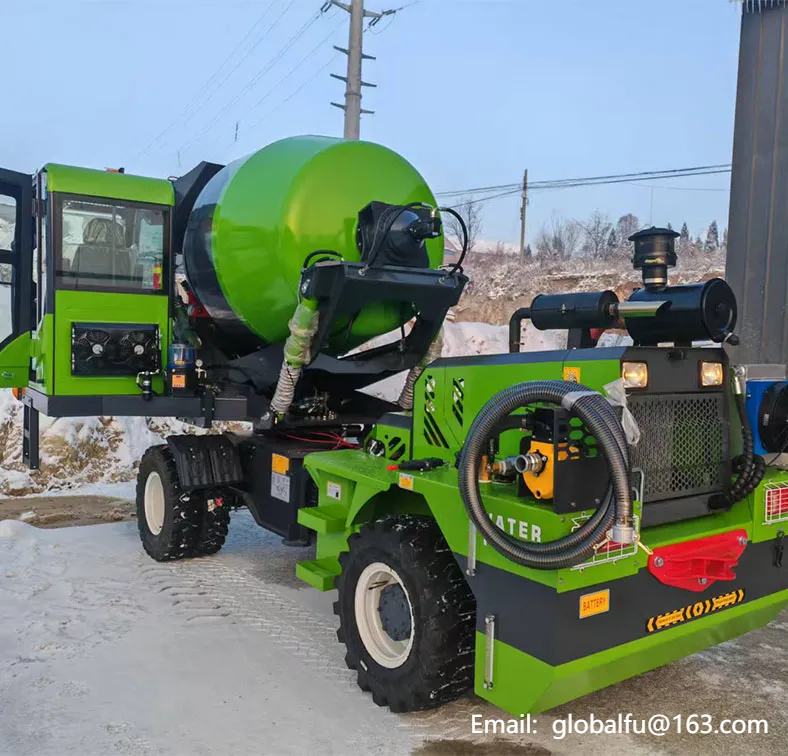

2 CBM Self-Loading Concrete Mixer

The 2CBM Self-Loading Concrete Mixer is a practical onsite concrete mixer machine designed for construction projects that need higher batch output, flexible site movement, and integrated concrete loading, mixing, transportation, and unloading. With a 2m³ concrete yield per batch, 3500L mixing drum geometrical capacity, Yuchai 4102 turbocharged diesel engine, torque converter drive form, ZL-265 power shift gearbox, 500L water tank, and hydraulic drum slewing system, this 2 cubic meter self loading concrete mixer is suitable for building construction, rural road work, infrastructure repair, bridge and culvert construction, and remote jobsites. For contractors and equipment dealers looking for a self loading concrete mixer for sale, this model offers a stronger configuration than smaller 0.8CBM and 1.2CBM mixers while keeping the convenience of an integrated self-loading concrete mixer truck.

Category	Item	Specification

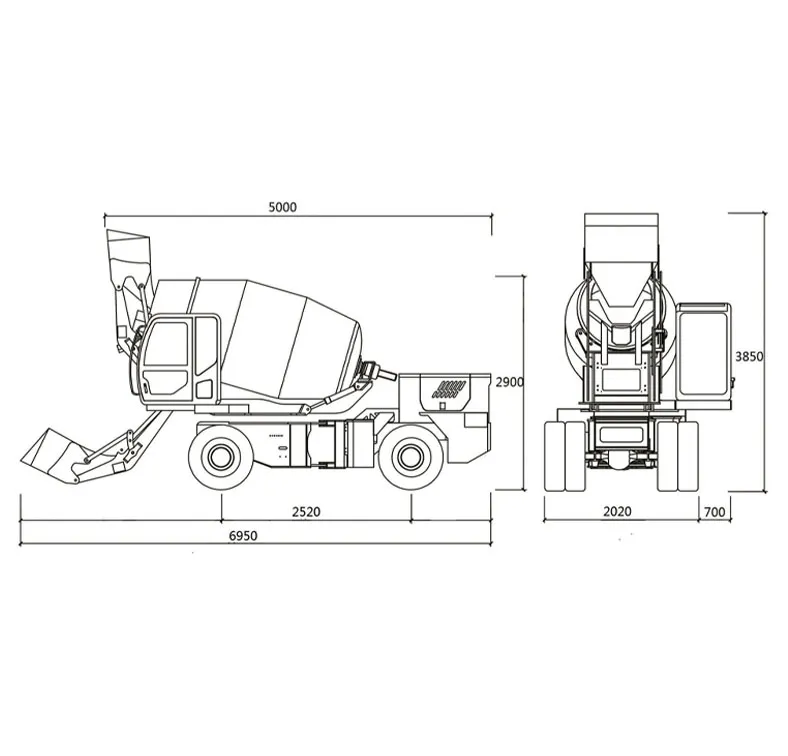

Vehicle Parameters	Overall Dimensions (L × W × H)	6950 × 2720 × 3850 mm
	Wheelbase	2520 mm
	Curb Weight	6300 kg
	Drive Form	Torque Converter
	Maximum Speed	35 km/h
	Maximum Gradeability	40°
	Minimum Turning Radius	5300 mm
	Minimum Ground Clearance	380 mm
Diesel Engine	Model	YUCHAI 4102 Turbo-Charged
	Rated Power	75 kW
Gearbox	Model	ZL-265 Power Shift Gearbox
	Gearshift	4 Forward, 4 Reverse
Conventional Parameters	Equipment Model	JBC-20C
Service Refill Capacities	Fuel Tank	75 L
	Total Hydraulic System Capacity	75 L
	Oil	16 L
Parameters of Hydraulic System	Reducer	HJ80-43
	Dual Gear Pump	50 / 32
	Hydraulic Motor	125
Water Supply System Parameters	Tank Volume	500 L
	Water Supply	Time Relay
Mixing and Unloading	Mixing Drum Geometrical Capacity	3500 L
	Drum Rotation Speed	18–21 rpm
	Concrete Yield	2 m³ / Batch
	Drum Slewing System	Heavy-duty saddle, hydraulically slewed at 270° with automatic hydraulic brake locking
	Drum Drive System	Gear pump and cycloidal hydraulic motor, open circuit control
	Drum Lifting System	Two double-acting jacks raise the drum to horizontal position
	Unloading Chute	Manually adjustable, rotates 90°
	Standard Chute Extensions	Two removable chute extensions provided as standard

The 2 CBM Self-Loading Concrete Mixer is a high-capacity multifunctional concrete production machine designed for construction projects requiring efficient, flexible, and reliable concrete supply. Integrating material loading, weighing, mixing, transportation, and discharge functions into one mobile unit, this machine allows operators to produce fresh concrete directly at the construction site without depending on external concrete plants or multiple pieces of equipment.

With a 2 cubic meter mixing capacity, the machine provides excellent production efficiency while maintaining the mobility and flexibility required for different working environments. It is especially suitable for medium and large construction projects where high productivity, reduced labor costs, and fast concrete availability are essential.

The 2 CBM Self-Loading Concrete Mixer is widely used in:

Building construction
Road and highway projects
Bridge construction
Mining operations
Tunnel engineering
Industrial facilities
Rural infrastructure projects
Remote construction sites

Main advantages include:

2 CBM high-capacity mixing drum
Fully self-loading operation
Automatic weighing system
Integrated mixing and transportation
Strong mobility and terrain adaptability
Reduced equipment investment
Improved construction efficiency

The 2 CBM Self-Loading Concrete Mixer provides an ideal concrete production solution for contractors seeking higher output, lower costs, and greater construction flexibility.

All-In-One Mobile Concrete Production System

The biggest advantage of the 2 CBM Self-Loading Concrete Mixer is its complete integrated design.

One machine performs multiple functions:

Aggregate loading
Material measurement
Concrete mixing
Concrete transportation
Concrete discharge

Traditional concrete production usually requires:

Wheel loaders
Concrete batching plants
Mixer trucks
Manual labor teams

The self-loading mixer combines these operations into one machine, reducing:

Equipment purchase costs
Labor requirements
Transportation expenses
Construction delays

This makes it a highly efficient solution for modern construction projects.

High Efficiency 2 CBM Mixing Capacity

The 2 CBM Self-Loading Concrete Mixer features a large 2 cubic meter mixing capacity designed for higher concrete production requirements.

The efficient mixing system provides:

Fast mixing cycles
Uniform concrete quality
Stable concrete performance
Increased construction productivity

The mixing drum is optimized for complete blending of:

Cement
Sand
Gravel
Water
Additives

The high-quality mixing process ensures concrete meets the requirements of different engineering applications.

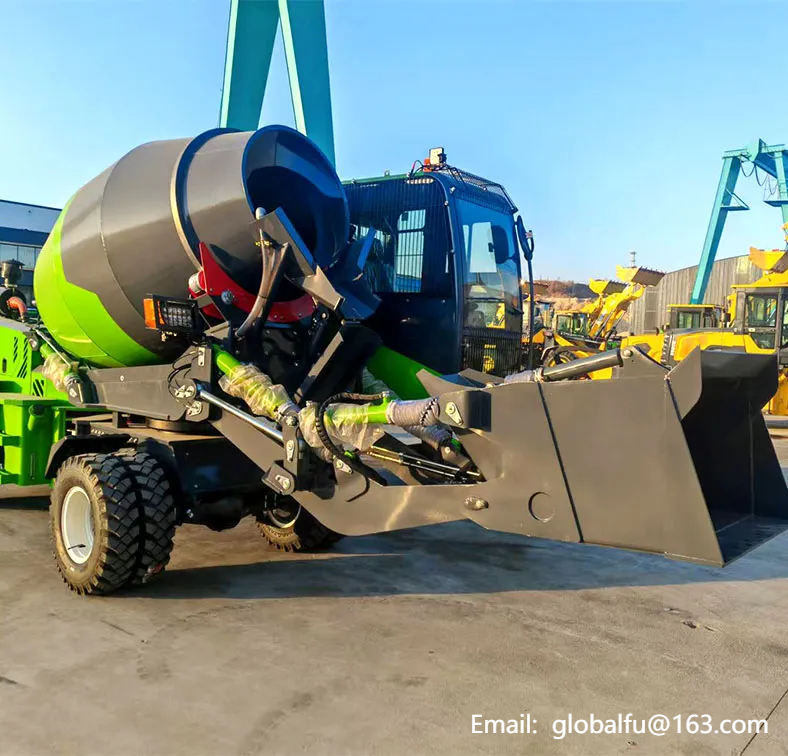

Automatic Self-Loading System

The built-in loading bucket allows the operator to collect and load raw materials independently.

The self-loading system provides:

Faster material loading
Reduced dependence on other machines
Lower labor costs
Improved job-site efficiency

The machine can handle:

Sand
Gravel
Aggregate
Crushed stone materials

By eliminating the need for an additional loader, the 2 CBM Self-Loading Concrete Mixer reduces overall project complexity.

Precision Weighing System

Accurate material proportioning is essential for producing high-quality concrete.

The advanced weighing system helps control:

Aggregate quantity
Cement ratio
Water volume
Concrete mixing consistency

Benefits include:

Improved concrete strength
Better construction quality
Reduced material waste
More reliable results

This makes the machine suitable for demanding construction applications.

Powerful Mobility And Terrain Adaptability

Although equipped with a large 2 CBM capacity, the machine maintains excellent mobility.

The compact mobile structure allows operation in:

Narrow construction areas
Uneven ground
Rural roads
Mountain regions
Remote project locations

Typical features include:

Four-wheel drive system
Hydraulic steering
Strong climbing ability
Durable chassis structure

This enables concrete production in areas where traditional mixer trucks may not reach.

Advanced Hydraulic Drive System

The hydraulic system is responsible for controlling major operating functions.

Hydraulic functions include:

Loading bucket movement
Mixing drum rotation
Concrete discharge
Steering operation

Advantages include:

Smooth operation
Strong power transmission
Reliable performance
Reduced mechanical stress

The hydraulic system ensures stable operation during long working hours.

Cost Saving And High Productivity

The 2 CBM Self-Loading Concrete Mixer provides significant economic advantages.

Compared with traditional concrete production methods, it helps reduce:

Equipment investment
Labor costs
Transportation costs
Concrete delivery waiting time

It is especially beneficial for:

Construction contractors
Road builders
Infrastructure companies
Mining operators

The machine improves productivity while lowering total project expenses.

Wide Application Areas
Building And Structural Construction

Suitable for:

Residential buildings
Commercial projects
Foundations
Concrete structures
Road And Highway Construction

Used for:

Rural roads
Highway repair
Pavement construction
Road expansion projects
Bridge And Infrastructure Projects

Applications include:

Bridge foundations
Municipal engineering
Public infrastructure
Mining And Tunnel Engineering

Ideal for:

Mining sites
Tunnel construction
Underground projects
Remote Construction Projects

Suitable for:

Mountain areas
Rural regions
Off-grid locations
Easy Operation And Maintenance

The 2 CBM Self-Loading Concrete Mixer is designed for simple operation and convenient maintenance.

Operational advantages:

User-friendly controls
Easy operator training
Efficient material loading
Convenient concrete discharge

Maintenance requirements include:

Engine inspection
Hydraulic system checking
Mixing drum cleaning
Lubrication maintenance

Proper maintenance improves:

Equipment lifespan
Working reliability
Operating efficiency
Main Features Of 2 CBM Self-Loading Concrete Mixer
2 CBM large mixing capacity
Self-loading bucket system
Automatic weighing function
Integrated concrete production
Hydraulic operating system
Strong four-wheel drive capability
High mobility design
Efficient mixing performance
Durable construction structure
Easy maintenance
Why Choose Our 2 CBM Self-Loading Concrete Mixer?
1. High Production Capacity

The 2 CBM mixing volume provides excellent concrete output for demanding projects.

2. Complete Concrete Solution

Loading, mixing, transportation, and discharge are completed by one machine.

3. Reduced Construction Costs

Minimizes the need for additional equipment and manpower.

4. Strong Working Flexibility

Suitable for various terrains and construction environments.

5. Reliable Equipment Performance

Durable components ensure long service life and stable operation.

6. Professional Service Support

We provide customized solutions, technical guidance, spare parts supply, and after-sales support.

FAQS
1. What is a 2 CBM Self-Loading Concrete Mixer?

A 2 CBM Self-Loading Concrete Mixer is a mobile concrete production machine that can load materials, mix concrete, transport, and discharge independently.

2. What does 2 CBM mean?

2 CBM refers to the mixing capacity of approximately 2 cubic meters of concrete per batch.

3. What projects are suitable for this machine?

It is suitable for buildings, roads, bridges, mining projects, industrial construction, and remote infrastructure projects.

4. Does it require a separate loader?

No. The built-in loading bucket allows the machine to load aggregates independently.

5. How many operators are required?

Normally, one trained operator can control the complete concrete production process.

6. Can it work in difficult environments?

Yes. The machine is designed for uneven terrain, remote areas, and challenging construction conditions.

7. What materials can it mix?

It can mix cement, sand, gravel, water, and other concrete components.

8. How can the service life of the mixer be extended?

Regular maintenance, cleaning, lubrication, and inspection of mechanical systems are recommended.

Prev：3.5 CBM Self-Loading Concrete Mixer

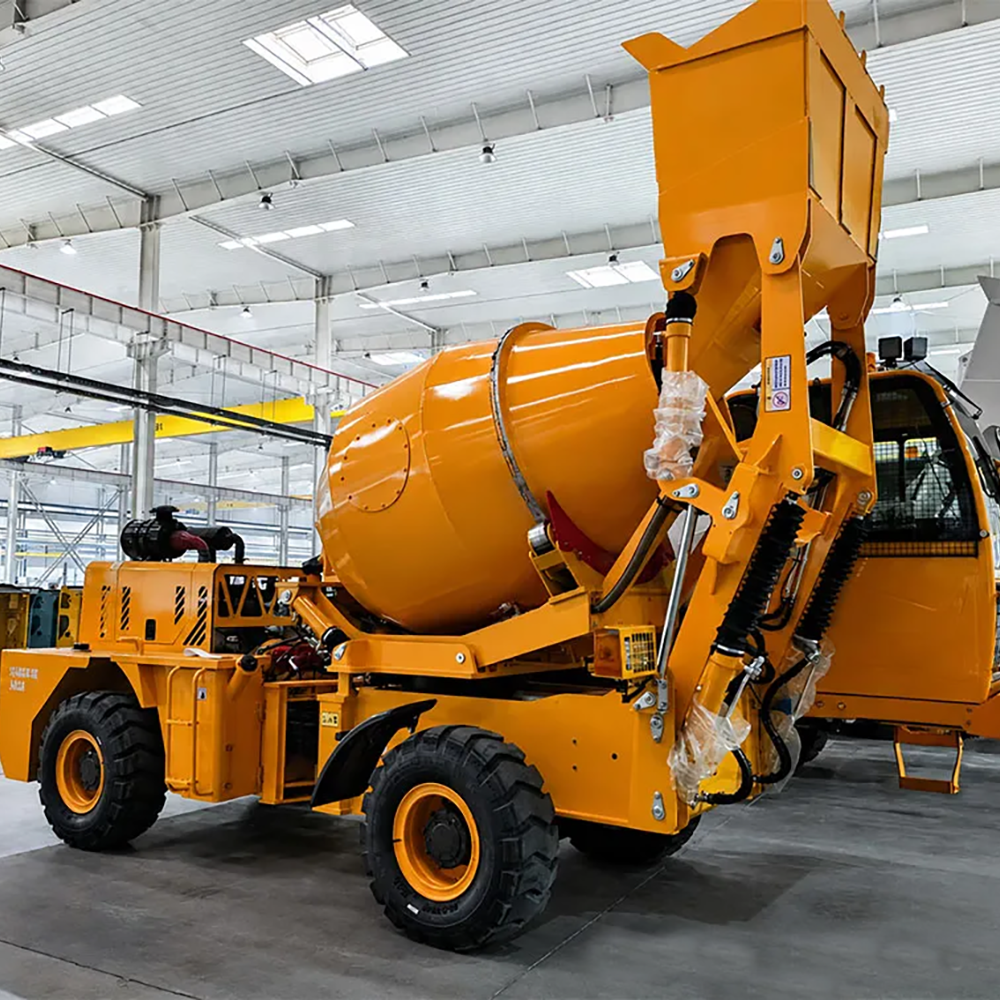

Next：1.8 CBM Self-Loading Concrete Mixer
