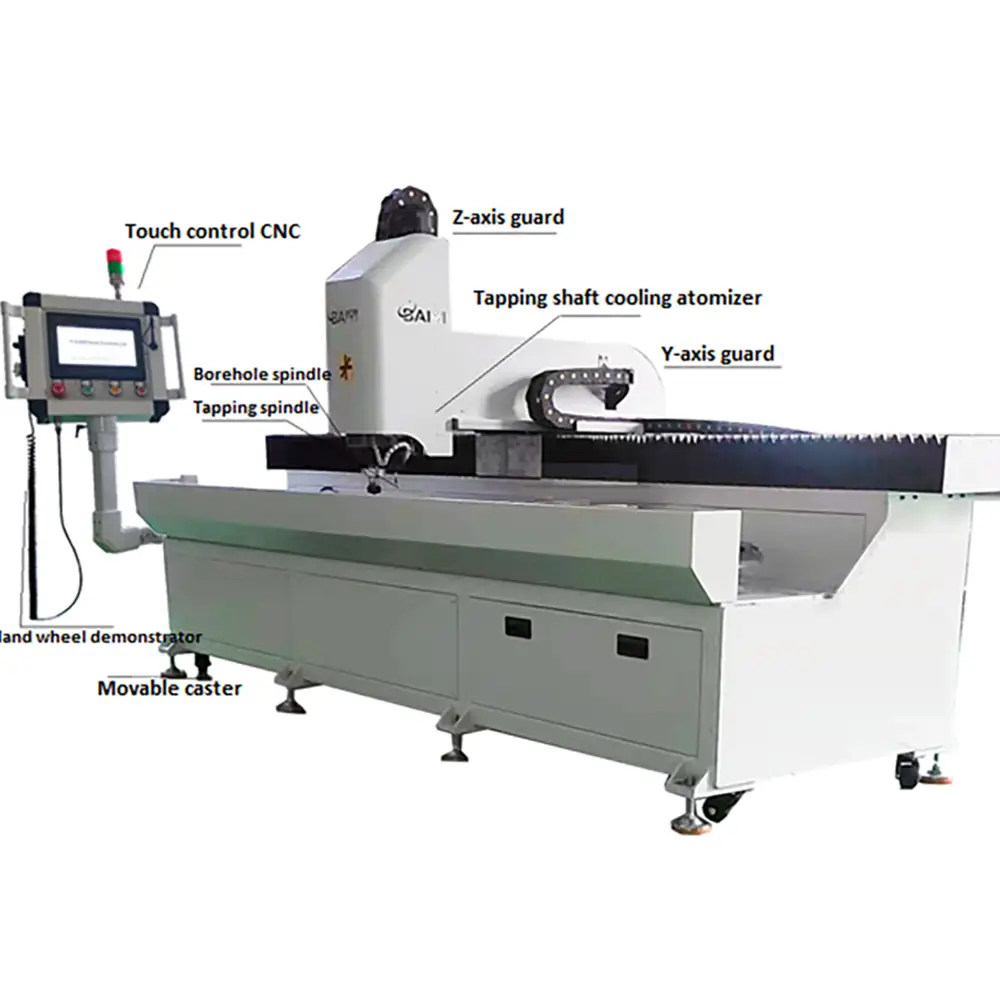

CNC Hot-melt Drilling and Tapping Machine for Thin Tubes

 Advanced CNC Hot Melt Drilling Technology

The machine uses a CNC-controlled drilling and tapping process to improve repeatability and production efficiency. The workpiece can be accurately positioned according to programmed coordinates, while the drilling head follows a controlled cycle.

During the hot melt drilling operation, the rotating tool generates frictional heat against the workpiece. Once the material reaches the appropriate forming temperature, the tool penetrates the tube wall and pushes the softened metal outward. The resulting formed bushing provides additional material thickness around the hole.

After the hot melt drilling process, the system can perform tapping to produce an internal thread. This integrated process reduces manual handling and helps maintain consistent hole and thread positioning from one workpiece to the next.

For manufacturers producing large quantities of tubular components, CNC automation can help reduce setup time, improve dimensional consistency, and simplify production management.

Ideal for Thin-Wall Tubes and Hollow Profiles

One of the major applications of this CNC tube drilling and tapping machine is the processing of thin-wall metal tubing. Conventional drilling and tapping can be challenging when the wall thickness is insufficient for a strong threaded connection. Hot melt drilling addresses this problem by forming additional material around the hole.

Typical workpieces include:

Round Steel Tubes
Square Steel Tubes
Rectangular Tubes
Stainless Steel Tubes
Carbon Steel Pipes
Aluminum Profiles
Structural Tubing
Hollow Metal Sections
Industrial Frames
Furniture Tubes
Automotive Tubular Components
Machinery Components
HVAC Components
Metal Fabrication Parts

The machine can be configured according to different tube dimensions, material requirements, hole sizes, thread specifications, and production conditions.

One Machine for Drilling and Tapping

Integrating drilling and tapping into one CNC system can provide important advantages for production environments. Operators do not need to repeatedly transfer workpieces between separate machines for hole making and thread cutting.

The typical process involves workpiece positioning, CNC hole location, hot melt drilling, hole preparation, and tapping. Depending on the machine configuration and application, additional operations may also be incorporated into the production workflow.

This integrated approach can help reduce handling, minimize positioning errors, and improve overall production efficiency.

For B2B manufacturers, the ability to process multiple workpieces with repeatable CNC coordinates is especially valuable. Once the appropriate machining parameters have been established, operators can reproduce the same drilling and tapping sequence across production batches.

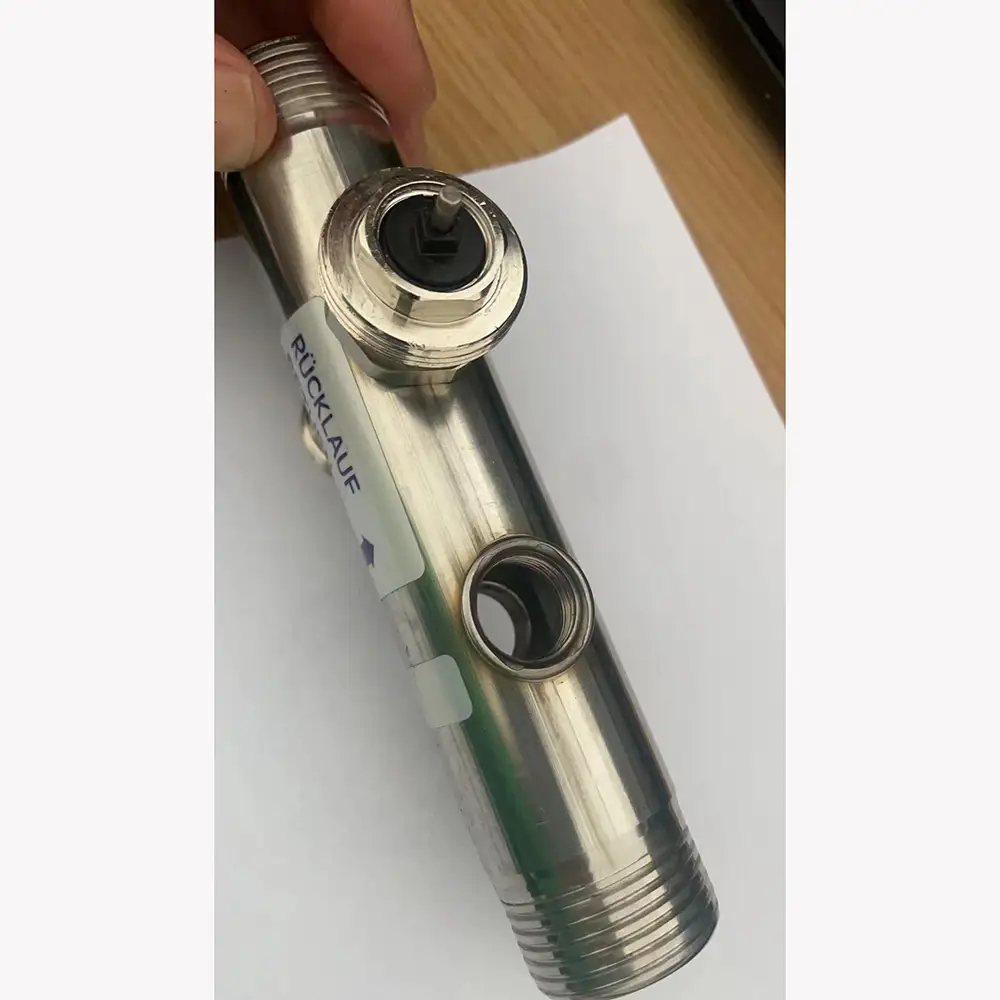

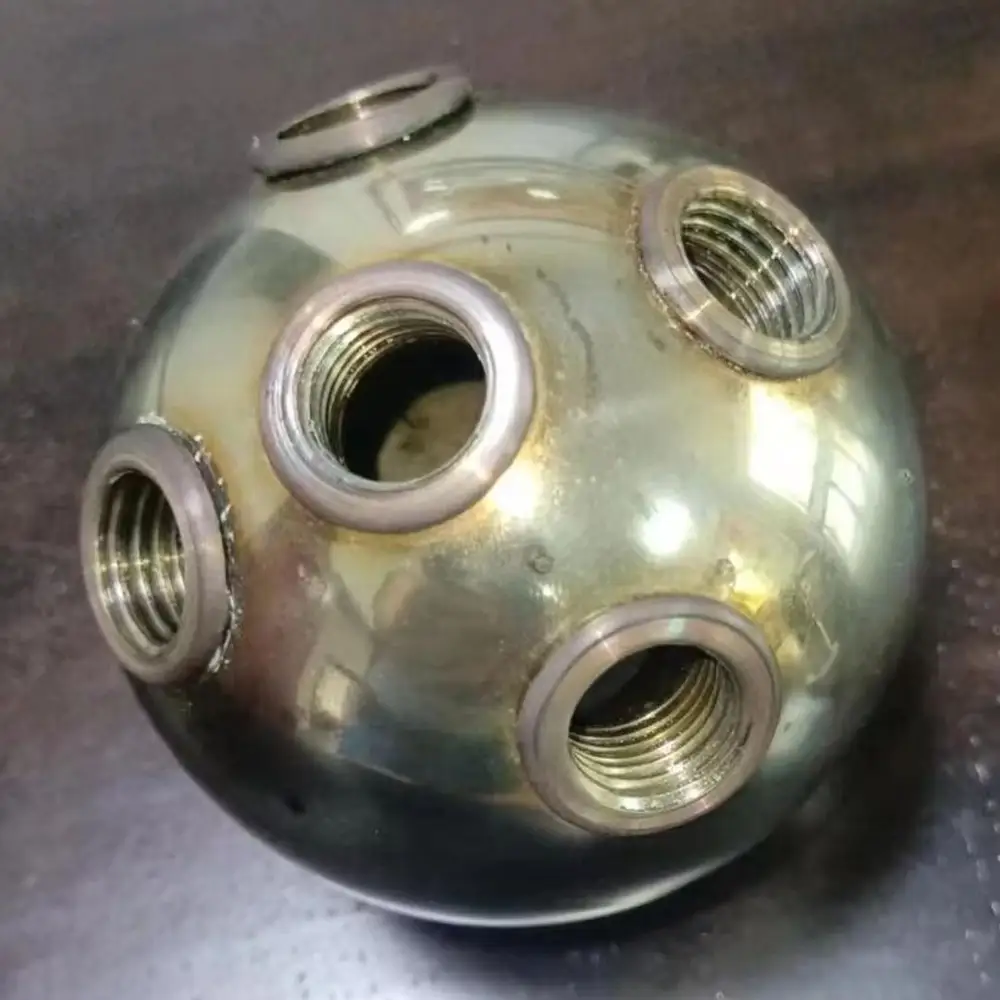

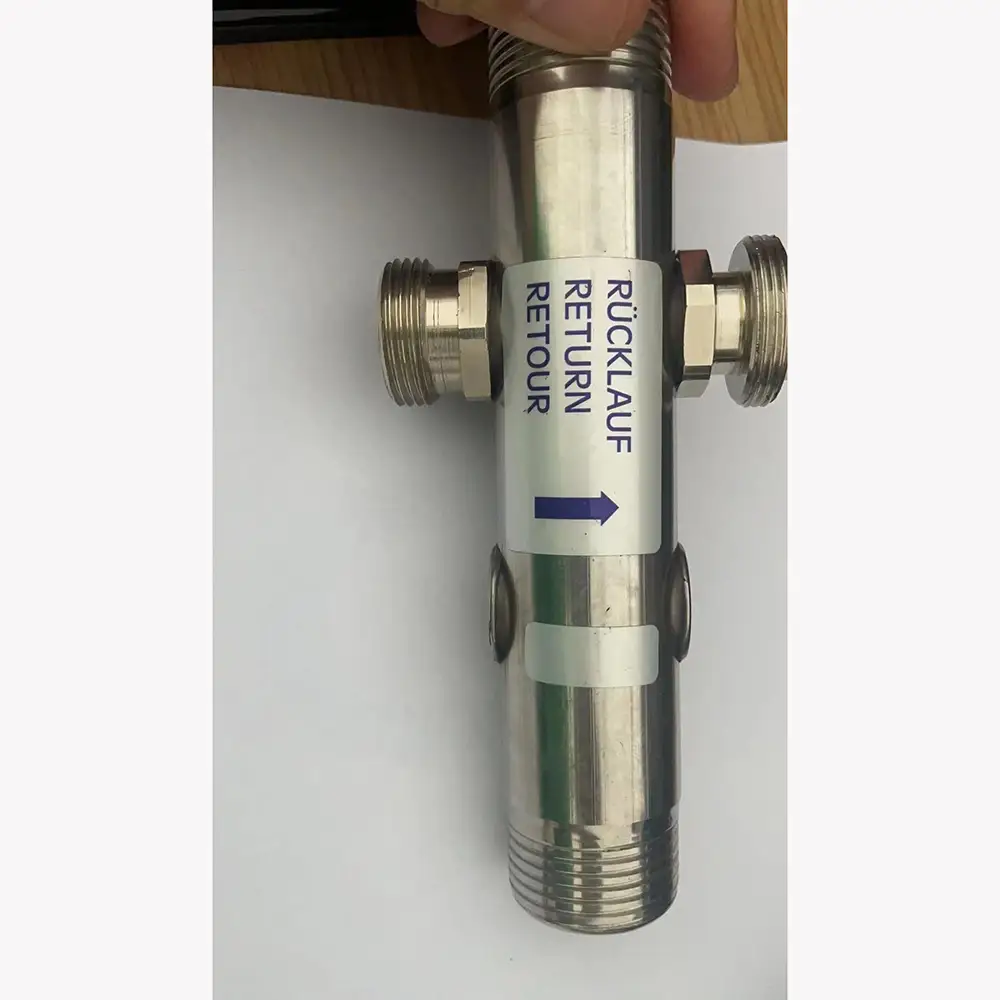

Stronger Threaded Connections for Thin Materials

A key advantage of flow drilling technology is its ability to create a formed bushing around the hole. Instead of relying only on the original tube wall thickness, the process redistributes material to create additional length for threading.

This can be particularly beneficial for applications requiring bolts, screws, or threaded fasteners to be installed directly into tubular components.

The resulting connection can offer improved thread engagement and better mechanical performance than a conventional tapped hole made directly through a very thin wall. Actual performance depends on material type, wall thickness, hole size, thread specification, tooling, and application requirements.

CNC Automation for Consistent Production

The CNC control system allows drilling positions and machining sequences to be programmed for repeat production. This is useful for manufacturers handling multiple holes or repeated tubular components.

Automated positioning can help reduce dependence on manual measurement and marking. It can also improve consistency between workpieces when appropriate fixtures and machining parameters are used.

For manufacturers producing steel frames, equipment structures, furniture components, automotive parts, agricultural machinery components, and other tubular products, CNC automation can provide a practical way to increase production capacity while maintaining consistent processing quality.

Applications Across Multiple Industries

The CNC Hot Melt Drilling and Tapping Machine can be used in a wide range of industrial applications.

In metal furniture manufacturing, it can create threaded holes in table frames, chair structures, shelving systems, and other tubular assemblies.

In automotive manufacturing, hot melt drilling can be used for tubular brackets, chassis-related components, structural assemblies, and other metal parts where threaded connections are required.

In machinery manufacturing, the machine can process frames, supports, brackets, guards, and structural tubing.

It can also be used in agricultural machinery, construction equipment, industrial equipment, HVAC systems, electrical enclosures, storage systems, and custom metal fabrication.

Efficient Solution for Industrial Metal Fabrication

Compared with separate drilling and tapping operations, a combined CNC system can streamline production by bringing multiple processes into one machine. Reduced workpiece transfers can help simplify production flow and reduce opportunities for positioning errors.

The machine is especially suitable for manufacturers looking for an automated solution for repetitive tube drilling and tapping work.

Tooling can be selected according to the workpiece material, tube dimensions, hole diameter, and thread requirements. Proper tool selection and machining parameters are important for achieving stable forming results and extending tool life.

Why Choose Our CNC Hot Melt Drilling and Tapping Machine?

1. CNC-Controlled Precision
Programmable CNC positioning provides accurate and repeatable drilling locations for production applications.

2. Drilling and Tapping Integration
The machine combines hot melt drilling and tapping functions, reducing unnecessary workpiece transfers.

3. Designed for Thin-Wall Materials
Flow drilling technology is particularly suitable for creating threaded connections in thin-wall tubes and hollow profiles.

4. Improved Thread Engagement
The formed bushing provides additional material for internal threads compared with simply tapping the original thin wall.

5. Broad Material Compatibility
Depending on tooling and machine configuration, the system can process various metal tubes and profiles, including steel, stainless steel, and aluminum.

6. Higher Production Efficiency
Automated CNC operation helps manufacturers handle repetitive production tasks more efficiently.

7. Flexible Industrial Applications
The machine can be used for furniture, automotive, machinery, agricultural equipment, construction, HVAC, and general metal fabrication.

8. Customizable for B2B Production
Machine configuration, tooling, fixtures, and processing parameters can be selected according to specific production requirements.

Frequently Asked Questions
1. What Is a CNC Hot Melt Drilling Machine?

A CNC hot melt drilling machine uses frictional heat to soften and form metal around a hole instead of simply removing material. The process creates a formed bushing that can provide additional material for subsequent tapping.

2. What Is Hot Melt Drilling Also Called?

Hot melt drilling is commonly referred to as flow drilling, thermal drilling, friction drilling, or flow drilling technology. Terminology may vary between manufacturers and markets.

3. Can This Machine Drill and Tap Thin Tubes?

Yes. The machine is specifically designed for applications where thin-wall tubes require drilled and tapped holes. The hot melt process forms additional material around the hole to increase available thread engagement.

4. What Materials Can Be Processed?

Depending on the machine configuration and tooling, applications may include carbon steel, stainless steel, mild steel, and aluminum tubing or profiles. Material suitability should be confirmed through application testing.

5. What Types of Tubes Can Be Machined?

Round, square, and rectangular tubes are common applications. The actual workpiece size depends on the machine's working range and fixture configuration.

6. Does Hot Melt Drilling Remove Material?

Unlike conventional drilling, the primary principle is material displacement and forming. The rotating tool generates frictional heat and forms the softened material into a bushing around the hole.

7. Why Use Flow Drilling Before Tapping?

Flow drilling creates additional material around the hole, which can provide greater thread engagement in thin-wall components. This makes it useful when conventional tapping would provide insufficient thread depth.

8. Is the Machine Suitable for Mass Production?

Yes. CNC control and automated positioning make this type of machine suitable for repetitive production. Production suitability depends on the required cycle time, workpiece geometry, tooling, and automation configuration.

9. Can the Machine Be Customized?

Machine configuration can typically be customized according to tube dimensions, hole and thread specifications, tooling requirements, CNC functions, fixtures, and production needs.

10. How Do I Select the Right Machine?

Important factors include tube material, tube wall thickness, tube dimensions, required hole diameter, thread size, number and location of holes, production volume, and required automation level. Providing these details allows the manufacturer to recommend an appropriate configuration.

Product SEO Advantages

For industrial buyers searching for a CNC hot melt drilling and tapping machine, this equipment provides an integrated approach to drilling and threading thin-wall tubular components. Its combination of CNC positioning, thermal drilling, material forming, and tapping makes it suitable for manufacturers that need repeatable threaded holes without relying solely on the original wall thickness.

Whether you manufacture metal furniture, automotive components, machinery frames, agricultural equipment, structural tubing, or custom fabricated parts, a CNC Flow Drilling and Tapping Machine can help create consistent threaded connections while simplifying the production process.

For OEM and wholesale buyers, the machine can be configured around specific tube sizes, materials, thread requirements, production volumes, and automation objectives. Contact the manufacturer with your workpiece drawings, tube specifications, required thread sizes, and production requirements for a suitable machine configuration and processing solution.
