3 Axis CNC Drilling and Milling Machine Vertical CNC Drill Mill for Metal Steel Aluminum

All-in-one drilling and milling unit, capable of drilling, slot milling, tapping and reaming to cut equipment and labor costs.
Smooth vertical sliding column with adjustable stroke, supporting automatic repeated up-and-down drilling cycles.
Heavy cast iron body and thickened column, low vibration during operation to maintain long-term machining precision.
CNC programmable automatic feeding, unattended operation ideal for mass continuous production.
Widely applicable to solid steel bars, aluminum profiles, stainless steel sheets and plastic workpieces.
Intuitive CNC control panel with simple programming; new workers can operate proficiently in one day.
CE certified for global export, customizable 380V industrial voltage to fit power supply in most regions.
Factory direct supply with customization on stroke, spindle and molds; ready stock for fast shipment.

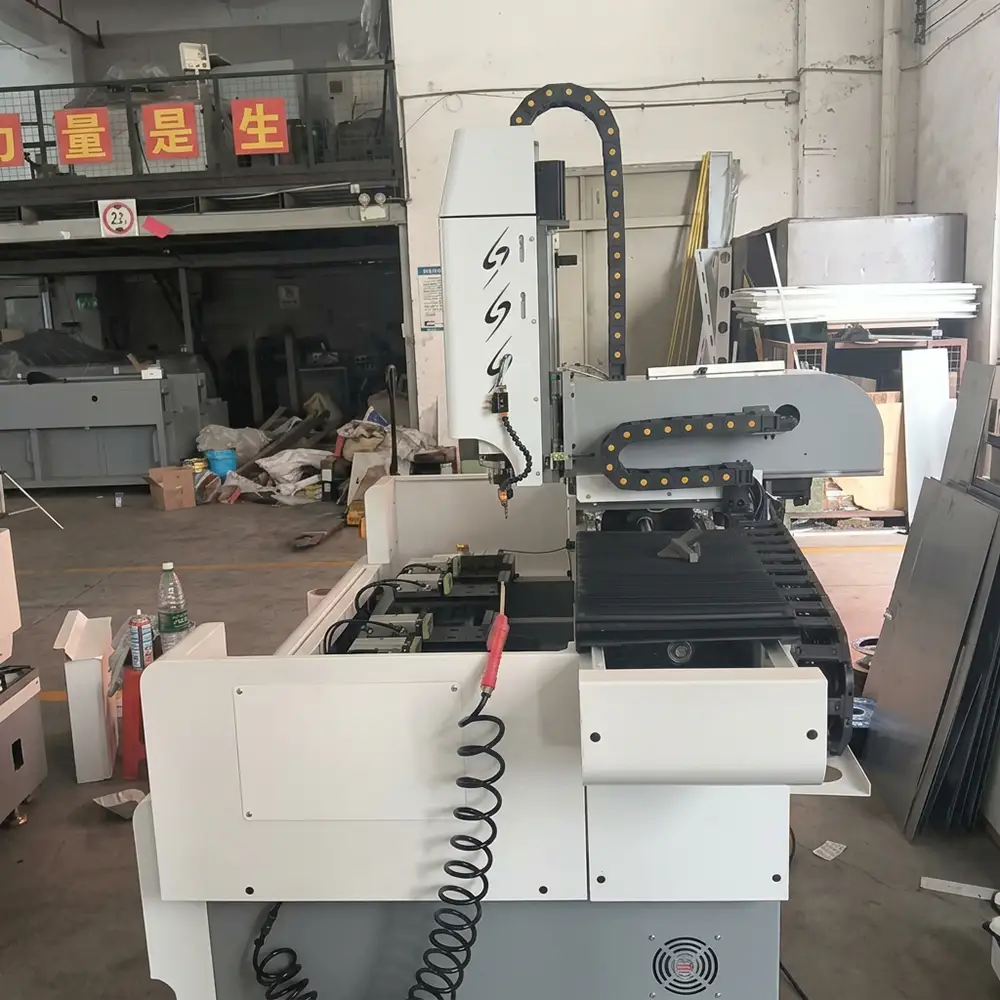

3 Axis CNC Drilling and Milling Machine

The 3 Axis CNC Drilling and Milling Machine Vertical CNC Drill Mill for Metal Steel Aluminum is an industrial CNC machining solution designed for precision drilling and milling of a wide range of metal components. With a three-axis CNC-controlled structure, the machine provides programmable movement for machining operations on steel, aluminum, and other machinable metal materials.

Combining drilling and milling functions in one machine allows manufacturers to perform multiple machining operations without transferring the workpiece between separate machines. Depending on the machine configuration, tooling, and CNC system, typical operations can include drilling, milling, tapping, countersinking, hole enlargement, slot milling, and surface machining.

The vertical CNC drill mill configuration provides a practical machining arrangement for workshops and production facilities that need reliable processing of metal parts, machine components, brackets, plates, flanges, housings, and other industrial products.

3 Axis CNC Machining System

The three-axis configuration generally provides controlled movement along the X, Y, and Z axes. These coordinated movements allow the cutting tool to approach the workpiece from the required machining position according to the programmed CNC coordinates.

CNC control helps reduce repetitive manual positioning and provides a repeatable machining process once the program, tooling, and workholding have been properly established.

For manufacturers producing batches of similar parts, the ability to save and reuse CNC programs can simplify production and help maintain consistent machining sequences.

The actual machining accuracy and performance depend on machine construction, CNC control, spindle configuration, tooling, workholding, material characteristics, programming, and cutting conditions.

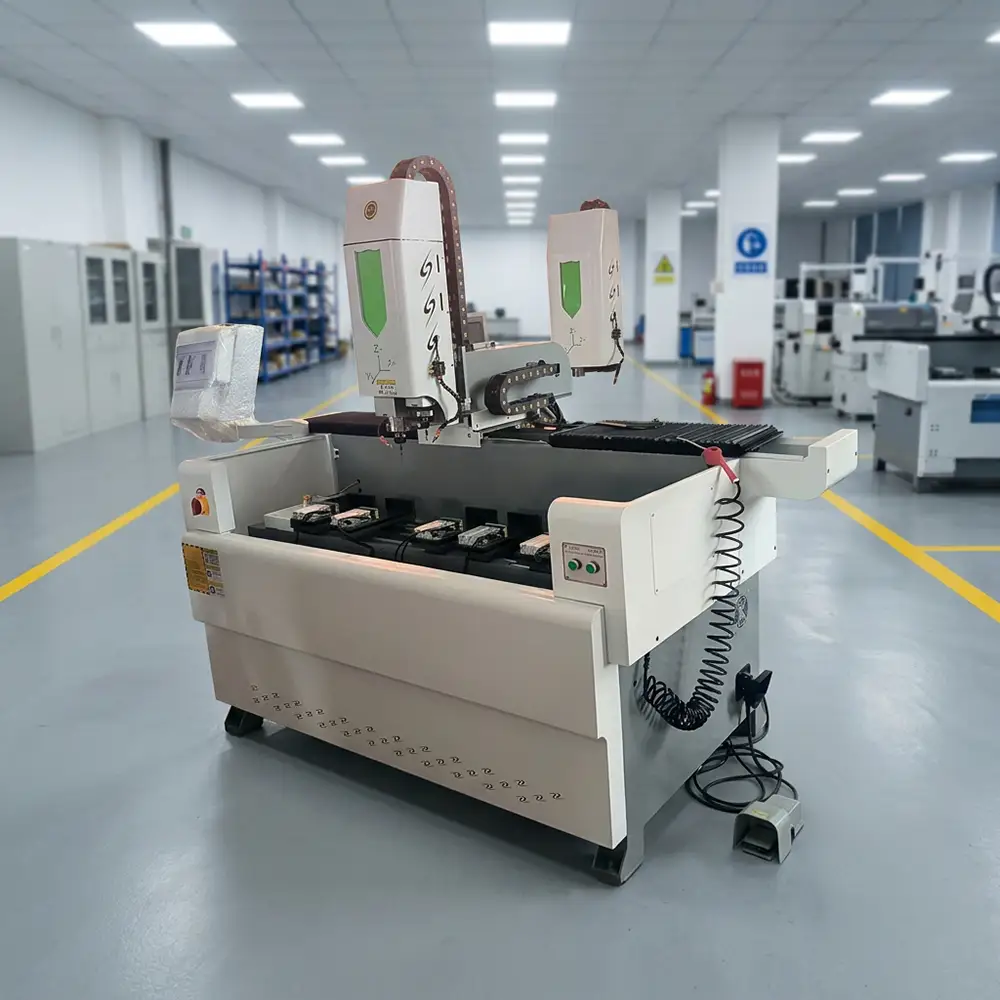

Vertical CNC Drill Mill Design

The Vertical CNC Drill Mill uses a vertical machining arrangement in which the cutting tool operates above the workpiece. This configuration is widely used for general-purpose metal drilling and milling applications.

A vertical setup can provide convenient access for loading and unloading many types of workpieces. It is suitable for machining flat plates, blocks, brackets, flanges, mechanical components, and other parts that can be securely positioned on the machine table.

The machine can also be equipped with customized fixtures for irregular-shaped workpieces. Proper workholding is important because stable positioning helps maintain machining consistency and prevents unwanted movement during cutting.

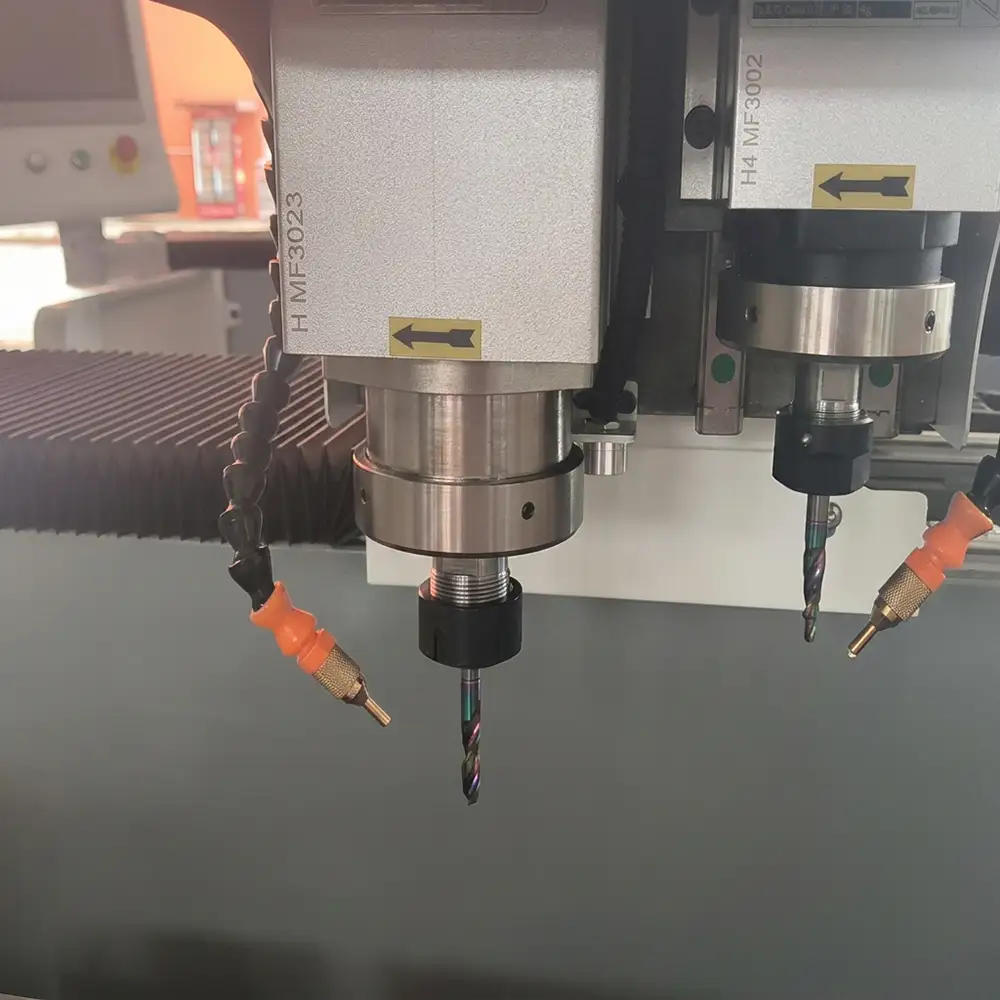

CNC Drilling for Metal Parts

Drilling is one of the primary applications of the machine. CNC-controlled drilling allows hole positions to be programmed according to the product drawing.

This is particularly useful when a component requires multiple holes with specific spacing or positioning.

Typical drilling applications include:

Mounting Holes
Through Holes
Blind Holes
Bolt Holes
Positioning Holes
Flange Holes
Bracket Holes
Assembly Holes
Tapping Preparation Holes

Depending on the tooling and machine configuration, additional hole-processing operations may also be possible.

For production applications, the CNC program can define the drilling sequence, helping operators repeat the same machining process across multiple workpieces.

CNC Milling for Steel and Aluminum

In addition to drilling, the machine provides CNC milling capability for machining surfaces and features on metal components.

Milling can be used for flat surfaces, slots, pockets, steps, contours, and other programmed features depending on the machine configuration and available cutting tools.

Steel and aluminum have different machining characteristics. Steel generally requires appropriate cutting tools and machining parameters based on its grade and hardness, while aluminum machining may require tooling and cutting conditions optimized for aluminum alloys.

The appropriate spindle speed, feed rate, depth of cut, coolant strategy, and cutting tool should be determined according to the material and machining requirements.

Steel Machining Applications

The 3 Axis CNC Drilling and Milling Machine for Steel can be used for a wide range of steel components.

Typical applications may include machine bases, steel brackets, mounting plates, flanges, industrial hardware, machinery components, construction components, and fabricated metal parts.

For harder steel grades or demanding machining applications, machine rigidity, spindle performance, tooling, workholding, and cutting parameters become particularly important.

Customers can provide the steel grade, workpiece dimensions, required hole sizes, and milling requirements so the appropriate machine configuration can be evaluated.

Aluminum Machining Applications

Aluminum is commonly used in automotive, aerospace-related components, electronics, machinery, construction, transportation, and general industrial manufacturing.

The 3 Axis CNC Milling Machine for Aluminum can produce holes, slots, pockets, mounting surfaces, and other machined features according to the CNC program.

Aluminum's relatively good machinability makes it suitable for high-efficiency CNC milling when the correct tools and machining conditions are used.

For customers processing different aluminum alloys, the tooling and machining parameters can be adjusted according to the material characteristics and desired surface finish.

Multi-Operation Machining

One of the key advantages of combining drilling and milling is the ability to perform multiple operations during one workholding setup.

For example, a metal bracket may require several drilled holes together with a milled surface or slot. A CNC drill mill can perform these operations according to a programmed machining sequence.

Keeping the workpiece in the same fixture can reduce unnecessary repositioning and help maintain the relationship between different machined features.

Depending on the application, additional operations such as tapping or countersinking may also be incorporated.

CNC Programming and Repeatability

The CNC control system allows machining movements to be programmed according to the geometry of the component.

Once the program has been tested and the workholding and tooling have been properly established, the same machining sequence can be repeated for subsequent workpieces.

This is useful for manufacturers producing standard parts or recurring OEM components.

CNC programming can also make it easier to switch between different products by loading the appropriate machining program and installing the corresponding tools or fixtures.

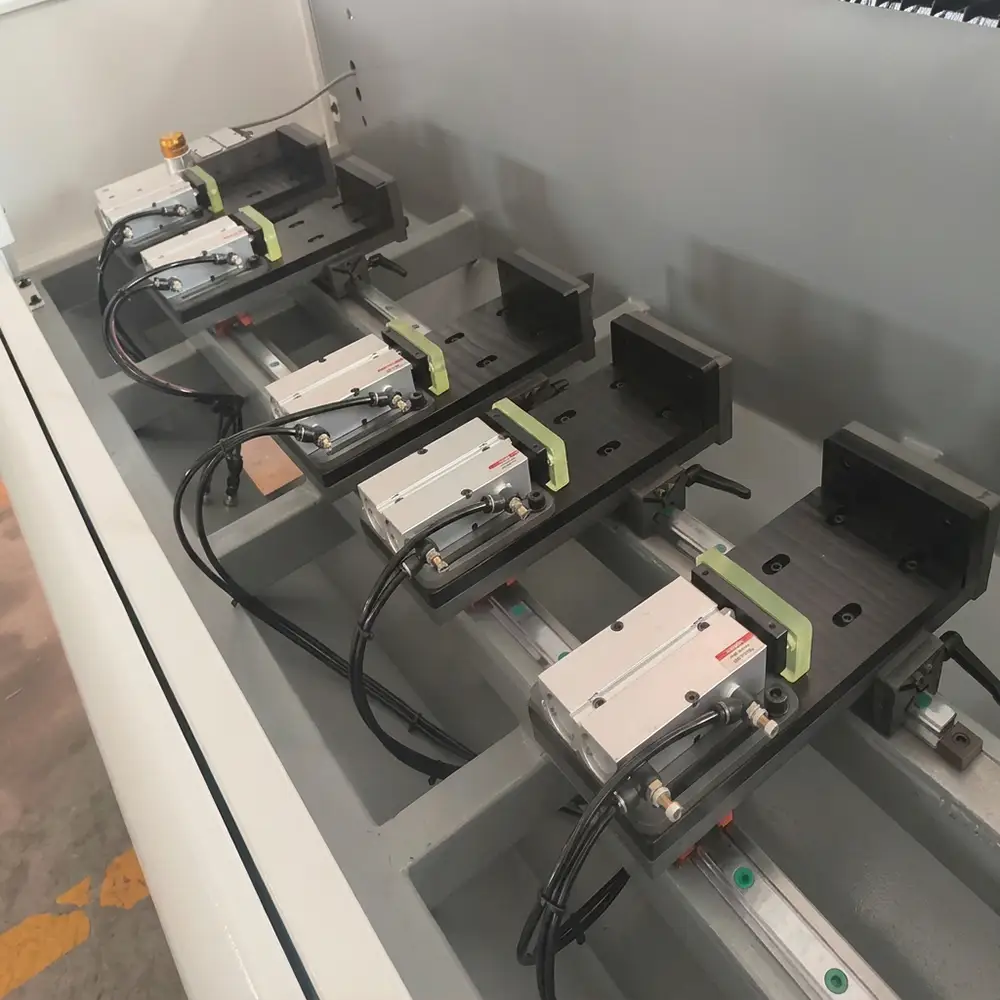

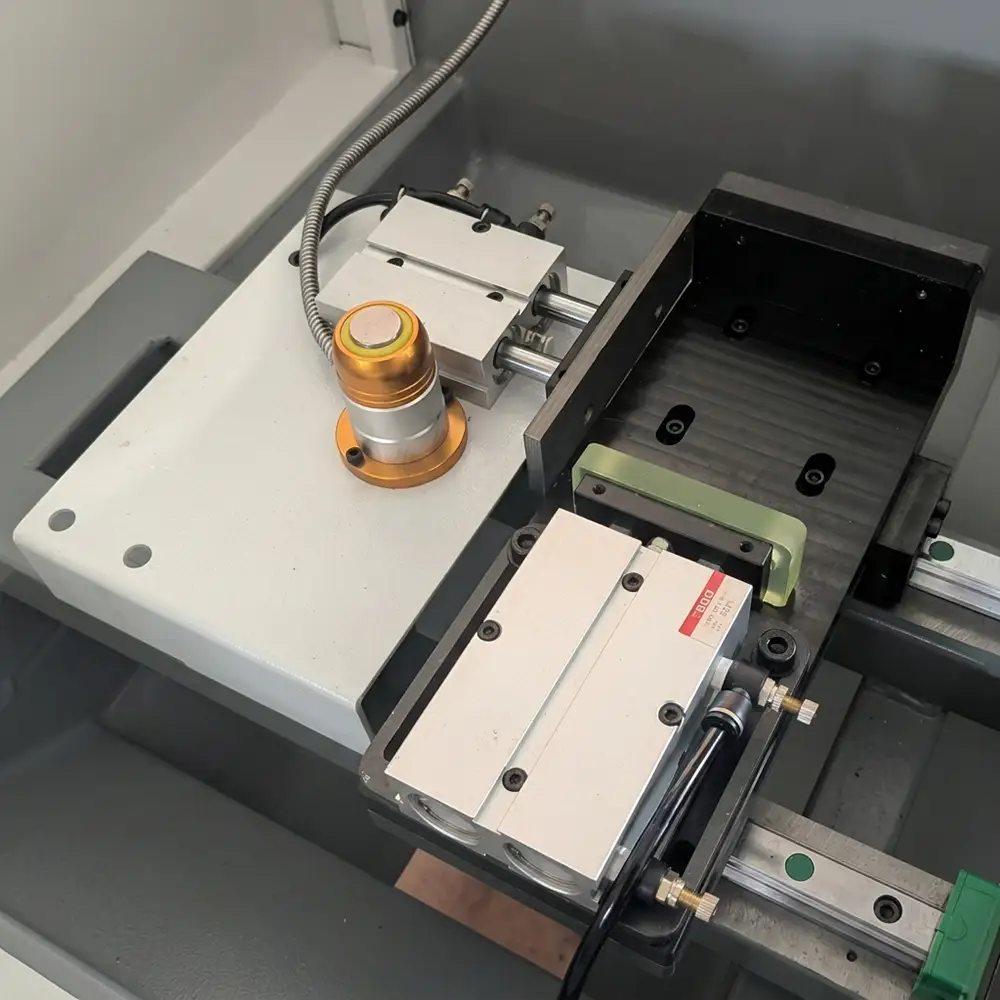

Custom Fixtures and Tooling

Different workpieces require different methods of positioning and clamping. For this reason, custom fixtures can be developed for specialized machining applications.

Fixtures may be designed for brackets, plates, blocks, flanges, housings, pipe components, irregular metal parts, and other products.

Tool selection is equally important. Drill bits, end mills, taps, countersinks, and other cutting tools should be selected according to the machining operation and material.

For production applications involving multiple product models, interchangeable fixtures and organized tooling systems can improve production flexibility.

Applications

The 3 Axis CNC Drilling and Milling Machine can be used for:

Steel Machining
Aluminum Machining
Metal Component Manufacturing
Machinery Parts
Automotive Components
Agricultural Machinery Parts
Construction Hardware
Industrial Brackets
Metal Plates
Flanges
Machine Housings
Mounting Components
Hardware Components
Custom CNC Parts
OEM Metal Components

The actual application range depends on the workpiece dimensions, material, machining requirements, machine configuration, and tooling.

Factory Direct CNC Machine Solution

Factory-direct supply allows customers to discuss machine configuration and production requirements directly with the manufacturer.

For B2B buyers, technical communication is especially important when the machine is intended for a specific product rather than general-purpose machining.

Customers can provide drawings, samples, material specifications, required tolerances, hole dimensions, milling requirements, and expected production volume. Based on this information, a suitable machine, tooling, and fixture solution can be evaluated.

OEM and Custom CNC Solutions

The machine can be adapted to different manufacturing requirements through customized tooling, fixtures, CNC programs, and other accessories.

For OEM production, the complete machining process can be evaluated from workpiece loading to drilling, milling, inspection, and unloading.

Sample testing is recommended for applications with complex geometries, demanding tolerances, special materials, or unusual machining requirements.

Why Choose Our 3 Axis CNC Drill Mill Machine?
1. 3 Axis CNC Control

Provides programmable X, Y, and Z axis movement for repeatable drilling and milling operations.

2. Drilling and Milling Combination

Allows multiple machining operations to be performed on the same CNC machine.

3. Vertical Machining Structure

The vertical configuration is suitable for a wide range of metal components and general industrial machining applications.

4. Steel and Aluminum Machining

Can be configured for steel, aluminum, and other machinable metals according to the application.

5. Custom Fixture Support

Dedicated workholding fixtures can be developed for special-shaped or production-specific components.

6. Repeatable Production

CNC programs can be reused for recurring production jobs after proper setup and testing.

7. Factory Direct Supply

Direct manufacturer communication supports machine configuration, tooling, customization, and technical consultation.

8. OEM Machining Solutions

Customized CNC machining solutions can be evaluated according to customer drawings, samples, materials, and production requirements.

FAQ
1. What is a 3 Axis CNC Drilling and Milling Machine?

It is a CNC-controlled machine that uses three-axis movement to perform drilling and milling operations on metal workpieces. Depending on configuration, it may also support tapping, countersinking, and other machining processes.

2. What materials can this CNC machine process?

It can be configured for steel, aluminum, and various other machinable metals. The appropriate tooling and cutting conditions depend on the specific material.

3. Can it drill steel?

Yes. The machine can be used for steel drilling when equipped with suitable tooling and machining parameters.

4. Can it mill aluminum?

Yes. Aluminum milling is a common application. Cutting tools and machining conditions should be selected according to the aluminum alloy and required surface finish.

5. What does 3 axis mean?

Three-axis CNC machining generally refers to controlled movement along the X, Y, and Z axes. These coordinated movements allow the cutting tool to machine programmed features on the workpiece.

6. Is this a vertical CNC milling machine?

Yes. The machine uses a vertical machining arrangement and combines CNC drilling and milling functions.

7. Can it perform both drilling and milling?

Yes. The machine is designed to combine CNC drilling and milling operations, with the exact available functions depending on the machine configuration and tooling.

8. Can it perform tapping?

Tapping may be available depending on the CNC system, spindle configuration, tooling, and machine model. The requirement should be confirmed when selecting the machine.

9. Can custom fixtures be supplied?

Yes. Custom fixtures can be developed for specific workpiece shapes and machining requirements.

10. Is it suitable for batch production?

Yes. CNC programming and repeatable workholding make it suitable for repeated production of the same or similar metal components.

11. How do I select the correct machine?

Important factors include workpiece dimensions, material, hole diameter, hole quantity, milling operations, required tolerances, production volume, tooling requirements, and available workspace.

12. What information should I provide for a quotation?

Please provide product drawings or samples, material type, workpiece dimensions, hole specifications, milling requirements, tolerances, production volume, and any special automation or fixture requirements.
