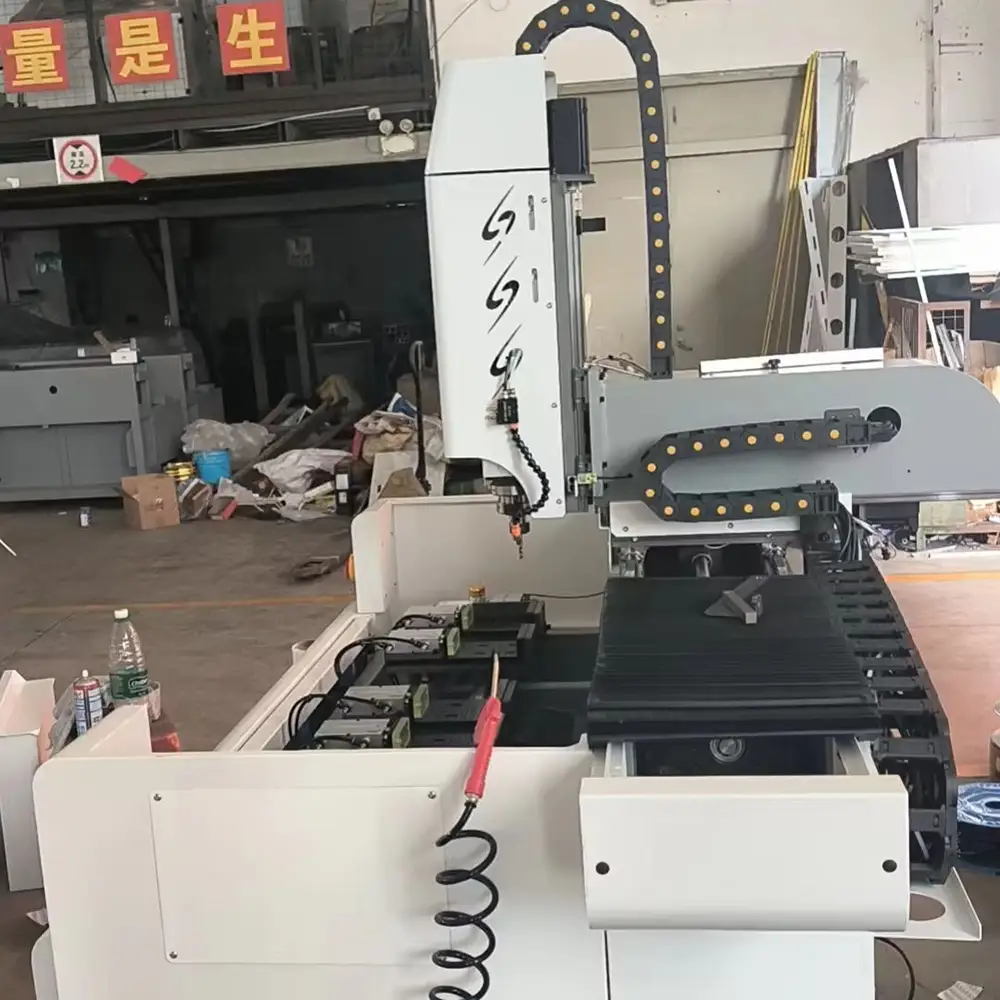

CNC Drill Mill Factory Direct CNC Drilling Milling Machine for Metal Pipe Tube Fittings Steel Aluminum Machining

All-in-one drilling and milling unit, capable of drilling, slot milling, tapping and reaming to cut equipment and labor costs.
Smooth vertical sliding column with adjustable stroke, supporting automatic repeated up-and-down drilling cycles.
Heavy cast iron body and thickened column, low vibration during operation to maintain long-term machining precision.
CNC programmable automatic feeding, unattended operation ideal for mass continuous production.
Widely applicable to solid steel bars, aluminum profiles, stainless steel sheets and plastic workpieces.
Intuitive CNC control panel with simple programming; new workers can operate proficiently in one day.
CE certified for global export, customizable 380V industrial voltage to fit power supply in most regions.
Factory direct supply with customization on stroke, spindle and molds; ready stock for fast shipment.

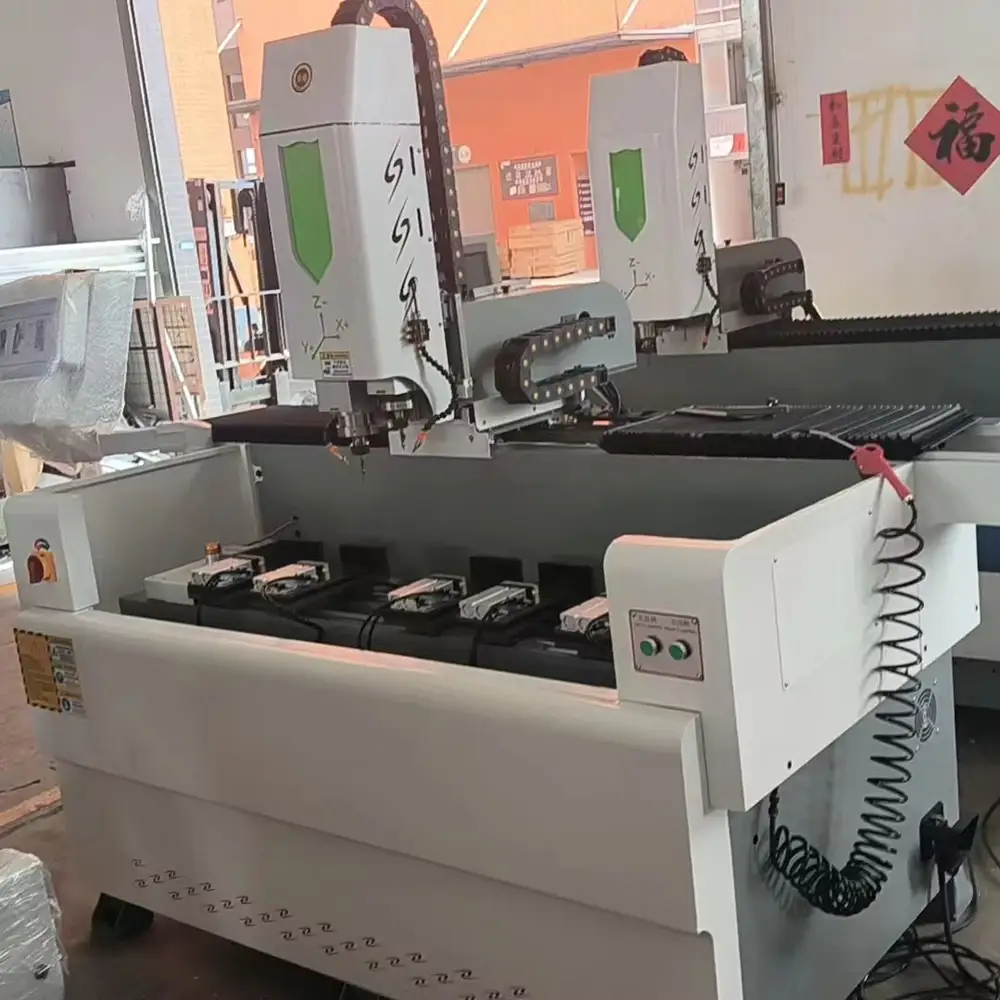

CNC Drill Mill Factory Direct CNC Drilling Milling Machine for Metal Pipe Tube Fittings

The CNC Drill Mill Factory Direct CNC Drilling Milling Machine for Metal Pipe Tube Fittings Steel Aluminum Machining is an industrial CNC machining solution designed for manufacturers that need accurate drilling and milling operations on metal components. Combining CNC drilling and milling capabilities in one machine, it can help manufacturers process pipe fittings, tube fittings, steel components, aluminum parts, brackets, flanges, connectors, and other precision metal products.

CNC drill mill technology provides computer-controlled machining movement, helping operators achieve consistent positioning and repeatable processing. For manufacturers producing batches of similar components, this can reduce dependence on manual measurement and improve production consistency.

The machine can be configured for different metal machining applications according to the workpiece dimensions, material, hole pattern, milling requirements, tooling, and production volume. Steel and aluminum are common materials, while other machinable metals can also be evaluated according to the specific machine configuration and cutting conditions.

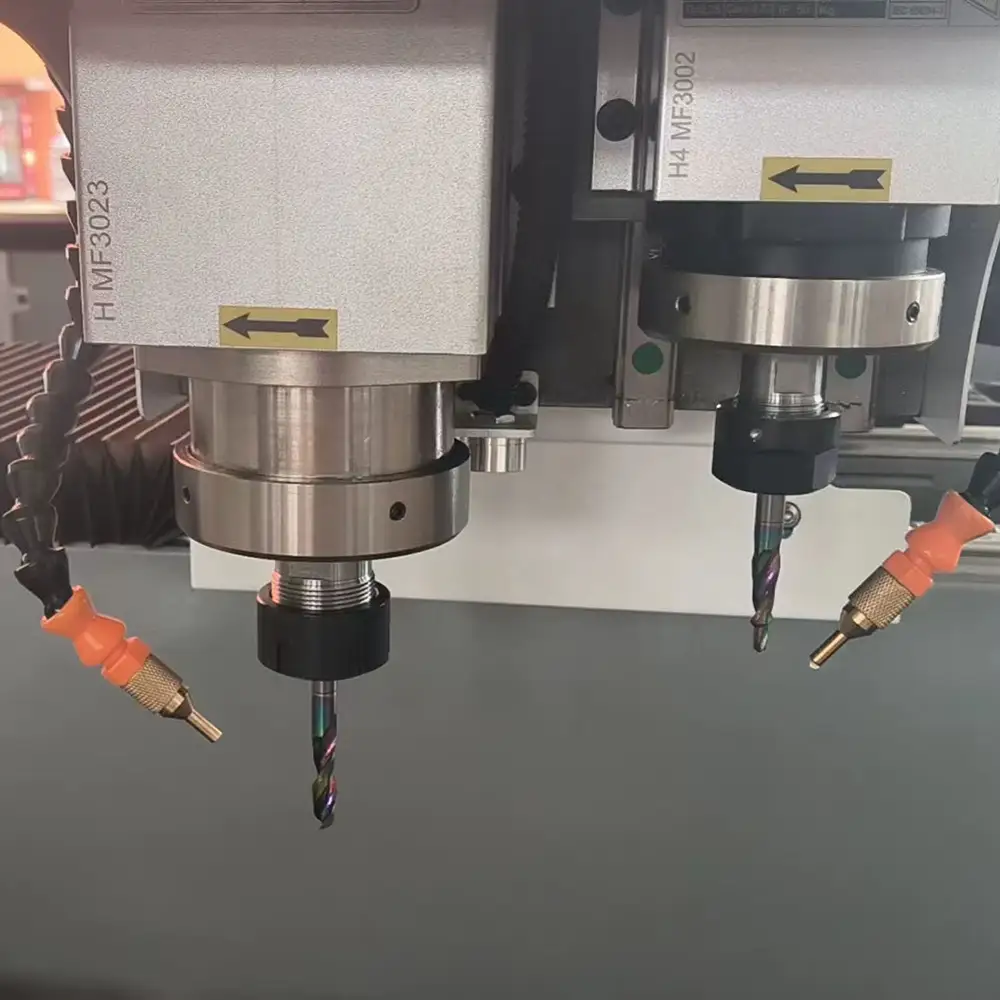

CNC Drilling and Milling in One Machine

A major advantage of a CNC Drill Mill Machine is the ability to perform multiple machining operations within a single CNC-controlled process. Depending on the configuration, the machine can perform drilling, milling, hole enlargement, slotting, tapping, countersinking, and related machining operations.

For pipe and tube fittings, multiple holes or accurately positioned machining features are often required. CNC control allows the machining coordinates to be programmed according to the product drawing, helping maintain consistent hole locations across repeated workpieces.

Instead of manually positioning every hole, the operator can load the workpiece, secure it with an appropriate fixture, and execute the programmed machining cycle.

This makes the equipment suitable for both standard production and customized metal component manufacturing.

CNC Machining for Metal Pipe and Tube Fittings

Pipe fittings and tube fittings can have complex shapes and multiple machining requirements. Applications may include drilling holes through fitting bodies, machining mounting holes, creating slots, milling flat surfaces, or preparing connection areas.

The CNC Drilling Milling Machine for Metal Pipe Tube Fittings can be equipped with dedicated fixtures designed around the geometry of the workpiece. Proper workholding is particularly important for irregular pipe fittings because secure positioning helps prevent movement during cutting.

Depending on the product design, customized fixtures can be developed for elbows, connectors, flanges, sleeves, couplings, brackets, pipe clamps, and other metal components.

For manufacturers with several fitting sizes, interchangeable fixtures or adjustable workholding solutions can provide greater production flexibility.

Steel Machining Capability

Steel components require suitable cutting tools, machining parameters, workholding, and machine rigidity. A properly configured CNC drilling and milling machine can be used for various steel machining applications.

Typical steel components may include pipe fittings, industrial brackets, flanges, structural components, machine parts, mounting plates, and other fabricated metal products.

CNC-controlled positioning helps maintain repeatable machining coordinates during batch production. The actual machining capability depends on the steel grade, workpiece dimensions, material hardness, cutting tools, spindle configuration, and required machining operations.

For demanding steel machining applications, customers can provide material specifications and sample workpieces so that the appropriate configuration can be evaluated.

Aluminum Machining Applications

Aluminum is widely used in automotive, construction, machinery, electronics, transportation, and industrial manufacturing because of its lightweight characteristics and machinability.

The CNC Milling Machine for Aluminum Machining can be used to produce holes, slots, flat surfaces, mounting features, and other machined details on aluminum components.

Aluminum machining may require different tooling and cutting parameters from steel machining. The appropriate spindle, cutting tools, feed rate, and machining strategy should therefore be selected according to the aluminum alloy and product requirements.

With CNC programming, manufacturers can repeat the same machining sequence across multiple aluminum parts while maintaining consistent positioning.

Factory Direct CNC Machine Supply

As a factory direct CNC machine solution, the equipment can be supplied according to the customer's production requirements instead of relying only on standard configurations.

Factory-direct purchasing can also make it easier to discuss custom fixtures, tooling, CNC programming requirements, machine configuration, packaging, installation support, and after-sales service directly with the manufacturer.

For B2B buyers, this can be particularly useful when the machine is being purchased for a specific pipe fitting or metal component rather than general-purpose machining.

Customers can provide product drawings, workpiece samples, machining requirements, and expected production volume for machine selection and technical evaluation.

Precision CNC Positioning

CNC control provides programmable movement for machining operations. Once the machining program and workholding setup have been properly established, the machine can repeat the programmed process for subsequent workpieces.

This is valuable when manufacturing components with multiple holes or repeated geometric features.

For example, a pipe fitting may require several holes positioned at specific coordinates. The CNC program can define the machining locations, while the fixture holds the workpiece in a repeatable position.

Actual machining accuracy depends on machine construction, tooling condition, workholding, material characteristics, programming, cutting parameters, and other production factors.

Flexible Machining Operations

Depending on machine configuration and tooling, the CNC drill mill can support a range of machining operations, including:

CNC Drilling
CNC Milling
Hole Machining
Tapping
Countersinking
Slot Milling
Flat Surface Milling
Hole Enlargement
Positioning Hole Machining
Mounting Hole Machining
Custom CNC Machining

This flexibility allows one machine platform to support different products and machining requirements.

For manufacturers producing multiple types of pipe fittings, tube fittings, brackets, and metal components, CNC machining can provide a flexible production method without requiring a completely different machine for every operation.

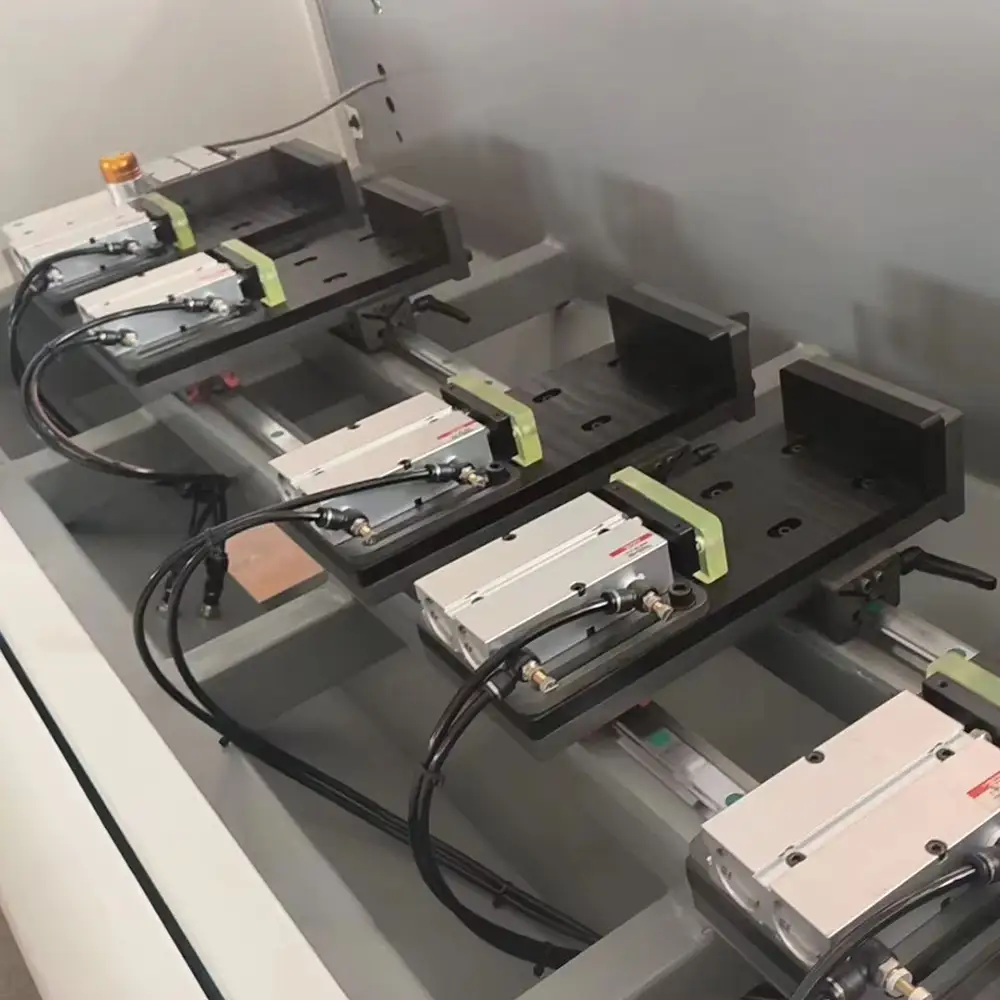

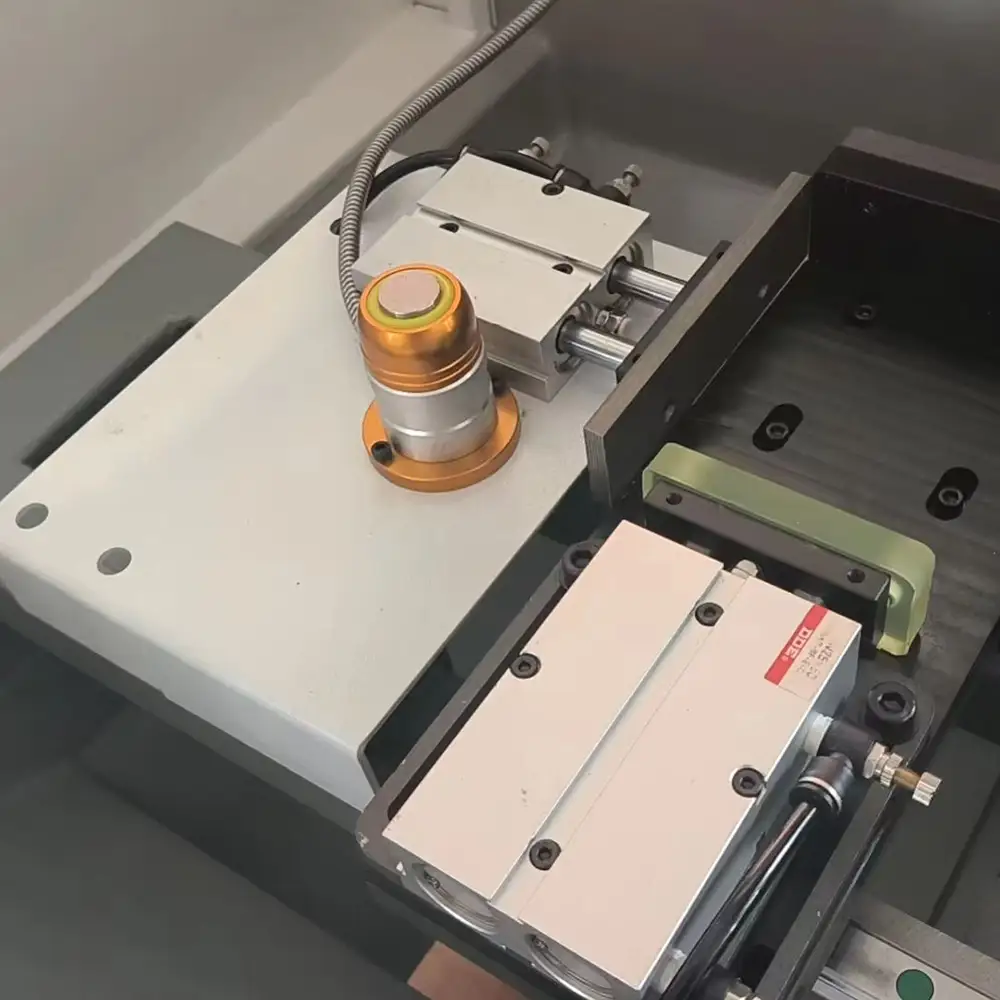

Workholding and Custom Fixtures

Fixture design is an important part of CNC machining, especially for pipe fittings and irregular metal components.

A suitable fixture should hold the workpiece securely while providing repeatable positioning and sufficient access for the cutting tool.

Custom fixtures can be designed around specific workpiece shapes and machining requirements. For example, special fixtures may be used for round tubes, elbows, flanges, couplings, irregular fittings, or long metal components.

If multiple products are manufactured, modular or interchangeable fixture solutions can also be considered.

Applications

The CNC Drill Mill Machine can be used across a wide range of industrial applications, including:

Metal Pipe Fittings
Tube Fittings
Steel Fittings
Aluminum Fittings
Flanges
Pipe Connectors
Couplings
Elbows
Mounting Brackets
Industrial Hardware
Machinery Components
Automotive Components
Construction Hardware
Agricultural Machinery Parts
Custom Metal Components

The actual application range depends on workpiece size, material, machining requirements, machine configuration, and tooling.

Suitable for B2B Production

The machine is designed for manufacturers, machining workshops, component suppliers, hardware factories, and industrial production companies that require CNC-controlled drilling and milling.

For small and medium production batches, CNC machining can reduce repetitive manual positioning. For higher-volume production, dedicated fixtures and optimized CNC programs can help establish a standardized machining workflow.

Manufacturers can also use CNC programming to maintain consistent machining sequences between production batches, provided the workholding, tools, and process parameters are properly maintained.

OEM and Customized CNC Machining Solutions

Different products require different machining strategies. For this reason, customized solutions can be developed according to product drawings and production requirements.

Customization may include CNC machine configuration, workholding fixtures, cutting tools, tooling arrangements, machining programs, and other production accessories.

For OEM customers, we can evaluate the complete machining process and recommend a suitable configuration based on the actual product.

Before placing an order, customers are encouraged to provide:

Product drawings
Workpiece dimensions
Material type
Required hole diameter
Hole quantity and position
Milling requirements
Required tolerances
Production volume
Sample workpieces, if available

This information helps determine the appropriate machine configuration and tooling solution.

Why Choose Our CNC Drill Mill Machine?
1. CNC Drilling and Milling

Combines CNC-controlled drilling and milling capabilities for flexible metal machining applications.

2. Designed for Metal Components

Suitable for steel, aluminum, and other machinable metal components according to the machine configuration.

3. Pipe and Tube Fitting Applications

Can be configured with dedicated fixtures for pipe fittings, tube fittings, flanges, connectors, and irregular components.

4. Factory Direct Supply

Direct communication with the manufacturer for machine configuration, tooling, fixtures, customization, and technical support.

5. Repeatable CNC Machining

Programmable machining cycles help provide consistent positioning and repeatable production.

6. Custom Fixture Support

Special workholding solutions can be developed for specific pipe, tube, fitting, and metal component geometries.

7. Flexible Production

Suitable for different machining operations and various production volumes, depending on machine configuration.

8. OEM and Custom Solutions

Machine configurations can be evaluated according to customer drawings, samples, materials, and machining requirements.

FAQ
1. What is a CNC Drill Mill Machine?

A CNC Drill Mill Machine is a computer-controlled machining system capable of performing drilling and milling operations on metal workpieces. Depending on configuration, it may also support tapping, countersinking, slotting, and other operations.

2. Can this machine process pipe fittings?

Yes. The machine can be configured for pipe fittings, tube fittings, flanges, connectors, elbows, couplings, and other metal components using suitable workholding fixtures and tooling.

3. Can it machine steel?

Yes. Steel machining is one of the potential applications. The actual capability depends on the steel grade, workpiece dimensions, tooling, spindle configuration, and required machining process.

4. Can it machine aluminum?

Yes. The machine can be configured for aluminum machining. Appropriate cutting tools and machining parameters should be selected according to the aluminum alloy and application.

5. What machining operations can it perform?

Depending on configuration, operations can include drilling, milling, tapping, countersinking, slot milling, hole enlargement, and other CNC machining processes.

6. Can the fixture be customized?

Yes. Custom fixtures can be developed for specific pipe fittings, tube fittings, flanges, brackets, and irregular-shaped workpieces.

7. Is this machine suitable for batch production?

Yes. CNC programming and repeatable workholding make it suitable for repeated machining operations and batch production.

8. Can one machine process different products?

Yes, depending on the machine configuration. Different CNC programs, tools, and fixtures can be used for different workpieces.

9. How do I choose the right CNC drill mill?

Important information includes workpiece dimensions, material, hole diameter, hole quantity, machining locations, milling requirements, tolerances, production volume, and required automation level.

10. Can you provide OEM machining solutions?

Yes. OEM customers can provide drawings or samples for evaluation. Machine configuration, fixtures, tooling, and machining processes can be discussed according to the application.

11. Does the machine require special tooling for pipe fittings?

In many applications, dedicated or customized fixtures are recommended to ensure stable and repeatable workpiece positioning. Tool selection depends on the material and machining operation.

12. What information is needed for a quotation?

Please provide product drawings or samples, workpiece material, dimensions, hole specifications, machining requirements, expected production volume, and any special tolerance or automation requirements.
