Vibrating Screen Machine, Mining Circular Vibrating Screen Machine Factory Price

Vibrating screening machine is widely used to classify the minerals such as stone,sand, ore and othe kinds of minerals in mining, quarry, construction, building material industry. It can be featured with 2 layers, 3 layers, 4 layers. It is used to sort and classify the materials accoding to the particle size by its circular vibration. Range of application: Quarry, Building material, Transportation, Energy, Chemistry, etc. Applied Material: Quartz stone, River pebbles, Calcite, Dolomite, Granite, Basalt, Iron ore, Limestone, Diabase.

Model	Screen Mesh (mm)	Layers	Sieve Pore Size(mm)	Max.Feed Size(mm)	Capacity (t/h)	Power (kw)	Vibrating Frequency (r/min)	Double Amplitude (mm)
2YZS1237	1200×3700	2	4-50	200	30-100	5.5	960	4-8
3YZS1237	1200×3700	3	4-50	200	30-100	7.5	960	4-8
2YZS1548	4800×1500	2	3-100	400	30-275	15	870	5-9
4YZS1860	6000*1800	4	3-80	400	56-330	22	970	5-9
3YZS1548	4800×1500	3	3-100	400	30-275	15	870	5-9
2YZS1848	4800×1500	2	3-100	400	56-330	18.5	870	5-9
3YZS1848	4800×1800	3	3-100	400	56-330	18.5	870	5-9
2YZS1860	6000×1800	2	3-100	400	65-586	22	870	5-9
3YZS1860	6000×1800	3	3-100	400	65-586	22-30	870	5-9
2YZS2160	6000×2100	2	3-100	400	81-720	30	730	5-9
3YZS2160	6000×2100	3	3-100	400	81-720	30-37	730	5-9
2YZS2460	6000×2400	2	3-150	400	100-810	37	770	5-9
4YZS1848	4800*1500	4	3-80	400	56-330	22	970	5-9

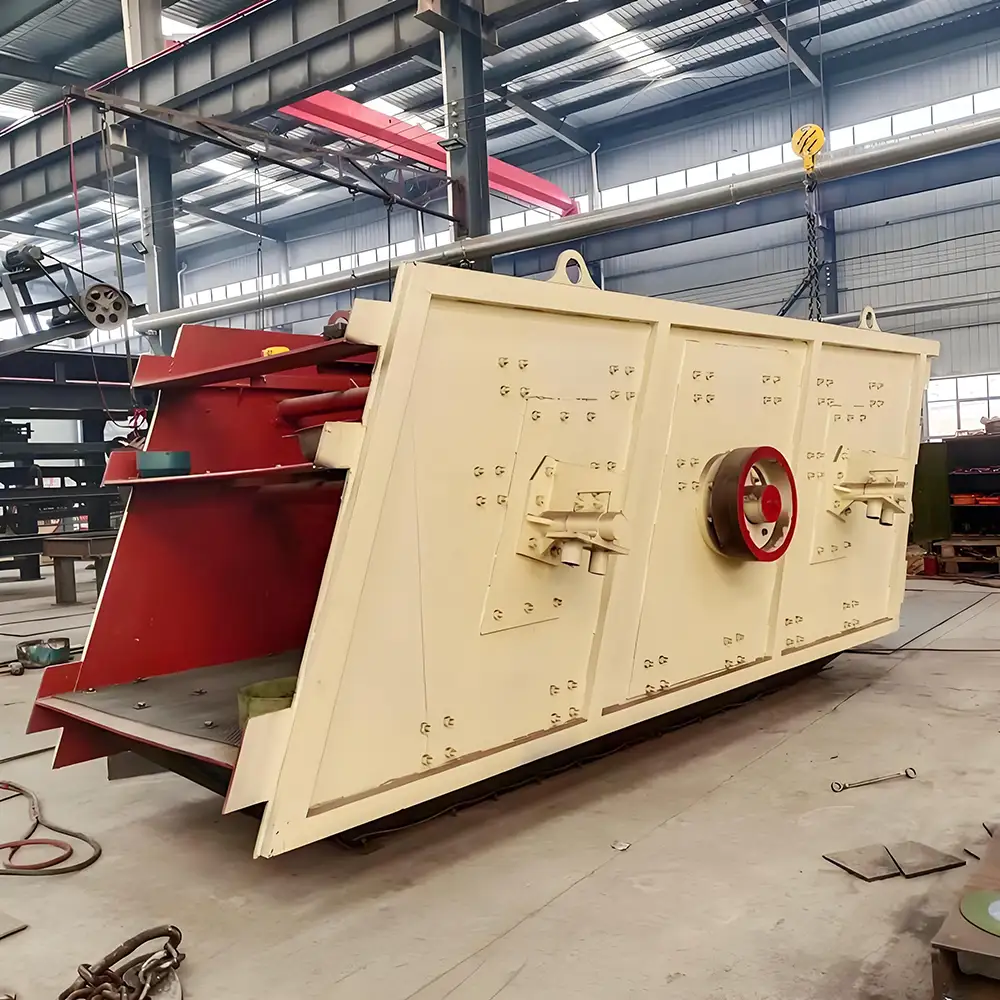

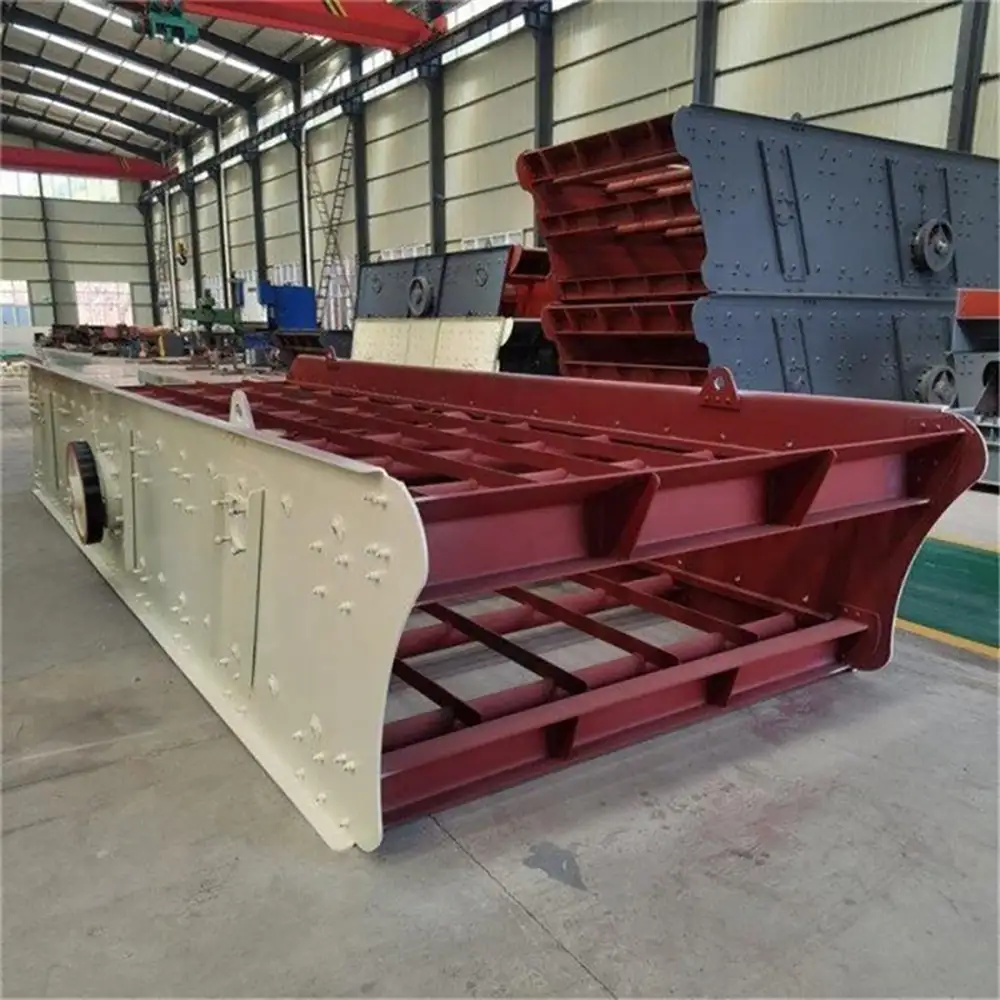

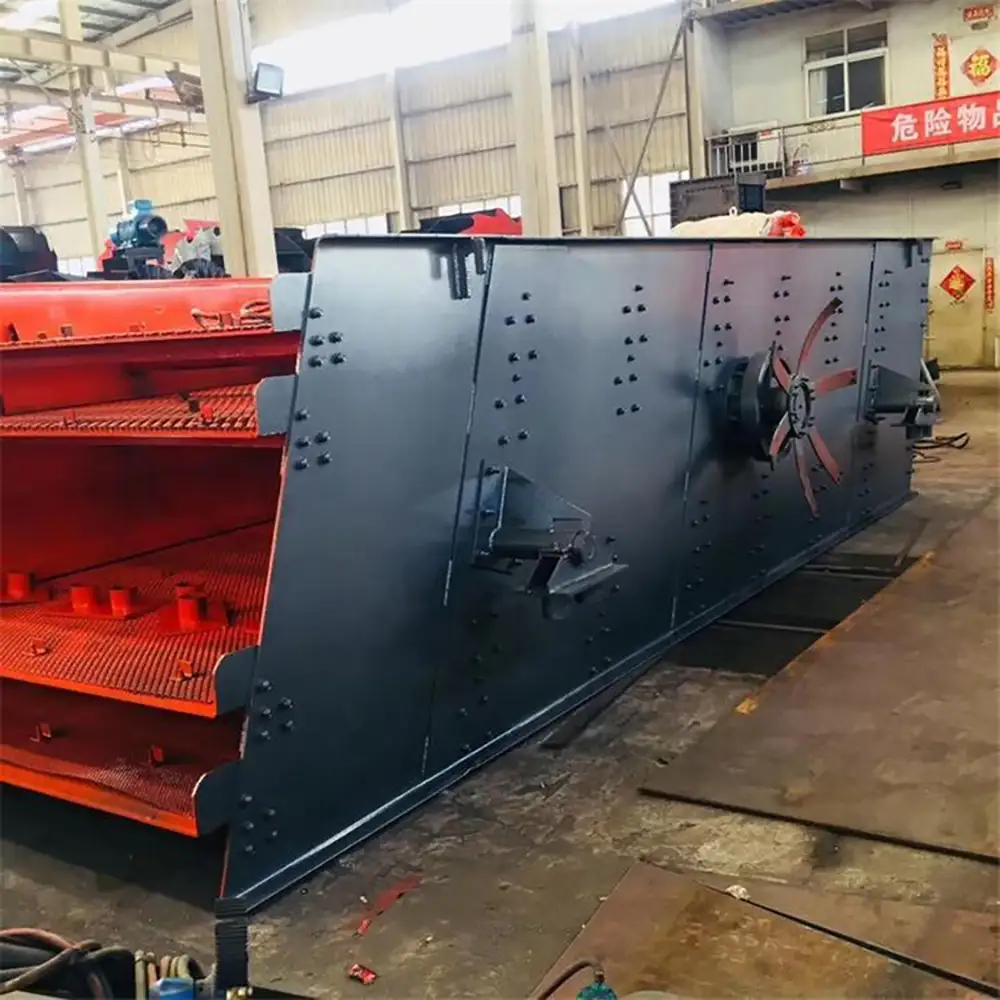

Vibrating Screen Machine for Industrial Material Screening

A Vibrating Screen Machine is an industrial screening and classification equipment used to separate bulk materials according to particle size. By applying controlled vibration to a screen deck, the machine efficiently separates materials into different size fractions while continuously moving material across the screening surface.

Vibrating screens are widely used in mining, quarrying, aggregate processing, coal preparation, construction materials, metallurgy, recycling, and other bulk material handling industries. They can be installed after crushers and mills to classify materials before further processing or final use.

The machine is available in different configurations, including circular vibrating screens, linear vibrating screens, multi-deck screens, heavy-duty screening machines, and specialized screening systems. Screen mesh size, deck number, vibration characteristics, and structural design can be selected according to material properties and production requirements.

As a professional Vibrating Screen Machine Manufacturer and Screening Equipment Supplier, we provide industrial screening solutions for different capacities, materials, and production-line layouts.

What Is a Vibrating Screen?

A vibrating screen uses mechanical vibration to move bulk material across one or more screening surfaces. Particles smaller than the selected screen opening pass through the mesh, while larger particles continue moving toward the discharge end.

The screening process can therefore divide a mixed material into several particle-size ranges.

A single-deck screen can generally produce two size fractions, while a multi-deck vibrating screen can produce several different sizes simultaneously.

Typical materials include:

Crushed stone
Sand and gravel
Limestone
Coal
Iron ore
Copper ore
Mineral concentrates
Construction aggregates
Recycled materials
Industrial bulk materials
How Does a Vibrating Screen Machine Work?

Material enters the screen through the feed inlet and spreads across the screening deck.

The vibration mechanism generates controlled movement of the screen box. This vibration causes the material to move forward while repeatedly contacting the screen surface.

Fine particles pass through the openings in the screen mesh, while oversized particles remain above the screen and move toward the oversize discharge.

Depending on the number of decks, different particle sizes can be separated simultaneously.

The vibration amplitude, frequency, screen inclination, feed rate, and mesh opening all influence screening performance. These parameters can be selected or adjusted according to the characteristics of the material being processed.

Main Components

A typical Vibrating Screen Machine consists of:

Screen Box
Screen Deck
Screen Mesh
Vibration Exciter
Vibrating Motor
Springs
Support Frame
Feed Chute
Discharge Chutes
Side Plates
Bearing Assembly
Drive System
Protective Covers

Heavy-duty components can be selected for abrasive materials such as crushed rock, iron ore, limestone, and aggregate.

Different screen media may also be used depending on the application, including woven wire mesh, perforated plates, polyurethane panels, and rubber screening surfaces.

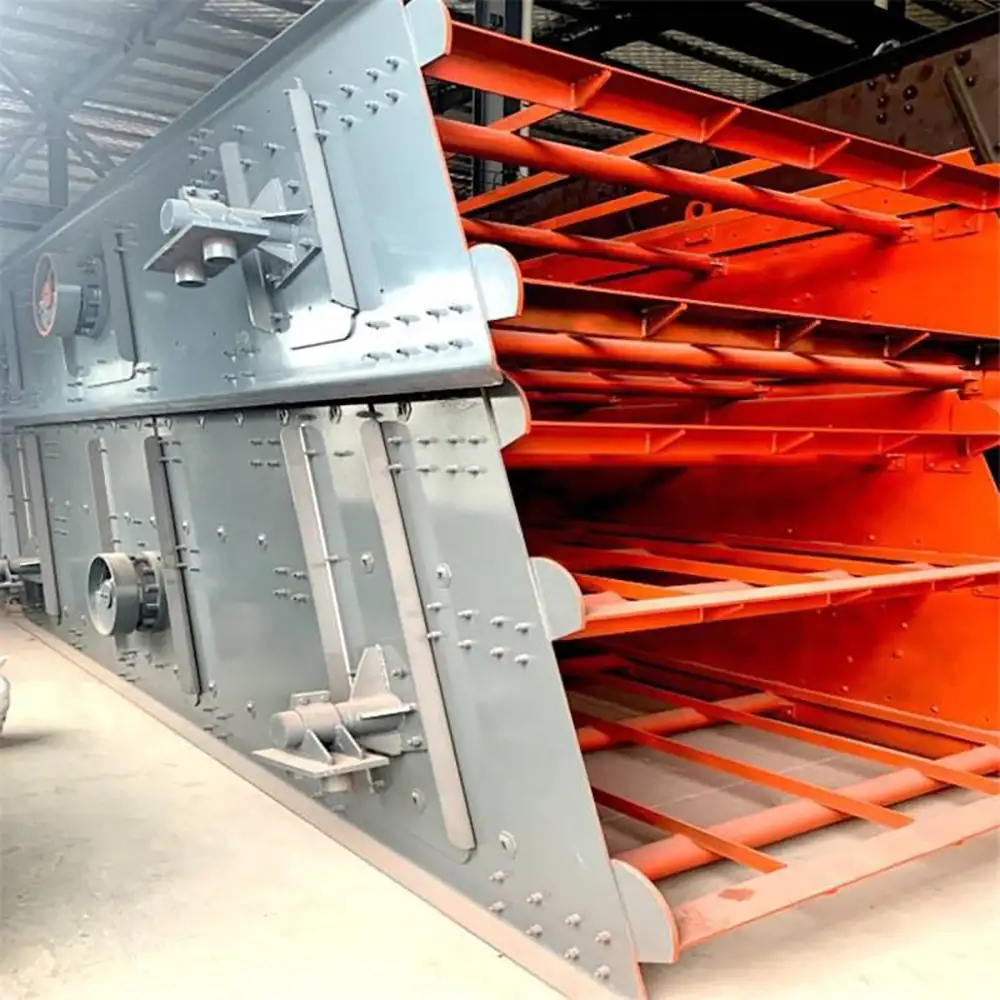

Circular Vibrating Screen

A Circular Vibrating Screen uses a circular or elliptical vibration pattern to move and screen material.

Circular vibrating screens are widely used in aggregate plants, quarry operations, mining plants, and other applications requiring high-capacity classification.

The circular motion helps distribute material across the screen surface and provides effective screening of crushed materials.

Multi-layer configurations can be used when several particle-size products need to be separated in a single machine.

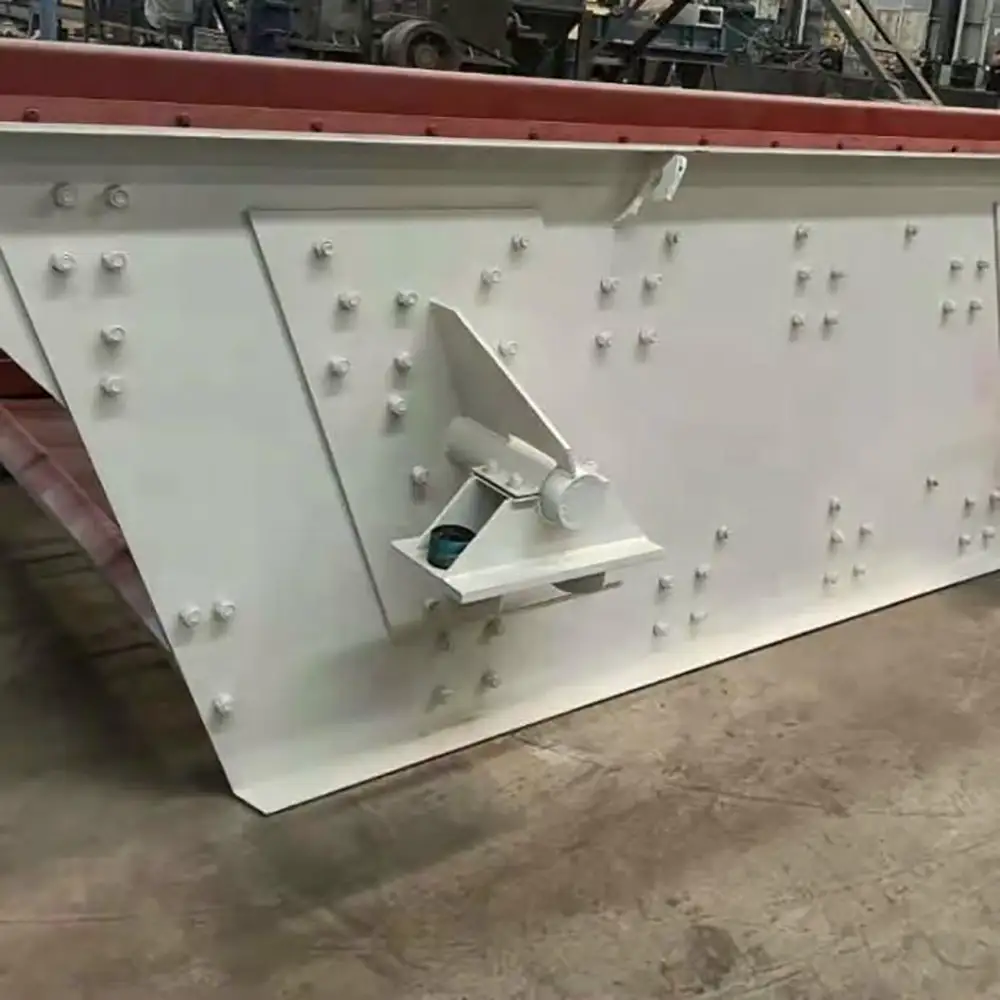

Linear Vibrating Screen

A linear vibrating screen typically uses directional vibration to move material in a relatively straight path across the screen deck.

It is suitable for many applications involving granular and bulk materials, including coal, minerals, sand, chemical materials, and industrial products.

Linear screens can be configured for different screening capacities and particle sizes.

Applications
Mining and Mineral Processing

Vibrating screens are used to classify ores and minerals before and after crushing and grinding. They can separate different particle sizes and improve the efficiency of downstream processing equipment.

Quarry and Aggregate Processing

Crushed stone, gravel, sand, limestone, and other aggregate materials can be screened into commercial size fractions.

Coal Preparation

Screening machines can separate coal according to particle size and remove unwanted fines or oversized material.

Construction Materials

Vibrating screens are commonly used to classify sand, gravel, crushed rock, and recycled construction materials.

Metallurgy

Mining and metallurgical plants can use screening equipment for ore classification, sinter materials, coke, and other bulk materials.

Recycling

The machine can be incorporated into recycling lines for screening construction waste, crushed concrete, industrial materials, and other recyclable products.

Chemical and Industrial Materials

Vibratory screening equipment can classify granules, powders, fertilizers, chemical raw materials, and other bulk industrial products.

Key Advantages
Efficient Particle Separation

Controlled vibration provides continuous material movement and effective size classification.

High Screening Capacity

Large screening areas and multi-deck configurations allow high-volume material processing.

Multi-Size Classification

Multiple decks can separate material into several size ranges in a single machine.

Heavy-Duty Construction

Reinforced frames, screen boxes, springs, and vibration components can be selected for demanding industrial applications.

Flexible Screen Media

Different mesh and screen-panel materials can be selected according to particle size, abrasiveness, moisture, and application requirements.

Continuous Operation

The machine is designed for integration into continuous crushing, screening, conveying, and processing lines.

Easy Production-Line Integration

Vibrating screens can be combined with crushers, feeders, conveyors, washing systems, magnetic separators, and other mineral-processing equipment.

How to Choose a Vibrating Screen Machine

Several factors should be considered when selecting screening equipment.

Material Type: Specify whether the material is stone, sand, coal, ore, aggregate, recycled material, or another bulk product.

Feed Size: The maximum feed particle size affects the screen structure and screening media selection.

Required Capacity: Provide the required throughput in tons per hour.

Product Size: Specify the desired output particle sizes and number of fractions.

Material Moisture: Wet or sticky materials may require specialized screening solutions.

Screen Area: Larger screening areas generally provide greater processing capacity.

Number of Decks: Choose the number of decks according to the required number of product sizes.

Screen Mesh: Mesh opening determines the approximate separation size and should be selected according to the desired product specifications.

Installation Space: Available length, width, height, and discharge arrangement should be considered when designing the equipment.

Installation and Maintenance

The Vibrating Screen Machine should be installed on a stable foundation or properly designed support structure. The machine should be correctly leveled and all support components should be securely fastened.

Before operation, check the screen mesh, vibration exciter, bearings, springs, drive components, and fasteners.

During operation, monitor abnormal vibration, unusual noise, material buildup, and screen wear.

Screen panels and mesh are wear components and should be inspected regularly. Damaged or excessively worn screening media should be replaced to maintain separation performance.

Bearings and other moving components should be lubricated according to the manufacturer's maintenance recommendations. Bolted connections should also be checked periodically because continuous vibration can gradually loosen fasteners.

OEM and Custom Vibrating Screen Solutions

As a professional Vibrating Screen Manufacturer and Mining Screening Equipment Supplier, we can provide customized screening machines according to material characteristics, capacity, feed size, output sizes, installation conditions, and production-line requirements.

Customization can include:

Screen dimensions
Number of decks
Screen mesh opening
Screen media
Vibration motor or exciter
Machine inclination
Feed and discharge chutes
Support structure
Dust covers
Wear-resistant components
Electrical control system

OEM and custom manufacturing are available for mining, quarrying, aggregate, coal, cement, metallurgy, recycling, and industrial processing applications.

Why Choose Us?
Professional industrial screening equipment
Heavy-duty vibrating screen construction
Circular and linear screening options
Single- and multi-deck configurations
Customized screen mesh and screening media
Suitable for mining and aggregate applications
High-capacity continuous screening
Complete crushing and screening line integration
OEM and custom manufacturing available
Factory-direct B2B supply and technical support
FAQs
1. What Is a Vibrating Screen Machine?

A Vibrating Screen Machine is equipment that uses controlled vibration to separate bulk materials according to particle size.

2. What Materials Can Be Screened?

It can screen aggregates, sand, gravel, limestone, coal, ores, minerals, recycled materials, and many other bulk materials.

3. What Is a Circular Vibrating Screen?

A Circular Vibrating Screen uses circular or elliptical vibration to move and classify material across the screening surface.

4. What Is the Difference Between a Linear and Circular Vibrating Screen?

A linear screen generally moves material through directional vibration, while a circular screen uses circular or elliptical motion. The appropriate type depends on material characteristics and process requirements.

5. Can a Vibrating Screen Have Multiple Decks?

Yes. Multi-deck vibrating screens can separate material into several particle-size fractions simultaneously.

6. How Is Screening Size Determined?

Screening size is primarily determined by the screen opening or mesh size, together with material properties and machine operating parameters.

7. Can It Handle Large Rocks?

Heavy-duty vibrating screens can be designed for coarse and abrasive materials, including crushed rock and mining ores. The feed size should be specified before selecting the equipment.

8. Can the Screen Be Used in a Crushing Plant?

Yes. Vibrating screens are commonly integrated with feeders, jaw crushers, cone crushers, impact crushers, conveyors, and other equipment in crushing and screening plants.

9. Can the Screen Mesh Be Customized?

Yes. Screen opening, mesh type, material, deck configuration, and screening media can be selected according to the required product size and material characteristics.

10. What Information Is Needed for a Quotation?

Provide material type, maximum feed size, required capacity, desired output sizes, material moisture, number of screening fractions, and installation conditions. These parameters help determine the appropriate Vibrating Screen Machine.
