DZSF Heavy Duty Motor Vibrating Screen, Rock and Stone Vibration Screen Equipment

Series DZSF heavy-duty motor vibrating screen is a universal screening equipment,  which is widely used in mining, coal, electricity, refractories, metallurgy, building materials and other industries. It is usually used for the screening and grading operations of materials in large, middle and small particles.

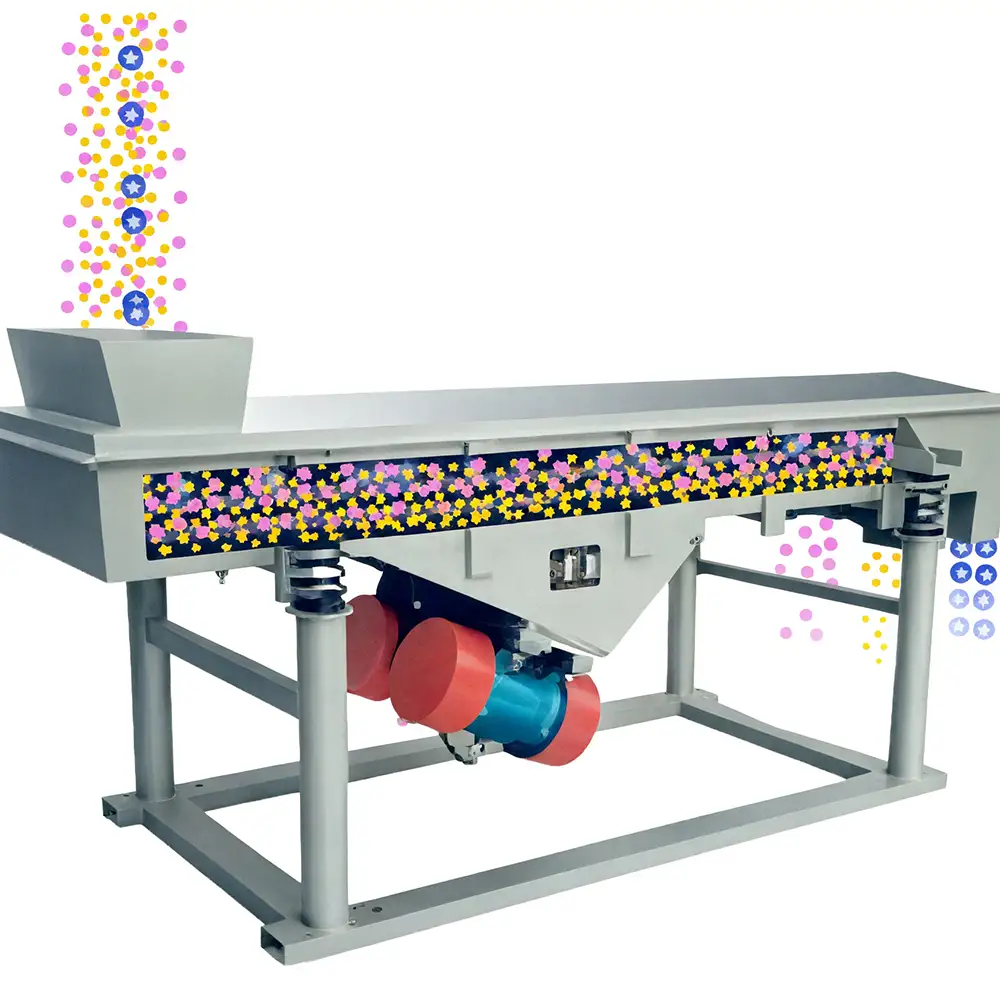

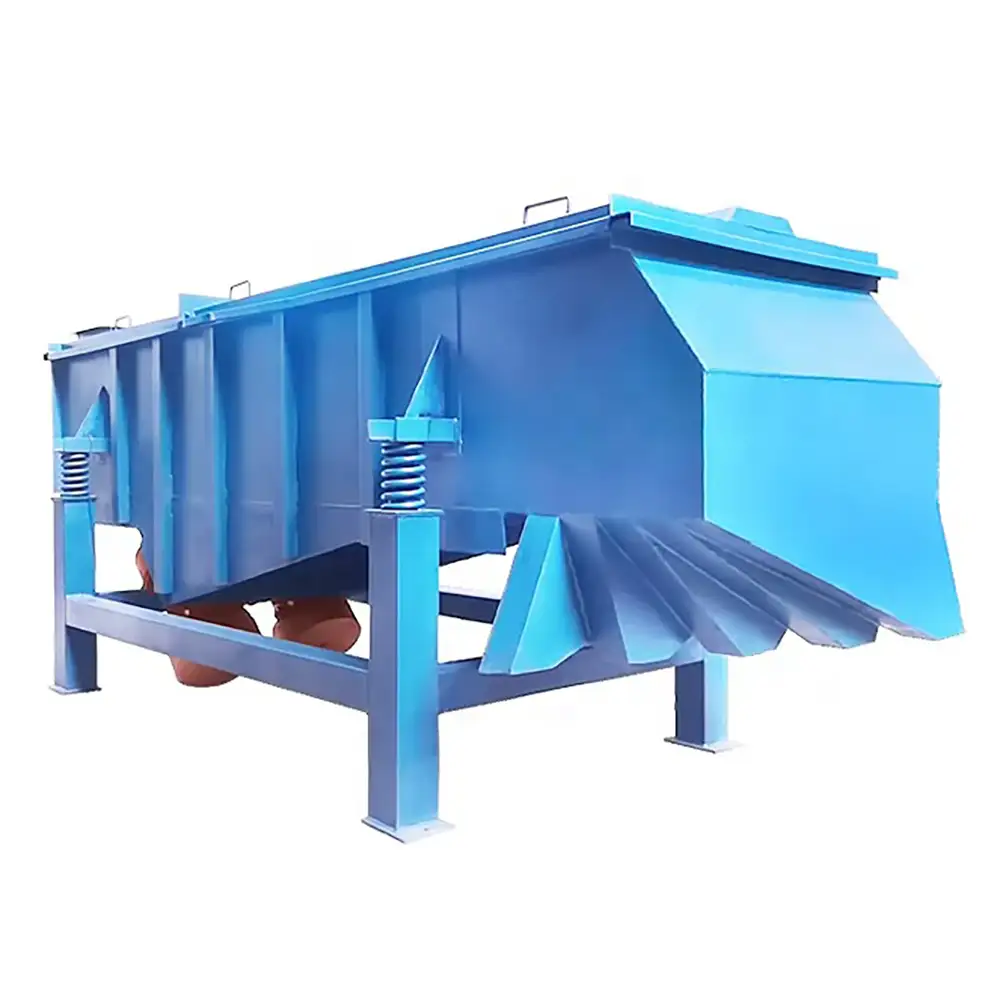

Series DZSF heavy-duty motor vibrating screen is made up of the excitation device, screen boxes, drop-hopper, vibration damping device and the base. The excitation device uses energy-saving vibration motor as the vibration source, and the vibration damping device is supported by the spring.
The screening surface of series DZSF motor vibrating screen is inclined installed, and the inclination angle is 10 ° -20 °.

Features:
1. Small size, light in weight, easy to install and layout.
2. High screening capacity and low energy consumption.
3. Simple structure, good appearance and less spare parts.
4. The screening mesh is made up of wearable bar strips, durable and easy to replace.
5. Materials are blanking layer by layer and can not be blocked easily.
6. Good flexibility and operational reliability.

Technical parameters:


DZSF Heavy Duty Motor Vibrating Screen for Rock and Stone Screening

The DZSF Heavy Duty Motor Vibrating Screen is an industrial screening machine designed for efficient separation, classification, and sizing of rock, stone, sand, gravel, aggregates, minerals, and other bulk materials. Driven by vibration motors, the DZSF vibrating screen generates controlled linear or directional vibration that moves material across the screening surface while separating particles according to size.

Designed for demanding material handling environments, this heavy-duty vibration screen equipment can be integrated into crushing and screening plants, quarry production lines, mining operations, construction material processing systems, and industrial material separation applications.

With a robust structure, replaceable screening media, adjustable operating parameters, and multiple deck configurations, the DZSF vibrating screen can be customized to meet different capacity and particle-size requirements.

What Is a DZSF Vibrating Screen?

A DZSF vibrating screen is a vibratory screening machine that uses vibration motors to generate the excitation force required to move material across a screen deck. As material enters the feed end, vibration distributes and transports it along the screening surface.

Particles smaller than the screen openings pass through the mesh, perforated plate, or other screening media, while oversized particles continue toward the discharge end.

Depending on the configuration, one machine can perform multiple separation stages. A double-deck or multi-deck vibrating screen can produce several different particle-size fractions from a single feed stream.

The DZSF design is suitable for continuous industrial operation where reliable screening, high throughput, and straightforward maintenance are important.

How Does the Heavy Duty Motor Vibrating Screen Work?

The working principle is based on controlled mechanical vibration.

The material enters the vibrating screen through the feed inlet and is distributed across the screening deck. One or more vibration motors generate excitation force, causing the screen body to vibrate at a controlled frequency and amplitude.

During vibration:

Material spreads evenly across the screen surface.
Smaller particles pass through the openings.
Larger particles remain on top of the screening media.
Vibration moves material toward the discharge outlet.
Different particle sizes can be separated using multiple decks.
Oversized and undersized materials can be collected separately.

The vibration parameters and screen configuration can be selected according to material characteristics, required capacity, moisture content, and desired separation size.

Heavy Duty Construction for Rock and Stone

Rock and stone screening applications can subject equipment to considerable impact, abrasion, vibration, and continuous loading. The DZSF Heavy Duty Motor Vibrating Screen can therefore be configured with a reinforced frame and durable screening components for demanding environments.

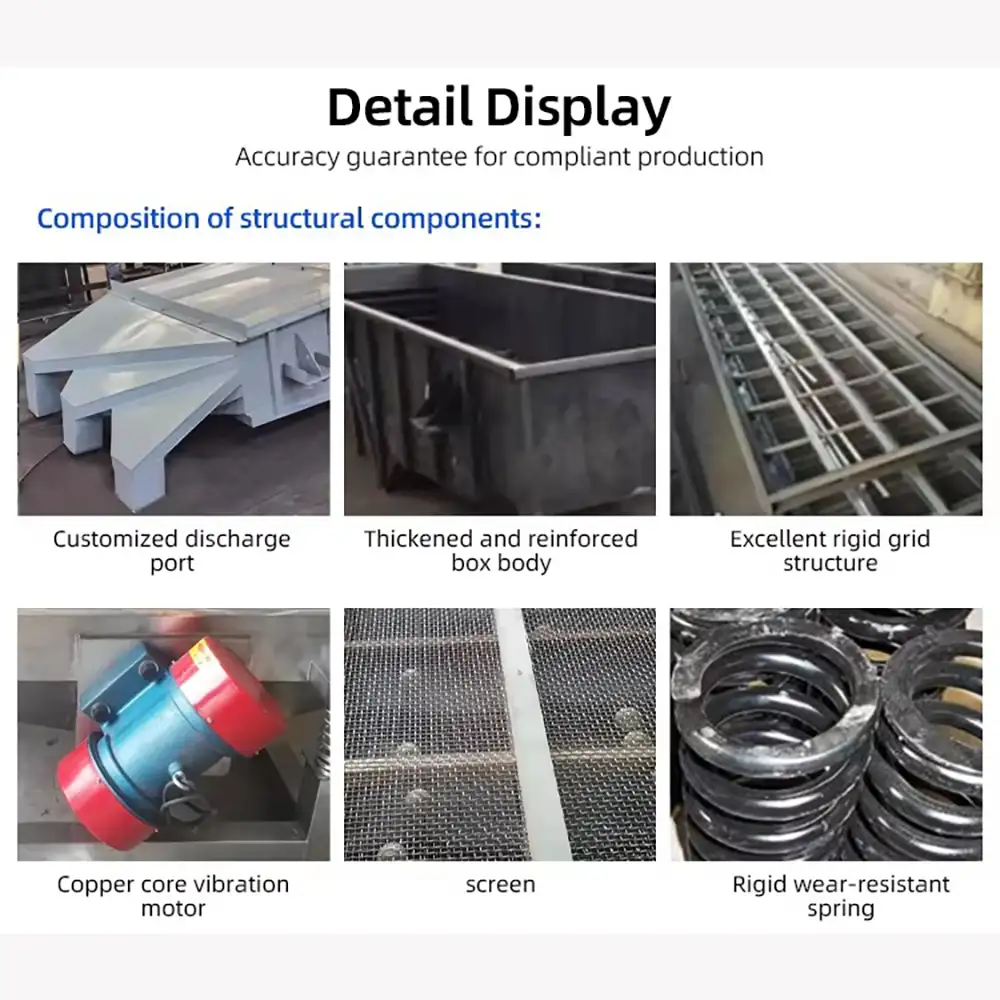

Typical construction includes:

Heavy-duty vibrating screen frame
High-strength screen deck
Vibration motors
Screen mesh or screening panels
Feed inlet
Oversize discharge outlet
Undersize discharge outlet
Supporting springs
Base or support structure
Protective covers where required

Screening media can be selected according to the characteristics of the material. Different mesh sizes and screen surfaces allow the machine to handle applications ranging from coarse rock separation to finer aggregate classification.

Applications of DZSF Rock and Stone Vibration Screen Equipment

The DZSF vibrating screen is widely applicable to bulk material screening and classification.

Mining and Mineral Processing

The machine can be used for screening ores, minerals, crushed rock, and other mined materials before or after crushing and grinding operations.

Quarry and Stone Processing

Quarries can use vibrating screens to classify crushed stone, limestone, granite, basalt, and other aggregates into different commercial size ranges.

Sand and Gravel Production

The vibrating screen can separate sand, gravel, and mixed aggregate materials to support controlled particle-size distribution.

Construction Materials

Screening equipment can be integrated into aggregate processing plants supplying materials for concrete, asphalt, road construction, and other infrastructure projects.

Coal and Bulk Materials

Heavy-duty vibrating screening equipment can also be applied to coal, coke, and other bulk materials where continuous size classification is required.

Recycling

The machine can help separate crushed construction waste, recycled aggregates, and other reusable materials according to particle size.

Industrial Material Processing

Other applications include fertilizer, chemicals, ceramics, glass materials, foundry materials, and various dry bulk products.

Key Advantages of DZSF Heavy Duty Vibrating Screen
High Screening Efficiency

The vibrating motion promotes material stratification and helps particles contact the screening surface effectively. This improves separation efficiency and supports continuous processing.

Heavy-Duty Structure

A reinforced construction can provide the durability needed for demanding mining, quarry, and aggregate applications.

Multiple Screening Decks

Single-, double-, triple-, and other multi-deck configurations can be used to produce several size fractions from one feed stream.

Adjustable Screening Parameters

Vibration intensity and operating conditions can be configured according to material characteristics and production requirements.

Replaceable Screen Media

Different screen meshes and panels can be installed according to the required separation size and material properties.

Continuous Operation

The machine is designed for integration into continuous material processing systems, reducing the need for manual screening.

Easy System Integration

The DZSF vibrating screen can be positioned after crushers, feeders, conveyors, hoppers, and other processing equipment to form a complete screening line.

How to Select the Right Vibrating Screen

Selecting the appropriate vibrating screen requires consideration of several operating conditions.

Material Type: Identify whether the machine will process rock, stone, sand, gravel, ore, coal, aggregate, recycled material, or another bulk product.

Feed Size: Maximum feed particle size is important when selecting the screen structure and screening media.

Required Capacity: Production capacity should be calculated according to feed rate, material density, moisture, and screening efficiency.

Screening Size: The required cut size determines the screen opening and deck configuration.

Number of Decks: A single deck is suitable for basic separation, while multiple decks can produce several fractions.

Material Moisture: Wet or sticky materials may require different screening solutions than dry materials.

Installation Conditions: Consider available space, feeding height, discharge arrangement, support structure, and connection with conveyors.

Our engineering team can help configure the DZSF Heavy Duty Motor Vibrating Screen according to specific production requirements.

Installation and Maintenance

Proper installation is essential for stable vibrating screen performance. The supporting structure should have adequate strength and be correctly aligned. The machine should be installed according to the manufacturer's technical specifications.

Routine maintenance should include inspection of vibration motors, bearings, springs, bolts, screen panels, and structural components.

Operators should regularly check for:

Loose bolts and fasteners
Damaged screen mesh
Excessive vibration
Abnormal noise
Motor temperature
Worn springs
Material buildup
Unbalanced material distribution

Screening media should be replaced when excessive wear affects separation performance.

OEM and Custom Vibrating Screen Solutions

As an industrial vibrating screen manufacturer and supplier, we can provide customized screening solutions for different materials, capacities, and plant layouts.

Customization options may include:

Screen dimensions
Screening area
Number of decks
Screen mesh size
Screen panel material
Vibration motor configuration
Feed and discharge arrangement
Support structure
Protective covers
Special material-contact components
Customized voltage and electrical configuration

OEM solutions are available for distributors, engineering companies, quarry operators, mining companies, aggregate producers, and industrial processing plants.

Why Choose Our DZSF Vibrating Screen?

Choosing the correct screening equipment can directly affect production efficiency and material quality. Our DZSF Heavy Duty Motor Vibrating Screen is designed around practical industrial requirements, with emphasis on robust construction, efficient screening, convenient maintenance, and flexible configuration.

We provide technical support from equipment selection and screening parameter design through manufacturing and after-sales service. Our team can help customers evaluate material characteristics, screening requirements, capacity targets, and installation conditions before recommending a suitable configuration.

Whether you need a rock screening machine for a quarry, an aggregate screening machine for a crushing plant, or heavy-duty vibration screen equipment for mining and industrial processing, we can provide customized equipment solutions for your application.

FAQs
1. What materials can the DZSF vibrating screen process?

The DZSF vibrating screen can be used for rock, stone, sand, gravel, aggregates, minerals, coal, crushed materials, recycled materials, and many other bulk products.

2. Is the DZSF vibrating screen suitable for rock screening?

Yes. With an appropriate heavy-duty configuration and suitable screening media, it can be used for crushed rock, stone, limestone, granite, basalt, and other aggregate materials.

3. How many screening decks are available?

The machine can be configured with different numbers of decks depending on the required number of particle-size fractions.

4. Can the screen mesh size be customized?

Yes. Screen openings can be selected according to the required material separation size and processing conditions.

5. What drives the DZSF vibrating screen?

The machine uses vibration motors to generate the excitation force required for material movement and screening.

6. Can it be integrated into a crushing plant?

Yes. The vibrating screen can be integrated with crushers, feeders, belt conveyors, hoppers, and other equipment in complete crushing and screening systems.

7. Is the vibrating screen suitable for continuous operation?

Yes. It is designed for continuous industrial screening applications when properly configured, installed, and maintained.

8. Can you provide a customized vibrating screen?

Yes. Screen dimensions, decks, screen media, motor configuration, feed and discharge arrangements, and other specifications can be customized.

9. How should the vibrating screen be maintained?

Regular inspection of screen media, vibration motors, bearings, springs, bolts, and structural components is recommended to maintain stable operation.

10. How can I choose the correct DZSF vibrating screen?

The selection depends on material type, feed size, required capacity, moisture, desired separation size, number of fractions, and installation conditions. Providing these details allows the appropriate configuration to be determined.
