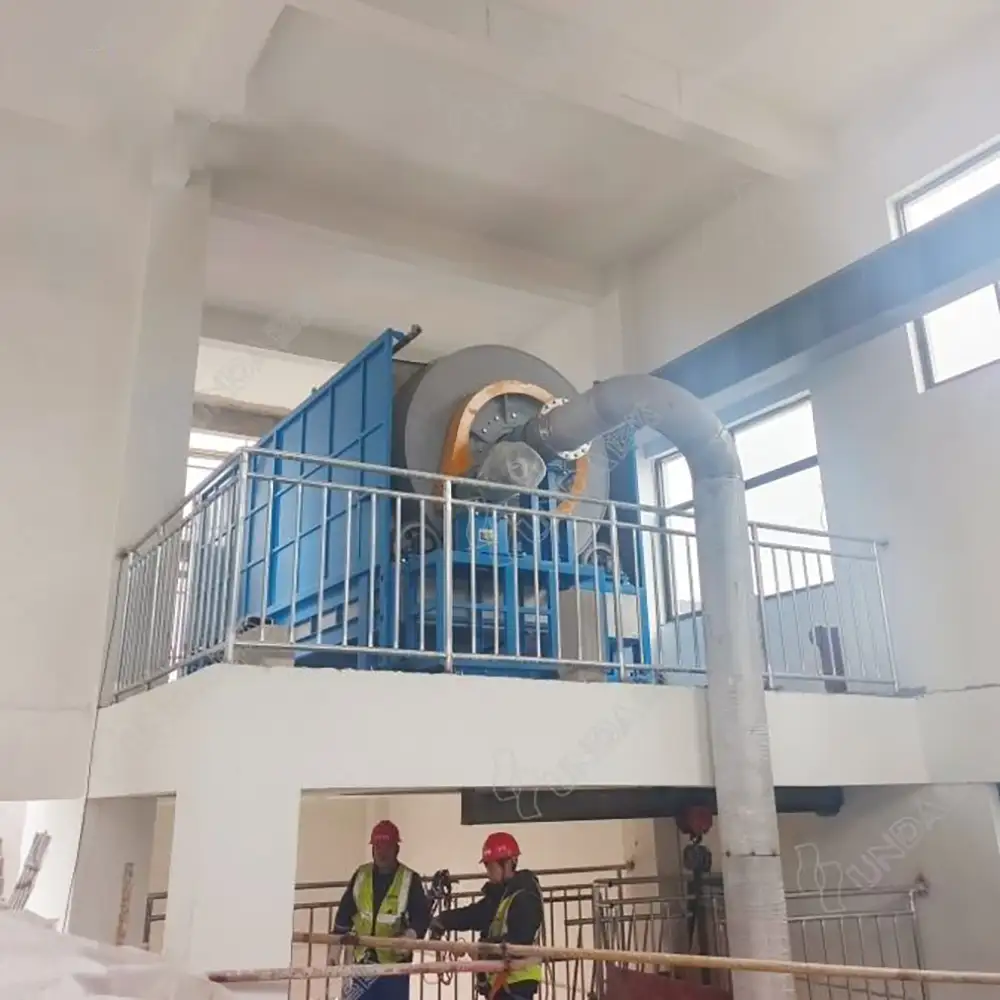

SH Drum Revolving Screen

Introduction:

SH series block proof rotary drum screen is a new screening equipment based on the advantages of similar products both at home and abroad. It has a simple structure and is easy to maintain. This equipment has no vibration and noise. With a high screen transmittance rate, it is particularly suitable for the screening of wet and sticky materials. The screen pores can never be blocked. SH series block proof rotary drum screen is widely used for the screening and grading of coal, sand, gravel and other materials in electric power, mining, metallurgy, building materials, chemical and other industries.

Structure:

SH series block proof rotary drum screen is made up of rotary drum device, sealing cover, feed opening, discharge opening, frame, motor, motor reducer, etc. The rotary drum device is installed on the frame at an angle.

Working principle:

The rotary drum device is connected with the motor by shaft coupling through motor reducer, and is driven by the motor to rotate around the axis shaft line. When the materials flow into the rotary drum device, as a result of the inclination and rotation of the rotary drum device, the materials on the screen surface will rotate and roll, finally the qualified materials (undersize materials) will be discharged through the screen mesh which is installed around the excircle of the rotary drum, and the unqualified materials (oversize materials) will be discharged from the end of the rotary drum. The materials rotate and roll in the rotary drum, so the materials stuck in screen pores can be ejected out to prevent the screen pores from being blocked.

Technical specifications:

SH Drum Revolving Screen for Industrial Material Screening

The SH Drum Revolving Screen is a rotary screening machine designed for continuous separation and classification of bulk materials according to particle size. Also known as a rotary drum screen, drum screening machine, or trommel screen, this equipment uses a rotating cylindrical screening drum to separate undersized and oversized materials.

The rotating drum creates a controlled tumbling and conveying action. Smaller particles pass through the openings in the screening surface, while larger materials continue moving through the drum toward the oversize discharge. This simple rotary screening principle makes the SH Drum Revolving Screen suitable for mining, coal processing, sand and gravel production, quarrying, metallurgy, construction materials, chemical processing, and other bulk material applications.

Compared with some conventional vibrating screening systems, rotary drum screening equipment can be particularly useful for materials that are wet, sticky, mixed, or prone to screen blinding. Continuous material movement through the rotating drum can help reduce accumulation on the screen surface.

What Is an SH Drum Revolving Screen?

The SH Drum Revolving Screen is a cylindrical rotary screening system consisting primarily of a screening drum, supporting frame, drive assembly, feeding system, and discharge sections.

Material enters the drum through the feed inlet. As the drum rotates, the material is lifted, tumbled, and transported forward. Fine particles smaller than the selected screen opening fall through the screening surface, while larger particles travel toward the end of the drum.

The screening drum can be divided into different sections when multiple particle-size classifications are required. Different screen openings can therefore be configured for different separation stages.

The SH series is especially associated with block-proof rotary screening designs intended to reduce screen-hole blockage when processing wet or sticky materials. Industry product descriptions also identify applications including coal, sand, gravel, and other materials in power, mining, metallurgy, building materials, and chemical industries.

How Does the SH Rotary Drum Screen Work?

The working principle is straightforward and reliable.

First, the raw material is fed continuously into the rotating drum. The drum rotates at a controlled speed and is generally installed with a suitable inclination so material gradually moves toward the discharge end.

During operation:

Material enters through the feed section.
The rotating drum continuously lifts and tumbles the material.
Fine particles pass through the screen openings.
Larger particles remain inside the drum.
Material moves progressively toward the discharge end.
Separated fractions are collected below or at different discharge points.

This rotary movement provides continuous screening without the high-frequency vibration used by vibrating screens.

The screening efficiency depends on factors such as drum diameter, drum length, rotation speed, screen opening, feed characteristics, moisture content, material density, and required throughput.

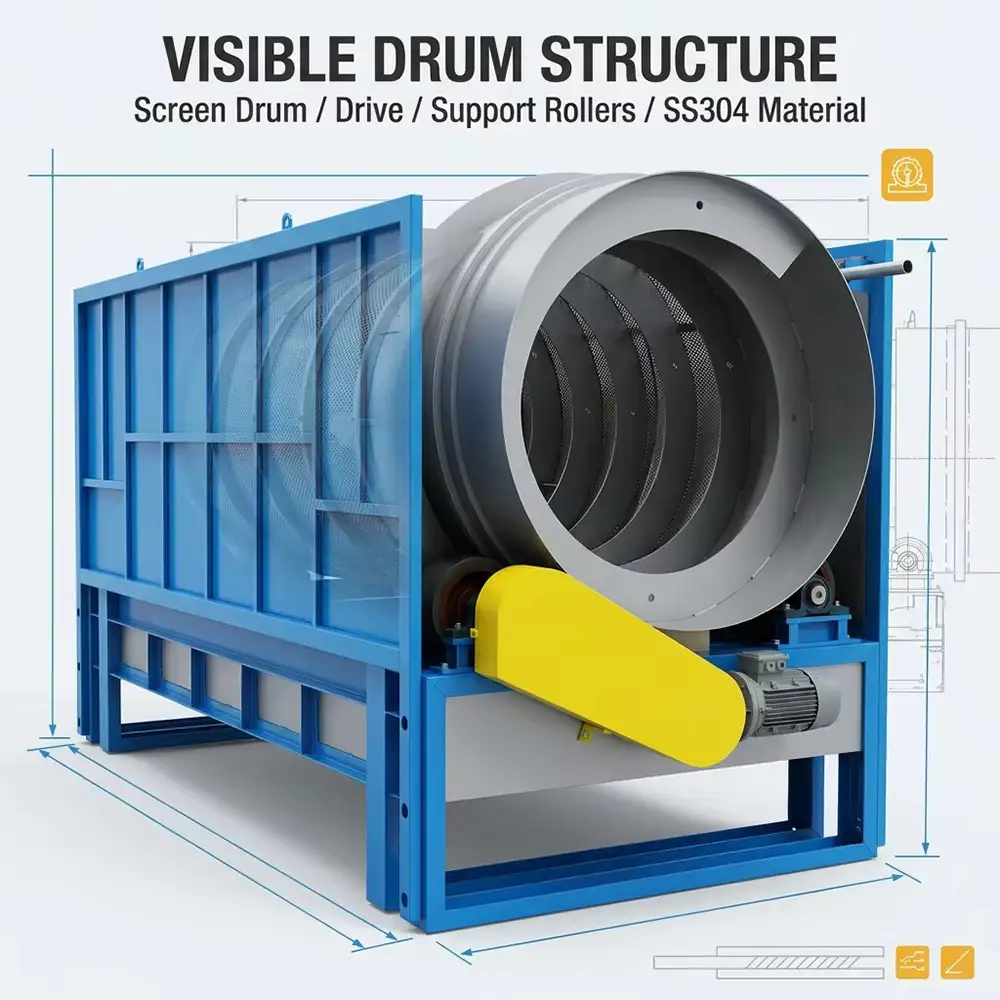

Main Components of the Drum Revolving Screen

A typical SH Drum Revolving Screen consists of several major components.

Rotary Screening Drum

The cylindrical drum is the core screening component. Its diameter and length determine the available screening area and influence material residence time.

Screening Surface

The screen can use different opening sizes according to the desired product classification. Screen sections can be designed for specific particle sizes and material characteristics.

Drive System

A motor and transmission system rotate the drum at a controlled speed. Proper drive selection is important for reliable continuous operation.

Support Frame

The structural frame supports the drum, drive system, feeding equipment, and discharge components.

Feed Hopper

The feed hopper guides incoming material into the rotating drum and helps provide a controlled material flow.

Discharge System

Separate discharge arrangements can collect screened fines and oversize material. The equipment can also be connected to belt conveyors or other downstream processing machinery.

Applications of SH Drum Revolving Screen

The SH Drum Revolving Screen can be used across a broad range of industrial material processing applications.

Coal Screening

The rotary screen can separate coal particles according to size and help remove oversized materials, coal fines, and unwanted fractions.

Sand and Gravel Screening

Sand, gravel, and mixed aggregates can be classified into different size ranges for construction and aggregate production.

Mining and Mineral Processing

The machine can be used for screening mineral ores, crushed rock, mineral materials, and other bulk products before or after additional processing.

Quarry and Stone Processing

Quarries can use drum screening equipment for rock, stone, limestone, and other aggregate materials.

Construction Materials

The equipment can be incorporated into construction material processing lines for screening aggregate and recycled construction materials.

Metallurgy

The SH rotary screen can be applied to various metallurgical bulk materials where continuous particle-size separation is required.

Chemical and Fertilizer Materials

Rotary drum screening is also suitable for certain granular and powdery materials in chemical and fertilizer processing, provided the screen configuration matches the material characteristics.

Wet and Sticky Materials

One important application advantage is its suitability for materials that may cause conventional screening surfaces to clog. Rotary movement continuously agitates the material and can help reduce screen blinding.

Key Advantages of SH Drum Revolving Screen

Efficient Continuous Screening

The rotating drum provides continuous material transport and separation, making the machine suitable for integration into automated production lines.

Reduced Screen Blocking

Continuous tumbling helps prevent excessive accumulation on the screening surface, which can be beneficial when processing wet or sticky materials.

Simple Mechanical Structure

The rotary screening principle uses a relatively straightforward mechanical arrangement, making operation and maintenance practical.

Wide Material Compatibility

The equipment can be configured for coal, sand, gravel, rock, minerals, aggregate, and various other bulk materials.

Flexible Screening Sizes

Different screen openings can be selected according to the required separation size.

Multiple Screening Sections

Different screening sections can be configured when multiple particle-size fractions are required.

Easy Integration

The drum screen can be connected with feeders, crushers, conveyors, hoppers, and other equipment to create a complete material processing system.

Suitable for Heavy-Duty Applications

With an appropriately reinforced design, the SH Drum Revolving Screen can be used in demanding mining, quarrying, coal, and aggregate environments.

SH Drum Revolving Screen vs. Vibrating Screen

Both rotary drum screens and vibrating screens are widely used for material classification, but their operating principles are different.

A vibrating screen uses controlled vibration to move material across a flat or inclined screening surface. A drum screen uses a rotating cylindrical screen to tumble and transport the material.

The SH Drum Revolving Screen can be particularly attractive when the feed contains wet, sticky, mixed, or difficult-to-screen material. A vibrating screen may be preferred when high-frequency screening and precise classification of certain dry materials are required.

The appropriate equipment should be selected according to feed size, moisture, material characteristics, required capacity, separation accuracy, and plant configuration.

How to Select the Right SH Drum Screen

Before selecting a drum revolving screen, consider:

Material type
Maximum feed size
Material moisture
Bulk density
Required capacity
Desired separation size
Number of product fractions
Drum diameter
Drum length
Screen opening
Drum rotation speed
Installation space
Feeding and discharge arrangement

For example, a coal screening application may require a different drum configuration from a wet sand or crushed-stone application.

Published trommel specifications commonly vary significantly by drum size, screen opening, material, and required throughput, so nominal machine capacity should not be treated as a guaranteed output for every material.

Installation and Maintenance

Correct installation helps ensure stable screening performance and long equipment life.

Before operation, inspect the frame, drum, drive system, bearings, fasteners, screen panels, and feeding system. Make sure the drum is correctly aligned and that the drive components are properly adjusted.

Regular maintenance should include:

Checking drum alignment
Inspecting screen panels
Checking bolts and fasteners
Lubricating bearings as specified
Inspecting drive belts or transmission components
Checking motor and reducer operation
Removing accumulated material
Replacing worn screening sections

Wear parts should be inspected regularly when processing abrasive rock, stone, ore, or other high-wear materials.

OEM and Custom Drum Screening Solutions

As a drum screening equipment manufacturer and supplier, we can provide customized rotary screening solutions according to specific material and production requirements.

Customization can include:

Drum diameter
Drum length
Screen opening
Number of screening sections
Screen material
Motor power
Drive arrangement
Feed hopper
Discharge chutes
Support frame
Dust protection
Conveyor integration
Electrical configuration

OEM solutions are available for mining companies, quarry operators, aggregate producers, recycling plants, coal processing facilities, distributors, and engineering contractors.

Why Choose Us?

We focus on providing practical screening equipment for demanding bulk material processing applications. Our SH Drum Revolving Screen can be configured according to material characteristics, required capacity, particle-size separation, and site conditions.

From equipment selection and technical design to manufacturing and after-sales support, we can provide an integrated service for customers looking for rotary drum screening equipment.

Our engineers can evaluate the material type, feed size, moisture, required output, and screening specification to help determine a suitable drum diameter, length, screen opening, and drive configuration.

Whether you need a Mining Drum Screen, Coal Screening Machine, Rock Screening Equipment, Sand and Gravel Trommel Screen, or Industrial Rotary Drum Screen, customized equipment solutions can be developed for your production line.

FAQs
1. What is an SH Drum Revolving Screen?

An SH Drum Revolving Screen is a rotary screening machine that separates bulk materials by particle size using a rotating cylindrical screening drum.

2. Is SH Drum Screen the same as a Trommel Screen?

In general industry terminology, rotary drum screens and trommel screens refer to the same basic category of cylindrical rotary screening equipment.

3. What materials can the SH Drum Screen process?

It can be configured for coal, sand, gravel, rock, stone, minerals, aggregate, and various other bulk materials.

4. Can the SH Drum Screen handle wet materials?

Yes. Rotary drum screens can be suitable for certain wet and sticky materials, especially where conventional screening surfaces are susceptible to blockage.

5. Can the screen opening be customized?

Yes. Screen openings can be selected according to the desired particle-size separation and material characteristics.

6. Can the drum screen perform multiple classifications?

Yes. The drum can be designed with different screening sections to separate material into multiple size fractions.

7. What affects drum screen capacity?

Capacity depends on drum size, screen area, rotation speed, feed particle size, material density, moisture, screen opening, and the percentage of near-size particles.

8. Can the SH Drum Revolving Screen be connected to conveyors?

Yes. Feed conveyors and discharge conveyors can be integrated into a complete screening and material-handling system.

9. Is the drum screen suitable for mining applications?

Yes. With an appropriate heavy-duty configuration, it can be used for mining, mineral processing, quarrying, coal screening, and aggregate production.

10. Can you provide OEM drum screening equipment?

Yes. Drum dimensions, screen openings, drive systems, feeding arrangements, discharge systems, and other configurations can be customized according to project requirements.
