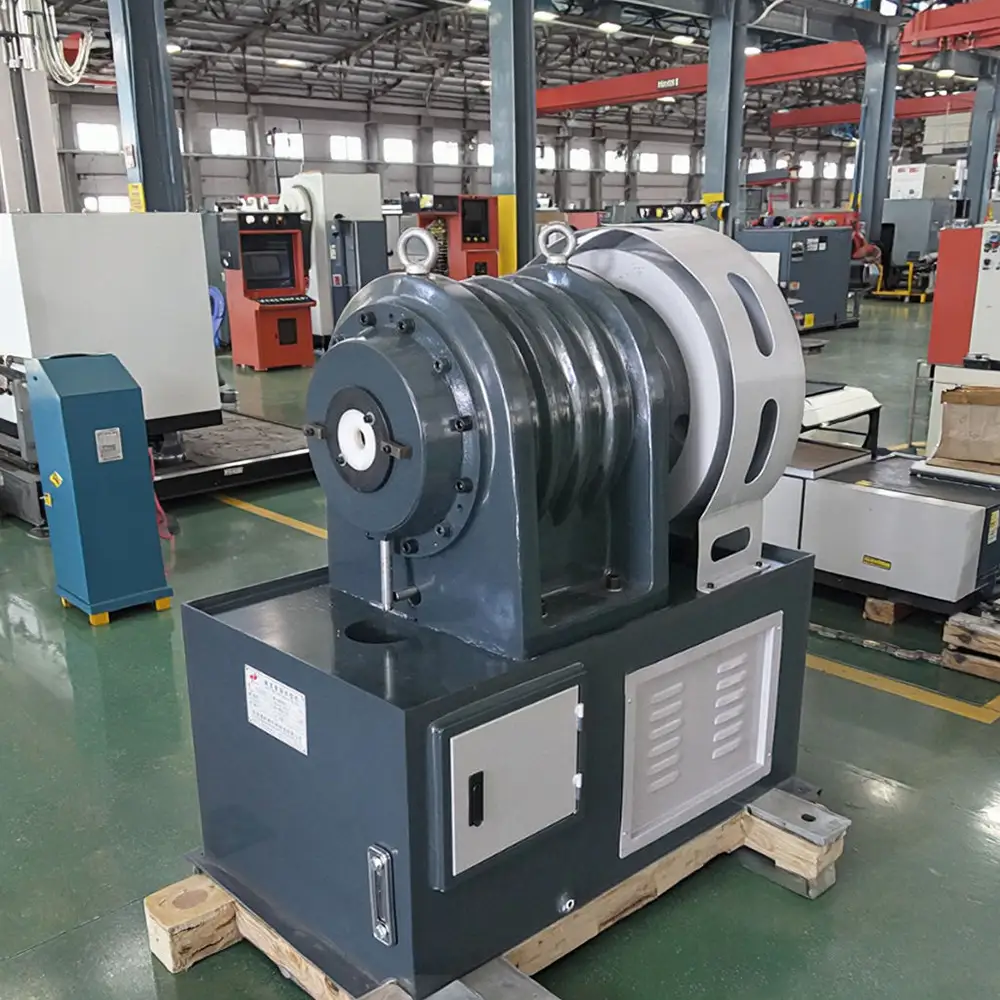

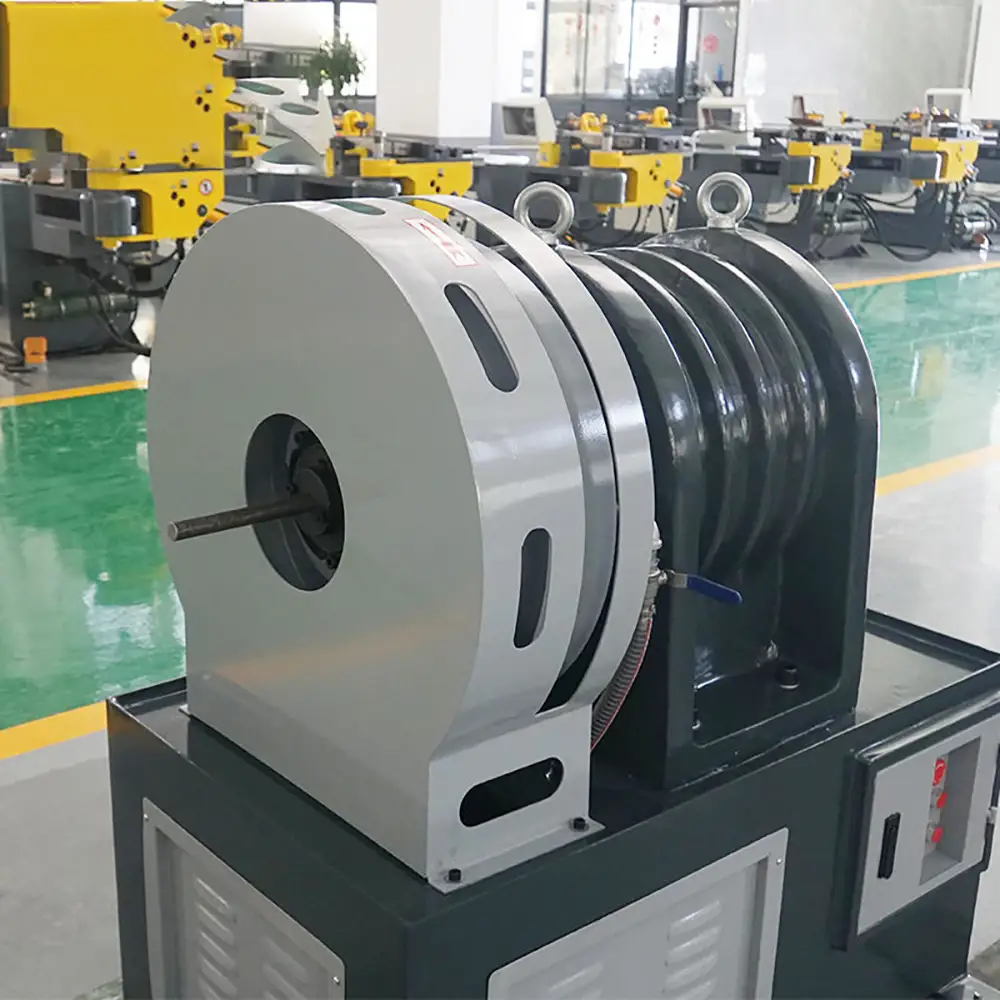

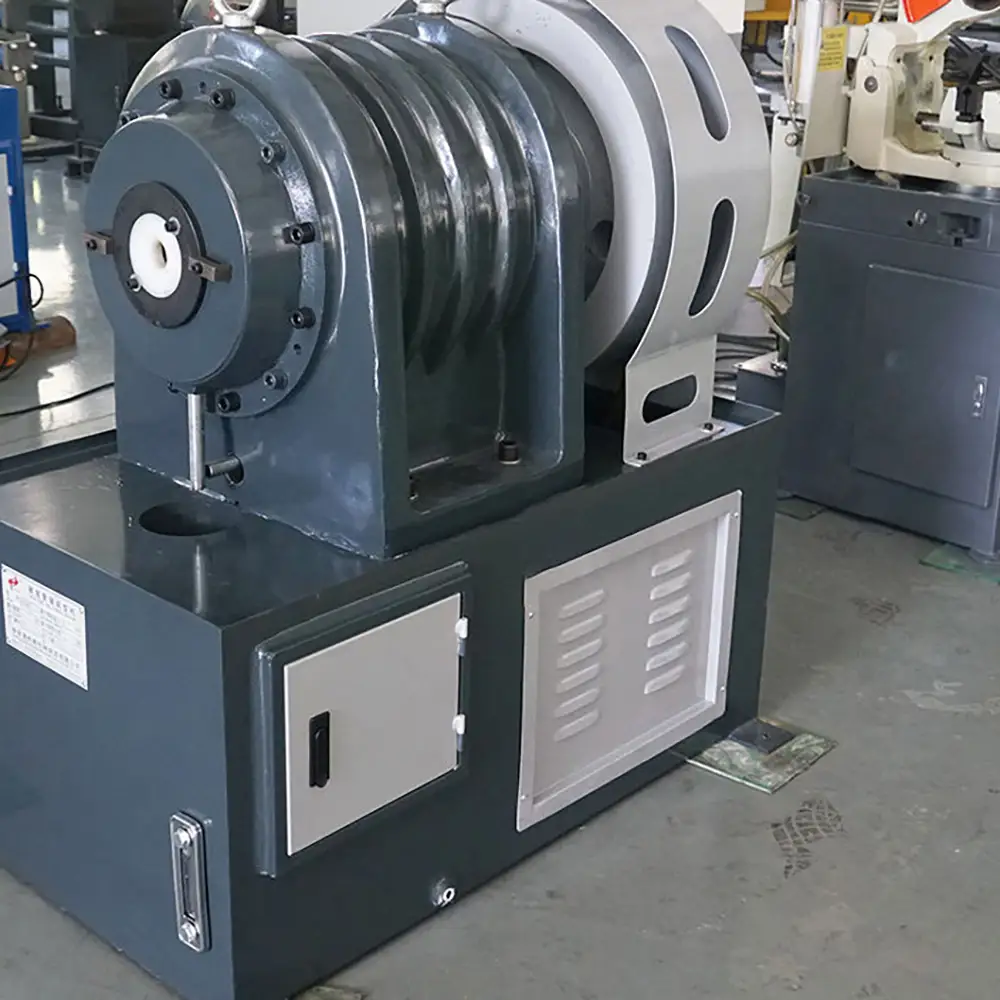

Taper Forming Machine Processing Furniture Legs with Pipes

1. Feeding pipe by manual. (Auto feeding as option, auto loading and unloading as option.)

2. Taper forming round pipe for chair leg. Option: square forming.

3. Low working noice

Taper Forming Machine for Processing Furniture Legs with Metal Pipes

The Taper Forming Machine for Processing Furniture Legs with Metal Pipes is designed for manufacturers that use metal pipes and tubes to produce furniture legs,frames,rails,and other tubular components. The machine performs taper forming and tube shaping operations to transform straight metal pipes into specially formed furniture components.

Metal tube furniture is widely used in chairs,tables,stools,beds,sofas,office furniture,and display products. While standard round tubes provide a practical structural solution,many modern furniture designs require tapered ends,reduced diameters,shaped sections,or customized profiles.

A dedicated taper forming machine provides a controlled method for modifying the geometry of suitable metal tubes. Depending on the machine configuration and tooling,the forming process may include tapering,end reducing,shrinking,necking,or other tube-end forming operations.

The final tube shape depends on the material,tube dimensions,tooling design,and machine configuration. Customers should provide product drawings or samples when a specific furniture leg profile is required.

Item	Value
Material / metal processed	Brass / Copper, Alloy, STAINLESS STEEL, Aluminum, Aluminium alloy, Carbon Steel
Max.shrinking capacity (diameter)(mm)	219
Raw material	Metal Pipe
Max. tube contracting length (mm)	900
Power (kw)	5.5
Warranty	1 Year
Weight (kg)	1000
Max.shrinking capacity (thickness)(mm)	10
Brand name	SOAR
Application	Processing furniture legs with pipes
After-sales Service Provided	24H Online Support

Furniture Leg Pipe Processing

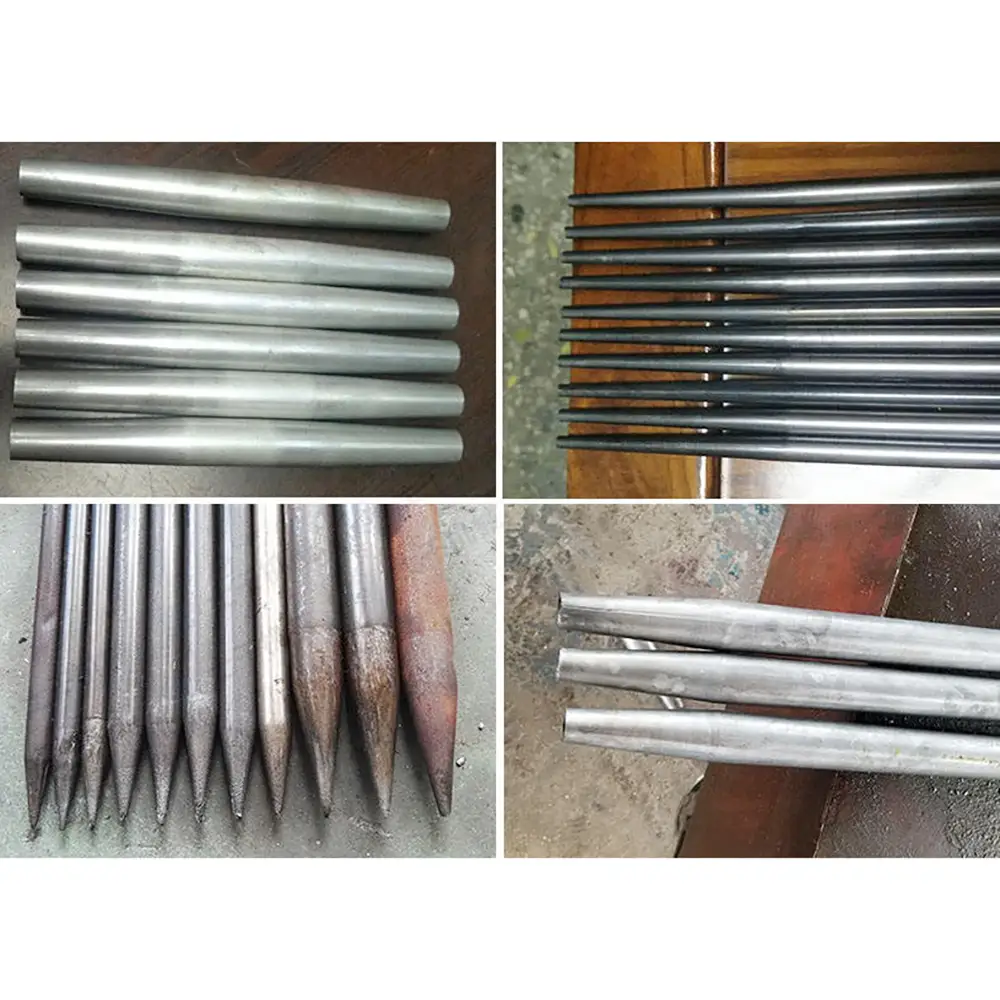

Furniture legs are one of the most common applications for tapered metal tubes. Chair legs,table legs,stool legs,and other support components can be manufactured from carbon steel,stainless steel,aluminum,and other suitable tube materials.

Taper forming can create a smaller or specially shaped section at the end of the tube. This can provide a different visual appearance and may also prepare the tube for connection with another component.

Typical furniture applications include:

Metal chair legs

Table legs

Stool legs

Sofa support tubes

Bed frame components

Cabinet legs

Furniture frame tubes

Office furniture components

Display rack legs

Decorative furniture posts

The actual forming process should be selected according to the required leg shape and tube specifications.

Tube Tapering and Taper Forming

Tube tapering changes the diameter or profile of a selected tube section. In furniture manufacturing,this can create a gradual transition from a larger tube section to a smaller end.

The taper can be designed for both functional and decorative purposes. For example,a furniture leg may use a tapered end to create a slimmer appearance,while another design may use a reduced end for assembly into a fitting or connector.

The tapering length,diameter reduction,and final geometry depend on the forming tooling.

Different products may require different dies. Therefore,the machine should be configured according to the actual tube dimensions and required finished shape.

Tube End Reducing and Shrinking

In addition to tapering,the machine may support related tube-end operations such as reducing and shrinking.

End reducing decreases the diameter of a tube section,while shrinking can compress the tube into a smaller or more controlled profile. Necking may also be used to create a localized reduced section.

These processes are useful for furniture components that need a shaped connection area or decorative transition.

The actual capabilities depend on the forming system and tooling. Customers should provide technical drawings if a specific end shape or dimensional tolerance is required.

Suitable Metal Pipe and Tube Materials

The taper forming machine can be configured for suitable metal pipes and tubes used in furniture manufacturing.

Common materials may include:

Carbon steel

Mild steel

Stainless steel

Aluminum

Copper

Selected alloy steel

Material properties influence forming force,tool wear,surface quality,and the final tube shape.

Stainless steel tubes may require suitable tooling and forming parameters because different grades have different work-hardening characteristics. Aluminum and copper are generally more formable,but surface protection may be important when producing visible furniture components.

Before production,the material grade,outside diameter,wall thickness,and required taper should be evaluated.

Chair and Table Leg Manufacturing

Furniture manufacturers often require multiple tube shapes for different product lines. A taper forming machine can be used for chair legs,table legs,and stool legs when the tube size and material are within the machine's working range.

For chair manufacturing,the machine may process tube legs used in dining chairs,office chairs,restaurant furniture,and custom seating.

For tables,the equipment can process suitable tubes used for dining tables,coffee tables,side tables,work tables,and other furniture structures.

The same basic forming principle can be adapted to different furniture designs through tooling changes.

Decorative Furniture Tube Forming

Tapering is not only a structural process. It can also be used to create a distinctive appearance.

A tapered furniture leg can provide a slimmer visual profile and can be combined with other manufacturing processes such as embossing,grooving,rolling,polishing,or decorative forming.

After tapering,the finished tube may be polished,brushed,powder coated,painted,or plated according to the furniture design.

For decorative furniture,the forming process should minimize unwanted dents and surface marks. Proper tooling alignment and workpiece positioning are therefore important.

Tooling and Die Design

Tooling is a key factor in furniture tube tapering. The forming die determines the shape of the tapered section and directly influences the finished dimensions.

Different tube diameters and wall thicknesses may require different tooling. A custom furniture leg profile may also require specially designed dies.

For manufacturers with multiple furniture products,tooling can be planned around different product families.

When requesting a quotation,customers should provide:

Tube outside diameter

Tube wall thickness

Material type

Taper length

Initial tube diameter

Final diameter

Forming shape

Production volume

Product drawing or sample

These details help determine the appropriate machine and tooling configuration.

Production Efficiency

Mechanical taper forming can reduce repetitive manual tube-shaping work and provide a more consistent production method.

For small and medium furniture manufacturers,the machine can support flexible production of different furniture leg styles. Operators can change workpieces and tooling according to the production schedule.

For larger factories,the taper forming process can be integrated with tube cutting,drilling,punching,welding,grinding,polishing,and coating operations.

Actual production output depends on tube size,material,forming depth,tooling,loading method,operator workflow,and machine configuration.

Forming Quality and Dimensional Control

Furniture legs are visible components in many products,so dimensional consistency and surface quality are important.

The finished taper can be affected by tube material,wall thickness,tooling design,alignment,forming force,and machine condition.

Manufacturers should inspect sample parts during initial setup and verify important dimensions before continuing larger production runs.

Where specific tolerances are required,the customer should provide the dimensional requirements before machine selection and tooling design.

Maintenance and Safety

The machine should be operated according to the manufacturer's instructions. Operators should keep hands away from forming dies and moving components during operation.

Routine maintenance may include cleaning metal debris,checking forming tools,inspecting mechanical components,lubricating designated moving parts,and checking electrical and hydraulic or pneumatic systems where applicable.

Safety features such as guards and emergency-stop systems depend on the specific machine configuration. Operators should use appropriate protective equipment and follow applicable workplace safety requirements.

OEM and Custom Furniture Leg Solutions

Furniture manufacturers may have unique requirements for leg diameter,taper length,forming shape,and decorative appearance. OEM and ODM solutions can therefore be considered for specific applications.

Customers can provide furniture drawings,samples,pipe dimensions,material information,and required production volume. These details can be used to evaluate machine configuration and tooling requirements.

For furniture factories,metal fabrication companies,distributors,and B2B machinery buyers,the taper forming machine provides a practical solution for producing shaped tubular furniture components.

Why Choose Us

Dedicated Furniture Leg Forming – Designed for suitable metal pipes used in chairs,tables,stools,and other furniture products.

Tube Taper Forming – Creates tapered or reduced tube sections according to the selected tooling and product design.

Flexible Tube Processing – Suitable configurations can be evaluated for carbon steel,stainless steel,aluminum,copper,and other metal tubes.

Multiple Furniture Applications – Supports furniture legs,frames,rails,support tubes,and decorative tubular components.

Customized Tooling – Forming dies can be selected or developed according to tube dimensions and required taper geometry.

Repeatable Forming Process – Mechanical forming can help improve consistency between repeated furniture components.

Integration With Production Lines – Can be incorporated into broader tube cutting,welding,grinding,polishing,and coating workflows.

OEM and B2B Support – Machine configuration and tooling can be evaluated according to customer drawings,samples,materials,and production requirements.

FAQs

1. What is a taper forming machine?

A taper forming machine is designed to change the diameter or profile of part of a metal tube or pipe,creating a tapered,reduced,or specially shaped section.

2. Can it process furniture legs?

Yes. Suitable metal pipes and tubes can be tapered and formed for chair legs,table legs,stool legs,and other furniture components.

3. What types of furniture can use tapered metal legs?

Tapered tubes can be used for dining tables,coffee tables,chairs,stools,office furniture,beds,cabinets,and custom furniture products.

4. What materials can be processed?

Depending on the machine configuration,it may process carbon steel,mild steel,stainless steel,aluminum,copper,and selected alloy steel tubes.

5. Can the machine reduce the tube end?

Yes. Depending on the tooling,it may perform tube-end reducing,shrinking,necking,or tapering operations.

6. Can the taper dimensions be customized?

Yes. The taper length,final diameter,and forming profile can be designed around the required product specifications and tooling.

7. Does every pipe diameter require different tooling?

Different tube diameters,wall thicknesses,and forming shapes may require different dies or tooling.

8. Can stainless steel furniture legs be formed?

Yes,when the machine and tooling are properly configured for the selected stainless steel grade,tube size,and wall thickness.

9. Can aluminum furniture tubes be processed?

Suitable aluminum tubes can be processed when the machine and tooling are selected according to the material and forming requirements.

10. What affects taper forming quality?

Material properties,tube dimensions,wall thickness,tooling design,alignment,forming force,and machine configuration all influence the finished result.

11. Can the machine be customized?

Yes. Machine configuration,forming tooling,workholding,and other components may be customized according to the application.

12. What information is needed for a quotation?

Provide the tube material,outside diameter,wall thickness,initial and final diameters,taper length,forming shape,production volume,and product drawings or samples.
