Semi-Automatic End Pointing Machine for Ground Screw Pile Processing

Semi-automatic feeding design, single-person operation, easy to learn for new workers
Rotary extrusion forming, uniform smooth taper surface, less burrs, no secondary polishing required
Quick mold change, supports round tubes of different diameters & wall thickness for ground screw
Hydraulic driving system, powerful extrusion force, stable running, low failure rate
Fast forming speed, suitable for mass production, improve overall production capacity
Thickened heavy-duty frame, robust transmission structure, anti-deformation for long-time continuous work
Specially for tube pointing of solar ground screw, meets the demand for underground installation

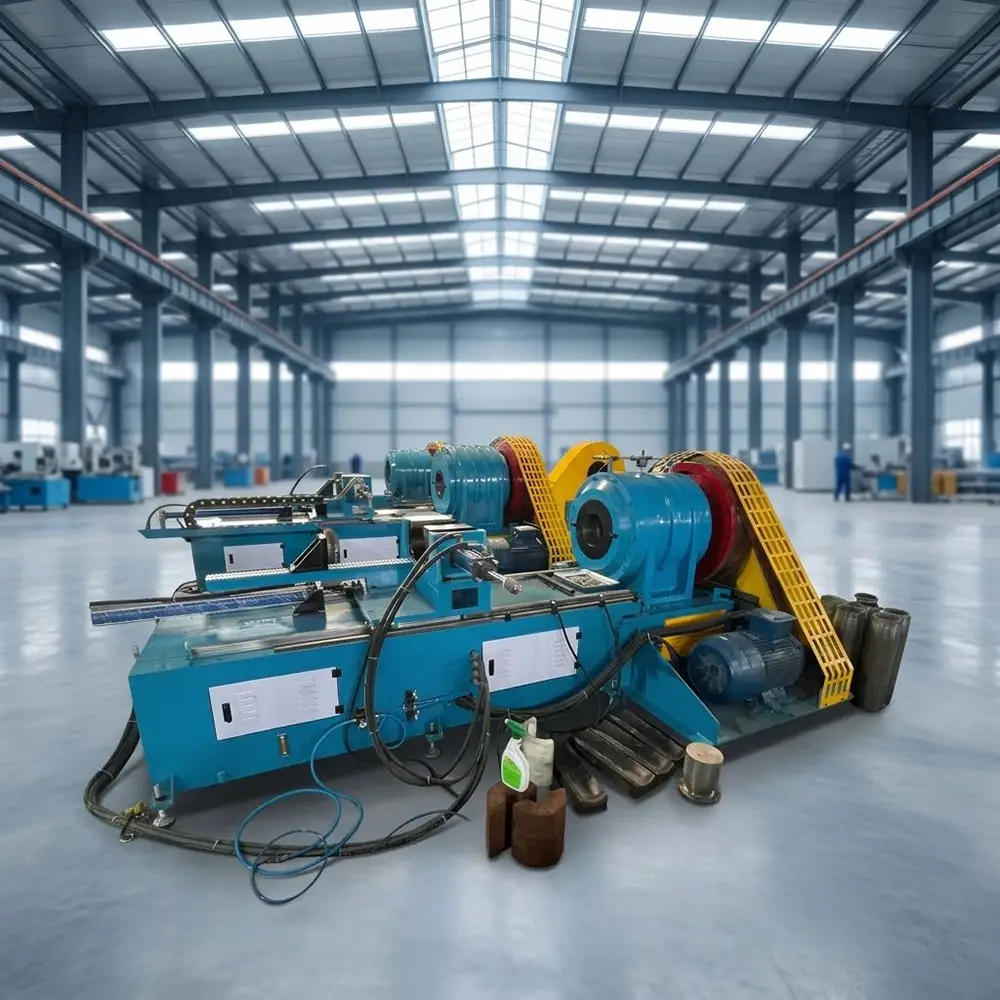

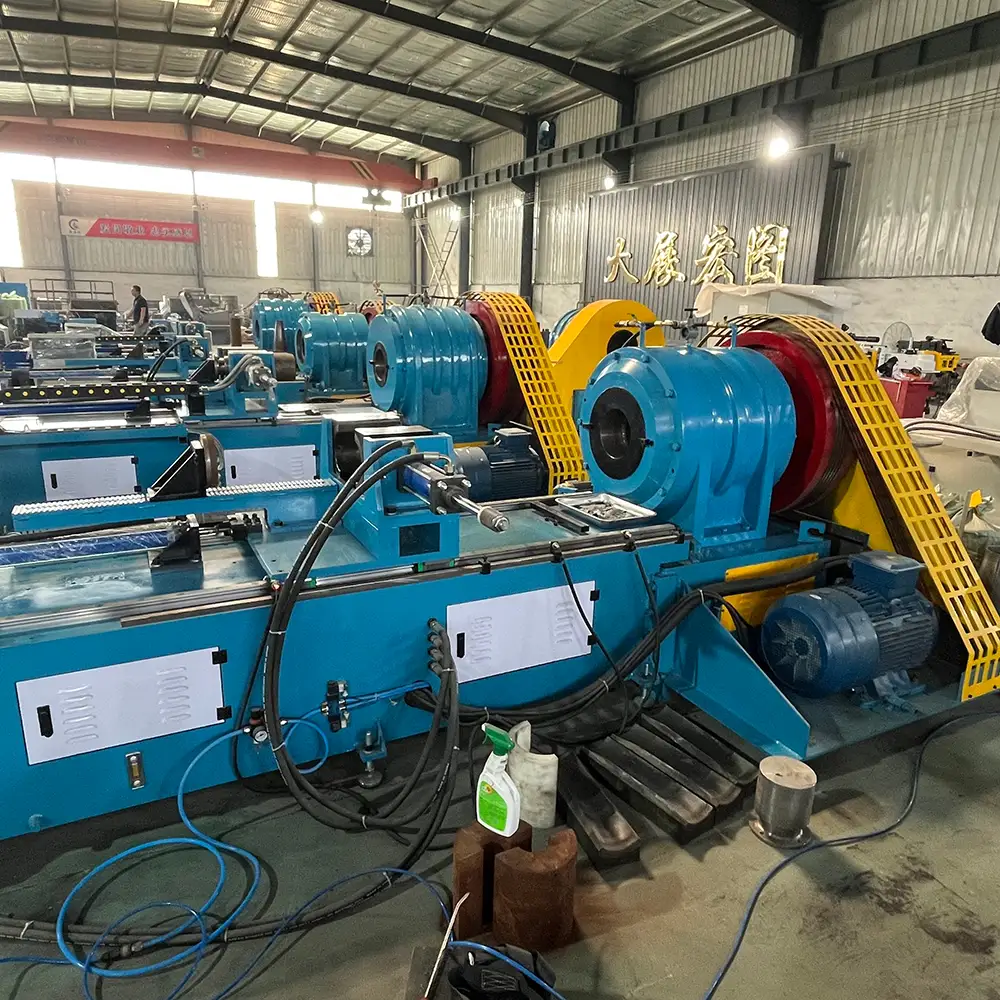

Semi-Automatic End Pointing Machine for Ground Screw Pile Processing

The Semi-Automatic End Pointing Machine for Ground Screw Pile Processing is a specialized metal tube forming machine designed for manufacturers producing ground screws,ground screw piles,helical piles,ground anchors,and other tubular foundation components. The machine is used to reshape the end section of suitable round steel tubes into a pointed,reduced,tapered,or otherwise formed profile according to the finished product requirements.

Ground screw piles are widely used in foundation and support applications where a tubular steel shaft is combined with helical plates or other structural components. The leading end of the pile may require special shaping to assist with installation and to meet the product's structural and dimensional design.

This semi-automatic machine provides a practical solution for controlled tube-end processing while allowing operators to manage workpiece loading and unloading. The exact pointing method,forming force,tube capacity,and finished geometry depend on the machine configuration and tooling.

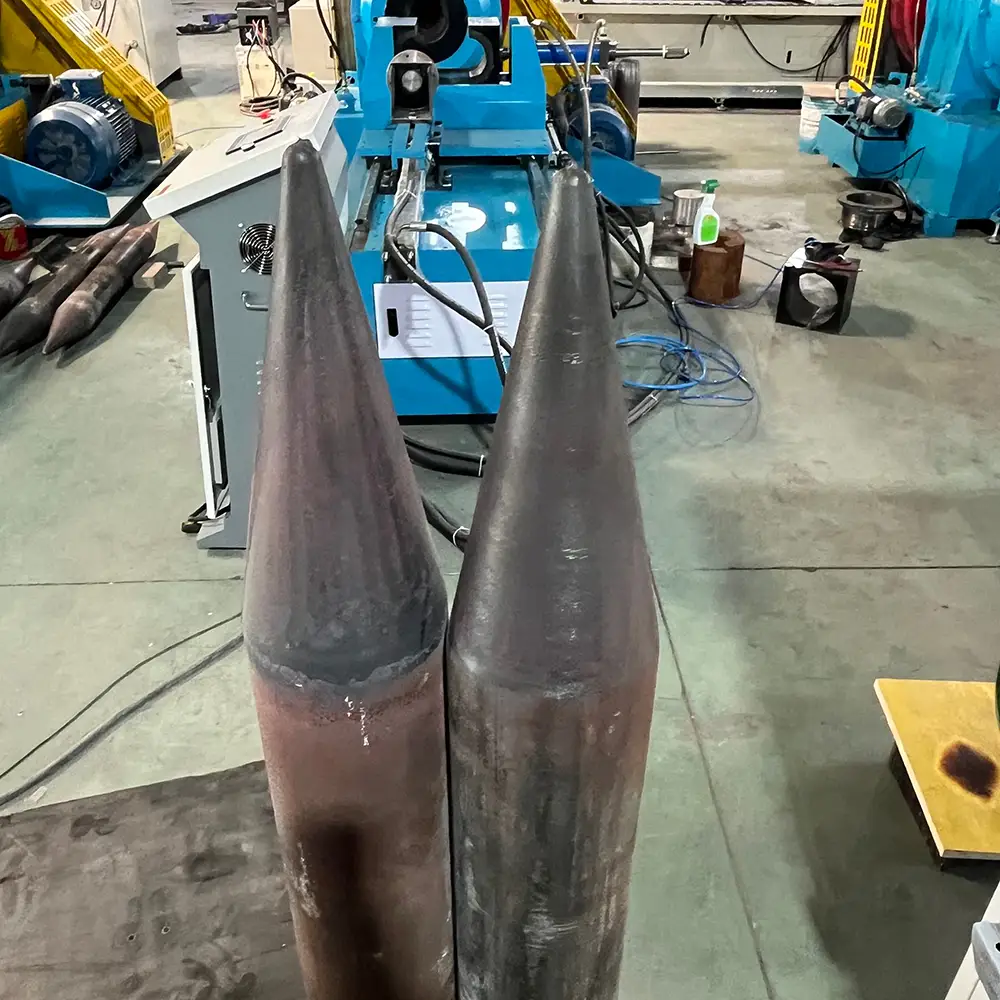

Ground Screw Pile End Pointing

End pointing is an important processing operation for many tubular ground screw designs. Rather than simply cutting the tube at a straight angle,the machine reshapes the end into a controlled pointed or tapered profile.

The formed end can create a reduced leading section that integrates with the overall geometry of the ground screw pile.

Depending on the product design,the finished end may be:

Pointed

Tapered

Conical

Reduced

Partially Closed

Custom Formed

The actual shape should be determined by the finished ground screw drawing and installation requirements.

For manufacturers producing several ground screw models,the machine can potentially use different forming dies for different tube sizes and end profiles.

Tube End Pointing Process

The tube pointing process uses dedicated tooling to apply controlled forming force to the end of a round steel tube. The tube is positioned and secured in the machine fixture before the forming cycle begins.

The forming tooling reshapes the selected tube section according to the die profile.

Unlike a simple pipe cutting process,the pointing operation changes the geometry of the metal rather than simply removing the tube end.

This can provide a more integrated formed transition between the main tube body and the pointed leading section.

The forming process must be matched to the tube material,diameter,wall thickness,and required end shape. High-strength steel tubes may require different forming conditions from standard carbon steel tubes.

Ground Screw Manufacturing Applications

Ground screw piles are commonly manufactured from steel tubes or other suitable tubular structural materials. The tube shaft can be processed before or after other fabrication operations depending on the production workflow.

A typical ground screw production process may include:

Steel Tube Cutting

Tube End Preparation

End Pointing

Tube Tapering Or Reducing

Helical Plate Positioning

Helical Plate Welding

Bracket Or Head Welding

Surface Treatment

Dimensional Inspection

Packaging

The actual production sequence varies according to the ground screw design,material specification,and manufacturer's process.

The end pointing machine can therefore function as one dedicated stage within a larger ground screw production line.

Helical Pile Processing

Helical piles use a tubular shaft and helical plates to create a foundation component for suitable soil and construction conditions. Depending on the design,the lower end of the shaft may require pointing or tapering before additional components are welded.

The machine can be used to prepare suitable steel tubes for helical pile production.

For manufacturers serving different construction or solar foundation markets,the machine can be configured with suitable tooling for different pile dimensions.

Actual processing capacity should always be confirmed using the required tube outside diameter,wall thickness,material grade,and finished point dimensions.

Ground Screw And Ground Anchor Applications

The machine is not limited to solar foundation products. Suitable tube-end pointing applications may include:

Solar Ground Screws

Ground Screw Piles

Helical Piles

Ground Anchors

Earth Anchors

Screw Piles

Steel Foundation Piles

Fence Foundation Systems

Temporary Foundation Components

Agricultural Ground Anchors

The finished tube-end shape depends on the product design and intended installation method.

For specialized foundation products,customers should provide engineering drawings or samples before selecting the machine and forming tooling.

Semi-Automatic Machine Operation

The semi-automatic configuration combines machine-controlled forming with operator-managed workpiece handling.

A typical operating cycle may include placing the steel tube into the fixture,aligning the tube,activating the forming cycle,and removing the processed tube after the machine completes the operation.

This operating method can reduce repetitive manual tube-end forming while remaining practical for production environments where different tube sizes or product specifications are processed.

The exact level of automation depends on the machine's control system and mechanical design.

For higher production volumes,the machine may potentially be integrated with automatic tube feeding,loading,unloading,and material handling equipment.

Forming Dies And Tooling

Forming dies are essential for achieving the required ground screw pile end profile.

Different dies may be required for:

Pointed Tube Ends

Tapered Tube Ends

Conical Tube Ends

Reduced Tube Ends

Ground Screw Leading Ends

Helical Pile Ends

Custom Foundation Tube Profiles

The die geometry determines the final shape and dimensions of the formed tube.

When requesting custom tooling,customers should provide tube diameter,wall thickness,material grade,finished point length,final end diameter,and taper angle.

A product drawing or physical sample can help determine the appropriate forming method and die design.

Steel Tube Compatibility

Ground screw piles are commonly manufactured from carbon steel or other structural steel materials. The machine should be selected according to the actual material properties of the tube.

Potential tube materials include:

Carbon Steel

Mild Steel

Structural Steel

Alloy Steel

Other Suitable Metal Tubes

Different steel grades have different yield strengths and forming characteristics. Higher-strength materials may require greater forming force or specialized tooling.

The machine's actual capacity should therefore be evaluated using the customer's specific tube specifications.

Production Efficiency And Consistency

A dedicated end pointing machine can improve production consistency compared with manual tube-end forming. Controlled positioning,forming force,and tooling can help create more uniform finished ends across a production batch.

This can be especially useful for ground screw manufacturers producing large quantities of similar tubular foundation components.

Actual production output depends on tube size,material,forming method,loading time,tooling,and operator workflow.

For manufacturers with multiple product sizes,the use of interchangeable tooling can provide additional production flexibility.

Quality Control

Finished ground screw pile ends should be inspected according to the manufacturer's product requirements.

Inspection may include:

Overall Tube Length

Point Length

Final End Diameter

Taper Geometry

Tube Alignment

Surface Condition

Dimensional Consistency

For critical applications,additional inspection methods may be required according to the applicable product specifications and engineering requirements.

The quality of the formed end depends on material consistency,tooling condition,workpiece positioning,machine rigidity,and forming parameters.

Maintenance And Safety

End pointing equipment generates significant mechanical force and includes moving forming components. Operators should follow the manufacturer's operating instructions and applicable workplace safety requirements.

Routine maintenance may include inspecting forming dies,fixtures,fasteners,drive components,and lubrication points.

Tooling should be checked for wear because worn or damaged dies can affect the final tube profile.

The tube should be securely positioned before forming. Operators should keep hands away from moving components and use appropriate personal protective equipment.

Guards,emergency stops,and other safety features should be maintained according to the specific machine configuration and local requirements.

OEM And Custom Ground Screw Processing Solutions

Ground screw and helical pile manufacturers may use different tube diameters,wall thicknesses,and point geometries. The machine can therefore be customized according to the customer's production requirements.

OEM and ODM options may include customized forming dies,fixtures,workpiece supports,control systems,automatic feeding,and other application-specific components.

Customers should provide the complete ground screw drawing,tube material,outside diameter,wall thickness,finished point dimensions,and expected production volume.

For machinery distributors and B2B buyers,the machine can also be supplied as part of a complete ground screw or helical pile production solution.

Why Choose Us

Dedicated End Pointing Solution
Designed specifically for controlled forming of suitable round steel tube ends.

Ground Screw Applications
Suitable for ground screw piles,helical piles,ground anchors,and related tubular foundation products.

Semi-Automatic Operation
Combines machine-controlled forming with practical operator loading and unloading.

Custom Pointing Profiles
Tooling can be designed for pointed,tapered,conical,or reduced tube-end geometries.

Flexible Tube Processing
Suitable for different tube sizes and structural steel materials within the machine's configured range.

Repeatable Forming
Controlled tooling and forming parameters can support consistent production of repeated tube-end profiles.

Production Line Integration
Can potentially be combined with tube cutting,welding,helical plate welding,and surface treatment equipment.

OEM And ODM Support
Suitable for ground screw manufacturers,foundation component suppliers,metal fabricators,distributors,and industrial machinery buyers.

FAQs

1. What is a ground screw pile end pointing machine?

It is a tube forming machine designed to reshape the end of a suitable round steel tube into a pointed,tapered,reduced,or custom profile for ground screw pile production.

2. What is the machine mainly used for?

It is mainly used for processing tube ends for ground screws,helical piles,ground anchors,and other tubular foundation components.

3. Can it process solar ground screw tubes?

Yes. Suitable steel tubes used for solar ground screw production can be processed when their dimensions and material properties match the machine configuration.

4. Can it make a pointed tube end?

Yes. Suitable forming dies can be used to create pointed or strongly tapered tube ends according to the product design.

5. What is the difference between pointing and cutting?

Cutting removes material from the tube,while pointing reshapes the tube end through mechanical forming to create a new geometry.

6. Is this machine fully automatic?

No. This model is described as semi-automatic. The operator typically manages some workpiece handling,while the forming operation is mechanically controlled.

7. What materials can be processed?

Suitable carbon steel,mild steel,structural steel,and other compatible metal tubes may be processed depending on the machine's forming capacity.

8. Can different ground screw sizes be processed?

Yes,within the machine's operating range. Different tube sizes and end profiles may require different forming dies.

9. Can custom dies be supplied?

Yes. Custom dies can be designed according to tube diameter,wall thickness,point length,final diameter,and required end geometry.

10. Can the machine be integrated with other equipment?

Yes. It can potentially be integrated with tube cutting,welding,helical plate welding,surface treatment,and other ground screw production equipment.

11. What affects the pointing quality?

Tube material,diameter,wall thickness,forming force,die geometry,alignment,machine rigidity,and process parameters all affect the finished result.

12. What information is needed for a quotation?

Provide tube material and grade,outside diameter,wall thickness,tube length,point length,final end diameter,taper angle,production volume,and product drawings or samples.
