Stainless Knife Rivets Squeezing Machine Scissors Joint Riveting Machine Solid Nails Press

In the field of modern industrial manufacturing, the riveting process, as a crucial connection technology, is widely applied in numerous industries. Today, we bring you an innovative device that revolutionizes the traditional riveting experience - the hydraulic riveting machine.

This hydraulic riveting machine adopts an advanced full hydraulic drive and control system. With a strong and stable output pressure, it can directly achieve the cold riveting process, significantly improving the riveting quality and injecting a higher quality guarantee into your production process. Compared with the traditional pneumatic riveting method, it has many remarkable advantages:

1. Excellent Adaptability to the Working Environment: It operates without annoying noise interference, creating a quiet and comfortable working atmosphere for operators and effectively reducing the impact of noise pollution on the working environment.

2. Flexible and Convenient Operation: Operators can easily control the device. The operation process is agile and smooth, greatly reducing the labor intensity. Even if working for a long time, it is not easy to feel tired.

3. High Production Capacity: The riveting speed is extremely fast, and it can complete a large number of riveting tasks in a short time, significantly improving production efficiency and helping enterprises gain the upper hand in market competition.

Machine Type	hydraulic riveting machine
warranty	1 Year
weight	350kg
spindle stroke	42MM
motor	0.5HP-1*2HP
Model	S-152
Working times	0.5-10 seconds
working pressure	20-70kg/cm cubic meters
MPA	430-1650
Riveting length	230mm
riveting RMP	1400/1720
After-sales Service Provided	1 year

The Stainless Knife Rivets Squeezing Machine Scissors Joint Riveting Machine Solid Nails Press is an industrial riveting solution designed for knife manufacturing, scissors production, metal tool assembly, and other applications that require reliable joining of metal components with rivets or solid nails. The machine is developed to provide controlled squeezing and pressing force for forming secure riveted joints while improving production consistency and reducing repetitive manual operations.

Knife and scissors manufacturing often requires precise riveting at pivot points, handles, joints, and other connection areas. The quality of these riveted connections directly affects the stability, movement, appearance, and service life of the finished product. An appropriate riveting machine can provide a more controlled production process compared with manual hammering or basic hand-operated riveting.

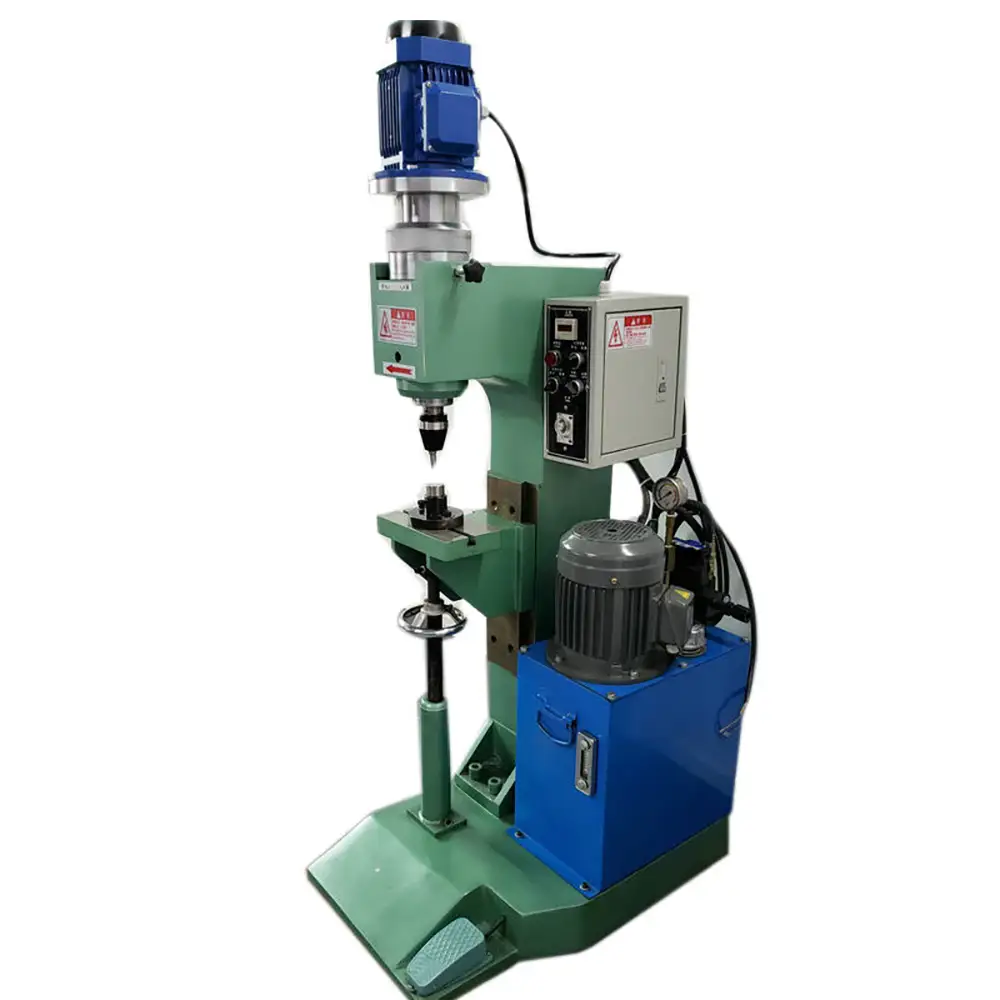

Stainless Knife Rivet Squeezing

Stainless steel rivets are widely used in knife, scissors, hand tool, kitchen tool, hardware, and metal product manufacturing because of their corrosion resistance and durable appearance.

This machine is designed for compatible stainless steel rivets and other suitable metal fasteners. The squeezing process applies controlled mechanical pressure to deform and secure the rivet between the workpieces.

Compared with manual riveting, a dedicated squeezing machine can help manufacturers achieve more consistent results from one production cycle to another. The actual riveting performance depends on the rivet material, diameter, workpiece thickness, joint structure, and selected tooling.

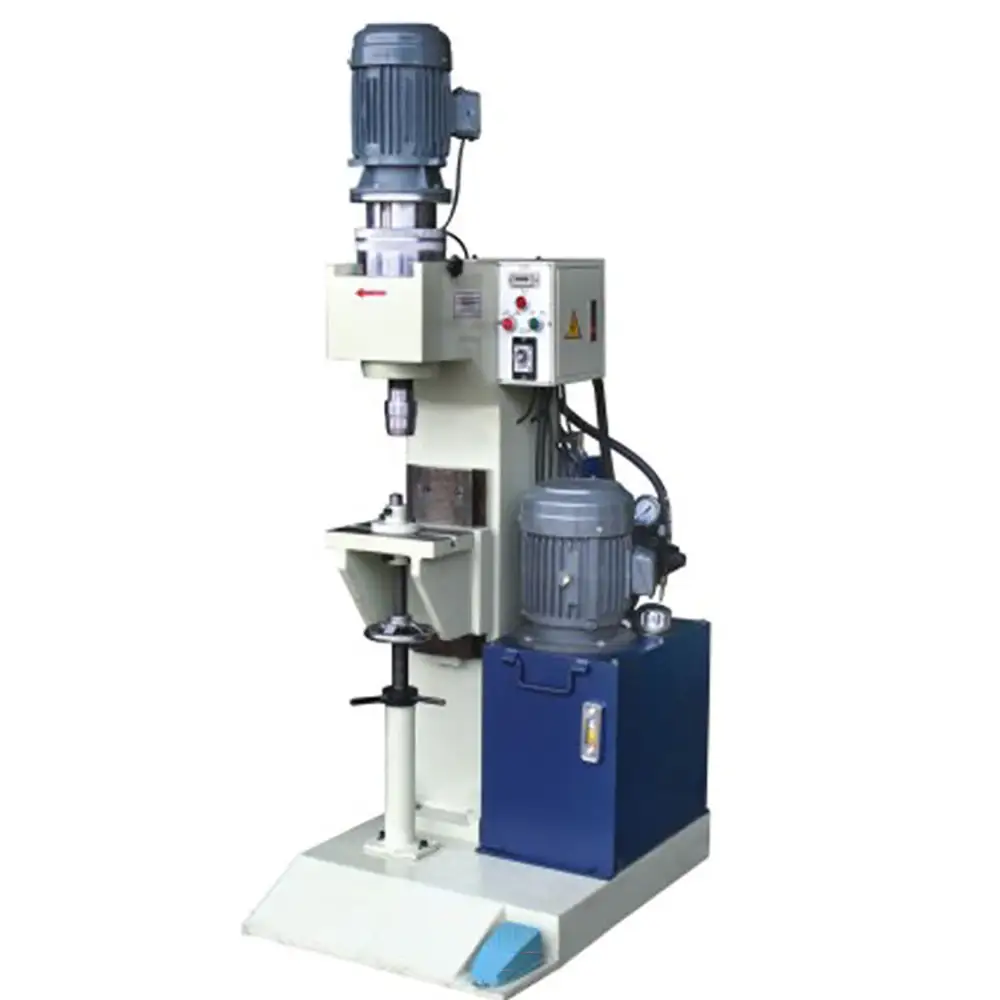

Knife Riveting Machine

Knife manufacturing can involve different riveting requirements depending on the knife construction. Rivets may be used for handle assembly, blade and handle connections, decorative fastening, or other structural components.

The machine can be used for compatible knife products where a controlled pressing or squeezing process is required. Suitable fixtures can help hold the knife securely and position the riveting point accurately during operation.

Typical applications may include:

Kitchen Knives
Utility Knives
Outdoor Knives
Hunting Knives
Craft Knives
Folding Knife Components
Fixed-Blade Knife Handles
Metal Tool Handles
Custom Knife Products

For specialized knife designs, tooling should be matched to the product geometry and rivet specifications.

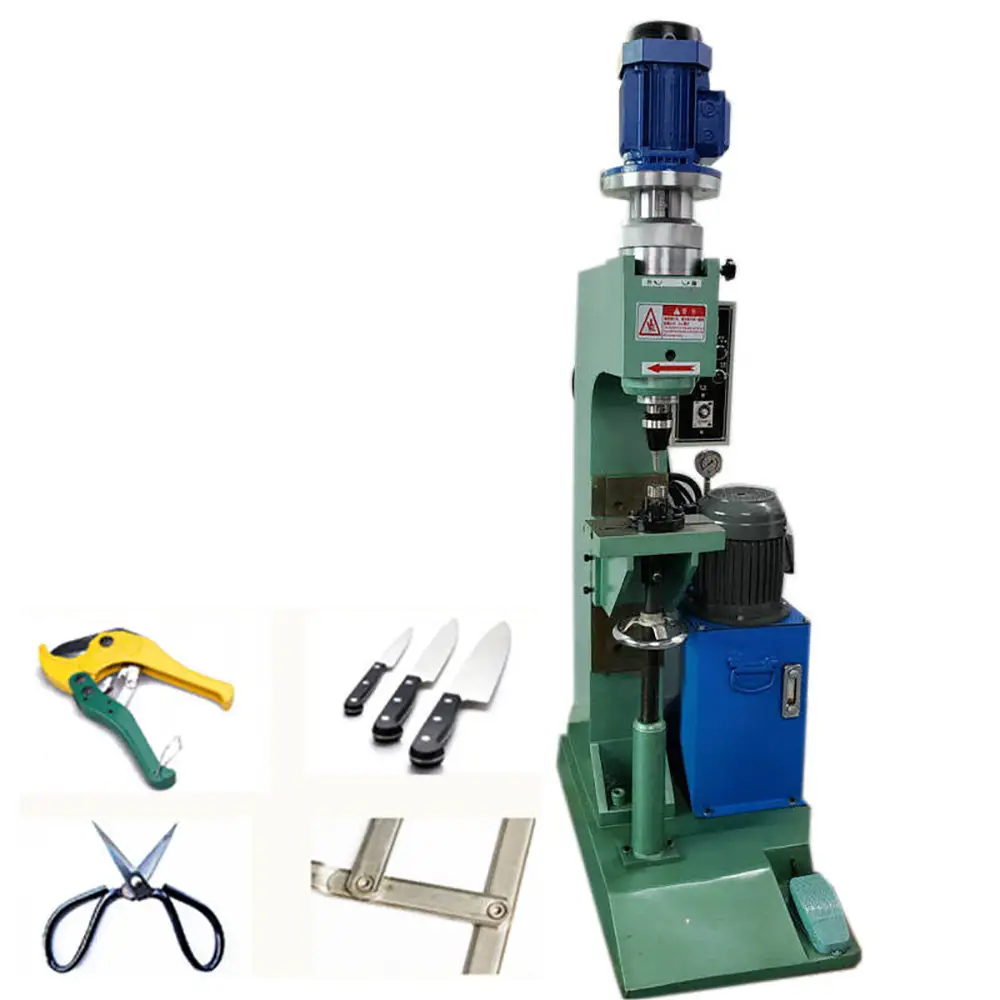

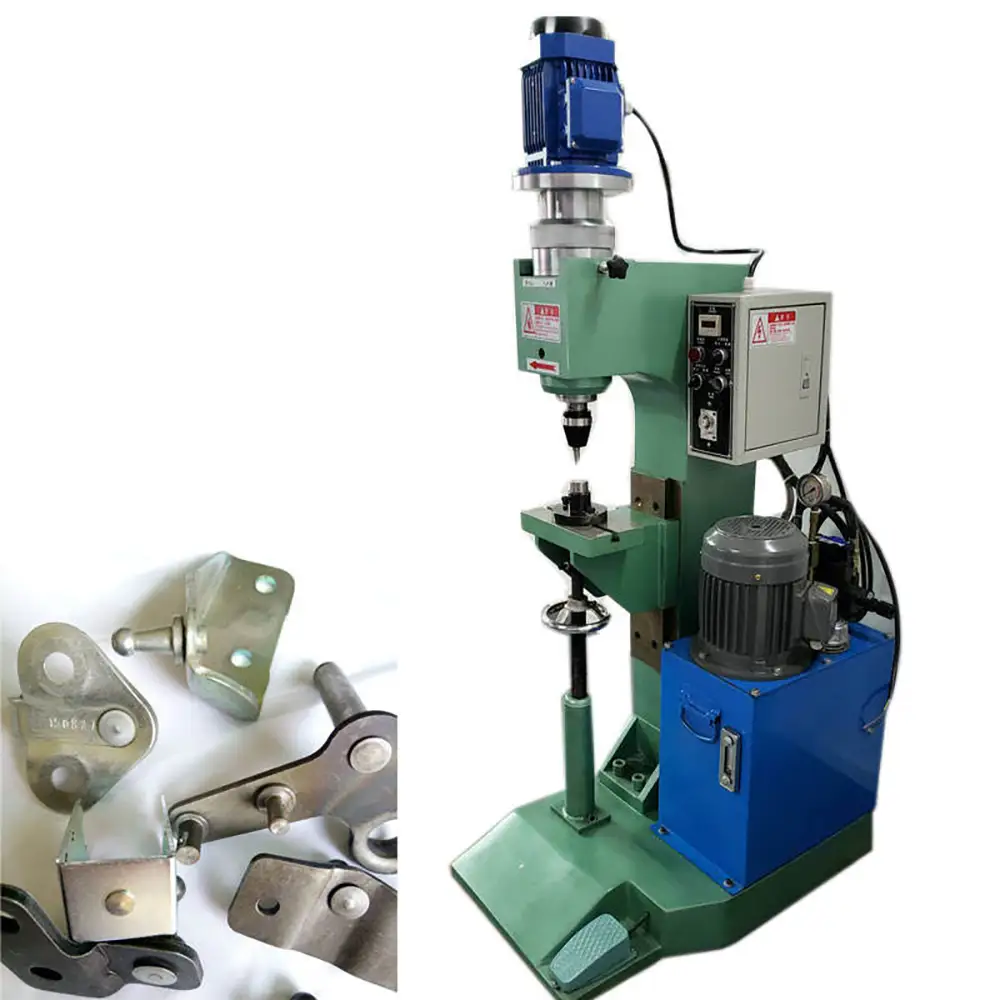

Scissors Joint Riveting Machine

Scissors require a precise joint connection that allows the two blades to move smoothly around the pivot point. Riveting quality is therefore important to the final performance of the scissors.

The scissors joint riveting machine is designed for controlled riveting at compatible pivot positions. A properly configured fixture can help maintain the required alignment between the two blades while the rivet is pressed.

The machine can be considered for different types of scissors and shears, including:

Household Scissors
Kitchen Scissors
Tailoring Scissors
Sewing Scissors
Office Scissors
Craft Scissors
Garden Shears
Industrial Shears
Metal Cutting Shears
Specialty Scissors

The exact tooling configuration should be selected according to the product dimensions and joint structure.

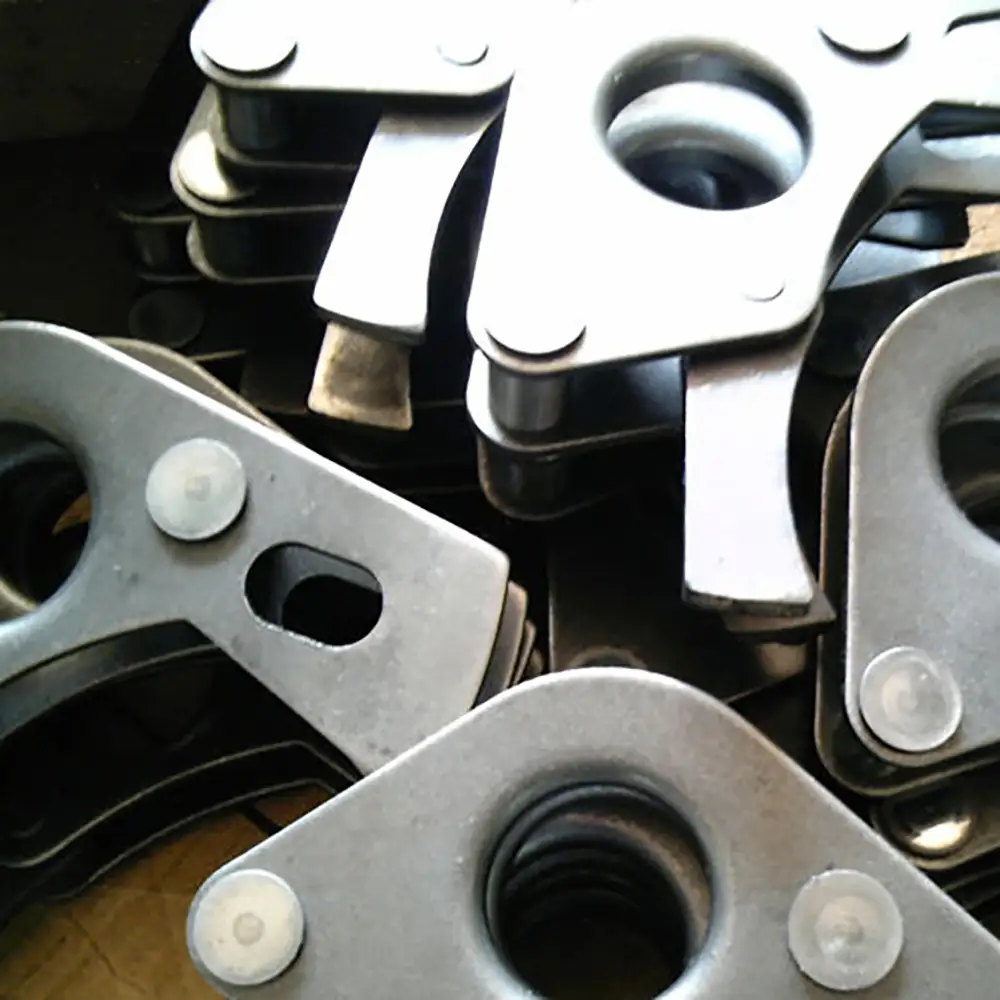

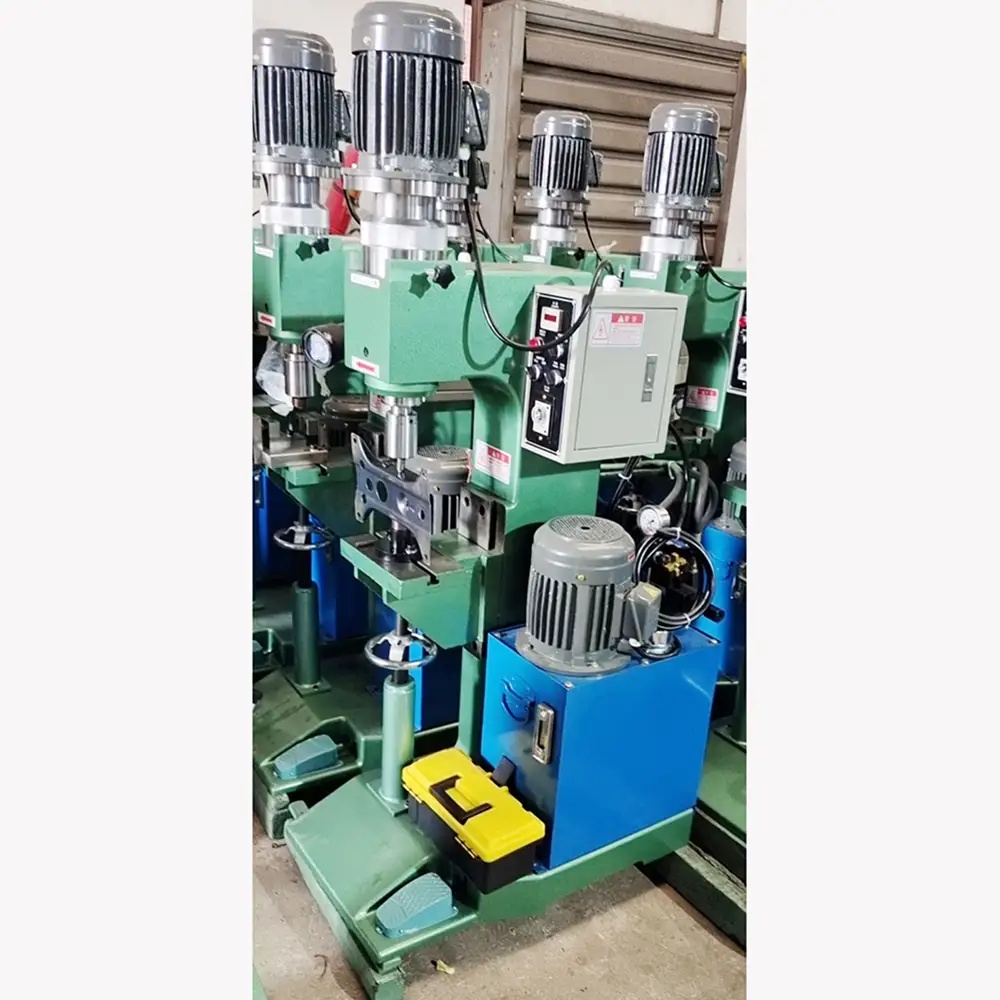

Solid Nail Press Machine

Solid rivets or solid nails require sufficient forming pressure to create a secure mechanical connection. The machine provides a controlled pressing process for compatible solid fasteners.

Instead of relying on repeated manual hammering, the operator can position the workpiece and use the machine to apply the required forming action. This can help improve production repeatability and reduce variation caused by manual operation.

For industrial manufacturers, a controlled solid nail press can be especially useful when the same riveting process must be repeated across large quantities of products.

Controlled Riveting and Squeezing

The squeezing process is an important part of achieving consistent rivet deformation. Excessive or insufficient pressure can affect the appearance and mechanical performance of the finished joint.

With suitable dies and fixtures, the machine can be configured to match the riveting requirements of the product. Proper tooling helps ensure that the rivet is supported correctly during pressing and that the finished joint has a consistent appearance.

Manufacturers should evaluate the actual rivet sample and product sample before finalizing the machine configuration.

Accurate Joint Positioning

Knife and scissors components often require accurate positioning because even a small variation at the joint can influence product assembly.

A dedicated workholding fixture can help locate the blade, handle, or metal component in the correct position before riveting. This supports repeatable production and can make the assembly process easier for operators.

For customized products, positioning fixtures can be designed according to the workpiece shape and riveting location.

Suitable Metal Components

The machine can be considered for compatible metal components used in knives, scissors, hand tools, hardware products, and other metal assemblies.

Potential materials include:

Stainless Steel
Carbon Steel
Mild Steel
Aluminum
Brass
Other Compatible Metal Materials

Material hardness and thickness should be considered when selecting the riveting method, rivet size, pressing force, and tooling.

Production Efficiency

Manual riveting can become time-consuming when production volumes increase. A dedicated riveting machine helps streamline repetitive joint assembly and allows operators to focus on positioning, feeding, inspection, and other production activities.

For knife and scissors manufacturers, improved process consistency can also reduce the need for repeated adjustment after riveting.

The machine can be used as an individual workstation or incorporated into a broader production process depending on factory requirements.

Flexible Dies and Tooling

Riveting applications vary significantly between different knives, scissors, shears, and metal products. The same machine may therefore require different dies or fixtures for different product models.

Tooling can be selected according to:

Rivet Diameter
Rivet Length
Rivet Material
Workpiece Thickness
Product Shape
Joint Position
Required Rivet Head Shape
Production Method

Customers can provide product samples, drawings, rivet samples, or detailed dimensions when discussing tooling requirements.

Applications in Knife and Tool Manufacturing

The machine is suitable for manufacturers producing metal cutting tools, household tools, kitchen products, scissors, shears, and other products requiring mechanical riveting.

It can support applications such as knife handle riveting, scissors pivot riveting, metal component joining, solid rivet pressing, and hardware assembly.

For OEM manufacturers, the equipment can provide a repeatable workstation for customized production orders where consistent riveting quality is important.

Industrial Production Solution

The Stainless Knife Rivet Squeezing Machine is designed around practical industrial production requirements. Its main purpose is to provide a stable and repeatable method of joining compatible components using rivets or solid fasteners.

Before purchasing, manufacturers should confirm the product structure, rivet specifications, workpiece material, joint dimensions, required production capacity, and desired riveting appearance.

Sample testing is recommended for specialized products to verify tooling and process suitability.

Why Choose Our Knife Rivet Squeezing Machine?

Dedicated Riveting Application:
Designed around knife, scissors, metal tool, and solid rivet applications.

Controlled Pressing Process:
The squeezing and pressing operation provides a more repeatable method than manual hammering for suitable applications.

Suitable for Stainless Rivets:
Can be configured for compatible stainless steel rivets and other suitable metal fasteners.

Scissors Joint Riveting:
Suitable for controlled pivot riveting in compatible scissors and shears.

Flexible Tooling:
Dies and fixtures can be selected according to rivet dimensions and workpiece geometry.

Improved Production Consistency:
A controlled machine process can help reduce variation between individual products.

B2B Manufacturing Focus:
Suitable for knife factories, scissors manufacturers, hardware producers, tool manufacturers, and OEM assembly operations.

Custom Production Support:
Machine configuration and tooling can be discussed according to product samples and specific riveting requirements.

Main Applications

The machine can be used for compatible riveting applications including:

Knife Riveting
Knife Handle Riveting
Scissors Joint Riveting
Scissors Pivot Riveting
Shear Riveting
Solid Rivet Pressing
Stainless Steel Rivet Installation
Metal Tool Assembly
Hardware Component Riveting
Metal Product Assembly
Cutting Tool Manufacturing
Custom Metal Product Manufacturing
FAQS
1. What is a knife rivet squeezing machine?

It is a riveting and pressing machine designed to form and secure compatible rivets in knife, scissors, tool, and other metal component assemblies.

2. Can the machine be used for stainless steel rivets?

Yes, it can be configured for compatible stainless steel rivets. The rivet diameter, material, length, and workpiece structure should be confirmed before selecting tooling.

3. Can this machine rivet scissors joints?

Yes. It is suitable for compatible scissors and shear pivot riveting applications when the appropriate fixture and die are used.

4. What products can be processed?

Typical applications include knives, scissors, shears, hand tools, kitchen tools, hardware components, and other products requiring solid rivet or metal fastener installation.

5. Can it press solid rivets?

Yes. The machine can be configured for suitable solid rivets or solid nail-style fasteners according to the product and fastener specifications.

6. What materials can be riveted?

Potential workpiece materials include stainless steel, carbon steel, mild steel, aluminum, brass, and other compatible metals.

7. Does the machine require customized tooling?

Some products may use standard tooling, while specialized knife and scissors designs may require customized dies or fixtures to achieve accurate positioning.

8. How do I choose the correct riveting machine configuration?

Provide the product sample or drawing, rivet sample, rivet diameter and length, workpiece material and thickness, riveting position, and production requirements.

9. Can the machine be used for different knife models?

Yes, provided the products are compatible with the machine's working range and suitable fixtures or tooling are available.

10. Is it suitable for industrial production?

Yes. The machine is intended for repetitive riveting applications in manufacturing environments and can be used as a dedicated workstation or integrated into a production process.
