Special Automatic Snail Screw Press Sludge Dehydrator for Food Factories

The Special Automatic Snail Screw Press Sludge Dehydrator for Food Factories is an industrial sludge dewatering machine designed for continuous solid-liquid separation and sludge volume reduction. It is particularly suitable for food factories, food processing plants, beverage production facilities, agricultural processing facilities, and other industrial applications that generate organic sludge and wastewater solids.

Using a screw press dewatering principle, the machine continuously conveys sludge through a gradually compacting dewatering chamber. Liquid is separated through the filter screen while the solid material is conveyed toward the discharge outlet. This continuous mechanical process provides an efficient alternative to labor-intensive manual sludge handling and can help reduce the volume of wet sludge requiring transportation or further treatment.

Stacking screw machine	Standard Material	Absolute dry sludge treatment capacity(kg-Ds/h)	Overall dimensionsL*W*H(mm)			Equipment weight(kg)		power(kw)
			(L)long	(W)wide	(H)high	Net weight	working
WZ101	S.S.304 (optional with other materials)	4~10kg-/h	2200	800	1300	178	245	1.12
WZ201		9~20kg-/h	2900	800	1500	250	390	1.3
WZ202		18~40kg-/h	3000	1100	1500	450	650	2.05
WZ301		30~60kg-/h	3300	900	1720	700	1230	1.65
WZ302		60~120kg-/h	3500	1200	1720	1300	2050	2.2
WZ303		90~180kg-/h	3500	1600	1700	1750	3100	4.4
WZ401		80~200kg-/h	4300	1100	1900	1350	3500	2.2
WZ402		160~380kg-/h	4300	1400	1900	2350	3650	3.3
WZ403		240~550kg-/h	4300	2000	1950	3050	4550	4.4
WZ501		200~300kg-/h	5000	1200	1900	1510	3000	2.6
WZ502		400~600kg-/h	5100	1600	1900	2800	4500	4.1
WZ503		600~900kg-/h	5100	2300	1900	4100	5500	5.6

        The stacked screw type sludge dewatering machine of the stacked screw machine is a filtering device formed by stacking fixed rings and movable rings, and the spiral shaft runs through them. When the equipment is running, the sludge enters the filter cartridge from the feeding port and is pushed towards the discharge port by the spiral shaft blades.

       As the pitch between the spiral shaft blades gradually decreases, the pressure on the sludge also increases. Under the pressure difference, the sludge begins to dehydrate, and water flows out from the filtering gap between the fixed ring and the movable ring.

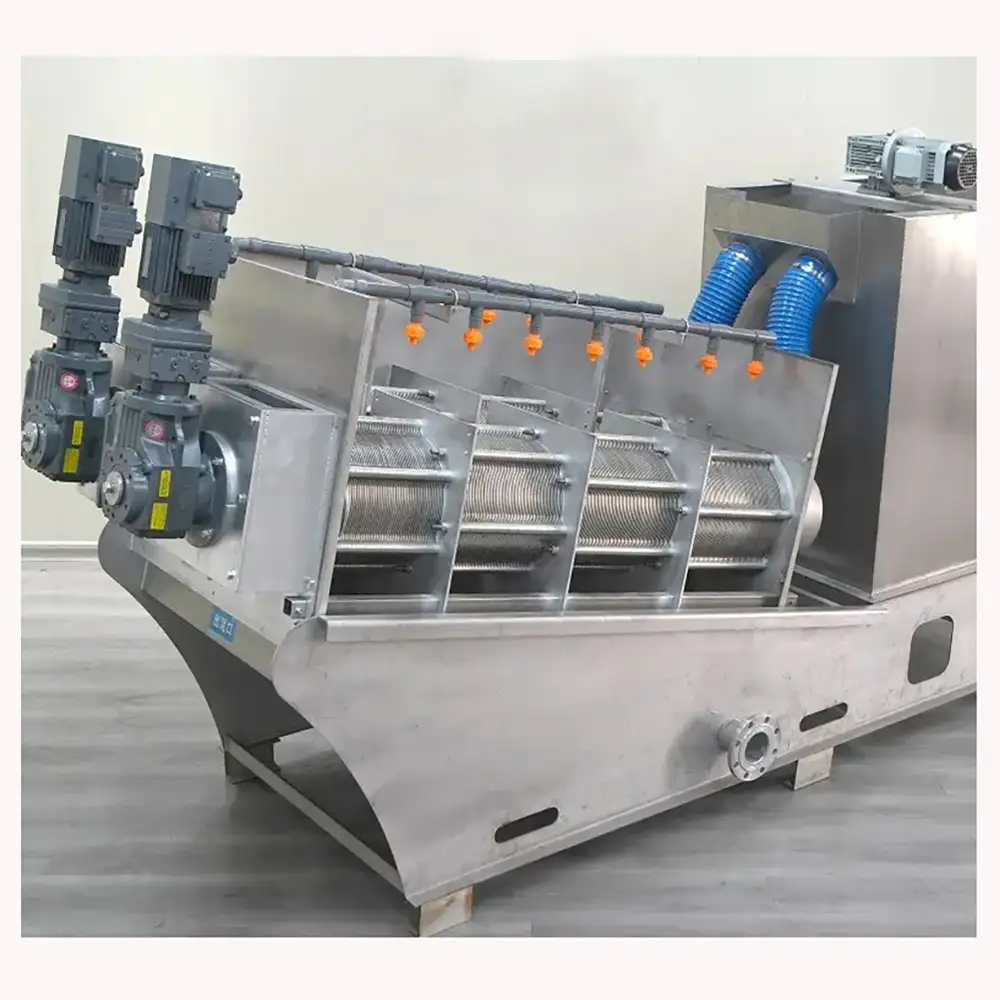

Automatic Screw Press Sludge Dewatering

The automatic screw press system is designed for continuous sludge feeding, conveying, compression, and discharge. Unlike batch-type dewatering equipment, a screw press can operate continuously when properly integrated with upstream sludge collection and feeding systems.

The screw conveyor gradually moves the sludge through the dewatering section while mechanical pressure promotes liquid separation. As the sludge travels through the machine, free water and separated liquid pass through the filter screen, while the concentrated solids move toward the discharge end.

Automatic operation can reduce repetitive manual handling and provide a more stable sludge processing workflow for food factories with continuous wastewater production.

Snail Screw Dewatering Principle

The term "snail screw" refers to the spiral screw conveying structure used inside the dewatering machine. The screw flights transport sludge through the machine while the internal space and mechanical pressure gradually change along the dewatering path.

This design combines conveying and dewatering in one continuous process. As sludge is compressed, liquid drains through the surrounding filter screen. The remaining solids become more concentrated before being discharged.

The actual dewatering performance depends on sludge characteristics, feed concentration, polymer conditioning, temperature, screen specifications, and machine configuration.

Designed for Food Factories

Food processing plants can generate wastewater containing suspended solids, organic matter, food particles, grease, fibers, and biological sludge. These materials may need to be separated and dewatered before further treatment or disposal.

The Food Factory Sludge Dewatering Machine can be used in meat processing, vegetable processing, fruit processing, beverage production, dairy-related applications, grain processing, starch production, and other suitable food industry operations.

By concentrating sludge before transportation or subsequent treatment, the machine can help food factories improve overall sludge handling efficiency.

Continuous Sludge Processing

One of the main advantages of a screw press system is its continuous operating principle. Once the feeding and operating parameters are properly established, sludge can continuously enter the machine while separated liquid and dewatered solids are discharged.

This makes the equipment suitable for wastewater treatment systems where sludge is generated on a regular basis.

Continuous operation can also simplify integration with sludge tanks, pumps, polymer dosing systems, conveyors, collection containers, and other treatment equipment.

Efficient Solid-Liquid Separation

The machine performs mechanical solid-liquid separation by combining sludge conveying, filtration, and compression. The filter screen allows separated liquid to pass through while retaining suitable solid particles.

The screw mechanism then transports the concentrated solids toward the outlet. This process can reduce the water content and volume of suitable sludge, making subsequent handling more convenient.

For food industry applications, the separated liquid can be returned to an appropriate wastewater treatment stage when permitted by the overall treatment process.

Automatic Sludge Feeding

A screw press sludge dehydrator can be connected to upstream sludge collection and feeding equipment. Depending on the system design, a sludge pump or other feeding mechanism can deliver sludge into the dewatering unit.

Automatic feeding allows the machine to work as part of a larger wastewater treatment system rather than functioning as an isolated piece of equipment.

Feed consistency is important for stable operation. Sludge concentration, flow rate, particle size, viscosity, and organic content should be evaluated when selecting the appropriate machine configuration.

Polymer Conditioning Compatibility

Some types of food industry sludge benefit from chemical conditioning before mechanical dewatering. Polymer dosing can improve floc formation and help separate water from fine suspended solids.

The screw press can be integrated with a polymer preparation and dosing system when required by the application. Proper polymer selection and dosing should be determined through sludge testing and application trials.

Not every sludge requires the same conditioning method, so actual chemical requirements should be evaluated according to the characteristics of the feed sludge.

Low-Intensity Mechanical Dewatering

The screw press uses controlled mechanical conveying and compression rather than high-speed centrifugal separation. This can make it suitable for applications where continuous, relatively gentle sludge handling is preferred.

The machine can process many types of organic and biological sludge when the feed characteristics fall within the applicable operating range.

The exact operating speed, pressure, screen opening, and dewatering performance depend on machine design and sludge conditions.

Food Waste And Organic Sludge Applications

In addition to wastewater treatment sludge, the equipment can be considered for suitable food processing residues and organic solid-liquid separation applications.

Potential applications include food washing wastewater solids, vegetable processing residues, fruit processing residues, starch-related wastewater sludge, brewery wastewater sludge, and other compatible organic materials.

Before selecting the machine, the feed material should be tested for particle size, moisture content, fiber content, viscosity, oil or grease concentration, and other relevant characteristics.

Reduced Sludge Volume

Removing excess water from sludge can significantly improve downstream handling. Dewatered sludge generally occupies less volume than untreated wet sludge, which can simplify storage, transportation, and further processing.

For food factories producing large quantities of wastewater sludge, reducing sludge volume can help improve the efficiency of the overall waste management process.

The actual volume reduction depends on the original sludge concentration, feed characteristics, conditioning process, and final dewatering performance.

Compact And Practical Equipment Design

Compared with some large-scale sludge treatment systems, screw press equipment can provide a relatively compact solution for continuous mechanical dewatering.

Its integrated conveying and dewatering structure can simplify equipment layout and make it easier to incorporate into existing wastewater treatment systems.

Depending on the project, the machine can be installed as a standalone unit or integrated with sludge tanks, pumps, polymer dosing systems, conveyors, control systems, and other treatment equipment.

Easy Operation And Maintenance

The automatic design can simplify routine operation. Operators can monitor sludge feeding, machine operation, separated liquid discharge, and dewatered sludge discharge according to the control system and plant requirements.

Regular inspection and cleaning of the filter screen, screw mechanism, bearings, seals, and other wear components are important for maintaining stable performance.

Maintenance requirements depend on the machine configuration and operating environment. Food processing applications should also consider appropriate cleaning procedures and hygiene requirements.

Suitable For Different Industrial Sludges

Although developed for food factory applications, the screw press principle can be used for various compatible industrial sludge types.

Potential applications include food and beverage wastewater, municipal wastewater sludge, agricultural processing wastewater, livestock-related organic sludge, paper-related wastewater solids, and selected industrial wastewater treatment processes.

The suitability of the machine depends on actual sludge properties, so application testing is recommended before final equipment selection.

Customized Sludge Dewatering Solutions

Every food factory has different wastewater characteristics and production conditions. Factors such as daily wastewater flow, sludge production, solids concentration, organic content, temperature, pH, oil and grease, and required discharge condition can affect equipment selection.

We can evaluate the application according to customer-provided sludge information and recommend an appropriate screw press configuration.

For larger projects, the machine can be integrated into a complete sludge treatment system including sludge storage, conditioning, polymer preparation, feeding, dewatering, conveying, and sludge collection.

B2B Food Industry Wastewater Solution

The Special Automatic Snail Screw Press Sludge Dehydrator for Food Factories provides a practical mechanical dewatering solution for international food manufacturers, wastewater treatment contractors, environmental engineering companies, and industrial equipment distributors.

For project evaluation, customers can provide wastewater flow, sludge concentration, sludge type, operating hours, desired processing capacity, and available installation space.

Sample testing can also help determine suitable screen specifications, feeding conditions, polymer requirements, and overall machine configuration.

Key Features
Automatic Continuous Screw Press Dewatering
Spiral Screw Sludge Conveying
Efficient Solid-Liquid Separation
Designed For Food Factory Applications
Continuous Sludge Feeding And Discharge
Suitable For Organic And Biological Sludge
Optional Polymer Conditioning Integration
Compact Mechanical Dewatering Design
Reduced Wet Sludge Volume
Easy Operation And Maintenance
Flexible Wastewater Treatment Integration
Customized B2B Equipment Configuration
Main Applications
Food Processing Factories
Beverage Processing Plants
Meat Processing Facilities
Vegetable Processing Plants
Fruit Processing Facilities
Dairy-Related Wastewater Treatment
Starch Processing Plants
Grain Processing Facilities
Brewery Wastewater Treatment
Organic Wastewater Treatment
Industrial Sludge Dewatering
Municipal Sludge Treatment
FAQs
1. What Is A Screw Press Sludge Dehydrator?

A screw press sludge dehydrator is a mechanical dewatering machine that uses a rotating screw and filter screen to continuously separate liquid from sludge and concentrate the remaining solids.

2. Is This Machine Suitable For Food Factories?

Yes. It is designed for suitable food processing wastewater sludge and organic sludge applications. Actual suitability depends on the characteristics of the feed material.

3. How Does The Snail Screw Dewatering System Work?

The spiral screw transports sludge through the dewatering chamber while mechanical compression promotes liquid separation through the filter screen. Concentrated solids are discharged at the end.

4. Can It Operate Continuously?

Yes. A screw press is designed for continuous sludge feeding and dewatering when properly integrated with suitable upstream and downstream equipment.

5. Does Food Sludge Require Polymer Conditioning?

Some food industry sludges may benefit from polymer conditioning, while others may not. The requirement depends on sludge characteristics and should be confirmed through testing.

6. What Types Of Food Industry Sludge Can Be Processed?

Potential applications include food processing wastewater sludge, beverage wastewater sludge, vegetable and fruit processing residues, starch-related sludge, and other compatible organic sludge.

7. Can The Machine Reduce Sludge Volume?

Yes. By mechanically separating water from sludge, the machine can reduce the amount of water carried with the discharged solids and therefore reduce the volume of wet sludge.

8. What Information Is Needed To Select A Machine?

Important information includes sludge type, flow rate, solids concentration, operating hours, feed characteristics, required processing capacity, and available installation space.

9. Can It Be Integrated Into An Existing Wastewater Treatment Plant?

Yes. The screw press can be integrated with sludge tanks, pumps, polymer dosing systems, conveyors, control systems, and other suitable wastewater treatment equipment.

10. Can The Screw Press Be Customized?

Yes. Machine size, screen specifications, feeding system, control configuration, materials, discharge arrangement, and system integration can be evaluated according to the customer's application.

Why Choose Us
Food Industry Sludge Dewatering Experience

We provide mechanical sludge dewatering equipment for food processing and industrial wastewater applications, with configurations selected according to actual sludge characteristics.

Continuous Automatic Operation

The screw press design supports continuous sludge feeding, dewatering, conveying, and discharge, helping improve the efficiency of repetitive sludge handling processes.

Application-Based Equipment Selection

We evaluate important factors such as sludge concentration, flow rate, organic content, viscosity, and operating conditions before recommending a suitable configuration.

Flexible System Integration

The machine can be integrated with sludge pumps, conditioning systems, polymer dosing equipment, conveyors, collection systems, and other wastewater treatment equipment.

Factory-Direct B2B Support

We provide technical communication, equipment configuration, application evaluation, production coordination, export packaging, and installation guidance for international customers.

Customized Solutions

Different food factories generate different sludge types. We can provide customized machine configurations and complete sludge dewatering solutions based on project requirements and sample information.
