Small Hydraulic Pneumatic Track Hollow Automatic Feed Riveting Press Machine 2.5 mm Sheet Without Rivets

Small Hydraulic Pneumatic Track Hollow Automatic Feed Riveting Press Machine

The Small Hydraulic Pneumatic Track Hollow Automatic Feed Riveting Press Machine is a compact industrial fastening solution designed for efficient riveting of sheet materials, metal components, hardware, and other small workpieces. Combining hydraulic and pneumatic pressing principles with automatic hollow rivet feeding, this machine helps manufacturers improve riveting consistency, production efficiency, and operator convenience.

Designed for applications involving sheets up to around 2.5 mm, depending on material and configuration, the machine provides controlled pressing and forming of hollow rivets without requiring manual rivet placement for every cycle. Its compact structure makes it suitable for production environments where workspace, repeatability, and reliable fastening are important.

The machine can be configured for different rivet sizes, workpiece geometries, and tooling requirements. With suitable dies and feeding components, it can support a variety of hollow rivet and tubular fastener applications.

1 Application field：
It is widely used in the solid connection between the cabinets and cabinets, electrical products, LCD monitor brackets,
self-service payment terminals, logistics equipment, communication product casings and computer casings. It has extremely high
anti-ejection force and anti-rotation torque, and can be applied to steel copper, copper, aluminum and aluminum alloy rice pieces.
2 Machine performance profile：
(1) The machine uses a touch screen as data input. The data shows that high-quality load cells are used as pressure acquisition
signals. The system can calculate pressure signals and displacement signals at a rate of 500 times per second to make various
alarms and curve descriptions.
(2)The machine pre-sets the upper and lower limit curves of displacement and pressure to compare with the current press-fit value,
enter any press-fit positioning, and then you can get the interference resistance of the position in the last press-fit.

Model	3A	5A,	8A
Red light location	Option	Option	Option
Stroke	100mm	100mm	100mm
Force stroke	6mm	8mm	8mm
Intake air source	3-6BAR	3-6BAR	3-6BAR
voltage	AC220V	AC220V	AC220V
usage frequency	1 time/s	1 time/s	1 time/s
Pressure output range	0 tons -3 tons steplessly adjustable	0 tons -5 tons steplessly adjustable	0 tons -8 tons steplessly adjustable
Throat height	400mm	400mm	400mm
Throat depth	500mm	500mm	500mm
Non-rivet riveting capacity	1.2mm+1.2mm	2.2mm+2.2mm	3.5mm+2.5mm
Press riveting capacity	Nut M10, stud M6	Nut M16, stud M10	Nut M25, stud M20
Press riveting capacity(SS)	Nut M6, stud M5	Nut M14, stud M8	Nut M22, stud M16
Weight	450KG	520kg	520KG

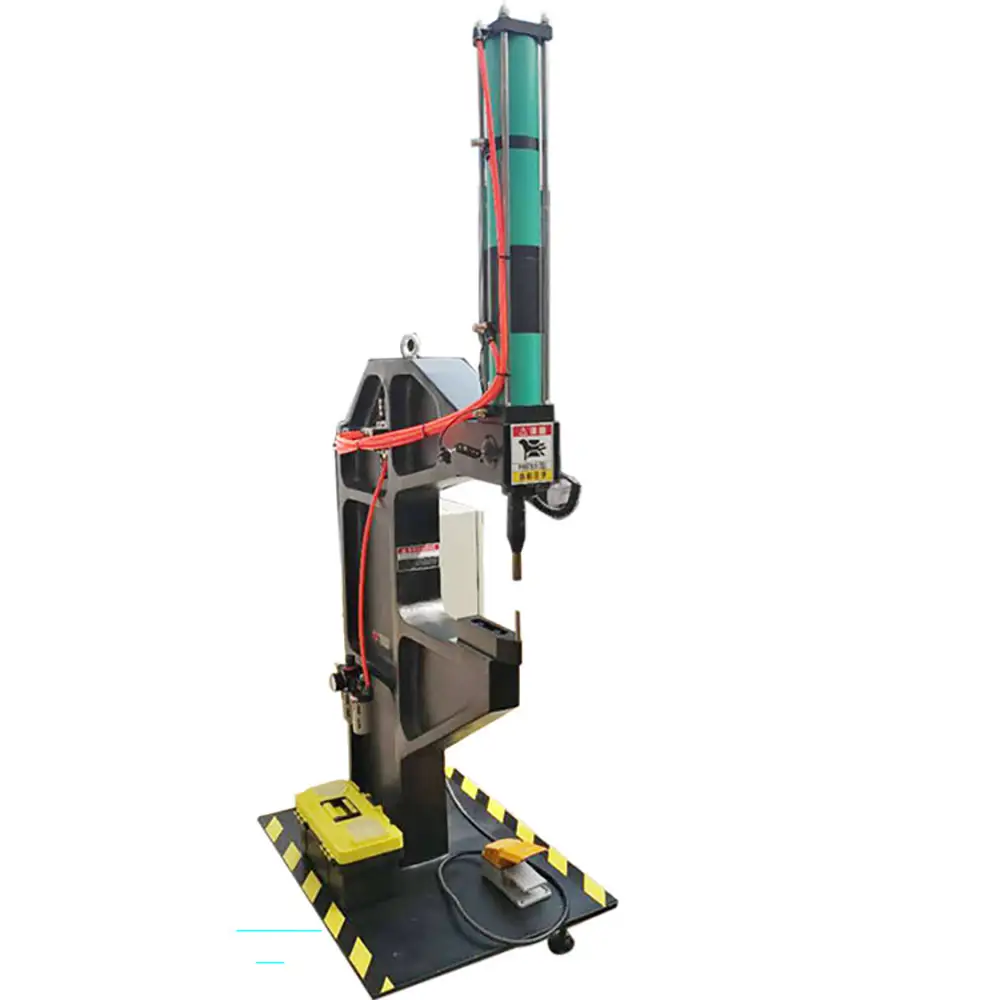

Small Hydraulic Riveting Press Machine

A small hydraulic riveting machine provides controlled forming force for industrial fastening applications. Hydraulic assistance can provide stable pressing action and help form hollow rivets consistently when working with suitable materials and rivet sizes.

The compact design is especially useful for manufacturers that need a dedicated riveting station without installing a large production machine. It can be integrated into production workstations or used as an individual fastening unit.

For applications involving thin sheet components, proper tooling selection is important. The rivet diameter, material hardness, sheet thickness, hole size, and required joint strength should all be considered when configuring the machine.

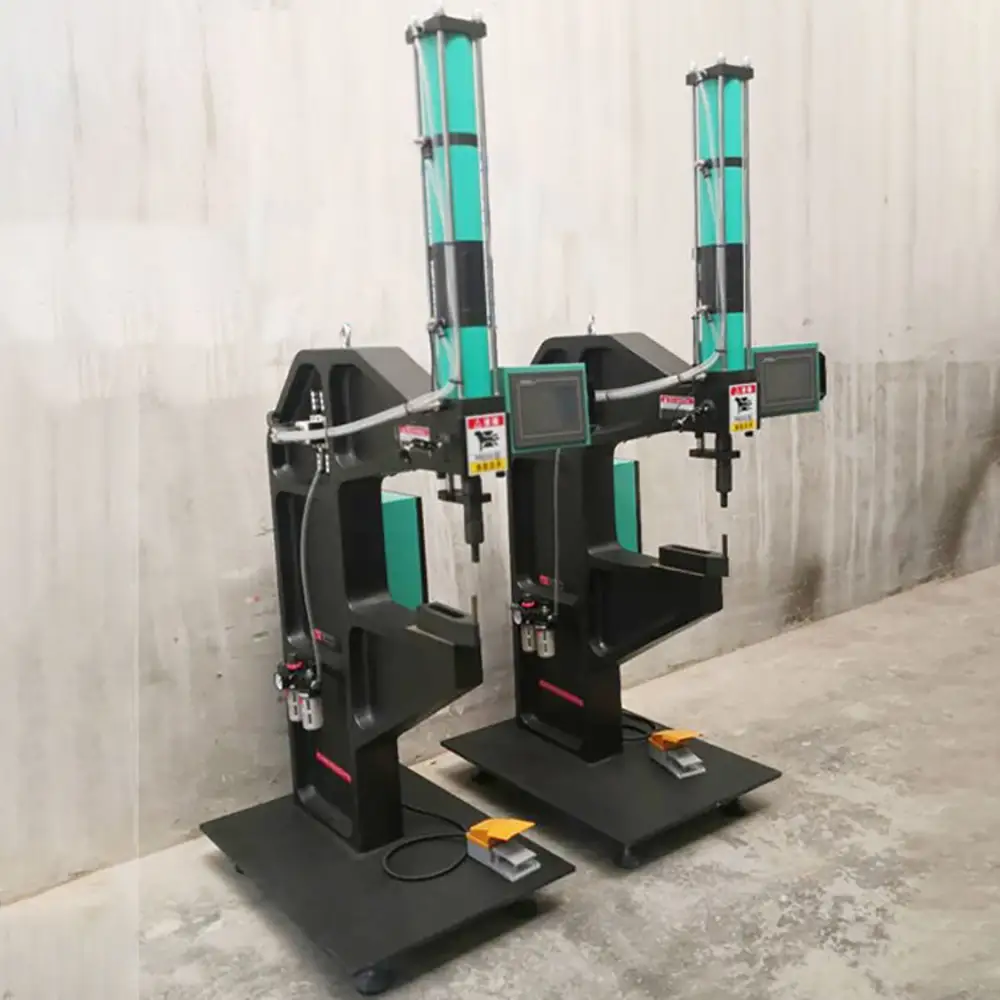

Pneumatic Riveting Press Machine

The pneumatic operating system provides responsive machine control and is well suited to repetitive industrial production. Pneumatic operation can help reduce manual effort and provide a consistent working cycle for repeated riveting tasks.

Compared with purely manual riveting methods, an automatic pneumatic riveting press can provide better repeatability from one workpiece to another. This makes it useful for manufacturers producing brackets, hardware components, sheet assemblies, leather products, textile accessories, and other products requiring repeated rivet installation.

The pneumatic system can also be combined with hydraulic pressing technology according to the machine configuration and application requirements.

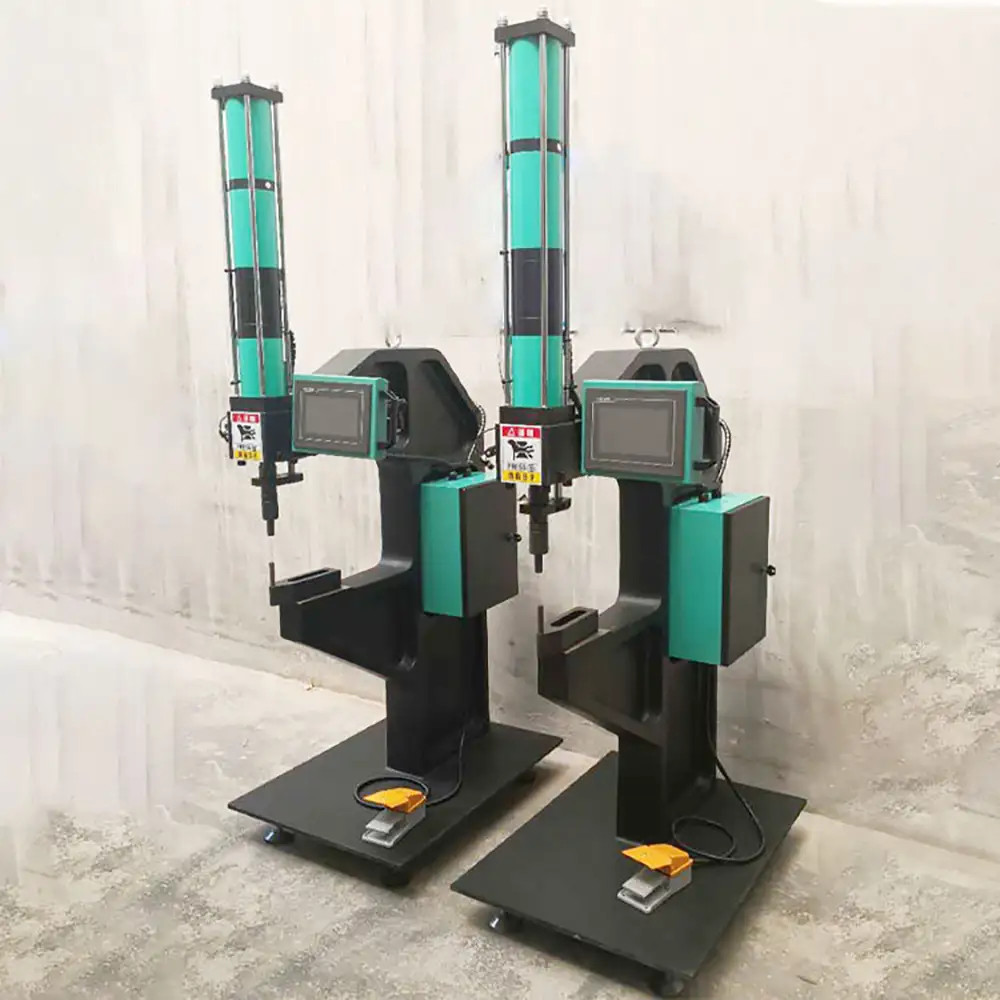

Automatic Hollow Rivet Feeding

One of the key advantages of this equipment is its automatic hollow rivet feeding system. Instead of manually placing individual rivets into the riveting position, the feeding mechanism can deliver rivets to the working area automatically.

Automatic feeding is particularly valuable for repetitive production because it can reduce operator handling and improve the continuity of the riveting process. It also helps maintain a more standardized production workflow.

The feeding system can be configured according to the shape, length, diameter, and application of the hollow rivet. Different tooling and feeding components may be required for different rivet specifications.

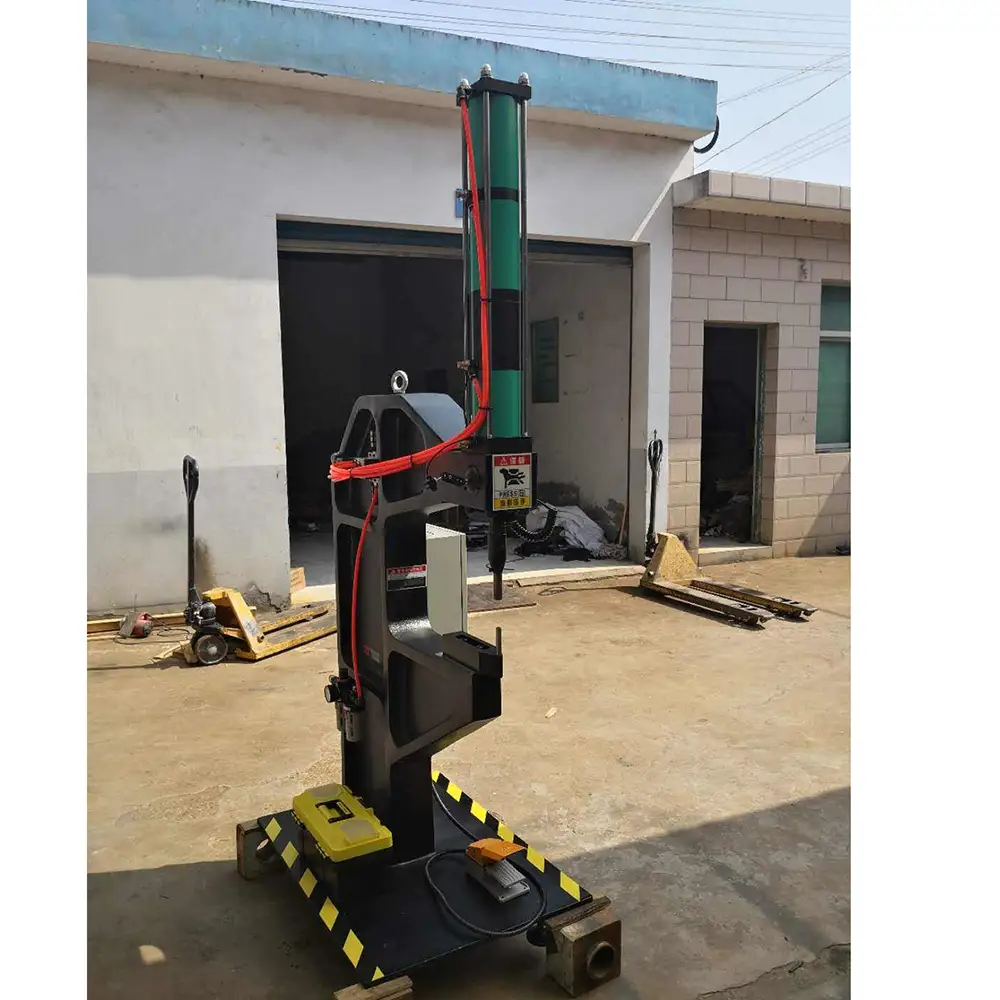

Hollow Rivet Press Machine

Hollow rivets and tubular rivets are commonly used when manufacturers need a lightweight mechanical fastening solution with a formed end. The riveting press forms the hollow rivet to secure the workpiece components together.

This machine can be used for suitable hollow rivet applications involving metal sheets, brackets, hardware, leather, fabric assemblies, and other materials. The actual application range depends on the rivet material, workpiece construction, and selected tooling.

For B2B production, the machine can provide a practical alternative to manual rivet installation when manufacturers need higher consistency and more efficient repetitive operation.

2.5 mm Sheet Riveting Applications

The machine is suitable for riveting applications involving sheet materials up to approximately 2.5 mm, depending on the material type, rivet specification, and machine configuration.

Potential sheet materials may include aluminum, mild steel, stainless steel, and other compatible materials. However, the actual riveting capability should always be confirmed through testing because different materials require different forming forces and tooling.

For thin sheet applications, controlled riveting is especially important. Excessive forming force can deform the sheet or damage the workpiece, while insufficient force may result in an improperly formed rivet. Proper die design and machine adjustment therefore play an important role in achieving reliable results.

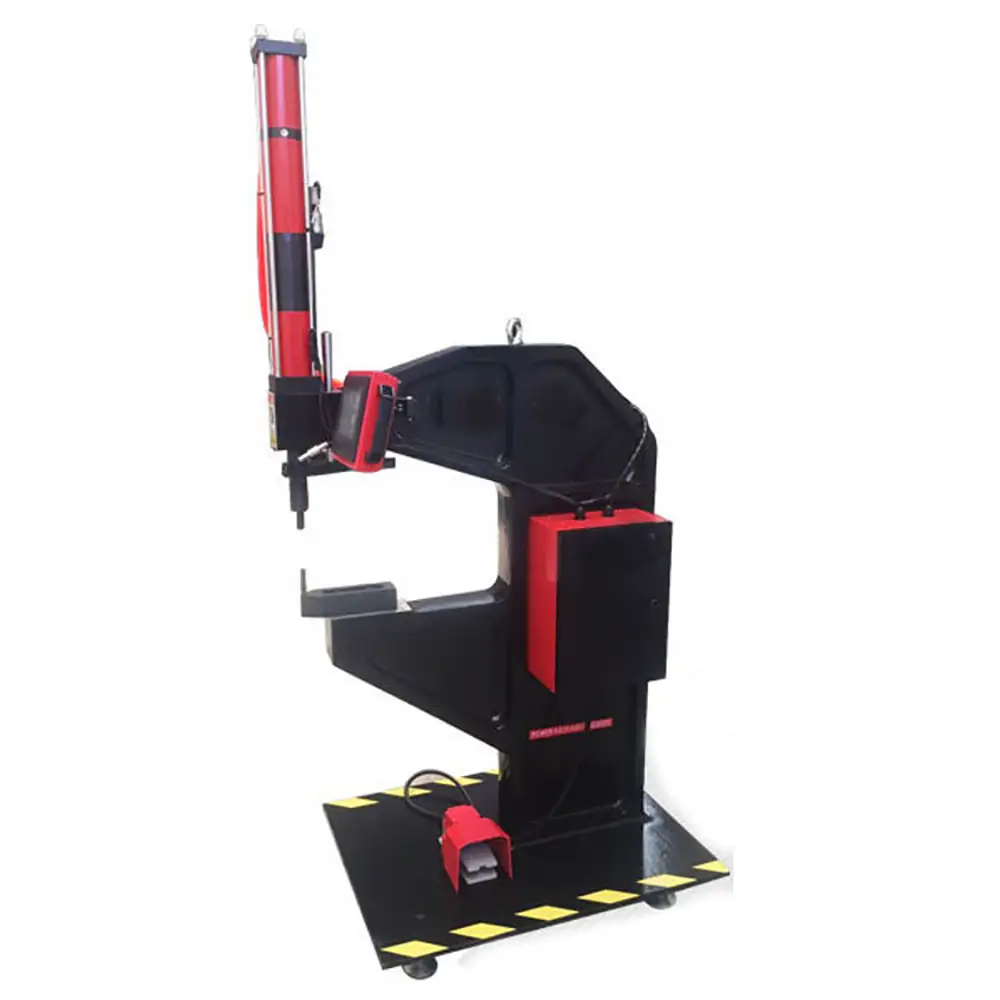

Track Riveting Machine Design

The track-style feeding and working arrangement helps organize the rivet delivery process and maintain a repeatable riveting cycle. The track can guide hollow rivets toward the working position according to the machine configuration.

This design is useful for production environments where automatic feeding and repeatable positioning are required. By reducing manual rivet handling, the machine can help operators focus on workpiece positioning, inspection, and production control.

The machine can also be customized with application-specific fixtures and dies to accommodate different workpiece shapes.

Improve Production Efficiency

Manual riveting can require repeated positioning of the rivet and workpiece, especially when production volumes are high. An automatic feeding riveting machine can streamline these repetitive operations.

Benefits may include:

Reduced manual rivet loading
More consistent riveting cycles
Improved production efficiency
Reduced operator fatigue
Repeatable rivet positioning
Easier production process control
Suitable for continuous batch production
Flexible tooling for different applications

The actual production speed depends on rivet size, material, feeding configuration, operator workflow, and workpiece design.

Flexible Tooling and Customization

Different products require different riveting positions, rivet sizes, and forming shapes. Therefore, tooling is an important part of the machine configuration.

Custom dies, fixtures, feeding tracks, positioning devices, and working heads can be developed according to customer requirements. This makes the machine suitable for manufacturers producing specialized components or multiple product models.

For OEM production, customers can provide samples, drawings, rivet specifications, or workpiece information so that the appropriate riveting configuration can be evaluated.

Main Applications

The Small Hydraulic Pneumatic Track Hollow Automatic Feed Riveting Press Machine can be used for various industrial fastening applications, including:

Sheet Metal Components
Metal Hardware
Brackets and Supports
Small Mechanical Components
Hollow Rivet Assemblies
Tubular Rivet Applications
Aluminum Sheet Products
Thin Metal Parts
Leather Products
Bags and Accessories
Textile Hardware
Furniture Hardware
Automotive Components
Electrical Hardware
General Industrial Fastening

The final application suitability should be confirmed according to the workpiece, rivet specification, and tooling requirements.

Why Choose Our Small Automatic Riveting Machine?

Compact Industrial Design:
The small machine format is suitable for production lines and workstations where space efficiency is important.

Automatic Rivet Feeding:
The feeding system helps reduce manual rivet placement and supports a more continuous production process.

Hydraulic and Pneumatic Operation:
The machine combines controlled pressing with pneumatic operation according to the selected configuration.

Suitable for Thin Sheet Applications:
It can be configured for suitable sheet riveting applications involving materials around 2.5 mm or other thicknesses according to actual testing.

Consistent Riveting:
Controlled machine movement and dedicated tooling help produce more consistent rivet forming.

Flexible Tooling:
Different dies, fixtures, and feeding tracks can be adapted to different rivets and workpieces.

B2B Production Solution:
The machine is designed for manufacturers that need repeatable fastening processes for batch production.

OEM and Custom Support:
Machine configurations can be adjusted for specific rivet types, workpiece shapes, feeding requirements, and production processes.

How to Choose the Right Hollow Riveting Machine?

Before selecting a machine, buyers should consider several factors.

First, identify the hollow rivet diameter, length, material, and head shape. These parameters determine the appropriate feeding and forming tooling.

Second, confirm the workpiece material and thickness. A 2.5 mm sheet application may require different settings from thinner aluminum or harder steel components.

Third, evaluate the required feeding method. Automatic feeding is particularly useful for repetitive production, while manual loading may be sufficient for low-volume applications.

Finally, provide workpiece samples or drawings when requesting a customized machine. Testing can help determine the appropriate riveting pressure, tooling, feeding configuration, and production process.

FAQS
1. What is a small hydraulic pneumatic riveting machine?

It is a compact industrial riveting press that uses hydraulic and pneumatic operating principles to form rivets and fasten compatible workpieces.

2. Can this machine automatically feed hollow rivets?

Yes. The machine is designed with an automatic hollow rivet feeding system, with the feeding mechanism configured according to the rivet specification.

3. Can it rivet 2.5 mm sheet?

It can be configured for suitable sheet applications around 2.5 mm. Actual capability depends on the sheet material, rivet dimensions, tooling, and machine configuration.

4. What types of rivets can it use?

The machine is primarily designed around hollow or tubular rivet applications. The exact compatible rivet dimensions should be confirmed before ordering.

5. Can the machine work with aluminum sheets?

Yes, suitable aluminum sheet applications can be considered. The correct rivet and tooling combination should be tested for the specific product.

6. Is the machine suitable for stainless steel?

Potentially, depending on the thickness, hardness, rivet type, and required forming force. Application testing is recommended.

7. Can the tooling be customized?

Yes. Dies, fixtures, feeding tracks, and other working components can be customized according to the product and rivet requirements.

8. Is this machine suitable for mass production?

Yes. Automatic rivet feeding and repeatable machine operation make it suitable for repetitive industrial production.

9. What information should I provide for a quotation?

Provide the rivet dimensions, rivet material, workpiece material and thickness, riveting position, product drawings or samples, and expected production requirements.

10. Can you test our product before production?

Product testing can be arranged according to the machine configuration and customer requirements. Sample workpieces and rivets are useful for evaluating the riveting process.
