High Quality Automatic Two End Hinge Riveting Machine for Folding Chairs, Doors and Windows

High Quality Automatic Two-End Hinge Riveting Machine

The High Quality Automatic Two-End Hinge Riveting Machine for Folding Chairs, Doors and Windows is an industrial fastening solution designed for efficient hinge riveting and assembly. With automatic two-end riveting capability, the machine can process suitable hinge components and workpieces with consistent positioning, controlled riveting, and repeatable production cycles.

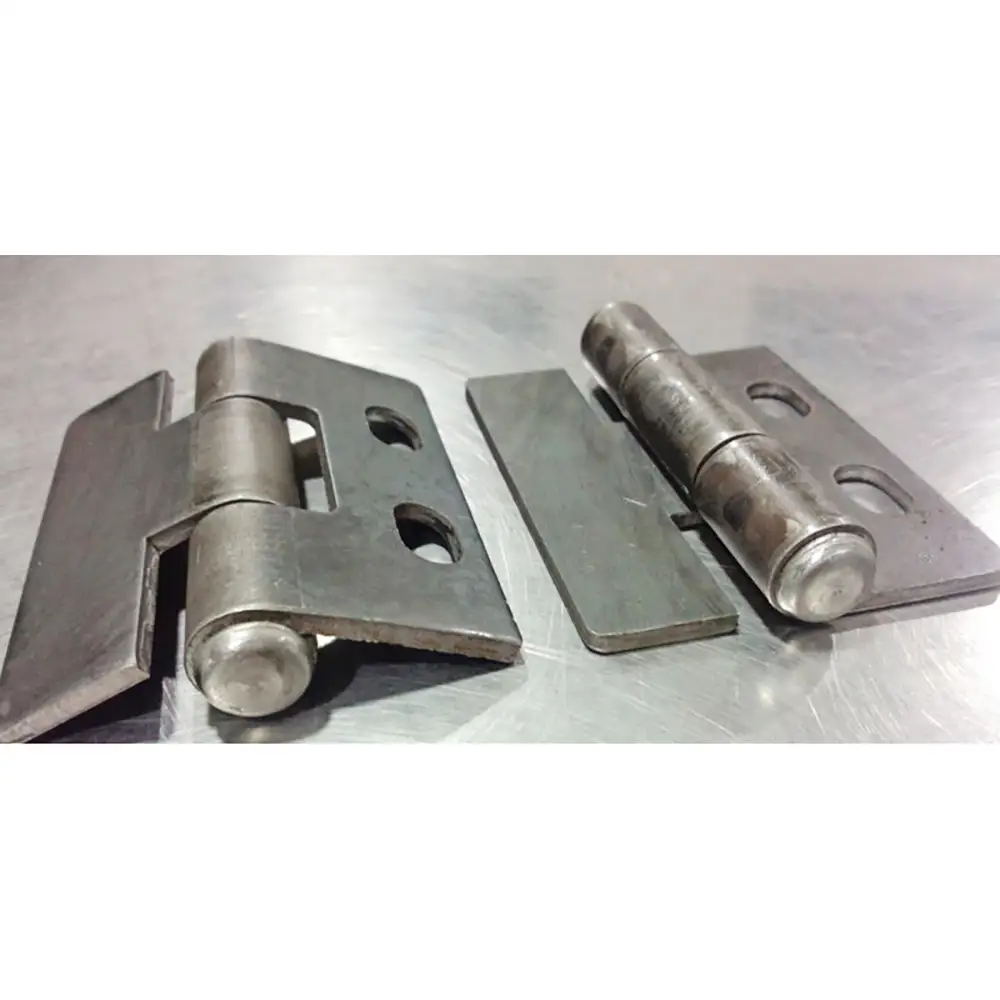

Hinges are widely used in folding furniture, doors, windows, hardware assemblies, and mechanical components. For manufacturers producing large quantities of hinged products, manual riveting can require significant labor and may result in inconsistent positioning. An automatic hinge riveting machine helps standardize the fastening process while improving production efficiency.

The machine can be configured with suitable dies, fixtures, feeding systems, and working heads according to the hinge structure and rivet specifications. This makes it suitable for different industrial production requirements and OEM manufacturing projects.

The butt riveting machine, using advanced radial structure, riveting process is stable without shaking, riveting parts surface smooth and beautiful.
This machine has rich adjustment function, its two-way riveting position, riveting pressure, feed speed, riveting quantity can be adjusted, the system pressure can also be adjusted, fully ensure the riveting effect.
Hydraulic system part of the large tank design, can reduce the temperature rise, improve the reliability of the hydraulic system, hydraulic station can be embedded in the work table, fully save working time.
143D adopts horizontal structure and special riveting working table, with beautiful appearance, stable work and simple operation. 1. The machine has small size, no noise, high efficiency, and is suitable for assembly line operation.
2. High accuracy, suitable for riveting processing of small parts, less air consumption,
3. The pressure, stroke, speed and riveting time are all adjustable.
4. According to customer's product requirements, the height, shape, throat depth and stroke of the body can be specially
customized

Model	143D
Rivet ability	Solid Φ2-8mm
Throat depth	125mm
Motor	2HP
Most tremendous pressure	200-1100kg
Mechanical altitude	50-300mm
Working area	190*320mm
Net weight	300kg

Automatic Two-End Hinge Riveting Machine

The two-end configuration allows the machine to perform riveting operations at two designated hinge positions according to the product design. This can help reduce repeated manual positioning and streamline the assembly process.

For folding chairs, doors, windows, and similar products, hinge components often require accurate positioning between two connected parts. Dedicated fixtures can hold the components in the correct position while the riveting mechanism completes the fastening process.

Automatic operation can improve process consistency from one workpiece to the next. The exact cycle configuration and production capacity depend on the product design, rivet type, tooling, and machine setup.

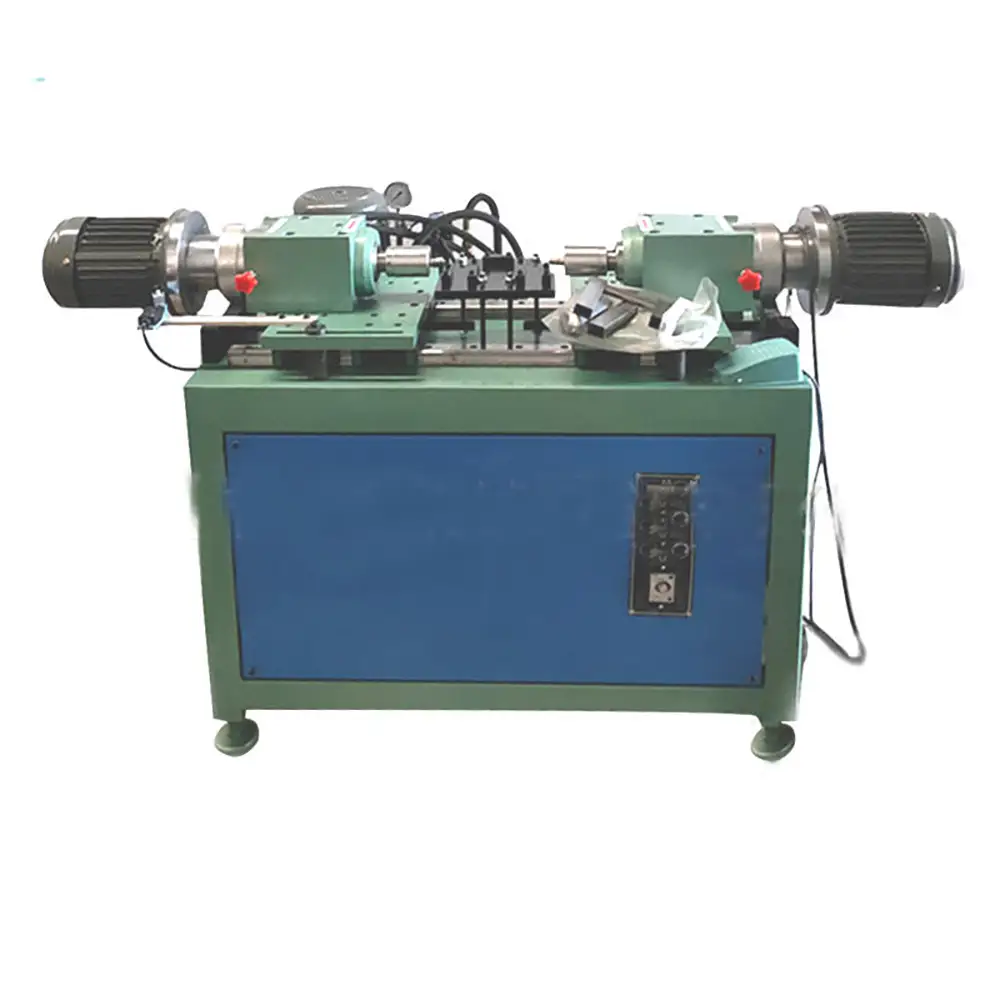

Double-End Hinge Riveter

A double-end hinge riveter is particularly useful when two riveting points must be processed during the same production operation. Instead of manually moving the product between separate riveting stations, the machine can be designed around a two-end working configuration.

This approach can help manufacturers reduce unnecessary handling and create a more streamlined assembly workflow.

The machine is suitable for products where hinge positioning and rivet alignment are important. Customized fixtures can be designed to accommodate different component dimensions and hinge structures.

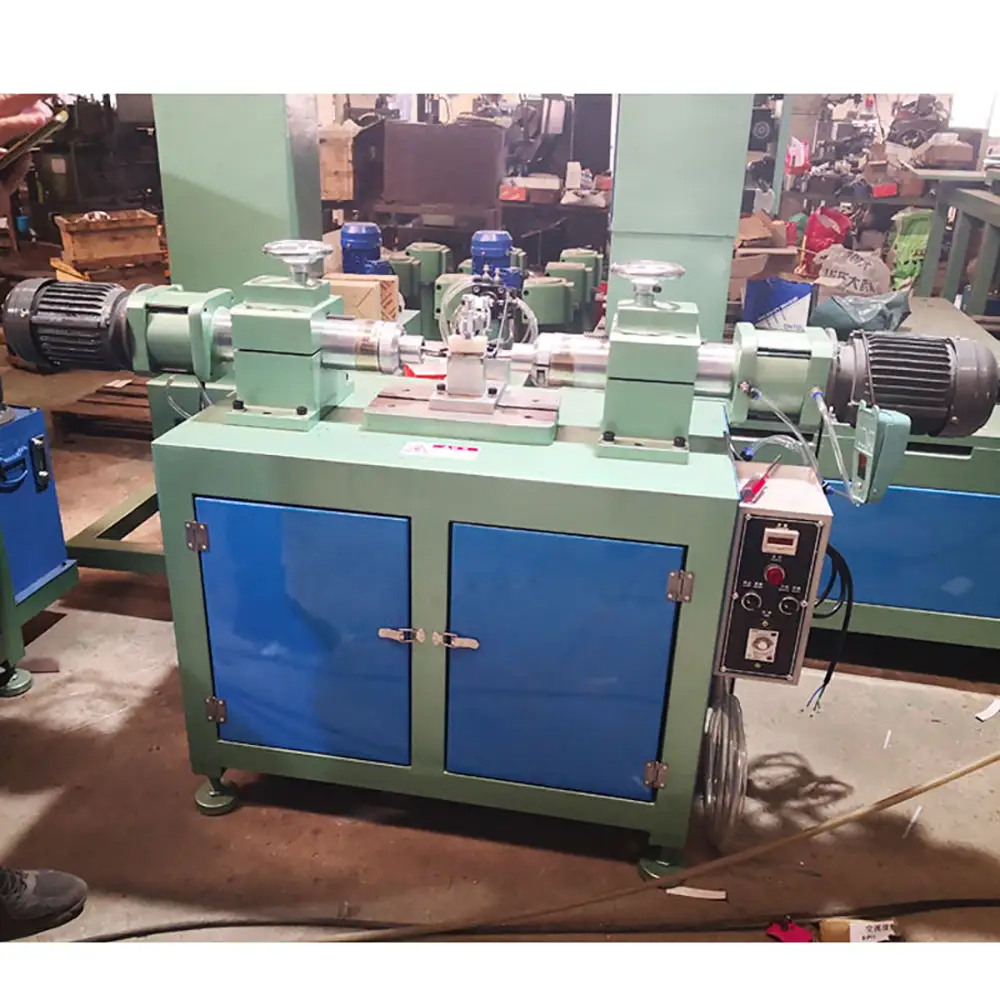

Folding Chair Hinge Riveting Machine

Folding chairs commonly use hinges or pivoting joints to allow the chair structure to fold and unfold. Reliable hinge fastening is therefore an important part of the manufacturing process.

The automatic hinge riveting machine can be used for suitable folding chair components, including metal frame assemblies, hinge brackets, connecting plates, and other compatible hardware.

By using dedicated positioning fixtures, the machine can help maintain consistent hinge locations across production batches. This is useful for manufacturers producing folding chairs, portable furniture, outdoor furniture, and commercial seating products.

Door Hinge Riveting Machine

Doors can contain various hinge structures depending on their design and material. Automatic riveting equipment can be used for suitable door hardware and hinge components where mechanical riveting is part of the assembly process.

The machine can support production processes involving metal hinge plates, brackets, connecting components, and other suitable door hardware.

For high-volume manufacturing, automatic riveting can help reduce manual operations and provide a repeatable fastening process. Tooling can be designed around the geometry of the door component and hinge assembly.

Window Hinge Riveting Machine

Windows and window hardware may require compact hinge components, brackets, or connecting parts. A dedicated window hinge riveting machine can provide a controlled method for fastening compatible components.

The machine can be configured for different workpiece shapes and hinge positions using suitable fixtures and dies. For manufacturers producing aluminum windows, metal window hardware, folding window components, or other compatible products, automatic riveting can improve production consistency.

Actual application suitability depends on the hinge design, material, rivet specifications, and required joint strength.

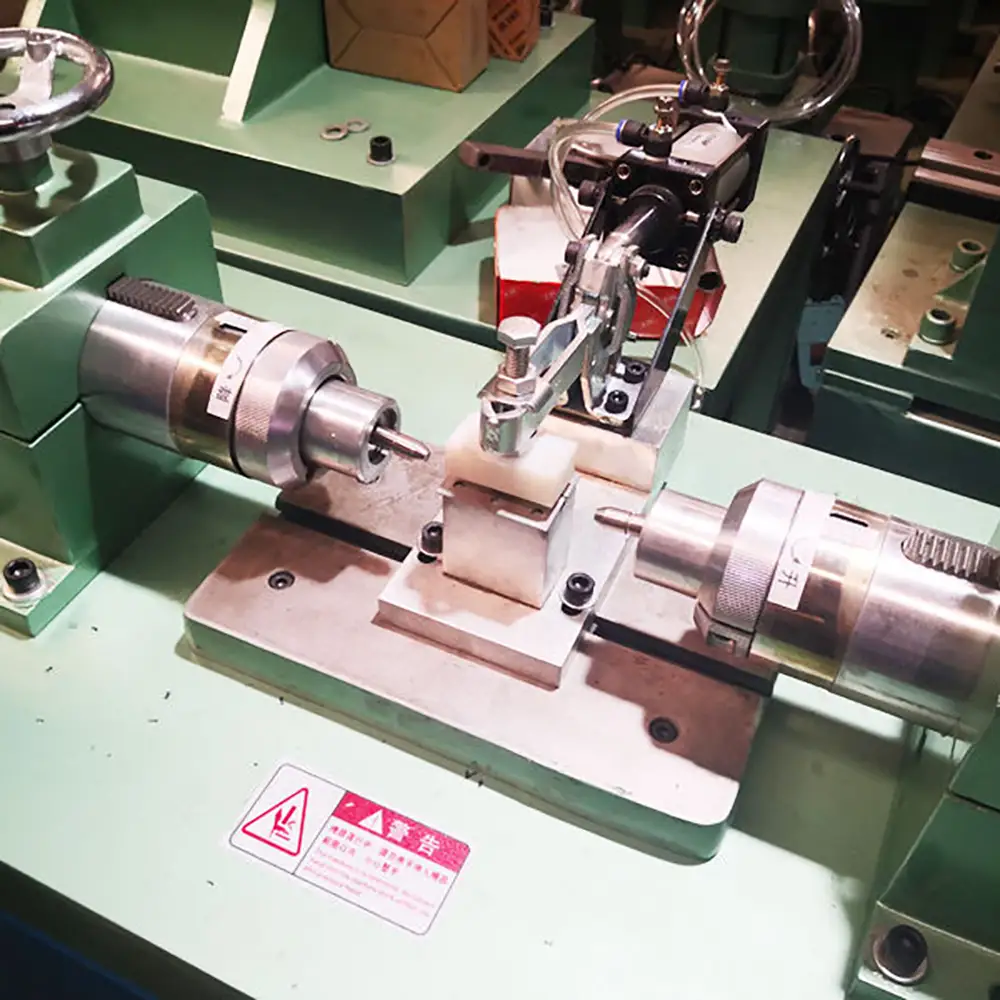

Automatic Hinge Feeding and Positioning

For production environments requiring high levels of automation, feeding and positioning systems can be integrated according to the application.

Automatic feeding can reduce manual handling of rivets or components and create a more continuous production process. Positioning fixtures help hold the hinge and workpiece accurately during riveting.

Depending on the machine configuration, the production system can incorporate:

Automatic rivet feeding
Hinge positioning fixtures
Two-end riveting heads
Product locating devices
Customized dies
Pneumatic or hydraulic drive systems
Foot pedal or automatic control
Safety protection systems

The exact configuration should be selected according to the product and production requirements.

Consistent Hinge Riveting Quality

Consistent rivet formation is important for hinge assemblies because the joint must allow the required movement while maintaining secure mechanical fastening.

A dedicated riveting machine provides controlled working conditions and repeatable positioning. Proper tooling helps ensure that the rivet is formed correctly without unnecessarily damaging the hinge or surrounding workpiece.

For manufacturers, this can simplify quality inspection and improve production process control.

Improve Production Efficiency

Compared with manual hinge riveting, automatic equipment can reduce repetitive handling and help standardize production operations.

Potential benefits include:

Faster repetitive riveting
Reduced manual labor
Consistent hinge positioning
Repeatable riveting cycles
Reduced operator fatigue
Improved production workflow
Easier quality control
Suitable for batch manufacturing

Production efficiency depends on the number of riveting positions, workpiece design, rivet dimensions, feeding method, operator workflow, and machine configuration.

Flexible Tooling and Customization

Hinge products can vary significantly in size, shape, hole spacing, material, and riveting position. For this reason, customized tooling is often an important part of an automatic hinge riveting solution.

The machine can be configured with customized:

Riveting dies
Hinge fixtures
Product positioning devices
Feeding tracks
Rivet feeding systems
Two-end working heads
Safety guards
Control systems

OEM customers can provide product drawings, samples, hinge specifications, or rivet information so that the appropriate machine configuration can be evaluated.

Why Choose Our Automatic Two-End Hinge Riveting Machine?

Automatic Two-End Operation:
The machine is designed to process two hinge riveting positions efficiently according to the product configuration.

Suitable for Multiple Industries:
It can be used for suitable folding chair, door, window, furniture, and hardware applications.

Consistent Riveting:
Dedicated tooling and controlled machine operation help maintain repeatable fastening quality.

Production Efficiency:
Automation reduces repetitive manual riveting and helps streamline batch production.

Flexible Tooling:
Fixtures and dies can be customized according to hinge dimensions and workpiece geometry.

Industrial Construction:
The machine is designed for continuous production environments where stable and repeatable operation is important.

OEM Customization:
Machine configurations can be adapted for specific products, rivets, hinge structures, and production processes.

Main Applications

The Automatic Two-End Hinge Riveting Machine can be used for suitable applications including:

Folding Chairs
Folding Tables
Metal Furniture
Office Furniture
Outdoor Furniture
Door Hardware
Door Hinges
Window Hardware
Window Hinges
Aluminum Window Components
Metal Brackets
Cabinet Hardware
Folding Mechanisms
Mechanical Hinges
Industrial Hardware Components
How to Choose the Right Hinge Riveting Machine?

Before selecting a machine, manufacturers should provide the hinge dimensions, rivet type, rivet diameter, workpiece material, workpiece thickness, hole spacing, and required riveting positions.

The product structure is especially important for two-end riveting. If two riveting points need to be completed during the same operation, the distance and relative position between the two points should be confirmed.

For customized projects, product drawings or physical samples can help determine the appropriate fixtures, dies, feeding system, and machine configuration.

FAQS
1. What is a two-end hinge riveting machine?

It is an automatic riveting machine designed to process two hinge riveting positions according to the product configuration.

2. Can this machine be used for folding chairs?

Yes. It can be configured for suitable folding chair hinges, brackets, and metal frame components.

3. Can it rivet door hinges?

Yes, suitable door hinge components can be processed when the hinge, rivet, and workpiece specifications match the machine configuration.

4. Can it be used for windows?

Yes. The machine can be configured for suitable window hinge and hardware applications, including compatible metal and aluminum components.

5. Can the machine automatically feed rivets?

Automatic rivet feeding can be integrated depending on the machine configuration and rivet specifications.

6. Can the two riveting heads work at the same time?

The machine can be configured for two-end or double-head riveting according to the product and tooling requirements.

7. Can the fixtures be customized?

Yes. Product fixtures, riveting dies, positioning devices, and feeding components can be customized for specific workpieces.

8. What materials can be riveted?

Suitable applications may include aluminum, steel, stainless steel, and other compatible materials. The final suitability depends on the material thickness, rivet type, and machine configuration.

9. Is this machine suitable for mass production?

Yes. Automatic operation and repeatable positioning make it suitable for batch and industrial production.

10. What information is required for a quotation?

Customers should provide product drawings or samples, hinge dimensions, rivet specifications, workpiece material and thickness, riveting positions, and production requirements.
