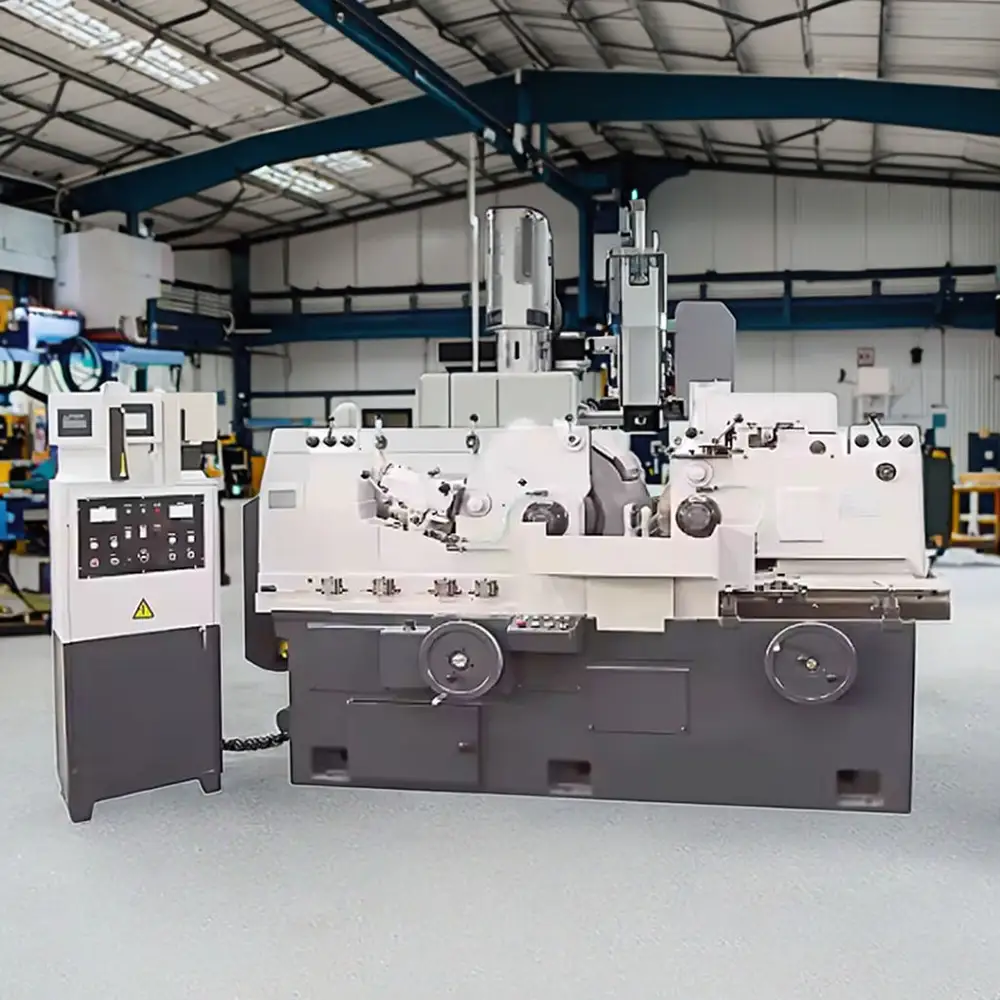

Semi - Automatic Plunge - Grinding Cycle Centerless Grinding Machine for Cylindrical, Conical and Annular Parts

item	value
Grinding workpiece diameter	Through Mill  10-200mm
	Plunge Mill   10-200mm
Grinding workpiece length	Through Mill 300mm
	Plunge Mill  390mm
Grinding wheel specification	P600×400×305mm
Guide wheel specification	P350×400×203mm
Speed of grinding wheel	1330r/min
Rotating speed of guide wheel (stepless)	12~200r/min
Angle of rotation of the guide wheel	Vertical plane -2°~+5°
	Horizontal plane -2°~ +3
Total feed stroke of wheelhead	165mm
Maximum travel distance of wheelhead	20~40mm
Wheelhead cut-in feed	0~4mm
Wheelhead feeding handwheel scale feeding amount per frame	0.001mm
Distance from the center line of grinding wheel and guide wheel to the bottom surface of pallet	270mm

Semi-Automatic Plunge Grinding Cycle Centerless Grinding Machine for Cylindrical, Conical and Annular Parts

The Semi-Automatic Plunge Grinding Cycle Centerless Grinding Machine is a precision grinding solution designed for efficient processing of cylindrical, conical, and annular metal parts. Combining centerless grinding technology with a semi-automatic plunge grinding cycle, this machine is suitable for manufacturers seeking consistent dimensional results, repeatable production, and improved grinding efficiency.

Centerless grinding is a machining process in which a workpiece is supported between a grinding wheel and a regulating wheel rather than being held between centers. This arrangement allows the machine to grind suitable components without the need for conventional chucking or center holes.

The plunge grinding method is particularly suitable for workpieces that require grinding over a defined area or for components with shoulders, multiple diameters, or other features that cannot always be processed efficiently through traditional through-feed grinding.

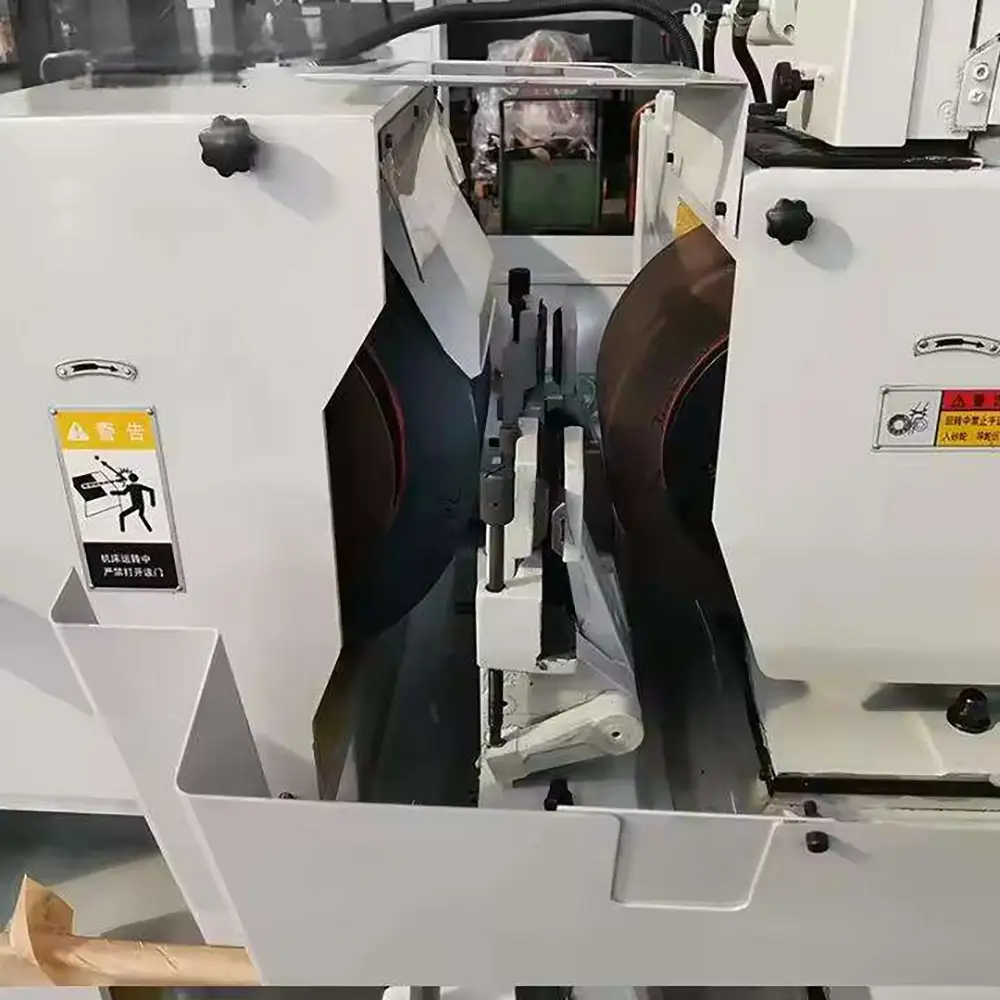

Semi-Automatic Plunge Grinding Cycle

The machine is designed around a semi-automatic plunge grinding cycle, allowing operators to load and unload workpieces while the grinding process follows a defined operating sequence.

Once the workpiece has been correctly positioned and the grinding parameters have been set, the machine can perform the programmed plunge grinding operation. This helps reduce repetitive manual grinding movements and supports consistent processing across multiple parts.

The exact degree of automation depends on the machine configuration. Semi-automatic operation may include controlled grinding movement, regulating wheel operation, dressing functions, and other process controls according to the selected model.

Centerless Grinding for Cylindrical Parts

One of the primary applications of this centerless grinding machine is the precision grinding of cylindrical components.

Suitable cylindrical parts may include shafts, pins, rods, sleeves, rollers, bushings, and other rotational metal components.

Centerless grinding can be used to improve the outside diameter, roundness, surface finish, and dimensional consistency of suitable workpieces. The actual achievable results depend on material properties, machine accuracy, grinding wheel selection, regulating wheel settings, and process parameters.

For repetitive production, centerless grinding can provide an efficient alternative to conventional cylindrical grinding methods that require individual workpiece clamping.

Grinding Conical Parts

The machine can also be configured for suitable conical grinding applications.

Conical workpieces may include tapered pins, tapered shafts, cones, sleeves, and other components with a gradually changing diameter.

The grinding process must be set up according to the required taper angle, workpiece dimensions, material, and grinding specifications. Appropriate wheel geometry and machine adjustment are important for achieving the desired conical profile.

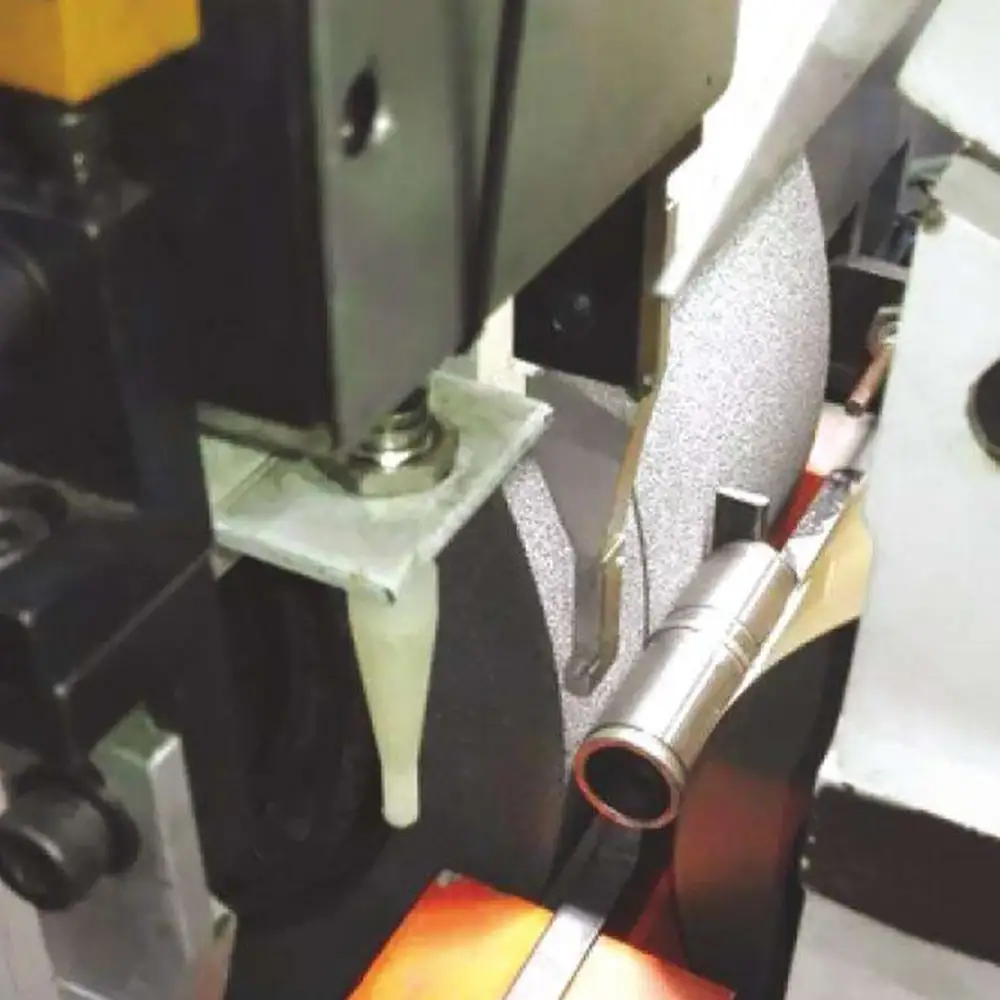

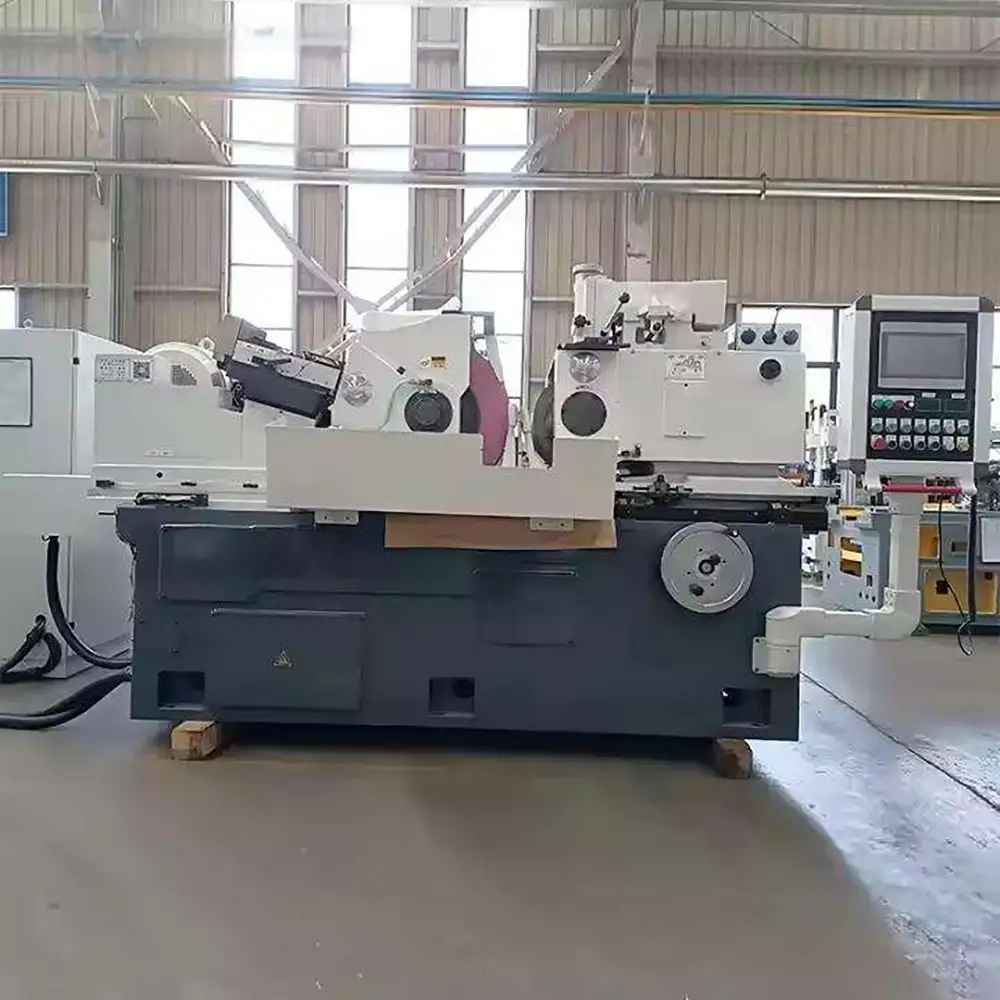

Annular Parts Grinding

Annular parts grinding refers to the processing of ring-shaped, sleeve-shaped, and other components with a central opening.

Typical examples include metal rings, bushings, bearing-related components, sleeves, and circular industrial parts.

The centerless grinding arrangement can be useful for processing the outside diameter of suitable annular components. Internal grinding, if required, would generally involve a different grinding process or additional equipment.

Before selecting the machine, buyers should confirm whether the application requires external diameter grinding, internal diameter grinding, face grinding, or a combination of operations.

Precision Grinding Performance

The machine is designed to support accurate and repeatable grinding operations. A stable machine structure and properly adjusted grinding system are important for maintaining dimensional consistency.

Grinding performance depends on several factors, including:

Workpiece Material
Workpiece Diameter
Workpiece Length
Grinding Wheel Specification
Regulating Wheel Settings
Grinding Allowance
Required Surface Finish
Machine Alignment
Dressing Conditions

For production applications, establishing suitable grinding parameters is essential for achieving consistent results.

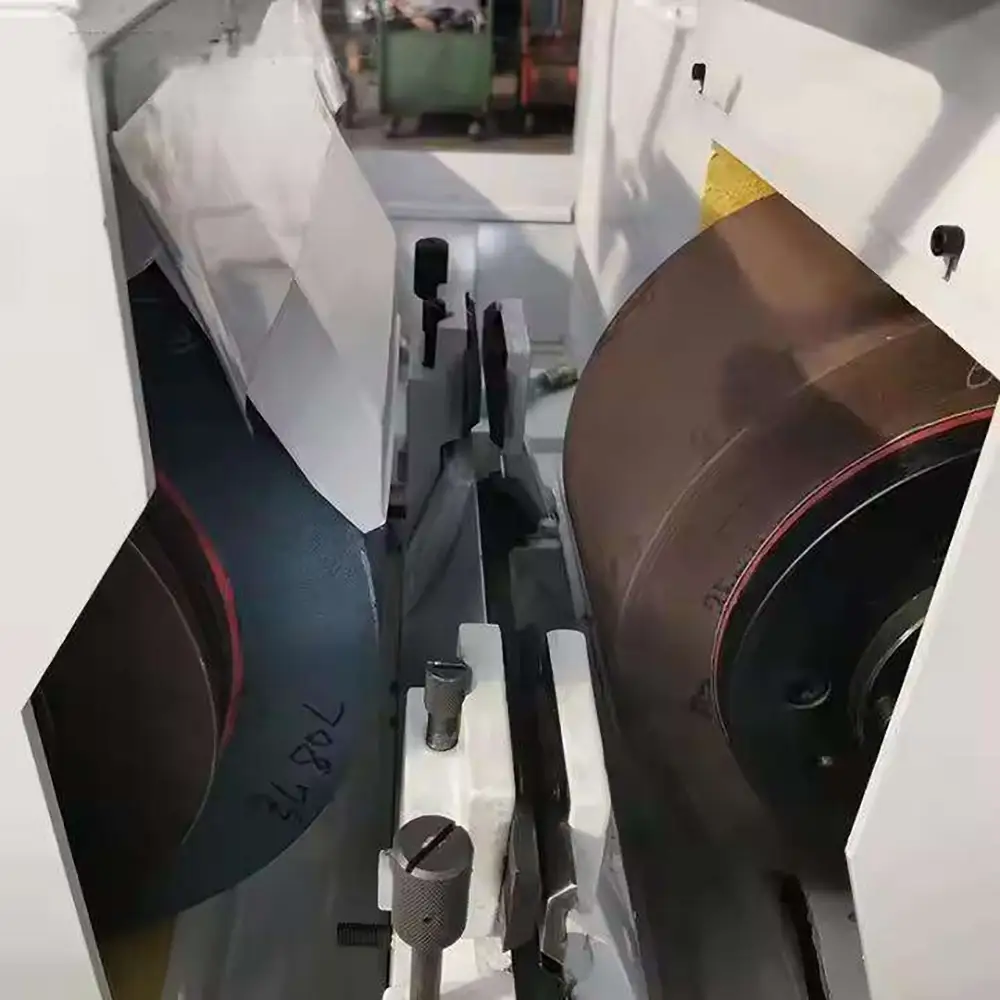

Grinding Wheel and Regulating Wheel System

Centerless grinding uses two primary wheels: the grinding wheel and the regulating wheel.

The grinding wheel performs the material removal operation, while the regulating wheel controls the workpiece's rotational speed and movement.

In plunge grinding, the workpiece is positioned in the grinding area and the grinding wheel moves into the workpiece according to the selected cycle.

The correct relationship between the grinding wheel, regulating wheel, workpiece, and work-rest blade is important for maintaining stable grinding performance.

Suitable for Repetitive Industrial Production

The semi-automatic grinding cycle makes this machine suitable for manufacturers processing batches of similar parts.

It can help reduce operator effort and improve production consistency compared with entirely manual grinding methods.

For applications involving repeated cylindrical, conical, or annular components, a properly configured centerless grinding machine can provide a practical production solution.

The machine may be suitable for small-batch manufacturing, medium-volume production, and selected high-volume applications, depending on the cycle time, workpiece design, and automation requirements.

Wide Range of Metal Materials

Depending on the machine model and grinding wheel configuration, suitable materials may include:

Carbon Steel
Stainless Steel
Alloy Steel
Tool Steel
Hardened Steel
Aluminum
Brass
Other Suitable Metal Materials

Material hardness and grinding characteristics affect wheel selection, dressing requirements, grinding force, and production efficiency.

Customers should provide material specifications and hardness information when requesting a machine recommendation.

Surface Finish and Dimensional Control

Centerless grinding is commonly used when components require improved surface finish and dimensional accuracy.

The grinding process can remove small amounts of material to achieve the required outside diameter and surface condition.

The final grinding results depend on machine precision, grinding wheel quality, workpiece stability, dressing accuracy, and process setup.

For demanding applications, customers should specify required tolerances, roundness, cylindricity, and surface roughness so the appropriate machine configuration can be evaluated.

Efficient Material Removal

Compared with conventional cutting operations, grinding is particularly useful for finishing metal components to tighter dimensions and smoother surfaces.

The centerless grinding process can support continuous or semi-automatic workpiece processing, depending on the machine design.

For suitable cylindrical parts, this can help improve production efficiency by reducing the need for repeated workpiece clamping and repositioning.

Flexible Grinding Applications

The machine can be used for a variety of applications, including:

Cylindrical Metal Parts
Tapered Metal Components
Annular Parts
Shafts
Pins
Bushings
Sleeves
Rollers
Bearing Components
Precision Hardware
Automotive Components
Machinery Parts

The actual application range depends on workpiece dimensions, machine capacity, grinding wheel configuration, and required processing method.

Machine Configuration and Customization

The machine can be configured according to different production requirements.

Depending on the selected model, available options may include:

Grinding Wheel Specifications
Regulating Wheel Configuration
Workpiece Diameter Range
Grinding Stroke
Grinding Wheel Motor
Dressing System
Semi-Automatic Control
Workpiece Loading Arrangement
Safety Guarding
Electrical Configuration

Customers should provide technical drawings, workpiece dimensions, material information, and required production quantity to help determine a suitable configuration.

Suitable for OEM and B2B Buyers

This semi-automatic centerless grinding machine is suitable for metalworking manufacturers, precision machining companies, machinery distributors, industrial equipment importers, and OEM production projects.

For distributors and industrial buyers, the machine provides a practical solution for applications requiring cylindrical, conical, or annular part grinding.

For manufacturers, it can be integrated into existing machining and finishing workflows.

How to Select the Right Centerless Grinding Machine

When selecting a centerless grinding machine, buyers should consider:

Workpiece Diameter: Confirm the minimum and maximum grinding diameter.
Workpiece Length: Check whether the machine supports the required part length.
Part Geometry: Determine whether cylindrical, conical, or annular parts are being processed.
Material: Identify the metal type and hardness.
Grinding Allowance: Determine the amount of material to be removed.
Surface Finish: Specify the required surface roughness.
Dimensional Accuracy: Confirm diameter tolerance and roundness requirements.
Production Volume: Consider the required cycle time and automation level.
Grinding Wheel: Select suitable wheel specifications.
Control System: Confirm the desired semi-automatic or automatic operating configuration.

With its semi-automatic plunge grinding cycle and centerless grinding structure, this machine provides a flexible solution for precision grinding of cylindrical, conical, and annular metal parts.

5. Why Choose Our Semi-Automatic Centerless Grinding Machine?
1. Semi-Automatic Grinding Cycle

Designed to reduce repetitive manual grinding operations and support consistent processing.

2. Plunge Grinding Capability

Suitable for workpieces requiring plunge grinding over a defined area or for components with shoulders and multiple diameters.

3. Cylindrical and Conical Grinding

Can be configured for suitable cylindrical and tapered metal components.

4. Annular Parts Processing

Suitable for grinding the outside diameter of suitable rings, sleeves, bushings, and other annular components.

5. Stable Centerless Grinding

The grinding wheel and regulating wheel system provides a practical arrangement for repetitive precision grinding.

6. Flexible Machine Configuration

Grinding wheel specifications, workpiece range, dressing system, and other features can be selected according to the application.

7. Suitable for Industrial Production

Ideal for metalworking manufacturers, precision machining companies, and industrial production lines.

8. OEM & B2B Support

Suitable for distributors, machinery importers, manufacturers, and custom production projects.

6. Main Applications

The Semi-Automatic Plunge Grinding Cycle Centerless Grinding Machine can be used for:

Cylindrical Part Grinding
Conical Part Grinding
Annular Part Grinding
Shaft Grinding
Pin Grinding
Sleeve Grinding
Bushing Grinding
Roller Grinding
Bearing Component Grinding
Automotive Parts Grinding
Precision Hardware Grinding
Machinery Component Grinding
7. FAQ
Q1: What is a centerless grinding machine?

A centerless grinding machine is a grinding machine that processes suitable workpieces without holding them between centers. The workpiece is supported between a grinding wheel and a regulating wheel.

Q2: What is plunge grinding?

Plunge grinding is a grinding method in which the grinding wheel moves into the workpiece to grind a defined area. It is suitable for certain parts with shoulders, multiple diameters, or localized grinding requirements.

Q3: What parts can this machine grind?

It is suitable for cylindrical, conical, and annular metal parts, including shafts, pins, sleeves, bushings, rollers, and other suitable rotational components.

Q4: Can it grind conical parts?

Yes. Suitable conical parts can be processed when the machine and grinding setup are configured for the required taper angle and geometry.

Q5: Can it process annular parts?

Yes. The machine can be used for suitable annular components such as rings, sleeves, and bushings, particularly for external diameter grinding.

Q6: Is the machine fully automatic?

This machine is described as semi-automatic. The exact functions depend on the selected configuration and may include controlled grinding movement and programmed grinding cycles.

Q7: What materials can be processed?

Depending on the machine configuration, suitable materials may include carbon steel, stainless steel, alloy steel, hardened steel, aluminum, brass, and other metal materials.

Q8: What affects grinding accuracy?

Grinding accuracy depends on machine rigidity, alignment, wheel quality, dressing, workpiece material, grinding parameters, and operator setup.

Q9: Can the grinding wheel be customized?

Grinding wheel specifications can be selected according to material, workpiece dimensions, grinding allowance, and required surface finish.

Q10: Is this machine suitable for mass production?

It can be suitable for repetitive production when the workpiece dimensions, cycle time, tooling, and machine configuration match the production requirements.

Q11: What information is needed for a quotation?

Provide the workpiece drawing, outside diameter, inside diameter if applicable, length, material, hardness, grinding allowance, required tolerance, surface finish, and production quantity.

Q12: Can the machine be customized for OEM projects?

Machine configuration, grinding wheel system, regulating wheel, dressing system, electrical requirements, and automation options can be discussed according to the application.
