CNC Spinning Forming Machine for Metal Cup Aluminum Kitchenware and Cookware

CNC Spinning Forming Machine for Metal Cup Aluminum Kitchenware and CookwarePerformance introduction:

1 Lightweight, dexterous, practical, effective, and spinning products are stable and consistent in size.

2Adopt advanced digital program control, programming operation is simple, easy to learn and easy to use.

3 It can complete disc, cone, cylindrical, parabolic, trumpet and other products.

4It has the functions of flanging, trimming and curling.

All processing of LED aluminum cups, reflective covers, reflective flower covers and other products can be completed in one clamping, and the formed products have good light-gathering properties.

5 Good production efficiency, about 10 seconds to complete the product.

Application range:

Suitable for hardware products such as lamps, cookware, handicrafts, etc., suitable for aluminum, copper, iron, stainless steel and other materials

Note: It can be customized according to the specifications, shape and size of the customer'

Product Name:	CNC Spinning Machine
Product Category	Spinning Machine Series
Model	450	550	750
Larger material diameter:	600mm	650	750
Maximum turning diameter	230mm	400	500
Larger workpiece length:	250mm	350	400
Workpiece thickness:	0.5-2.0mm (aluminum, copper), 0.5-1.2mm (iron), 0.5-0.8mm (stainless steel)	0.5-3mm (aluminum, copper), 0.5-1.8mm (iron), 0.5-1.28mm (stainless steel)	0.5-6mm (aluminum, copper), 0.5-4mm (iron), 0.5-3mm (stainless steel)
X/Z axis travel:	500mm/370mm		500mm/800mm
Z axis thrust:	20kn
Tailstock thrust:	20kn	25kn	35kn
Rail type:	linear guide	linear guide	linear guide
X/Z axis servo motor power:	6/6m/min, 2.5kw		3/6kw
X/Z axis pulse equivalent:	0.001mm	0.001mm	0.001mm
Positioning accuracy:	0.01mm	0.01mm	0.01mm
Repeat positioning accuracy:	0.005mm	0.005mm	0.005mm
Spindle speed:	3000rpm	1800rpm	2500rmp
Tailstock movement:	300mm	350	400
Movement of tailstock sleeve:	200mm	300	400
Main motor power:	5.5kw	7.5kw	18kw
Machining accuracy:	1t6
Machine measure	2450x1750x2100mm	2900x1900x2200mm	2900x1900x1850mm

CNC Spinning Forming Machine for Metal Cup, Aluminum Kitchenware and Cookware

The CNC Spinning Forming Machine for Metal Cup, Aluminum Kitchenware and Cookware is a precision metal forming solution designed for manufacturers producing aluminum cups, bowls, pots, pans, containers, kitchen utensils, and other rotational metal products. By combining CNC-controlled movement with metal spinning technology, the machine provides a flexible and efficient method for forming seamless or rotationally symmetrical components.

CNC metal spinning is widely used in cookware and kitchenware manufacturing because it can form sheet metal into a variety of cylindrical, conical, curved, and rounded shapes without requiring traditional cutting or multiple joining operations. Aluminum is particularly suitable for spinning because of its excellent formability, lightweight characteristics, corrosion resistance, and thermal conductivity.

The machine can be configured for different workpiece dimensions, materials, tooling requirements, production volumes, and automation levels. Depending on the specific model and application, customers can select suitable spindle capacity, forming force, CNC control, mandrel design, forming rollers, fixtures, and auxiliary systems.

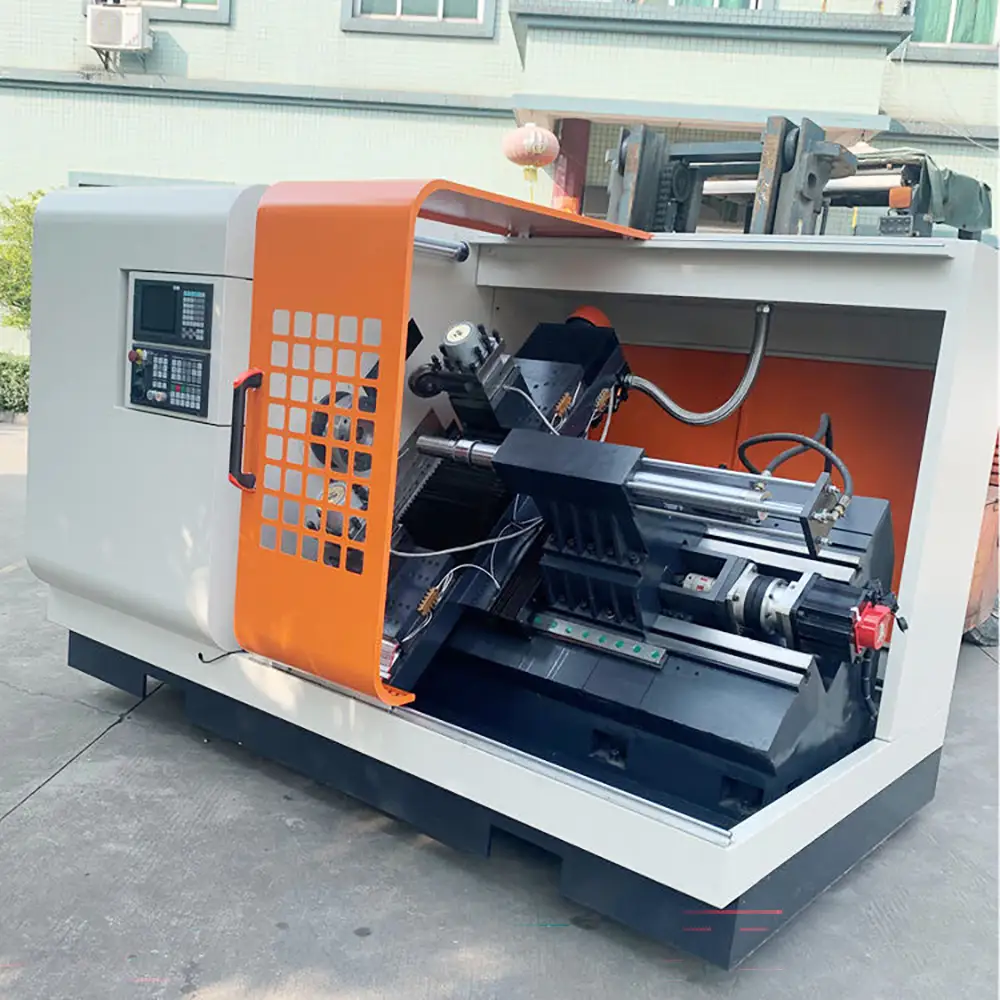

CNC Metal Spinning for Aluminum Products

CNC metal spinning is a forming process in which a flat or preformed metal blank rotates against a mandrel while a forming tool or roller progressively shapes the material into the desired profile.

For aluminum cups and cookware, the process can produce smooth rotational surfaces while maintaining consistent product geometry. CNC control allows the forming movement to be programmed according to the required product profile, helping manufacturers achieve repeatable results across production batches.

This makes the machine suitable for both customized products and standardized mass production. Manufacturers can develop different programs for different cup sizes, cookware dimensions, wall profiles, and product shapes, depending on the capabilities of the selected machine.

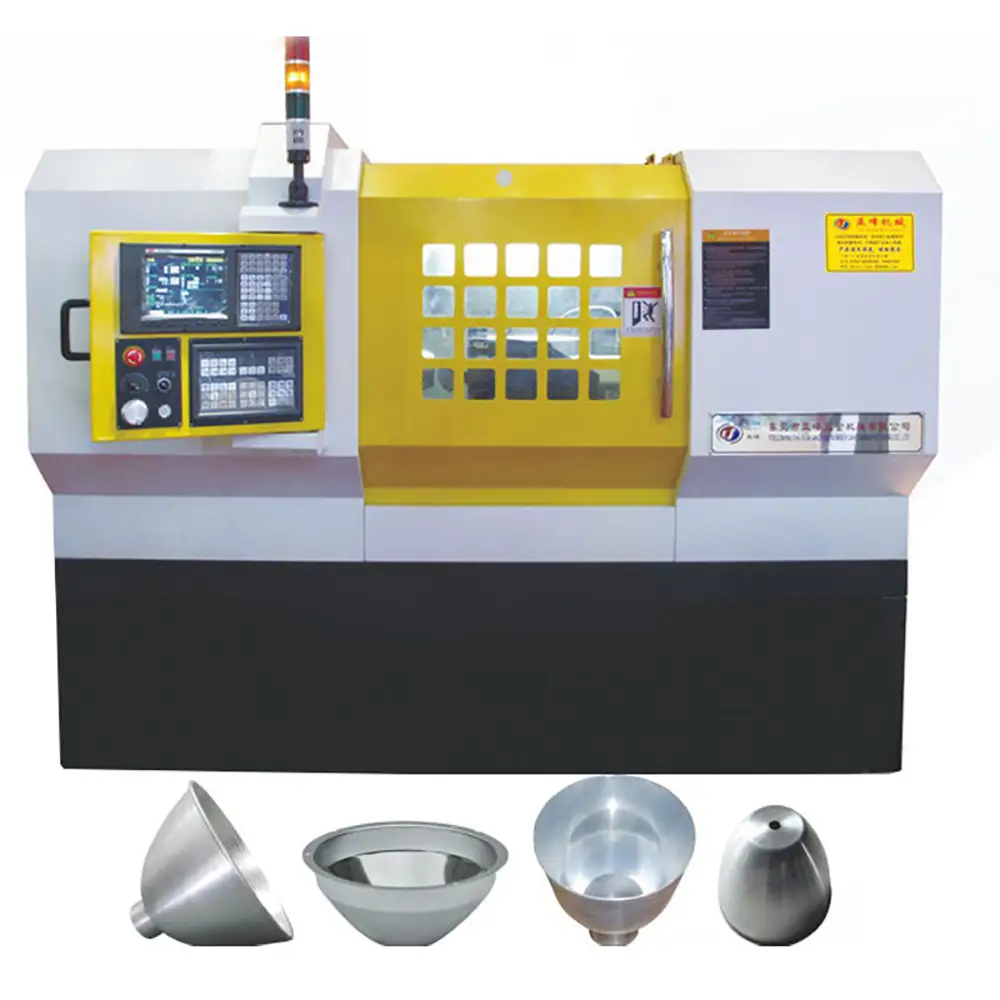

Aluminum Cup Spinning Machine

Aluminum cups are common products for metal spinning because they typically feature rotationally symmetrical geometries. The CNC spinning forming machine can be used to produce suitable cup bodies, containers, drinking vessels, and other cylindrical or tapered aluminum products.

The forming process can help reduce the need for welding or multiple-piece assembly when the product design can be produced from a single metal blank.

For manufacturers serving the hospitality, food service, household, outdoor, and kitchenware markets, CNC spinning provides an adaptable production method for different product designs.

Custom tooling can be developed for different cup diameters, heights, bottom shapes, wall profiles, and edge configurations. Final specifications depend on the product design and machine configuration.

Kitchenware and Cookware Manufacturing

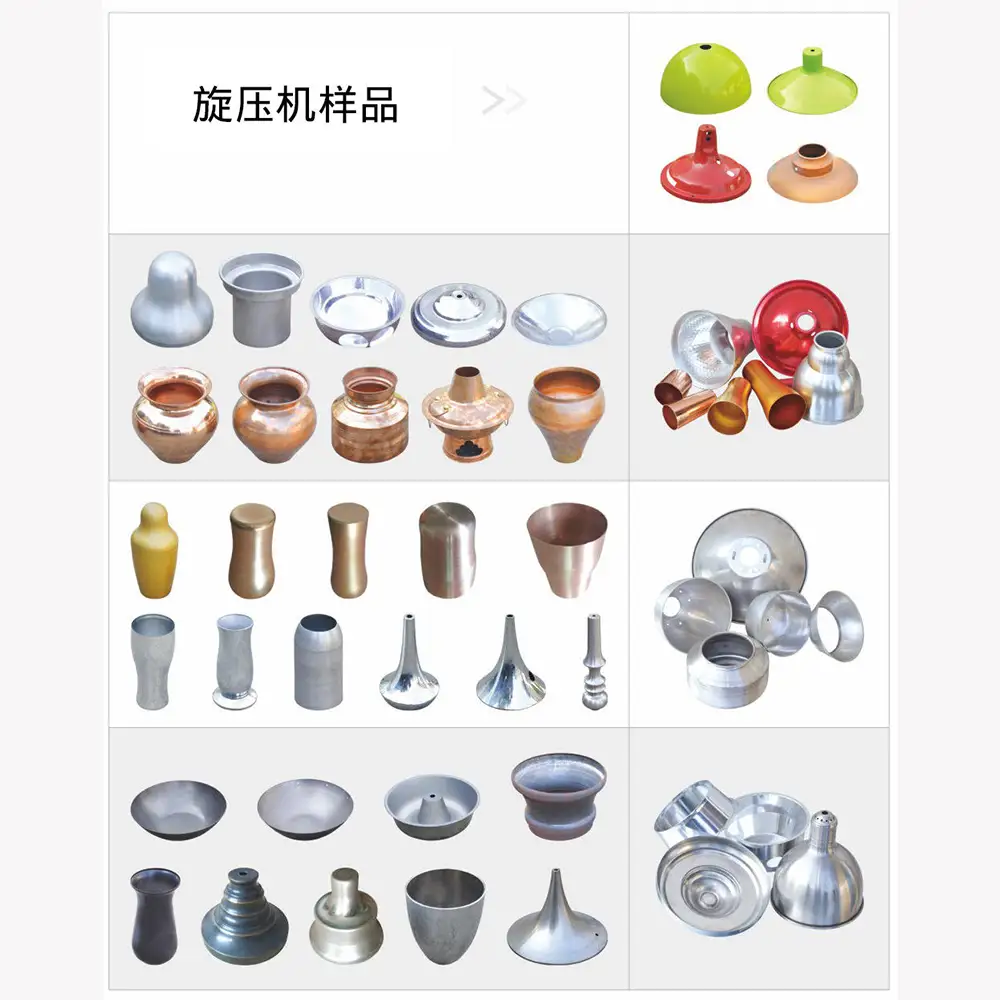

The machine can also be applied to a wide range of aluminum and other metal kitchenware products.

Typical applications may include:

Aluminum cooking pots
Sauce pans
Frying pans
Stock pots
Mixing bowls
Serving bowls
Metal cups
Food containers
Kitchen basins
Metal covers
Lids and cookware components
Household metal containers
Decorative kitchenware

For cookware manufacturing, the ability to produce rotational components with consistent dimensions is important. CNC spinning can help manufacturers standardize the forming process and improve repeatability between production batches.

Depending on the cookware design, additional operations such as trimming, beading, polishing, coating, machining, handle assembly, or surface treatment may be performed after spinning.

Seamless Metal Forming

One of the advantages of metal spinning is its ability to form suitable products from a single blank. This can reduce the need for seams and welded joints in applications where a seamless rotational body is desirable.

For aluminum cups, bowls, pots, and containers, a single-piece forming process may provide a clean appearance and consistent structure.

However, whether a specific product can be manufactured as a single-piece spun component depends on its geometry, material, thickness, diameter, depth, and forming requirements.

Precision CNC Control

The CNC control system allows the machine to execute programmed forming movements. This is particularly useful when producing large quantities of the same or similar products.

Instead of manually controlling every forming movement, operators can use established CNC programs to repeat the required process. This can help reduce variations caused by manual operation and improve production consistency.

Different CNC configurations may be available depending on the machine model and customer's requirements. The control system, drives, spindle, feed mechanism, and forming system can be selected according to the intended application.

Flexible Tooling and Mandrel Options

Tooling is an important part of metal spinning production. The mandrel determines the basic internal shape of the product, while forming rollers or tools control how the metal blank is progressively shaped.

For cookware and kitchenware production, customized mandrels can be developed for different product sizes and profiles.

Manufacturers producing multiple products can use different tooling configurations and CNC programs according to their production schedule.

For OEM projects, customers can provide product drawings, samples, CAD files, dimensions, material information, or existing tooling details. These specifications can then be used to evaluate the appropriate machine and forming solution.

Suitable Materials

Although aluminum is a key application, CNC metal spinning technology can also be suitable for various other formable metals depending on the machine and tooling configuration.

Potential materials include:

Aluminum
Stainless steel
Carbon steel
Copper
Brass
Other suitable metal alloys

Material selection should consider tensile strength, ductility, thickness, work hardening characteristics, product geometry, and required surface quality.

For specialized materials or demanding cookware applications, forming trials may be recommended before final machine selection.

Production Efficiency

CNC spinning can provide an efficient alternative to manufacturing certain rotational components through multiple fabrication processes.

For suitable products, forming a component from a metal blank can reduce material removal and minimize the number of joining operations. This can contribute to improved material utilization and a streamlined manufacturing process.

For high-volume cookware and kitchenware manufacturers, repeatable CNC forming cycles can also support production planning and process standardization.

Actual cycle time depends on product size, material, thickness, forming depth, number of forming passes, tooling, machine configuration, and required finishing operations.

Custom OEM Metal Spinning Solutions

Every kitchenware manufacturer may have different product specifications. For this reason, the machine can be configured according to the customer's production requirements.

Customization may include machine size, spindle capacity, forming system, CNC controller, tooling, mandrels, forming rollers, automatic feeding, unloading systems, safety configuration, and other auxiliary equipment.

OEM customers can also develop dedicated production solutions for specific cookware or kitchenware product lines.

Whether you are producing aluminum cups, cookware, bowls, containers, or customized rotational components, the machine can be evaluated based on your actual product requirements rather than relying only on general machine specifications.

Main Applications

The CNC Spinning Forming Machine is suitable for:

Aluminum Cup Manufacturing
Metal Cup Production
Aluminum Cookware
Stainless Steel Cookware
Kitchenware Manufacturing
Metal Bowls
Aluminum Pots and Pans
Frying Pan Components
Sauce Pan Components
Metal Containers
Food Service Products
Household Metal Products
Industrial Metal Containers
Custom OEM Spun Components
Why Choose Us
1. CNC-Controlled Spinning

Programmable CNC forming provides repeatable movement and consistent processing for batch production.

2. Designed for Aluminum and Metal Products

The machine is suitable for aluminum cups, cookware, kitchenware, containers, and other rotational metal components, depending on configuration.

3. Custom Tooling

Mandrels, forming rollers, fixtures, and other tooling can be customized for specific product shapes and dimensions.

4. OEM Manufacturing Support

We can provide machine solutions based on customer drawings, samples, product dimensions, materials, and production requirements.

5. Flexible Production

Different CNC programs and tooling configurations can support multiple product sizes and designs.

6. Efficient Metal Forming

Metal spinning can reduce material removal and joining operations for suitable rotational products.

7. B2B Industrial Solution

The machine is suitable for cookware manufacturers, kitchenware factories, metal product manufacturers, OEM suppliers, and industrial production companies.

Frequently Asked Questions
1. What products can this CNC spinning machine produce?

It can be used for suitable rotational products such as aluminum cups, bowls, pots, pans, cookware, kitchenware, containers, covers, and other custom metal components.

2. Can it spin aluminum cups?

Yes. Aluminum is commonly suitable for metal spinning, and the machine can be configured for aluminum cup production according to the required dimensions and forming process.

3. Can the machine produce cookware?

Yes. Suitable cookware products include pots, pans, bowls, lids, and other rotational cookware components, depending on product geometry and material.

4. What materials can be spun?

Depending on machine configuration, materials may include aluminum, stainless steel, carbon steel, copper, brass, and other formable metals.

5. Can I customize the tooling?

Yes. Mandrels, forming rollers, fixtures, and other tooling can be customized according to the product design.

6. Can one machine produce different sizes of cups?

Potentially, yes. Different CNC programs and tooling can be used for different product sizes, subject to the machine's working range and configuration.

7. Is CNC spinning suitable for mass production?

Yes. CNC programming and repeatable forming cycles make the technology suitable for batch and mass production of appropriate rotational components.

8. Does the machine produce seamless cookware?

It can produce suitable one-piece rotational components without welded side seams. Whether a specific cookware product can be formed as a single piece depends on its design and material.

9. Can you design a machine according to our product?

Yes. Product drawings, CAD files, samples, material specifications, dimensions, and expected production volume can be used to evaluate a suitable configuration.

10. What information is needed for a machine quotation?

Useful information includes product drawings or samples, material type, blank thickness, maximum diameter, product height or depth, required tolerances, production quantity, and any special surface or finishing requirements.
