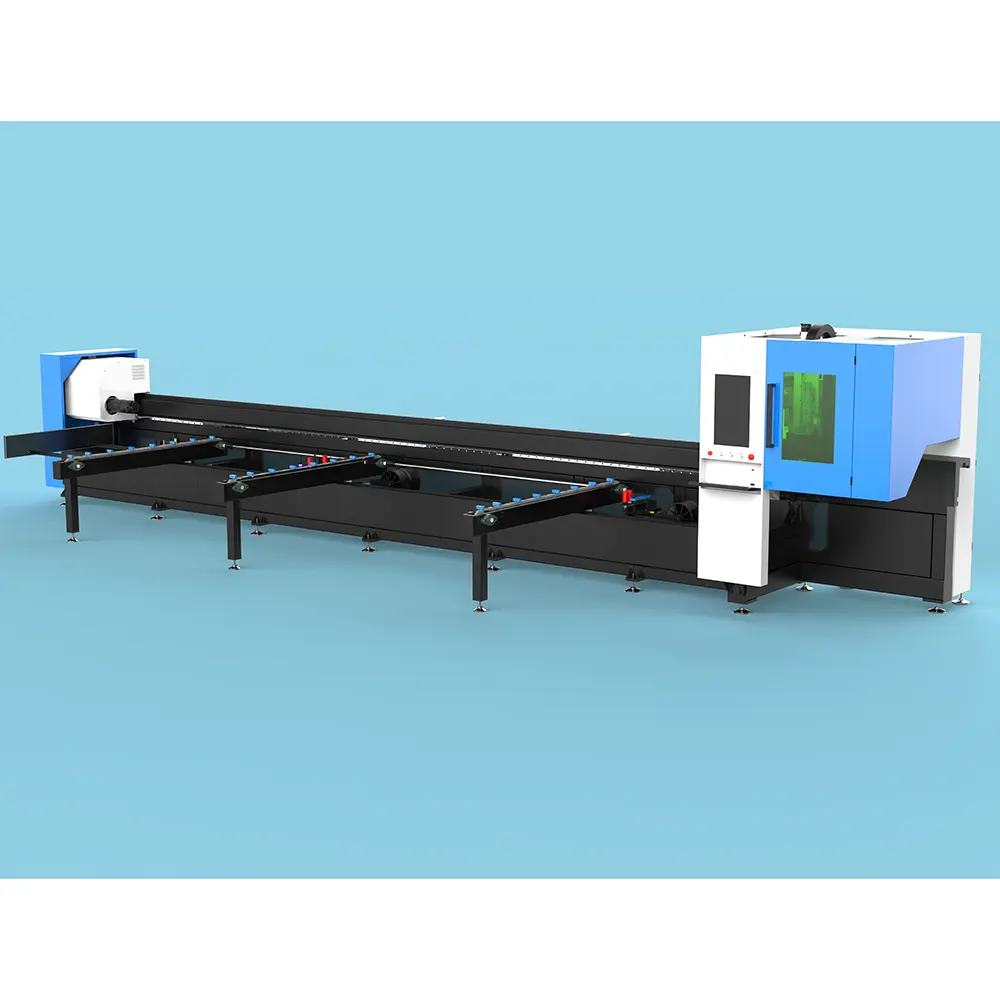

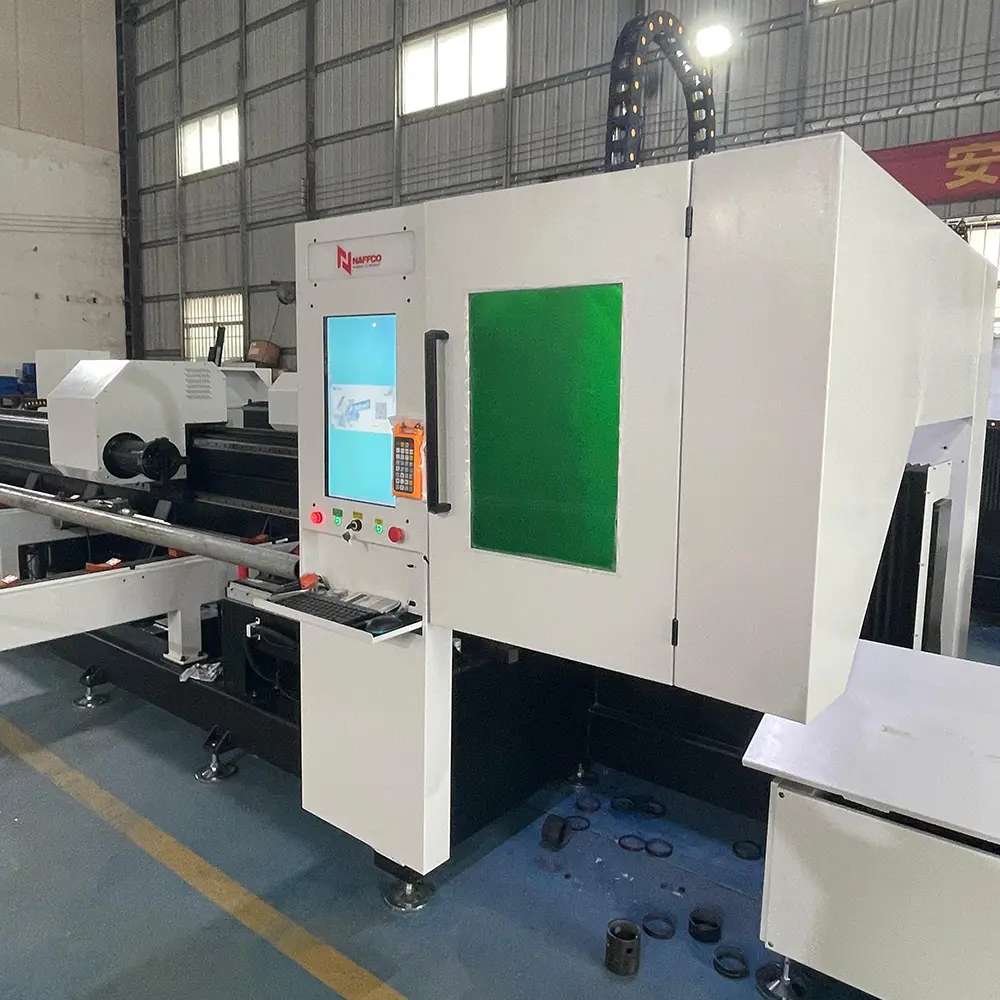

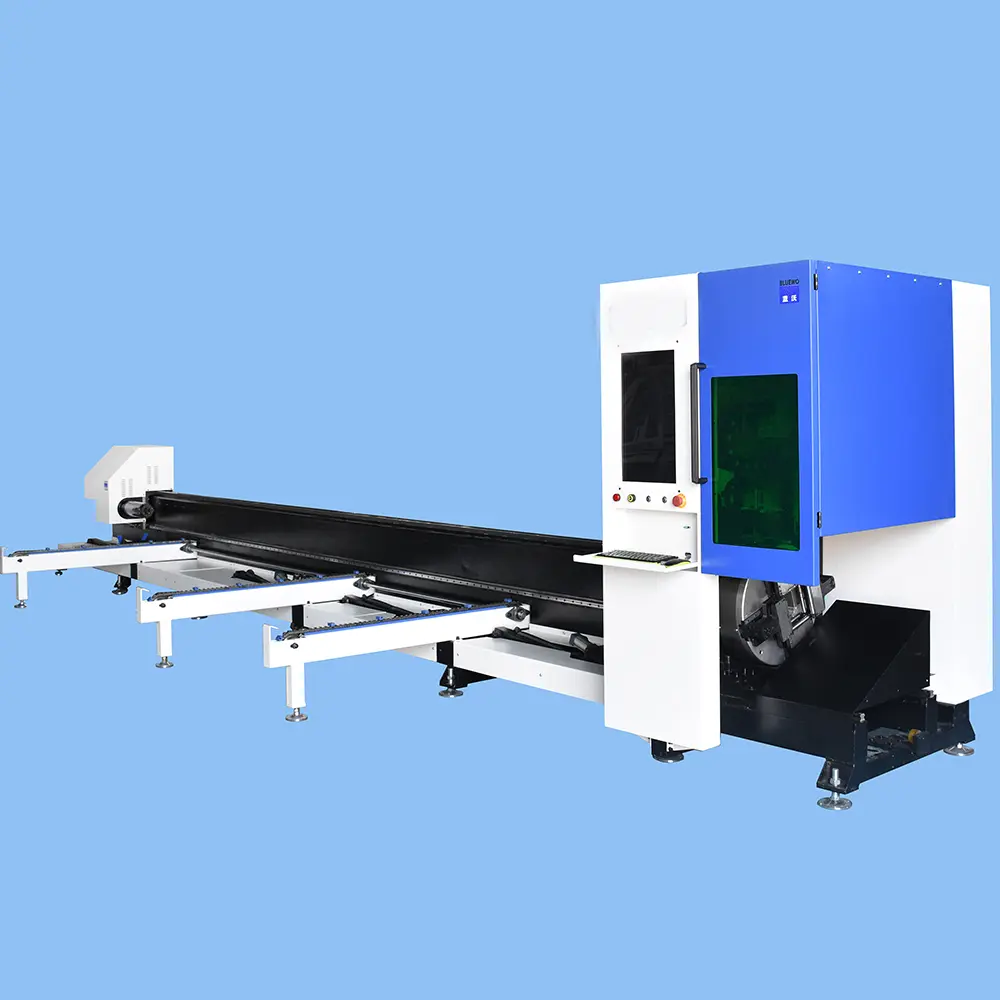

Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine

Short Tail Stock: The front chuck avoidance cutting method shortens the distance between the cutting head and the jaws, thus reducing the length of the tail material to the shortest of the two chuck pipe cutter, only about 70mm. Help users to improve material utilisation and reduce production cost.

Professional Tube Bus Cutting System: Adopting advanced pipe cutting control system + high-efficiency servo motor, zero delay in data transmission. Position and energy data are transmitted in real time for more accurate control; the cutting path is displayed in real time, and the core components are highly integrated, which makes the operation easier and more hassle-free.

High rotational speeds, High traverse speeds, Faster pipe cutting: The chuck rotates 100r/min, and the idle speed is 80m/min, which reduces the waste of non-productive time and helps users to increase the production capacity practically.

Servo-following Support: Floating in real time according to the processing height of the pipe, avoiding deformation of the workpiece due to pipe sagging. Make the cutting more stable and higher precision.

Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine

The Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine is an advanced fiber laser cutting system specially designed for high-precision processing of metal pipes,tubes,and profiles. Featuring a semi-automatic feeding structure,lifting support system,and double-chuck clamping technology,this machine provides excellent cutting accuracy,stability,and production efficiency for modern metal fabrication industries.

The machine is suitable for cutting round pipes,square tubes,rectangular tubes,and various metal profiles. With powerful laser cutting technology,it can perform high-quality cutting,slotting,hole drilling,and contour processing on carbon steel,stainless steel,aluminum,and other metal materials.

Compared with traditional mechanical pipe cutting methods,the laser tube cutting machine offers faster processing speed,higher precision,lower material waste,and better flexibility. It is widely used in metal furniture,automotive components,fitness equipment,construction materials,steel structures,and industrial manufacturing.

Advanced Fiber Laser Tube Cutting Technology

The Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine adopts advanced fiber laser technology to achieve fast and precise metal tube processing.

Main processing functions include:

Tube cutting
Profile cutting
Hole cutting
Slot cutting
Complex contour processing
Customized shape cutting

Laser cutting advantages:

High cutting accuracy
Narrow cutting seam
Smooth cutting edges
Low material waste
No tool wear

The high-energy laser beam provides clean and efficient processing for different metal tube applications.

Double Chuck Clamping System

The machine is equipped with a double-chuck structure to improve tube positioning accuracy and cutting stability.

Advantages of double chuck design:

Strong tube holding force
Reduced material vibration
Improved cutting accuracy
Better processing stability
Suitable for long tubes

The double chuck system ensures precise rotation and positioning during laser cutting,especially for long and heavy metal pipes.

Semi-Automatic Lifting Support System

The lifting support mechanism improves material handling efficiency and processing stability.

Main features:

Adjustable tube support height
Reduced pipe deformation
Improved feeding stability
Easier material loading
Better cutting accuracy

The lifting structure helps maintain stable positioning during the entire cutting process.

High Precision CNC Laser Control System

The CNC control system provides intelligent operation and accurate processing control.

Main functions:

Automatic cutting path control
Digital parameter adjustment
Graphic processing
Intelligent positioning
Production data management

Benefits:

Easy operation
Fast product changeover
Stable cutting quality
Reduced operator requirements
Improved production efficiency
Wide Application Industries
Metal Furniture Industry

Applications:

Chair frames
Table structures
Sofa frames
Decorative metal tubes
Automotive Industry

Used for:

Vehicle frame tubes
Exhaust components
Structural parts
Metal brackets
Fitness Equipment Manufacturing

Applications:

Exercise equipment frames
Sports structures
Metal supports
Construction Industry

Used for:

Steel structures
Handrails
Architectural metal components
Industrial Fabrication

Applications:

Machine frames
Custom metal products
Precision tube components
Suitable Materials

The Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine can process:

Carbon Steel
Stainless Steel
Aluminum
Brass
Copper
Alloy Metal

Suitable profiles:

Round Tubes
Square Tubes
Rectangular Tubes
Oval Tubes
Special Metal Profiles

Different laser powers and configurations can be selected according to material thickness and production requirements.

Efficient Metal Tube Processing Solution

Compared with traditional cutting equipment,the laser tube cutting machine provides multiple advantages:

Faster Processing Speed

Laser cutting greatly improves production efficiency for batch tube processing.

Better Cutting Quality

The laser produces smooth edges with minimal deformation.

Flexible Production

One machine can process different shapes and sizes of tubes.

Lower Operating Cost

No cutting tools are required,which reduces replacement and maintenance costs.

Higher Material Utilization

Optimized cutting paths reduce material waste.

Reliable Machine Structure

The machine adopts an industrial-grade structure designed for long-term operation.

Main features:

High-strength machine frame
Precision transmission system
Stable double chuck structure
Reliable laser source
Advanced CNC control system

The durable construction ensures stable performance in continuous production environments.

Key Features Of Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine
1. Fiber Laser Cutting Technology

Provides high-speed and high-precision metal tube processing.

2. Double Chuck Clamping System

Improves tube stability and cutting accuracy.

3. Lifting Support Structure

Ensures smooth feeding and reduces pipe deformation.

4. Semi-Automatic Operation

Balances production efficiency and operating convenience.

5. Multi-Shape Tube Processing

Suitable for round,square,and rectangular tubes.

6. Customized Laser Solutions

Laser power,cutting length,and automation level can be customized.

Why Choose Our Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine?
Professional Laser Tube Cutting Manufacturer

We specialize in manufacturing fiber laser cutting machines and complete metal tube processing solutions for global customers.

Advanced Laser Technology

High-quality laser systems ensure precise cutting performance and long-term reliability.

Efficient Production Capability

The semi-automatic system improves productivity while reducing labor requirements.

Customized Equipment Design

Laser power,pipe diameter range,chuck configuration,and automation functions can be customized according to customer needs.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete After-Sales Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is a Semi-Automatic Lifting Double-Chuck Laser Tube Cutting Machine used for?

It is used for precision laser cutting of metal pipes,tubes,and profiles in industrial manufacturing.

Q2: What is the advantage of double chuck design?

The double chuck system improves tube clamping stability and ensures higher cutting accuracy.

Q3: What materials can this machine cut?

It can cut carbon steel,stainless steel,aluminum,copper,and other metal materials.

Q4: What tube shapes can be processed?

It can process round tubes,square tubes,rectangular tubes,and special-shaped profiles.

Q5: What industries use this machine?

It is widely used in furniture,automotive,construction,fitness equipment,and metal fabrication industries.

Q6: What are the advantages of laser tube cutting?

Laser cutting provides high precision,fast speed,smooth edges,and reduced material waste.

Q7: Can the machine be customized?

Yes. Laser power,cutting size,chuck type,and automation functions can be customized.
