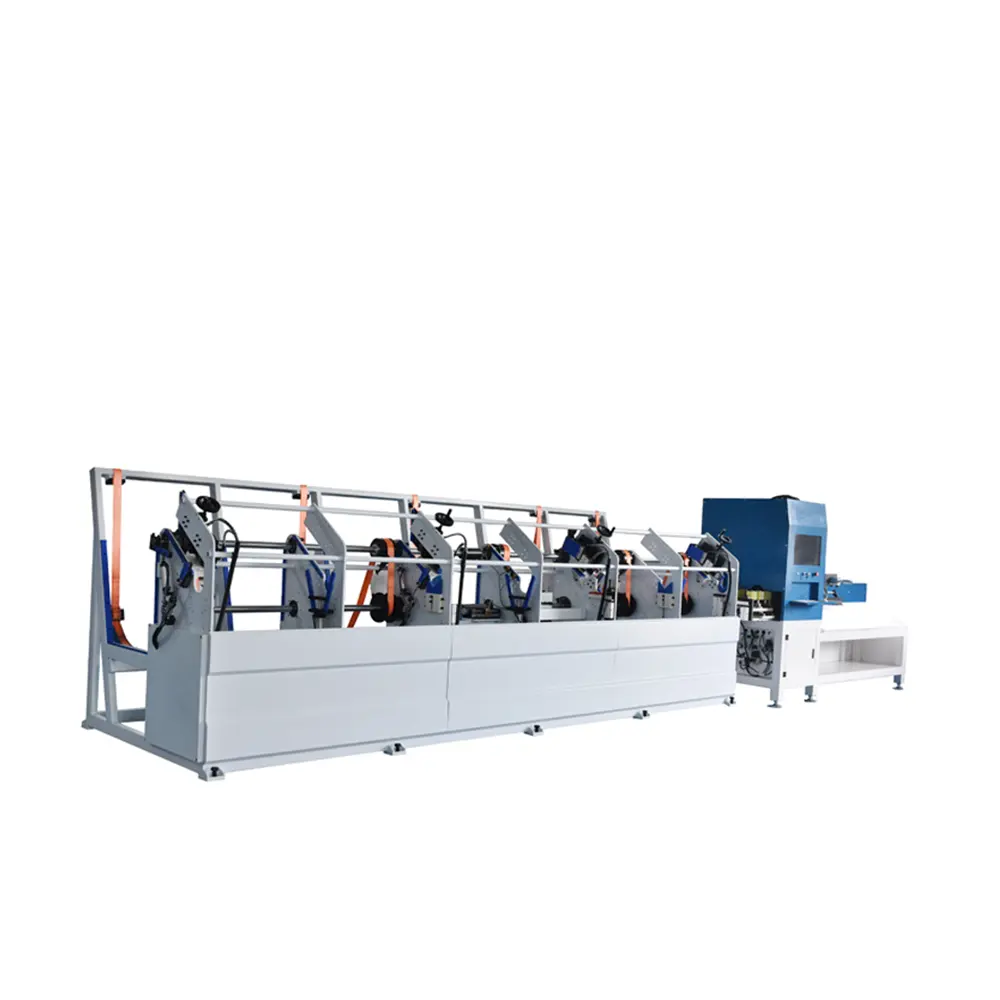

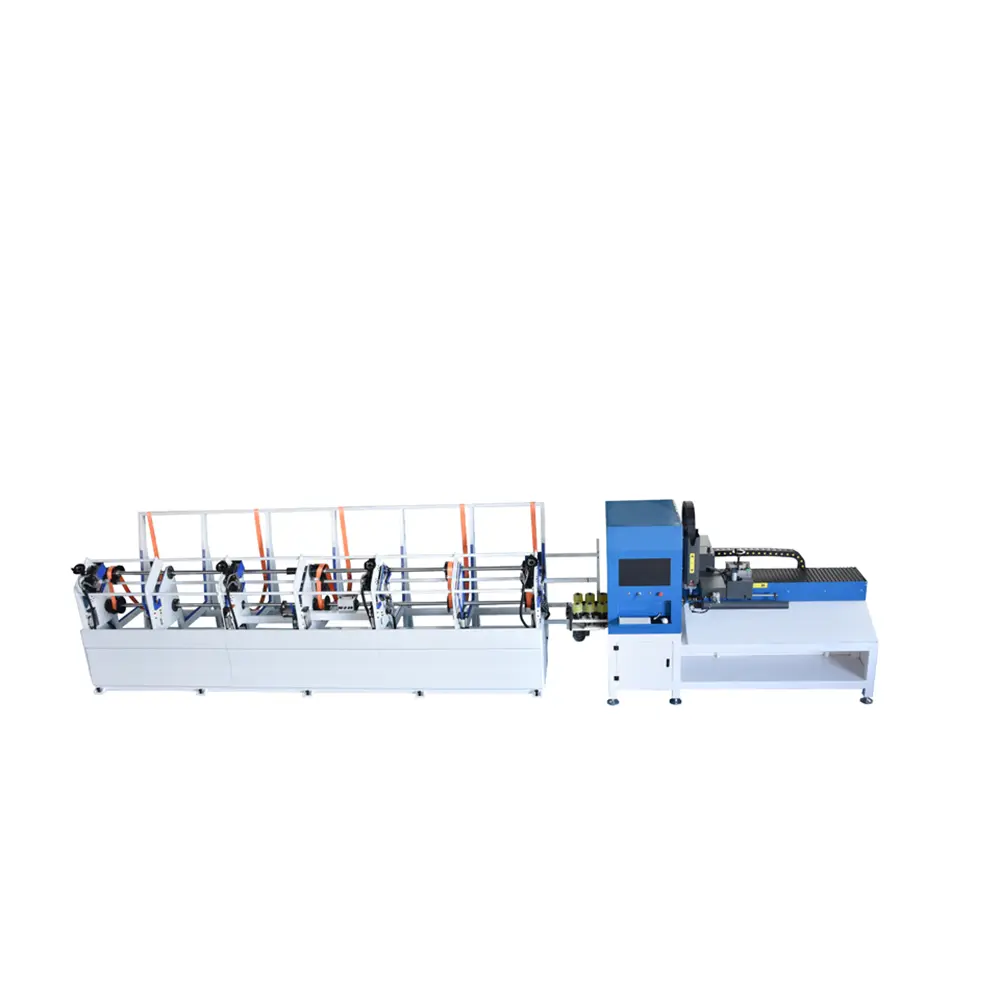

Automatic Lifting Double-Chuck Laser Tube Cutting Machine

Short Tail Stock: The front chuck avoidance cutting method shortens the distance between the cutting head and the jaws, thus reducing the length of the tail material to the shortest of the two chuck pipe cutter, only about 70mm. Help users to improve material utilisation and reduce production cost.

Professional Tube Bus Cutting System: Adopting advanced pipe cutting control system + high-efficiency servo motor, zero delay in data transmission. Position and energy data are transmitted in real time for more accurate control; the cutting path is displayed in real time, and the core components are highly integrated, which makes the operation easier and more hassle-free.

High rotational speeds, High traverse speeds, Faster pipe cutting: The chuck rotates 100r/min, and the idle speed is 80m/min, which reduces the waste of non-productive time and helps users to increase the production capacity practically.

Servo-following Support: Floating in real time according to the processing height of the pipe, avoiding deformation of the workpiece due to pipe sagging. Make the cutting more stable and higher precision.

Automatic Lifting Double-Chuck Laser Tube Cutting Machine

The Automatic Lifting Double-Chuck Laser Tube Cutting Machine is an advanced CNC fiber laser cutting system specially developed for high-efficiency and high-precision metal tube processing. Equipped with an automatic lifting support system and double-chuck clamping structure,this machine provides excellent stability,accurate positioning,and continuous production capability for modern industrial manufacturing.

Designed for processing various metal tubes and profiles,the machine can efficiently cut round pipes,square tubes,rectangular tubes,and special-shaped profiles. With advanced fiber laser technology,it integrates cutting,drilling,slotting,and contour processing functions into one intelligent system.

Compared with traditional pipe cutting equipment,the automatic lifting double-chuck laser tube cutting machine offers faster cutting speed,higher precision,better surface quality,and lower material waste. It is widely used in metal furniture,automotive manufacturing,steel structures,construction equipment,fitness equipment,and precision metal fabrication industries.

Advanced Fiber Laser Tube Cutting Technology

The machine adopts high-performance fiber laser technology to achieve fast and accurate metal tube processing.

Main processing capabilities:

Metal tube cutting
Pipe hole cutting
Slot cutting
Profile cutting
Angle cutting
Complex contour processing

Laser cutting advantages:

High cutting accuracy
Smooth cutting edges
Minimal thermal deformation
Reduced material waste
Long service life

The laser beam provides stable energy output for precise processing of different metal materials.

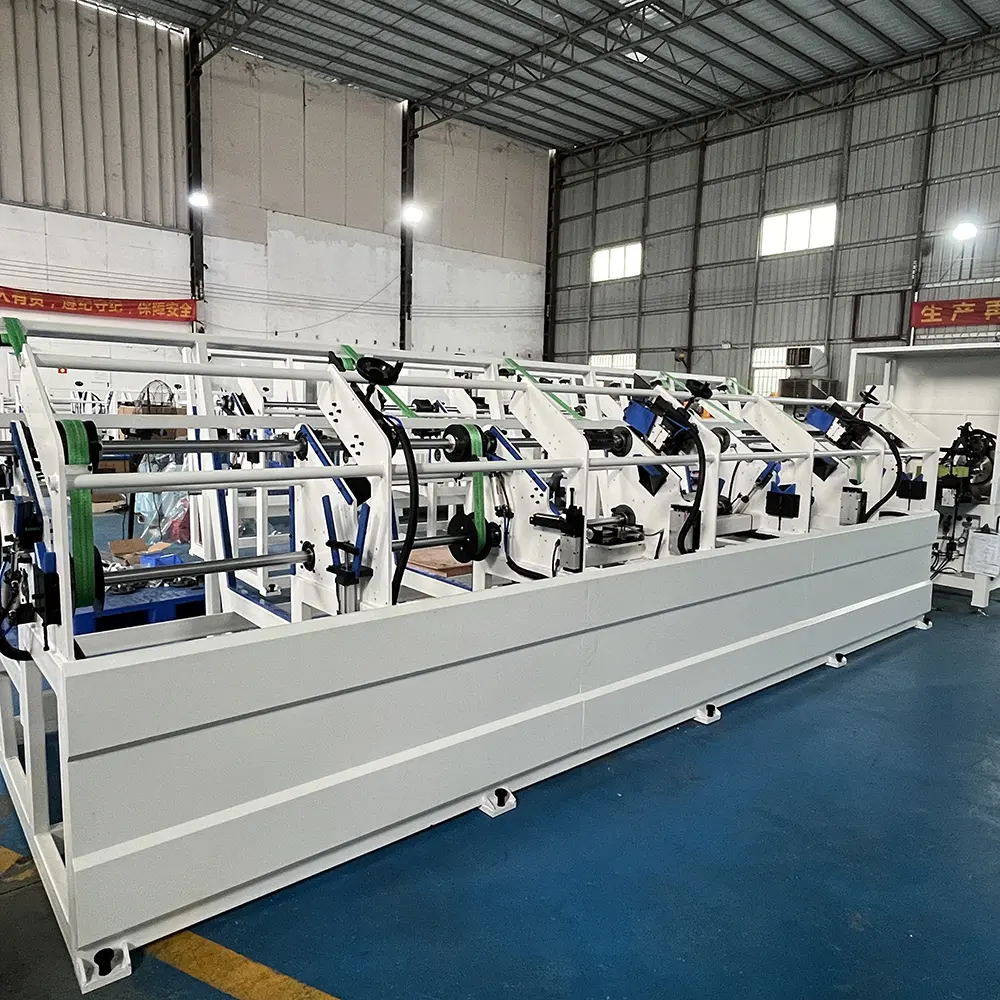

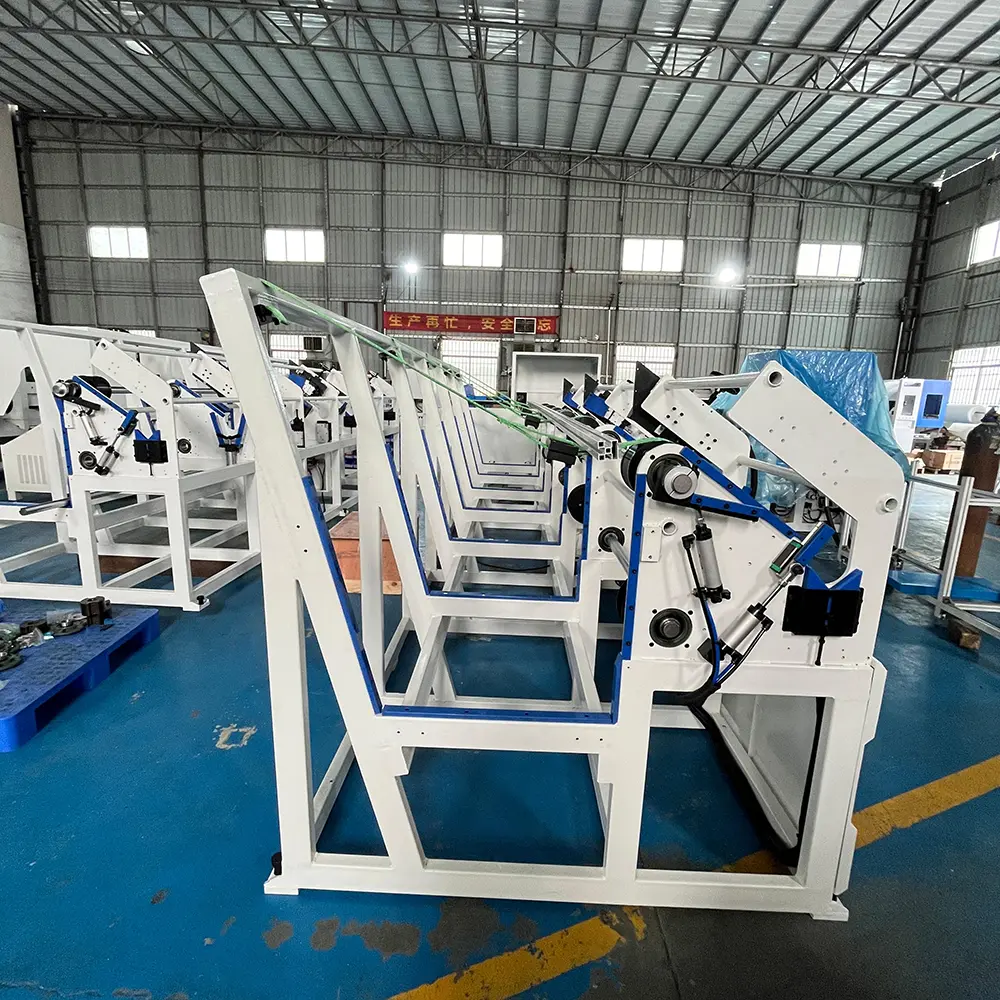

Automatic Lifting Support System

The automatic lifting system is designed to improve tube feeding stability and processing accuracy.

Main advantages:

Automatic height adjustment
Stable tube support
Reduced material sagging
Improved cutting precision
Suitable for long and heavy tubes

During processing,the lifting support automatically adjusts according to tube position and weight,ensuring smooth movement and accurate laser cutting.

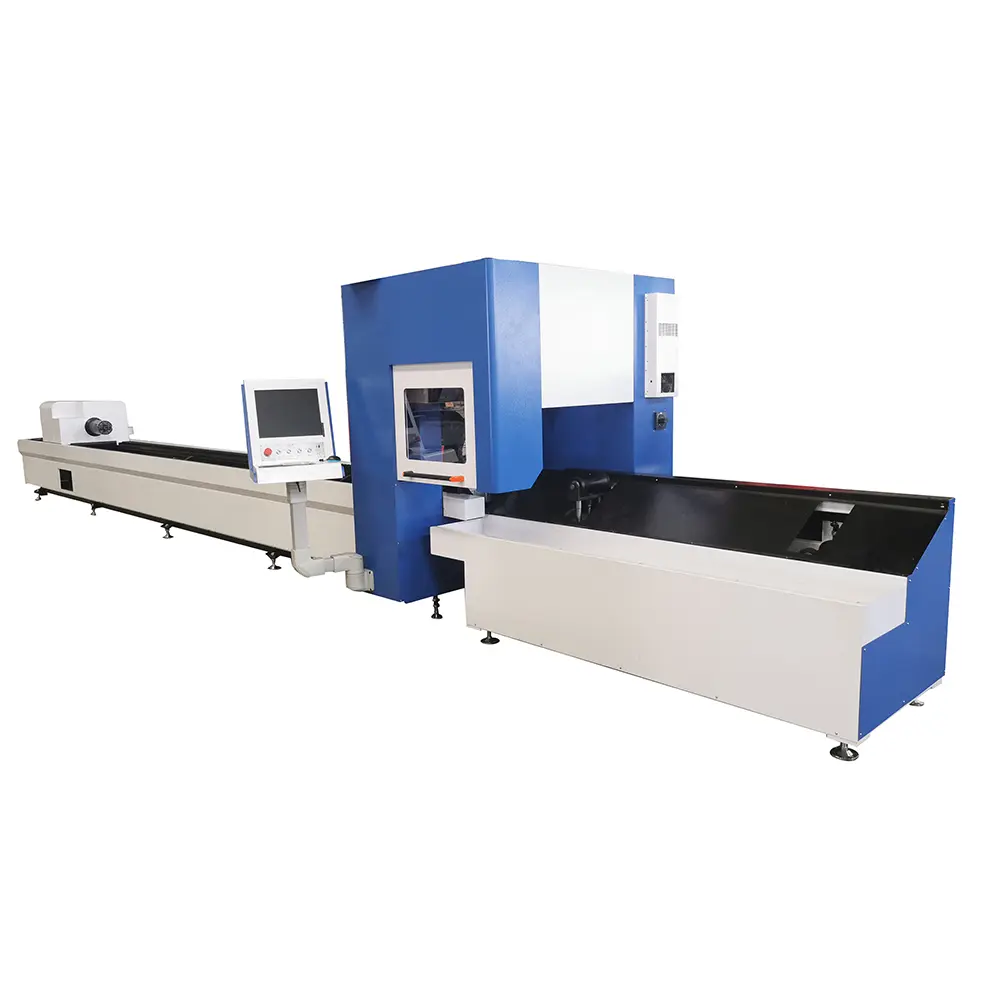

Double-Chuck Tube Clamping System

The double-chuck structure provides strong and stable tube positioning during high-speed cutting.

Advantages:

Strong clamping force
Reduced tube vibration
Improved rotation accuracy
Better cutting stability
Suitable for long tube processing

The front and rear chuck system ensures precise tube alignment and improves overall machining quality.

Automatic CNC Control System

The intelligent CNC control system provides simple operation and accurate processing management.

Main functions:

Automatic cutting path calculation
CAD drawing import
Digital parameter adjustment
Automatic positioning
Real-time processing monitoring

Benefits:

Easy operation
Faster production changeover
Reduced manual adjustment
Improved production efficiency
Consistent cutting quality
High Precision Tube Cutting Performance

The Automatic Lifting Double-Chuck Laser Tube Cutting Machine delivers excellent processing results for various industrial applications.

Key advantages:

Accurate dimensions
Smooth cutting surface
Low burr formation
Excellent repeatability
Reduced secondary processing

The high precision improves welding,assembly,and final product quality.

Wide Application Industries
Metal Furniture Manufacturing

Applications:

Chair frames
Table structures
Sofa frames
Decorative metal tubes
Automotive Industry

Used for:

Vehicle frame components
Exhaust system parts
Structural tube assemblies
Steel Structure Industry

Applications:

Steel frames
Building structures
Engineering components
Fitness Equipment Industry

Used for:

Exercise equipment frames
Sports structures
Metal supports
Industrial Manufacturing

Applications:

Machine frames
Precision tube parts
Custom metal products
Suitable Materials

The Automatic Lifting Double-Chuck Laser Tube Cutting Machine can process:

Carbon Steel
Stainless Steel
Aluminum
Copper
Brass
Alloy Steel

Suitable tube types:

Round Tubes
Square Tubes
Rectangular Tubes
Oval Tubes
Special Profiles

Different laser power configurations can be selected according to material thickness and production requirements.

Efficient Automatic Tube Processing Solution

Compared with traditional cutting methods,the machine provides significant advantages:

Higher Production Efficiency

Automatic loading support and double chuck positioning reduce manual operation.

Better Cutting Quality

Fiber laser technology provides smooth and accurate cutting results.

Flexible Processing Capability

One machine can handle different tube shapes and cutting patterns.

Reduced Material Waste

Optimized CNC cutting paths improve material utilization.

Lower Operating Cost

Non-contact laser cutting reduces tool replacement and maintenance costs.

Reliable Industrial Machine Structure

The machine adopts a heavy-duty industrial structure for stable long-term operation.

Main features:

High-strength machine frame
Precision transmission system
Automatic lifting mechanism
Double chuck rotation system
Advanced laser source
CNC intelligent controller

The robust design ensures reliable performance for continuous production environments.

Key Features Of Automatic Lifting Double-Chuck Laser Tube Cutting Machine
1. Automatic Lifting Support System

Improves tube stability and processing accuracy.

2. Double Chuck Clamping Structure

Provides precise positioning for long and heavy tubes.

3. Fiber Laser Cutting Technology

Ensures fast,clean,and accurate cutting performance.

4. CNC Intelligent Control

Simplifies operation and improves productivity.

5. Multi-Shape Tube Processing

Suitable for round,square,and rectangular tubes.

6. Customized Solutions Available

Laser power,tube size range,and automation functions can be customized.

Why Choose Our Automatic Lifting Double-Chuck Laser Tube Cutting Machine?
Professional Laser Tube Cutting Manufacturer

We specialize in manufacturing CNC fiber laser cutting machines and complete metal tube processing solutions for global customers.

Advanced Laser Technology

High-quality fiber laser systems provide excellent cutting precision and stable performance.

Intelligent Automation Design

The automatic lifting and double chuck systems improve production efficiency and reduce labor requirements.

Customized Equipment Solutions

Tube diameter range,laser power,cutting length,chuck system,and automation level can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete After-Sales Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is an Automatic Lifting Double-Chuck Laser Tube Cutting Machine used for?

It is used for automatic precision laser cutting of metal tubes,pipes,and profiles in industrial manufacturing.

Q2: What is the advantage of the lifting support system?

The lifting support system improves tube stability,reduces deformation,and ensures accurate cutting.

Q3: Why does the machine use double chucks?

Double chucks provide stronger clamping force and improve positioning accuracy for long tubes.

Q4: What materials can be processed?

It can cut carbon steel,stainless steel,aluminum,copper,and other metal materials.

Q5: What industries use this laser tube cutting machine?

It is widely used in furniture,automotive,construction,steel structure,and industrial fabrication industries.

Q6: What tube shapes can be cut?

It can process round tubes,square tubes,rectangular tubes,and customized profiles.

Q7: Can the machine be customized?

Yes. Laser power,tube processing size,cutting length,automation functions,and chuck configurations can be customized.
