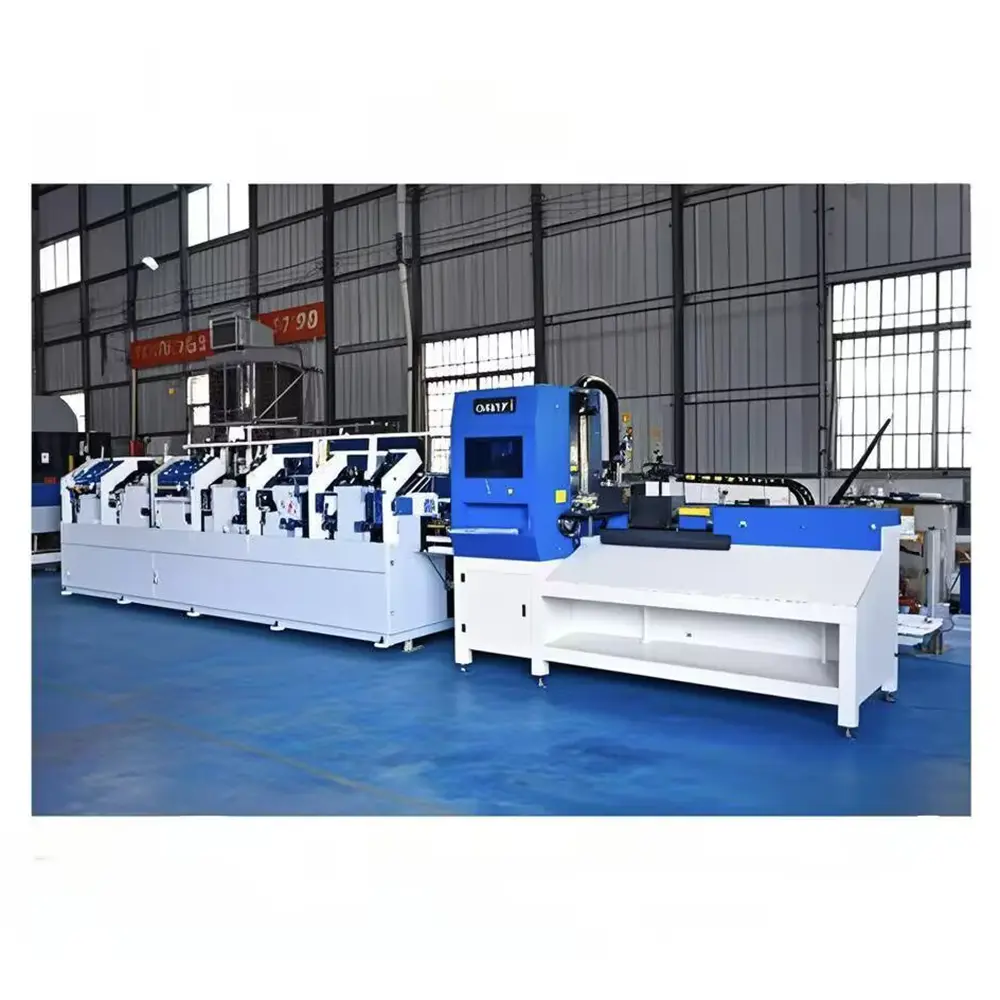

1.5KW 2KW Laser Tube Cutting Machine Pulling materials Type Technical Parameters

1.5KW 2KW Laser Tube Cutting Machine Pulling Materials Type is designed for high-precision cutting of metal tubes and pipes. With fiber laser technology and pulling material feeding,it provides fast,stable,and efficient tube processing solutions..

The 1.5KW 2KW Laser Tube Cutting Machine Pulling Materials Type is a high-performance CNC fiber laser cutting system designed for efficient and precise processing of metal tubes,pipes,and profiles. Equipped with a pulling material feeding structure and powerful 1.5KW or 2KW fiber laser source,this machine provides excellent cutting accuracy,high-speed processing,and reliable production performance.

This laser tube cutting machine is specially designed for manufacturers requiring efficient tube processing solutions. The pulling materials type feeding system ensures stable tube movement during cutting,while the CNC control system provides accurate positioning and repeatable processing quality.

The machine is widely used in metal furniture manufacturing,automotive parts,steel structures,fitness equipment,construction materials,mechanical fabrication,and other industrial metal processing fields.

Compared with traditional saw cutting and mechanical processing methods,the fiber laser tube cutting machine offers smoother cutting edges,higher precision,less material waste,and greater processing flexibility.

Model:HID6015/020

1. Short tail material: The innovativefront clamp avoidance cutting method shortens the distance between the cuttinghead and the claw, thereby reducing the length of the tail material to theshortest of a two-chuck pipe cutting machine, only about 50mm. Improve materialutilization and reduce production costs.
2. Professional pipe bus cutting system:The machine adopts advanced pipe cutting control system + high-efficiency servomotor, with zero delay in data transmission. Position and energy data aretransmitted in real time for more precise control; the cutting path isdisplayed in real time and the core components are highly integrated, makingoperation easier.
3. High rotation speed and high movingspeed, faster pipe cutting:   The chuck rotation speed is 150r/min, the idling speedis 100m/min,
Term brand Origin
fiber-optic   laser MAX/Raike China
Special   laser cutting head for pipes Osprey China
Lathe   bed and accessories Self   development China
Reducer Motorola France
controlling   software bus   system(Bo Chu or Wei Hong) China
chuck Professional   precision chuck China
AC   servo motors and drivers High   torque bus servo for laser machine China
Cutting   air path SMC/AirTAC China   Taiwan/Japan
water   cooling unit Han   Li China

Technical Parameters
Term parameter
Chuck   speed 260r/min   (as the weight of the pipe increases, the idle stroke motion parameters need   to be reduced accordingly)
Repeatable   positioning accuracy of machine tools ±0.05mm
Machine   tool positioning accuracy ±0.05mm/m
Maximum   idling speed 90m/min   (as the weight of the pipe increases, the idle stroke motion parameters need   to be reduced accordingly)
maximum   acceleration


2.0G


Minimum   tail length ≥50mm (use the front card avoidance cutting   method, and achieve it when the process layout is reasonable)
Host   device weight About   1100kg
Maximum   weight of a single pipe ≤50KG
Host   appearance dimensions (length x width x height) 2950x1300x1840mm

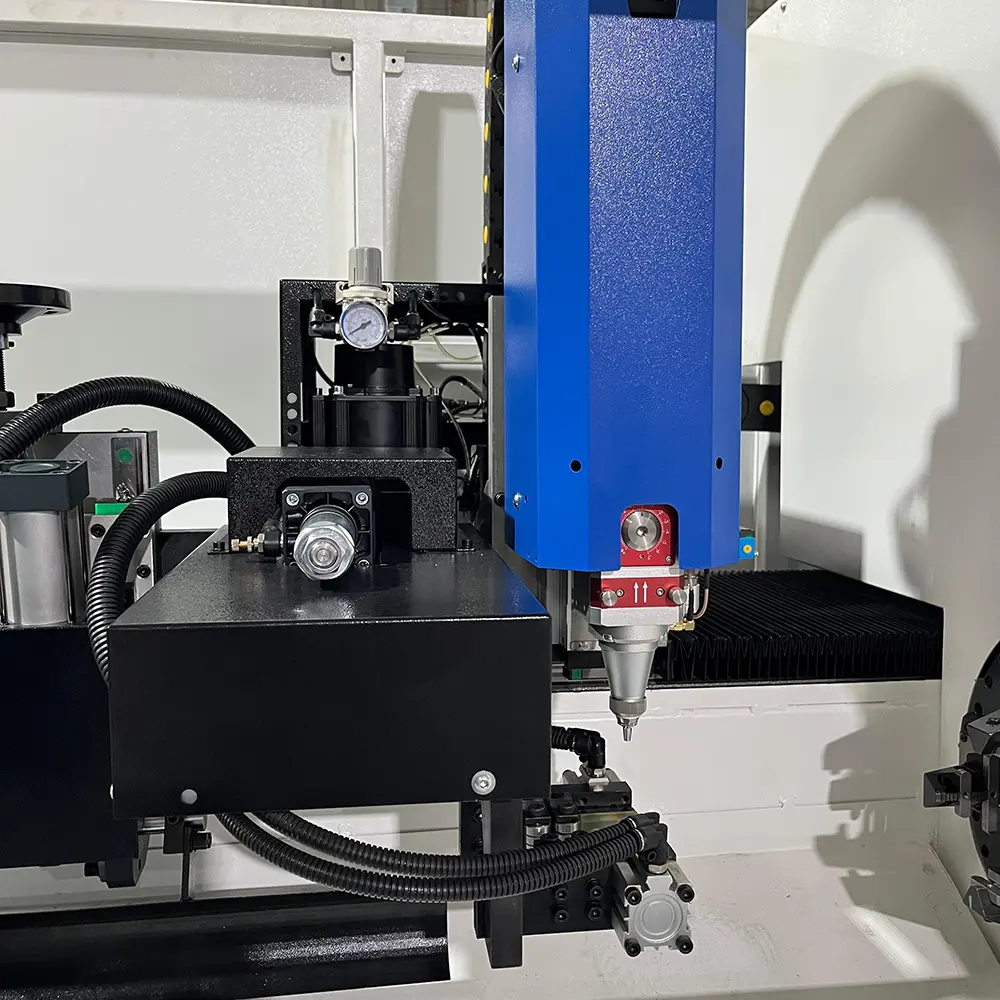

Advanced Fiber Laser Cutting Technology

The machine adopts advanced fiber laser technology to achieve fast and accurate tube cutting.

Main processing functions:

Tube cutting
Pipe hole cutting
Slot cutting
Profile cutting
Angle cutting
Complex shape processing

Laser cutting advantages:

High cutting precision
Fast processing speed
Smooth cutting edges
Low thermal deformation
Reduced material waste

The high-energy laser beam provides excellent cutting quality for different metal materials.

1.5KW And 2KW Fiber Laser Power Options

The machine is available with 1.5KW and 2KW fiber laser power configurations to meet different processing requirements.

1.5KW Fiber Laser

Suitable for:

Thin and medium thickness metal tubes
Stainless steel tubes
Carbon steel pipes
General fabrication applications

Advantages:

Energy efficient
Stable cutting performance
Lower operating cost
2KW Fiber Laser

Suitable for:

Thicker metal tubes
Higher production requirements
Industrial batch processing

Advantages:

Stronger cutting capability
Faster processing speed
Improved production efficiency

Customers can select suitable laser power according to material type and thickness.

Pulling Materials Feeding System

The pulling material feeding structure improves tube processing efficiency and accuracy.

Main features:

Stable tube pulling
Accurate material positioning
Reduced manual handling
Continuous tube processing
Improved production efficiency

The pulling system ensures smooth movement of long tubes during laser cutting,helping maintain consistent cutting quality.

CNC Intelligent Control System

The machine is equipped with an advanced CNC control system for easy operation and precise processing.

Main functions:

Automatic cutting path planning
CAD drawing import
Digital parameter setting
Intelligent positioning
Real-time monitoring

Benefits:

Simple operation
Faster production adjustment
Reduced operator requirements
Stable processing quality
Higher production efficiency
High Precision Tube Processing Capability

The 1.5KW 2KW Laser Tube Cutting Machine can process various metal tubes and profiles.

Suitable materials:

Carbon Steel
Stainless Steel
Galvanized Steel
Aluminum
Copper
Alloy Metal

Suitable tube shapes:

Round Tube
Square Tube
Rectangular Tube
Oval Tube
Special Metal Profiles

The machine provides accurate cutting results for different industrial applications.

Wide Application Industries
Metal Furniture Manufacturing

Applications:

Chair frames
Table legs
Sofa structures
Decorative tubes
Automotive Industry

Used for:

Vehicle frame components
Exhaust pipes
Structural tube parts
Construction Industry

Applications:

Steel structures
Metal frameworks
Architectural components
Fitness Equipment Industry

Used for:

Exercise equipment frames
Sports equipment structures
Industrial Fabrication

Applications:

Machine frames
Precision tube components
Custom metal products

Chuck Power    Round tube   Square tube Cutting thickness
90mm 1500w 3-80mm 60*60mm 3mm
2000w 4-5mm
120mm 1500w 20-240mm 240*240mm 3mm
2000w 4-5mm

Advantages Compared With Traditional Tube Cutting
Higher Cutting Accuracy

Fiber laser technology provides precise dimensions and excellent edge quality.

Faster Production Speed

High-speed laser processing improves manufacturing efficiency.

Lower Material Waste

Optimized cutting paths maximize material utilization.

Flexible Processing

One machine can complete multiple cutting patterns and designs.

Reduced Maintenance

Non-contact cutting reduces blade replacement and maintenance costs.

Reliable Machine Structure

The machine adopts a strong industrial structure for long-term operation.

Main features:

High-strength machine frame
Precision transmission system
Stable pulling material mechanism
High-quality fiber laser source
Intelligent CNC controller

The durable construction ensures stable performance in continuous production environments.

Key Features Of 1.5KW 2KW Laser Tube Cutting Machine Pulling Materials Type
1. Fiber Laser Cutting Technology

Provides fast and accurate metal tube processing.

2. 1.5KW/2KW Laser Power Options

Suitable for different material thickness requirements.

3. Pulling Materials Feeding System

Improves feeding stability and production efficiency.

4. CNC Intelligent Control

Ensures accurate cutting paths and easy operation.

5. Multi-Shape Tube Processing

Suitable for round,square,and rectangular tubes.

6. Industrial Production Solution

Designed for high-efficiency metal fabrication.

Why Choose Our 1.5KW 2KW Laser Tube Cutting Machine?
Professional Laser Tube Cutting Manufacturer

We specialize in manufacturing fiber laser cutting machines and complete metal tube processing solutions for global customers.

Advanced Fiber Laser Technology

High-quality laser systems ensure precise cutting performance and reliable operation.

Efficient Production Capability

The pulling material feeding system improves productivity and reduces labor requirements.

Customized Machine Solutions

Laser power,tube processing range,cutting length,feeding system,and automation functions can be customized according to customer needs.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Technical Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is a 1.5KW 2KW Laser Tube Cutting Machine used for?

It is used for precision laser cutting of metal tubes,pipes,and profiles in industrial manufacturing.

Q2: What is the advantage of pulling material feeding?

The pulling system provides stable tube movement,improves positioning accuracy,and reduces manual operation.

Q3: What is the difference between 1.5KW and 2KW laser power?

The 2KW laser provides stronger cutting capability for thicker materials,while the 1.5KW option is suitable for general tube processing.

Q4: What materials can the machine cut?

It can cut carbon steel,stainless steel,aluminum,copper,and other metal materials.

Q5: What tube shapes can be processed?

It can process round tubes,square tubes,rectangular tubes,and customized profiles.

Q6: Which industries use this machine?

It is widely used in furniture,automotive,construction,fitness equipment,and metal fabrication industries.

Q7: Can the machine be customized?

Yes. Laser power,tube size range,feeding system,and automation level can be customized.
