Metal Pipe Laser Cutting Machine Technical Parameters

Metal Pipe Laser Cutting Machine provides high-precision laser cutting solutions for steel pipes,stainless tubes,and metal profiles. Equipped with advanced fiber laser technology,it delivers fast,smooth,and efficient pipe processing performance..

1 Efficient
2 No mechanical damage
3 Applicable to round tube, square tube shape, stainless steel, carbon steel and other materials
4 can be cut and cut holes and radians
5 Input parameters or insert USB drawings, easy to operate

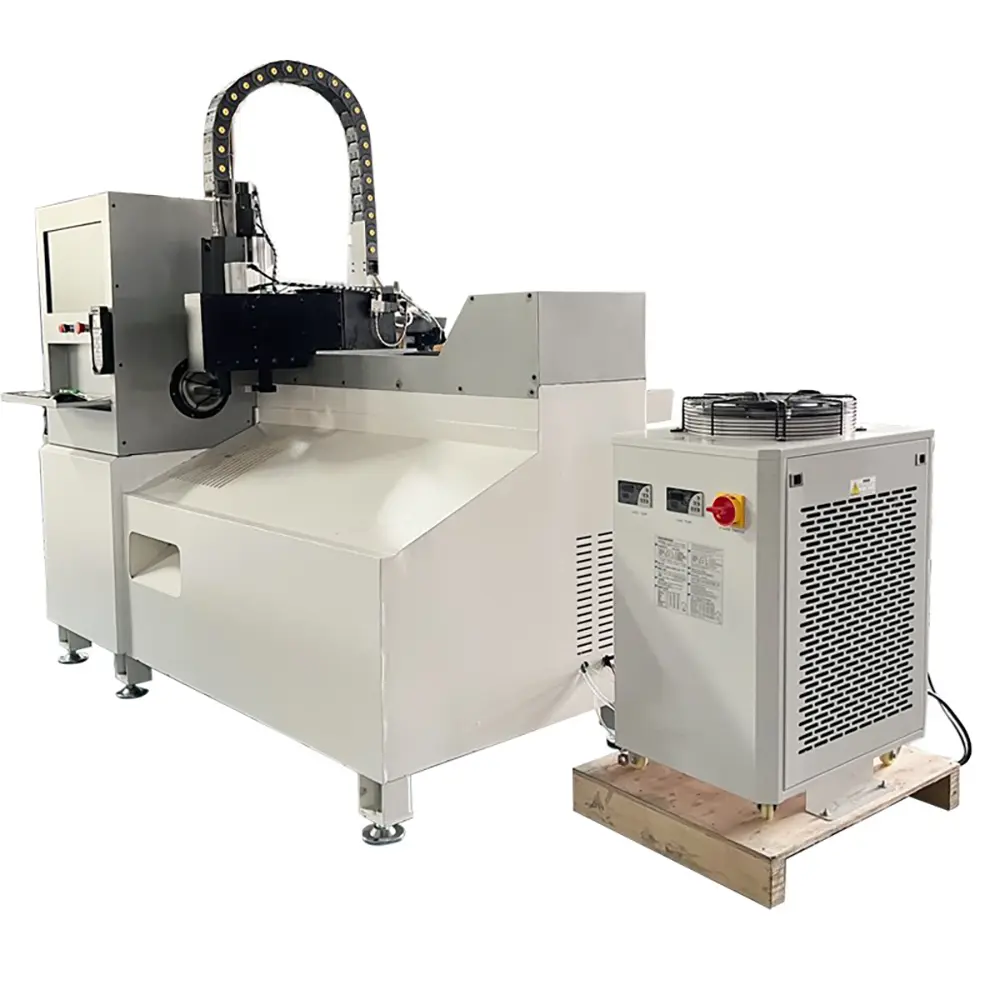

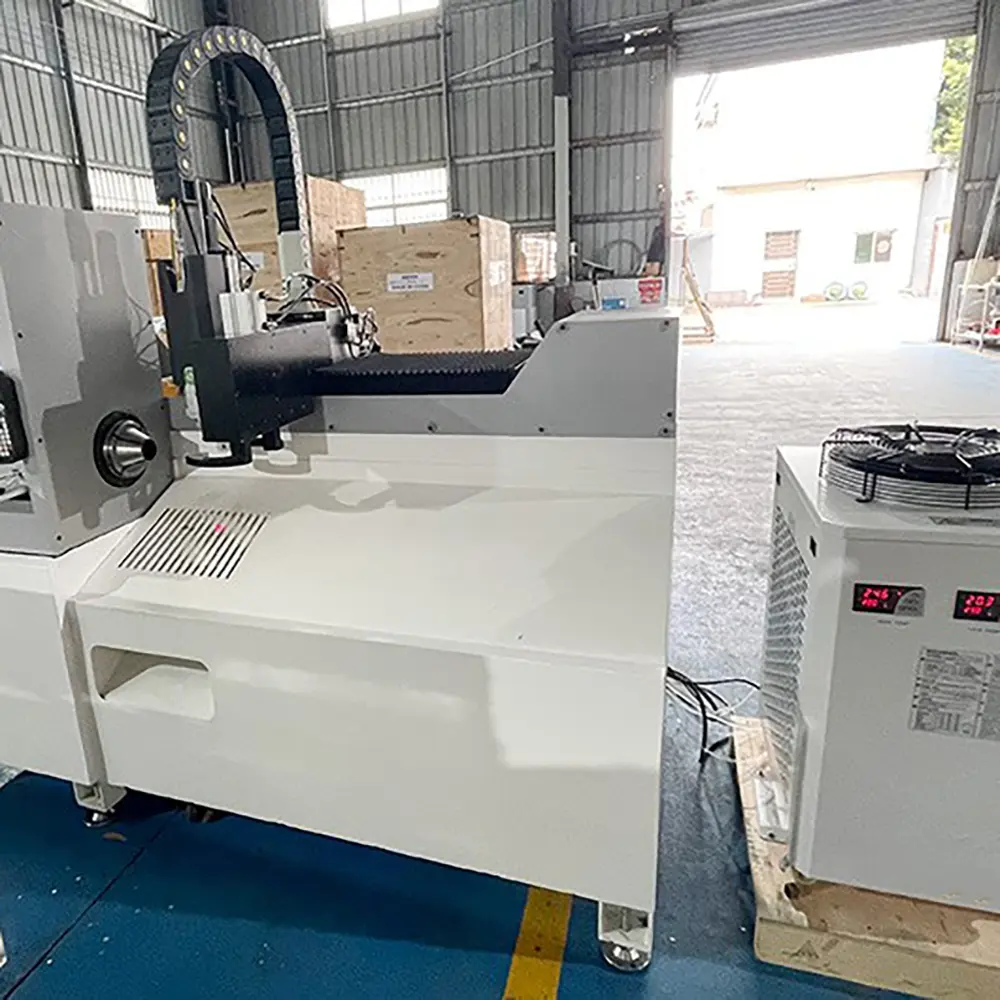

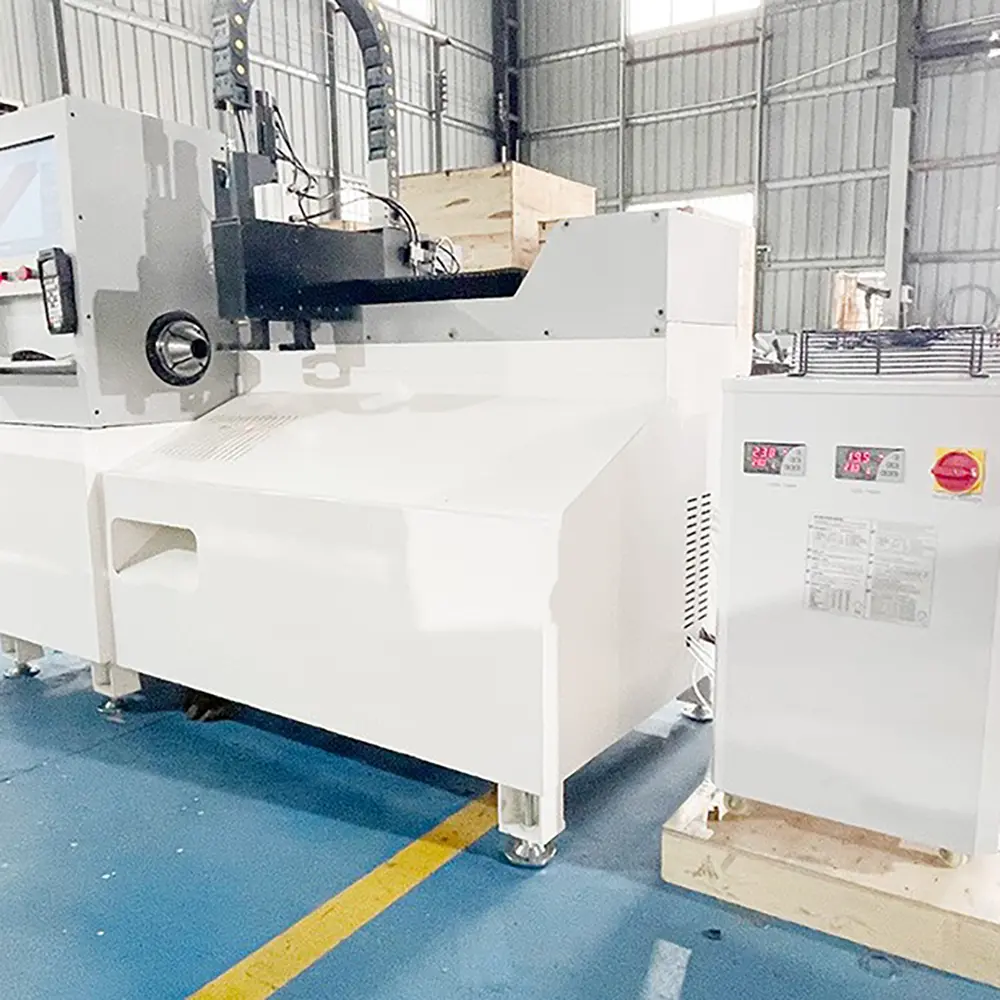

The Metal Pipe Laser Cutting Machine is a professional CNC fiber laser cutting system designed for precision processing of various metal pipes,tubes,and profiles. With advanced fiber laser technology and intelligent CNC control,this machine provides high-speed cutting,excellent accuracy,and superior edge quality for modern metal fabrication applications.

Designed to meet the needs of industrial pipe processing,the machine can efficiently cut carbon steel pipes,stainless steel tubes,aluminum pipes,and other metal profiles. It combines cutting,drilling,slotting,and contour processing functions into one advanced system,helping manufacturers improve production efficiency and product quality.

Compared with traditional mechanical pipe cutting equipment,the Metal Pipe Laser Cutting Machine offers faster processing speed,higher cutting accuracy,lower material waste,and reduced maintenance costs. It is widely used in steel structures,automotive components,metal furniture,construction materials,fitness equipment,and industrial machinery manufacturing.


Name Specification Origin/Brand
Fiber laser 1000W ultra-fine heart diameter Tottenham Laser
Laser cutting head   Jiaqiang,shanghai
System   Ncstudio
Chuck diameter 90mm
Lead screw C7 precision lead screw
X-axis servo motor 1000W high torque Ncstudio
Y-axis servo motor 1000W high torque Ncstudio
Z-axis servo motor 400W with brake Ncstudio
B-axis servo motor 1500W high torque Ncstudio
Pneumatic electromagnetic valve   AirTAC
Accuracy position accuracy ±0.5mm, hole cutting accuracy ±0.1mm

 Advanced Fiber Laser Cutting Technology

The Metal Pipe Laser Cutting Machine adopts high-performance fiber laser technology to achieve accurate and efficient metal pipe processing.

Main processing functions:

Metal pipe cutting
Tube hole cutting
Slot cutting
Profile cutting
Angle cutting
Custom shape processing

Laser cutting advantages:

High cutting precision
Smooth cutting surface
Small heat affected zone
Low material deformation
Excellent repeatability

The high-energy laser beam provides stable cutting performance for different metal materials and thicknesses.

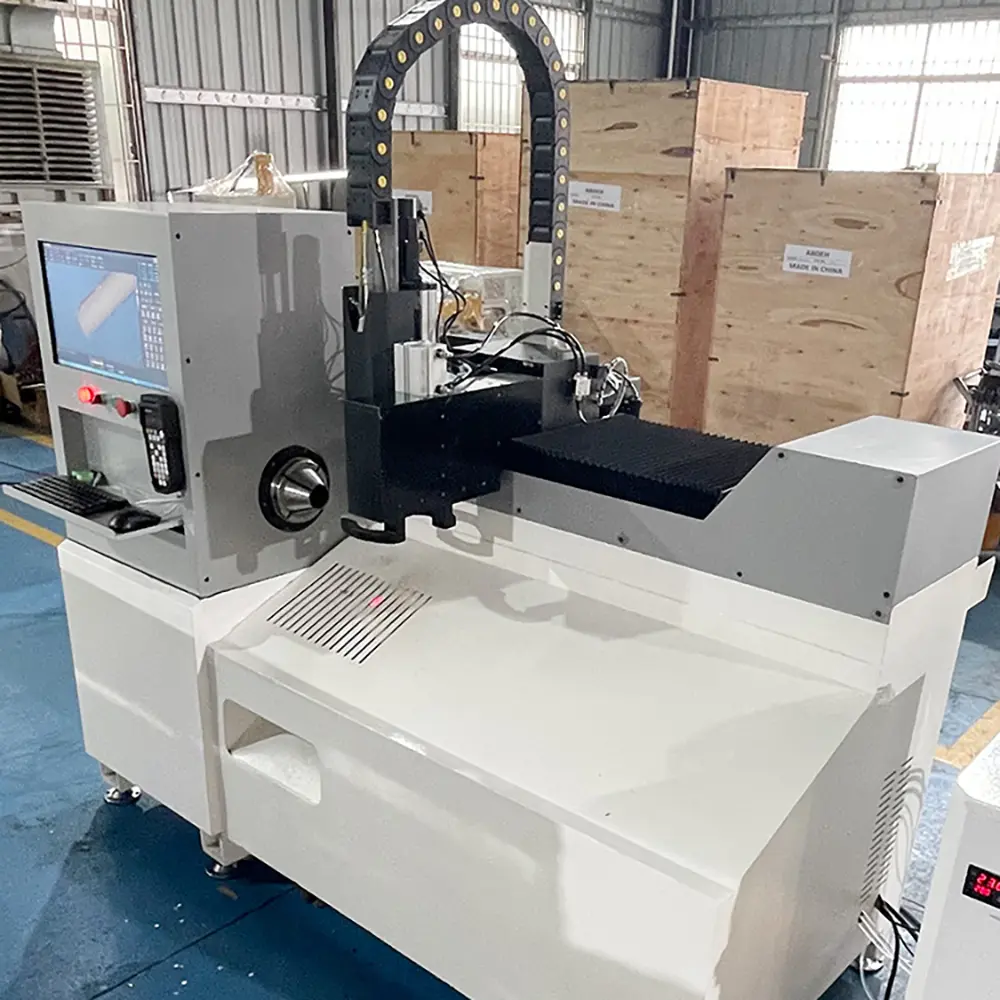

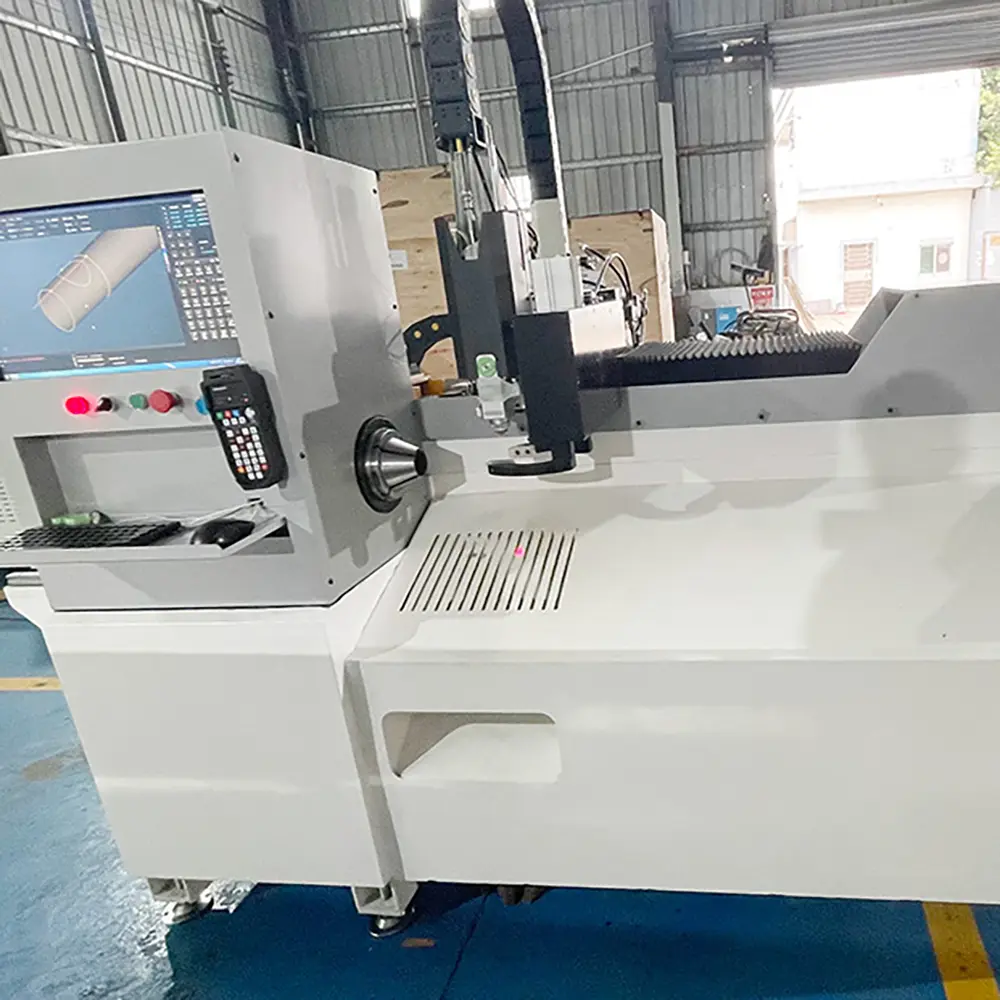

CNC Intelligent Control System

The machine is equipped with an advanced CNC control system for simple operation and precise processing.

Main functions:

CAD drawing import
Automatic cutting path generation
Digital parameter adjustment
Intelligent tube positioning
Real-time processing monitoring

Benefits:

Easy operation
Fast product changeover
Reduced manual adjustment
Stable cutting quality
Higher production efficiency

The CNC system ensures consistent processing results for both customized production and mass manufacturing.

High Precision Metal Pipe Processing

The Metal Pipe Laser Cutting Machine is specially designed for various industrial metal tube applications.

Suitable materials:

Carbon Steel Pipe
Stainless Steel Tube
Galvanized Steel Pipe
Aluminum Pipe
Copper Tube
Alloy Metal Pipe

Suitable profiles:

Round Pipe
Square Tube
Rectangular Tube
Oval Tube
Special Metal Profiles

The machine provides accurate cutting dimensions and excellent surface quality for different fabrication requirements.

Efficient Metal Tube Cutting Solution

Compared with traditional cutting methods,the laser pipe cutting machine offers significant advantages.

Faster Processing Speed

High-speed fiber laser cutting improves production efficiency and reduces processing time.

Higher Cutting Accuracy

Laser technology ensures precise dimensions and smooth finished edges.

Lower Material Waste

Optimized CNC cutting paths maximize material utilization.

Flexible Processing Capability

One machine can complete different cutting patterns and tube designs.

Reduced Maintenance Cost

Non-contact laser cutting eliminates frequent blade replacement and reduces operating costs.

Double Chuck And Tube Positioning System

According to different machine configurations,the Metal Pipe Laser Cutting Machine can be equipped with advanced chuck systems for stable tube processing.

Main advantages:

Strong material clamping
Accurate tube positioning
Reduced vibration
Improved cutting stability
Suitable for long pipes

The stable positioning system ensures high-quality cutting results during continuous operation.

Wide Application Industries
Metal Furniture Manufacturing

Applications:

Chair frames
Table structures
Decorative tubes
Furniture supports
Automotive Industry

Used for:

Vehicle frame parts
Exhaust components
Structural pipes
Steel Structure Manufacturing

Applications:

Steel frames
Building structures
Engineering components
Construction Industry

Used for:

Metal railings
Architectural decoration
Structural tubes
Industrial Equipment Manufacturing

Applications:

Machine frames
Mechanical components
Custom metal products
Suitable Materials

The Metal Pipe Laser Cutting Machine can process:

Carbon Steel
Stainless Steel
Aluminum
Copper
Brass
Alloy Steel

Suitable applications:

Thin wall tubes
Heavy metal pipes
Precision profiles
Industrial metal components

Different laser power options can be selected according to material thickness and production requirements.
