Heavy Type 120 170 240 Mm Pushing Materials Dual Chuck Tube Laser Cutting Machine Technical Parameters

Heavy Type 120/170/240mm Pushing Materials Dual Chuck Tube Laser Cutting Machine is designed for high-precision cutting of heavy metal tubes and pipes. Featuring dual chuck clamping and pushing material feeding,it delivers stable,efficient,and accurat.

The Heavy Type 120/170/240mm Pushing Materials Dual Chuck Tube Laser Cutting Machine is a professional CNC fiber laser cutting system designed for heavy-duty metal tube and pipe processing. Featuring a dual chuck structure,pushing material feeding system,and high-strength machine frame,this equipment provides excellent stability,precision,and efficiency for large-size tube fabrication.

Designed for processing tube diameters of 120mm,170mm,and 240mm,this heavy-duty laser tube cutting machine is suitable for various metal pipes,round tubes,square tubes,and profiles. It is widely used in steel structures,automotive manufacturing,construction equipment,metal furniture,industrial machinery,and precision metal fabrication.

Compared with traditional sawing,drilling,and mechanical cutting methods,the fiber laser tube cutting machine provides faster processing speed,higher accuracy,better edge quality,and lower material waste. The advanced dual chuck system ensures stable tube positioning during high-speed cutting,especially for long and heavy materials.

 ShortTail Stock:The front chuck avoidance cutting method shortens the distance betweenthe cutting head and the jaws, thus reducing the length of

the tail material tothe shortest of the two chuck pipe cutter, only about 70mm. Help users toimprove material utilisation and reduce production cost.

ProfessionalTube Bus Cutting System: Adopting advanced pipe cutting control system +highefficiency servo motor, zero delay in data transmission.

Position andenergy data are transmitted in real time for more accurate control; the cuttingpath is displayed in real time, and the core components

are highly integrated,which makes the operation easier and more hassle-free.

 Highrotational speeds, High traverse speeds, Faster pipe cutting: Thechuck rotates 100r/min, and the idle speed is 80m/min, which reduces the

waste of non-productive time and helps users to increase the production capacitypractically.

ServofollowingSupport:Floating in real time according to the processing height of the pipe,avoiding deformation of the workpiece due to pipe

sagging. Make the cuttingmore stable and higher precision.

No. Name Description
1 Fiber Laser Max 6000W
2 Laser cutting   head for pipes Bochu
3 Professional   laser tube cutting system Bochu 3000DE-G   bus
4 Chuck 120,170,240MM Dual Chuck
5 Screw TBI precision   screw
6 Servo motor Bochu Bus Motor
7 Pneumatic   solenoid valve AirTac
8 Machine tools,   loading racks Side-mounted   bed, semi-automatic loading rack
9 Reducer MOTOVARIO
10 Racks YYC
11 Power 1.5kw,   2kw, 3kw, 6kw
12 Pipe support   device Servo-following   support
13 Unloading   mechanism Servo-following   material unloading
14 Length detection    5800mm-6200mm
15 Pipe cutting   length 6000mm
16 Water Chiller Hanli
Advanced Fiber Laser Tube Cutting Technology

The machine adopts high-performance fiber laser technology to achieve precise and efficient metal tube processing.

Main processing functions include:

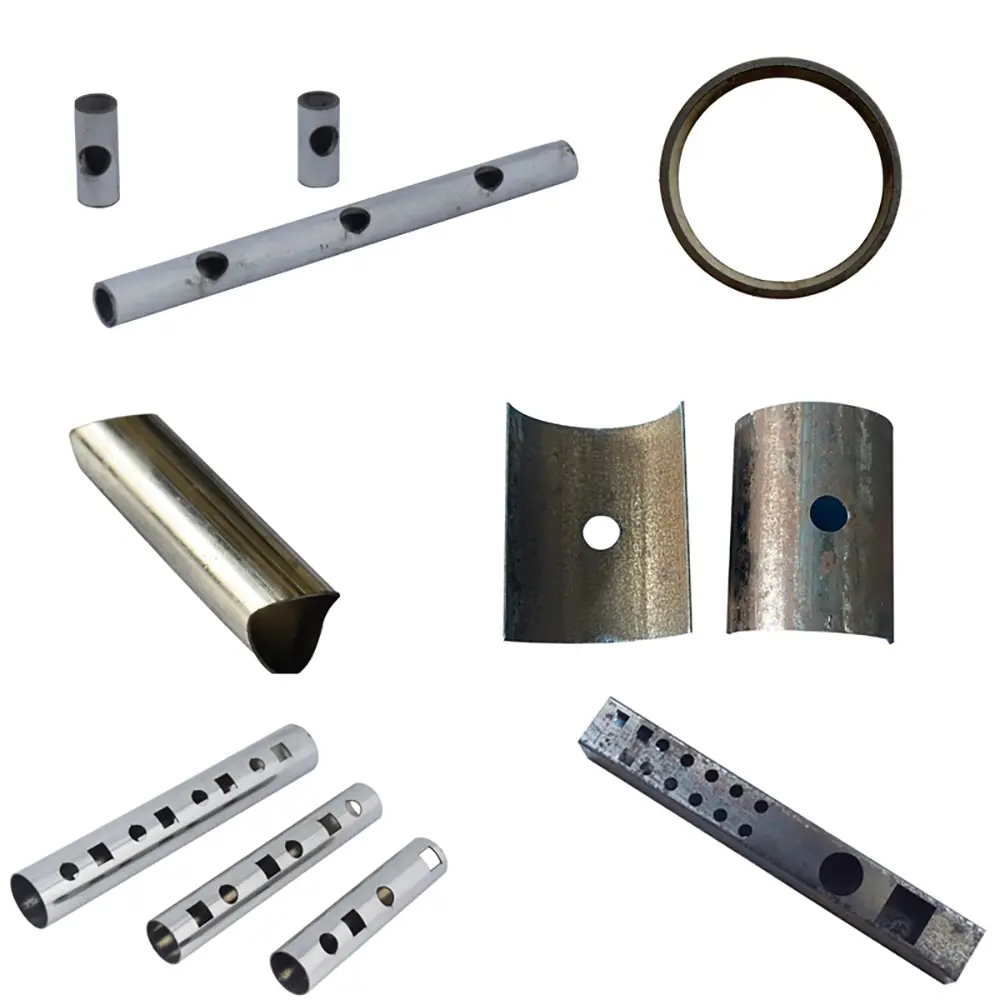

Tube cutting
Pipe hole cutting
Slot cutting
Profile cutting
Complex contour cutting
Customized shape processing

Laser cutting advantages:

High cutting precision
Smooth cutting edges
Low thermal deformation
Reduced material waste
No mechanical tool wear

The concentrated laser beam provides consistent cutting quality for different metal materials.


Optional Semi-automatic and automatic feeding Rack.


Dual Chuck Power Feeding Rack Servo System

120mm
1500w 2000w 3000w Optional Automatic/Semi-automatic Optional
170mm 1500w2000w 3000w Optional Automatic/Semi-automatic

Optional
240mm 3000w 6000w Semi-automatic 1.8 meter feeding rack yes

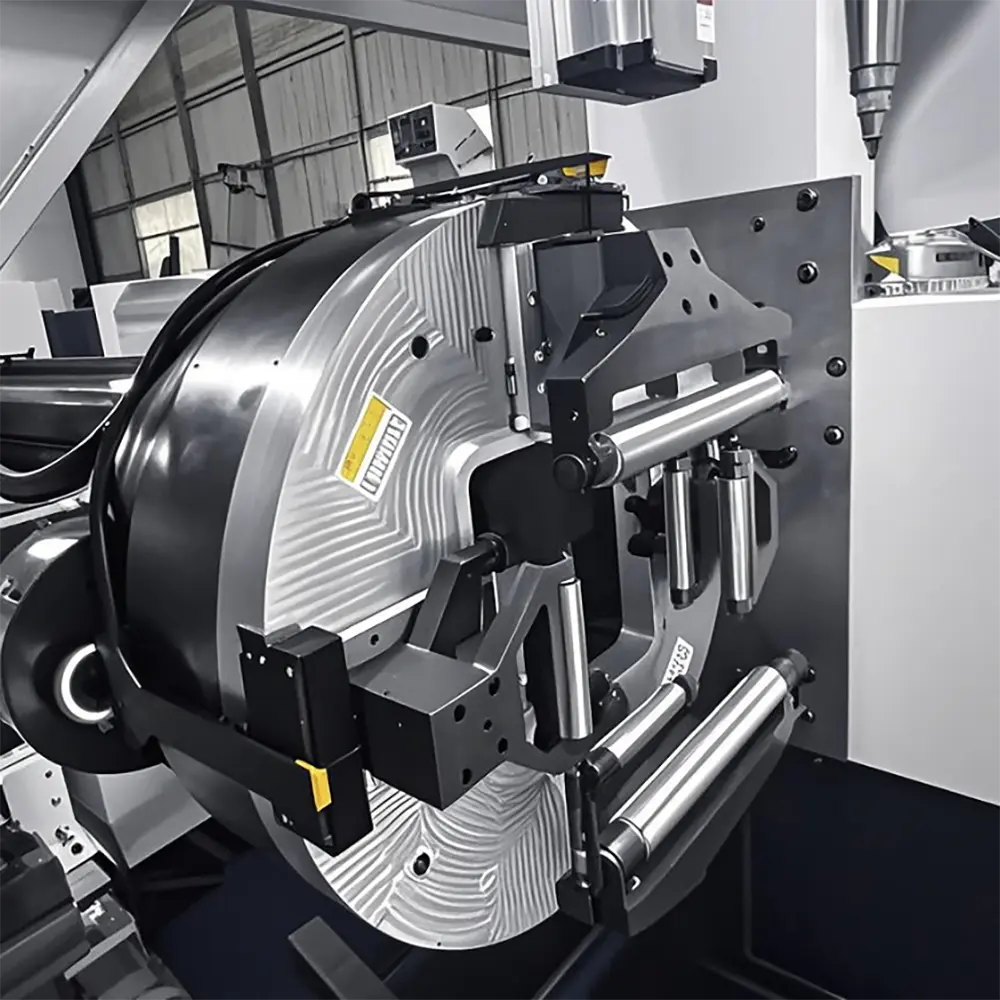

Heavy Duty Dual Chuck Tube Clamping System

The dual chuck design is specially developed for heavy and large-size tube processing.

Main advantages:

Strong tube holding force
Improved processing stability
Reduced material vibration
Higher cutting accuracy
Suitable for long tubes

The front and rear chuck system ensures precise rotation and positioning during laser cutting,which improves machining quality and production efficiency.

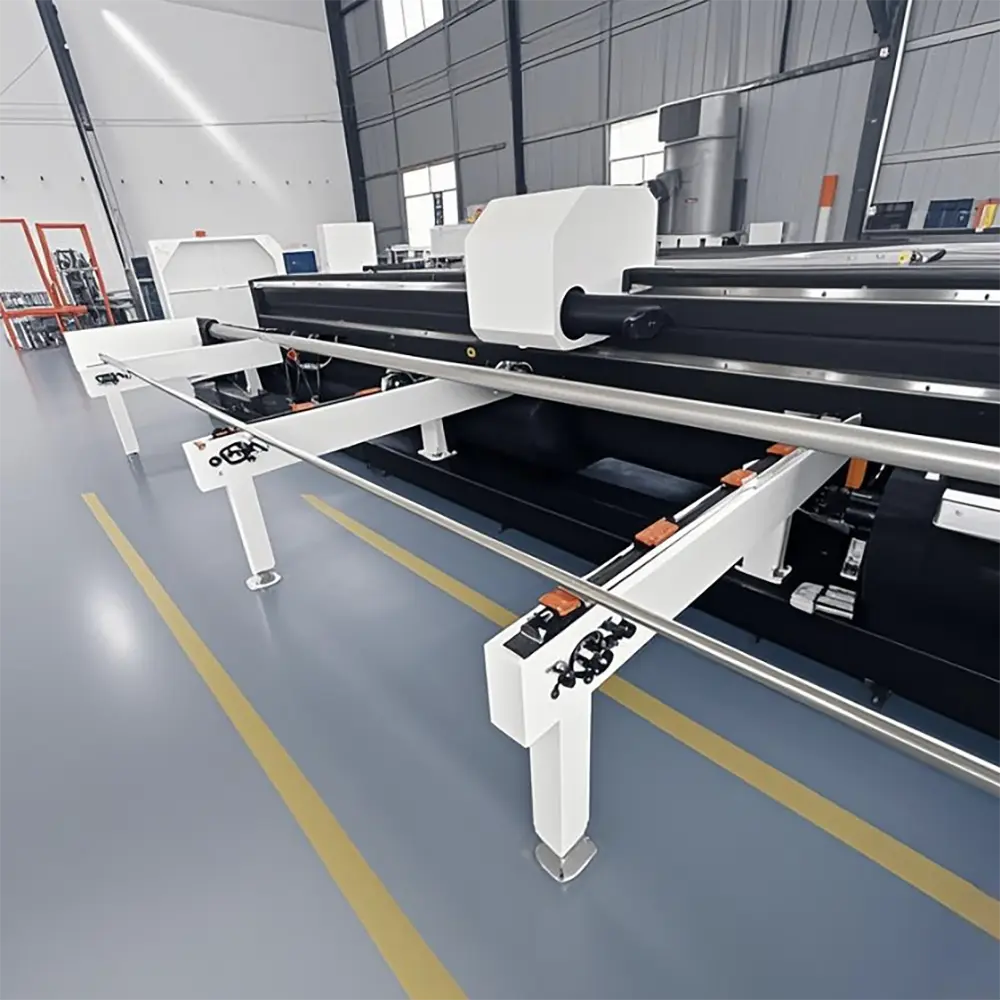

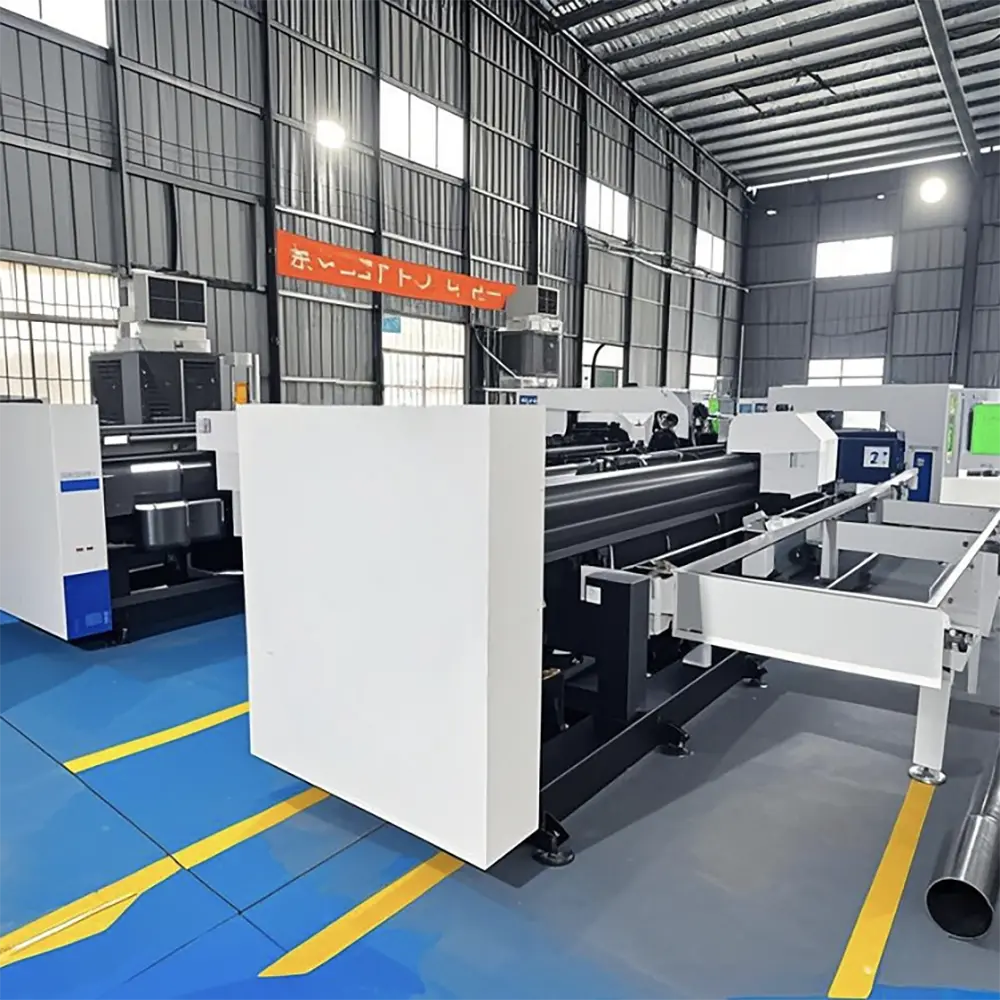

Pushing Material Feeding System

The pushing material feeding structure improves automation and processing efficiency.

Features:

Stable tube feeding
Reduced manual handling
Improved production speed
Better material utilization
Suitable for continuous operation

The pushing system helps maintain accurate positioning and smooth movement of heavy tubes during the cutting process.

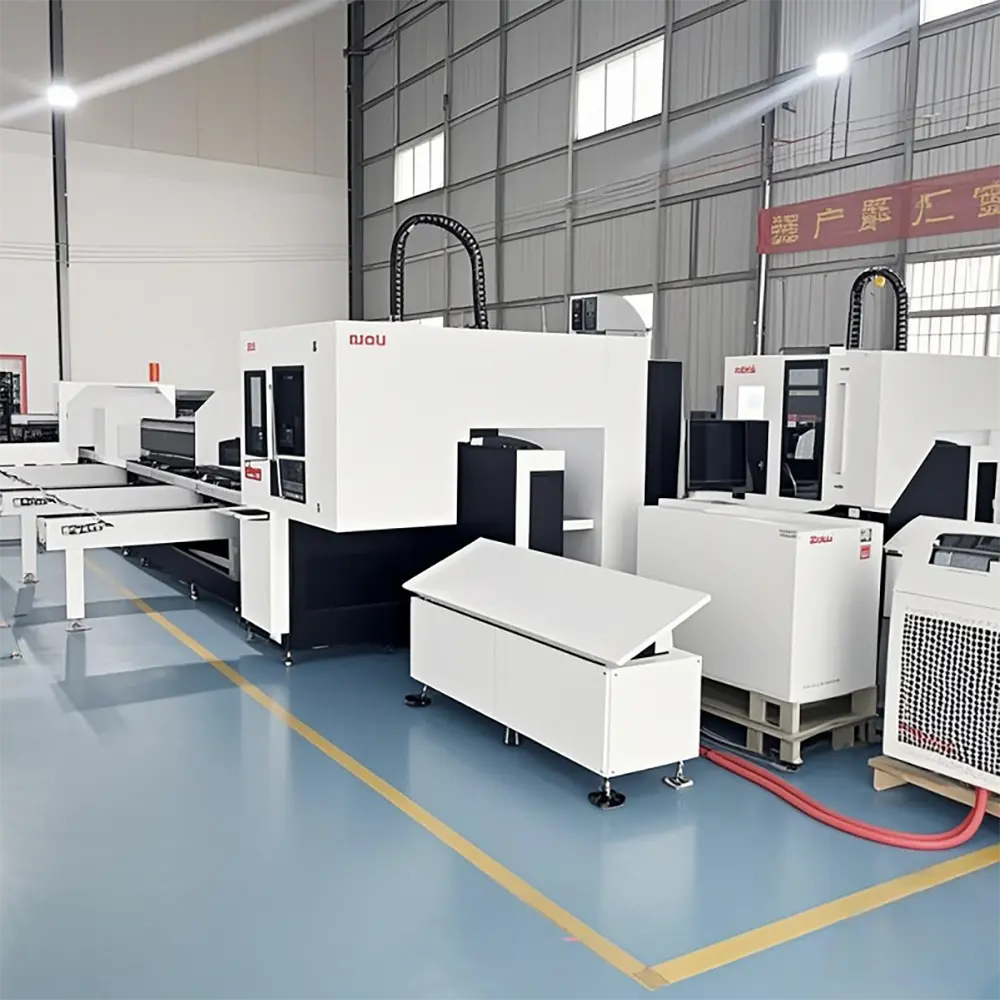

120/170/240mm Large Tube Processing Capability

The Heavy Type Tube Laser Cutting Machine is designed for processing medium and large diameter tubes.

Suitable tube sizes:

120mm Tube
170mm Tube
240mm Tube

Suitable materials:

Carbon Steel
Stainless Steel
Aluminum
Copper
Alloy Steel

Applicable profiles:

Round Tubes
Square Tubes
Rectangular Tubes
Special Metal Profiles
CNC Intelligent Control System

The advanced CNC control system provides accurate and convenient operation.

Main functions:

Automatic cutting path calculation
Digital parameter setting
Graphic file import
Intelligent positioning
Real-time processing monitoring

Benefits:

Easy operation
Faster production changeover
Stable cutting quality
Reduced operator requirements
Improved manufacturing efficiency
High Precision Metal Tube Processing

The machine provides excellent cutting performance for industrial applications.

Processing advantages:

Precise dimensions
Smooth cutting surfaces
Minimal burr formation
Excellent repeatability
Reduced secondary processing

The high precision helps improve welding,assembly,and final product quality.

Wide Application Industries
Steel Structure Manufacturing

Applications:

Heavy steel frames
Structural pipes
Engineering components
Automotive Manufacturing

Used for:

Vehicle frame tubes
Exhaust components
Structural parts
Construction Equipment

Applications:

Machine frames
Support structures
Heavy metal components
Metal Furniture Industry

Used for:

Large furniture frames
Decorative tube structures
Custom metal products
Industrial Machinery

Applications:

Equipment frames
Mechanical components
Precision tube parts
Suitable Materials

The Heavy Type Dual Chuck Tube Laser Cutting Machine can process:

Carbon Steel Pipe
Stainless Steel Tube
Galvanized Steel Pipe
Aluminum Tube
Copper Tube
Alloy Metal Tube

Suitable shapes:

Round Pipe
Square Tube
Rectangular Tube
Special Profiles
