Riveting and Punching Machine for Luggage Ball Bags Sturdy Bags

Function of riveting machine
1 Fit for riveting the spherical head, half-hollow rivets
2 With automatic feeding device, which can rivet continuously
3 The clamp and punch of high-performance is of a high riveting capability
4 Can rivet clinch of various specifications if the die is changed

Usage: It is suitable for luggage bottom nails, bracket side and wheels with hollow nail and bundle nails
Single riveting
feed automatically
sleeve is fed manually

item	value
power (kw)	3
Machine Type	Electric Riveting Machine
power source	Electric
weight (kg)	370
warranty	1 Year
place of origin	Shandong,China
video outgoing-inspection	Provided
machinery test report	Provided
core components	Engine
brand name	Soar
key selling points	Automatic, Eco-Friendly, Energy saving
VOLTAGE	220-380V

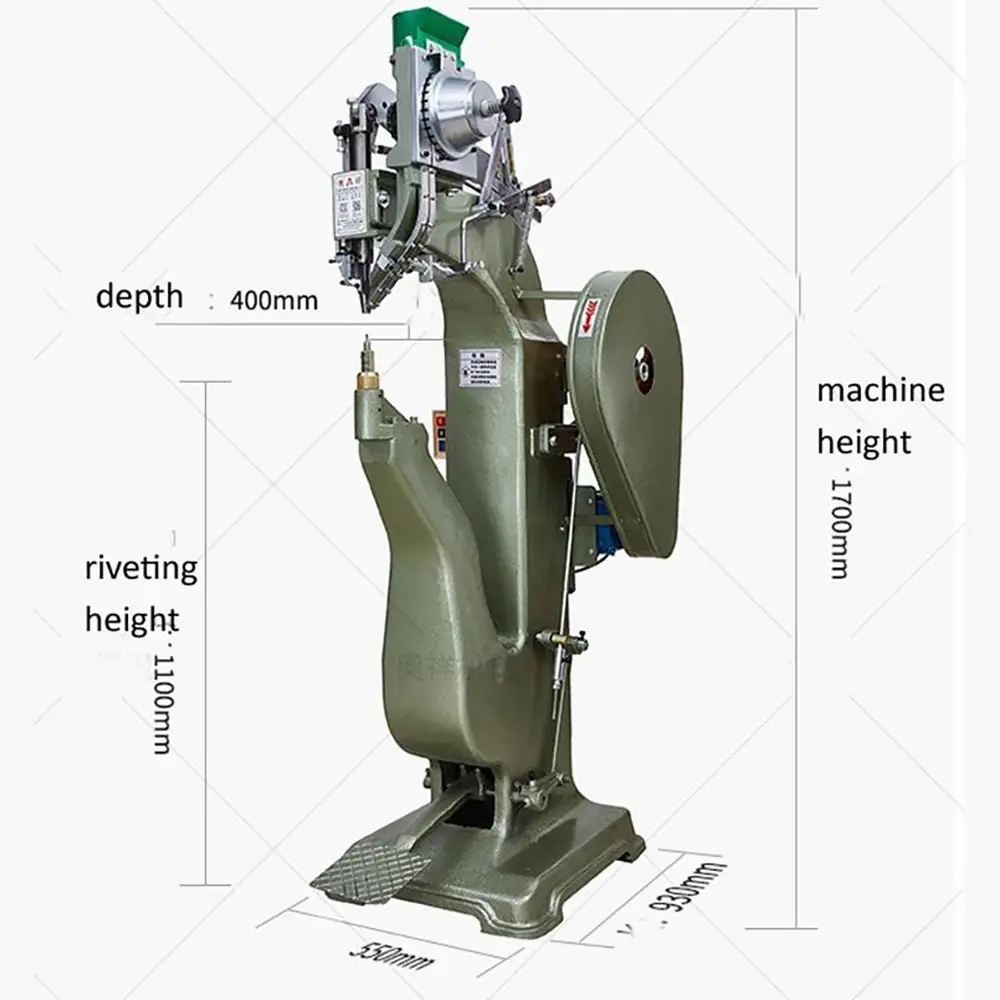

DIMENSIONA(L*W*H)	930*550*1700MM
APPLICATION	Luggage Ball bags Sturdy bags
Throat depth	400mm(can be customized)
Riveting height	1100mm
Rivet top diameter	8-12mm
Rivet shaft diameter	3-5mm
Rivet length	5-25mm
Power	3/4HP

Riveting and Punching Machine for Luggage Ball Bags Sturdy Bags

The Riveting and Punching Machine for Luggage Ball Bags Sturdy Bags is designed for manufacturers that need an efficient and repeatable solution for punching holes and installing rivets on bags, luggage, sports equipment bags, and other heavy-duty sewn or assembled products.

In modern bag manufacturing, punching and riveting are important processes for reinforcing stress points, installing hardware, attaching handles, securing straps, mounting buckles, and connecting different components. Performing these operations manually can require significant labor and may result in inconsistent hole positions or rivet installation. A dedicated industrial machine can help manufacturers establish a more standardized production process.

This type of equipment is particularly suitable for luggage bags, ball bags, sturdy bags, sports bags, travel bags, backpacks, tool bags, leather goods, canvas bags, and other products where reliable mechanical fastening is required.

Depending on machine configuration and tooling, the equipment can combine punching and riveting operations to streamline production and improve processing efficiency.

Combined Punching and Riveting Process

One of the key advantages of a combined riveting and punching machine is that it can support two important bag manufacturing processes in one production solution.

The punching operation creates a controlled hole at the required position, while the riveting operation installs a compatible rivet or fastener. Combining these processes can reduce repeated handling and make the overall production workflow more efficient.

For manufacturers producing large quantities of bags, reducing unnecessary movement between different workstations can help improve productivity. A dedicated machine also provides a consistent working method that can be standardized for different operators and production shifts.

The exact punching and riveting sequence depends on the machine configuration, product design, and selected tooling.

Luggage Riveting Machine

Luggage products often contain numerous hardware components that require mechanical fastening. Handles, straps, reinforcement sections, buckles, corner components, labels, and other accessories may require rivets or similar fasteners.

A professional Luggage Riveting Machine provides a dedicated solution for installing these components. The punching function can prepare the material for rivet installation, while the riveting function secures the hardware in position.

Suitable materials may include leather, synthetic leather, PU, PVC, canvas, polyester, nylon, textile materials, webbing, composite materials, and other compatible bag-making materials.

For luggage manufacturers, consistent hardware positioning is important because incorrectly positioned rivets can affect both product appearance and assembly quality.

Ball Bag Riveting and Punching

Ball bags and sports equipment bags often require strong attachment points for handles, shoulder straps, carrying systems, buckles, and reinforcement components.

The machine can be used for suitable punching and riveting operations on ball bags, sports bags, equipment bags, and other athletic gear bags.

The ability to create repeatable holes and install fasteners can help manufacturers maintain consistent positioning across large production batches. This is especially useful when producing standardized sports bags for retailers, sporting goods brands, schools, clubs, or OEM customers.

The actual rivet type and tooling should be selected according to the bag material, thickness, hardware design, and required joint strength.

Sturdy and Heavy-Duty Bag Applications

Sturdy bags and heavy-duty bags typically use stronger fabrics, reinforced seams, webbing, leather, synthetic leather, or layered materials. These products may require additional mechanical fastening at high-stress areas.

Potential applications include tool bags, equipment bags, utility bags, industrial bags, outdoor bags, travel bags, protective cases, and heavy-duty carrying products.

A professional riveting and punching machine can help reinforce these areas by creating consistent fastening points and installing suitable rivets.

For demanding bag products, the machine should be selected based on the total material thickness and the specific rivet or fastener being used.

Suitable Bag Materials

Bag manufacturers work with many different materials, and processing requirements can vary significantly.

Depending on machine configuration and tooling, potential materials include:

Genuine Leather
Synthetic Leather
PU Leather
PVC
Canvas
Nylon
Polyester
Textile
Webbing
Laminated Fabric
Composite Materials
Reinforced Bag Panels

Material thickness, flexibility, surface construction, and reinforcement layers should be considered before selecting the machine.

For multilayer materials, manufacturers should verify that the punching and riveting process can achieve the desired result without damaging the surrounding material.

Accurate Hole Punching

Hole positioning is an important part of bag hardware installation. A hole that is incorrectly positioned can affect the appearance and alignment of a handle, buckle, strap, or rivet.

A dedicated punching machine can provide a more controlled method for creating holes at predetermined positions. Appropriate dies, punches, fixtures, and positioning systems can help establish consistent processing.

For OEM production, customized tooling or fixtures may be considered when products have specific hole patterns or unusual hardware locations.

Consistent Rivet Installation

After punching, the rivet must be installed correctly to create a secure mechanical connection. Consistency is particularly important for products produced in large quantities.

A professional riveting machine provides controlled riveting operations that can help reduce variations caused by manual installation.

Proper machine adjustment, suitable tooling, correct rivet selection, and consistent material positioning all contribute to the final riveting result.

Manufacturers should select the riveting setup according to the rivet material, diameter, length, workpiece thickness, and product structure.

Improving Bag Production Efficiency

Bag manufacturing often involves many repetitive assembly operations. When punching and riveting are performed manually, operators may need to measure positions, create holes, align hardware, and install rivets repeatedly.

A dedicated machine can streamline these operations and create a more organized production workflow.

For factories handling large OEM orders, improved process standardization can help simplify production planning and quality inspection. Operators can follow standardized positioning and operating procedures instead of relying entirely on manual judgment.

Flexible Tooling for Different Products

Different bags require different hardware, hole sizes, and riveting positions. Flexible tooling is therefore an important consideration when purchasing an industrial bag riveting machine.

Depending on the machine design, punches, dies, fixtures, and other tooling components can be selected according to the product requirements.

For factories producing several bag styles, tooling flexibility can allow the same machine platform to support multiple products with appropriate adjustments.

This can be particularly useful for manufacturers serving OEM and ODM customers with customized luggage, sports bags, travel bags, and industrial bags.

OEM and Custom Bag Manufacturing

Custom bag production frequently involves different materials, dimensions, hardware, and fastening locations. Manufacturers may receive customer drawings, samples, or specifications that require a customized production process.

The riveting and punching machine can be evaluated according to these requirements. Customized tooling and fixtures may help accommodate special hole patterns or hardware configurations.

For OEM manufacturers, the machine should be selected not only according to today's product but also according to the range of products expected in future production.

Industrial Applications

The machine can be used in a variety of industries and product categories, including:

Luggage Manufacturing
Travel Bag Production
Sports Bag Manufacturing
Ball Bag Production
Backpack Manufacturing
Tool Bag Production
Heavy-Duty Bag Manufacturing
Outdoor Bag Production
Leather Goods Manufacturing
Utility Bag Production
Protective Case Manufacturing
OEM Bag Manufacturing

Its suitability depends on the specific material, rivet, punching requirement, product dimensions, and machine configuration.

How to Select the Right Machine

Before purchasing a riveting and punching machine, manufacturers should identify the materials, thickness, hole diameter, rivet type, rivet size, and fastening position.

It is also important to determine whether the production requires punching and riveting as separate operations or as an integrated workflow.

Production volume should also be considered. A small workshop producing customized bags may have different requirements from a large factory manufacturing thousands of products per day.

For accurate machine selection, buyers can provide bag samples, material samples, rivet samples, product drawings, and information about the required fastening process.

Why Choose Our Riveting and Punching Machine?
Two-in-One Production Capability: Combines punching and riveting functions for compatible bag manufacturing processes.
Wide Bag Applications: Suitable for luggage, ball bags, sports bags, sturdy bags, backpacks, and other products.
Industrial Production: Designed to support repetitive manufacturing operations.
Consistent Processing: Helps standardize hole punching and rivet installation.
Flexible Tooling: Punches, dies, and fixtures can be selected according to product requirements.
Multiple Material Options: Suitable configurations can support leather, synthetic leather, canvas, textile, webbing, and other compatible materials.
OEM Support: Machine configuration and tooling can be evaluated for customized production.
Improved Efficiency: Reduces repetitive manual punching and riveting operations.
Production Consistency: Supports standardized processing across production batches.
Practical B2B Solution: Suitable for factories, bag manufacturers, hardware assembly operations, and OEM suppliers.
Main Applications
Luggage Riveting
Luggage Hole Punching
Ball Bag Riveting
Sports Bag Riveting
Sturdy Bag Riveting
Heavy-Duty Bag Manufacturing
Backpack Riveting
Travel Bag Riveting
Tool Bag Riveting
Leather Bag Riveting
Canvas Bag Riveting
Bag Hardware Installation
OEM Bag Production
FAQS
1. What is a riveting and punching machine?

It is industrial equipment designed to perform punching and riveting operations for compatible products. In bag manufacturing, it can create holes and install rivets or fasteners at required positions.

2. What types of bags can it process?

Depending on the machine configuration, applications can include luggage, ball bags, sports bags, backpacks, travel bags, tool bags, sturdy bags, leather goods, and other similar products.

3. Can it be used for luggage manufacturing?

Yes. It can be suitable for punching and riveting operations used to attach handles, straps, buckles, reinforcement components, and other hardware.

4. Can it be used for ball bags?

Yes. Suitable configurations can be used for ball bags and sports equipment bags where rivets are required for straps, handles, reinforcement components, or other hardware.

5. What materials can be processed?

Depending on the machine and tooling, compatible materials may include leather, synthetic leather, PU, PVC, canvas, nylon, polyester, textile, webbing, and composite materials.

6. Can it process thick or sturdy bags?

It can be configured for suitable heavy-duty bag applications. The actual capability depends on material thickness, rivet type, tooling, and machine configuration.

7. Does the machine punch and rivet automatically?

The automation level depends on the specific machine configuration. Some systems can integrate punching and riveting operations, while others may require separate operating steps.

8. Can different rivet sizes be used?

Different rivet sizes generally require compatible tooling. The machine should be configured according to the required rivet diameter, length, material, and design.

9. Can the tooling be customized?

Yes, customized punches, dies, fixtures, or other tooling may be considered for specific product designs and riveting positions.

10. Is the machine suitable for OEM production?

Yes. It is suitable for manufacturers producing customized bags and luggage for OEM and ODM customers, provided the machine configuration matches the production requirements.

11. How do I choose the right machine?

Consider the bag material, total thickness, rivet specifications, hole size, riveting position, production volume, and required automation level. Samples or drawings can help with machine evaluation.

12. Can one machine be used for different types of bags?

With suitable tooling and adjustments, one machine may support multiple compatible products. The practical range depends on the machine's working area, tooling, and application requirements.
