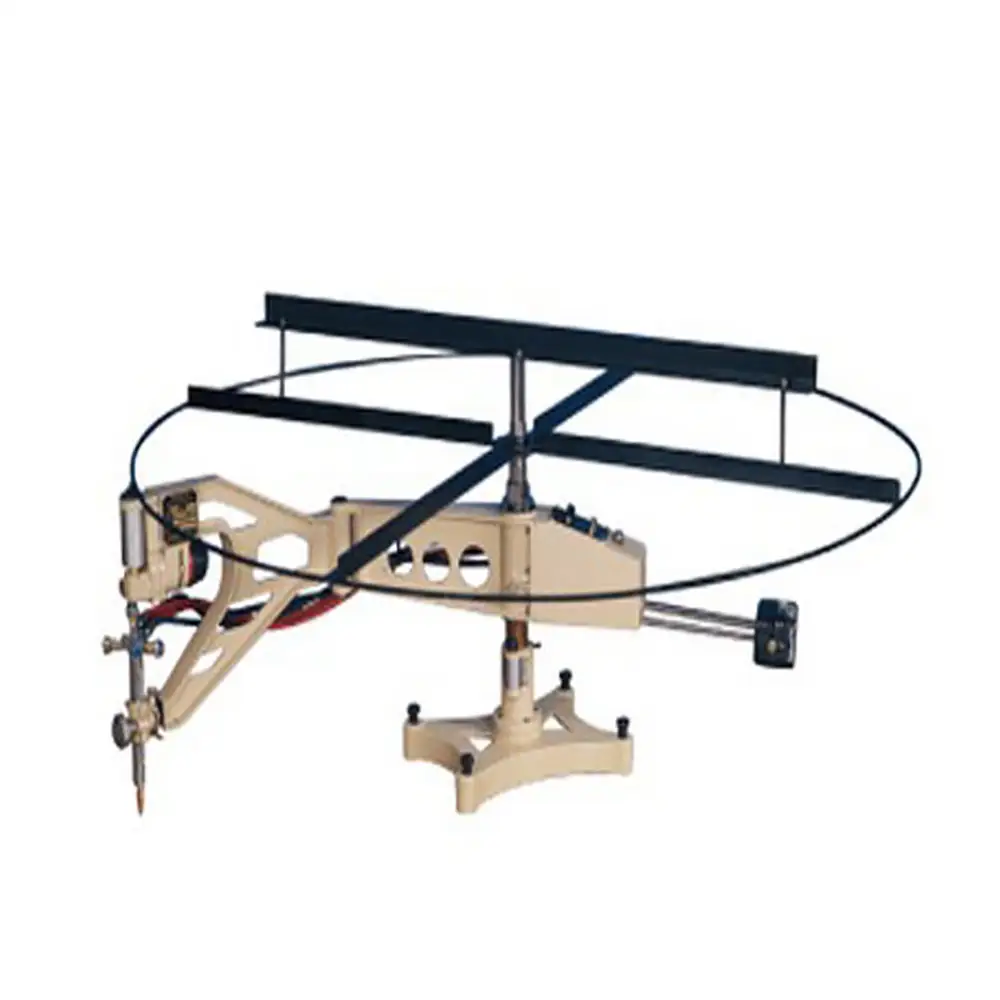

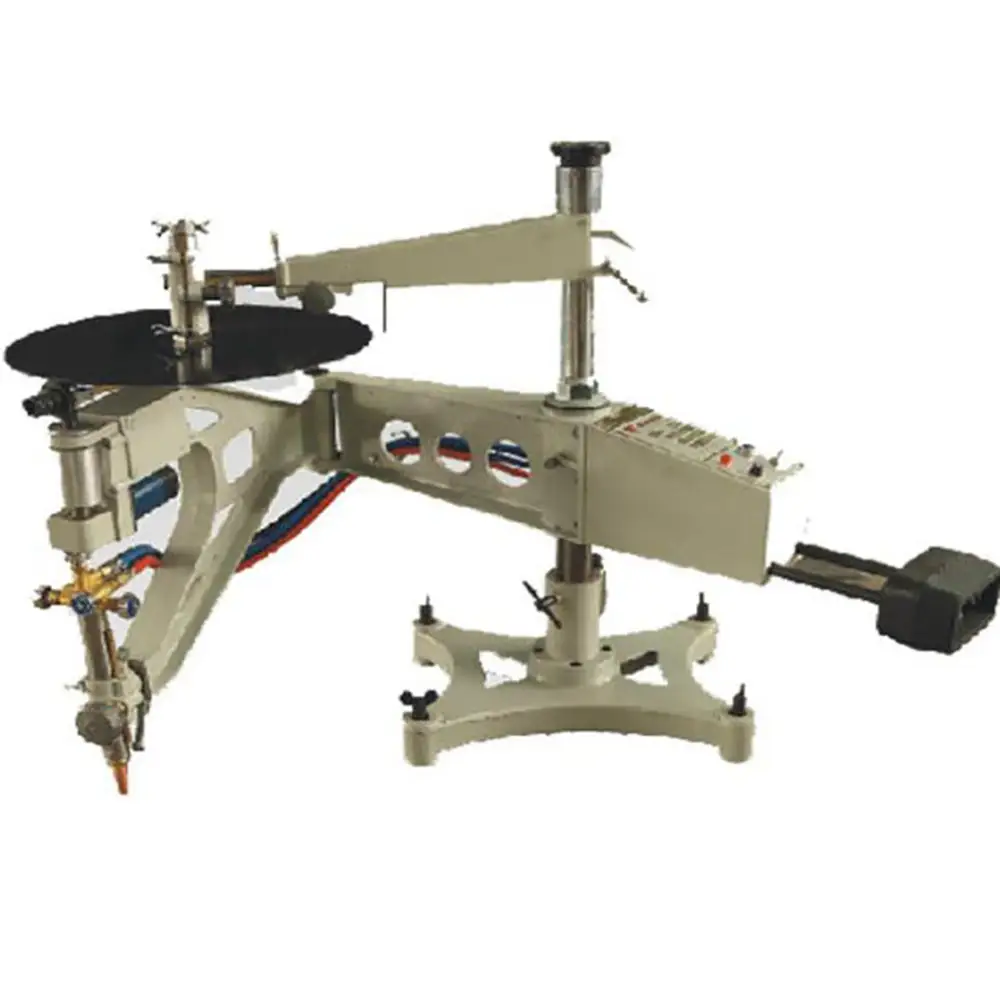

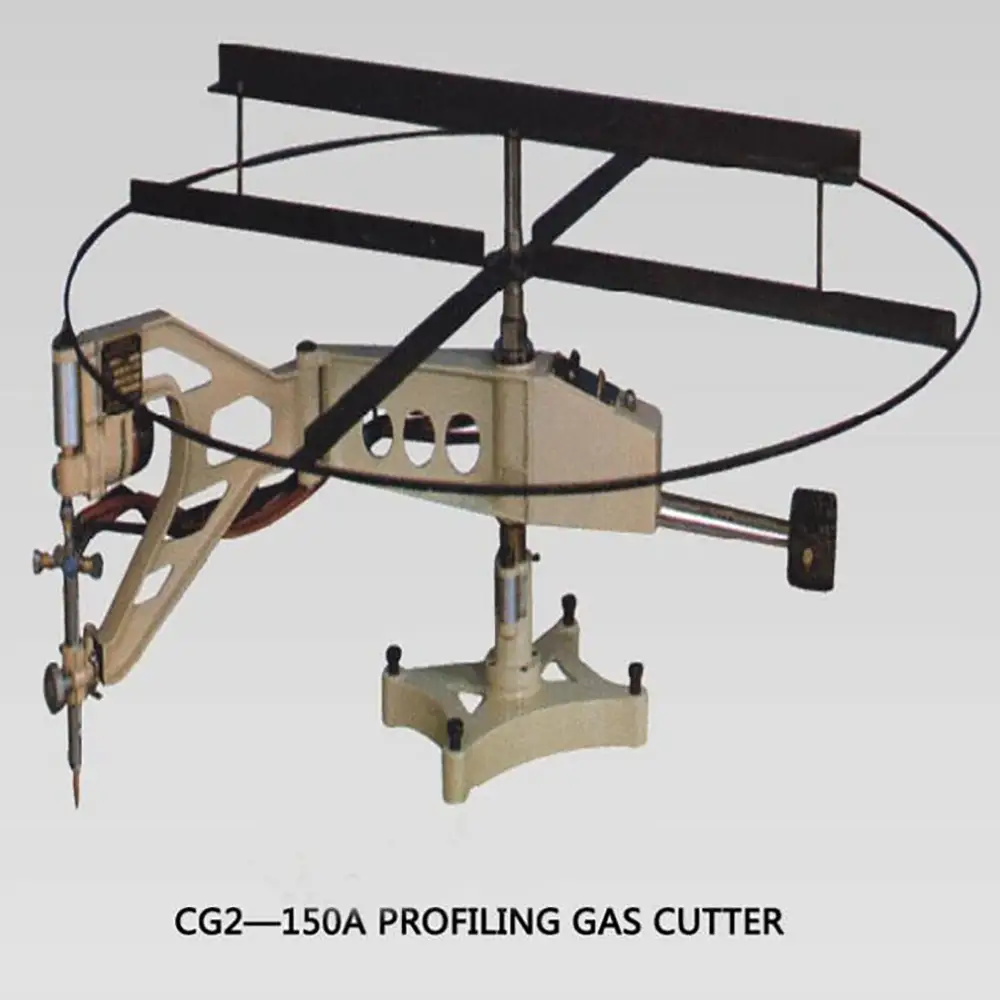

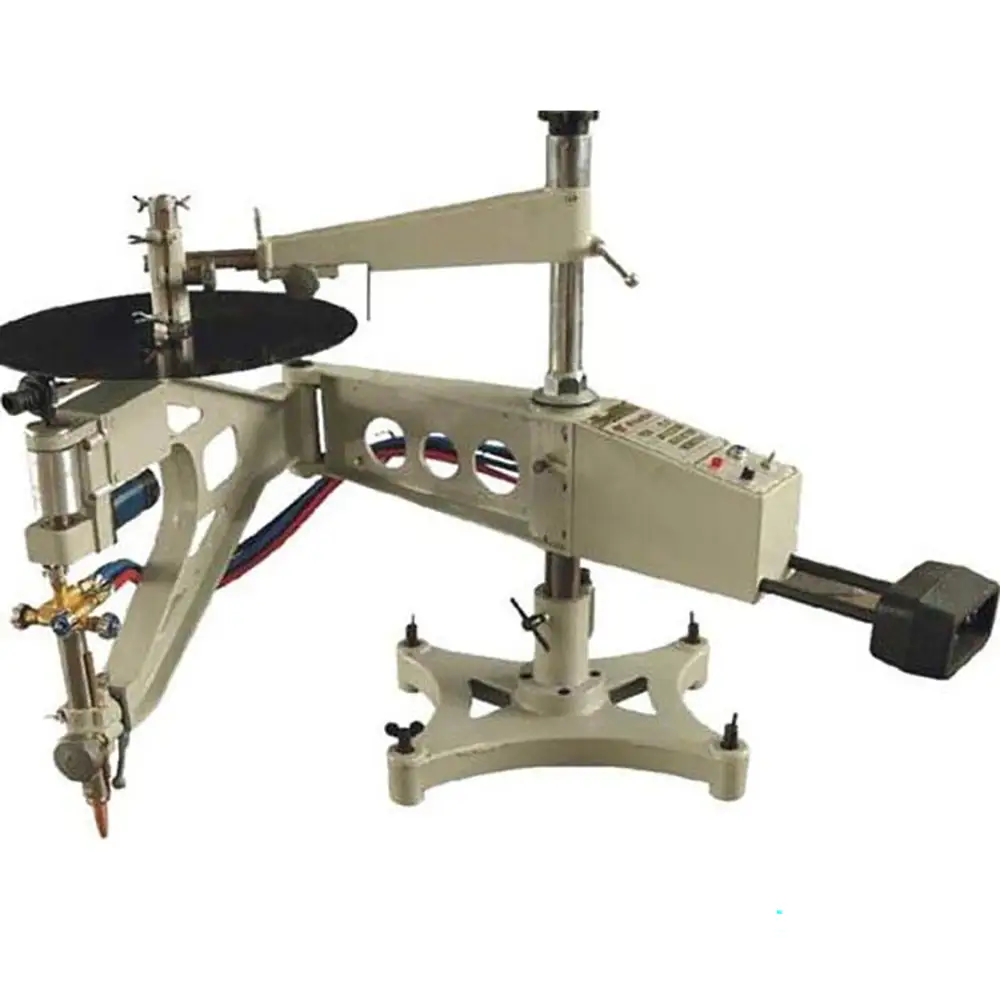

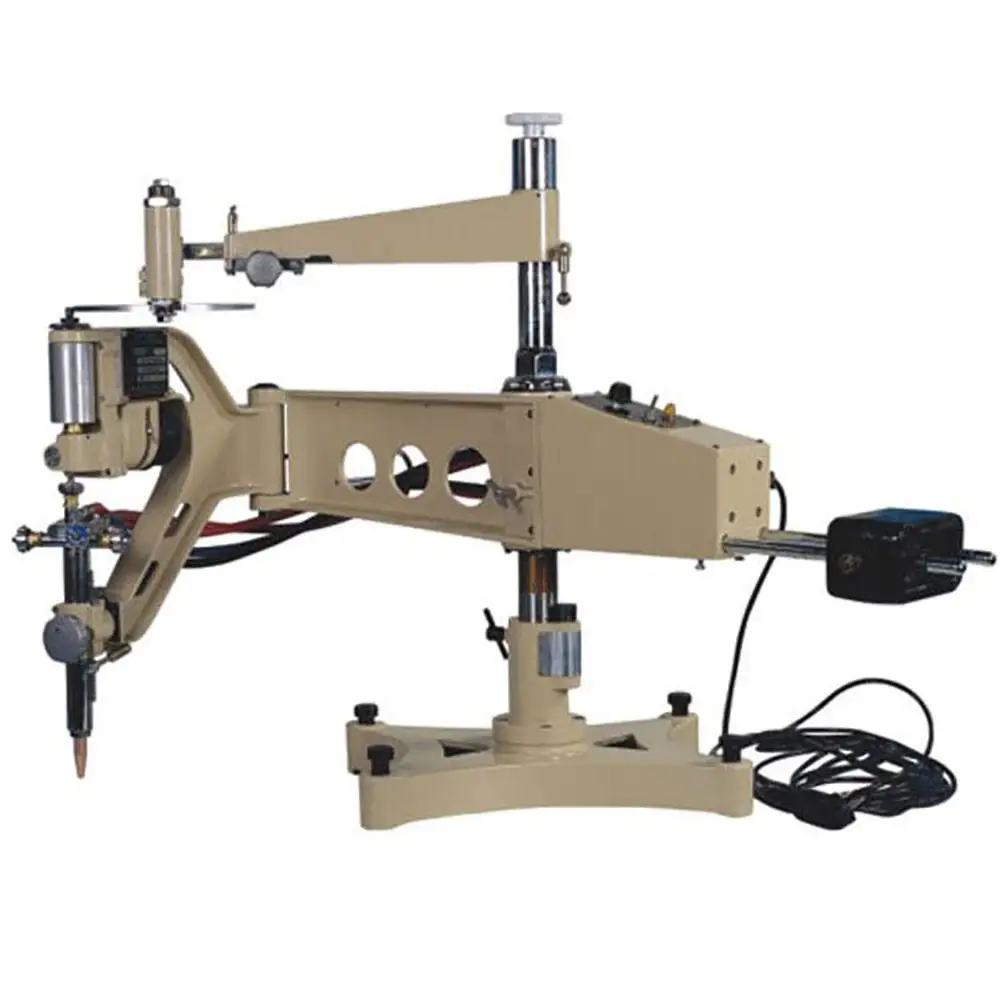

Profiling Gas Cutting Machine Metal Steel Cutting

Gas Flame Cutting Technology

Gas cutting,also known as oxy-fuel cutting or flame cutting,is a widely used thermal process for carbon steel. The process uses a fuel gas flame to preheat the workpiece,followed by a high-pressure oxygen jet that reacts with the heated steel and removes material from the cutting zone.

This technology is particularly useful for carbon steel and relatively thick steel plates. It provides a practical alternative to mechanical cutting methods when processing large or heavy steel components.

The cutting result depends on several factors,including steel grade,material thickness,flame adjustment,oxygen pressure,nozzle selection,cutting speed,and torch height. Correct parameter selection is therefore essential for achieving a stable flame and acceptable edge quality.

Profiling and Shape Cutting

The main advantage of a profiling gas cutting machine is its ability to produce shaped steel components rather than only simple straight cuts.

Depending on the machine design,it may be used for:

Circular steel profiles

Curved steel components

Irregular metal shapes

Steel templates

Machine parts

Structural steel components

Custom metal plates

Flanges and similar profiles

Fabricated steel components

Replacement parts

A suitable template or profile guide can help the machine reproduce the required contour. For repeated production,the same profile can be used as a reference for multiple workpieces,helping improve consistency between parts.

The achievable profile complexity depends on the machine's mechanical design and profiling system.

Metal and Steel Cutting Applications

The machine is primarily suitable for carbon steel and flame-cuttable steel materials. It can be used in general metal fabrication and steel processing environments where thermal cutting is required.

Typical applications include structural steel fabrication,industrial machinery manufacturing,construction equipment,agricultural machinery,steel repair workshops,metal fabrication plants,and custom component production.

For applications involving stainless steel,aluminum,brass,or other non-ferrous metals,gas flame cutting is generally not the preferred process. Customers should consider plasma,laser,waterjet,or other suitable cutting technologies depending on the material and required result.

Stable Cutting Movement

Mechanical movement is an important part of profiling cutting. A stable machine structure and controlled torch movement can help maintain a more consistent cutting distance along the profile.

This is especially useful when cutting curved or irregular shapes. If the torch movement changes significantly during the process,the resulting edge may show variations in width,bevel,or surface condition.

The operator should ensure that the steel plate is properly supported and positioned before cutting. The profiling mechanism should also be correctly aligned with the required template or cutting path.

Actual cutting accuracy depends on the machine structure,profiling method,material condition,cutting parameters,and operator setup.

Steel Plate Cutting

Profiling gas cutting machines can be used for a wide range of steel plate cutting applications. Heavy steel plates are often processed into structural parts,brackets,base plates,support components,machine parts,and other fabricated products.

Before cutting,the operator should confirm the material thickness and select an appropriate cutting nozzle and gas setting. Different plate thicknesses require different process parameters.

Proper preheating and cutting speed are also important. Cutting too quickly may result in incomplete penetration,while excessive heat input can increase slag formation or affect the cut edge.

Production Efficiency

For workshops producing customized or repeated steel components,a profiling gas cutting machine can simplify the process of reproducing specific shapes.

Once the required profile and machine setup have been established,the operator can process multiple workpieces using the same basic cutting reference. This can reduce the need to manually mark every profile and can improve production consistency.

Actual production speed depends on material thickness,profile complexity,cutting length,gas settings,machine movement,and operator handling.

For high-volume production,a CNC plasma or CNC oxy-fuel cutting system may be considered when programmable digital profiles and automated nesting are required.

Cutting Quality and Post-Processing

Gas flame cutting can produce a practical and economical cut on suitable carbon steel,but the final edge condition depends heavily on process control.

Factors such as nozzle condition,oxygen pressure,flame adjustment,cutting speed,torch distance,and material cleanliness should be monitored during production.

After cutting,some applications may require slag removal,grinding,deburring,edge preparation,or machining. The required post-processing depends on the final dimensional and surface requirements of the component.

For structural parts where welding follows cutting,the cut edge may be prepared further according to the welding design.

Safety and Maintenance

Flame cutting involves combustible gases,oxygen,high temperatures,sparks,and molten metal. Proper operating procedures are therefore essential.

Operators should use suitable protective clothing,eye protection,heat-resistant gloves,and appropriate ventilation. Gas cylinders,hoses,regulators,valves,and connections should be inspected regularly.

The cutting torch and nozzle should be maintained in good condition. Nozzles should be cleaned or replaced when necessary,and gas connections should be checked for leakage.

The machine's guide rails,mechanical transmission components,profiling mechanism,and moving parts should also receive regular inspection and lubrication according to the manufacturer's maintenance instructions.

Custom Configuration and OEM Support

Different steel fabrication projects require different cutting areas,profile sizes,torch arrangements,and operating methods. The Profiling Gas Cutting Machine can therefore be evaluated and configured according to the intended application.

When requesting a quotation,customers should provide material type,steel grade,maximum thickness,plate dimensions,profile shape,required cutting accuracy,and expected production volume.

Drawings,templates,workpiece samples,or photographs can also help the manufacturer recommend a suitable profiling configuration.

OEM and customized manufacturing services can be considered for machinery distributors,steel fabricators,industrial suppliers,and overseas B2B buyers.

FAQs

1. What is a profiling gas cutting machine?

A profiling gas cutting machine is a thermal cutting machine that uses an oxy-fuel flame and a profiling or guiding mechanism to cut steel according to a specified shape or contour.

2. What materials can it cut?

It is mainly designed for carbon steel and other materials suitable for oxy-fuel flame cutting. Material compatibility should be confirmed according to the specific application.

3. Can it cut thick steel plates?

Yes. Gas flame cutting is widely used for medium and heavy carbon steel plates. The practical thickness range depends on the torch,nozzle,gas system,and machine configuration.

4. What is the difference between profiling and straight-line gas cutting?

Straight-line gas cutting primarily produces linear cuts,while profiling equipment is designed to follow a defined shape,template,or contour.

5. Can it cut curved shapes?

Yes,depending on the profiling mechanism. Suitable machines can follow curved or irregular profiles within their mechanical operating range.

6. Can it cut stainless steel?

Conventional oxy-fuel cutting is mainly intended for carbon steel. Stainless steel usually requires plasma,laser,waterjet,or another suitable cutting technology.

7. Does the machine require a template?

Some profiling machines use mechanical templates or profile guides,while other designs may use different guiding methods. The exact system depends on the machine configuration.

8. Is it suitable for custom steel parts?

Yes. It can be useful for producing customized brackets,plates,structural components,machine parts,and other steel profiles.

9. How can cutting quality be improved?

Correct nozzle selection,flame adjustment,oxygen pressure,cutting speed,torch height,and proper material preparation are important for stable cutting quality.

10. Does the cut edge require additional processing?

Depending on the application,the workpiece may require slag removal,grinding,deburring,machining,or edge preparation after flame cutting.

11. Can the machine be customized?

Yes. Machine dimensions,profiling arrangements,torch systems,and other configuration details can be discussed according to the customer's material and production requirements.

12. What information is needed for a quotation?

Provide steel grade,material thickness,plate dimensions,profile shape,required cutting size,production volume,and desired cutting method. Drawings or samples are also helpful.

Why Choose Us

1. Dedicated Profiling Cutting Design
Designed for steel cutting applications requiring shaped,curved,or customized profiles rather than simple straight-line cuts.

2. Reliable Gas Cutting Technology
Uses established oxy-fuel flame cutting technology for suitable carbon steel and steel plate applications.

3. Flexible Profile Processing
Suitable for producing various customized steel components according to the machine's profiling capability.

4. Suitable for Heavy Steel
Gas cutting provides a practical solution for many medium and heavy carbon steel plate applications.

5. Repeatable Profile Production
A suitable template or profiling reference can help reproduce similar components consistently.

6. Wide Industrial Applications
Suitable for structural steel,machinery manufacturing,construction equipment,agricultural machinery,and general metal fabrication.

7. Custom Machine Configuration
Cutting area,torch arrangement,profiling system,and other machine details can be evaluated according to application requirements.
