Magnetic Plasma Pipe Cutting Machine Pipe Gas Cutting Machine

 Magnetic Plasma Pipe Cutting Machine for Pipe and Tube Cutting

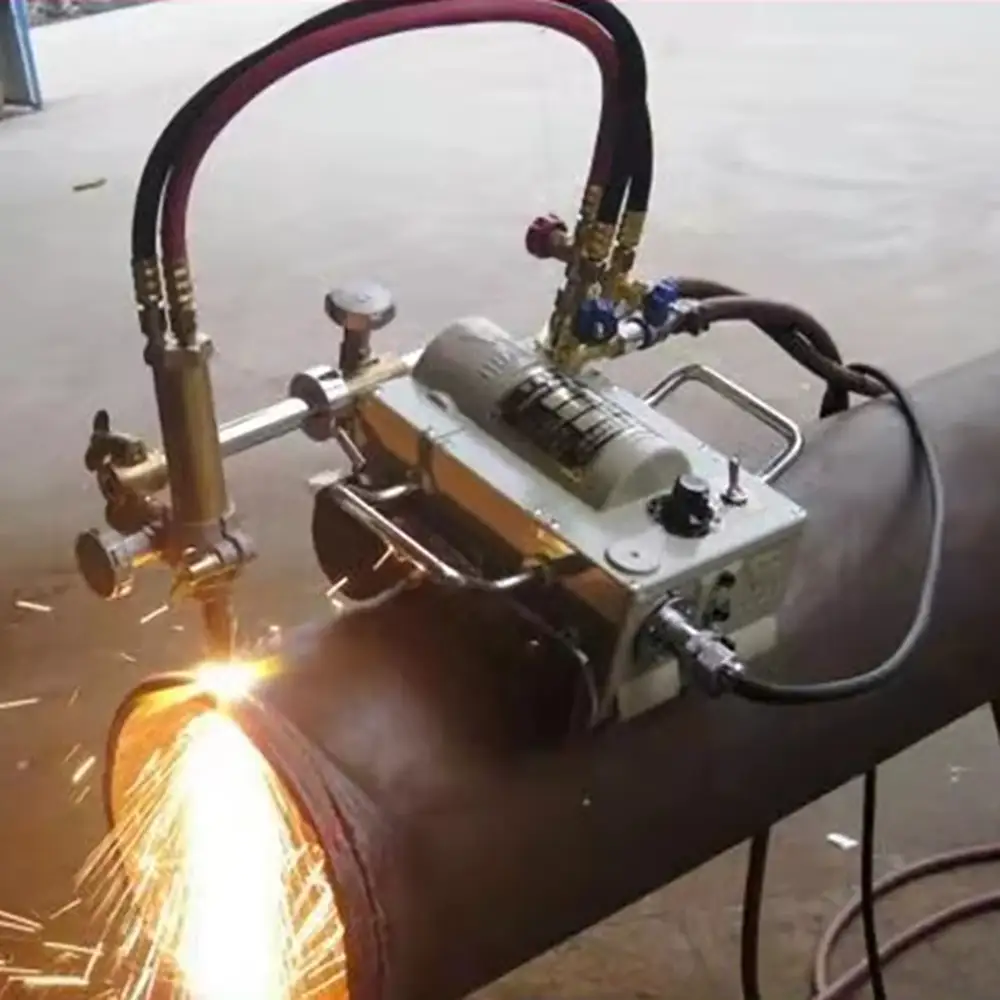

The Magnetic Plasma Pipe Cutting Machine is a practical metal pipe cutting solution designed for efficient cutting of steel pipes, metal tubes, and cylindrical workpieces. Combining a magnetic traveling mechanism with a thermal cutting torch, the machine can move along the surface of a suitable metal pipe while performing controlled cutting operations.

This type of equipment is particularly useful when operators need a flexible pipe cutting solution for large or long metal pipes that are difficult to process with conventional stationary cutting machines. Depending on the configuration, the machine can be equipped for plasma cutting, gas cutting, or a compatible combination of thermal cutting functions.

The magnetic travel system helps the cutting machine maintain contact with the ferromagnetic workpiece while moving along the pipe surface. This provides a practical solution for on-site pipe processing, fabrication workshops, steel structure production, pipeline-related work, and industrial maintenance.

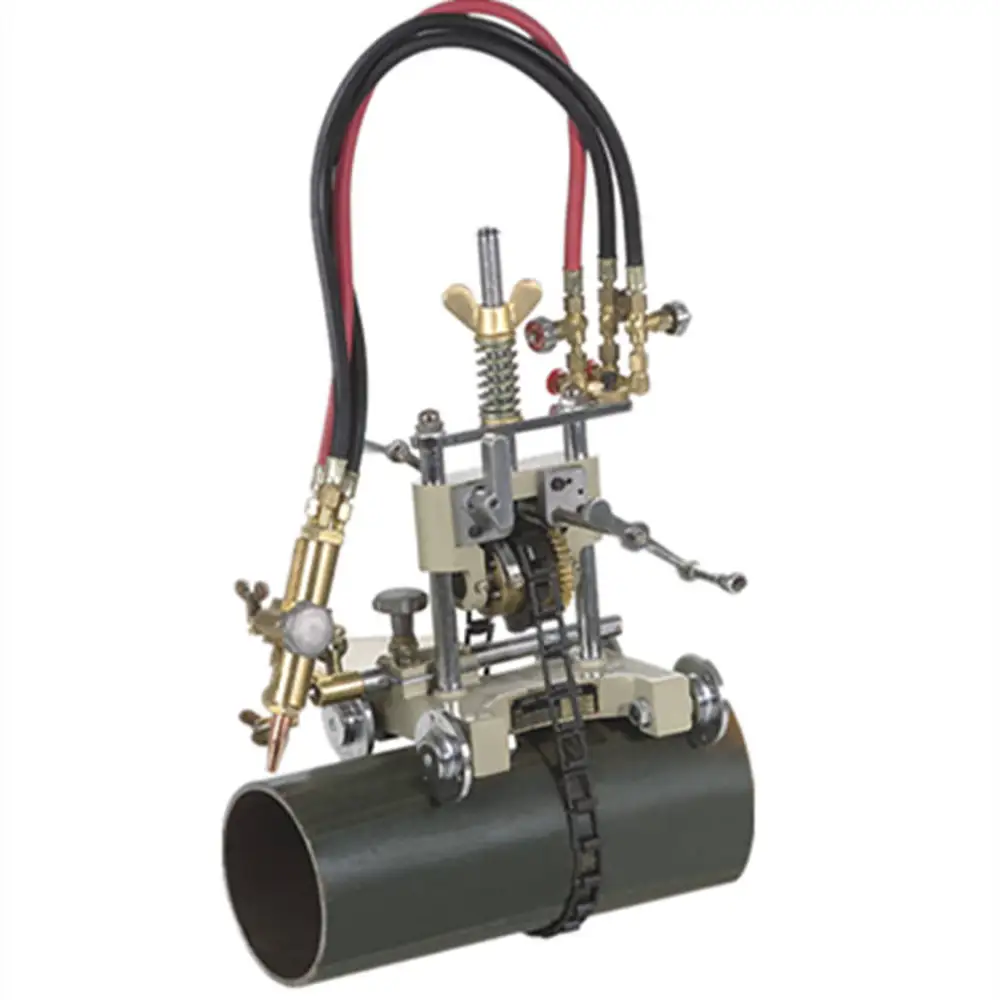

Magnetic Traveling System

The key feature of this machine is its magnetic movement system. Magnetic wheels or magnetic drive components provide traction on suitable ferromagnetic steel surfaces, allowing the cutter to travel along the pipe during operation.

This design can reduce the need to move a large pipe through a stationary cutting machine. Instead, the cutting equipment travels to the required cutting position.

The magnetic system is primarily suitable for magnetic materials such as carbon steel and many conventional steel pipes. Aluminum, copper, and many stainless steel grades are non-magnetic, so magnetic adhesion may not be suitable for these materials unless the machine uses an alternative support or attachment system.

The actual magnetic holding force, pipe diameter range, surface condition, and operating orientation depend on the machine configuration.

Plasma Pipe Cutting

Plasma cutting uses a high-temperature plasma arc to melt and remove electrically conductive metal. It is commonly used for carbon steel, stainless steel, and other electrically conductive metals when the machine and plasma power source are correctly configured.

For pipe cutting applications, plasma technology can provide relatively fast thermal cutting and is suitable for straight cuts, openings, profiles, and selected shapes depending on the machine's motion system and torch arrangement.

Cutting performance depends on material type, wall thickness, plasma power, consumables, torch height, cutting speed, and gas settings. Therefore, customers should confirm the actual pipe specifications and required cutting shapes before selecting a plasma configuration.

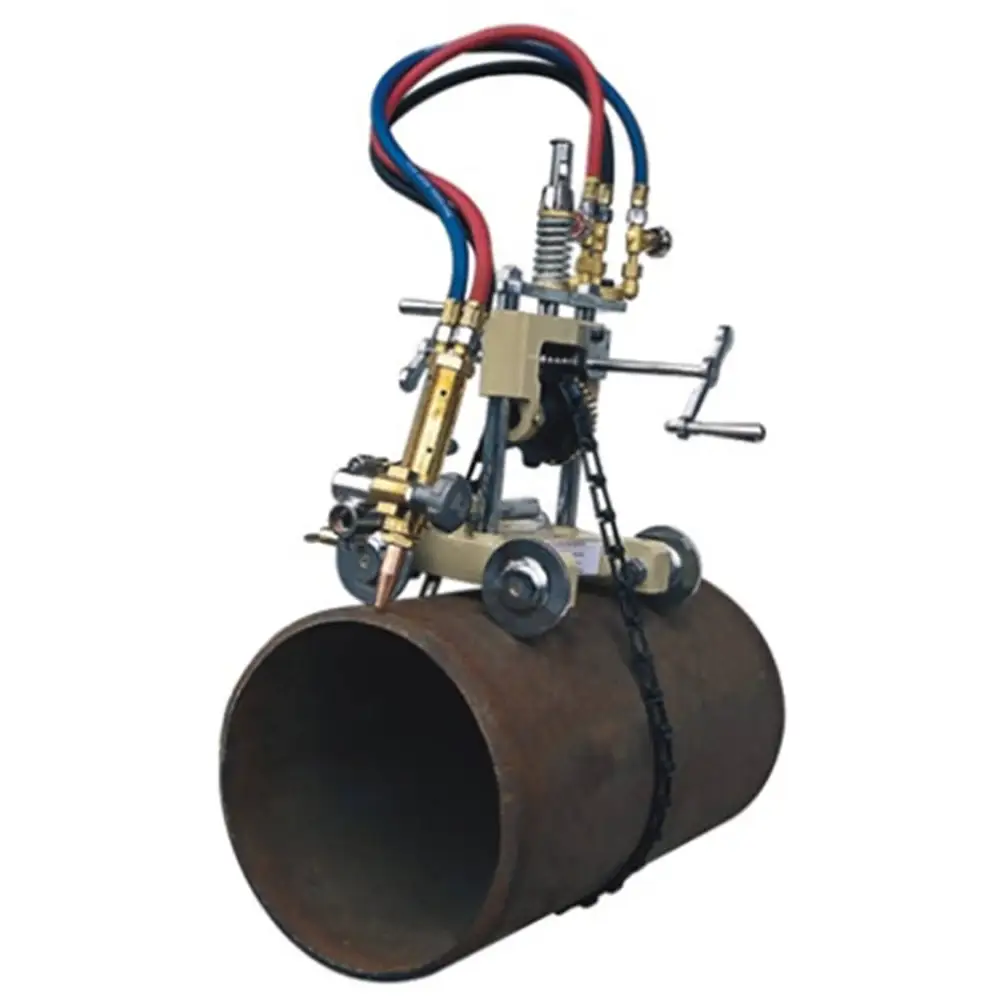

Pipe Gas Cutting Function

The term Pipe Gas Cutting Machine generally refers to equipment using an oxy-fuel flame for thermal cutting. Gas cutting is especially common for carbon steel and can be useful for relatively thick steel pipe applications.

Depending on the machine configuration, a gas cutting torch may be used instead of or together with a plasma torch. Gas cutting can provide an economical solution for carbon steel when very high cutting precision is not the primary requirement.

Plasma and gas cutting have different process characteristics. Plasma is an electrical arc-based process, while gas cutting relies on a fuel gas flame and oxygen cutting reaction. The appropriate process should be selected according to the material, thickness, required edge quality, production volume, and available utilities.

Suitable Pipe and Tube Applications

The magnetic pipe cutting machine can be used in many industrial metalworking applications. Typical workpieces may include:

Carbon steel pipes

Steel tubes

Structural steel pipes

Large-diameter steel pipes

Heavy-wall metal pipes

Pipeline fabrication components

Steel construction components

Machinery manufacturing parts

Industrial pipe sections

Metal cylinders and tubular structures

For large pipe applications, the magnetic travel mechanism can provide greater flexibility than conventional fixed-position cutting equipment.

Actual pipe diameter and wall thickness capability should always be confirmed according to the specific machine model, cutting torch, drive system, and power source.

Flexible On-Site Pipe Cutting

One major advantage of a magnetic pipe cutting design is its portability. Instead of transporting every pipe to a fixed cutting station, operators may be able to position the machine directly on a suitable steel pipe.

This can be useful in steel fabrication workshops, maintenance environments, construction projects, and situations where large or heavy pipes are difficult to reposition.

Before operation, the pipe surface should be inspected and cleaned sufficiently to ensure reliable magnetic adhesion and stable machine movement. Heavy rust, thick coatings, dirt, oil, or uneven surfaces can influence magnetic traction and cutting stability.

Cutting Accuracy and Edge Quality

The quality of a thermal pipe cut depends on more than the cutting torch itself. Machine travel stability, magnetic traction, torch alignment, cutting speed, material thickness, consumable condition, and process parameters all affect the final result.

For plasma cutting, proper torch height and consumable selection are especially important. For gas cutting, flame adjustment, nozzle selection, oxygen pressure, preheating, and cutting speed have a significant influence on the cut.

The finished pipe may require additional grinding, deburring, machining, or edge preparation depending on the downstream application.

Production Efficiency

Magnetic plasma pipe cutting equipment can help improve productivity by reducing manual torch guidance and providing controlled machine travel. For repeated pipe cutting operations, mechanical movement can also help improve consistency between workpieces.

The equipment may be used for production, repair, maintenance, fabrication, and customized pipe processing. Actual cutting speed and production output depend on pipe dimensions, material, thickness, cutting process, machine configuration, and operator setup.

For high-volume production, the machine can also be evaluated as part of a larger pipe fabrication workflow.

Safety and Operation

Plasma and gas cutting involve high temperatures, sparks, molten metal, electrical energy, compressed gases, and potentially hazardous fumes. Operators should use appropriate protective clothing, gloves, eye protection, ventilation, and other safety equipment required for the specific process.

For gas cutting, cylinders, hoses, regulators, valves, and connections should be inspected regularly. For plasma cutting, electrical connections, compressed air or gas supply, torch consumables, and grounding should be maintained according to the equipment manufacturer's instructions.

The magnetic system should also be inspected before operation to confirm sufficient adhesion and stable movement.

Customization and Machine Configuration

Different pipe applications require different machine configurations. Customers should provide pipe diameter, wall thickness, material grade, cutting shape, required cutting speed, cutting process, and operating environment when requesting a quotation.

The machine may be configured around plasma or gas cutting requirements, depending on the intended application. Drive components, magnetic wheels, torch arrangements, controls, and power systems can also vary according to the machine design.

For OEM and customized projects, customers can provide drawings, pipe samples, photographs, or detailed application requirements for evaluation.

OEM and B2B Supply

The Magnetic Plasma Pipe Cutting Machine is suitable for machinery distributors, metal fabrication companies, steel structure manufacturers, pipeline-related suppliers, maintenance contractors, and industrial users.

OEM and customized production can be discussed according to the target market, pipe specifications, cutting technology, and operating requirements. Providing complete technical information before production helps ensure the selected configuration matches the intended application.

FAQs

1. What is a magnetic plasma pipe cutting machine?

It is a pipe cutting machine that uses a magnetic traveling mechanism to move a thermal cutting torch along a suitable steel pipe or metal surface.

2. Can it use plasma cutting?

Yes. When configured with a suitable plasma torch and power source, it can perform plasma cutting on electrically conductive metal pipes.

3. Can it perform gas cutting?

Depending on the configuration, the machine can be equipped with an oxy-fuel gas cutting torch for suitable carbon steel pipe applications.

4. What materials can the magnetic system work on?

Magnetic travel is primarily suitable for ferromagnetic materials such as carbon steel and many conventional steel products.

5. Can it cut stainless steel?

Plasma cutting can be suitable for stainless steel when the machine and plasma system are correctly configured. However, magnetic travel may not work reliably on many stainless steel grades because they are non-magnetic.

6. Can it cut aluminum pipes?

Plasma cutting can process aluminum, but aluminum is non-magnetic. Therefore, a standard magnetic travel system may require an alternative support or attachment method.

7. What is the difference between plasma and gas cutting?

Plasma uses an electrical plasma arc to melt and remove conductive metal. Gas cutting uses a fuel gas flame and oxygen reaction and is commonly used for carbon steel.

8. Is the machine portable?

Many magnetic pipe cutters are designed for portable operation because the cutting machine travels on the workpiece instead of requiring the entire pipe to be moved through a stationary machine.

9. Can it cut large steel pipes?

It can be configured for large pipe applications, but the actual diameter range depends on the machine's magnetic system, travel structure, torch arrangement, and cutting requirements.

10. Does the pipe need to be cleaned before cutting?

Yes. Removing excessive rust, dirt, oil, or thick coatings from the contact area can help improve magnetic adhesion and machine travel stability.

11. Can the cutting machine make shaped cuts?

Depending on the motion and control configuration, the machine may perform straight or selected profile cuts. Specific cutting shapes should be confirmed before purchase.

12. What information is needed for a quotation?

Provide pipe material, diameter, wall thickness, cutting length or shape, required cutting process, production volume, and application environment. Photos or drawings are also helpful.

Why Choose Us

1. Magnetic Traveling Design
Provides a practical way to move the cutting torch along suitable ferromagnetic steel pipe surfaces.

2. Plasma and Gas Cutting Options
The machine can be configured around plasma or oxy-fuel cutting requirements depending on material and application.

3. Suitable for Steel Pipe Processing
Designed for carbon steel pipes, structural steel components, and other suitable metal tubular workpieces.

4. Flexible Portable Operation
The traveling design can reduce the need to transport large or heavy pipes to a fixed cutting station.

5. Improved Cutting Consistency
Controlled machine movement can help reduce variations associated with completely manual torch guidance.

6. Industrial Application Flexibility
Suitable for steel fabrication, pipeline-related work, machinery manufacturing, construction, maintenance, and industrial metal processing.

7. Customized Machine Configuration
Magnetic drive, torch system, control method, and cutting technology can be evaluated according to customer requirements.

8. OEM and B2B Manufacturing Support
Suitable for distributors, industrial users, fabrication companies, and overseas machinery buyers requiring customized equipment and technical support.
