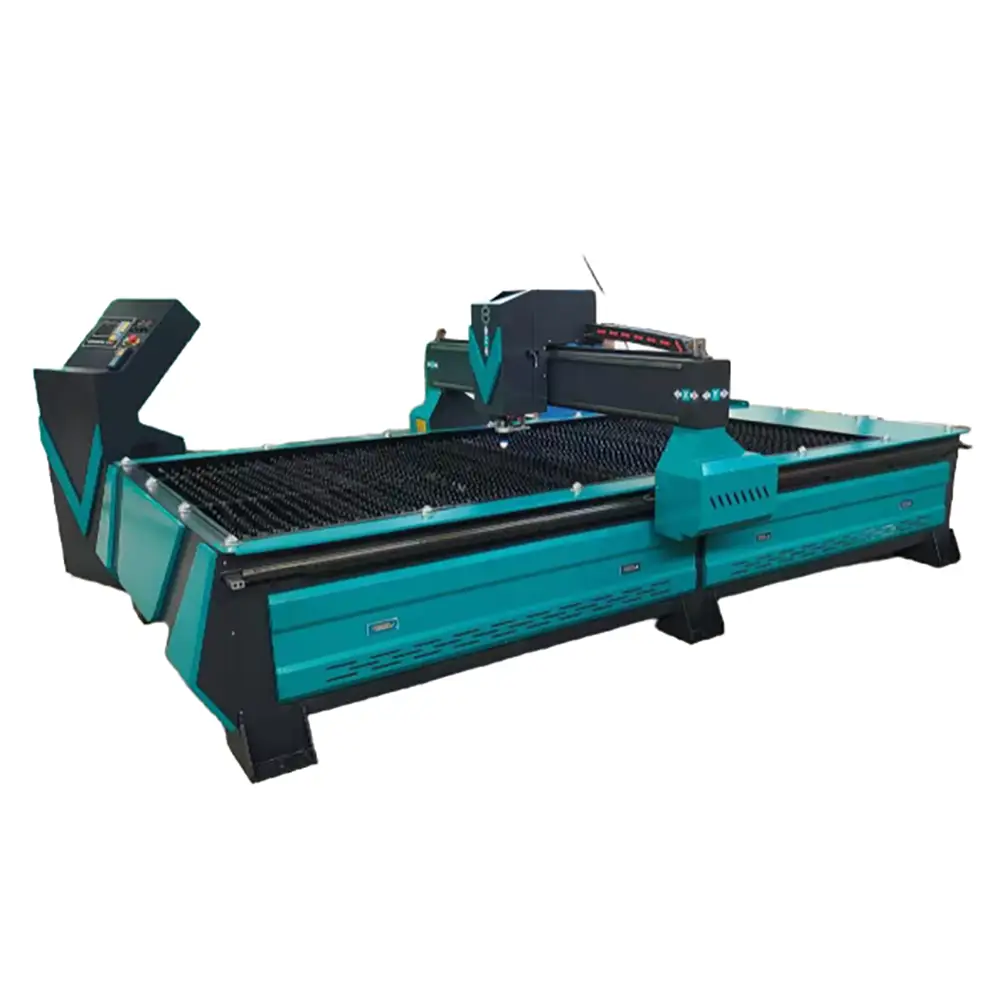

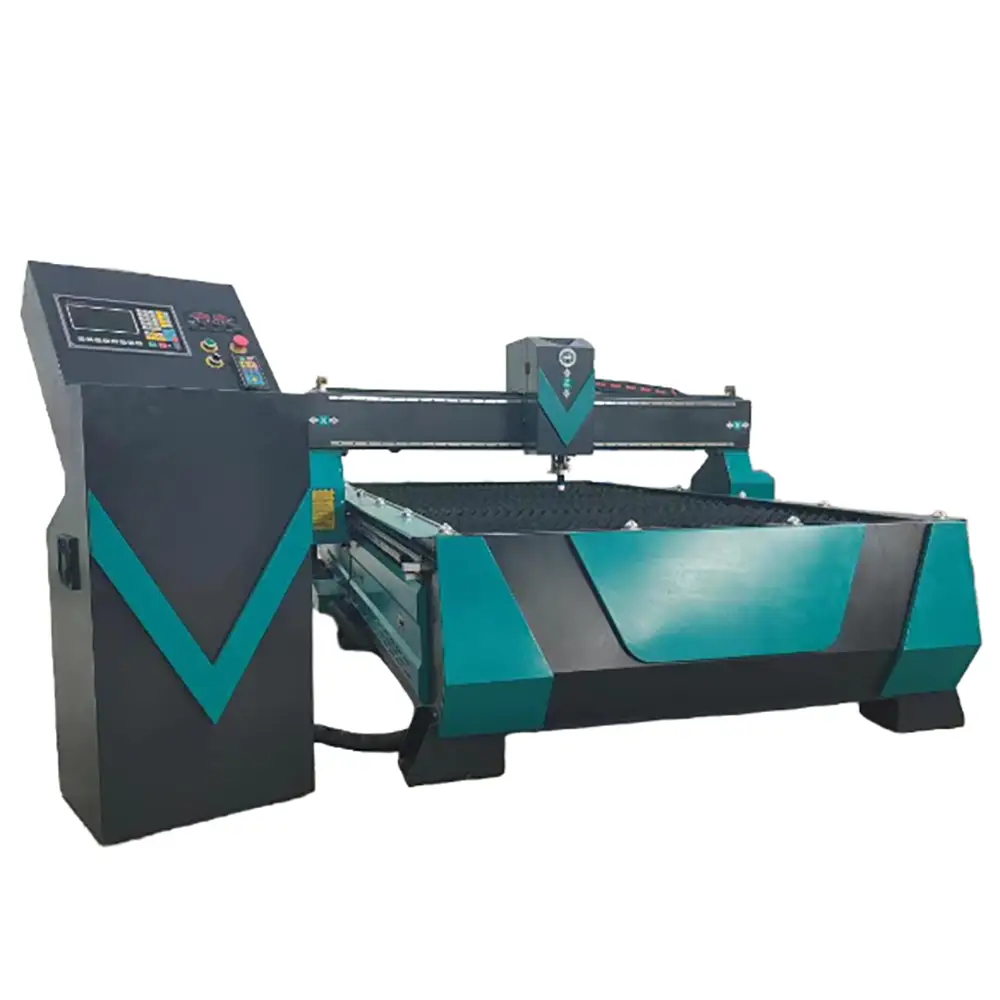

CNC Plasma Plate Cutter 1530*3000mm - Decorative Door Pattern Cutting, Max 35mm Thickness

CNC Plasma Plate Cutter 1530×3000mm for Decorative Metal Cutting

The CNC Plasma Plate Cutter 1530×3000mm is designed for efficient and flexible cutting of metal plates,sheets,and custom decorative patterns. With a nominal working area of 1530×3000mm,this CNC plasma cutting machine provides a practical solution for fabricators,metalworking shops,decorative door manufacturers,steel processors,and custom fabrication businesses.

The machine is particularly suitable for decorative door pattern cutting,including ornamental designs,geometric shapes,floral patterns,letters,cutouts,and other customized metal components. With a maximum material thickness of up to 35mm,depending on the plasma power source,material,and cutting configuration,it can handle a broad range of fabrication requirements.

CNC control allows digital cutting files to be converted into precise tool paths. This makes it possible to repeatedly produce the same design while reducing manual layout and template work.

Product Name	plasma plate cutting machine	Lathe bed	Very thick steel structure
Machine Power	Working voltage8.5KW	Working voltage	380V three phase 60hz
Reposition precision	0.02MM	Processing precision	0.1mm
Control system	STARfire	Software	Starcam
Plasma Air Pressure	Max.0.8Mpa	Working Temperature	-10°C-60°C. Relative Humidity, 0-95%.

1530×3000mm CNC Cutting Area

The 1530×3000mm working format provides a large cutting area for processing standard and customized metal plates. The approximately 1.5-meter width and 3-meter length allow manufacturers to process multiple components from larger sheets while optimizing material utilization.

The actual usable cutting area should be confirmed according to the machine configuration and edge-clearance requirements. Material thickness,plate dimensions,and cutting speed should also be considered when selecting a plasma power source.

For decorative door production,the large working format is useful for producing repeated pattern panels,door inserts,decorative screens,and architectural metal components without requiring excessive repositioning of the plate.

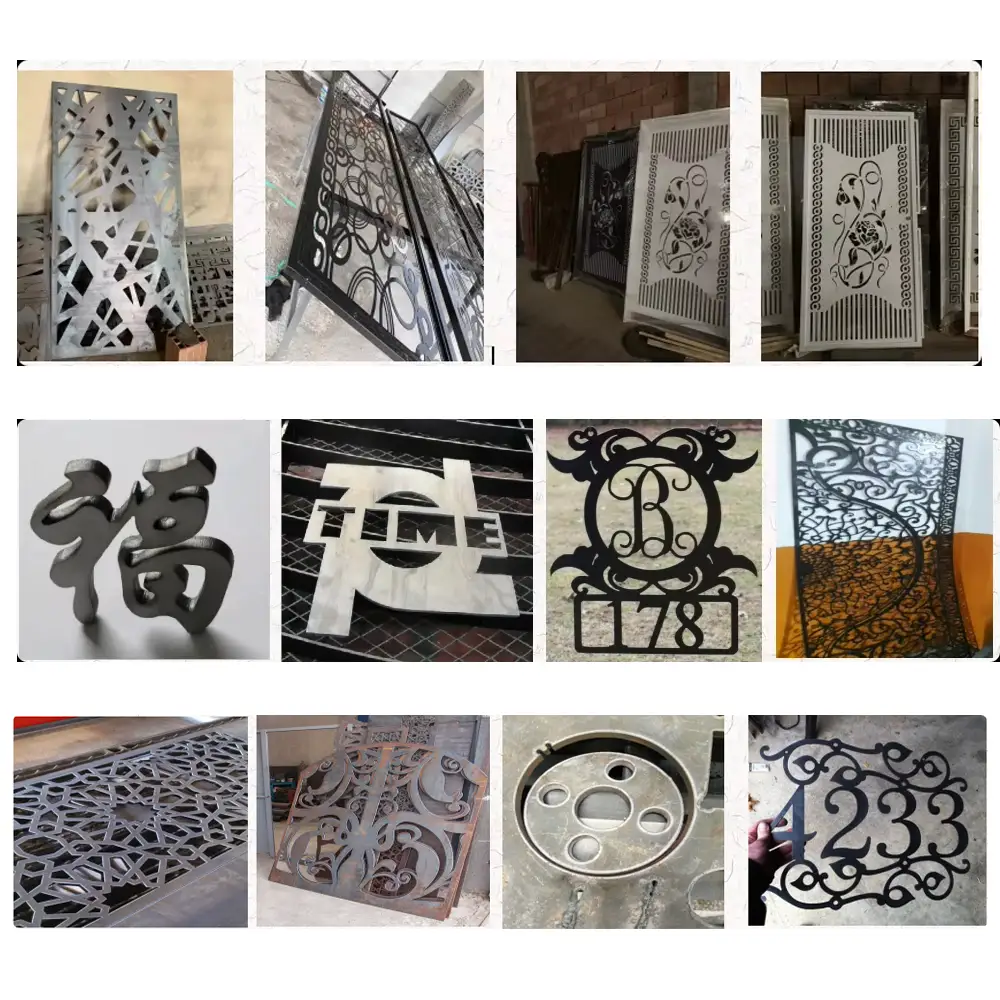

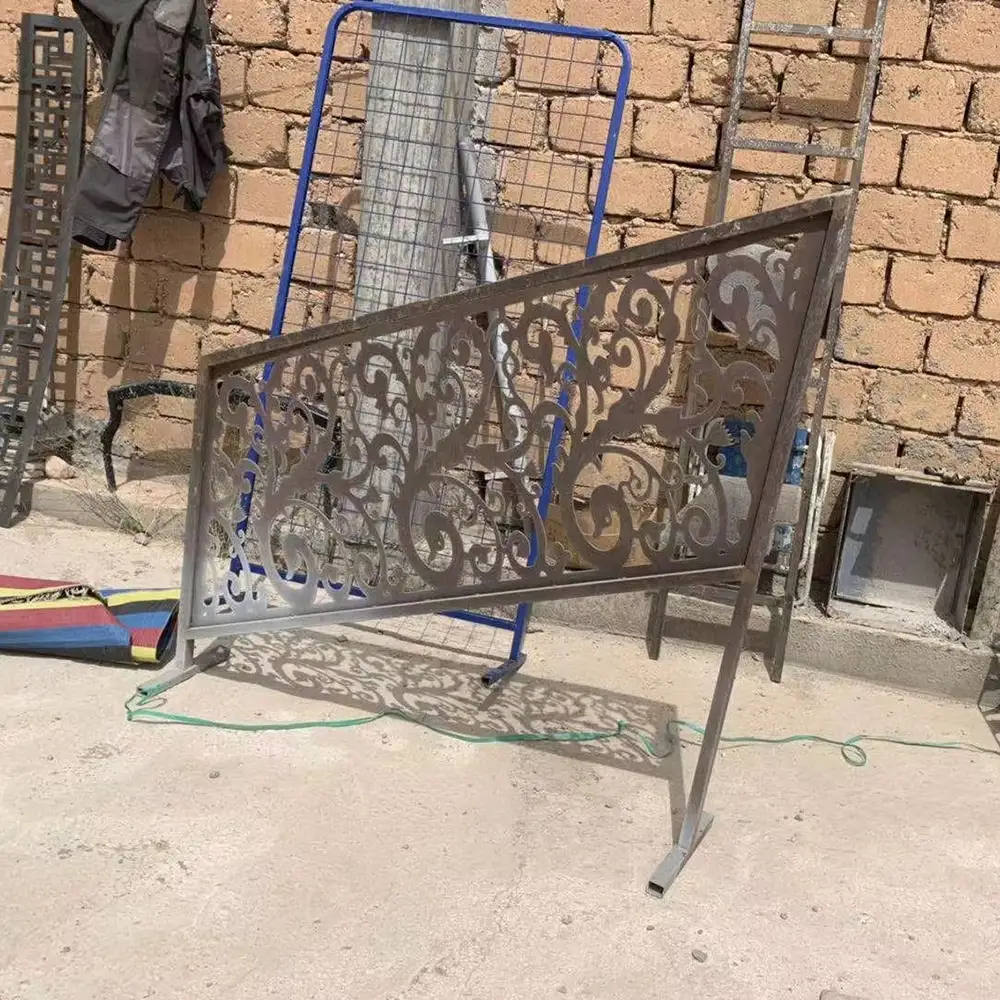

Designed for Decorative Door Pattern Cutting

One important application of this CNC plasma plate cutter is decorative metal pattern production. Plasma cutting can create complex contours that are difficult or time-consuming to produce with conventional manual cutting methods.

Manufacturers can use CAD drawings or suitable digital files to create patterns such as:

Floral decorative patterns

Geometric door designs

Metal screen patterns

Decorative door panels

Garden gate patterns

Window grille designs

Architectural metal ornaments

Custom logos and lettering

Decorative partitions

Steel wall panels

The final cutting quality depends on material type,thickness,plasma power,consumables,cutting speed,gas settings,and machine configuration. For decorative applications,proper parameter adjustment is especially important because the visual appearance of the cut edge and pattern is often a major part of the finished product.

Maximum 35mm Material Thickness

The machine can be configured for metal plates with a maximum thickness of up to 35mm. However,the actual cutting capability should not be interpreted as identical across every material and application.

Carbon steel,stainless steel,and other conductive metals have different plasma cutting characteristics. The available plasma power source,consumables,cutting speed,and required edge quality all affect practical cutting performance.

For thin and medium-gauge sheets,the machine can be used for detailed decorative patterns and general fabrication. For thicker plates,cutting speed and edge quality may change,and a suitable high-power plasma system may be required.

Before purchasing,it is recommended to provide the material type,thickness range,and required cutting quality so the appropriate plasma power configuration can be selected.

CNC Control for Repeatable Production

The CNC control system is an important part of the machine. It allows the operator to load or create digital cutting patterns and control the movement of the plasma torch along programmed paths.

This is especially useful for businesses producing customized decorative doors because designs can be stored digitally and reproduced when needed.

CNC operation can help improve production consistency by reducing manual marking and guiding operations. It also makes it easier to switch between different door patterns,metal screens,and custom fabrication designs.

Depending on the controller and machine configuration,the system may support common CAD/CAM workflow options. Customers should confirm compatible file formats and software requirements before ordering.

Plasma Cutting for Metal Plates and Sheets

Plasma cutting uses a high-temperature plasma arc to melt and remove electrically conductive metal along a programmed cutting path. It is widely used for carbon steel,stainless steel,and other conductive metals.

Compared with manual cutting,CNC plasma cutting provides better control over complex shapes and repeated patterns. It is therefore suitable for both decorative fabrication and general industrial metal processing.

Common workpieces may include steel plates,metal sheets,decorative panels,structural components,and custom-cut metal parts.

The machine should be paired with the appropriate plasma power source,torch,consumables,and air or gas supply according to the required material and thickness.

Production Efficiency and Material Utilization

For decorative door manufacturers and metal fabrication shops,the CNC plasma plate cutter can improve production efficiency by combining digital pattern control with automated torch movement.

Multiple parts can be nested onto a plate to reduce unused material. Efficient nesting is particularly useful when producing smaller decorative components from larger sheets.

Actual productivity depends on plate thickness,pattern complexity,cutting speed,piercing time,material handling,and the number of parts per sheet. Intricate decorative patterns generally require different cutting parameters from simple straight-line components.

Applications Across Metal Fabrication

The 1530×3000mm CNC plasma plate cutter can be used in a wide range of industries and fabrication applications,including:

Decorative door manufacturing

Metal gate production

Steel screen fabrication

Architectural metalwork

Metal furniture production

Sign and lettering fabrication

Machinery component manufacturing

Steel structure processing

Custom metal fabrication

Construction metalwork

For businesses that regularly produce customized patterns,the CNC system can reduce repetitive manual layout work and make design changes easier.

Maintenance and Cutting Safety

Plasma cutting produces intense heat,bright arc light,fumes,and sparks. Operators should use appropriate personal protective equipment and provide suitable ventilation and fume management.

The cutting table,torch,consumables,and electrical connections should be inspected regularly. Torch height control and consumable condition can have a significant effect on cutting quality.

Routine maintenance should include cleaning the machine,checking guide systems,inspecting cables and hoses,and replacing worn plasma consumables according to operating conditions.

Safety guards,emergency stop systems,and other protective features depend on the machine configuration. Operators should follow the manufacturer's instructions and applicable local safety requirements.

OEM and Custom CNC Plasma Cutting Solutions

The CNC plasma plate cutter can be customized for different production requirements. Configuration options may include plasma power source selection,control system,cutting table design,torch height control,software,and other machine components.

For OEM and ODM projects,customers can provide decorative door drawings,samples,material types,thickness requirements,and expected production volume. This information helps determine the appropriate machine configuration.

For buyers sourcing equipment for a factory,distribution business,or metal fabrication workshop,the machine can also be supplied as part of a complete CNC plasma cutting solution.

Why Choose Us

Large 1530×3000mm Working Format
The large cutting area supports decorative doors,metal panels,screens,and general plate fabrication.

35mm Maximum Thickness Capability
The machine can be configured for applications requiring cutting of metal plates up to the specified maximum thickness.

CNC Pattern Cutting
Digital control makes complex decorative patterns easier to reproduce consistently.

Decorative Door Application
The machine is well suited to customized door panels,gates,screens,and architectural metal patterns.

Flexible Plasma Configuration
Plasma power and related components can be selected according to material thickness and required cutting performance.

Efficient Metal Plate Processing
Automated torch movement helps reduce repetitive manual cutting and marking work.

OEM and ODM Support
Machine configurations can be adapted to specific production requirements and fabrication applications.

B2B Industrial Supply
We support manufacturers,metal fabricators,distributors,and overseas industrial equipment buyers with machinery solutions and technical support.

FAQs

1. What is the working size of this CNC plasma cutter?

The specified working format is approximately 1530×3000mm. The exact effective cutting area should be confirmed according to the machine design.

2. Can it cut material up to 35mm thick?

The machine can be configured for a maximum material thickness of up to 35mm. Actual cutting capability depends on material type,plasma power,consumables,and required edge quality.

3. Can it cut decorative door patterns?

Yes. CNC plasma cutting is suitable for decorative door patterns,metal screens,floral designs,geometric shapes,logos,and customized cutouts.

4. What materials can the machine cut?

It is primarily designed for electrically conductive metals such as carbon steel and stainless steel. Other materials should be evaluated according to their electrical and thermal characteristics.

5. Is it suitable for steel doors and gates?

Yes. The machine can be used for decorative steel door panels,gates,grilles,and related architectural metal components.

6. Can I use my own CAD drawings?

Generally,CNC plasma systems can work with compatible CAD/CAM files. Supported file formats depend on the selected control system and software.

7. Does the machine include a plasma power source?

The configuration can vary. The plasma power source should be selected according to the required material thickness,cutting speed,and production requirements.

8. Can it cut both thin sheet and thick plate?

Yes,within the machine's configured operating range. Different material thicknesses require different plasma parameters and consumables.

9. Is CNC plasma cutting suitable for intricate patterns?

Yes. Plasma cutting can follow programmed contours and is commonly used for customized shapes. Extremely fine details should be evaluated according to material thickness and plasma system capability.

10. What affects the cutting quality?

Material type,material thickness,plasma power,cutting speed,torch height,consumable condition,gas or air quality,and CNC parameter settings can all affect cutting results.

11. Can the machine be customized?

Yes. Options may include plasma power,control system,torch height control,software,cutting table,and other machine configurations.

12. What information should I provide for a quotation?

Provide the material type,material thickness,plate size,required cutting patterns,expected production volume,and preferred plasma power if known. Decorative door drawings or samples are also helpful.
