Built High-Speed Metal Coil Processing Line | Precision Slitting + CTL + Recoiling System

Coil Storage → Coil Loading Trolley → Uncoiling → Lead-in → Precision Leveling → Transition → Centering → Edge Trimming →Transition → Guiding → Rough Leveling → Measurement → Tail Plate Feeding → Fixed-Length Shearing → Conveyor Roller Table → Scrap Thrower → Unloading Device

Integrated Slitting,CTL and Recoiling System

A major advantage of an integrated metal coil processing line is the ability to perform several downstream processing operations from a common coil handling workflow.

Slitting divides a wide master coil into multiple narrower strips. This is useful when customers require different strip widths from the same parent coil.

Cut-to-length (CTL) processes coil material into individual sheets with specified lengths. A CTL section can include straightening,feeding,measuring,and shearing functions depending on the line configuration.

Recoiling rewinds processed strips or sheets into coils for storage,transportation,or subsequent manufacturing operations.

Combining these functions allows a metal service center to process raw coil material into different product formats without relying entirely on separate standalone machines.

Precision Metal Coil Slitting

The slitting section is designed to divide metal coils into multiple strips with controlled widths. Slitting knives are positioned according to the required finished dimensions,and the material passes continuously through the cutting section before being separated and rewound.

Proper knife setup is important for achieving consistent strip widths and stable edge quality. Slitting performance depends on material type,thickness,coil width,knife condition,slitting speed,and machine configuration.

The line can be configured for different conductive metal materials,including carbon steel,stainless steel,galvanized steel,and other suitable coil materials. Material-specific tooling and processing parameters should be confirmed before production.

Cut-To-Length Coil Processing

The CTL section converts continuous coil material into individual sheets with specified lengths. This is particularly useful for customers who purchase sheet material in customized sizes rather than standard master-coil dimensions.

A typical CTL workflow may include coil feeding,leveling,measuring,cutting,and sheet handling. Depending on the design,the system can be equipped with automated controls to coordinate feeding and cutting operations.

Cut-to-length processing is widely used for construction panels,metal fabrication,automotive components,appliance manufacturing,and general sheet metal production.

The actual cutting tolerance depends on material characteristics,leveling performance,feeding accuracy,cutting system,and machine configuration.

Recoiling for Flexible Material Handling

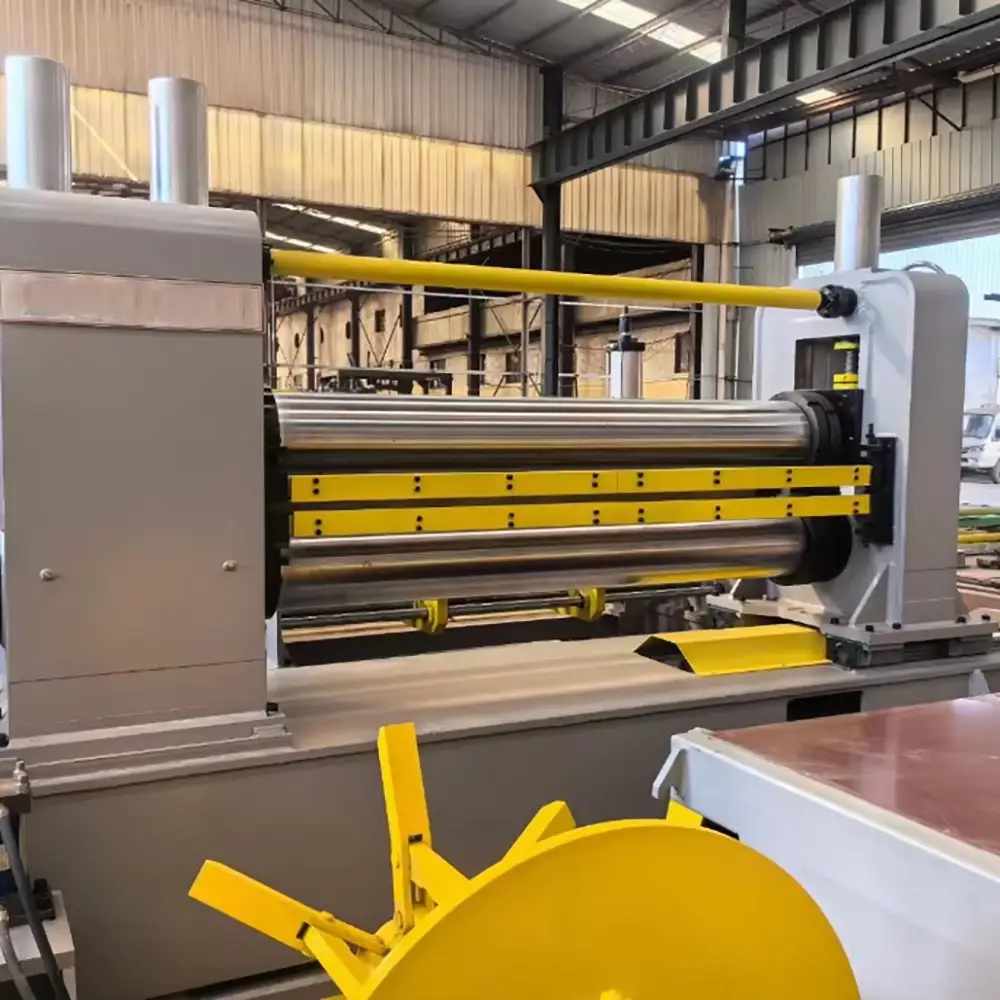

The recoiling section rewinds processed material into a controlled coil. Recoiling is useful when slit strips need to be packaged,stored,transported,or supplied to another manufacturing process in coil form.

A properly controlled recoiling system helps maintain suitable strip tension and coil formation. Different materials and strip widths may require different tension and winding settings.

For narrow slit strips,the recoiling system should be matched to the required strip dimensions and finished coil weight. The final coil quality depends on material characteristics,edge condition,tension control,and machine setup.

High-Speed Production Workflow

The high-speed design is intended to improve productivity when processing repetitive coil orders. Automated coordination between coil feeding,slitting,cutting,and recoiling functions can reduce unnecessary handling and improve overall workflow efficiency.

However,actual production speed should be evaluated according to the material thickness,coil width,coil weight,slitting width,cut length,number of strips,and required finished quality. A higher line speed does not necessarily provide better overall productivity if the material or finished product requires slower processing conditions.

For high-volume applications,the line can be configured with automated feeding,material handling,and control functions to reduce operator intervention.

Suitable Metal Coil Materials

The processing line can be designed for different types of metal coils,subject to machine configuration and tooling requirements. Common applications may include:

Carbon steel coils

Stainless steel coils

Galvanized steel coils

Pre-painted steel coils

Aluminum coils

Other compatible metal materials

Different metals have different mechanical properties and surface characteristics. Stainless steel,aluminum,and coated materials may require specific tooling,knife selection,protective handling,and tension settings.

Customers should provide material grade,thickness,width,coil weight,and surface requirements when selecting the appropriate coil processing configuration.

Industrial Applications

High-speed coil processing systems are widely used in industries where master coils must be converted into customized strips,sheets,or smaller coils.

Typical applications include:

Steel service centers

Metal distribution companies

Automotive component manufacturing

Construction material production

Roofing and wall panel manufacturing

Appliance manufacturing

HVAC component production

Electrical equipment manufacturing

Metal fabrication

General industrial sheet processing

The ability to produce customized coil widths and sheet lengths can help manufacturers respond to different customer orders while improving raw material utilization.

CNC and Automatic Control

Depending on the selected configuration,the line can use PLC and HMI control systems to coordinate feeding,slitting,cutting,recoiling,and other machine functions.

Digital control can make it easier for operators to enter production parameters and monitor machine status. Automated coordination can also improve repeatability during batch production.

For advanced production environments,the coil processing line can be integrated with material handling equipment or other downstream manufacturing systems.

The exact control architecture should be selected according to the required automation level,production volume,and factory workflow.

Material Utilization and Production Efficiency

Efficient coil processing can help manufacturers maximize the value of purchased master coils. Slitting plans can be arranged according to required strip widths,and CTL programs can optimize sheet lengths according to production orders.

Reducing unnecessary trimming and improving material utilization can contribute to lower production waste. Recoiling also allows processed material to be supplied in a format suitable for subsequent forming,rolling,stamping,or fabrication processes.

Actual material savings depend on coil dimensions,product specifications,slitting patterns,trim requirements,and production planning.

Quality Control and Maintenance

Consistent coil processing requires regular inspection of knives,rollers,leveling components,feeding systems,recoiling equipment,and control components.

Slitting knives should be maintained in suitable condition to help achieve consistent strip widths and edge quality. Leveling rollers and feeding components should be checked regularly to prevent unwanted material deformation or feeding errors.

Routine maintenance should follow the manufacturer's recommended schedule. Proper lubrication,cleaning,inspection,and replacement of worn components can support reliable long-term operation.

OEM and Custom Coil Processing Solutions

The metal coil processing line can be customized according to customer requirements. Configuration can be developed around coil width,material thickness,coil weight,finished strip width,cut length,production speed,and required automation.

For OEM and ODM projects,customers can provide coil specifications,finished product dimensions,production capacity targets,and factory layout information. These details help determine the appropriate equipment combination.

Whether the requirement is a dedicated slitting line,a CTL line,a recoiling system,or an integrated multi-function coil processing line,the equipment can be configured according to the intended production workflow.

Why Choose Us

Integrated Coil Processing Solution
Slitting,cut-to-length,and recoiling functions can be combined into one coordinated production workflow.

High-Speed Processing Capability
The line can be configured for high-throughput coil processing according to material and production requirements.

Precision Slitting
Controlled knife positioning supports accurate strip-width processing for customized coil orders.

Flexible CTL Production
Coil material can be processed into individual sheets with customized lengths according to production requirements.

Efficient Recoiling
Processed strips can be rewound into organized coils for storage,transportation,or downstream processing.

Customized Configuration
Coil dimensions,material type,processing capacity,automation,and line functions can be configured for specific applications.

Industrial B2B Supply
The system is suitable for steel service centers,metal distributors,fabricators,and industrial manufacturers.

OEM and ODM Support
We can develop coil processing solutions based on customer material specifications,finished products,and production workflow.

FAQs

1. What does a metal coil processing line do?

A metal coil processing line converts master coils into finished strips,sheets,or recoiled products through processes such as slitting,cut-to-length,and recoiling.

2. What is coil slitting?

Coil slitting is the process of cutting a wide master coil longitudinally into multiple narrower strips using circular slitting knives.

3. What does CTL mean?

CTL means Cut-To-Length. It converts continuous coil material into individual sheets with predetermined lengths.

4. What is recoiling?

Recoiling rewinds processed metal strips into new coils for storage,transportation,or subsequent manufacturing processes.

5. What materials can this line process?

Depending on configuration,the line can process carbon steel,stainless steel,galvanized steel,pre-painted steel,aluminum,and other suitable metal coils.

6. Can the line combine slitting and CTL?

Yes. The equipment can be configured as an integrated system or as dedicated sections according to the customer's production requirements.

7. Is the coil processing line fully automatic?

Automation level depends on the configuration. PLC control,automatic feeding,material handling,and coordinated processing functions can be included for higher levels of automation.

8. How is slitting accuracy controlled?

Slitting accuracy depends on knife setup,material properties,coil condition,machine rigidity,and control of the slitting system. Proper knife positioning and maintenance are important.

9. Can different strip widths be produced?

Yes. Multiple strip widths can be produced by adjusting the slitting knife arrangement according to the required finished dimensions.

10. What determines the production speed?

Production speed depends on material thickness,coil width,coil weight,slitting configuration,cut length,number of strips,and required processing quality.

11. Can the line be customized?

Yes. Coil width,thickness,weight,finished strip dimensions,CTL length,production speed,automation,and handling systems can be customized.

12. What information is needed for a complete quotation?

Provide the material type and grade,coil thickness,coil width,maximum coil weight,finished strip widths,CTL sheet length,required production capacity,and preferred automation level. A factory layout is also helpful for complete line planning.
