Multifunction Small Steel Flat Sheet Polishing Sanding Machine / Steel Sheet Sander Polishing Grinding Buffing Machine

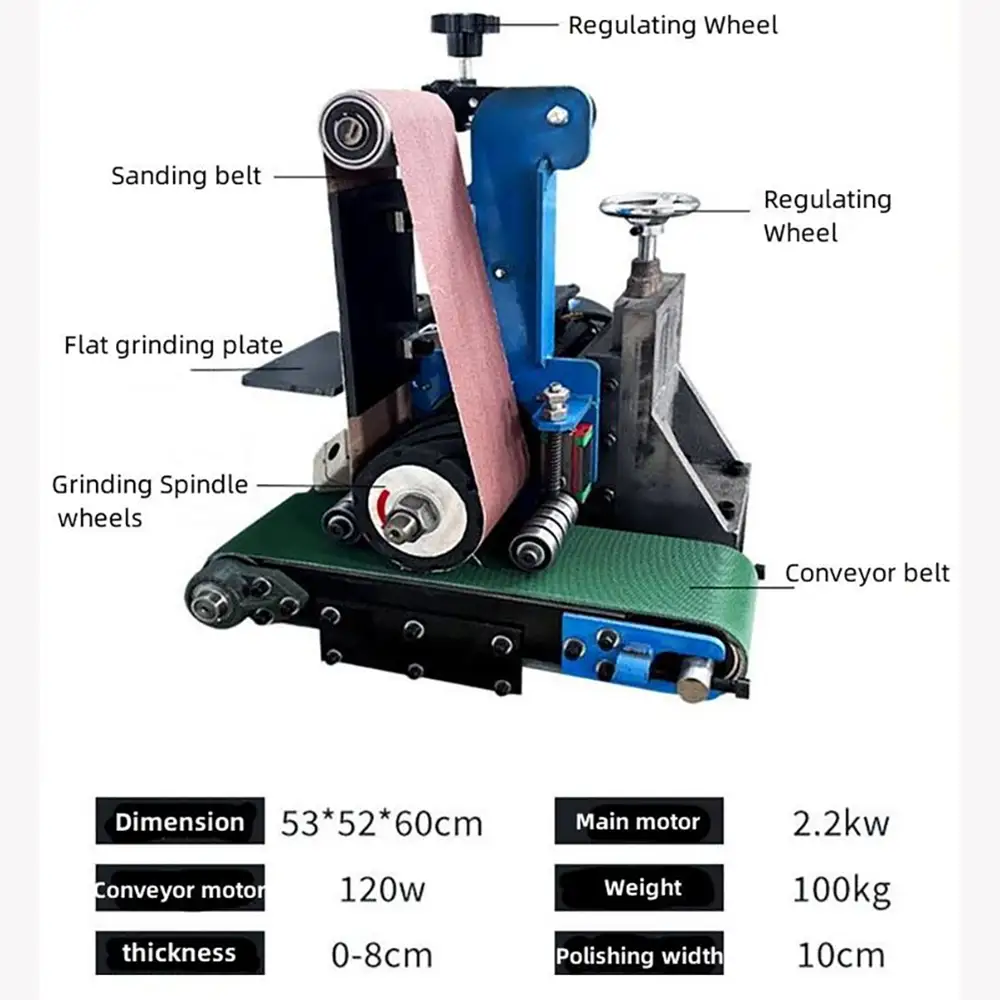

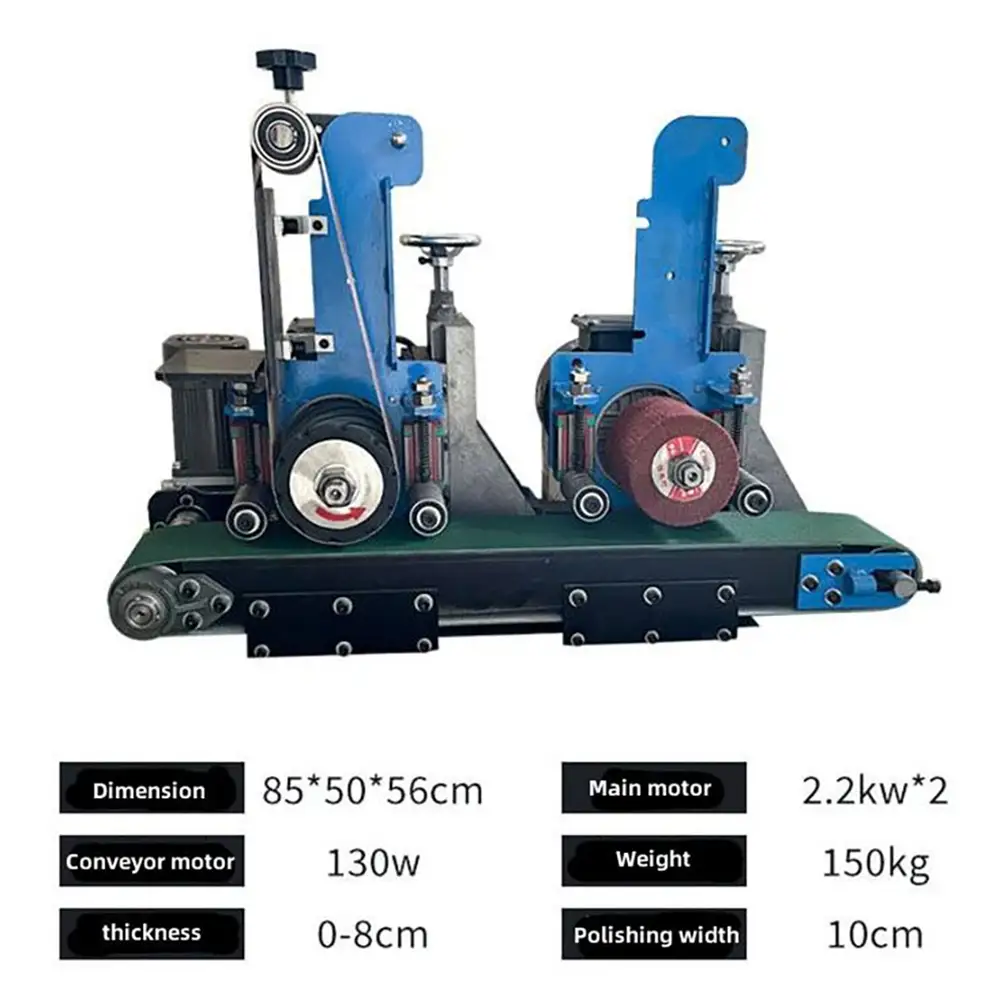

Model	100 type flat sanding polishing machine	100 type double shaft flat sanding polishing machine
Max. Sanding width	100mm	100mm
MIn. Sanding length	180mm	180mm
Sanding thickness	0.2~80mm	0.2~80mm
Sanding motor power	2.2kw	2.2KW*2
Feeding motor power	120W	120W
Sanding belt	915*100mm	915*100mm
Main grinding wheel	25mm*120mm*100mm	25mm*120mm*100mm
Dimension	530*520*600mm	850*520*600mm
Weight	100kg	150kg
Application: Stainless steel grinding and wire drawing, aluminum plate grinding, sheet metal deburring, hardware processing parts surface grinding and wire drawing.

Multifunction Steel Flat Sheet Polishing, Sanding and Grinding Machine

The Multifunction Small Steel Flat Sheet Polishing Sanding Machine / Steel Sheet Sander Polishing Grinding Buffing Machine is a compact and versatile metal surface finishing solution designed for sanding, grinding, polishing, buffing, deburring, and surface preparation of flat steel sheets, metal plates, and other compatible sheet materials.

Flat metal sheets can develop scratches, burrs, oxidation, weld marks, machining imperfections, and rough edges during cutting, fabrication, handling, and storage. These imperfections may affect the appearance, surface quality, coating adhesion, and subsequent processing of the material.

This machine provides a more controlled mechanical alternative to manual sanding and polishing. With suitable abrasive belts, grinding tools, brushes, or polishing materials, it can perform different stages of metal surface treatment according to the material and desired finish.

Its small and multifunctional design makes it particularly suitable for workshops, fabrication businesses, small production lines, maintenance operations, and manufacturers that need flexible sheet metal finishing equipment without using a large industrial production system.

Designed for Flat Steel Sheet Processing

The machine is primarily designed for flat sheet and plate materials. It provides a stable processing method for surfaces that require grinding, sanding, polishing, or buffing.

Typical workpieces may include:

Steel sheets
Stainless steel sheets
Steel plates
Stainless steel plates
Aluminum sheets
Metal panels
Fabricated sheet metal
Flat metal components
Welded sheet metal parts

The actual material range depends on the machine configuration and abrasive system.

By using suitable abrasive materials, manufacturers can select different processing intensities for rough grinding, intermediate sanding, fine finishing, or polishing.

Efficient Steel Sheet Sanding

Sanding is often required to remove surface imperfections and prepare metal sheets for further processing. The machine can use abrasive belts or other compatible sanding tools to create a more uniform surface.

Coarse abrasives can be used for stronger material removal, while medium and fine abrasives can gradually improve the surface texture.

For stainless steel sheets, sanding can also be used to create a brushed or satin appearance when the appropriate abrasive grade and processing direction are selected.

Steel Sheet Grinding

Grinding is useful when the workpiece contains heavier surface imperfections, weld marks, oxidation, burrs, or uneven areas.

The grinding stage can remove unwanted material and prepare the surface for subsequent sanding or polishing. For fabricated steel sheets, this can be particularly useful around welded areas where the surface may contain excess weld material or visible grinding marks.

A controlled grinding process can help reduce the amount of manual finishing required by operators.

Metal Sheet Polishing

After grinding and sanding, finer abrasives or polishing tools can be used to improve the surface appearance.

Polishing can produce a smoother and more reflective surface on suitable metals. For stainless steel and other decorative metal applications, polishing is often used when the final product requires an attractive visual finish.

The final polish depends on the metal grade, initial surface condition, abrasive sequence, processing pressure, speed, and finishing materials.

Buffing for Final Surface Finishing

Buffing is generally used as a fine finishing operation after grinding or polishing preparation.

Suitable buffing wheels, compounds, or other finishing materials can be selected according to the desired surface result and machine configuration.

For decorative metal products, buffing can help improve surface smoothness and brightness after the earlier grinding and sanding stages.

A multi-stage process is often more effective than attempting to achieve the final finish using only one abrasive operation.

Deburring Sheet Metal

Cutting and shearing operations can leave sharp edges and burrs on sheet metal. These burrs can create handling problems and may interfere with assembly, coating, painting, or other downstream processes.

A suitable deburring setup can help smooth sharp edges and remove unwanted burrs from compatible flat metal components.

For precision parts, the deburring parameters should be carefully controlled to avoid excessive material removal or unwanted changes to the workpiece dimensions.

Multifunctional Finishing Capability

The major benefit of a multifunction metal finishing machine is its ability to support several related operations.

Depending on its configuration, the machine may be used for:

Rough grinding
Surface sanding
Fine sanding
Deburring
Edge smoothing
Surface polishing
Buffing
Weld mark removal
Oxide removal
Surface preparation
Brushing
General metal finishing

This allows manufacturers to select the finishing process according to the specific condition of the workpiece.

Stainless Steel Sheet Applications

Stainless steel sheet is commonly used in kitchen equipment, food processing equipment, architectural products, elevators, furniture, decorative panels, machinery covers, and industrial components.

Surface appearance is especially important for stainless steel products because scratches, inconsistent sanding patterns, and polishing marks can remain visible on the finished component.

The machine can be used with suitable abrasives to prepare and finish stainless steel surfaces.

For brushed stainless steel applications, abrasive belts or brushes can create a consistent directional texture when the process parameters are properly established.

Steel Plate Surface Preparation

Steel plates may require grinding and sanding before painting, powder coating, welding, plating, or other treatments.

Removing rust, scale, burrs, and surface imperfections can help prepare the material for subsequent manufacturing operations.

The machine can serve as a surface preparation step in a broader steel fabrication workflow.

For heavily rusted or scaled steel, additional pretreatment may be required depending on the condition of the material.

Compact Design for Small Workshops

Large sheet metal finishing lines can require significant floor space and investment. A smaller multifunction machine can provide an alternative for businesses with lower production volumes or limited workshop space.

It can be suitable for prototype production, small-batch manufacturing, repair operations, custom fabrication, and general metalworking.

The compact format can also make the machine easier to integrate into an existing workshop workflow.

Flexible Abrasive Selection

Abrasive selection is one of the most important factors in metal sheet finishing.

Coarse abrasives can be used for aggressive grinding and weld mark removal. Medium abrasives can smooth the surface after initial grinding. Fine abrasives can prepare the workpiece for polishing, while suitable polishing materials can be used for final finishing.

Different metal materials require different abrasive choices. Aluminum, stainless steel, carbon steel, and other metals should be processed with appropriate tooling and parameters.

Testing the actual material before mass production is recommended to establish the correct abrasive sequence.

Consistent Surface Quality

Manual sanding and polishing depend heavily on operator skill and technique. Variations in pressure, movement, processing time, and abrasive condition can lead to inconsistent results.

Mechanical processing can provide a more standardized finishing method. Once the appropriate machine settings and abrasive sequence have been established, repeated sheets can be processed using a consistent procedure.

This can be valuable for manufacturers producing standardized components or supplying OEM customers.

Applications in Metal Fabrication

The machine can be integrated into many sheet metal fabrication processes.

Typical applications include:

Stainless steel fabrication
Steel plate fabrication
Kitchen equipment manufacturing
Metal furniture production
Architectural metalwork
Machinery enclosure manufacturing
Automotive components
Metal cabinets
Decorative metal panels
General sheet metal processing

For example, a steel sheet may first be cut, welded, ground, sanded, polished, cleaned, inspected, and then sent to assembly or coating.

The machine can help automate or standardize the grinding and surface finishing stages.

Weld Mark Grinding

Fabricated sheet metal often requires welding, especially for frames, enclosures, tanks, furniture, and structural components.

Welded areas may have excess material and uneven surface texture. Grinding can reduce these areas and prepare the workpiece for further sanding or polishing.

Using progressively finer abrasives after weld grinding can help reduce visible grinding marks and create a smoother final surface.

Production Efficiency

A mechanical sheet polishing and grinding machine can reduce repetitive manual work and improve workflow efficiency.

Instead of using handheld sanders for every sheet, operators can use a dedicated finishing machine for standardized processing.

The actual production speed depends on sheet size, material, thickness, surface condition, abrasive type, required finish, and machine configuration.

Quality Control and Process Repeatability

For B2B manufacturers, repeatability is often as important as processing speed. A consistent finishing process can make it easier to maintain product appearance across multiple production batches.

Manufacturers can establish standard operating procedures based on abrasive type, processing speed, pressure, number of passes, and finishing sequence.

This can help create a more predictable surface finishing process and simplify quality inspection.

Why Choose Us
1. Multifunctional Metal Finishing

The machine can support grinding, sanding, polishing, buffing, deburring, and other surface finishing operations.

2. Designed for Flat Metal Sheets

It is suitable for processing compatible steel sheets, stainless steel plates, aluminum sheets, and other flat metal workpieces.

3. Compact Industrial Solution

The smaller machine format is suitable for workshops, small production lines, fabrication companies, and businesses with limited floor space.

4. Flexible Abrasive Options

Different abrasive grades and finishing tools can be selected for rough grinding, fine sanding, brushing, and polishing.

5. Improved Surface Consistency

Mechanical processing can help reduce variation caused by completely manual sanding and polishing.

6. Weld Mark Removal

Suitable grinding and sanding tools can help remove weld marks, rough areas, and fabrication imperfections.

7. Deburring Capability

The machine can be configured for suitable sheet metal deburring and edge smoothing applications.

8. Wide Range of Applications

It can be used in stainless steel fabrication, metal furniture, kitchen equipment, architectural metalwork, machinery manufacturing, and general fabrication.

9. Custom Configuration

Machine specifications and finishing tools can be selected according to material, sheet dimensions, thickness, surface condition, and required finish.

10. B2B Export Support

We provide technical communication, machine configuration assistance, application guidance, and international B2B service.

Frequently Asked Questions
1. What materials can this machine process?

It can be configured for stainless steel, carbon steel, mild steel, aluminum, and other compatible flat metal materials.

2. Can it polish stainless steel sheets?

Yes. With suitable abrasive and polishing tools, the machine can be used for stainless steel sheet sanding, polishing, brushing, and surface finishing.

3. Can it remove rust from steel sheets?

Yes. Suitable grinding and abrasive tools can remove light to moderate rust, oxidation, and surface contamination. Heavily corroded material may require additional pretreatment.

4. Can it remove welding marks?

Yes. Grinding and sanding operations can help remove weld marks, excess weld material, discoloration, and uneven areas before final polishing.

5. Can it perform both grinding and polishing?

Yes. The machine can support multiple finishing stages depending on the configuration and selected abrasive tools.

6. What is the difference between sanding and polishing?

Sanding generally uses abrasive materials to remove imperfections and refine the surface. Polishing uses finer abrasives or polishing materials to produce a smoother or brighter finish.

7. Can it perform buffing?

Yes, when configured with suitable buffing tools and materials. Buffing is generally used as a fine finishing stage after grinding or sanding.

8. Can aluminum sheets be processed?

Potentially, yes. Aluminum requires suitable abrasives and processing parameters to avoid excessive loading or unwanted surface defects.

9. Is the machine suitable for small workshops?

Yes. A compact multifunction machine can be useful for small fabrication shops, custom manufacturers, repair facilities, and low- to medium-volume production.

10. What sheet thickness can it process?

The applicable thickness range depends on the machine model and configuration. Sheet dimensions and thickness should be confirmed before selecting the equipment.

11. What surface finishes can be achieved?

Depending on the tooling and abrasive sequence, the machine can produce ground, sanded, brushed, satin, smooth, or polished surfaces.

12. How do I choose the right abrasive?

Abrasive selection depends on the metal type, surface condition, required material removal, and desired final finish. A sample test is recommended for production applications.

13. Can the machine be customized?

Depending on the application, machine configuration, working width, abrasive system, and finishing tools may be customized to meet specific production requirements.
