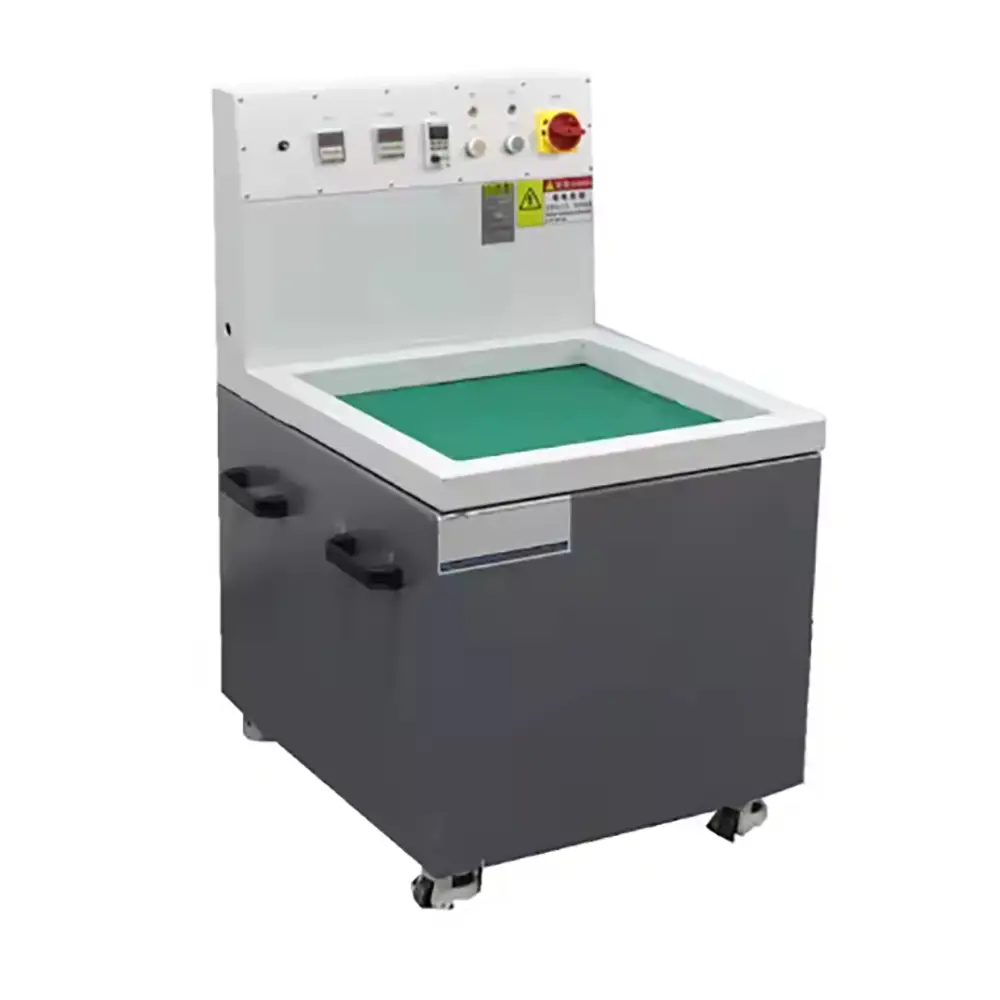

Automatic Magnetic Grinding Machine for Hardware CNC Parts Springs Burr Removal & Polishing

Magnetic grinding machine features:

1. Light iron metal and other precision parts finished products, remove the metal workpiece burrs, chamfering, burrs, polishing,cleaning and other precision grinding work completed in one go
2. Irregular-shaped metal parts, holes, tubes, dead ends, seams, etc. can be ground and processed
3. Magnetic polishing and cleaning speed, simple and safe operation, low cost
4. The finished polishing and grinding workpiece is not deformed, does not affect the accuracy
5.  magnetic polishing machine machine type complete, can design custom polishing equipment.
Suitable for industry products:
1. Precision hardware stamping parts
2. Stainless steel parts, 304 stainless steel screws and nuts.
3. Magnesium and aluminum die-casting parts
4. Zinc and aluminum die-casting parts
5. Precision spring, shrapnel parts
6. Electronic, computer, communication parts
7. Centering, tooling, CNC automatic lathe parts

item	value
power (kw)	2.2
weight (kg)	168
warranty	1 Year
function	remove burrs, chamfering, polishing,grinding
Usage	Metal Surface Polishing
Application	Deburring Polishing Chamfer Rust Removal
Voltage	380V
Size	640*520*1088MM
weight	168kg
max capacity	8-10kg
After-sales Service Provided	1 year

Automatic Magnetic Grinding Machine for Hardware CNC Parts Springs Burr Removal & Polishing

The Automatic Magnetic Grinding Machine for Hardware CNC Parts Springs Burr Removal & Polishing is a precision metal finishing machine designed for efficient deburring, grinding, edge smoothing, and polishing of small and complex metal components. Using magnetic finishing technology, the machine can process areas that are difficult to reach with conventional grinding tools, making it especially suitable for CNC machined parts, hardware, springs, precision fittings, and other small metal components.

After CNC machining, turning, milling, drilling, stamping, cutting, or forming, metal components may have burrs, sharp edges, machining marks, or surface imperfections. Removing these unwanted features manually can require significant labor and may produce inconsistent results. An automatic magnetic grinding machine provides a repeatable batch finishing process that helps manufacturers improve production efficiency and achieve more consistent surface treatment.

The machine uses fine magnetic finishing media that is driven by a magnetic field. The media moves around the workpieces and reaches edges, holes, grooves, corners, and other difficult-to-access areas. This makes magnetic finishing particularly useful for precision components with complicated geometries.

Automatic Magnetic Grinding and Finishing

The automatic operating system allows the machine to perform a preset finishing cycle with reduced manual intervention. Operators can load the workpieces, add suitable magnetic media, set the processing parameters, and start the finishing cycle.

Depending on the configuration, the machine may provide functions such as:

Automatic Processing Cycle
Processing Time Setting
Speed Adjustment
Forward and Reverse Rotation
Digital Control
Emergency Stop
Automatic Finishing Operation

The actual control functions depend on the machine model and configuration.

Automatic operation is particularly useful for manufacturers processing large quantities of similar hardware or CNC components. Once a suitable processing recipe has been established, the same process can be repeated for subsequent batches.

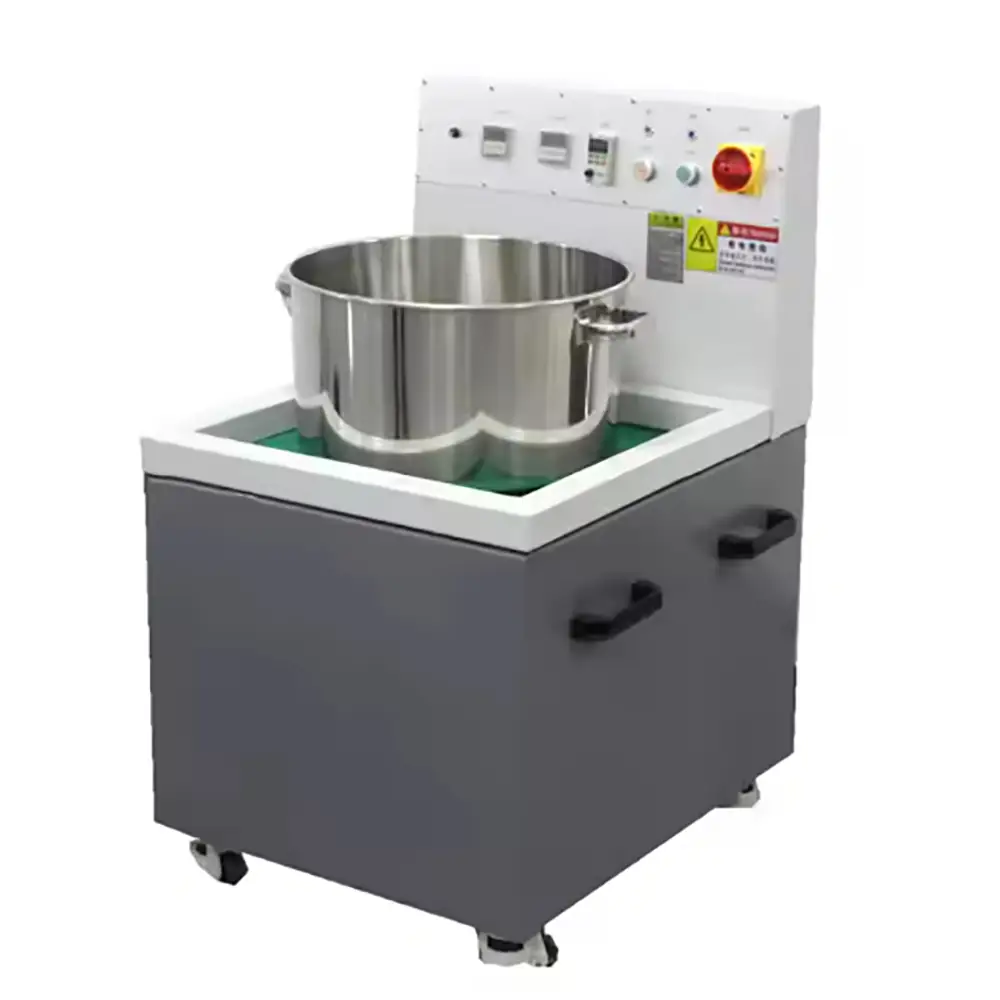

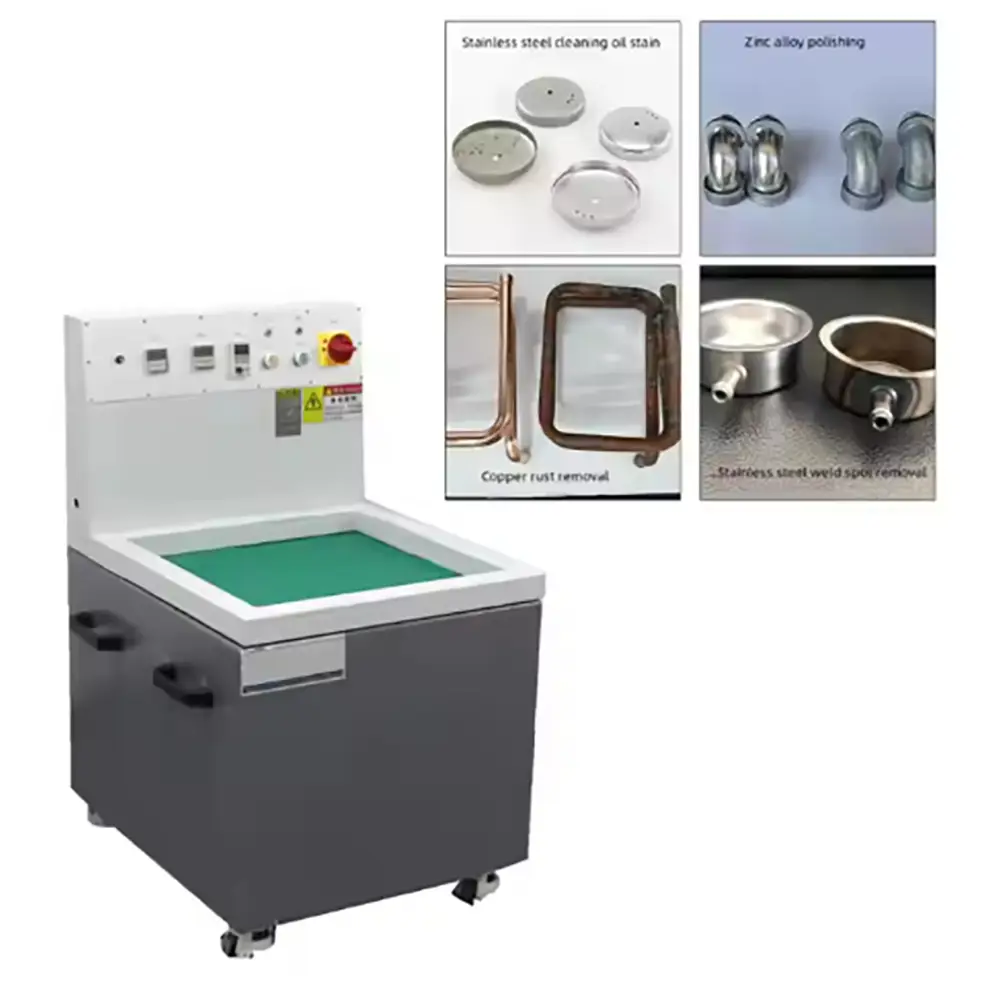

Magnetic Deburring for CNC Parts

CNC machining can leave small burrs around drilled holes, milled edges, slots, threads, and intersections. These burrs can interfere with assembly and may affect the appearance or handling characteristics of finished components.

The Magnetic Deburring Machine uses very small finishing pins or other magnetic media to reach these areas and remove unwanted burrs.

Because the finishing media is relatively small, it can access features that may be difficult to reach with conventional abrasive wheels or manual tools.

This makes magnetic finishing suitable for:

CNC Machined Parts
Turned Components
Precision Hardware
Small Mechanical Parts
Threaded Components
Fittings
Connectors
Small Shafts
Precision Fasteners

The actual achievable result depends on the workpiece geometry, burr size, material, and process parameters.

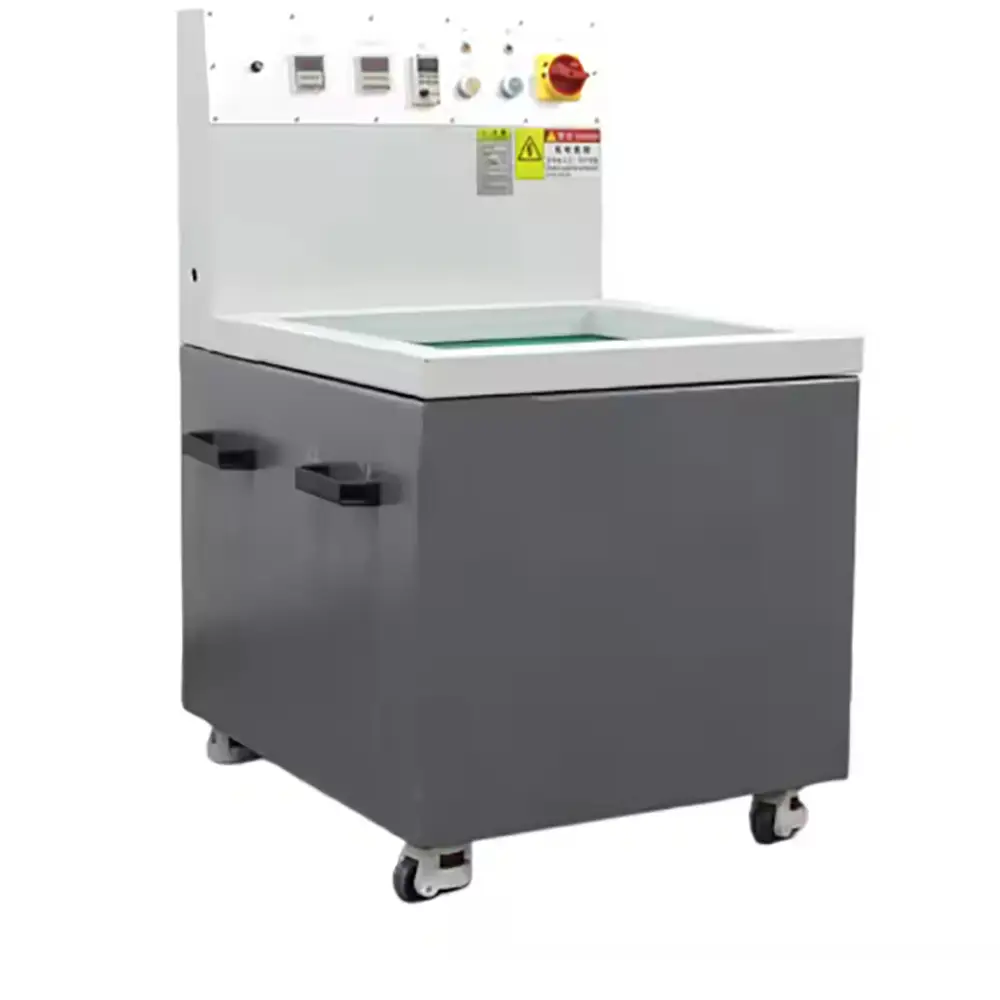

Spring Deburring and Polishing

Springs and other wire-formed components often have complicated shapes that make manual deburring difficult. Sharp edges, cutting marks, and surface imperfections may remain after forming or cutting.

The Automatic Magnetic Grinding Machine can be configured to process appropriately sized springs and similar components. Fine magnetic media can move around the workpiece and contact areas that are difficult to reach using conventional polishing equipment.

This can help remove small burrs and improve the overall surface condition of suitable springs.

For delicate springs, the finishing media and processing time should be carefully selected to avoid unnecessary deformation or surface damage.

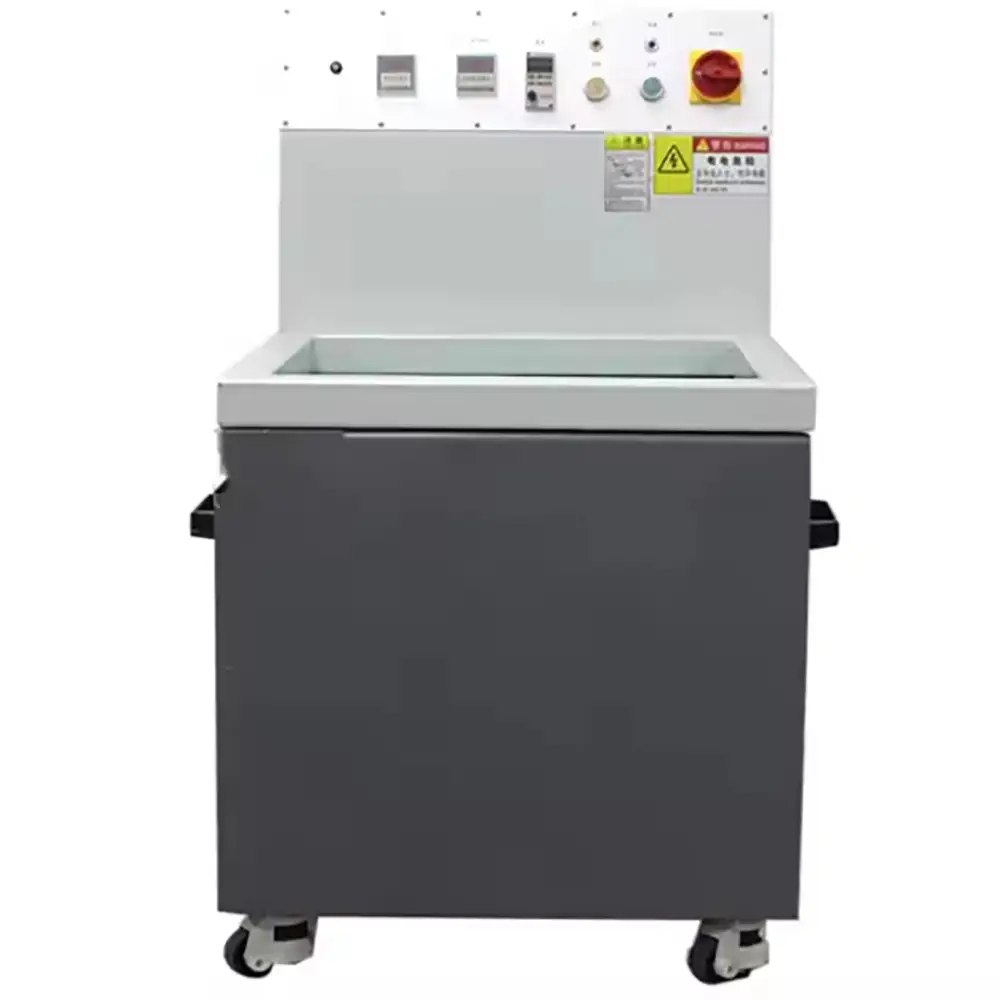

Small Hardware Finishing

Small hardware components are another important application for magnetic finishing technology.

Products such as screws, nuts, washers, pins, connectors, fittings, clips, and other small metal components can be processed in batches. The magnetic finishing process can help remove burrs, smooth sharp edges, clean surfaces, and improve appearance.

Instead of manually polishing individual components, operators can process multiple parts in one cycle. This can reduce repetitive labor and improve production consistency.

Precision Magnetic Grinding

The machine is designed for controlled finishing rather than aggressive material removal. Fine magnetic media performs repeated contact with the surface of the workpiece, gradually smoothing small burrs and imperfections.

This makes the process suitable for precision components where maintaining the original geometry is important.

Magnetic grinding can be particularly useful for parts containing:

Small Holes
Narrow Slots
Internal Edges
Recessed Areas
Fine Grooves
Small Corners
Complex Profiles
Multiple Sharp Edges

The final result depends on the machine settings, media, workpiece geometry, and required finish.

Magnetic Polishing

After burr removal, magnetic finishing can also improve the surface appearance of suitable metal components.

By using finer magnetic media and appropriate processing conditions, the machine can produce a smoother and more uniform surface. This is useful for hardware components that require improved appearance before assembly, plating, coating, or packaging.

Suitable materials may include:

Stainless Steel
Carbon Steel
Mild Steel
Aluminum
Copper
Brass
Zinc
Other Compatible Metals

Material compatibility should be evaluated together with the workpiece geometry and finishing requirements.

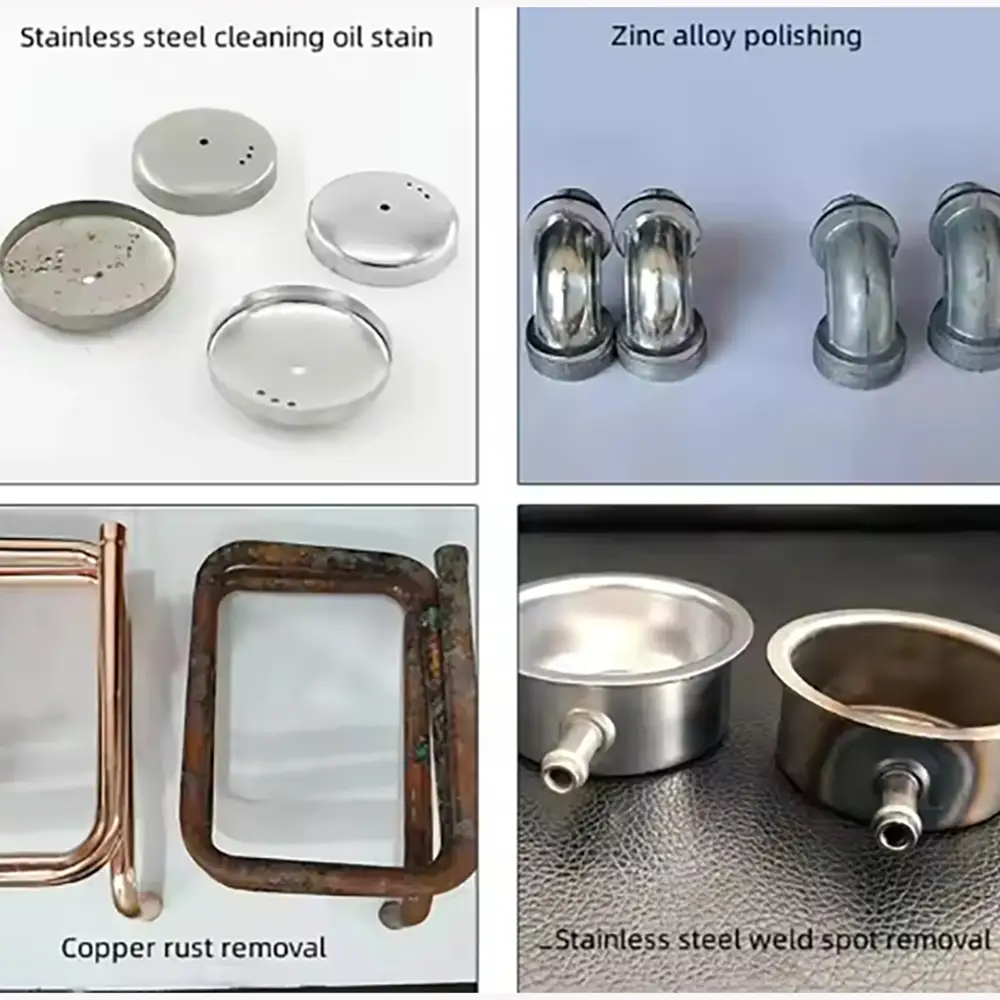

One Machine for Multiple Finishing Functions

The equipment can provide several surface treatment functions depending on the selected media and processing parameters.

These may include:

Deburring: Removes small burrs created during machining and manufacturing.

Grinding: Helps smooth minor surface imperfections and machining marks.

Chamfering: Helps soften sharp edges through controlled abrasive contact.

Polishing: Improves surface smoothness and appearance.

Cleaning: Helps remove loose particles and processing residue.

This multifunctional capability makes the machine suitable for manufacturers looking to consolidate several manual finishing steps into a more efficient automated process.

Batch Processing

Magnetic finishing is well suited to batch processing. Multiple small components can be placed into the machine at the same time and processed during a programmed cycle.

A typical workflow is:

Part Loading → Magnetic Media Loading → Parameter Setting → Automatic Grinding → Deburring → Polishing → Media Separation → Cleaning → Inspection

The processing time varies according to the part material, burr condition, geometry, media type, and desired finish.

Manufacturers can establish different finishing recipes for different components to improve process repeatability.

Suitable Applications

The Automatic Magnetic Grinding Machine can be used in many industries, including:

CNC Machining

For removing burrs and improving the surface condition of precision machined components.

Hardware Manufacturing

For batch finishing of small metal hardware, fittings, fasteners, and connectors.

Spring Manufacturing

For deburring and surface finishing of appropriately sized springs and wire-formed components.

Automotive Components

For suitable small precision components used in automotive assemblies.

Electronics Hardware

For small metal connectors, terminals, brackets, and other precision components.

Machinery Components

For small shafts, pins, fittings, gears, and other machined parts.

Jewelry and Decorative Hardware

For appropriate small metal components requiring detailed polishing and edge finishing.

Customized Magnetic Finishing Solutions

Different parts require different processing conditions. We can provide customized machine configurations according to the customer's workpiece requirements.

Before selecting the machine, customers should provide:

Workpiece Material
Part Dimensions
Part Weight
Part Geometry
Burr Size
Hole Diameter
Required Edge Condition
Required Surface Finish
Batch Quantity
Production Capacity
Desired Processing Time

CAD drawings, product photographs, videos, and physical samples can help engineers evaluate the application and recommend suitable magnetic media and machine settings.

Why Choose Us?
Automatic Finishing Process

The automatic operating system reduces repetitive manual work and supports consistent batch production.

Precision Burr Removal

Fine magnetic finishing media can reach small edges, holes, grooves, and complex areas of suitable workpieces.

Suitable for CNC Parts and Hardware

The machine is designed for small precision components, hardware, springs, fittings, and other metal parts.

Multiple Functions

One machine can support deburring, grinding, chamfering, polishing, and cleaning depending on the selected process.

Batch Production

Multiple small components can be processed simultaneously, making the machine suitable for repetitive industrial production.

Flexible Media Selection

Different magnetic pins and finishing media can be selected according to the part material, geometry, burr condition, and desired finish.

Customized Configuration

Machine capacity, operating system, finishing parameters, and accessories can be customized according to customer requirements.

OEM & Export Support

We provide complete B2B machine solutions, including technical consultation, customized manufacturing, machine testing, export packaging, and international shipping support.

Frequently Asked Questions
1. What is an automatic magnetic grinding machine?

It is a metal finishing machine that uses a magnetic field to move fine magnetic media around small workpieces. The process can remove burrs, smooth edges, grind surfaces, and polish suitable metal components.

2. Can it deburr CNC machined parts?

Yes. CNC components are one of the common applications. Magnetic finishing can reach many small edges, holes, grooves, and intersections where burrs may remain.

3. Can it process springs?

Yes. Appropriately sized metal springs can be processed using suitable magnetic media and carefully selected finishing parameters.

4. What types of metal can be processed?

Depending on the machine configuration, suitable materials may include stainless steel, carbon steel, mild steel, aluminum, copper, brass, zinc, and other compatible metals.

5. Can it polish hardware parts?

Yes. The machine can be used to deburr, smooth, clean, and polish many types of small hardware components.

6. Can it remove burrs from small holes?

Yes. Fine magnetic media can enter many small holes and narrow areas, making magnetic finishing suitable for detailed deburring applications.

7. Will magnetic grinding change the dimensions of precision parts?

The process is generally intended for fine surface finishing rather than heavy material removal. Proper media selection and processing parameters are important when dimensional tolerances are critical.

8. How long does one finishing cycle take?

Cycle time depends on the workpiece material, part geometry, burr condition, media, batch size, and desired surface finish. Testing is recommended for precise cycle-time determination.

9. Can different parts be processed using the same machine?

Yes, provided their dimensions and finishing requirements are compatible. Different processing recipes and media configurations can be used for different part types.

10. What information is needed for a machine quotation?

Please provide the material, part dimensions, weight, drawing or photos, burr condition, hole size, required surface finish, batch quantity, and expected production capacity.
