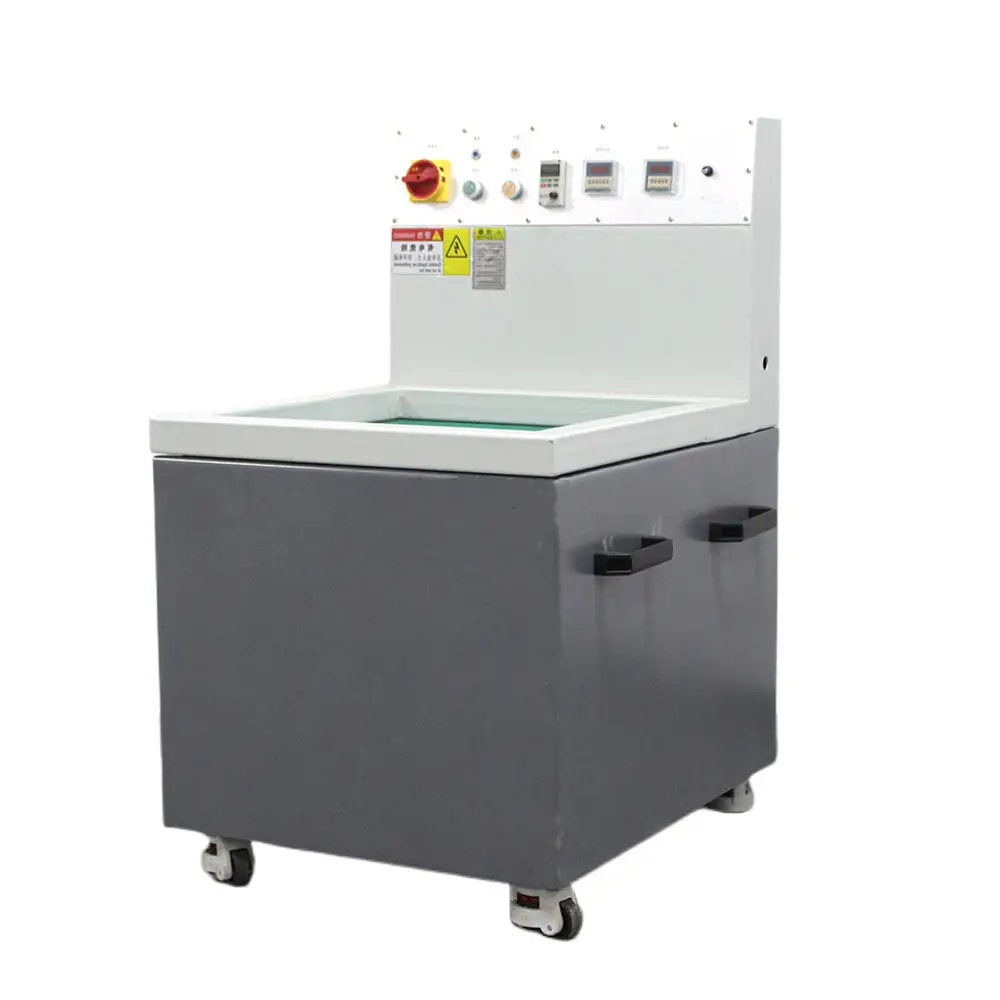

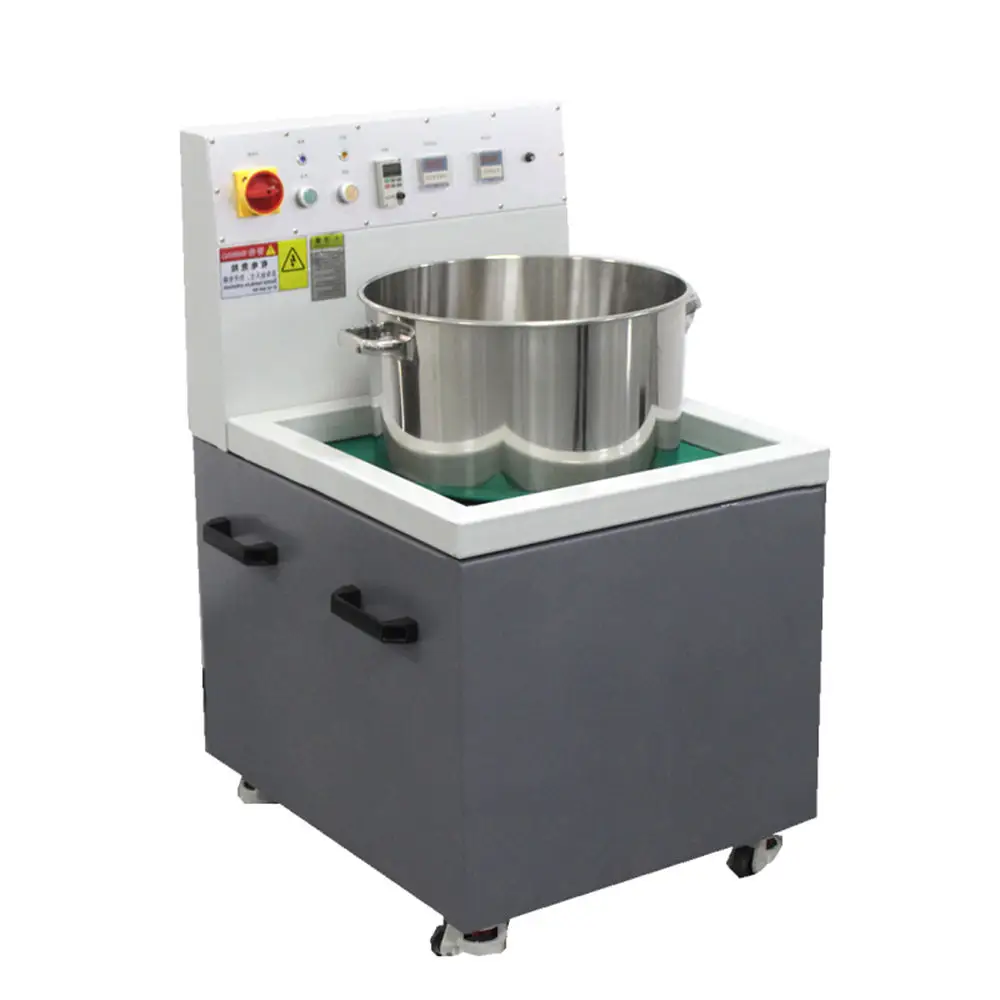

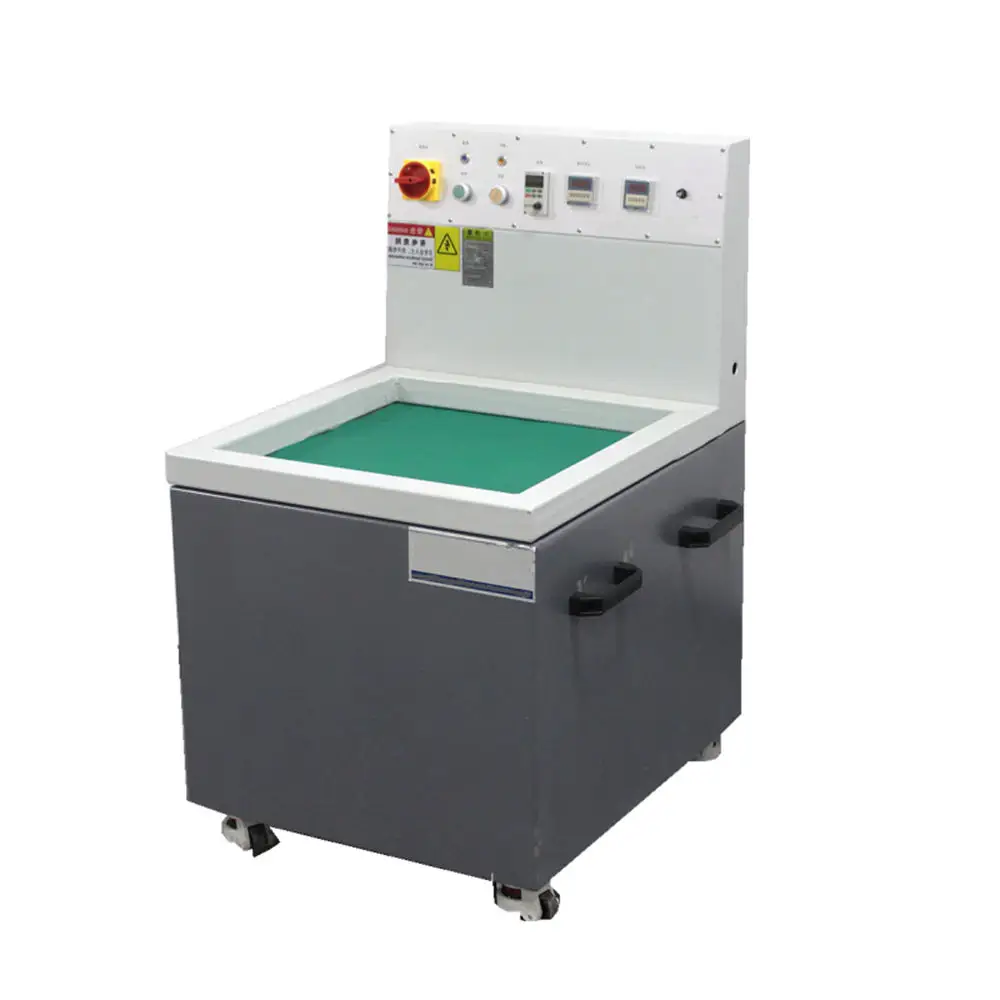

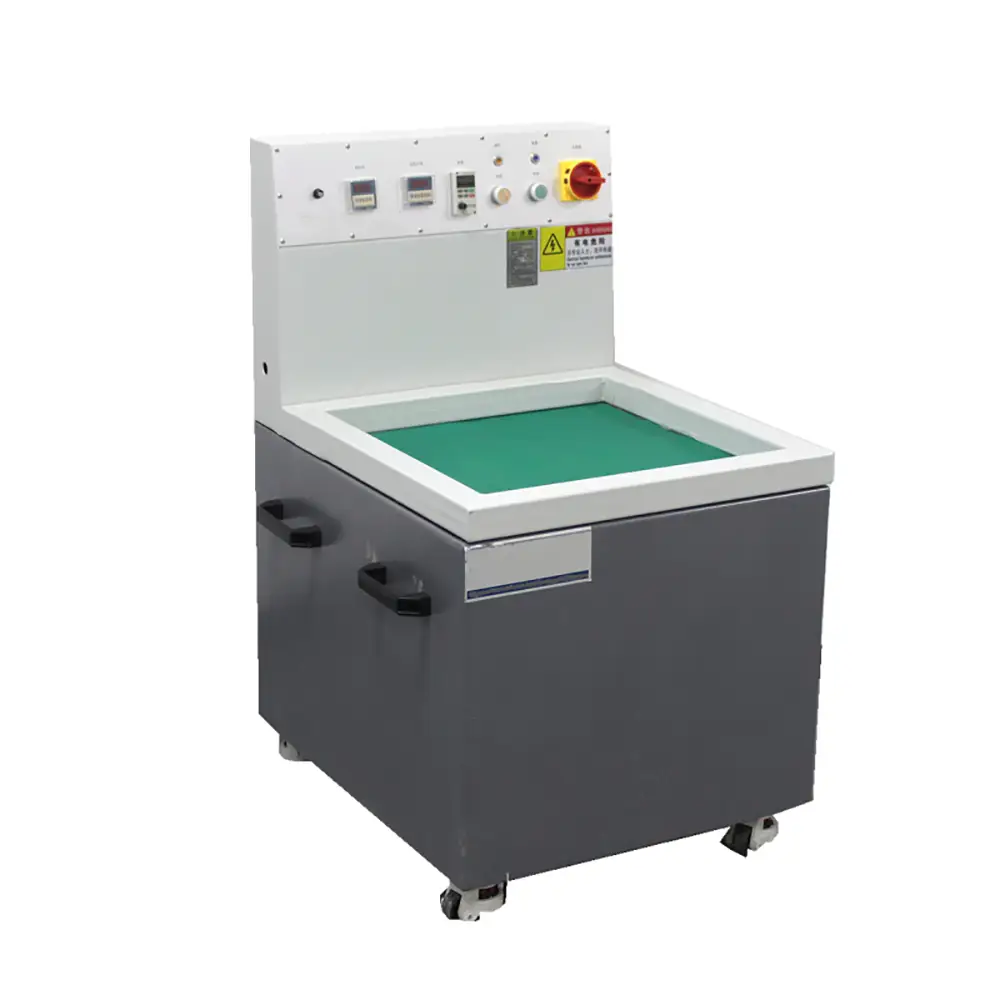

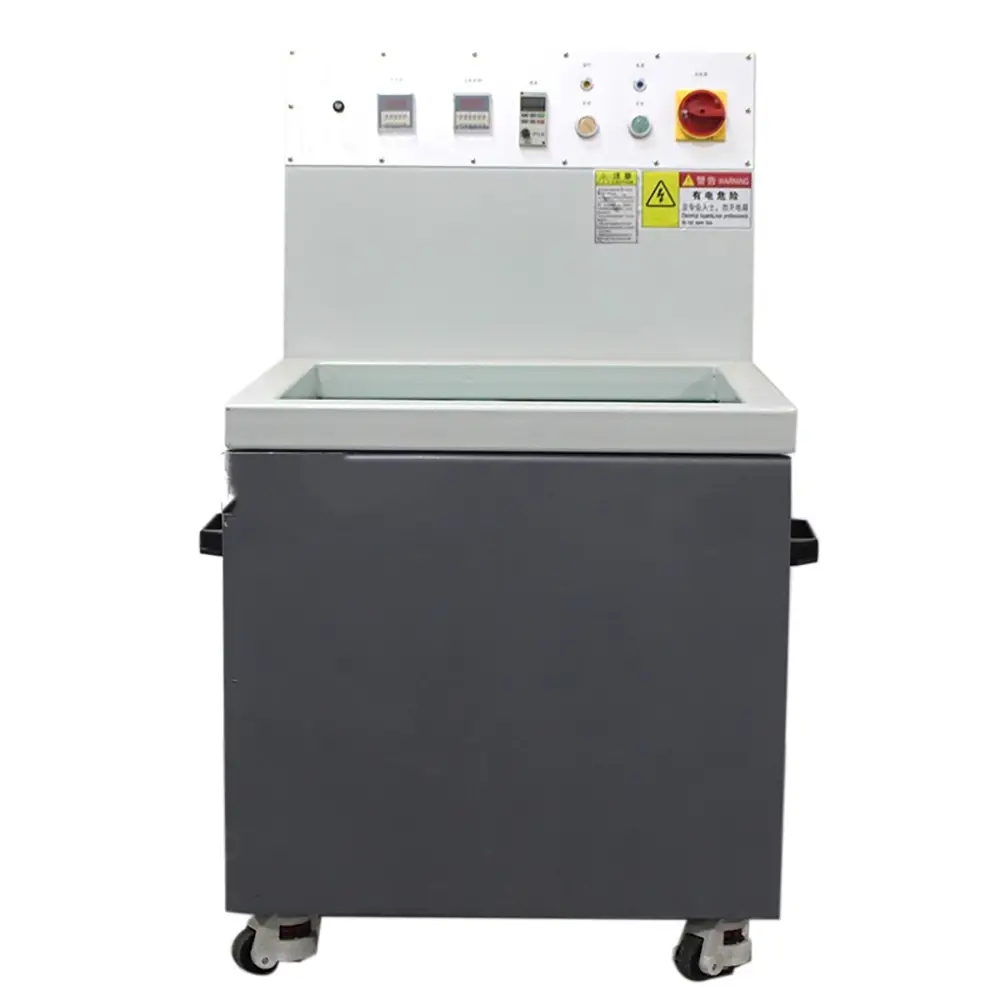

High Precision Magnetic Deburring Machine for Metal Parts Chamfering Polishing Cleaning in One Step

Magnetic grinding machine features:

1. Light iron metal and other precision parts finished products, remove the metal workpiece burrs, chamfering, burrs, polishing,cleaning and other precision grinding work completed in one go
2. Irregular-shaped metal parts, holes, tubes, dead ends, seams, etc. can be ground and processed
3. Magnetic polishing and cleaning speed, simple and safe operation, low cost
4. The finished polishing and grinding workpiece is not deformed, does not affect the accuracy
5.  magnetic polishing machine machine type complete, can design custom polishing equipment.
Suitable for industry products:
1. Precision hardware stamping parts
2. Stainless steel parts, 304 stainless steel screws and nuts.
3. Magnesium and aluminum die-casting parts
4. Zinc and aluminum die-casting parts
5. Precision spring, shrapnel parts
6. Electronic, computer, communication parts
7. Centering, tooling, CNC automatic lathe parts

item	value
power (kw)	2.2
weight (kg)	168
warranty	1 Year
function	remove burrs, chamfering, polishing,grinding
Usage	Metal Surface Polishing
Application	Deburring Polishing Chamfer Rust Removal
Voltage	380V
Size	640*520*1088MM
weight	168kg
max capacity	8-10kg
After-sales Service Provided	1 year

High Precision Magnetic Deburring Machine for Metal Parts Chamfering Polishing Cleaning in One Step

The High Precision Magnetic Deburring Machine for Metal Parts Chamfering Polishing Cleaning in One Step is designed for precision finishing of small and complex metal components. It combines deburring, edge chamfering, polishing, and cleaning functions into one efficient magnetic finishing process, helping manufacturers reduce manual finishing work and improve the consistency of processed parts.

Magnetic deburring technology is particularly useful for small metal components that are difficult to finish using conventional grinding wheels or vibratory finishing equipment. Tiny magnetic pins or stainless steel media can reach narrow holes, grooves, edges, corners, and other difficult-to-access areas of a workpiece. During operation, a magnetic field drives the finishing media around the parts, creating controlled contact that helps remove burrs and smooth sharp edges.

This makes the machine suitable for CNC machined components, precision hardware, electronic parts, watch components, jewelry components, medical hardware, automotive parts, and other small metal products requiring detailed surface finishing.

One-Step Deburring, Chamfering, Polishing, and Cleaning

A key advantage of a Magnetic Deburring Machine is its ability to combine several finishing functions within a single processing cycle.

Depending on the workpiece and selected process parameters, the machine can help with:

Burr Removal
Edge Chamfering
Sharp Edge Smoothing
Surface Polishing
Fine Grinding
Oxide Removal
Surface Cleaning
Small Hole Finishing
Groove Finishing
Corner Finishing

Instead of moving small parts through multiple manual finishing operations, manufacturers can use magnetic finishing as a streamlined process.

The actual finishing result depends on the workpiece material, geometry, burr condition, magnetic media, processing time, and machine settings.

High Precision Magnetic Finishing

Magnetic finishing is especially valuable for precision components because the small finishing media can access areas that are difficult for conventional tools to reach.

Magnetic pins can move around the workpiece surface and enter small holes, slots, grooves, and recessed areas. This allows the machine to process both exterior and interior features of appropriately sized components.

For CNC-machined parts, for example, burrs may remain around drilled holes, milled edges, slots, or intersections. Magnetic finishing can help reach these areas without requiring operators to manually polish each feature.

This makes the technology suitable for high-value precision components where surface quality and edge consistency are important.

Metal Parts Deburring

Deburring is one of the primary applications of this equipment.

After CNC machining, drilling, milling, turning, cutting, stamping, or grinding, metal parts can have small burrs along edges and openings. These burrs may affect assembly, handling, dimensional accuracy, appearance, or subsequent finishing.

The magnetic finishing process uses fine media to repeatedly contact the part surface. The media can remove small burrs while smoothing the transition between machined surfaces.

For precision parts, this provides an efficient alternative to manually removing burrs with knives, files, abrasive paper, or handheld tools.

Chamfering Sharp Edges

The machine can also be used to soften and round sharp edges.

During magnetic finishing, repeated contact between the media and the workpiece can gradually reduce sharp edges and produce a smoother edge condition. This is useful when components require a small edge radius or when sharp edges must be removed for safer handling and assembly.

Magnetic finishing is particularly suitable for small parts with multiple edges or complicated geometries where conventional chamfering tools may not efficiently reach every location.

The final edge condition should always be verified according to the dimensional tolerances and technical requirements of the specific application.

Precision Polishing

After deburring, magnetic finishing can also improve the surface appearance of suitable metal components.

By selecting appropriate finishing media and processing conditions, manufacturers can obtain a smoother and more uniform surface. Finer processing conditions can be used when a more refined finish is required.

The machine can be applied to materials such as stainless steel, carbon steel, aluminum, copper, brass, zinc, and other compatible metals.

For decorative components, jewelry hardware, precision fittings, and small stainless steel products, magnetic polishing can provide an efficient finishing solution.

Small Hole and Complex Geometry Finishing

One of the most useful characteristics of magnetic pin finishing is its ability to process difficult-to-reach areas.

Traditional polishing tools often struggle with:

Small Internal Holes
Narrow Slots
Deep Grooves
Intersections
Recessed Areas
Small Corners
Complicated Edges
Intricate Components

Fine magnetic media can move into many of these areas and provide finishing action where larger abrasive tools may not be practical.

This makes the machine particularly useful for precision components with complicated geometries.

Cleaning and Surface Preparation

In addition to deburring and polishing, magnetic finishing can help clean small metal parts.

The finishing process can remove loose burr particles, machining residue, light oxidation, and other surface contaminants. After processing, the parts can be washed and dried as required by the production process.

For manufacturers using plating, coating, painting, or other secondary surface treatments, proper cleaning and edge preparation can be an important part of the overall manufacturing workflow.

A typical process can be:

Part Loading → Magnetic Media Addition → Magnetic Finishing → Media Separation → Cleaning → Drying → Inspection

Additional cleaning and drying equipment can be incorporated when required.

Suitable Metal Parts

The machine is suitable for many types of small and precision metal components, including:

CNC Machined Parts
Precision Hardware
Stainless Steel Components
Brass Parts
Copper Components
Aluminum Parts
Zinc Parts
Small Automotive Components
Electronic Hardware
Watch Components
Jewelry Components
Medical Hardware
Fasteners
Small Fittings
Precision Mechanical Parts

Material compatibility should be evaluated together with the workpiece dimensions, hardness, geometry, burr condition, and desired surface finish.

Efficient Batch Processing

Magnetic finishing machines are designed to process multiple small parts in a single cycle. This makes them suitable for manufacturers that produce large quantities of similar precision components.

Batch processing reduces the need for operators to manually deburr and polish each part individually.

Production efficiency can be further improved by developing standardized processing recipes for different part numbers. Each recipe can specify the appropriate magnetic media, processing time, machine settings, and cleaning procedure.

This provides a more repeatable finishing workflow for high-volume manufacturing.

Easy Operation

The machine can be configured with a user-friendly control system that allows operators to set processing parameters according to the workpiece.

Depending on the model, the control system may provide functions such as:

Processing Time Setting
Speed Adjustment
Forward and Reverse Operation
Automatic Cycle Control
Emergency Stop
Digital Parameter Display

The exact control functions depend on the selected machine model and configuration.

Applications

The High Precision Magnetic Deburring Machine can be used in a wide range of industries, including:

CNC Machining

Efficiently removes small burrs from machined components, drilled holes, slots, and edges.

Automotive Components

Suitable for small precision components requiring consistent edge and surface finishing.

Electronics Hardware

Useful for small metal components with complicated shapes and fine features.

Jewelry Manufacturing

Can be used for finishing small metal jewelry components and hardware.

Medical Hardware

Suitable for appropriate small metal components where smooth edges and clean surfaces are required.

Precision Hardware

Useful for screws, fittings, connectors, fasteners, and other small metal components.

Watch Components

Suitable for appropriately sized precision components requiring detailed deburring and polishing.

Customized Magnetic Deburring Solutions

Different parts require different finishing conditions. We can provide machine configurations according to the customer's specific requirements.

Important technical information includes:

Workpiece Material
Part Dimensions
Part Weight
Part Geometry
Minimum Hole Diameter
Burr Size
Required Edge Condition
Required Surface Finish
Batch Quantity
Production Capacity
Processing Time

Customers can provide part drawings, photos, videos, or physical samples for evaluation. Based on this information, the appropriate magnetic finishing machine and media configuration can be recommended.

Why Choose Us?
High-Precision Finishing

The machine is designed for detailed finishing of small metal components and complex geometries.

Multi-Function Processing

Deburring, chamfering, polishing, and cleaning can be integrated into one streamlined finishing process.

Excellent Access to Small Areas

Fine magnetic media can reach small holes, grooves, corners, and other difficult-to-access areas.

Reduced Manual Labor

Batch magnetic finishing reduces repetitive manual deburring and polishing operations.

Consistent Processing

Controlled processing parameters help manufacturers establish repeatable finishing results across production batches.

Wide Material Compatibility

The machine can be configured for stainless steel, aluminum, copper, brass, carbon steel, zinc, and other suitable metal components.

Flexible Customization

Machine capacity, control system, processing configuration, and magnetic media can be selected according to specific production requirements.

OEM & Export Support

We provide customized machine solutions for international B2B customers, including technical consultation, machine manufacturing, testing, packaging, and export support.

Frequently Asked Questions
1. What is a magnetic deburring machine?

A magnetic deburring machine uses a magnetic field to move fine magnetic finishing media around small metal parts. The media helps remove burrs, smooth edges, polish surfaces, and clean difficult-to-reach areas.

2. What types of parts can it process?

It is particularly suitable for small metal parts, CNC components, precision hardware, fittings, electronic components, automotive parts, jewelry components, and other appropriately sized workpieces.

3. Can it remove burrs from small holes?

Yes. One of the major advantages of magnetic finishing is that fine magnetic media can enter many small holes, grooves, and recessed areas.

4. Can the machine polish stainless steel?

Yes. Appropriate magnetic finishing media and processing conditions can be selected for stainless steel polishing applications.

5. Can it chamfer metal parts?

It can help smooth and round sharp edges through controlled magnetic finishing. The achievable edge condition depends on the workpiece geometry and process parameters.

6. Does magnetic finishing damage precision parts?

The process should be selected carefully according to the part material, dimensions, tolerances, and required finish. Appropriate media and processing conditions help minimize unwanted surface impact.

7. What are magnetic polishing pins?

Magnetic polishing pins are small finishing media, typically made from suitable magnetic metal materials, that are moved by the machine's magnetic field to perform detailed finishing.

8. Can multiple parts be processed at the same time?

Yes. Magnetic finishing is generally designed for batch processing, although the suitable batch size depends on the machine capacity and part dimensions.

9. How long does the finishing process take?

Processing time varies according to the material, burr condition, part geometry, media, and desired finish. A sample test is recommended when exact cycle time is important.

10. What information should I provide for a quotation?

Please provide the part material, dimensions, weight, drawing or photos, burr condition, minimum hole size, required surface finish, edge requirements, batch quantity, and expected production capacity.
