0.2-1.7 Stainless Steel Magnetic Needle Abrasive for Magnetic Polishing Machine

(1) How to choose the material of the magnetic needle?
The thicker the stainless steel needle, the stronger the grinding force, so the choice of stainless steel needle to workpiece
material soft and hard as the basis.Material is stainless steel or iron workpiece can choose more than 0.8 stainless steel needles;Copper and aluminum and other materials are softer, so choose 0.8 stainless steel needle is more appropriate.
The size of the magnetic force of the grinder can be adjusted in sections, after several tests to find the appropriate grinding material.
(2) How to choose the length of the grinding needle?
According to the size of the aperture of the grinding workpiece, determine the thickness and length of the stainless steel needle,such as to grind the workpiece of the hole in the seam, it is recommended to use 3mm long stainless steel needle, the effect isbetter.
(3) How to choose the shape of the magnetic needle?
Stainless steel needle grinding material for abrasive material, can be used continuously; special specifications magnetic needle,can accept custom-made. The thickness of the magnetic needle, for the workpiece after grinding the surface to form a different degree of effect, such as to reach the surface atomization effect, please choose the sharp angle of the magnetic needle; if you want to become a bright surface can choose a more rounded head of the magnetic needle.

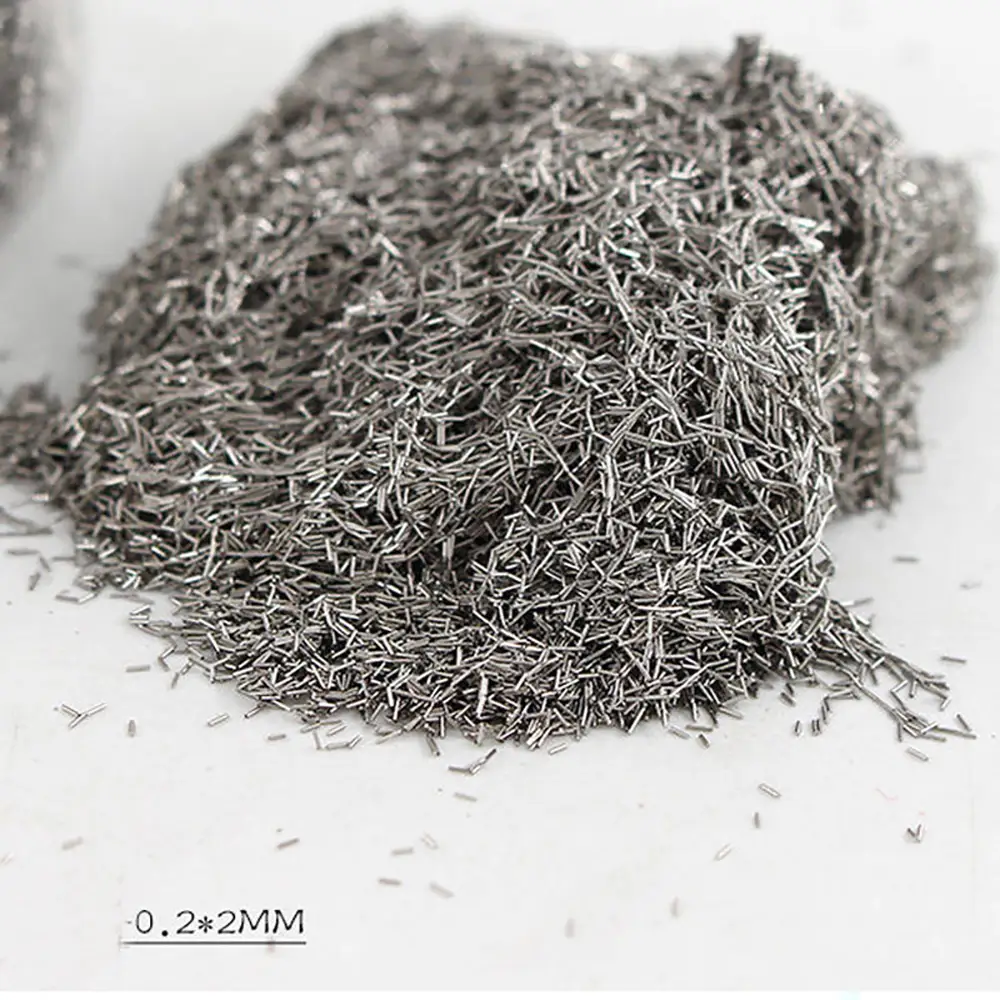

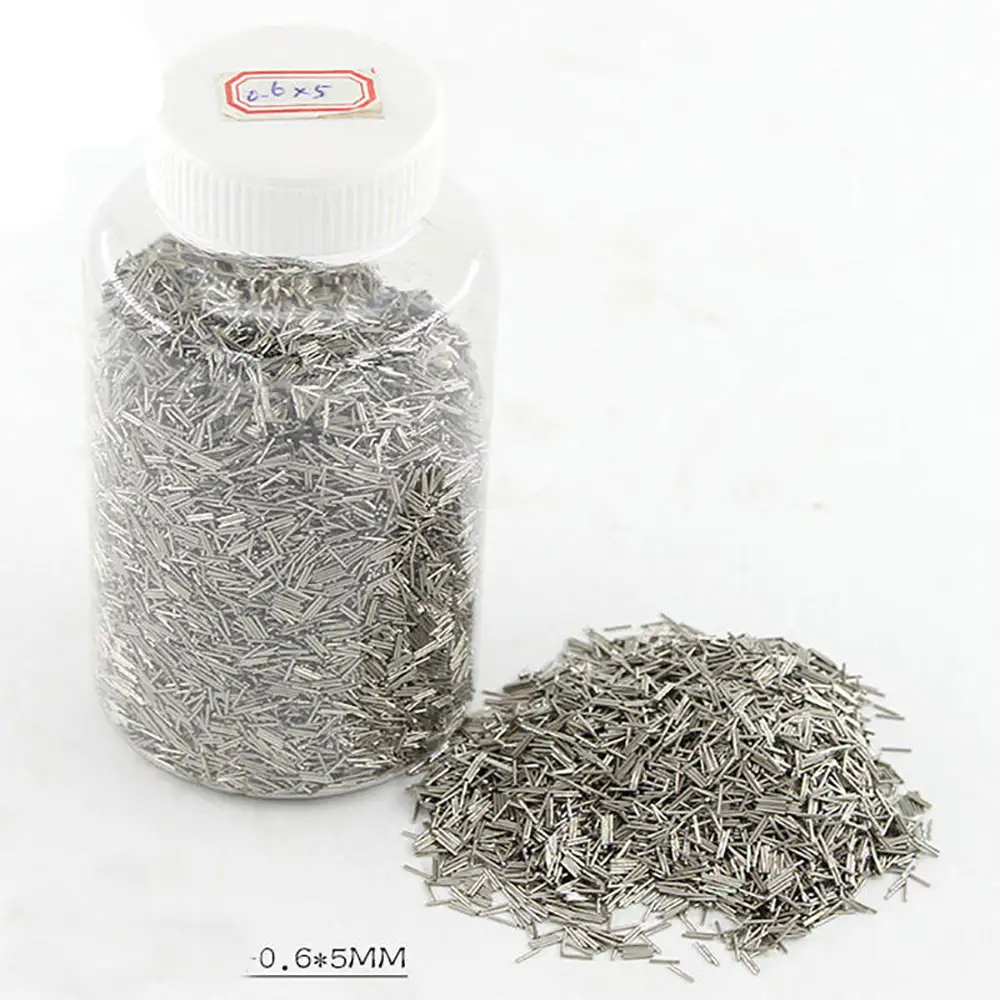

0.2-1.7mm Stainless Steel Magnetic Needle Abrasive for Magnetic Polishing Machine

0.2-1.7mm Stainless Steel Magnetic Needle Abrasive is a specialized magnetic polishing and finishing media designed for use with magnetic polishing machines. Made from stainless steel, these fine magnetic needles are particularly suitable for deburring, polishing, cleaning, and surface finishing of small and precision metal components.

Magnetic needle abrasives are widely used where conventional polishing media cannot effectively reach narrow holes, internal corners, grooves, threads, slots, and other difficult-to-access areas. The small size and magnetic characteristics of the needles allow them to work around intricate geometries while providing effective contact with the surface of the workpiece.

The 0.2-1.7mm size range provides options for different precision finishing requirements. Smaller magnetic needles can be useful for extremely fine and narrow features, while larger needles can provide stronger contact and more efficient processing on suitable workpieces. The appropriate size should be selected according to the dimensions, geometry, material, and finishing requirements of the parts being processed.

Stainless Steel Magnetic Needle Media

Stainless steel is commonly selected for magnetic polishing media because it offers durability and resistance to corrosion under appropriate operating conditions. The needles are designed for repeated use in magnetic polishing processes and can provide consistent media action when properly maintained.

Unlike larger ceramic or plastic tumbling media, magnetic needle media is designed specifically for precision finishing applications. Its slender geometry allows individual needles to enter small holes and recessed areas that may be difficult to reach using conventional abrasive media.

This makes the product especially useful for manufacturers working with small metal components, precision hardware, jewelry components, medical and dental parts, electronic hardware, and other detailed workpieces.

Precision Deburring

One of the main applications of magnetic needle abrasive is precision deburring.

After machining, cutting, drilling, stamping, milling, or other manufacturing processes, small metal parts may have burrs around holes, edges, slots, and grooves. These burrs can affect assembly, handling, appearance, and product performance.

When used with a suitable magnetic polishing machine, stainless steel magnetic needles can move around the workpiece and contact small edges and recessed areas. This helps remove fine burrs while simultaneously improving the surface condition.

For precision parts, controlling processing time and selecting an appropriate needle diameter are important for obtaining consistent results without unnecessarily affecting critical dimensions.

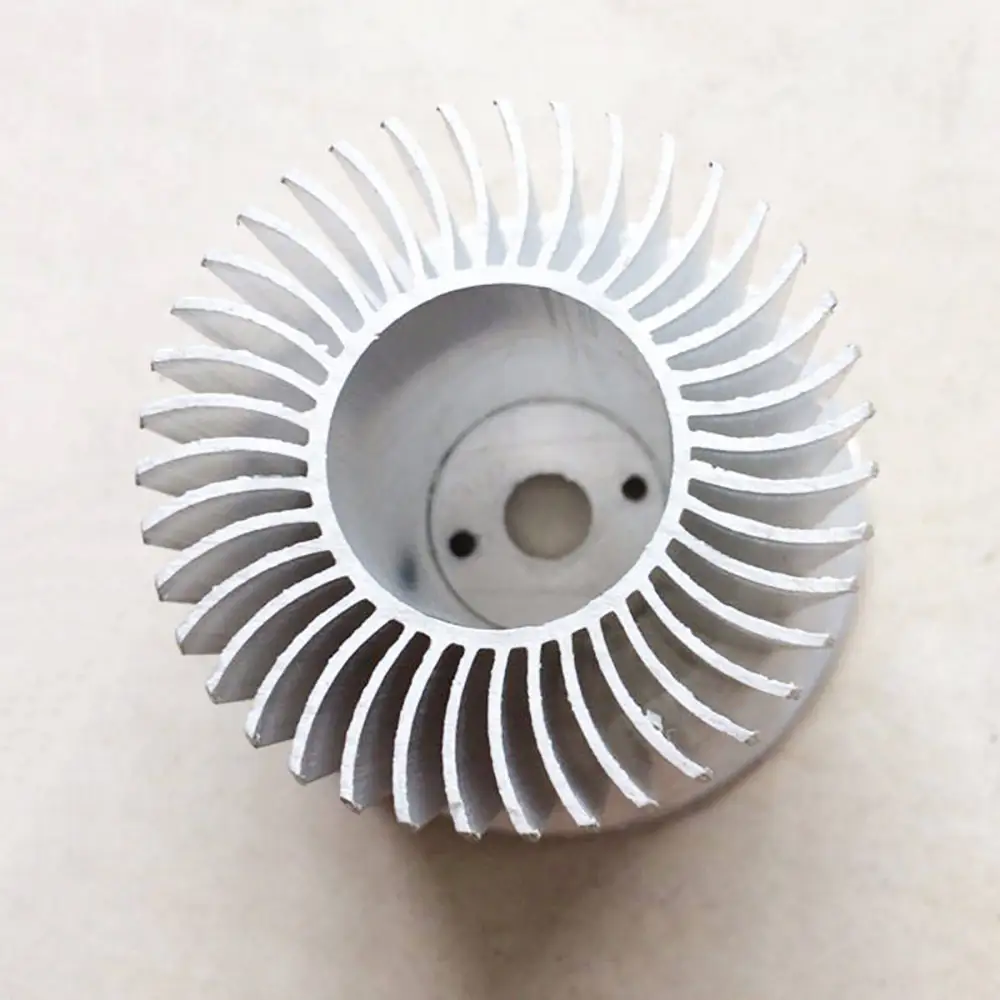

Polishing Small Metal Parts

Magnetic needle abrasive is suitable for polishing many types of small metal components.

Typical applications may include:

Precision machined parts
Small stainless steel components
Aluminum hardware
Copper components
Brass fittings
Jewelry components
Watch parts
Electronic hardware
Small automotive parts
Medical and dental components
CNC precision parts
Small stamped components

The actual suitability depends on the workpiece material, geometry, surface condition, and required final finish.

Reaching Small Holes and Narrow Areas

A major advantage of magnetic needle media is its ability to reach areas that are difficult for larger abrasive media.

Small-diameter needles can enter:

Small holes
Blind holes
Narrow slots
Internal corners
Grooves
Threads
Recessed areas
Fine channels
Complex contours

This makes magnetic polishing especially valuable for components with intricate designs.

Traditional polishing methods may require manual tools to reach these areas, which can increase labor time and produce inconsistent results. Magnetic needle polishing provides a more automated approach to precision finishing.

Magnetic Polishing Machine Application

These stainless steel needles are designed to work with magnetic polishing machines. During processing, the machine generates a magnetic field that drives the needles around and across the workpieces.

The movement creates repeated contact between the abrasive needles and the surface of the parts. Depending on the machine design and processing parameters, this action can support deburring, polishing, cleaning, edge refinement, and general surface finishing.

Because the needles are relatively small, they can interact with complex workpiece geometries more effectively than many conventional finishing media.

For best results, users should choose the magnetic polishing machine according to the size and quantity of workpieces being processed.

0.2-1.7mm Size Range

The 0.2-1.7mm range covers different magnetic needle sizes for different finishing requirements.

Very fine needles are useful for smaller holes, narrow channels, and delicate components. Larger needles can provide more aggressive contact for suitable workpieces and may be more efficient for general deburring and surface finishing.

The correct needle size is determined by several factors:

Minimum hole diameter
Groove width
Workpiece geometry
Part material
Burr size
Required surface finish
Processing time
Machine configuration

For complex parts, manufacturers may use different needle sizes for different products or finishing stages.

Surface Finishing Performance

Magnetic needle abrasive can perform several finishing functions within one process. Depending on the workpiece and operating conditions, it may help with:

Deburring: Removing small burrs generated during machining and manufacturing.

Edge Refinement: Smoothing sharp or irregular small edges.

Polishing: Improving the visual and tactile quality of metal surfaces.

Cleaning: Helping remove light contamination and processing residues.

Surface Refinement: Creating a more uniform surface condition before subsequent finishing operations.

The final surface appearance depends on the initial condition of the workpiece, media size, machine settings, processing time, and whether additional compounds or liquid solutions are used.

Suitable Materials

Stainless steel magnetic needles can be used for various compatible metal materials.

Common applications include stainless steel, steel, aluminum, copper, brass, zinc-based alloys, and other suitable metal components.

Different materials may respond differently to magnetic polishing. Softer materials such as aluminum and copper may require carefully controlled processing conditions to prevent excessive surface treatment.

For delicate parts, users should conduct a sample test before full-scale production.

B2B Industrial Applications

Magnetic polishing media is particularly valuable for manufacturers processing large quantities of small components.

In CNC machining operations, magnetic needles can help automate secondary finishing after machining.

In hardware manufacturing, they can help remove fine burrs from small fittings, fasteners, and precision components.

In jewelry manufacturing, magnetic polishing can be used for detailed metal components where small holes and intricate surfaces require finishing.

For electronics and precision hardware, magnetic needle media can help process small components with complicated geometries.

For export manufacturers, offering magnetic polishing media alongside magnetic polishing equipment can also provide customers with a complete finishing solution.

How to Select Magnetic Needle Abrasive

When selecting magnetic polishing needles, users should consider both the diameter and length of the media.

The needle should be small enough to enter the narrowest area requiring treatment but large enough to provide effective contact and handling characteristics.

Workpiece geometry is especially important. For parts with very small holes, finer needles may be required. For parts with larger surfaces and heavier burrs, a larger needle may provide more effective processing.

Users should also consider the number of parts processed per batch and the capacity of the magnetic polishing machine.

Maintenance and Reuse

Proper maintenance can help extend the useful life of stainless steel magnetic polishing needles. After processing, the media should be separated from the workpieces and cleaned as appropriate to remove metal particles, polishing residue, and other contaminants.

Magnetic separation can make media recovery convenient when used with compatible equipment. Damaged, excessively worn, or contaminated media should be inspected and replaced when necessary.

Keeping the abrasive media clean can help maintain stable finishing performance and reduce cross-contamination between different materials or product types.

Why Choose Us
Precision Magnetic Abrasive
Designed specifically for detailed polishing, deburring, and finishing applications.
Fine 0.2-1.7mm Range
Provides multiple size options for small holes, grooves, and precision components.
Stainless Steel Construction
Provides durability and suitability for repeated finishing operations.
Excellent for Complex Parts
Small needle geometry helps reach narrow and recessed areas.
Multiple Applications
Suitable for deburring, polishing, cleaning, edge refinement, and surface finishing.
Compatible With Magnetic Polishers
Designed for use with magnetic polishing and finishing machines.
B2B Production Support
Suitable for CNC manufacturers, hardware factories, jewelry producers, and precision component suppliers.
Flexible Size Selection
Different needle sizes can be selected according to workpiece geometry and finishing requirements.
Reusable Finishing Media
With proper cleaning and maintenance, stainless steel magnetic needles can be used repeatedly.
OEM And Bulk Supply
Suitable for distributors, equipment manufacturers, industrial buyers, and international B2B customers.
Frequently Asked Questions
1. What is stainless steel magnetic needle abrasive?

It is a fine stainless steel magnetic polishing media designed for use in magnetic polishing machines to deburr, polish, clean, and finish small metal parts.

2. What does 0.2-1.7mm refer to?

It refers to the available needle diameter range. Different diameters are suitable for different workpiece geometries and finishing requirements.

3. What is magnetic needle polishing used for?

It is mainly used for precision deburring, polishing, cleaning, edge refinement, and surface finishing of small and complex metal components.

4. Can the needles enter small holes?

Yes. Fine magnetic needles are particularly useful for reaching small holes, grooves, slots, threads, and recessed areas that are difficult to process with larger media.

5. What materials can be polished?

Suitable materials may include stainless steel, steel, aluminum, copper, brass, zinc alloys, and other compatible metals.

6. Can it remove burrs from CNC parts?

Yes. Magnetic needle media is commonly suited to fine burr removal from precision machined and CNC components.

7. Can magnetic needles polish stainless steel?

Yes. They can be used for stainless steel parts when paired with a suitable magnetic polishing machine and appropriate processing parameters.

8. How do I choose the correct needle size?

Consider the smallest hole or channel that needs to be processed, the workpiece geometry, burr size, material, and desired finishing result.

9. Can the magnetic needles be reused?

Yes. Stainless steel magnetic needles can generally be reused when properly cleaned, inspected, and maintained.

10. Do magnetic needles require polishing compound?

Depending on the process and machine, a suitable liquid or compound may be used to improve finishing performance and help remove processing residue.

11. Can the media polish complex-shaped parts?

Yes. The small needle shape makes magnetic polishing particularly suitable for intricate parts with internal holes, grooves, and difficult-to-reach areas.

12. How long does magnetic polishing take?

Processing time varies according to the material, burr condition, part geometry, media quantity, machine configuration, and required surface finish. Sample testing is recommended to establish the appropriate cycle time.

13. Can you supply magnetic polishing media in bulk?

Yes. Bulk supply can be arranged for industrial manufacturers, magnetic polishing machine distributors, finishing service providers, and other B2B customers.
