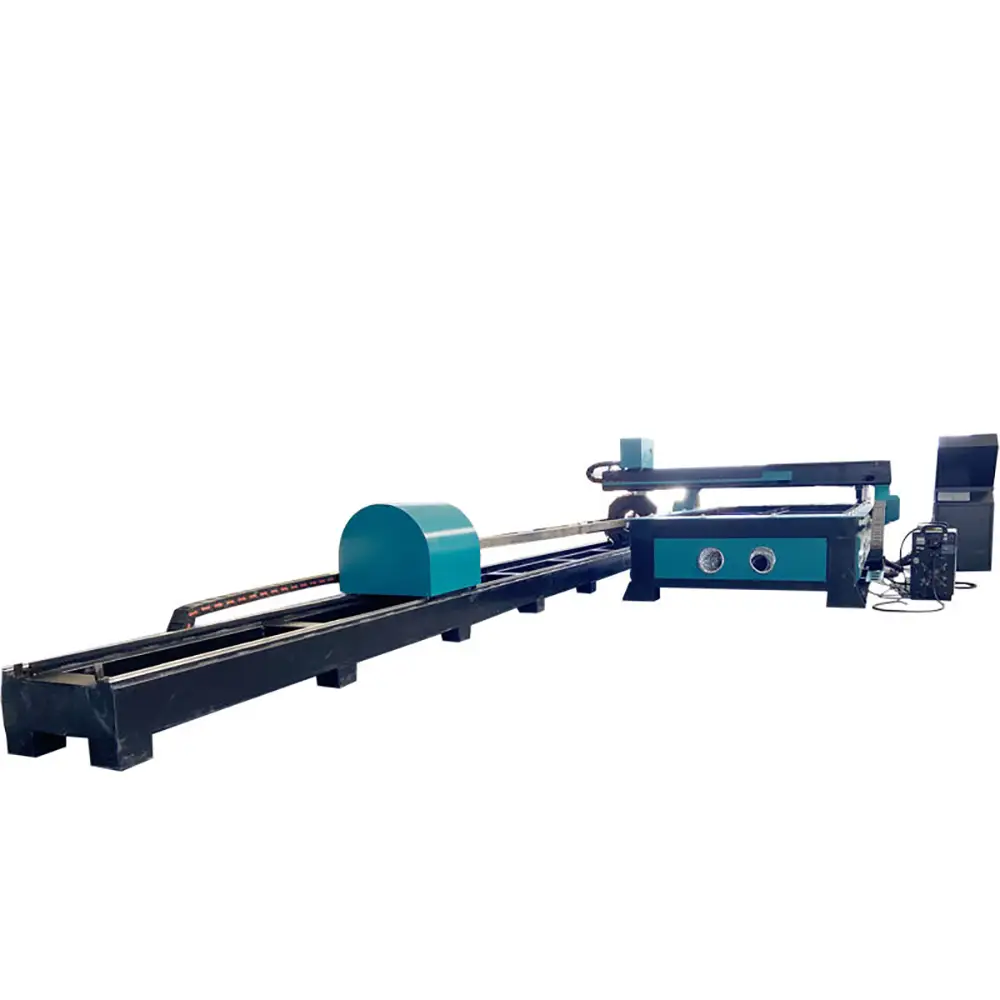

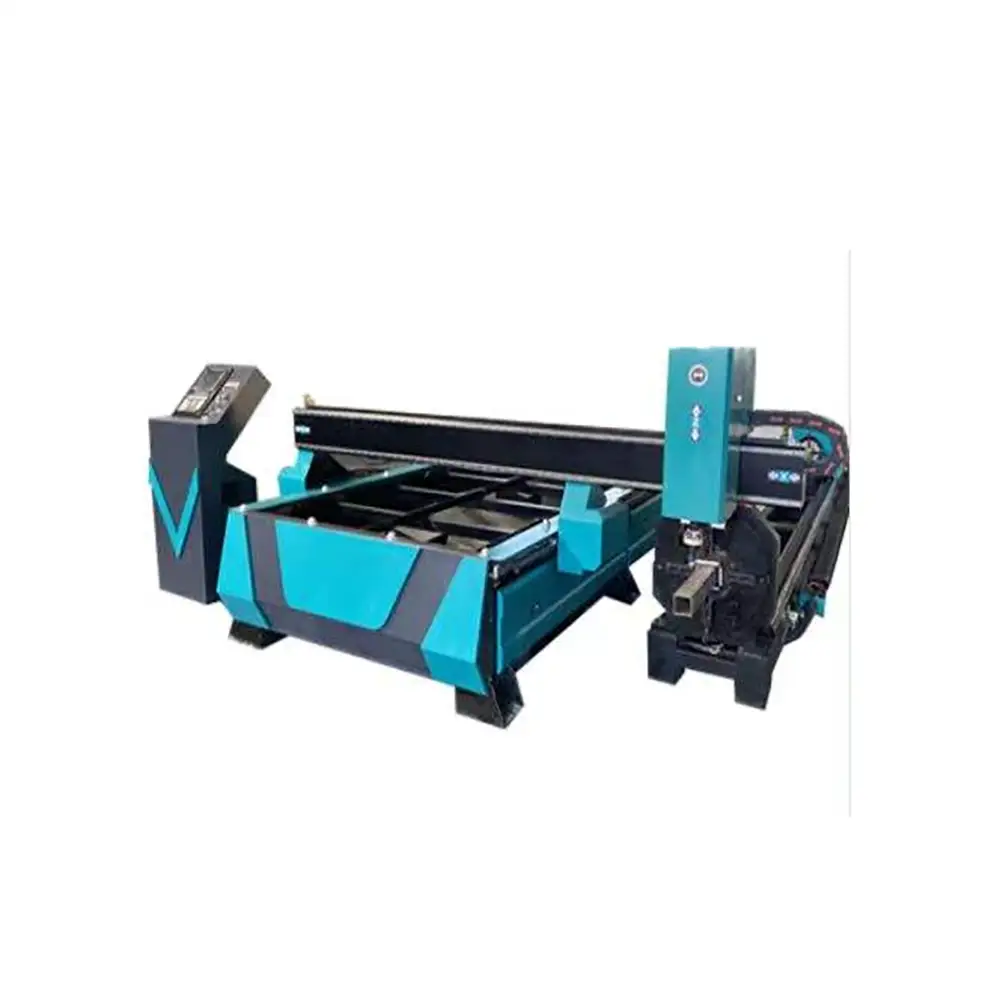

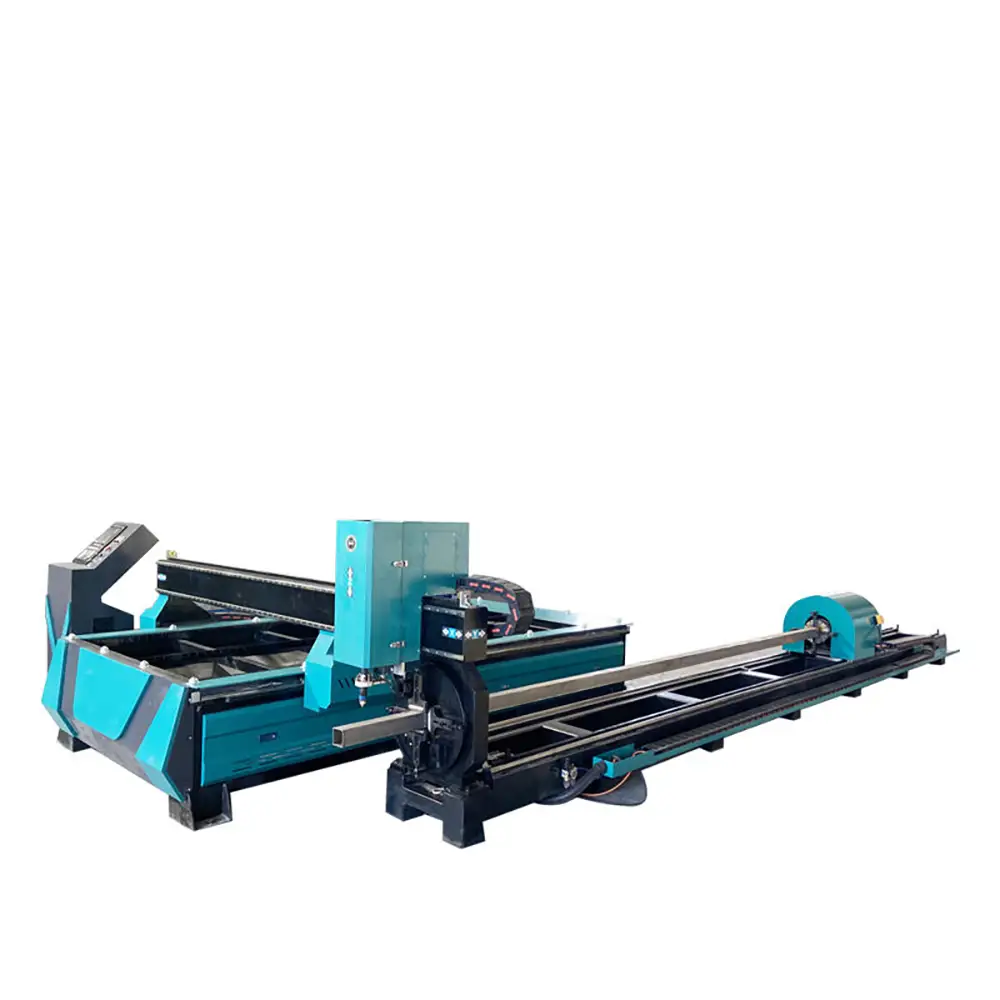

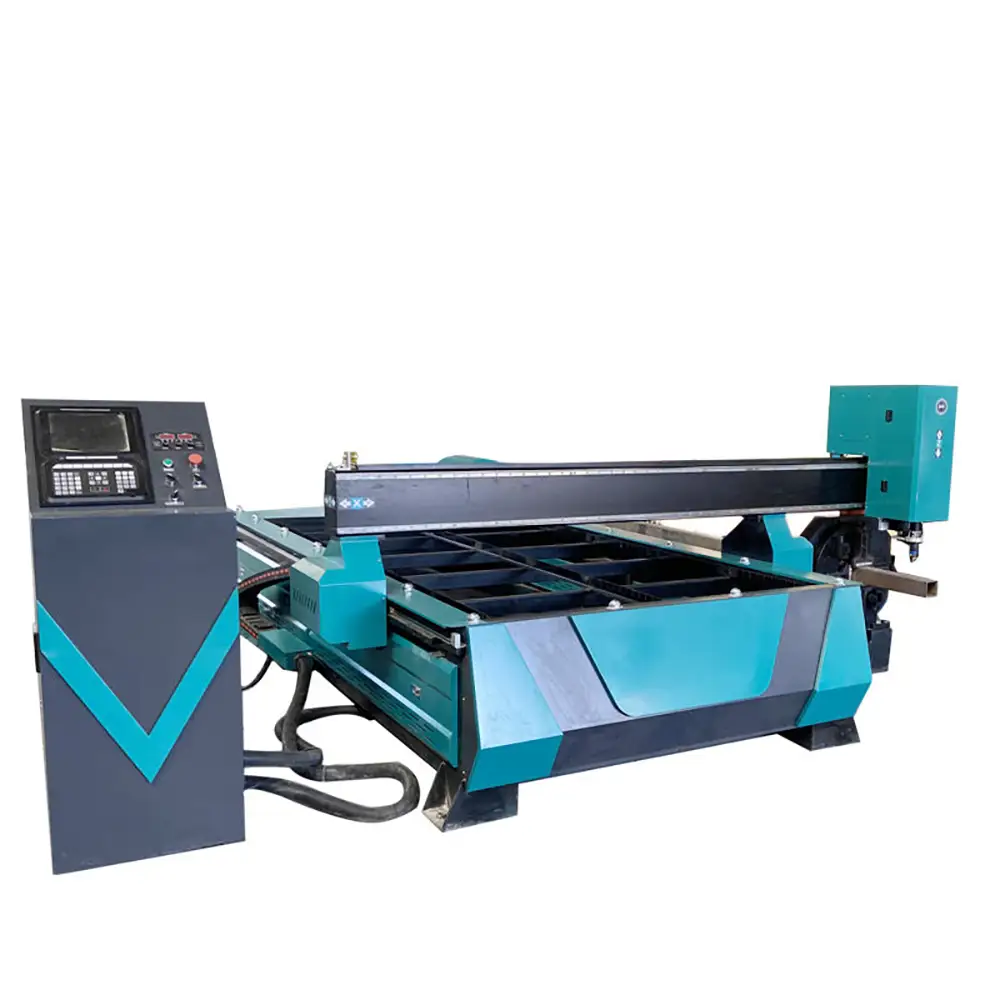

Multi-function Automatic CNC Tube and Plate Cutting Integrated Fiber Laser Cutting Machine

1.1530 160A Plasma cutting machine
2．1500*3000mm working area
3． Independent control cabinet
4． EOE-HZH  control system
5． Automatic Torch height controller
6． Starcam software
7．2GB processing file
8． high precision square guide rail
9． high precision ball screw
10． China high precision stepper motor
11． Multi-function tool box
12． Efficiency exhaust smoke system
13． Easy feeding slide material system
14． High quality soft electricity cable can be bend for 1.5 million times
15． axis of rotation：320*320*6000MM
16． The boss gave a tutorial without the cost of asking an engineer
17． Professional goggles and antiironing covers
18． LGK120A  plasma  power
19． All the necessary parts for machine working
The Multi-Function Automatic CNC Tube And Plate Cutting Integrated Fiber Laser Cutting Machine is a versatile industrial laser processing system designed to cut both flat metal plates and tubular materials on one integrated CNC platform. Combining automatic CNC control, fiber laser technology, plate cutting, and tube cutting capabilities, this machine provides manufacturers with a flexible solution for different metal fabrication requirements.

Traditional metalworking production may require separate equipment for cutting sheets, plates, pipes, and tubes. This can increase equipment investment, workshop space, material handling, and production setup time. An integrated tube and plate laser cutting machine offers an alternative by combining multiple cutting functions into one machine, allowing users to process different workpieces according to production needs.

The machine can be configured for compatible materials such as carbon steel, stainless steel, aluminum, galvanized steel, and other suitable metals. The appropriate laser source, power, cutting head, worktable, tube chuck system, and material handling configuration can be selected according to material type, thickness, dimensions, and production requirements.

Multi-Function Tube And Plate Cutting

The main advantage of the integrated design is its ability to handle both flat and tubular metal workpieces. Operators can use the plate cutting section for sheets and plates and the tube cutting system for compatible pipes, tubes, and profiles.

This makes the equipment suitable for manufacturers producing different types of metal components. A single machine can support plate fabrication, tube processing, customized parts, structural components, and other industrial applications.

Automatic CNC Fiber Laser Cutting

The CNC control system coordinates the movement of the cutting head and workpiece according to programmed cutting files. Once the appropriate material and processing parameters are set, the machine can perform automated cutting with reduced manual intervention.

CNC operation supports customized contours, straight lines, curves, holes, slots, notches, and other programmed shapes. This makes the system suitable for both standard production and customized orders.

Fiber Laser Plate Cutting

The plate cutting function is designed for flat metal sheets and plates. Depending on the machine configuration, it can process carbon steel, stainless steel, aluminum, galvanized steel, and other compatible materials.

Laser cutting is useful for manufacturing brackets, panels, machine components, frames, covers, enclosures, structural parts, and customized metal products. Digital cutting files can be used to create different shapes without requiring a dedicated mechanical die for every design.

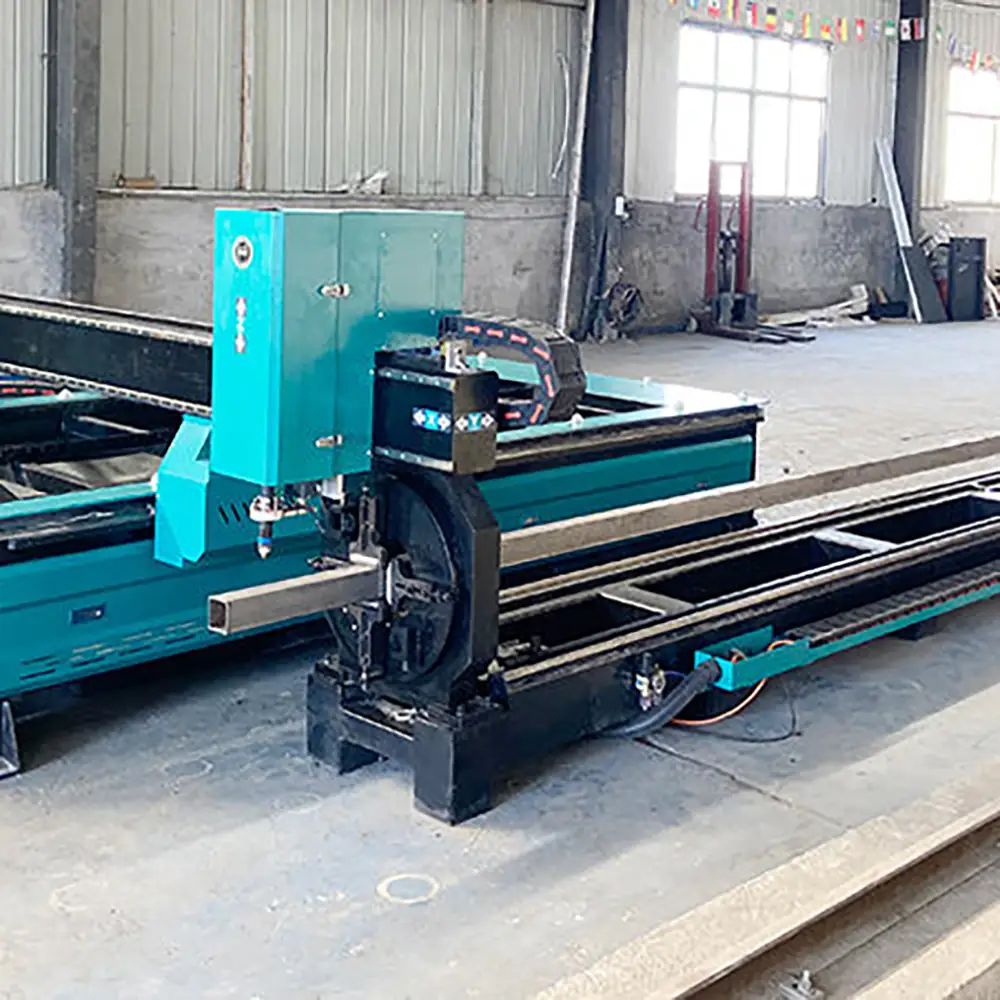

CNC Tube And Pipe Cutting

The tube cutting system provides automated processing for compatible round tubes, square tubes, rectangular tubes, and other metal profiles. Depending on the machine configuration, it can create holes, slots, openings, notches, angled ends, and customized contours.

Tube laser cutting is widely used for machinery frames, steel structures, furniture components, automotive parts, agricultural machinery, construction products, and other fabricated metal components.

Automatic Material Processing

The automatic CNC system helps coordinate material positioning, cutting movement, and programmed processing. Depending on the machine configuration, additional loading, unloading, or material support systems can be integrated to improve production workflow.

Automation is particularly useful for factories handling repeated production orders. It can reduce manual marking and positioning work while improving production consistency.

Flexible Metal Fabrication

The integrated design allows manufacturers to handle different orders with one machine platform. This is useful for B2B businesses that produce customized components or serve customers from multiple industries.

Instead of investing in separate plate and tube cutting systems, manufacturers can use an integrated fiber laser solution to process a wider range of workpieces.

Industrial Applications

The machine can be used in machinery manufacturing, steel fabrication, agricultural equipment, automotive components, construction equipment, metal furniture, electrical enclosures, hardware production, architectural metalwork, and customized metal fabrication.

For distributors and importers, the multifunction design can also provide a flexible equipment solution for customers with different metal cutting requirements.

Key Features
Multi-Function Tube And Plate Cutting
Automatic CNC Fiber Laser Technology
Integrated Flat Plate And Tube Processing
Suitable For Multiple Metal Materials
CNC-Controlled Cutting Paths
Customized Hole, Slot, And Profile Cutting
Supports Round, Square, And Rectangular Tubes
Flexible Plate And Sheet Metal Processing
Suitable For Customized And Batch Production
Industrial B2B Laser Cutting Configuration
Main Applications
Metal Plate Cutting
Steel Sheet Cutting
Stainless Steel Plate Cutting
Aluminum Sheet Cutting
Carbon Steel Cutting
Metal Tube Cutting
Steel Pipe Cutting
Round Tube Laser Cutting
Square Tube Laser Cutting
Rectangular Tube Cutting
Machinery Frame Manufacturing
Agricultural Equipment Components
Automotive Metal Parts
Structural Steel Fabrication
Customized Metal Processing
FAQs
1. What Is A Tube And Plate Integrated Laser Cutting Machine?

It is a CNC fiber laser cutting machine designed to process both flat metal plates and compatible tubes or pipes using one integrated equipment platform.

2. What Materials Can It Cut?

Depending on the configuration, it can process carbon steel, stainless steel, aluminum, galvanized steel, and other compatible metals.

3. Can It Cut Both Plates And Tubes?

Yes. The integrated system is designed to switch between flat plate cutting and compatible tube or pipe cutting according to the selected machine configuration.

4. What Types Of Tubes Can It Process?

Depending on the chuck and machine design, it can process round tubes, square tubes, rectangular tubes, and other compatible metal profiles.

5. Can It Cut Stainless Steel And Aluminum?

Yes. Fiber laser systems can be configured for stainless steel and aluminum cutting. The appropriate laser power and processing parameters depend on material type and thickness.

6. What Can It Cut On Metal Tubes?

Depending on the machine configuration, it can create holes, slots, openings, notches, angled ends, and customized contours according to programmed designs.

7. Is The Machine Fully Automatic?

The machine uses CNC-controlled automated cutting. The degree of material loading, unloading, and other automation depends on the selected machine configuration.

8. Is It Suitable For Customized Metal Parts?

Yes. CNC programming allows customized shapes and profiles to be processed from suitable digital drawings, making the machine useful for customized and small-batch production.

9. How Do I Choose The Right Laser Power?

Laser power should be selected according to the material type, maximum thickness, plate size, tube dimensions, production volume, and required cutting performance.

10. Can The Tube And Plate Functions Be Customized?

Yes. Working dimensions, laser power, tube chuck configuration, cutting head, loading system, control system, and other options can be selected according to specific production requirements.

Why Choose Us
Professional Fiber Laser Equipment

We provide CNC fiber laser cutting solutions for metal plates, tubes, pipes, and profiles, supporting a wide range of industrial fabrication applications.

Integrated Multi-Function Design

Combining plate and tube cutting capabilities allows manufacturers to process different types of metal workpieces with one machine platform, improving equipment flexibility.

Automatic CNC Processing

CNC-controlled cutting helps reduce manual positioning and marking work while supporting repeatable production of customized metal components.

Application-Based Configuration

We can recommend suitable laser power, working area, tube cutting system, chuck configuration, cutting head, and automation options according to material and production requirements.

Factory-Direct B2B Supply

We support metal fabrication factories, machinery manufacturers, distributors, importers, OEM customers, and industrial users with direct equipment supply and technical consultation.

International Export Service

We provide overseas customers with specification confirmation, technical documentation, packaging, shipping coordination, installation guidance, and after-sales communication.
