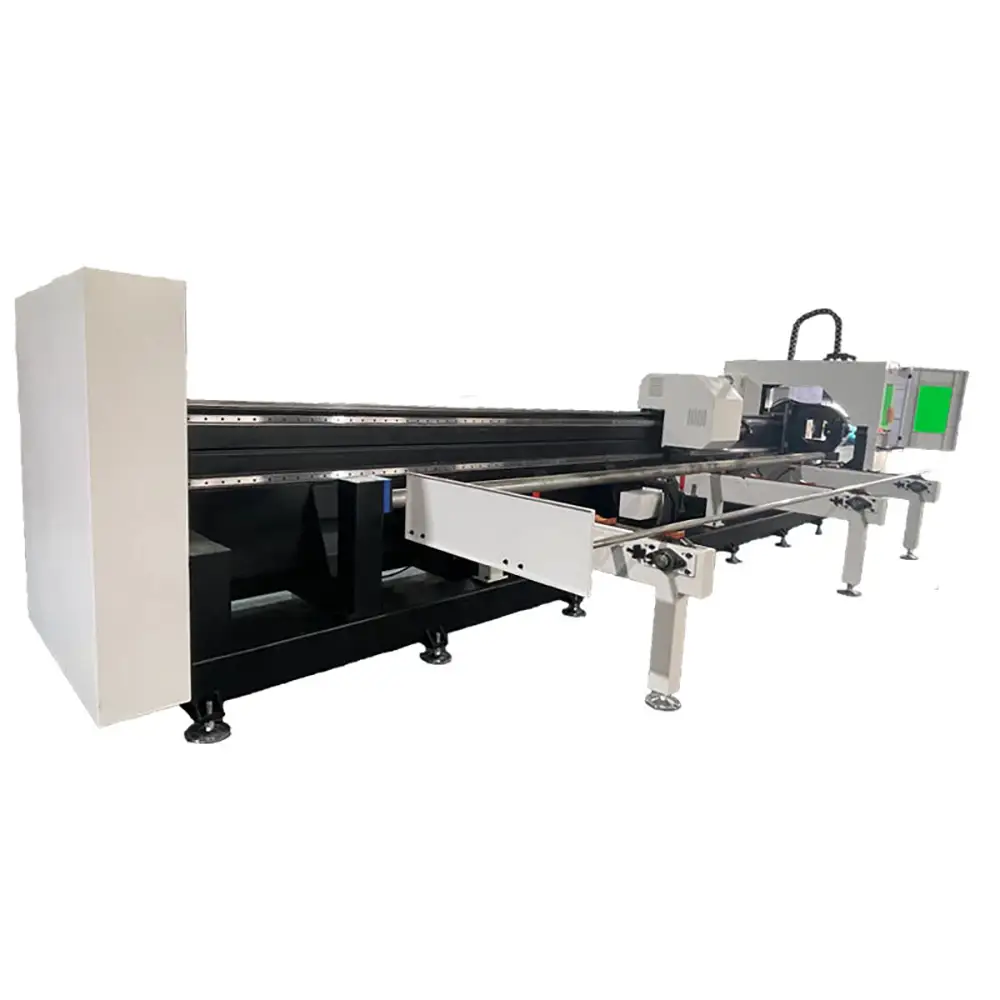

6 Meter Feed Heavy Duty Side Mounted Dual Chuck Laser Tube Cutting Machine

 The 6 Meter Feed Heavy Duty Side Mounted Dual Chuck Laser Tube Cutting Machine is an industrial fiber laser cutting system designed for long metal tubes, pipes, profiles, and structural components. With a 6-meter material feeding configuration, heavy-duty machine structure, side-mounted design, and dual chuck system, the equipment provides a flexible solution for manufacturers processing long and heavy metal workpieces.

Tube and pipe fabrication often requires accurate cutting of different profiles, holes, slots, angles, and customized contours. Traditional tube processing may involve multiple machines and manual positioning operations. A CNC tube laser cutting machine integrates material positioning and laser cutting into one automated workflow, helping manufacturers improve production flexibility and reduce secondary processing.

The 6-meter feeding configuration is suitable for applications requiring long-length tube processing. Depending on the machine configuration, compatible workpieces can include round tubes, square tubes, rectangular tubes, oval tubes, channel profiles, angle steel, and other suitable metal profiles.

6 Meter Long Tube Processing

The long material feeding system is designed for customers who regularly process extended tubes and profiles. A 6-meter working or feeding configuration can reduce the need to repeatedly reposition long workpieces during production.

This is particularly useful for manufacturers producing structural components, frames, rails, construction products, agricultural machinery parts, vehicle components, metal furniture, and other long-profile products.

Heavy Duty Machine Structure

The heavy-duty design is intended for industrial tube and pipe processing applications where machine stability and workpiece handling are important. A rigid structure can help maintain positioning accuracy during laser cutting, especially when processing larger or heavier metal profiles.

The final machine specification can be selected according to workpiece dimensions, material weight, tube diameter, wall thickness, and production requirements.

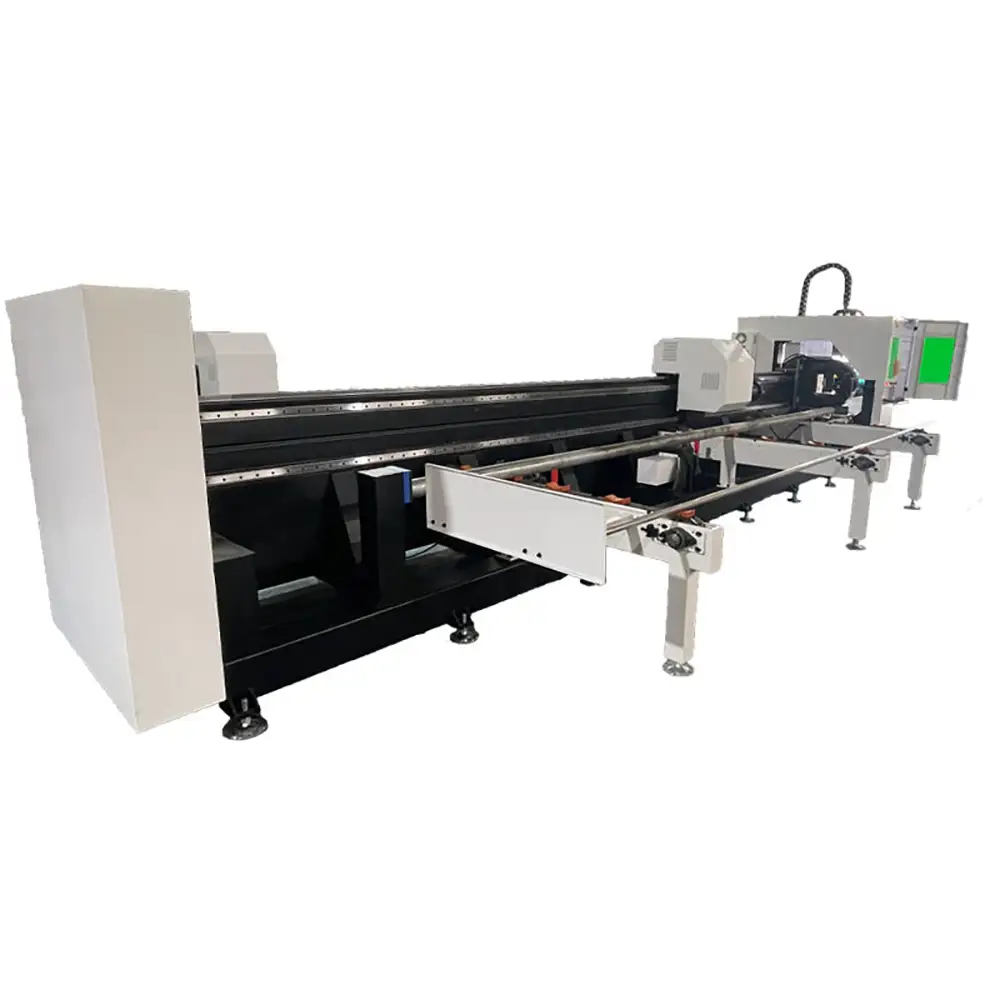

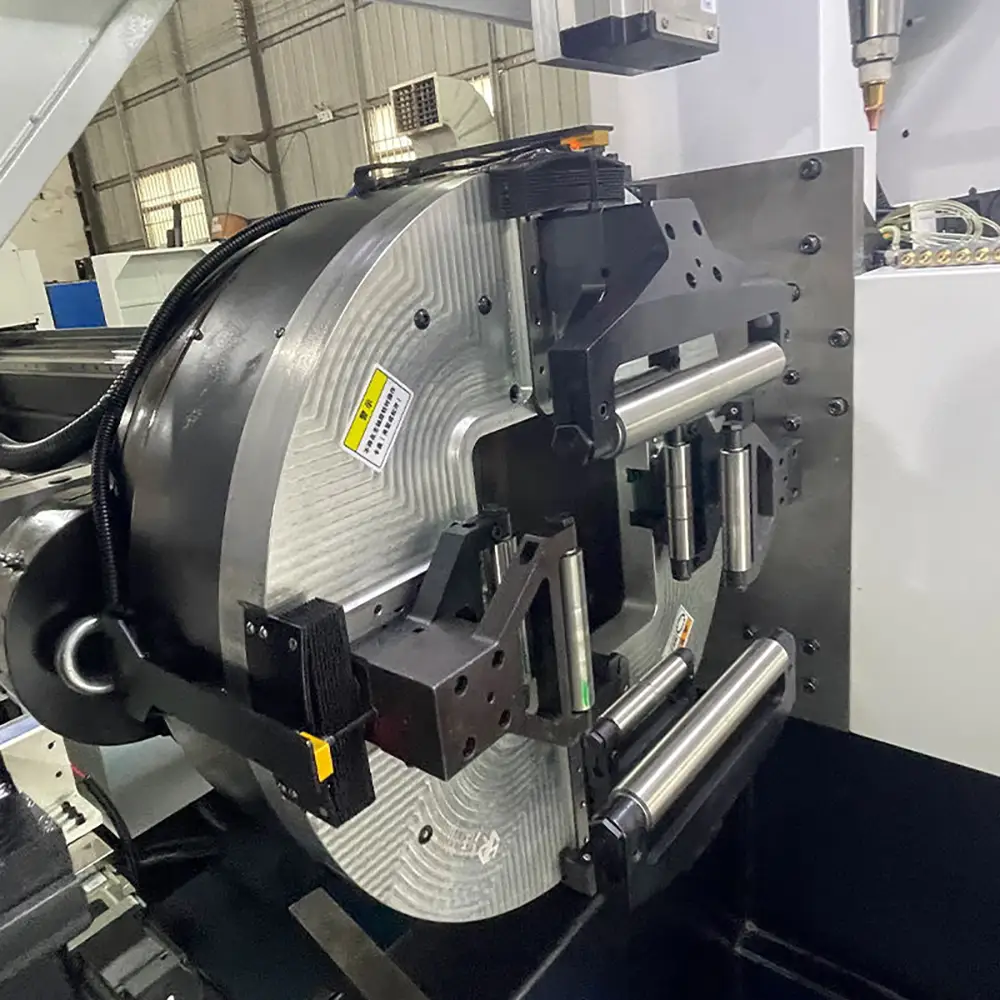

Side-Mounted Dual Chuck System

The side-mounted dual chuck configuration is designed to provide controlled workpiece positioning during tube laser cutting. Dual chuck systems can help support and rotate the tube while the CNC system coordinates the workpiece movement with the laser cutting head.

This configuration is useful for processing holes, slots, profiles, and other features around the circumference of tubular workpieces. Proper chuck selection and clamping parameters are important for different tube shapes and sizes.

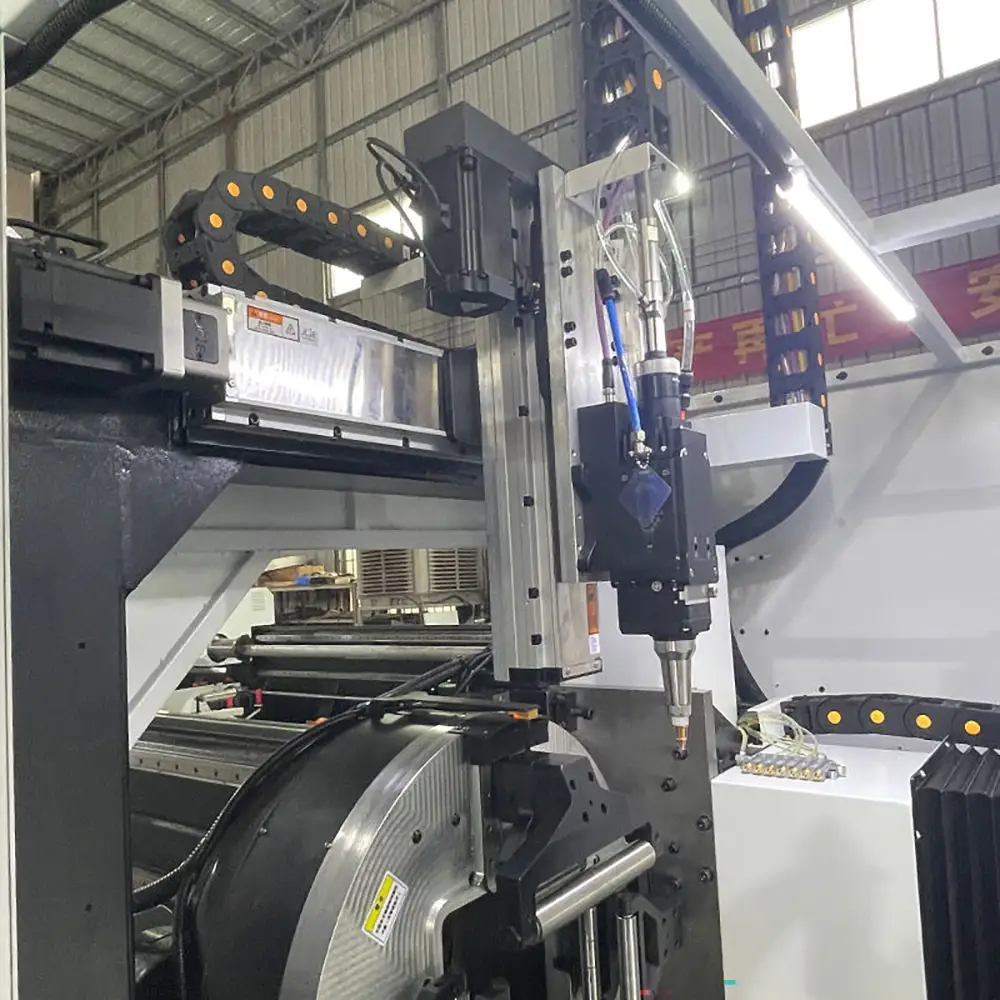

Fiber Laser Tube Cutting

Fiber laser technology provides a concentrated laser beam for cutting compatible metal materials. The system can be used for carbon steel, stainless steel, aluminum, galvanized steel, and other suitable metals, depending on the selected laser source and machine configuration.

The laser cutting head follows programmed CNC paths to create customized contours, holes, slots, notches, and other shapes. This makes the machine suitable for both standard production and customized tube fabrication.

CNC Automated Processing

The CNC control system allows cutting programs to be generated from digital drawings and production files. Once the appropriate parameters are set, the machine can automatically coordinate tube positioning, rotation, and laser cutting according to the programmed design.

This can reduce manual marking and positioning work and provide greater repeatability for batch production.

Multiple Tube And Profile Applications

The machine can process various compatible profiles according to its chuck and cutting configuration. Typical applications include round pipes, square tubes, rectangular tubes, structural profiles, angle steel, channel steel, and other metal sections.

Manufacturers can use the machine to create holes, slots, cutouts, mitered ends, connection openings, and customized profiles for downstream assembly.

Efficient Metal Tube Fabrication

Laser tube cutting can combine several conventional tube processing steps into a CNC-controlled process. Instead of manually measuring and drilling individual workpieces, manufacturers can program the required features and process multiple components according to the same production file.

This is especially valuable for customized fabrication businesses handling multiple orders and different tube designs.

Key Features
6 Meter Long Material Feeding Configuration
Heavy Duty Industrial Machine Structure
Side-Mounted Dual Chuck System
CNC Fiber Laser Tube Cutting Technology
Suitable For Long Metal Tubes And Pipes
Supports Multiple Tube And Profile Shapes
Automated Tube Positioning And Rotation
Customized Hole, Slot, And Profile Cutting
Suitable For Batch And Customized Production
Factory-Direct B2B Laser Equipment Supply
Main Applications
Metal Tube Cutting
Steel Pipe Cutting
Round Tube Laser Cutting
Square Tube Laser Cutting
Rectangular Tube Cutting
Structural Steel Processing
Agricultural Machinery Components
Automotive Tube Components
Metal Furniture Production
Steel Frame Manufacturing
Construction Components
Machinery Frame Fabrication
Industrial Pipe Processing
Customized Metal Profile Cutting
FAQs
1. What Is A 6 Meter Tube Laser Cutting Machine?

It is a CNC laser cutting system designed to process long metal tubes and profiles with a material feeding or working configuration designed around 6-meter-long workpieces.

2. What Does Dual Chuck Mean?

A dual chuck system uses two workpiece clamping and positioning units to help support, hold, and rotate tubular materials during the cutting process.

3. What Materials Can It Cut?

Depending on the selected configuration, the machine can process carbon steel, stainless steel, aluminum, galvanized steel, and other compatible metal tubes and profiles.

4. Can It Cut Round And Square Tubes?

Yes. With the appropriate chuck and machine configuration, it can process round tubes, square tubes, rectangular tubes, and other compatible profiles.

5. Can It Process 6 Meter Long Tubes?

Yes. The machine is designed around a 6-meter feeding configuration for long material processing. The exact workpiece dimensions should be confirmed according to the machine specification.

6. What Can A Tube Laser Cutting Machine Cut?

It can produce customized tube contours, holes, slots, notches, openings, angled ends, and other programmed shapes according to the workpiece design and machine configuration.

7. Is It Suitable For Heavy Metal Tubes?

The heavy-duty configuration is intended for industrial tube and profile processing. The maximum workpiece weight and dimensions depend on the specific machine model and chuck system.

8. Is CNC Programming Required?

The machine uses CNC control for automated cutting. Operators typically prepare or import suitable cutting programs and set the required material and processing parameters.

9. Can The Machine Be Customized?

Yes. Configuration can be discussed according to tube diameter, tube length, material thickness, laser power, working requirements, chuck type, and production volume.

10. What Industries Use Tube Laser Cutting Machines?

Common applications include structural steel fabrication, machinery manufacturing, automotive components, agricultural machinery, metal furniture, construction products, equipment frames, and customized tube processing.

Why Choose Us
Professional Tube Laser Cutting Equipment

We provide fiber laser tube cutting solutions designed for industrial metal pipe, tube, and profile processing, including long-length and heavy-duty applications.

Heavy-Duty Configuration

For customers processing larger or heavier tubes, machine structure, chuck configuration, material support, and working dimensions can be selected according to the intended application.

Dual Chuck Technology

The dual chuck configuration provides controlled workpiece clamping and positioning for automated tube cutting, supporting stable processing of suitable tubular materials.

Application-Based Customization

We can recommend suitable laser power, chuck configuration, working length, cutting head, and machine specifications according to tube dimensions, material, thickness, and production requirements.

Factory-Direct Supply

We support tube manufacturers, steel fabricators, machinery companies, distributors, importers, and industrial users with direct equipment supply and technical consultation.

International Export Service

We provide overseas customers with machine specification confirmation, packaging, shipping coordination, technical documentation, and after-sales communication to support international equipment procurement.
