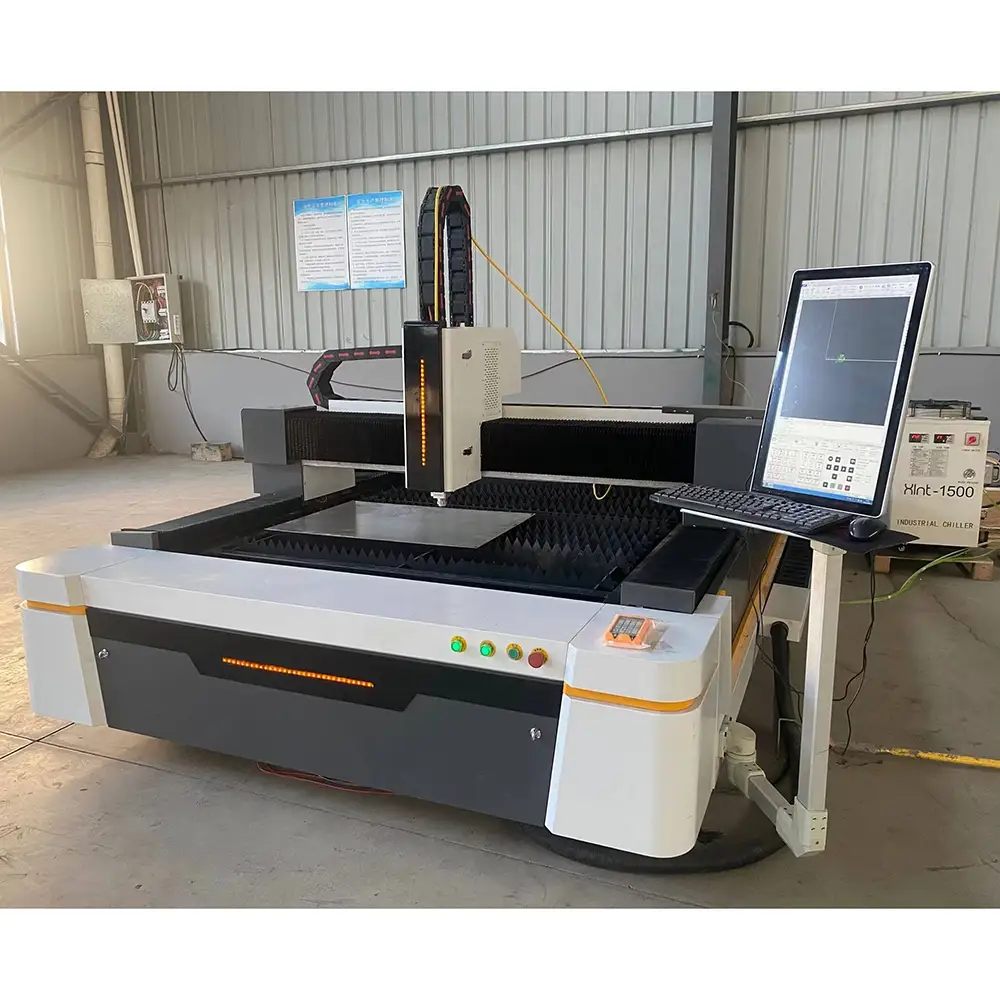

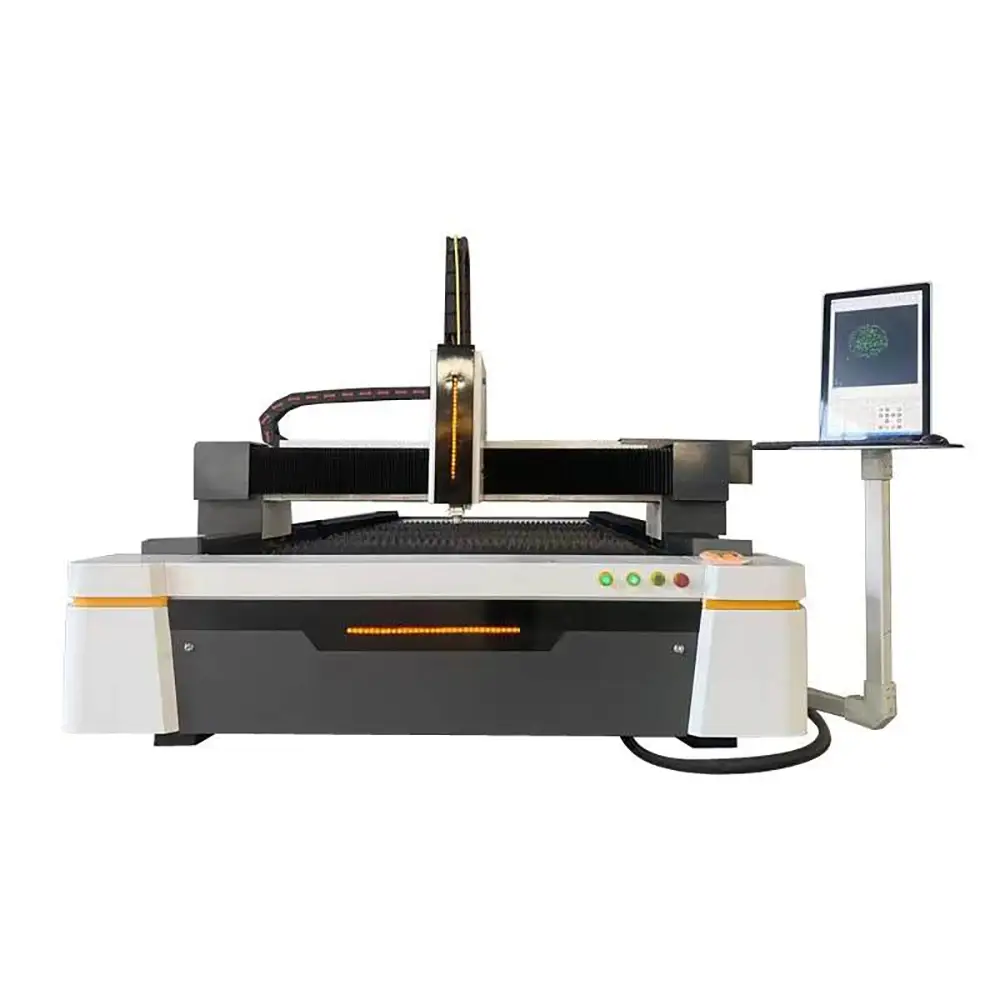

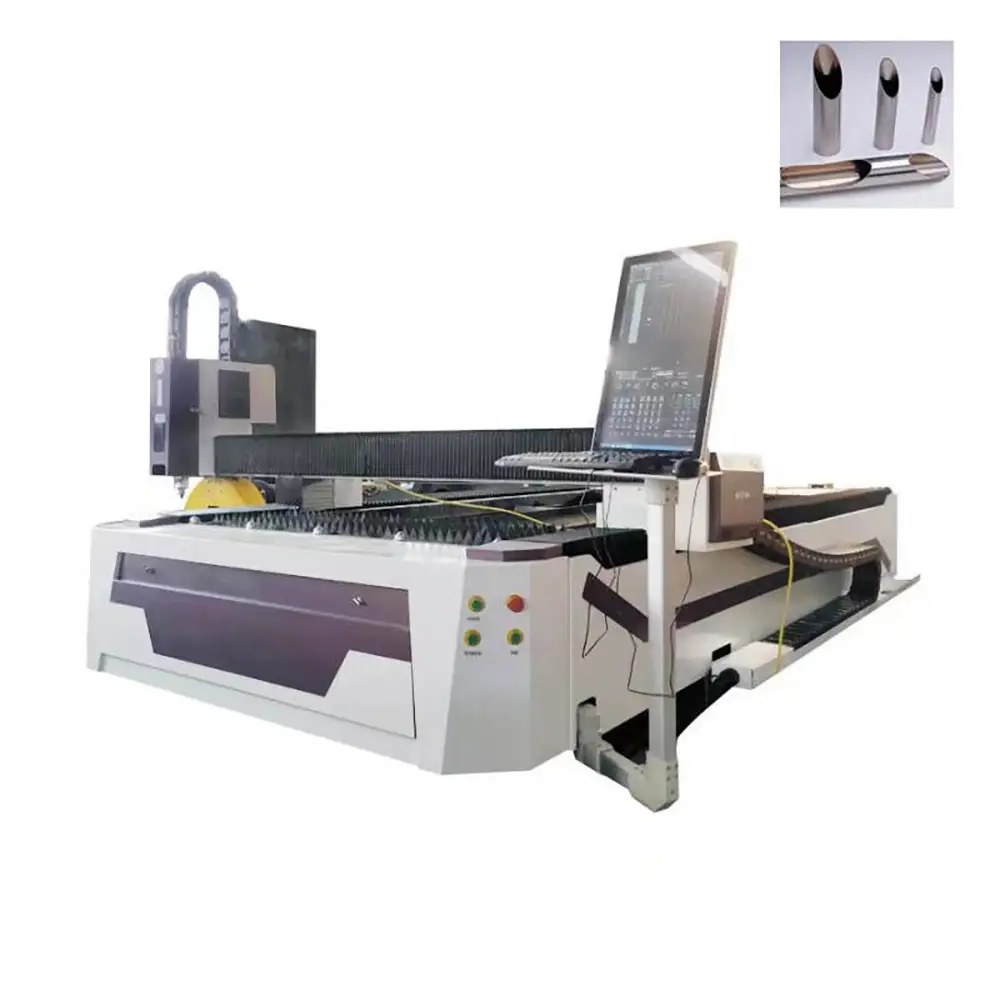

High Precision Large Size Pipe and Plate Integrated Cutting Machine

The High Precision Large Size Pipe And Plate Integrated Cutting Machine is a multifunctional CNC fiber laser cutting solution designed for manufacturers that need to process both large metal plates and tubular materials on one machine. By integrating pipe and plate cutting capabilities into a single laser processing platform, the machine provides greater production flexibility while reducing the need for separate cutting equipment.

Large-scale metal fabrication often involves different workpieces, including steel plates, stainless steel sheets, round pipes, square tubes, rectangular tubes, and other compatible metal profiles. Using separate machines for each material type can increase equipment investment, floor space, programming requirements, and material handling. An integrated pipe and plate laser cutting machine provides a practical solution for factories that need to switch between different types of metal workpieces.

Name		Parameter
Machine model		1530-1.5	1530-2	1530-3
Laser Source		MAX 1500 W	MAX 2000 W	MAX 3000 W
Water cooler Power		1.5kw	2.0 kw	3.0 kw
Total power		7.5KW	10 KW	15 KW
Maximum cutting thickness	CS	12	16	20
	SS	6	12	12

High Precision Fiber Laser Cutting

The machine uses fiber laser cutting technology to provide a concentrated heat source for processing compatible metal materials. CNC-controlled movement allows the laser cutting head to follow programmed paths for straight cuts, curves, holes, slots, profiles, and customized shapes.

The actual cutting accuracy and performance depend on laser power, machine configuration, material type, thickness, workpiece dimensions, cutting head, and operating parameters. The machine can be configured according to different industrial production requirements.

Minimum cutting width	0.08-0.1 mm
Cutting area of sheet	1500x3000mm
Cutting diameter of pipe	Size:220mm Length6000mm
Software	WeihongLT3000
Guide	EOE
Rack	EOE
Servo Motor	EOE Servo motor 750w
Reducer	Planetary speed reducer
Maximum moving speed	80 m/min
Electricity requirements	380/50,60 v/hz
Graphic Format Supported	PRO/E.UG, Solidworks
Acceleration	1.0 G
Presser of N2/O2/AIR	15-20/6-8/15-30 Bar
Rotary	220*220*6000 mm
Total Weight	3.8T
Machine size	7500x3500x1850 mm
Work per day	16 H
Oil Box	Auto Oil Injection System
Delivery Time	15 workdays

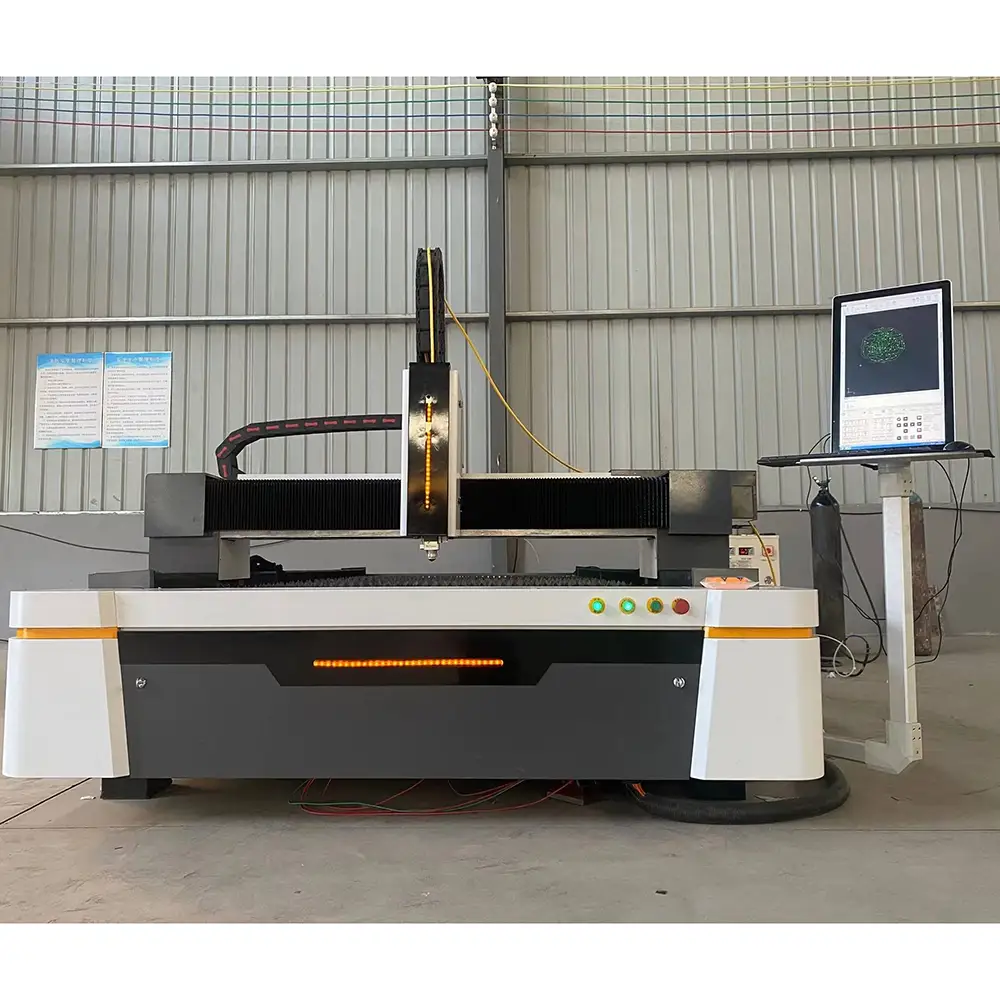

Large Size Metal Plate Cutting

The plate cutting section is designed for large-format metal sheets and plates. Depending on the selected working area, the machine can support fabrication of larger components without requiring excessive repositioning of the workpiece.

Large plate cutting is useful for structural steel, machinery components, construction equipment, industrial enclosures, agricultural machinery, metal frames, brackets, panels, and customized fabricated parts.

CNC control allows users to process complex shapes directly from suitable digital designs. This reduces the need for manual marking and helps improve repeatability in batch production.

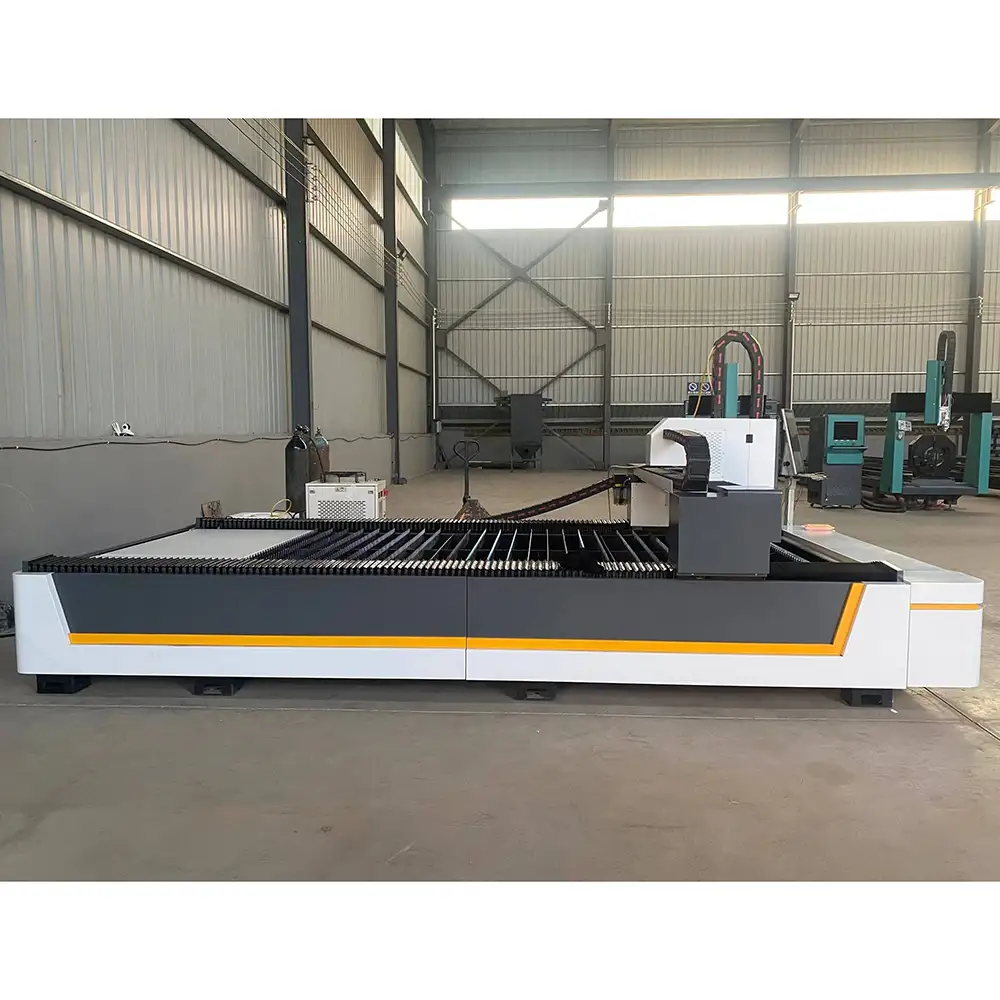

Pipe And Tube Laser Cutting

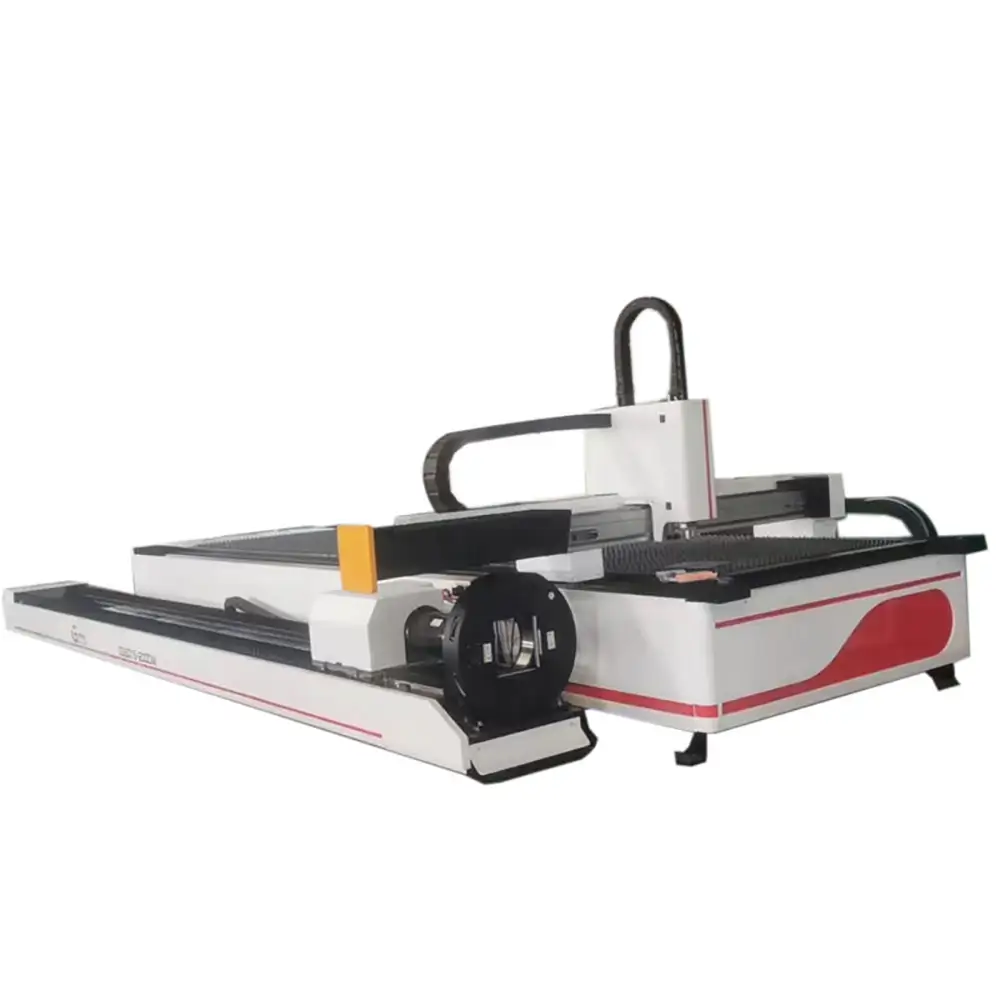

The integrated pipe cutting system allows compatible tubular materials to be processed using the same laser platform. Depending on the machine configuration, it can process round pipes, square tubes, rectangular tubes, and other suitable metal profiles.

Tube laser cutting can produce holes, slots, notches, openings, angled ends, and customized contours. These features are useful for structural frames, machinery components, furniture, vehicle parts, agricultural equipment, and industrial assemblies.

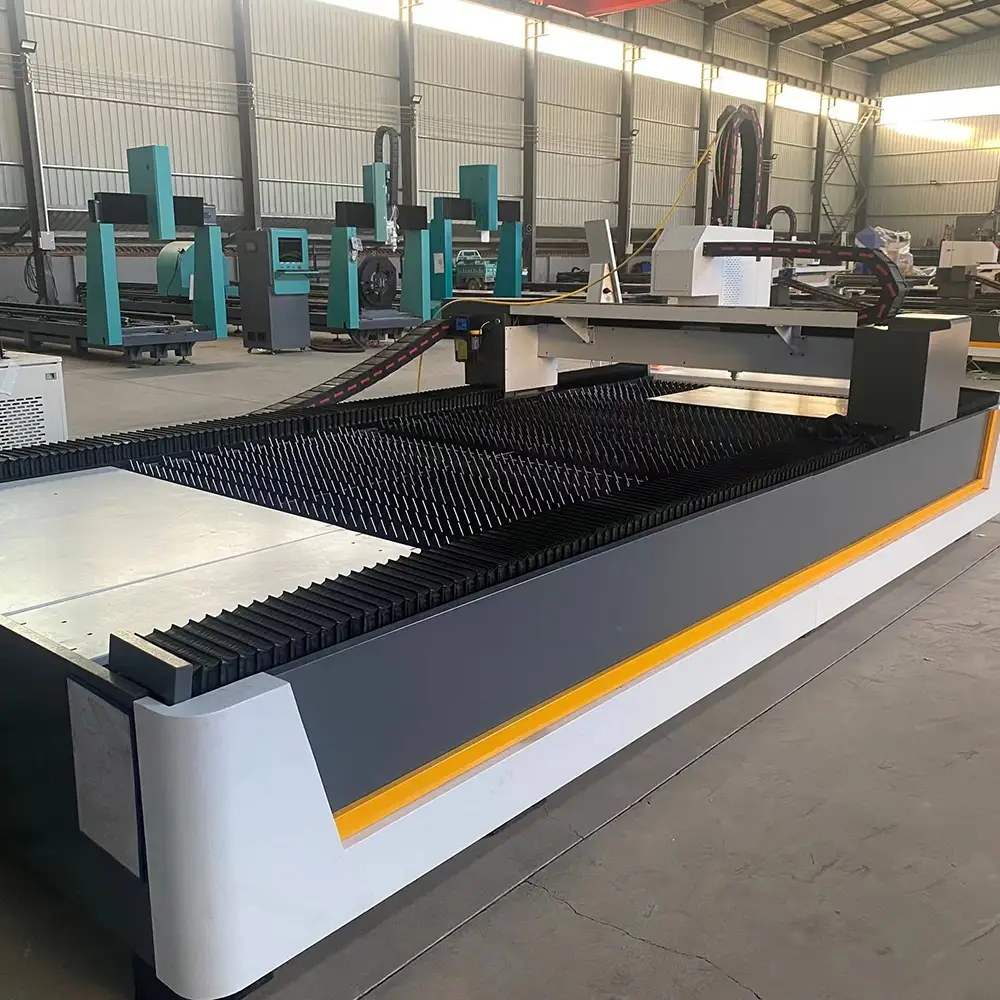

One Machine For Multiple Applications

The main advantage of the integrated design is the ability to process plates and pipes with one CNC laser cutting system. Manufacturers can select the appropriate processing mode according to the workpiece.

This multifunction capability is particularly valuable for metal fabrication businesses handling customized orders. Instead of maintaining separate equipment for plate and tube processing, customers can consolidate multiple cutting operations into a more flexible production platform.

CNC Automated Production

The CNC control system coordinates machine movement and laser cutting according to programmed designs. Once the material and processing parameters are properly configured, the machine can perform repeated cutting operations with reduced manual intervention.

For manufacturers processing multiple batches of similar components, CNC automation can improve production organization and reduce manual layout and positioning work.

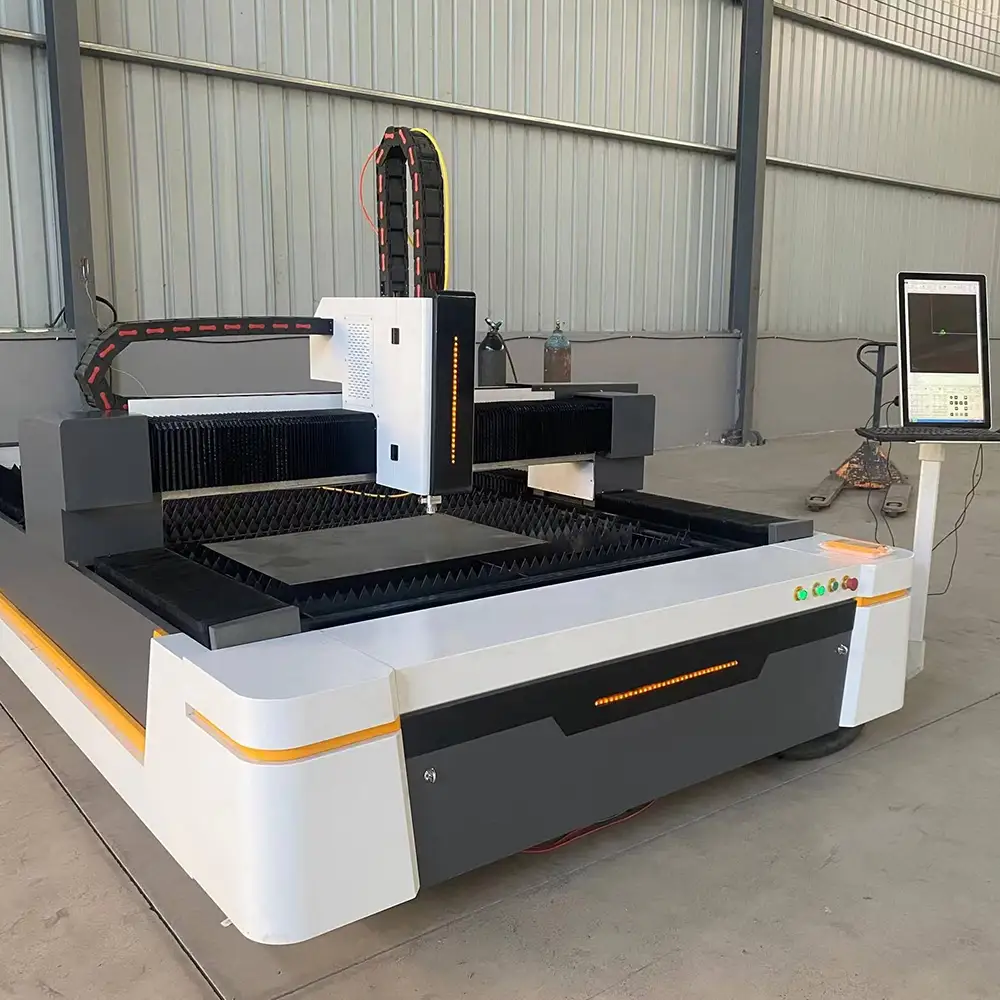

Suitable For Large Metal Fabrication

The large-size configuration is intended for industrial users working with larger metal workpieces. Depending on the model, working dimensions, loading method, laser power, and material support system can be selected according to the customer's requirements.

This makes the equipment suitable for steel fabrication companies, machinery manufacturers, construction equipment suppliers, agricultural machinery factories, metal furniture manufacturers, and customized metal processing businesses.

Flexible Material Compatibility

Depending on the selected laser configuration, the machine can process common metals such as carbon steel, stainless steel, aluminum, galvanized steel, and other compatible materials.

The appropriate laser source and power should be selected according to material type, thickness, reflective characteristics, workpiece dimensions, production volume, and required cutting quality.

Key Features
Integrated Pipe And Plate Cutting Design
High Precision CNC Fiber Laser Technology
Large-Size Metal Plate Processing
Compatible Tube And Pipe Cutting Function
Suitable For Round, Square, And Rectangular Tubes
CNC-Controlled Automated Cutting
Customized Hole, Slot, And Profile Processing
Suitable For Large Metal Workpieces
Flexible Industrial Production Configuration
One Machine For Multiple Metal Cutting Applications
Main Applications
Large Steel Plate Cutting
Stainless Steel Plate Cutting
Carbon Steel Sheet Cutting
Metal Pipe Cutting
Round Tube Cutting
Square Tube Cutting
Rectangular Tube Cutting
Structural Steel Fabrication
Machinery Component Manufacturing
Construction Equipment Production
Agricultural Machinery Parts
Metal Frame Manufacturing
Industrial Enclosure Production
Customized Metal Fabrication
FAQs
1. What Is A Pipe And Plate Integrated Cutting Machine?

It is a CNC laser cutting machine designed to process both flat metal plates and compatible pipes or tubes using an integrated cutting platform.

2. What Materials Can It Cut?

Depending on the selected configuration, it can process carbon steel, stainless steel, aluminum, galvanized steel, and other compatible metal materials.

3. Can It Cut Large Metal Plates?

Yes. The machine is designed for large-size plate processing, with the specific working area determined by the selected model and configuration.

4. Can It Cut Round And Square Pipes?

Yes. With the appropriate pipe cutting configuration, the machine can process round pipes, square tubes, rectangular tubes, and other compatible profiles.

5. Can One Machine Process Both Plates And Pipes?

Yes. The integrated design allows users to switch between plate and pipe processing according to the machine configuration and production requirements.

6. Is It Suitable For Carbon Steel?

Yes. Carbon steel is one of the common materials processed by fiber laser cutting machines. The recommended laser power depends on material thickness and production requirements.

7. Can It Cut Stainless Steel And Aluminum?

Yes. With a suitable fiber laser configuration, stainless steel and aluminum can be processed. Machine specifications should be selected according to material characteristics and thickness.

8. What Can It Cut On Pipes?

Depending on the CNC system and machine configuration, it can produce holes, slots, openings, notches, contours, and other programmed features on suitable tubes and pipes.

9. How Do I Choose The Right Laser Power?

Laser power should be selected according to the material type, maximum thickness, plate dimensions, pipe specifications, production volume, and required cutting performance.

10. Can The Machine Be Customized?

Yes. Working area, laser power, pipe cutting configuration, loading system, cutting head, control system, and other options can be discussed according to specific production requirements.

Why Choose Us
High Precision Laser Cutting Solution

We provide CNC fiber laser equipment designed for precision metal plate, pipe, and profile cutting applications across different industrial sectors.

Integrated Pipe And Plate Processing

Combining pipe and plate cutting functions gives manufacturers a flexible production solution for handling different metal workpieces with one machine platform.

Large-Format Configuration

For customers working with larger sheets and longer or larger pipes, machine dimensions and material handling configurations can be selected according to the intended application.

Application-Based Machine Selection

We can recommend suitable laser power, working area, pipe cutting system, cutting head, and other machine components based on material type, thickness, dimensions, and production requirements.

Factory-Direct B2B Supply

We support metal fabrication companies, machinery manufacturers, steel processors, distributors, importers, and industrial users with direct equipment supply and technical consultation.

International Export Service

We provide overseas customers with specification confirmation, technical documentation, packaging, shipping coordination, and after-sales communication for international equipment procurement.

Prev：Multi-function Automatic CNC Tube and Plate Cutting Integrated Fiber Laser Cutting Machine

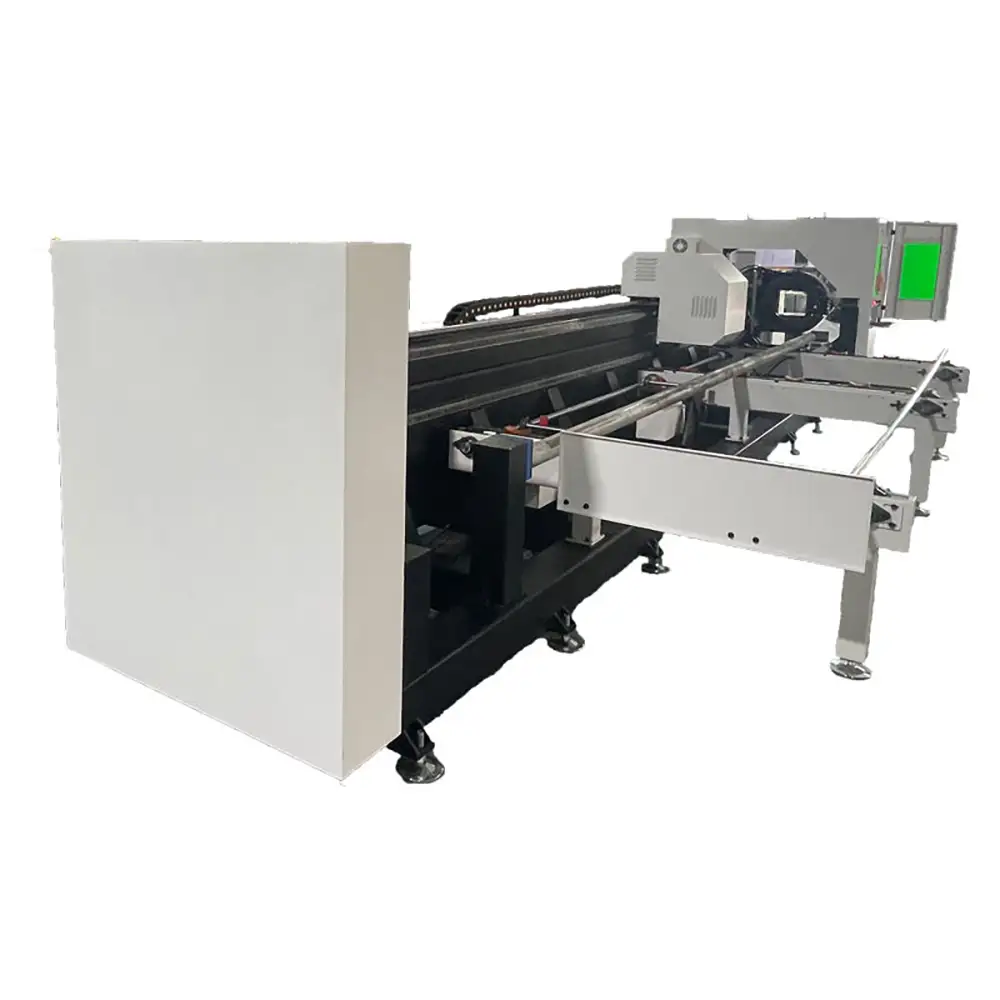

Next：6 Meter Feed Heavy Duty Side Mounted Dual Chuck Laser Tube Cutting Machine
