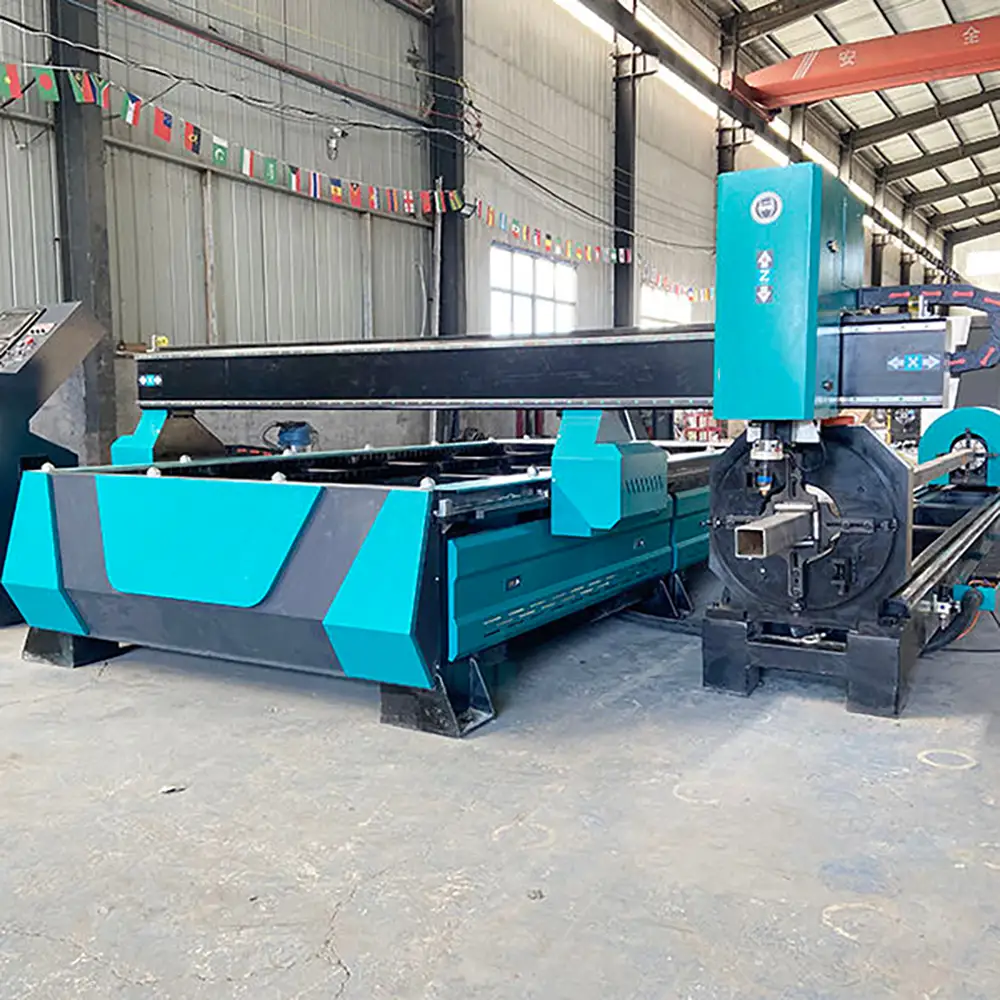

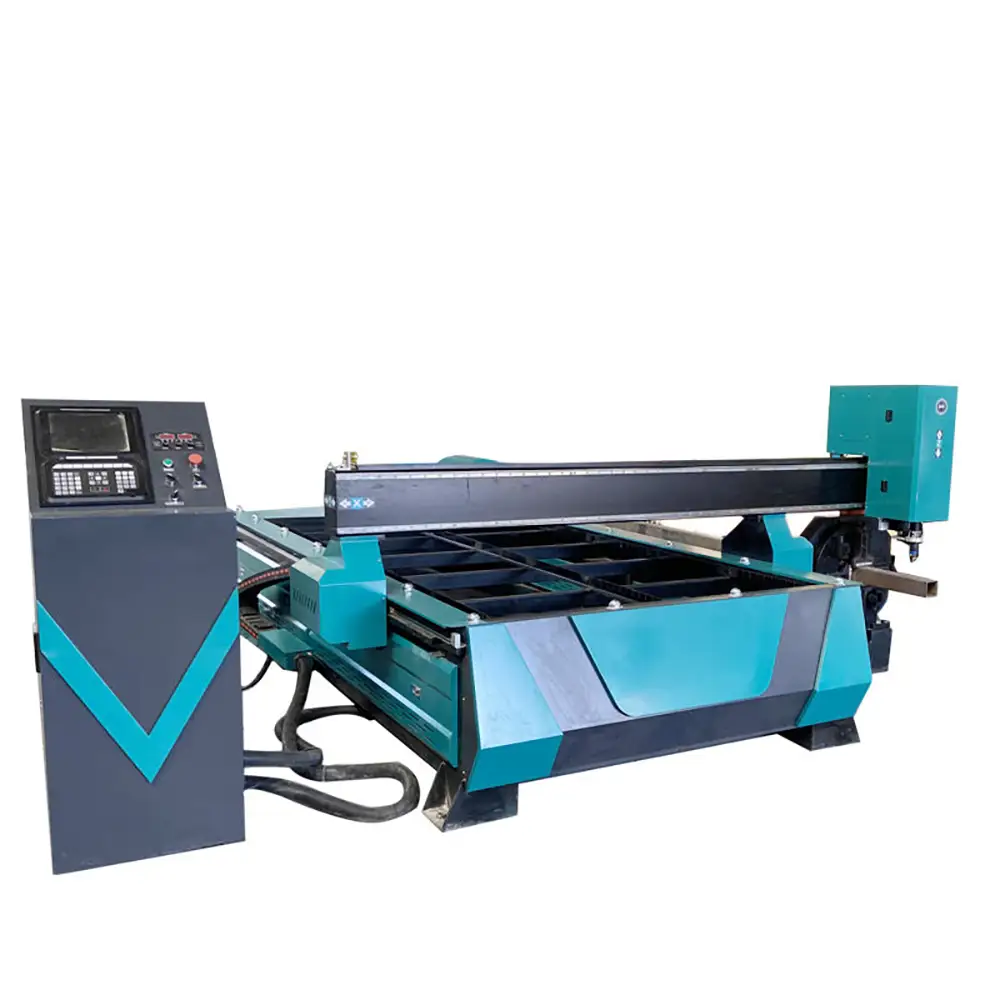

CNC Metal Plate Cutting Machine 25 mm Thickness Carbon Steel Sheet Material Plasma Cutting Machine

1.1530 160A Plasma cutting machine
2．1500*3000mm working area
3． Independent control cabinet
4． EOE-HZH  control system
5． Automatic Torch height controller
6． Starcam software
7．2GB processing file
8． high precision square guide rail
9． high precision ball screw
10． China high precision stepper motor
11． Multi-function tool box
12． Efficiency exhaust smoke system
13． Easy feeding slide material system
14． High quality soft electricity cable can be bend for 1.5 million times

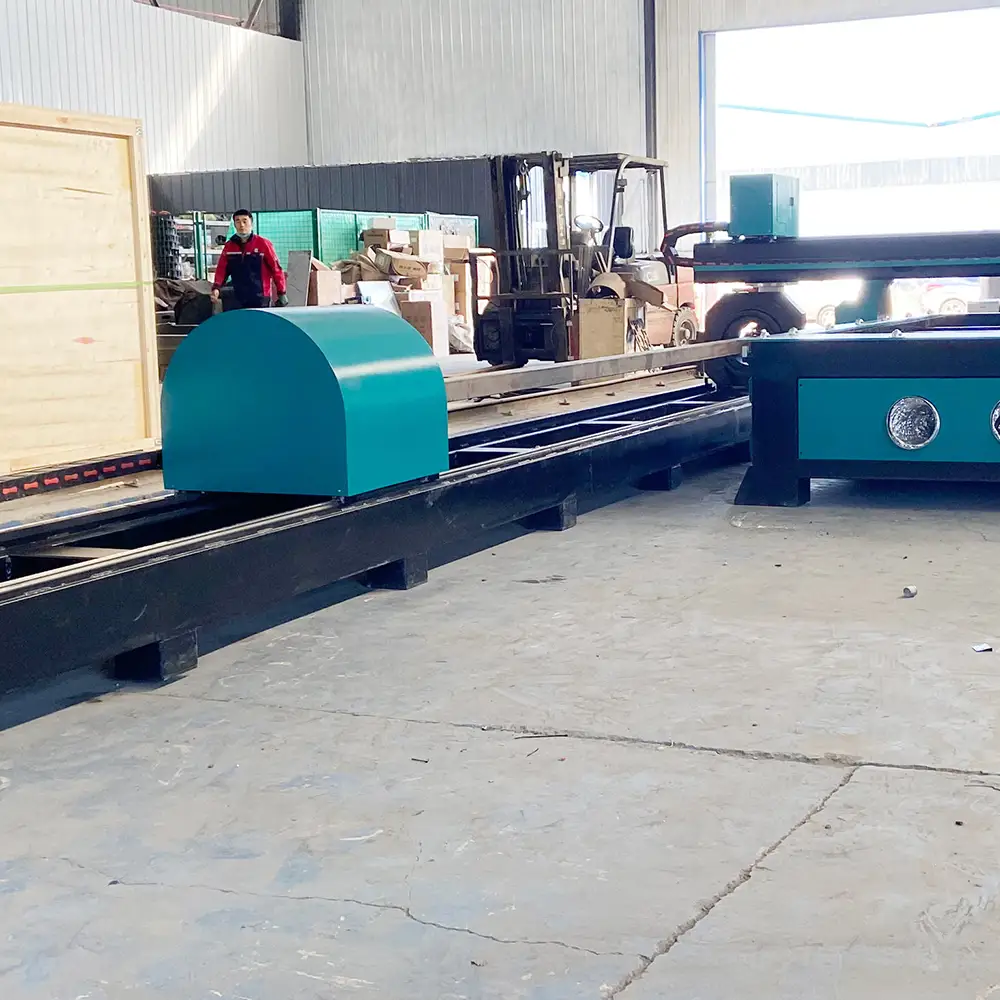

15． axis of rotation：320*320*6000MM
16． The boss gave a tutorial without the cost of asking an engineer
17． Professional goggles and antiironing covers
18． LGK120A  plasma  power
19． All the necessary parts for machine working

Model	1530 160A Plasma cutting machine (high configuration)
X,Y working area	1500*3000mm
Chuck size	320mm
max cutting capacity	320mm
lengh of pipe cutting	6000mm
Z working area	150mm
Packing dimension	4000mm*2280mm*1850mm
Lathe bed	Very thick steel structure
Machine Power	8.5kw
Working voltage	380V three phase50/60hz
Reposition precision	0.02mm
Processing precision	0.1mm
Maximum cutting speed	12000mm/min
Torch Height control mode	Automatic
Cutting thickness	Max 35mm carbon steel
Plasma power supply	LGK160A
Control system	STARfire
Motors	Stepper motor
Software	Starcam
Weight	1400KG
Plasma Air Pressure	Max.0.8Mpa
Working Temperature	-10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension	7 Inches

The CNC Metal Plate Cutting Machine 25 mm Thickness Carbon Steel Sheet Material Plasma Cutting Machine is an industrial CNC plasma cutting solution designed for efficient processing of carbon steel sheets and metal plates. With CNC-controlled cutting technology, the machine can follow programmed cutting paths to produce straight lines, curves, holes, slots, profiles, and customized metal components.

Designed for metal fabrication and industrial production, this CNC plasma cutting machine is suitable for manufacturers working with carbon steel sheets and plates. The 25 mm material reference makes the machine suitable for applications requiring the processing of relatively thick carbon steel, subject to the selected plasma power, cutting consumables, material condition, and required cutting quality.

CNC plasma cutting uses a high-temperature plasma arc to melt and remove conductive metal along a programmed cutting path. Compared with conventional mechanical cutting, plasma cutting does not require a physical cutting blade to travel through the material. This allows the machine to process customized contours and complex profiles efficiently.

CNC Metal Plate Cutting

The CNC control system enables the operator to create or import cutting programs and automatically guide the cutting torch along the required path. This supports repeatable production of metal plates, brackets, frames, machine components, structural parts, and customized sheet metal products.

Digital CNC control is especially useful for manufacturers handling different designs and production orders. Operators can modify cutting files without manufacturing a dedicated mechanical die for each new shape.

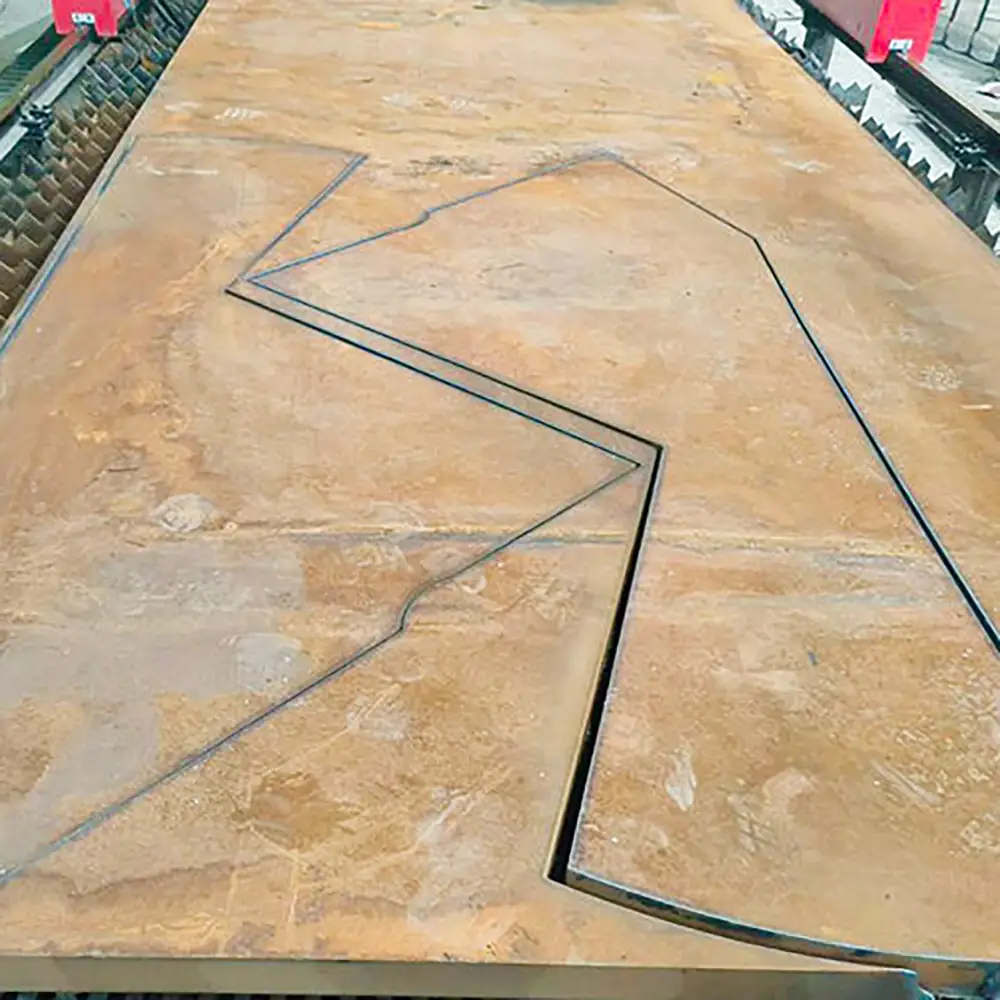

25mm Carbon Steel Cutting

This machine is designed around carbon steel sheet and plate processing, with configurations available for applications involving material thicknesses up to approximately 25 mm. Actual cutting capacity and edge quality depend on the plasma power source, material grade, plate thickness, cutting speed, consumables, gas selection, and operating conditions.

For customers regularly processing thick carbon steel, the complete machine configuration should be selected according to the required production thickness rather than relying only on a nominal maximum value.

Industrial Plasma Cutting

Plasma cutting is widely used for carbon steel because it can provide fast material separation for many fabrication applications. The process is suitable for cutting plates and sheets used in structural fabrication, machinery, agricultural equipment, metal frames, brackets, supports, and general industrial components.

The machine can be configured with different working table dimensions and CNC systems according to customer requirements.

Customized Metal Shapes

One of the main advantages of CNC plasma cutting is its ability to produce customized shapes from digital drawings. Depending on the control system and software, users can process circles, rectangles, slots, curves, irregular profiles, holes, and other programmed contours.

This makes the machine suitable for both standard components and customized production.

Stable CNC Operation

The CNC control system helps coordinate the cutting torch movement and programmed cutting path. Proper machine setup, consumable selection, torch height control, and cutting parameters contribute to stable production and consistent results.

For factories producing multiple batches of similar parts, CNC automation can help reduce manual layout work and improve production repeatability.

Wide Industrial Applications

The CNC Metal Plate Cutting Machine can be used in machinery manufacturing, steel fabrication, construction equipment, agricultural machinery, automotive components, metal structures, shipbuilding-related fabrication, hardware production, and customized metal processing.

It is particularly useful for businesses that need to convert carbon steel sheets or plates into finished components according to CAD drawings or other compatible production files.

Key Features
CNC-Controlled Plasma Cutting System
Designed For Carbon Steel Sheet And Plate
Supports Applications Up To Approximately 25mm Material Thickness
High-Temperature Plasma Arc Cutting
Suitable For Customized Metal Shapes
Digital Cutting Path Control
Suitable For Straight And Contour Cutting
Flexible Working Table Configurations
Suitable For Industrial Metal Fabrication
Factory-Direct B2B Machine Supply
Main Applications
Carbon Steel Plate Cutting
Carbon Steel Sheet Cutting
Metal Plate Fabrication
Structural Steel Processing
Machinery Component Manufacturing
Agricultural Equipment Parts
Metal Frame Production
Bracket And Support Manufacturing
Construction Equipment Components
Steel Structure Fabrication
Industrial Hardware Production
Customized Metal Parts
CNC Plasma Cutting Services
General Metal Fabrication
FAQs
1. What Is A CNC Metal Plate Plasma Cutting Machine?

It is a CNC-controlled machine that uses a plasma arc to cut electrically conductive metal sheets and plates according to programmed cutting paths.

2. Can It Cut 25mm Carbon Steel?

The machine can be configured for carbon steel applications around 25mm thickness. Actual cutting capability depends on plasma power, material grade, cutting speed, consumables, gas, and the required edge quality.

3. What Materials Can A Plasma Cutting Machine Process?

Plasma cutting is commonly used for electrically conductive materials such as carbon steel, stainless steel, and aluminum. The suitable thickness range depends on the specific machine configuration.

4. Is This Machine Suitable For Carbon Steel Plates?

Yes. Carbon steel plate cutting is one of the primary applications of CNC plasma cutting equipment.

5. Can It Cut Customized Shapes?

Yes. CNC programming allows the machine to follow digital cutting paths for straight lines, curves, holes, slots, and customized profiles.

6. What Is The Difference Between Plasma And Mechanical Cutting?

Plasma cutting uses a plasma arc rather than a mechanical blade. This allows the cutting torch to follow complex CNC paths without requiring a dedicated cutting die for every design.

7. Is It Suitable For Industrial Production?

Yes. CNC plasma cutting machines are widely used for metal fabrication, machinery manufacturing, structural steel processing, agricultural equipment, and customized metal parts.

8. Can The Working Table Be Customized?

Working dimensions and machine configuration can generally be selected according to the customer's material size, production requirements, workshop layout, and application.

9. How Do I Choose The Right Plasma Power?

Plasma power should be selected based on the maximum material thickness, material type, required cutting speed, production volume, and desired edge quality.

10. Can You Provide Export And Technical Support?

Yes. B2B customers can receive support for machine configuration, technical specifications, accessories, packaging, shipping coordination, installation guidance, and after-sales communication.

Why Choose Us
Professional CNC Plasma Cutting Equipment

We provide CNC plasma cutting solutions for carbon steel plate processing and general industrial metal fabrication applications.

Configuration Based On Material Requirements

The appropriate plasma power, working area, torch system, CNC control, and accessories can be selected according to the customer's material thickness and production requirements.

Support For Customized Production

CNC programming allows manufacturers to process different shapes and components from digital drawings, making the equipment suitable for customized orders and repeat production.

Factory-Direct B2B Supply

We support metal fabrication companies, machinery manufacturers, steel processors, distributors, importers, and industrial users with factory-direct equipment supply.

Technical Application Support

We can help customers evaluate material thickness, working dimensions, production requirements, and machine configuration before ordering to ensure the selected system matches the intended application.

International Export Service

We provide export-oriented support including machine specifications, accessories, packaging, shipping coordination, technical documentation, and overseas customer communication.
