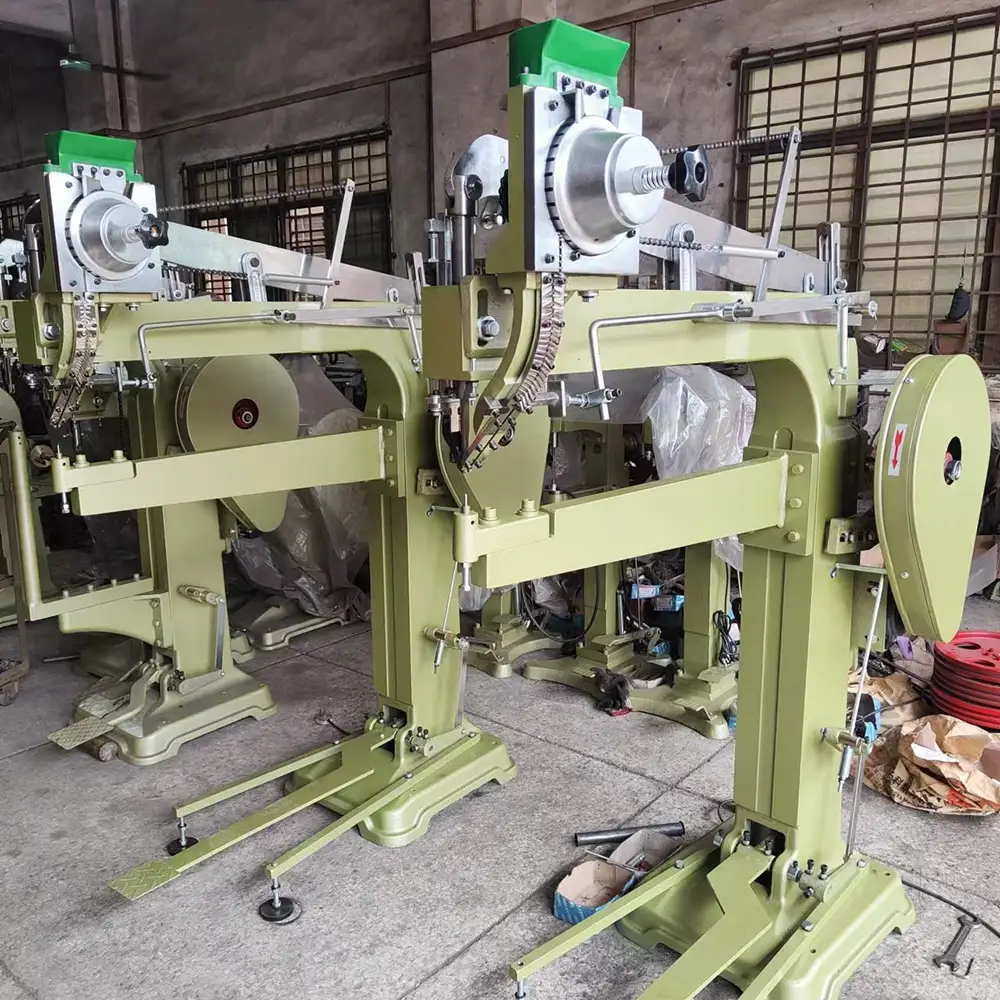

Long Throat Depth Riveting Machine for Golf Bags and Large Turnover Boxes

Function of riveting machine for golf bags and riveting of large turnover boxes
1 Fit for riveting the spherical head, half-hollow rivets
2 With automatic feeding device, which can rivet continuously
3 The clamp and punch of high-performance is of a high riveting capability
4 Can rivet clinch of various specifications if the die is changed
Application: Suitable for riveting of belts, uppers and various materials

Model	HSR-JT3
Rivet nail top diameter	Φ6-13mm
Rivet nail diameter	Φ3-4.5mm
Rivet nail  length	3-20mm
Throat depth	950mm
Power	1/2, HP
Machine dimensions(L×W×H)	1440×660×1600mm3
Net weight	250kg
Gross weight	270kg
Packing	Wooden cases

Usage: Suitable for riveting of belts, uppers and various materials
Automatic feeding with above and below, once for all

Long Throat Depth Riveting Machine for Golf Bags and Large Turnover Boxes

The Long Throat Depth Riveting Machine for Golf Bags and Large Turnover Boxes is designed for riveting applications where standard machines may not provide enough working depth or access to the fastening position. With an extended throat depth and long-reach working area, the machine provides greater flexibility when riveting large, deep, wide, or bulky products.

Golf bags, large turnover boxes, storage containers, luggage, industrial bags, and other oversized products may have riveting points located far from the edge of the workpiece. A conventional short-throat riveting machine can make these positions difficult to access. A long-throat configuration provides additional clearance between the riveting head and machine body, allowing operators to reach deeper areas of the workpiece.

The machine is suitable for B2B manufacturers that require reliable and repeatable riveting for large products and specialized components. Depending on the application, it can be configured with appropriate riveting heads, dies, fixtures, positioning systems, and feeding equipment.

Long Throat Depth for Large Workpieces

The primary advantage of this machine is its extended throat depth. The increased working clearance allows larger products to be positioned inside the machine while providing access to riveting points that may be difficult to reach with standard equipment.

This design is especially useful for products with:

Deep internal areas
Large surface dimensions
Wide bodies
Recessed riveting positions
Large fabric structures
Bulky plastic components
Large metal assemblies
Deep bags or containers

The actual available throat depth and working range depend on the specific machine configuration. Manufacturers should confirm the required working dimensions before selecting the equipment.

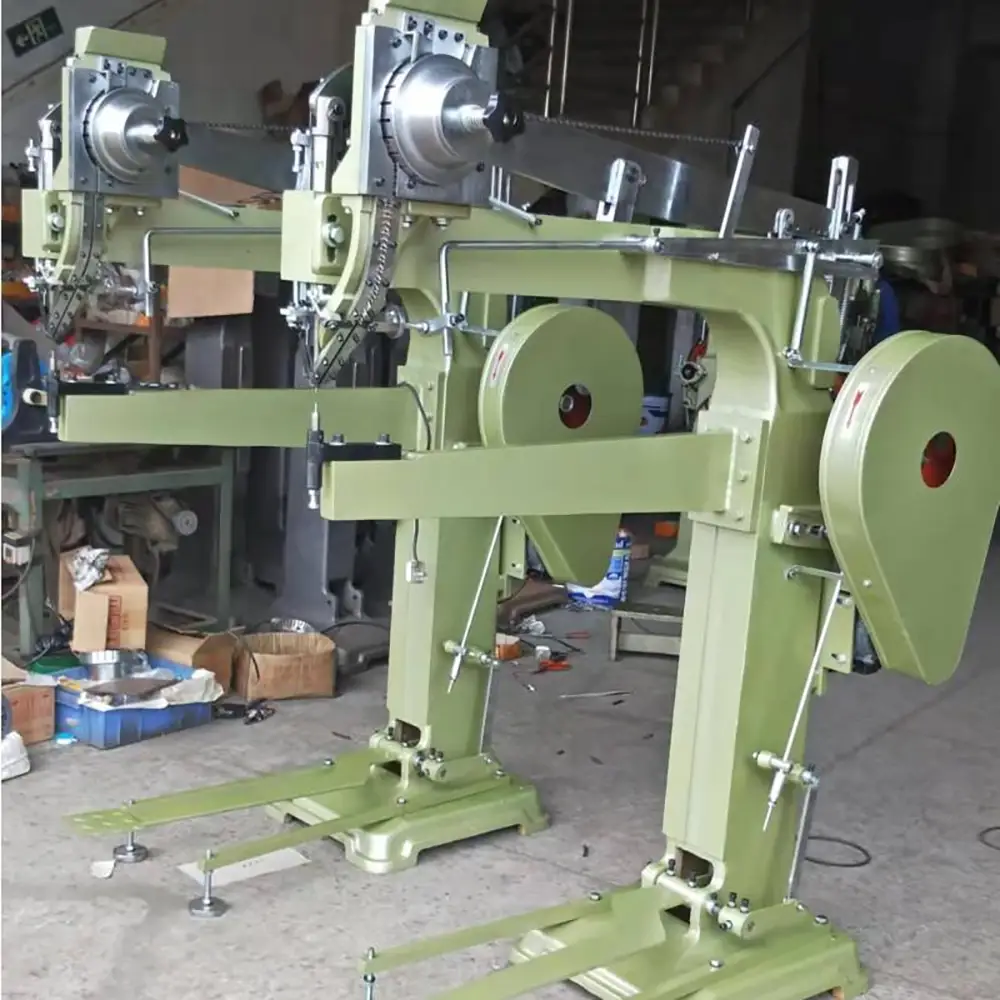

Golf Bag Riveting Machine

Golf bags are large, flexible products that commonly contain multiple hardware components, straps, brackets, handles, rings, buckles, and reinforcement areas.

Some riveting positions can be located relatively far from the outer edge of the bag. The long throat design provides additional access for these applications.

Potential golf bag riveting applications include:

Golf bag hardware
Shoulder strap attachments
Carry handles
Metal rings
Buckles
Reinforcement components
Strap brackets
Decorative rivets
Bag accessories
Metal fittings

A suitable positioning fixture can help hold the golf bag or individual component in the correct position during the riveting operation.

Because golf bags can vary in size, shape, and material construction, tooling should be selected according to the actual product design.

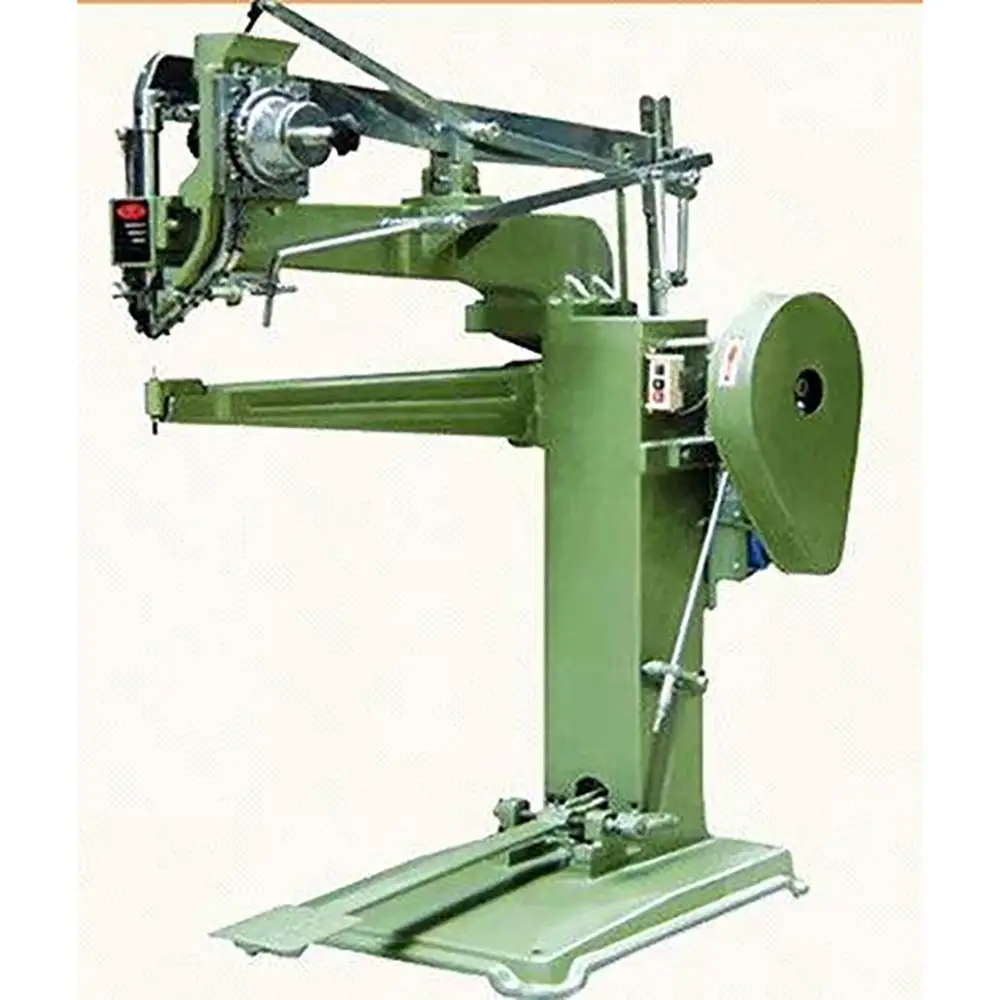

Large Turnover Box Riveting Machine

Large turnover boxes, storage containers, logistics boxes, and industrial transport containers may require riveting for handles, hinges, brackets, reinforcing plates, fittings, or other hardware.

The long throat configuration can provide improved access to larger containers and deep work areas.

Potential applications include:

Large turnover boxes
Plastic storage boxes
Industrial transport containers
Logistics boxes
Warehouse containers
Material handling boxes
Large storage containers
Container hardware
Hinges and brackets
Reinforcement components

Depending on the product material, riveting may be used to secure compatible metal or plastic components.

Why Long Throat Depth Matters

For conventional riveting machines, the distance between the machine body and riveting head limits the size and geometry of the workpiece that can be positioned inside the working area.

A long throat design increases this working distance. This can be particularly valuable for large products where the riveting point is located deep inside the product.

For example, when riveting a golf bag, the operator may need to insert a substantial portion of the bag into the working area to reach a particular fastening point. Similarly, a large turnover box may require the riveting head to reach across a wide container surface.

The long throat configuration provides greater working flexibility for these applications.

Suitable for Bags and Soft Products

In addition to golf bags, the machine can be used for other large soft products where deep access is required.

Potential applications include:

Travel bags
Duffel bags
Sports bags
Tool bags
Equipment bags
Industrial fabric bags
Luggage
Large cases
Protective covers
Textile containers

Suitable rivets, fasteners, and tooling should be selected according to the fabric, leather, synthetic material, reinforcement layer, and hardware being assembled.

Riveting Large Plastic and Metal Containers

Large turnover boxes and logistics containers can contain multiple components requiring permanent mechanical fastening.

The machine may be configured for compatible plastic or metal products, depending on the riveting process and fastener specifications.

Applications may include:

Container handles
Brackets
Hinges
Reinforcement plates
Metal fittings
Mounting components
Locking hardware
Support structures

For plastic products, appropriate rivet selection and tooling are particularly important to avoid excessive deformation or damage.

Riveting Process

The basic riveting process is straightforward but should be adapted to the specific product.

A typical process includes:

Place the large workpiece in the machine's working area.
Position the riveting point beneath the riveting head.
Install the appropriate rivet or fastener.
Secure the workpiece using a fixture if required.
Activate the riveting cycle.
Apply controlled riveting force.
Form and secure the rivet.
Release the workpiece.
Inspect the finished connection.

For large or flexible products, dedicated positioning fixtures can improve repeatability and operator efficiency.

Customized Tooling and Fixtures

Long-throat riveting applications often involve unusual product dimensions. Standard tooling may not always provide sufficient support.

Customized tooling can be designed according to the product geometry and riveting position.

Possible options include:

Custom riveting dies
Extended riveting heads
Large product fixtures
Positioning guides
Support tables
Bag positioning fixtures
Box positioning fixtures
Adjustable workholding systems
Special-shaped tooling

The fixture should allow the operator to position the product accurately while keeping the riveting point stable during the riveting cycle.

Improved Production Efficiency

A long-throat riveting machine can reduce the need for complicated repositioning when the fastening point is located deep inside a large product.

For suitable applications, this can help simplify the production process and improve operator workflow.

Production efficiency depends on:

Rivet type
Product size
Product geometry
Riveting cycle
Loading method
Fixture design
Operator experience
Automation level

For higher-volume applications, automatic or semi-automatic feeding systems may be considered when compatible with the selected fastener.

Consistent Riveting Quality

Large products can be challenging to position manually. A suitable machine and fixture can help maintain consistent riveting positions across multiple workpieces.

Quality control should focus on:

Rivet position
Rivet head formation
Fastening strength
Rivet alignment
Material condition
Product appearance
Hardware positioning
Repeatability

Sample testing with the actual golf bag, turnover box, rivet, and hardware is recommended before mass production.

Wide Range of Industrial Applications

The long-throat design is not limited to golf bags and turnover boxes. It can be considered for many large or deep products requiring mechanical fastening.

Potential applications include:

Large luggage
Sports equipment bags
Industrial bags
Storage containers
Logistics boxes
Large plastic products
Fabric containers
Large hardware assemblies
Protective cases
Industrial equipment covers

This flexibility makes the machine useful for manufacturers serving multiple markets or producing customized OEM products.

OEM and Custom Manufacturing Support

Different customers may require different throat depths, working areas, tooling, fixtures, and riveting forces.

OEM customization can be evaluated according to:

Product samples
CAD drawings
Rivet specifications
Product dimensions
Material information
Riveting positions
Production volume
Required automation

Customized fixtures and tooling can help manufacturers achieve a more efficient production process for specialized large products.

Why Choose Our Long Throat Depth Riveting Machine?
1. Extended Working Reach

The long throat design provides additional access for large, deep, and bulky workpieces.

2. Designed for Large Products

Suitable for golf bags, large turnover boxes, luggage, containers, industrial bags, and other oversized products.

3. Flexible Riveting Applications

The machine can be configured for compatible rivets, hardware, brackets, fittings, and reinforcement components.

4. Customized Tooling

Special dies, riveting heads, fixtures, and positioning systems can be developed according to the product.

5. Better Access to Deep Positions

The extended throat helps operators reach riveting locations that may be difficult to access with standard machines.

6. Consistent Riveting Quality

Dedicated fixtures and controlled riveting operations support repeatable fastening results.

7. Suitable for B2B Production

The machine is suitable for factories, luggage manufacturers, sports bag producers, logistics equipment companies, and OEM suppliers.

8. OEM and Custom Solutions

Machine configuration, throat depth, tooling, fixtures, and automation options can be evaluated according to specific production requirements.

FAQ
1. What is a Long Throat Depth Riveting Machine?

It is a riveting machine with an extended throat or working reach designed to provide better access to deep, large, or bulky workpieces.

2. Why is long throat depth important?

Long throat depth allows the riveting head to reach fastening points located farther inside large products or away from the outer edge.

3. Can this machine rivet golf bags?

Yes. It can be configured for suitable golf bag hardware, straps, handles, brackets, rings, buckles, and other compatible components.

4. Can it be used for large turnover boxes?

Yes. The extended working area can be useful for large turnover boxes, logistics containers, storage boxes, and similar products.

5. Can it be used for luggage?

Yes. The machine can be configured for suitable luggage and large bag riveting applications.

6. Can the throat depth be customized?

Depending on the machine design, customized throat depth and working dimensions may be available according to the required product size and riveting position.

7. Can the machine rivet plastic turnover boxes?

It may be suitable for compatible plastic products when the rivet, material, tooling, and riveting process are appropriate. Sample testing is recommended.

8. Can custom fixtures be provided?

Yes. Custom fixtures can be designed for golf bags, turnover boxes, luggage, containers, and other large workpieces.

9. Can automatic rivet feeding be added?

Depending on the rivet type and machine configuration, automatic or semi-automatic feeding systems may be available.

10. What other products can use a long-throat riveting machine?

Potential applications include large luggage, sports bags, industrial bags, storage containers, logistics boxes, fabric products, and large hardware assemblies.

11. How do I select the right machine?

Important factors include required throat depth, workpiece dimensions, rivet type, rivet diameter, material thickness, riveting force, fastening position, and production volume.

12. Can you provide an OEM riveting solution?

Yes. Product samples, drawings, rivet specifications, dimensions, and production requirements can be used to develop a customized machine, tooling, and fixture solution.
