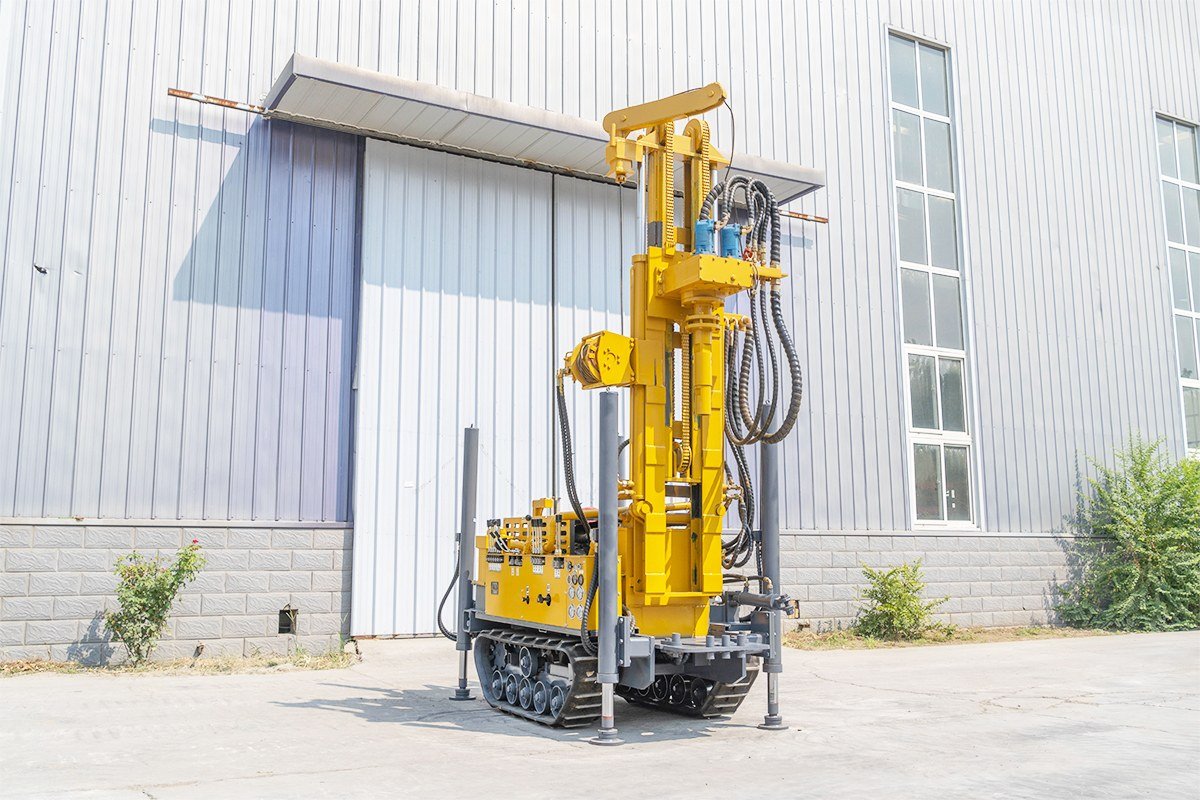

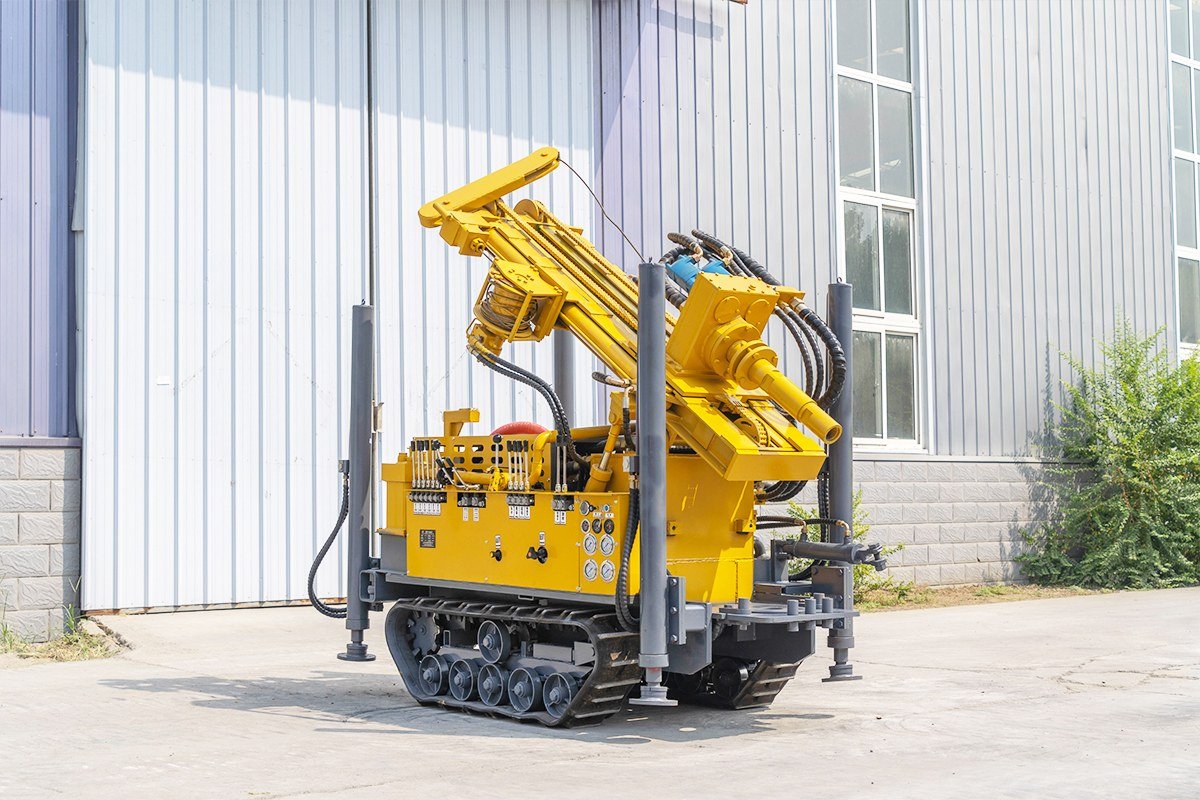

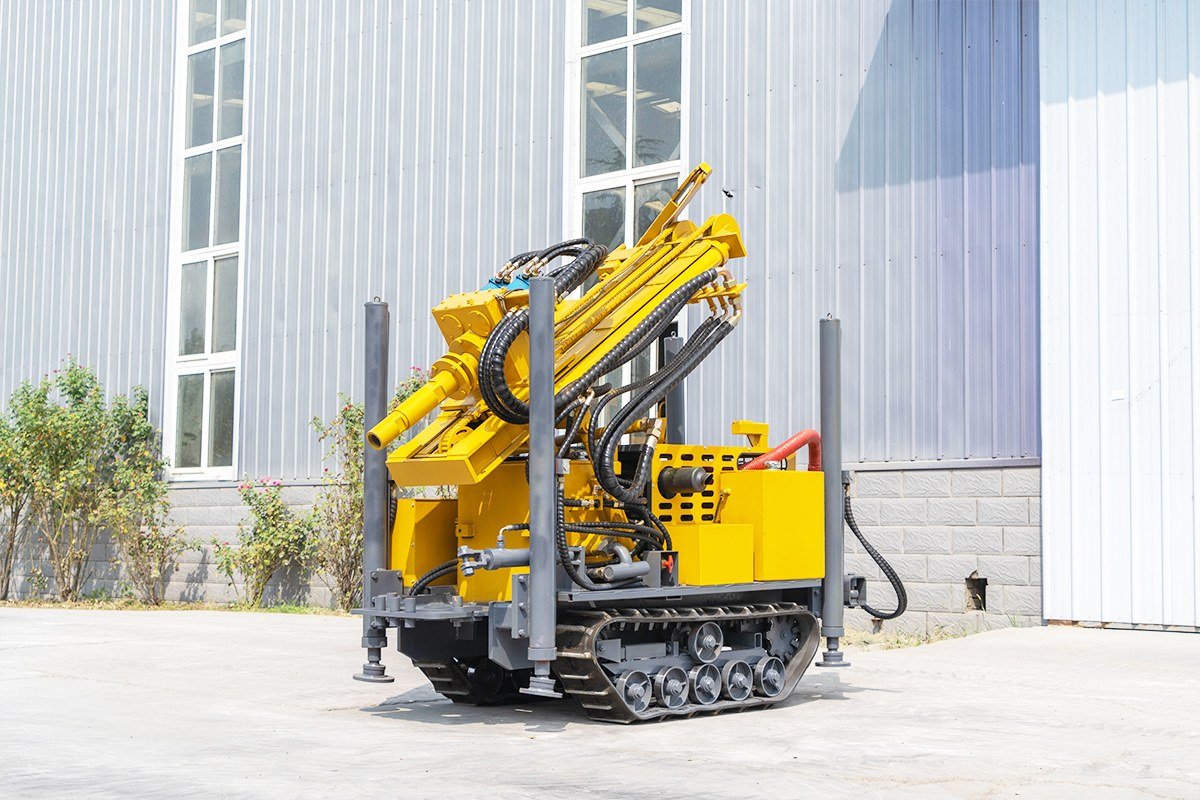

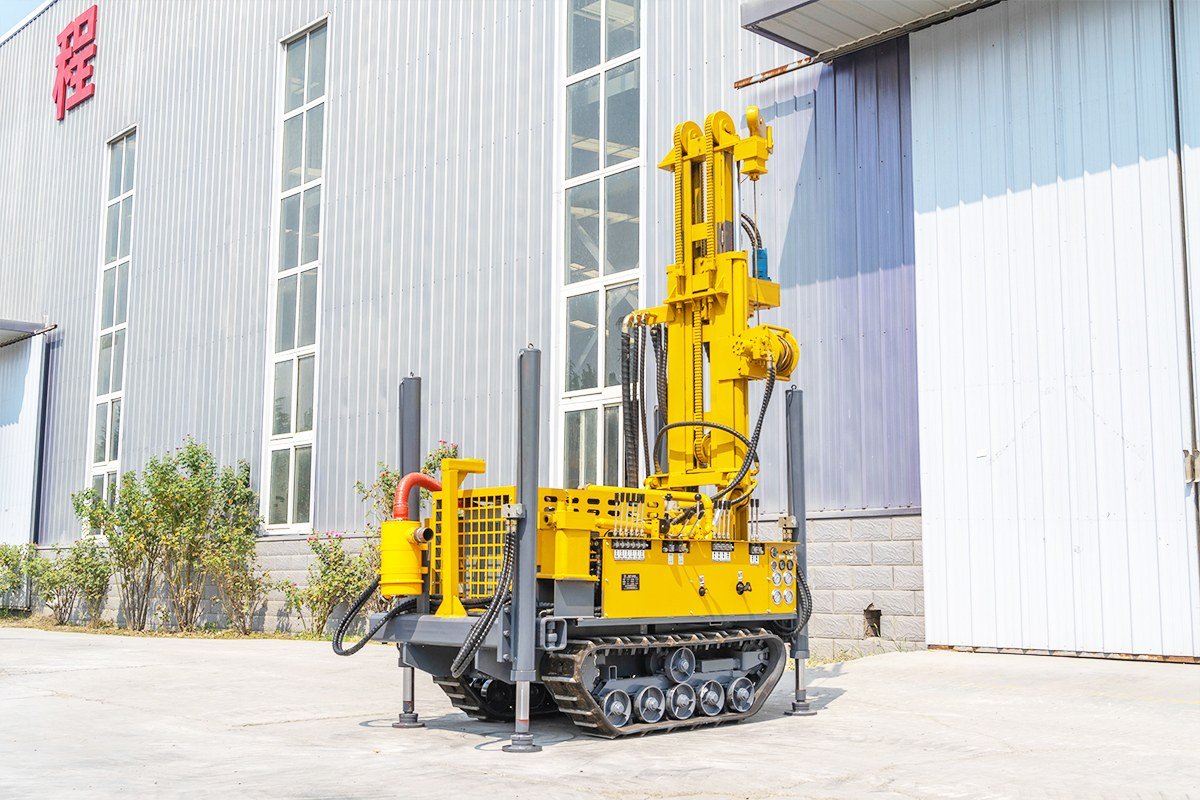

HQZ-160L Pneumatic Drill Rig

Drilling depth: 160m
Drilling diameter: 138-203mm
Main motor power: 73Kw

model	HQZ-160L
tower	2	m
Chassis	Rubber track	/
Drilling diameter	138-203	mm
Drilling depth	160	m
One-time advancement length	2	m
Walking speed	2.5	km/h
Maximum gradeability	30	/
Engine brand	Yuchai	/
Engine power	73	kw
working pressure	/	mpa
Air consumption	/	m³/min
Drill pipe diameter	76/89	mm
Drill pipe length	1.0/1.5/2.0	m
Lifting power	12	T
Swing speed	50-110	rpm
Rotating torque	7800	N.m
Dimensions	2300*1200*1900	mm
weight	2.6	T

HQZ-160L Pneumatic Drill Rig

The HQZ-160L Pneumatic Drill Rig is a high-efficiency crawler-mounted drilling machine designed for water well drilling, geological exploration, mining investigation, and industrial drilling projects. Combining pneumatic drilling technology with a compact crawler chassis, the HQZ-160L delivers excellent mobility, strong drilling performance, and reliable operation in challenging working environments.

Designed for professional drilling contractors and exploration teams, the HQZ-160L Pneumatic Drill Rig uses compressed air-powered drilling technology to achieve fast rock penetration and efficient drilling performance. The machine is suitable for different geological formations and can be widely applied in industrial water wells, agricultural wells, geothermal drilling, geological surveys, and mining exploration projects.

The HQZ-160L features a crawler-type walking system that improves off-road capability and allows the machine to operate effectively in mountains, construction sites, uneven terrain, and remote areas. Its compact structure and flexible mobility make it an excellent choice for drilling projects where transportation and site access are important factors.

With a drilling depth capability of approximately 160 meters, drilling diameter range of 138-203mm, and powerful engine system, the HQZ-160L provides an efficient and economical drilling solution for professional users.

Advanced Pneumatic Drilling Technology

The HQZ-160L Pneumatic Drill Rig adopts advanced air-powered drilling technology, using compressed air to drive drilling tools and improve rock-breaking efficiency.

The pneumatic drilling system provides:

Strong impact drilling force
Fast rock penetration
Stable drilling performance
Reliable operation in harsh environments
Reduced mechanical complexity

Compared with traditional drilling systems, pneumatic technology offers simple structure and convenient maintenance.

The compressed air system helps the HQZ-160L achieve excellent performance in:

Hard rock drilling
Water well construction
Geological investigation
Mining exploration
Foundation drilling

The efficient pneumatic mechanism allows continuous operation while reducing equipment downtime.

Powerful Drilling Performance

The HQZ-160L Pneumatic Drill Rig is designed to provide strong drilling capability for various applications.

Main performance advantages include:

High drilling efficiency
Strong rotary torque
Stable drilling pressure
Reliable lifting capacity
Excellent rock penetration ability

According to available specifications, the HQZ-160L provides drilling depth up to 160m, drilling diameter from 138-203mm, lifting force around 12T, and rotary torque up to 7800N·m depending on configuration.

These features allow the machine to handle different drilling requirements, including:

Water well drilling
Geological sampling
Mining exploration holes
Industrial drilling projects
Construction drilling operations
Crawler Chassis for Difficult Terrain

One of the major advantages of the HQZ-160L Pneumatic Drill Rig is its crawler-mounted design.

The rubber track chassis provides:

Excellent off-road capability
Improved stability
Easy movement on uneven ground
Reduced ground pressure
Better adaptability in remote areas

The crawler system allows the drill rig to work efficiently in:

Mountains
Hills
Muddy areas
Construction sites
Remote drilling locations

This makes the HQZ-160L especially suitable for outdoor drilling projects with difficult access conditions.

Efficient Water Well Drilling Solution

The HQZ-160L Pneumatic Drill Rig is widely used for water well construction.

It is suitable for:

Agricultural water wells
Industrial water wells
Rural water supply projects
Geothermal drilling
Groundwater exploration

The pneumatic drilling method provides fast drilling speed and effective cutting removal, helping improve drilling efficiency.

Its compact size and crawler mobility allow operators to complete drilling tasks in locations where large equipment cannot easily operate.

Excellent Geological Adaptability

The HQZ-160L is designed to work in different geological conditions.

It can be used for drilling:

Soil layers
Gravel formations
Weathered rock
Hard rock formations
Complex geological structures

The machine can be configured with different drilling tools according to formation requirements.

This flexibility allows the HQZ-160L to maintain stable performance across various drilling environments.

Durable Structure and Long Service Life

The HQZ-160L Pneumatic Drill Rig is built for demanding field operations.

Its durable design includes:

Strong drilling frame
Reliable power system
Heavy-duty crawler chassis
Wear-resistant components
Stable mechanical structure

The robust construction helps ensure:

Longer service life
Reduced maintenance frequency
Reliable operation
Lower operating costs

The machine is suitable for continuous drilling operations in mining, construction, and exploration industries.

Easy Operation and Maintenance

The HQZ-160L Pneumatic Drill Rig features a practical design focused on operator convenience.

Advantages include:

Simple control system
Easy transportation
Quick installation
Convenient maintenance
Reduced training requirements

The pneumatic system has fewer complicated components compared with some hydraulic drilling systems, making maintenance easier and more economical.

Regular inspection and lubrication help maintain excellent drilling performance.

Wide Application Areas
Water Well Drilling

The HQZ-160L is widely used for:

Agricultural wells
Industrial wells
Residential water supply wells
Geothermal wells
Geological Exploration

Applications include:

Geological survey drilling
Rock investigation
Resource exploration
Sampling projects
Mining Industry

The machine supports:

Mineral exploration
Mining investigation
Blast hole preparation
Underground resource evaluation
Construction Engineering

The HQZ-160L can be used for:

Foundation investigation
Site geological analysis
Engineering drilling projects
Main Features of HQZ-160L Pneumatic Drill Rig
Pneumatic air-powered drilling system
Crawler-mounted mobile chassis
Drilling depth up to 160m
Drilling diameter 138-203mm
Strong rotary torque performance
Excellent off-road mobility
Suitable for water well drilling
Efficient rock penetration
Durable construction
Easy operation and maintenance

Why Choose Our HQZ-160L Pneumatic Drill Rig?
1. Powerful Pneumatic Drilling Performance

The air-powered drilling system provides efficient rock penetration and reliable operation.

2. Excellent Mobility

The crawler chassis allows operation in difficult terrains and remote locations.

3. Wide Application Range

The rig can be used for water wells, exploration, mining, and construction drilling.

4. Cost-Effective Operation

Simple structure and convenient maintenance help reduce operating expenses.

5. Reliable Durability

Heavy-duty components ensure long service life in demanding environments.

6. Professional Support

We provide drilling solutions, technical assistance, spare parts, and customized configurations.

FAQS
1. What is the HQZ-160L Pneumatic Drill Rig used for?

The HQZ-160L is mainly used for water well drilling, geological exploration, mining exploration, geothermal drilling, and industrial drilling projects.

2. How deep can the HQZ-160L drill?

The HQZ-160L can achieve drilling depths of approximately 160 meters depending on geological conditions and drilling configuration.

3. What drilling diameter does the HQZ-160L support?

The drilling diameter range is approximately 138-203mm.

4. Why does the HQZ-160L use pneumatic drilling technology?

Pneumatic drilling provides strong impact force, efficient rock penetration, and reliable performance in hard formations.

5. Is the HQZ-160L suitable for rocky areas?

Yes. The machine is designed for rock drilling and can operate effectively in various geological conditions.

6. What are the advantages of crawler-mounted drilling rigs?

Crawler systems improve mobility, stability, and off-road capability in uneven terrain.

7. Can the HQZ-160L be used for water wells?

Yes. It is widely used for industrial, agricultural, and geothermal water well drilling applications.

8. Can the HQZ-160L be customized?

Yes. Different drilling tools, pumps, accessories, and configurations can be customized according to project requirements.

Product Conclusion

The HQZ-160L Pneumatic Drill Rig is a powerful, mobile, and reliable drilling solution designed for water wells, geological exploration, mining, and engineering applications.

With pneumatic drilling technology, crawler mobility, strong drilling capability, and durable construction, the HQZ-160L delivers excellent performance in challenging environments.

For customers looking for an efficient air-powered drilling machine with flexible operation and dependable performance, the HQZ-160L Pneumatic Drill Rig is an ideal choice.
