High-Speed 3-Head Pneumatic Riveting Machine, Boost Fan Assembly Output

Automatic Pneumatic Beret Eyelet Riveting Machine Mesh Grommet Fixing Machine for Wool Beret Hat Vent Hole Processing

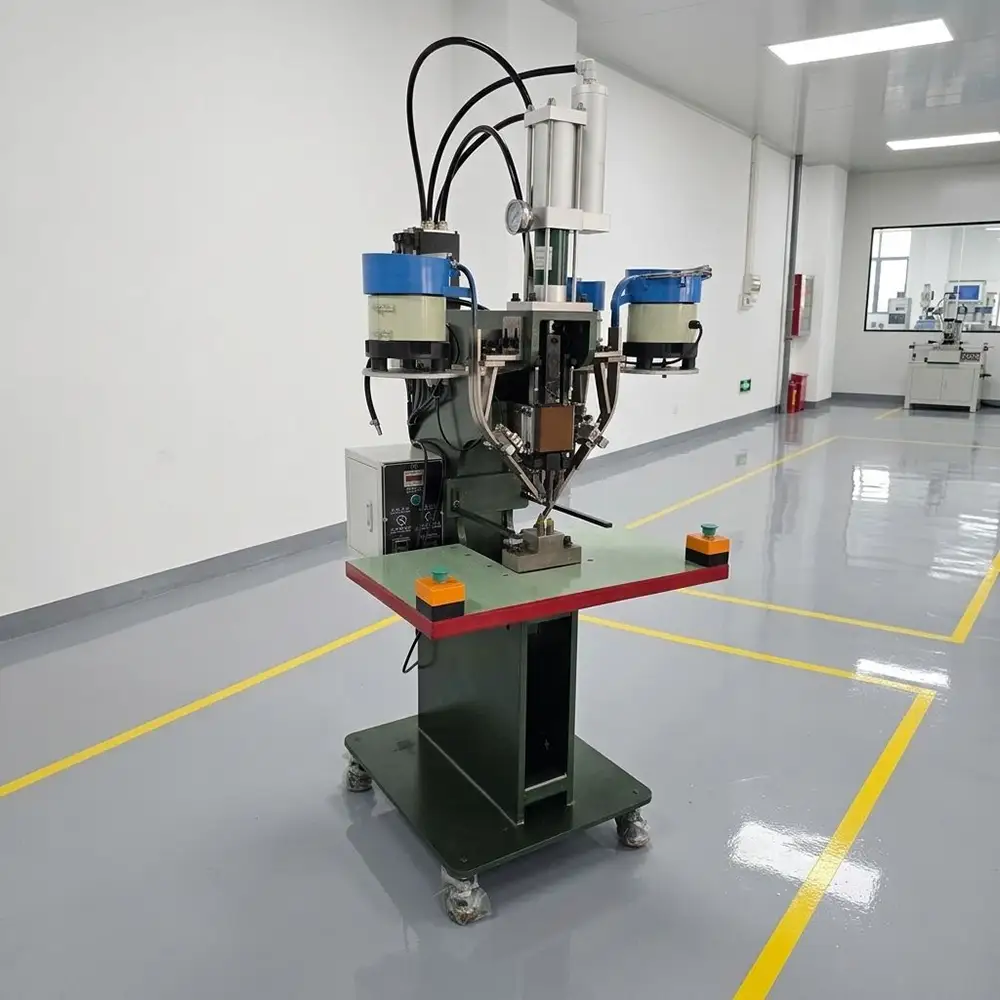

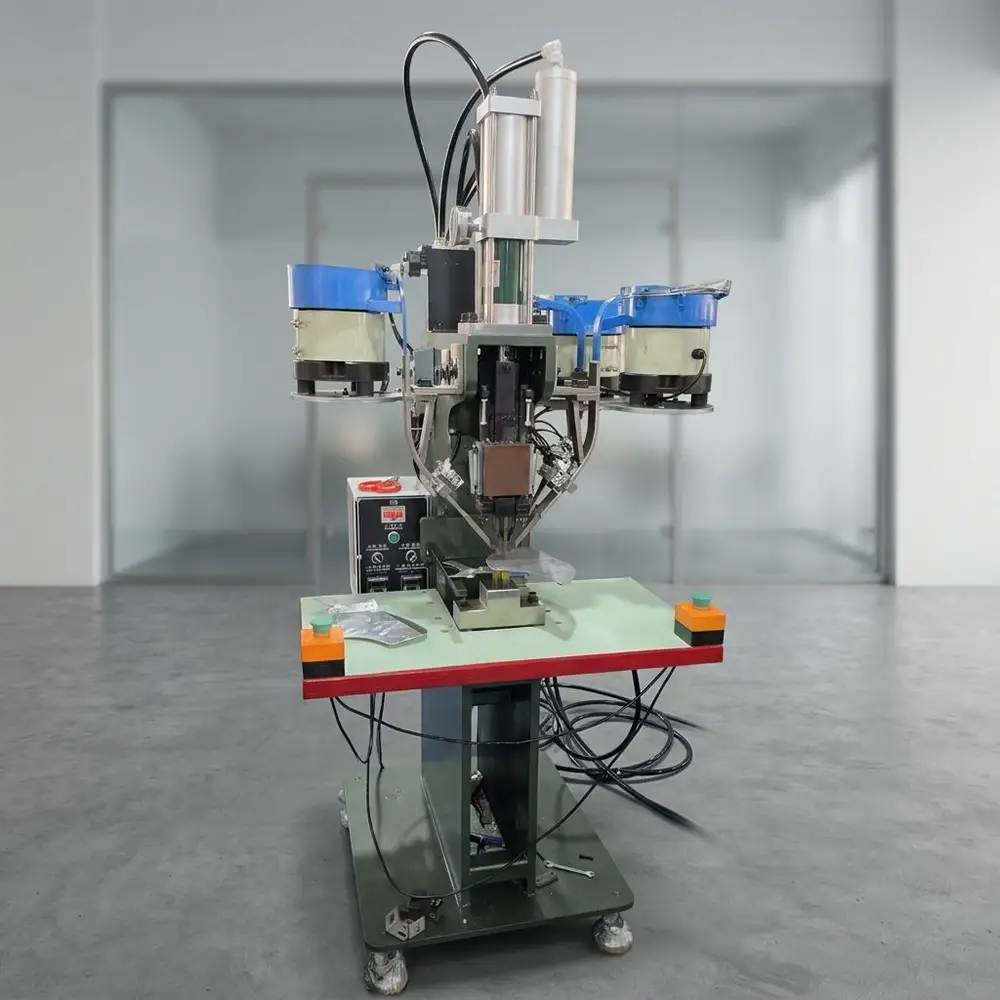

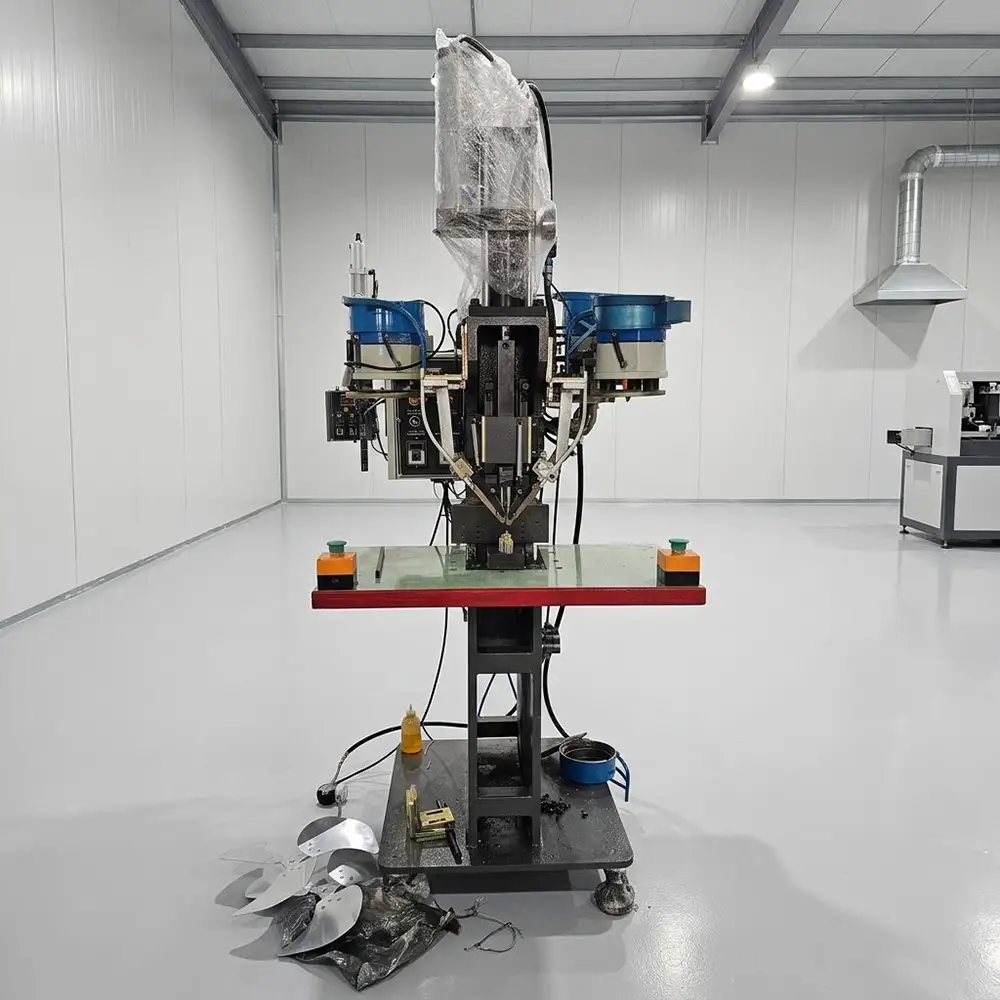

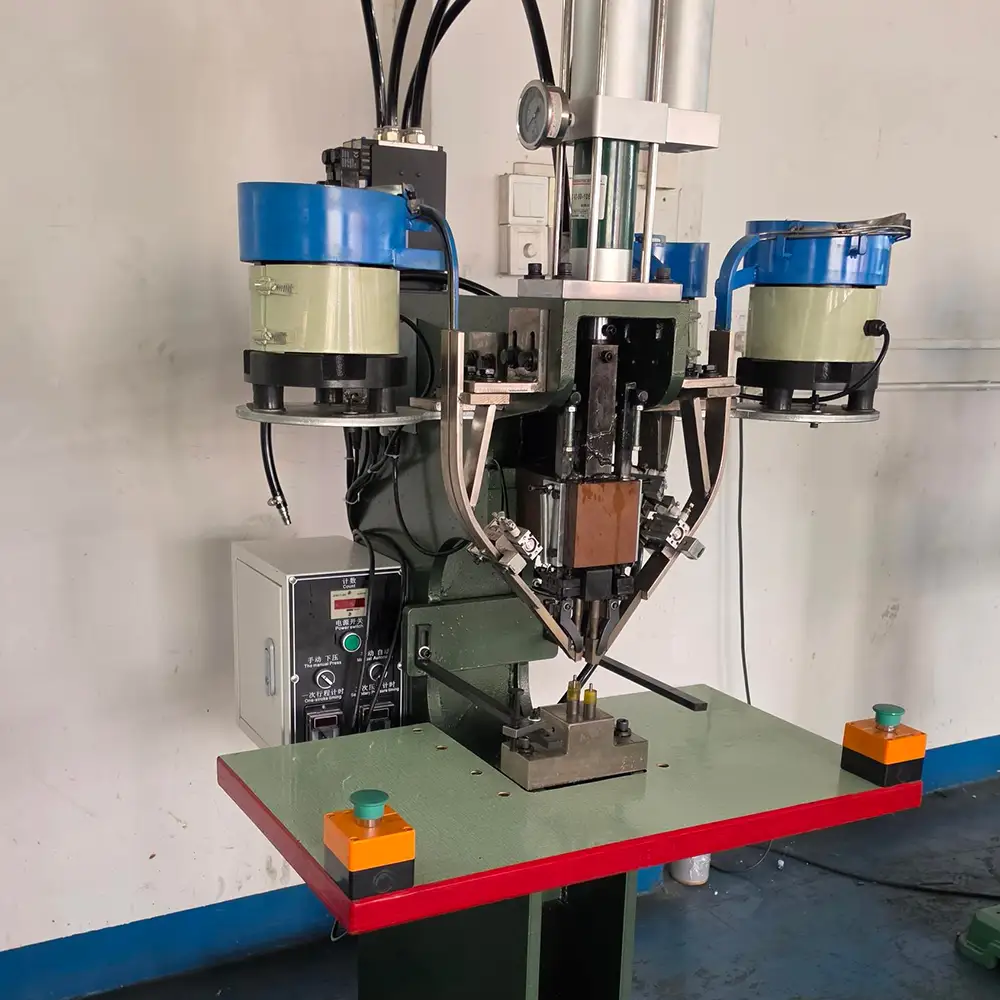

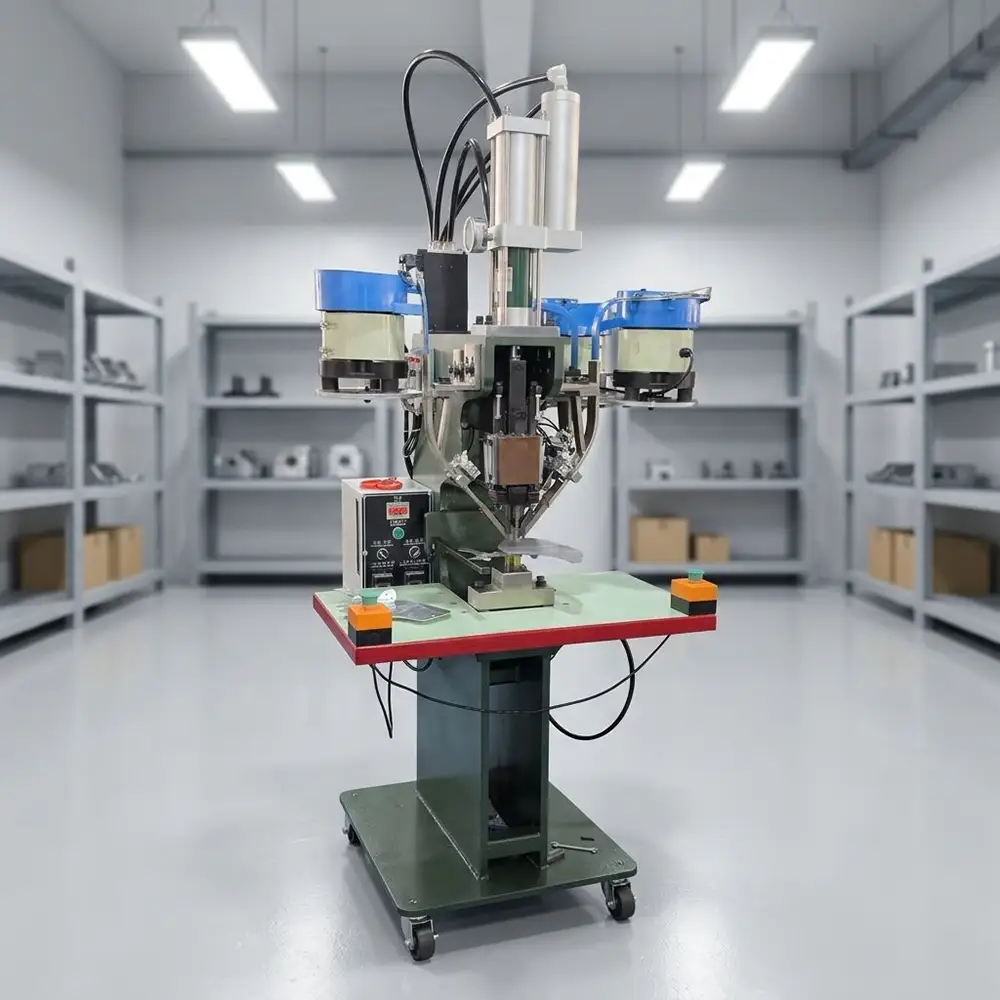

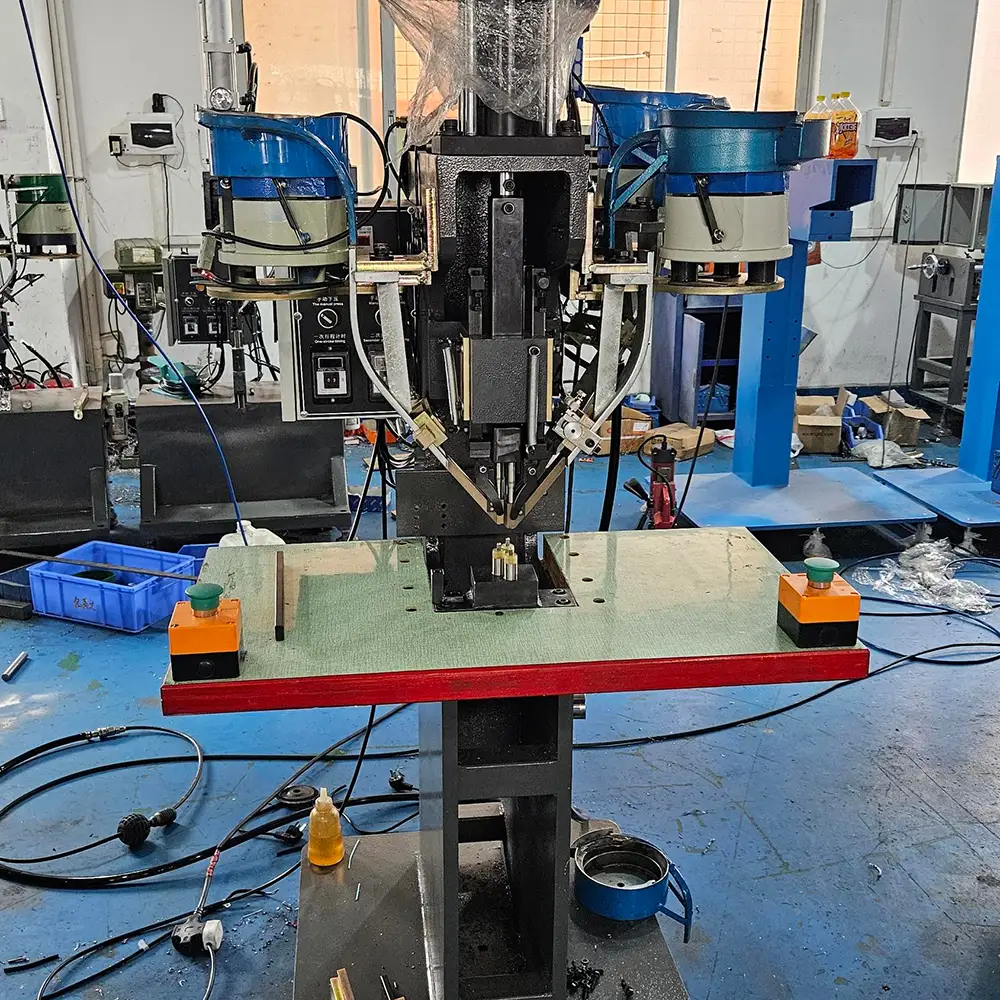

The High-Speed 3-Head Pneumatic Riveting Machine is an industrial assembly solution designed to improve riveting efficiency and production output for fan assemblies and other products requiring multiple riveted connections. By integrating three pneumatic riveting heads into one production system, the machine can reduce repetitive manual riveting operations and help manufacturers achieve a faster, more consistent assembly process.

Riveting is widely used in the production of electric fans, ventilation equipment, household appliances, metal components, brackets, housings, sheet metal assemblies and various industrial products. When several rivets must be installed during each assembly cycle, traditional single-head riveting equipment can require repeated positioning and manual operation. A multi-head pneumatic riveting machine provides a more efficient alternative by allowing multiple riveting operations to be performed within a coordinated production process.

The three-head configuration is particularly useful for applications where several rivet positions need to be processed repeatedly. Depending on the machine design, tooling and product structure, the riveting heads can be arranged according to the required assembly pattern.

High-Speed Pneumatic Riveting

The machine uses pneumatic power to provide the force required for riveting. Pneumatic operation is widely used in industrial assembly because compressed air can provide rapid and repeatable actuator movement.

Compared with manually operated riveting tools, an industrial pneumatic riveting machine can help reduce operator fatigue and improve production consistency.

The high-speed design is intended for production environments where assembly cycle time is an important consideration. Actual production speed depends on rivet specifications, workpiece structure, feeding method, operator workflow, pneumatic pressure, tooling and the specific machine configuration.

For manufacturers producing large quantities of similar components, improving riveting cycle time can have a direct impact on overall assembly capacity.

Three-Head Riveting Configuration

One of the key features of this equipment is its three-head riveting structure.

Instead of relying on one riveting head for every connection, three pneumatic riveting heads can be integrated into the machine. This configuration can help reduce repeated positioning operations when multiple rivets need to be installed on the same workpiece.

The three-head design may be suitable for applications involving:

Fan assemblies
Motor components
Metal brackets
Sheet metal assemblies
Appliance components
Ventilation equipment
Electrical equipment
Industrial housings
Mechanical assemblies

The exact arrangement of the riveting heads should be selected according to the product dimensions, rivet locations and required assembly sequence.

Fan Assembly Applications

A major application of this machine is fan assembly.

Fans often contain multiple components that require secure mechanical fastening during production. Depending on the product design, riveting may be used to connect brackets, supports, housings, guards, motor-related components or other sheet metal parts.

For fan manufacturers, assembly efficiency is important because riveting can be one of several repetitive operations within the production line.

A dedicated multi-head pneumatic riveting machine can help create a more standardized assembly process. It can be integrated into a production workstation or, depending on the design, incorporated into a larger automated assembly system.

Applications may include:

Electric fan assembly
Industrial fan assembly
Ventilation fan production
Exhaust fan assembly
Air circulation equipment
Appliance assembly
Motor-related component assembly
Metal fan guard assembly

The exact application depends on the riveting locations and product construction.

Improve Assembly Output

Production output is influenced by many factors, including component preparation, feeding, positioning, riveting, inspection and handling.

A high-speed multi-head riveting machine focuses on improving the riveting stage.

By performing multiple riveting operations in a coordinated cycle, the machine can reduce unnecessary repositioning and repeated manual operations. This can help improve workstation efficiency and support higher assembly output.

For manufacturers with stable product designs and repeated production orders, dedicated riveting equipment can provide better process consistency than relying entirely on handheld tools.

Consistent Riveting Quality

Consistent riveting is important for mechanical assemblies because rivets need to be properly formed and securely installed.

Pneumatic riveting provides controlled mechanical force, while dedicated tooling can help position the workpiece and rivet correctly.

The actual riveting quality depends on factors such as:

Rivet material
Rivet diameter
Rivet length
Workpiece material
Material thickness
Pneumatic pressure
Tooling design
Riveting head configuration
Workpiece positioning

For this reason, buyers should provide actual rivet and workpiece specifications when requesting machine recommendations.

Suitable for Sheet Metal Components

Many fan and appliance components are manufactured from sheet metal.

Materials may include carbon steel, stainless steel, galvanized steel, aluminum and other suitable metals.

The riveting machine can be used when the selected rivet type and tooling are compatible with the material and component structure.

Common sheet metal applications include brackets, covers, frames, guards, supports, housings and other assemblies requiring mechanical fastening.

Reduced Manual Labor

Manual riveting can become repetitive when large quantities of identical components need to be assembled.

A pneumatic riveting machine can reduce the physical effort required from operators while providing a more standardized production process.

Instead of repeatedly using a handheld riveting tool, the operator can position the workpiece and operate the machine according to the established production procedure.

This can be particularly useful in high-volume assembly environments.

Production Line Integration

The three-head pneumatic riveting machine can be used as an independent workstation or considered as part of a larger assembly process.

Depending on production requirements, manufacturers may combine riveting with:

Component feeding
Workpiece positioning
Clamping
Assembly fixtures
Conveyor systems
Inspection stations
Automatic loading
Automatic unloading
Other assembly equipment

For high-volume fan manufacturing, integrating the riveting operation into a dedicated production line can help improve material flow and overall productivity.

Flexible Tooling and Product Compatibility

Different products may require different rivet positions, diameters and assembly geometries.

Therefore, tooling is an important part of the machine configuration.

Dedicated fixtures can help hold components in the correct position during riveting. Riveting heads and tooling can be selected according to the required rivet specifications.

For manufacturers producing multiple models, interchangeable or customized tooling can provide greater production flexibility, subject to machine design.

Applications Beyond Fan Assembly

Although fan assembly is an important application, the machine is not necessarily limited to fans.

The same pneumatic riveting principle can be applied to other products that use compatible riveted joints.

Potential applications include:

Household appliances
Ventilation equipment
Electrical enclosures
Metal brackets
Sheet metal products
Lighting equipment
HVAC components
Automotive components
Industrial equipment
Mechanical assemblies

The suitability of the machine should be evaluated according to the actual product structure and rivet requirements.

How to Select a Pneumatic Riveting Machine

Before purchasing, buyers should identify the number of rivets that need to be installed during each assembly cycle.

If three rivet positions can be processed simultaneously or in a coordinated sequence, a three-head configuration may provide significant productivity advantages.

Other important factors include rivet diameter, rivet material, workpiece material, sheet thickness, riveting force, pneumatic pressure, production cycle time, fixture requirements and automation level.

For fan manufacturers, it is also useful to provide sample components or drawings so that the riveting head arrangement and fixture design can be evaluated.

Why Choose Us
Three-Head Configuration: Designed for multi-point riveting applications.
High-Speed Production: Helps reduce repetitive riveting cycle time.
Pneumatic Operation: Provides rapid and repeatable riveting movement.
Fan Assembly Focus: Suitable for electric fan and ventilation equipment production.
Reduced Manual Operations: Helps improve operator efficiency and reduce repetitive labor.
Consistent Riveting: Dedicated tooling and pneumatic force can support repeatable assembly.
Flexible Applications: Suitable for fan, appliance, sheet metal and industrial component assembly.
Production Line Integration: Can be used as a dedicated workstation or integrated into a larger assembly process.
Custom Tooling: Fixtures and riveting configurations can be developed according to product requirements.
B2B/OEM Support: Suitable for manufacturers, distributors and industrial assembly projects.
Main Applications

The High-Speed 3-Head Pneumatic Riveting Machine is suitable for electric fan assembly, industrial fan production, ventilation equipment, exhaust fan manufacturing, appliance assembly, sheet metal products, electrical enclosures, metal brackets, HVAC components, motor-related assemblies and other industrial products requiring multiple riveted joints.

FAQS
1. What is a 3-head pneumatic riveting machine?

It is an industrial riveting machine equipped with three pneumatic riveting heads for processing multiple rivet positions in a coordinated production operation.

2. What is the main application of this machine?

A major application is fan assembly, but it can also be used for compatible sheet metal, appliance, ventilation and industrial component assembly.

3. Can it improve fan assembly output?

Yes. By reducing repeated manual riveting and allowing multiple riveting operations within a coordinated cycle, it can help improve assembly efficiency. Actual output depends on the product and machine configuration.

4. What types of rivets can it use?

The machine should be configured according to the specific rivet type, diameter, material and length required by the product. These specifications should be confirmed before ordering.

5. Is pneumatic power suitable for high-speed riveting?

Yes. Pneumatic systems are widely used for repetitive industrial operations because compressed air can provide rapid actuator movement and repeatable force.

6. Can all three heads rivet at the same time?

This depends on the machine's mechanical and control configuration. Three-head machines can be designed for simultaneous or coordinated multi-point riveting according to the production requirement.

7. Can the machine be customized for a specific fan?

Yes. Riveting head positions, fixtures and tooling can be designed around the product's dimensions and rivet locations, subject to engineering evaluation.

8. What materials can be riveted?

Suitable materials may include aluminum, steel, stainless steel and other sheet metal components, depending on the rivet and machine configuration.

9. Does the machine require compressed air?

Yes. Pneumatic riveting equipment requires an appropriate compressed-air supply. The required pressure and air consumption depend on the machine and riveting application.

10. Can it be integrated into an automatic production line?

Yes. Depending on the machine design, it can be integrated with fixtures, conveyors, feeding systems, inspection equipment and other assembly stations.

11. Is it suitable for small-batch production?

It can be suitable for small-batch production when the products have repeatable riveting requirements. For high-volume production, the productivity advantage of multi-head riveting can be more significant.

12. Can different fan models use the same machine?

Potentially. Different fixtures or tooling may be required for different fan models. The machine should be designed with the required product range in mind.

13. What information is needed for a quotation?

Provide the product drawing or sample, rivet type and dimensions, material and thickness, number and location of rivets, desired production capacity and preferred automation level. These details help determine the appropriate riveting machine configuration.
