Green Colour Walking Tractor 8 HP, 10 HP, 12 HP, Diesel Engine Technical Parameters

Walking Tractor 8 HP, 10HP, 12HP, Diesel Engine, Green Colour Engine Pattern Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled Model 1105 Displacement(L) 1.194 Oil Consumption (g/ km. h) 320 Engine Oil Consumption.

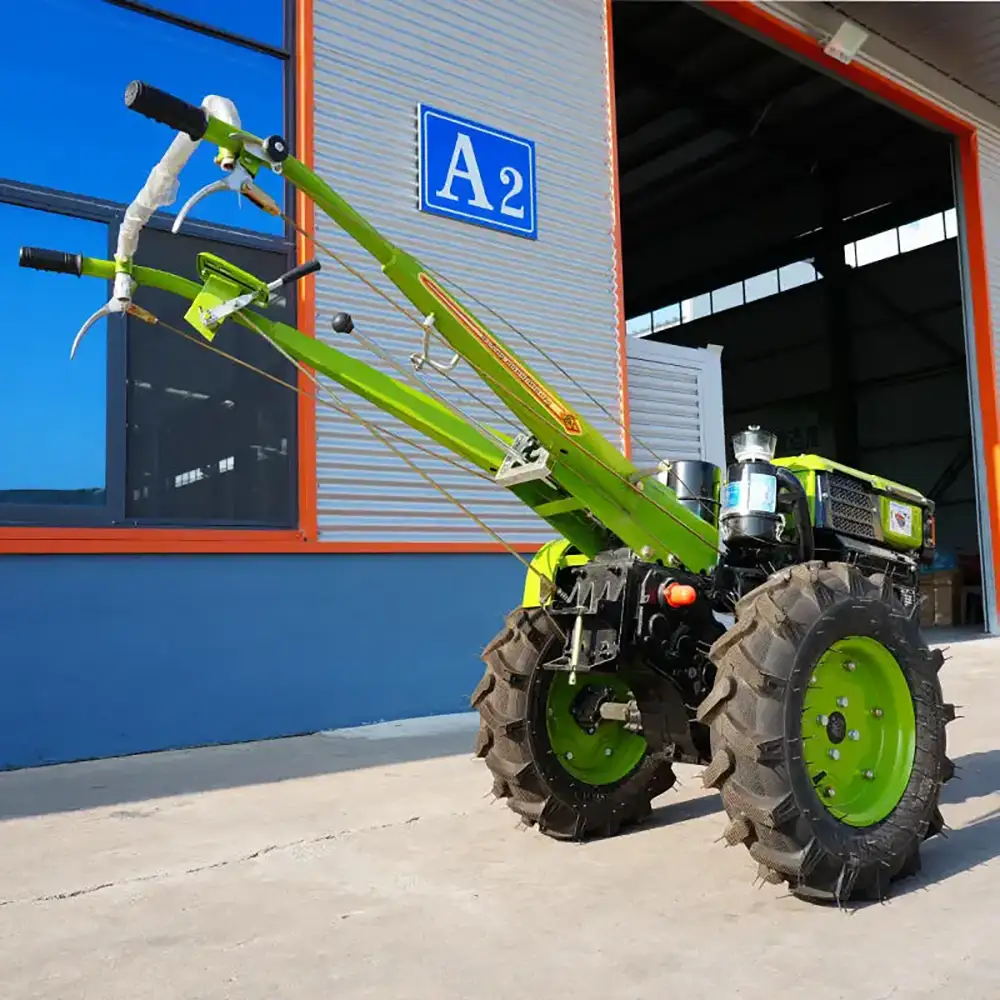

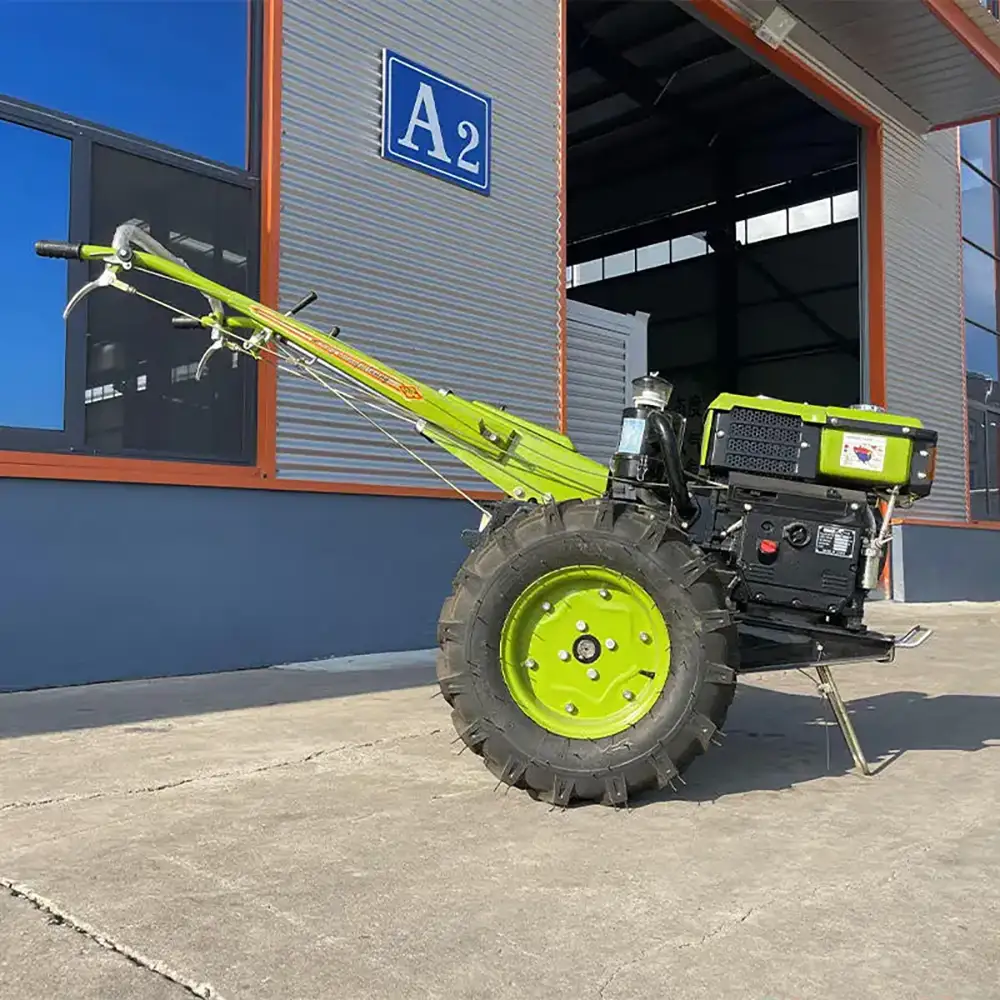

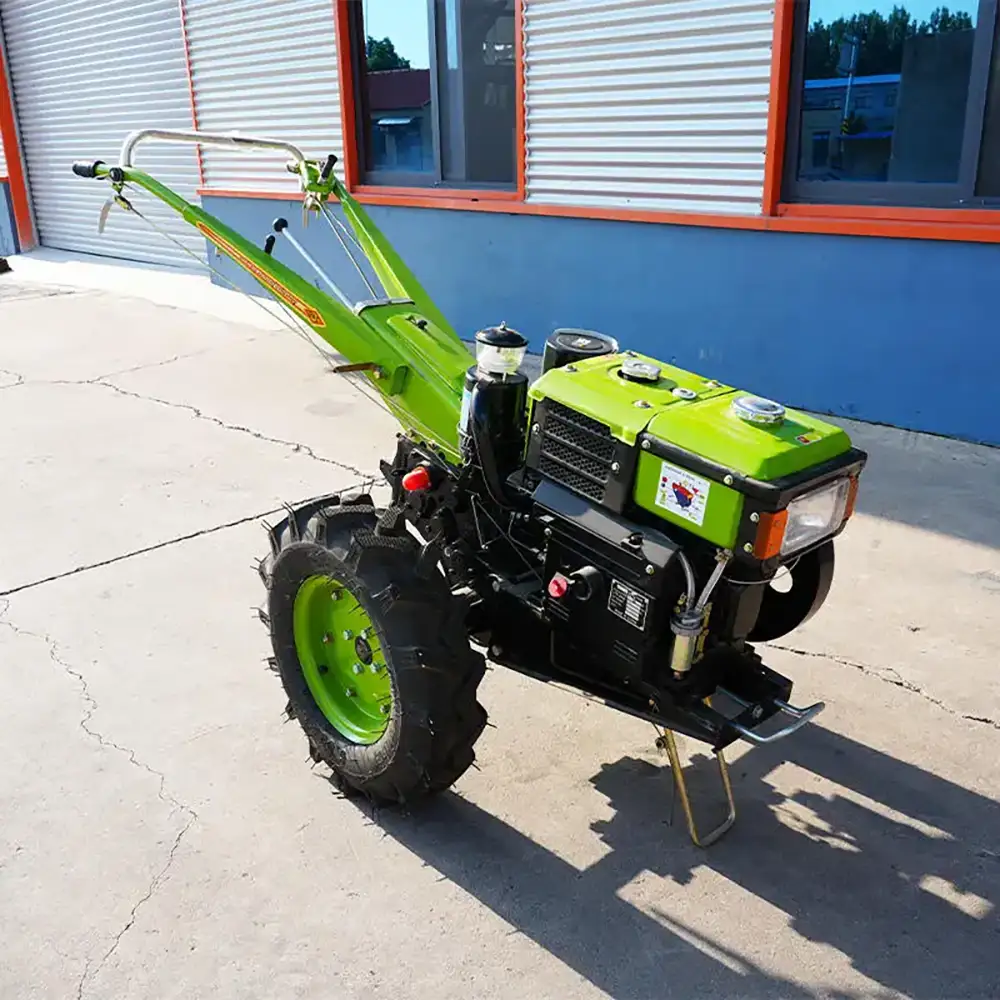

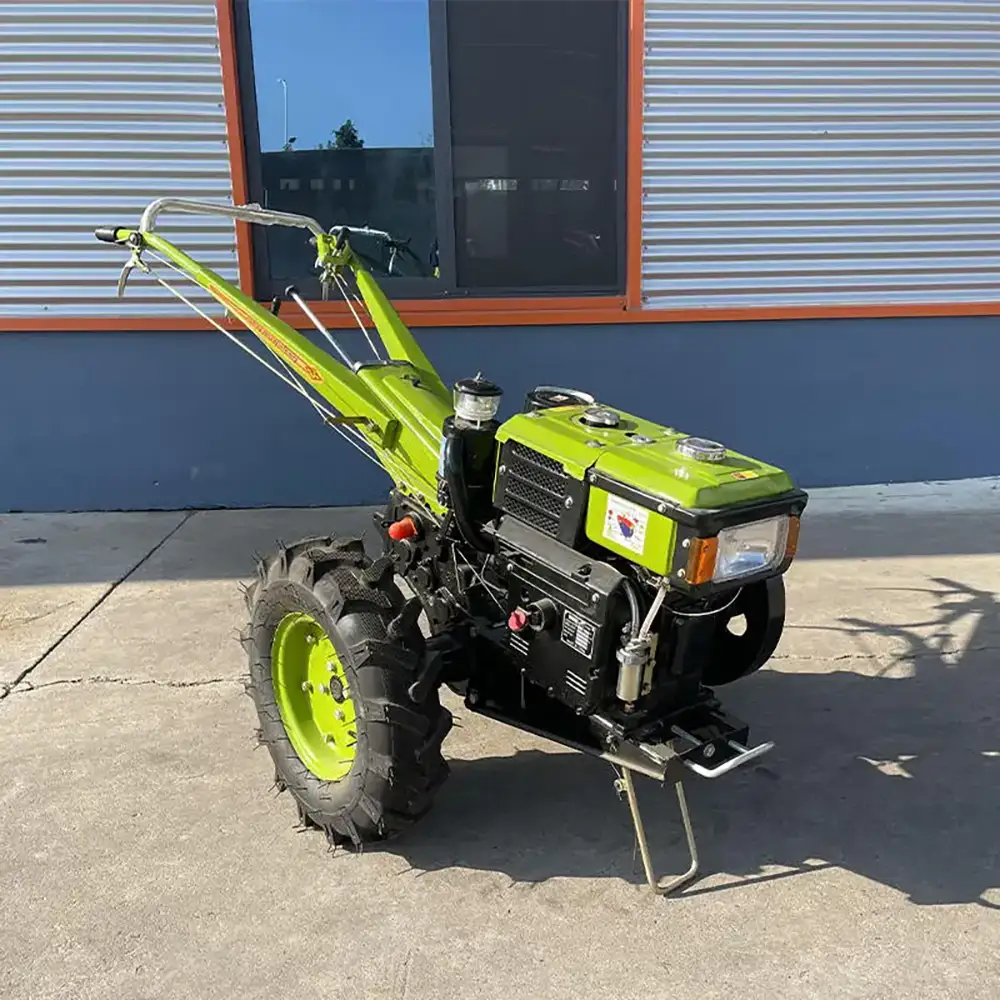

Walking Tractor 8 HP, 10HP, 12HP, Diesel Engine, Green Colour





Engine

Pattern
Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled
Model 1105
Displacement(L) 1.194
Oil Consumption
(g/ km. h)
  < 320
Engine Oil Consumption                    (g/ km. h) <   2.72
Rated Power(kw) 13.23
Rated Speed(rpm) 2000








Machine Parameters

Type Pull and Drive
Overall Size(mm) 2680*960*1250(without seat)
Wheel Tread(mm) 800
Minimum Ground Clearance(mm) 185
Minimum Turning Radius(m) 0.9
Structural Weight(kg) 360 (with connecting frame), 480(with rotary tiller)
Tyre 6.00-12
Theoretical Speed (km/h) Forward: 1.4, 2.5, 4.1, 5.3, 9.4, 15.3
Reverse: 1.0, 3.8
Rated Traction(N) 2400
Gearbox (3+1 ) × 2
Oil Type 0# in summer, -10 or 20 in winter
Cooling Type Evaporation
Rear-Wheel Diameter (mm) 340
