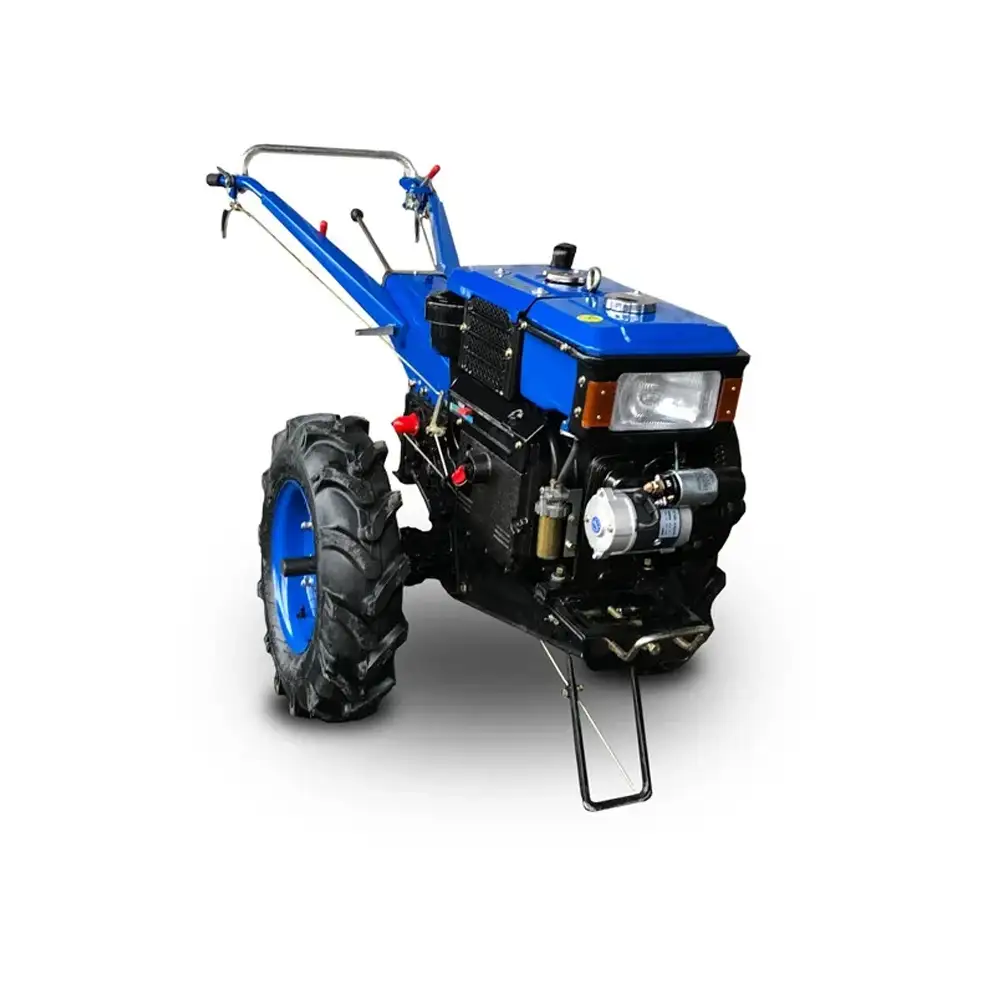

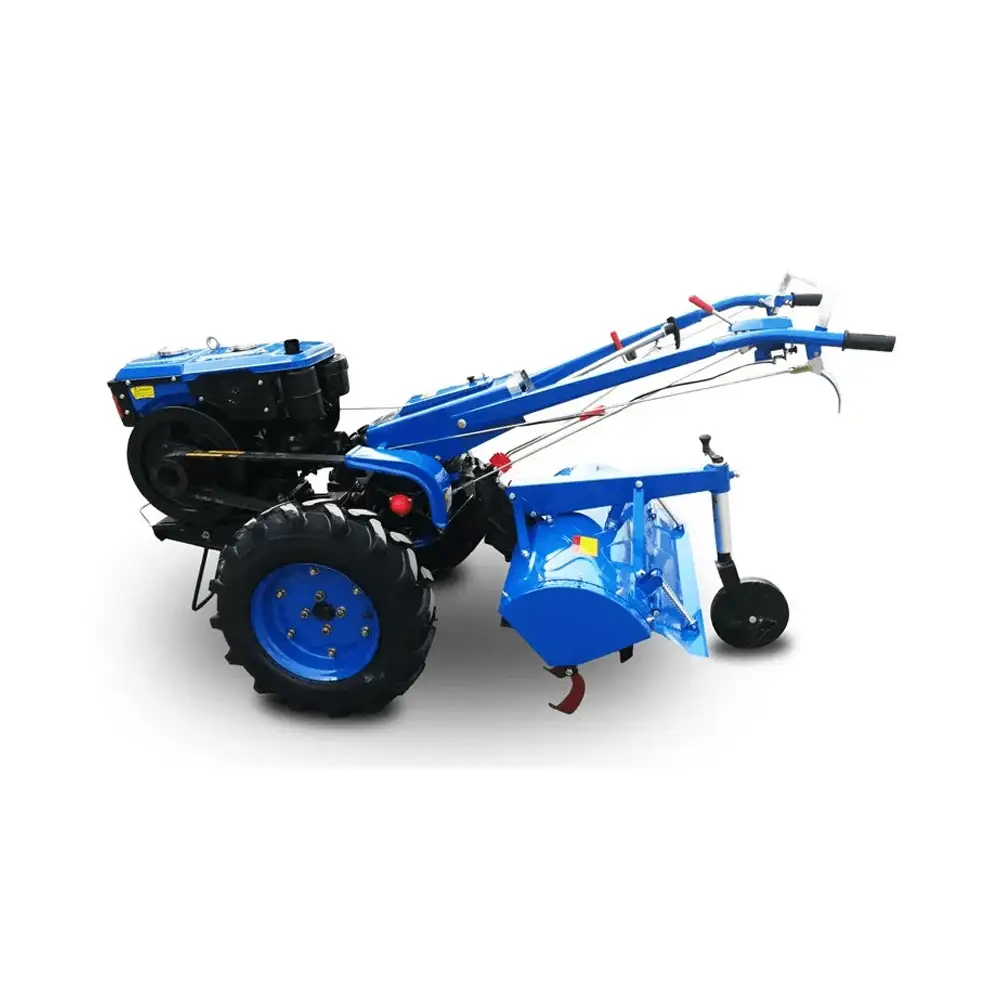

8 HP Walking Tractor Technical Parameters

Powered by SH185N diesel engines, 8 HP Walking Tractor it's simple and compact in construction, and light in paddy fields, Ideal for paddy fields, and has the advantage of reliability, long service life.

The tractor mainly used for farming work, such as tilling, ploughing, raking, bed preparation moving and harvesting in dry or wet fields when suitable implements are matched. When attached with a trailer, it may be used for transportation, and when power is taken out from its P.T.O. shaft is also a stationary power source for spraying, four milling, rice milling, tuber crops grinding, etc. The tractor is especially suitable for mountain areas and hilly land.


Advantages:
1. It adopts gear drive directly, which is of high transmission efficiency.
2. When doing farm work in the deep mud field, the clutch will neither skid, nor wind grass.
3. When operating in fields filled with high straw or intensive seeds
4. The diesel engine is using natural convection circulation for cooling water and the circulating water won't evaporate. No need to add water often. The water temperature is not high and very powerful, which is especially suitable for the farm working in mountainous area and the paddy field or upland in the tropical area.

Following Implements Are Optional:

1) Rotary Tiller (optional)
2) Single plough (optional)
3) Electric start (optional)
4) Trailer (optional)
5) Grass cutter
6) Seat

Products Specifications

Model Unit SH81/101/121
Structure weight Without rotavator kg 215
With rotavator 265
Working weight (with rotavator) kg 305
Overall dimensions (LxWxH) mm 2180x890 x 1250
Number of blades PCS 14
Rototilling width mm 700
Type of tractor   Single axle, dual-purpose for both traction & drive
Travelling speed Forword Km/h 2.01, 3.32, 5.31, 6.76, 11.18, 17.86
Reverse 3.28, 11.03
Type size   6.00-12
Wheel track mm 650~730(normally use 730)
Min. ground clearance mm 214
Min. turning radius m 0.9(with no rotavator)
Model of engine   R180AN/R190NM/R195NM
Type of engine   Horizontal 4-stroke
Bore x stroke mm 80×80
Total displacement L 0.402
Compression ratio   22:01
Turing speed of crankshaft rpm 2600
1-hour rated output KW/hphp 5.66/7.7
12-hour rated output KW/hp 5.15/7
Specific fuel consumption g/kw.h ≤287
Specific lube oil consumption

g/kw.h ≤4.08
Cooling mode   Condenser (Radiator)
Main farm implements (optional) Anti-skid steel wheel
Single-furrow plough
Turnover plough
Rotary tiller
Sprinkler
Swather/reaper
Trailer (Standard)
