Feed Gaskets Automaitcly Riveting Machine for Golf Bad and Draw-bar Box

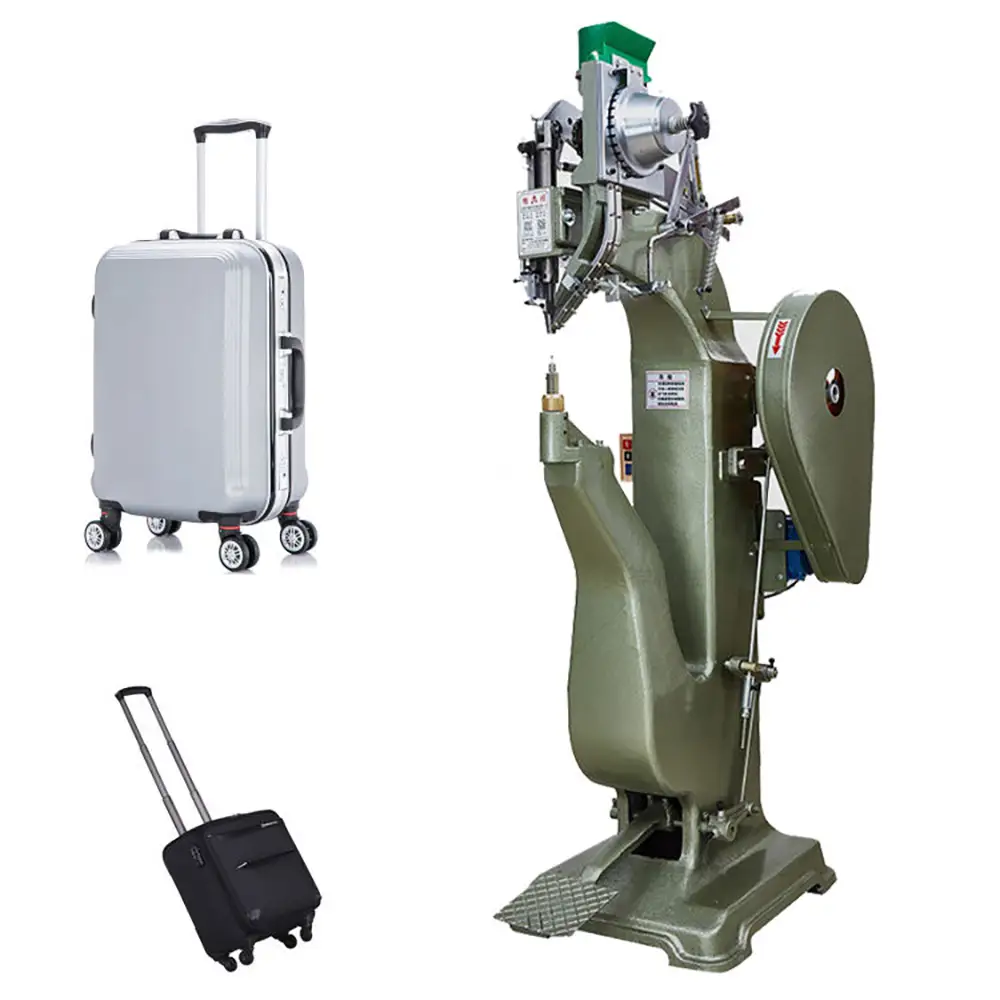

Automatic Gasket Feeding Riveting Machine for Golf Bags and Drawbar Boxes

The Automatic Gasket Feeding Riveting Machine for Golf Bags and Drawbar Boxes is designed for manufacturers that need an efficient and consistent solution for automatically feeding gaskets and completing riveting operations. The machine combines automatic gasket feeding, positioning, and riveting into an integrated production process, helping reduce manual operations and improve assembly efficiency.

Golf bags, drawbar boxes, luggage, travel cases, tool cases, and similar products often use gaskets, washers, rivets, eyelets, or other small hardware components during assembly. Traditionally, operators may need to manually place each gasket before completing the riveting process. This can increase labor requirements and may result in inconsistent positioning or slower production.

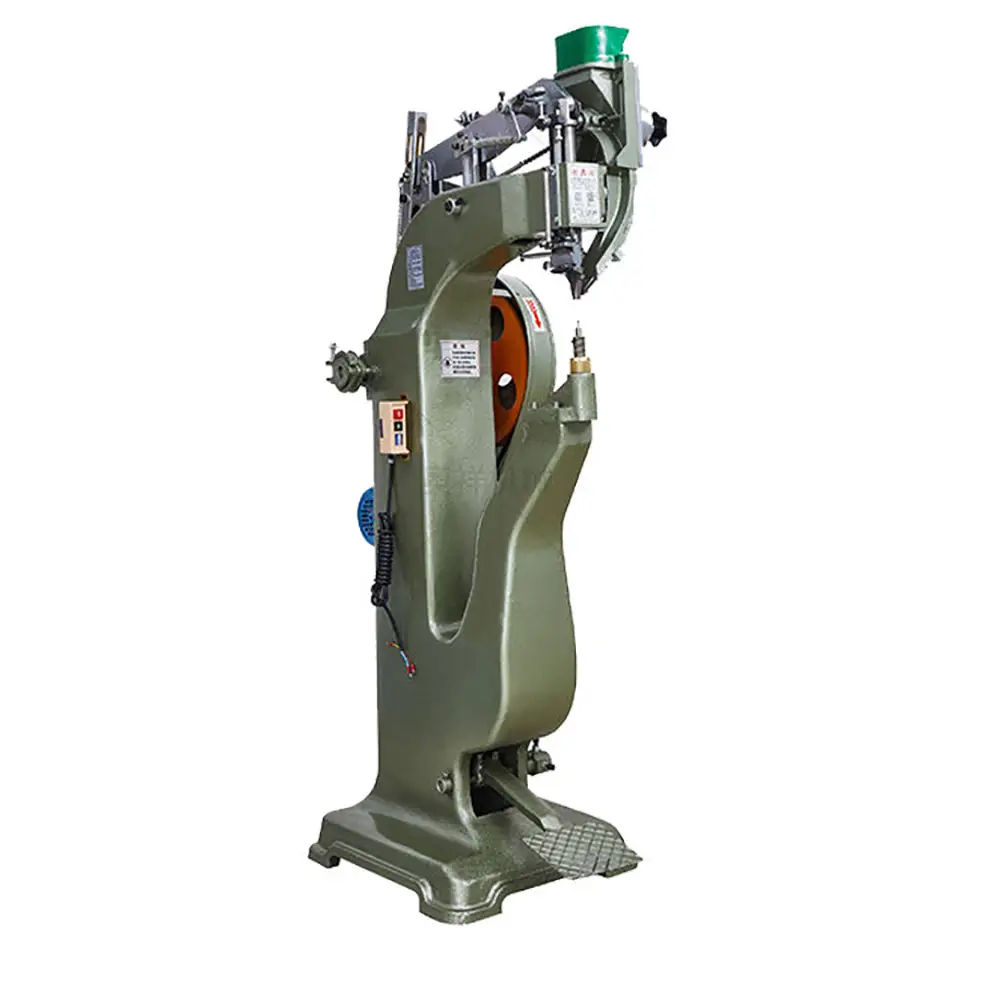

An Automatic Gasket Riveting Machine helps simplify this process by automatically supplying the gasket to the working position before the riveting operation. Once the workpiece is correctly positioned, the machine completes the riveting cycle according to the preset operating parameters.

Function of riveting machine for ladder
1 Fit for riveting the spherical head, half-hollow rivets
2 With automatic feeding device, which can rivet continuously
3 The clamp and punch of high-performance is of a high riveting capability
4 Can rivet clinch of various specifications if the die is changed

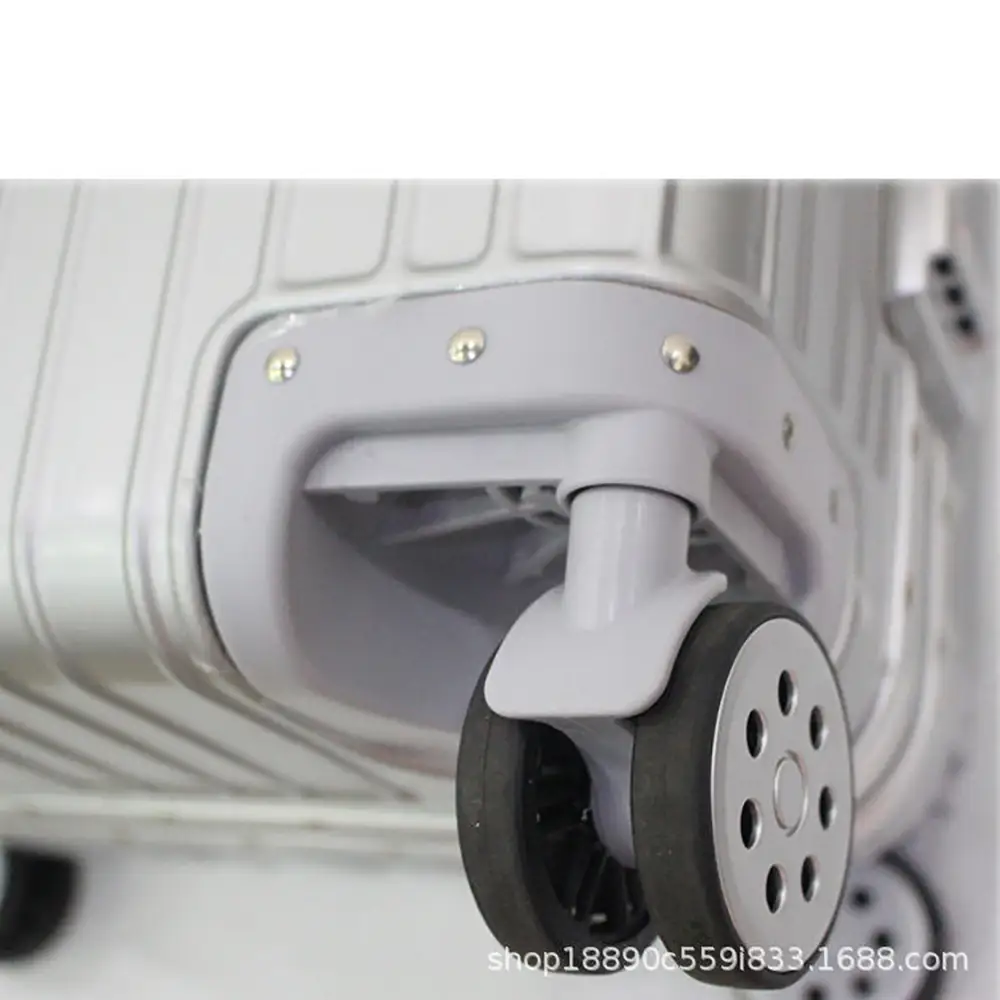

Usage: It is suitable for luggage bottom nails, bracket side and wheels with hollow nail and bundle nails
Single riveting
feed automatically
sleeve is fed manually

Throat depth	400mm(can be customized)
Riveting height	1100mm
Rivet top diameter	φ8-12mm
Rivet shaft diameter	φ3-5mm
Rivet length	5-25mm
Power	3/4HP
Voltage	220-380V(customized)
Measure	930x550x1700mm
Weight	370kg

Automatic Gasket Feeding System

One of the key features of this equipment is its automatic gasket feeding function. Instead of requiring an operator to manually place every gasket, the feeding system can continuously supply gaskets to the riveting position.

This is particularly useful when manufacturing golf bags and drawbar boxes in large quantities. Automatic feeding can reduce repetitive manual work and help maintain a more consistent production rhythm.

The feeding system can be configured according to the actual gasket shape, size, material, and application. Depending on the product design, different feeding and positioning solutions may be considered to achieve reliable gasket separation and delivery.

For manufacturers producing different products, the machine can also be designed with suitable tooling and fixtures for specific gasket specifications.

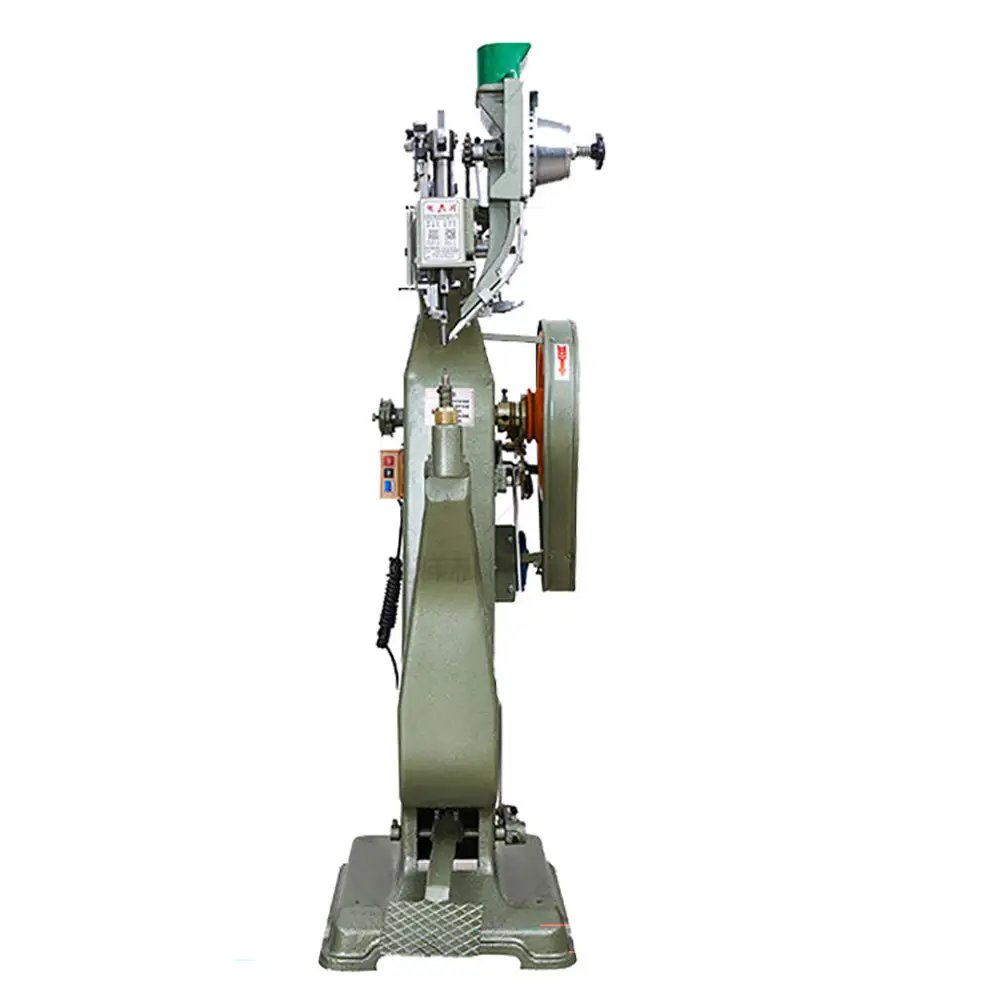

Riveting Machine for Golf Bags

Golf bags typically contain various hardware components that require secure and consistent fastening. Gaskets and rivets may be used around holes, handles, straps, brackets, reinforcement areas, and other structural or decorative locations.

The Golf Bag Riveting Machine provides a repeatable method for installing these components. The operator places the golf bag or corresponding workpiece into the fixture, while the machine handles the gasket feeding and riveting process.

Proper fixture design is important because golf bags may contain fabric, leather, synthetic leather, plastic, metal, and composite materials. A suitable fixture helps hold the workpiece in the correct position during riveting while minimizing movement during the forming operation.

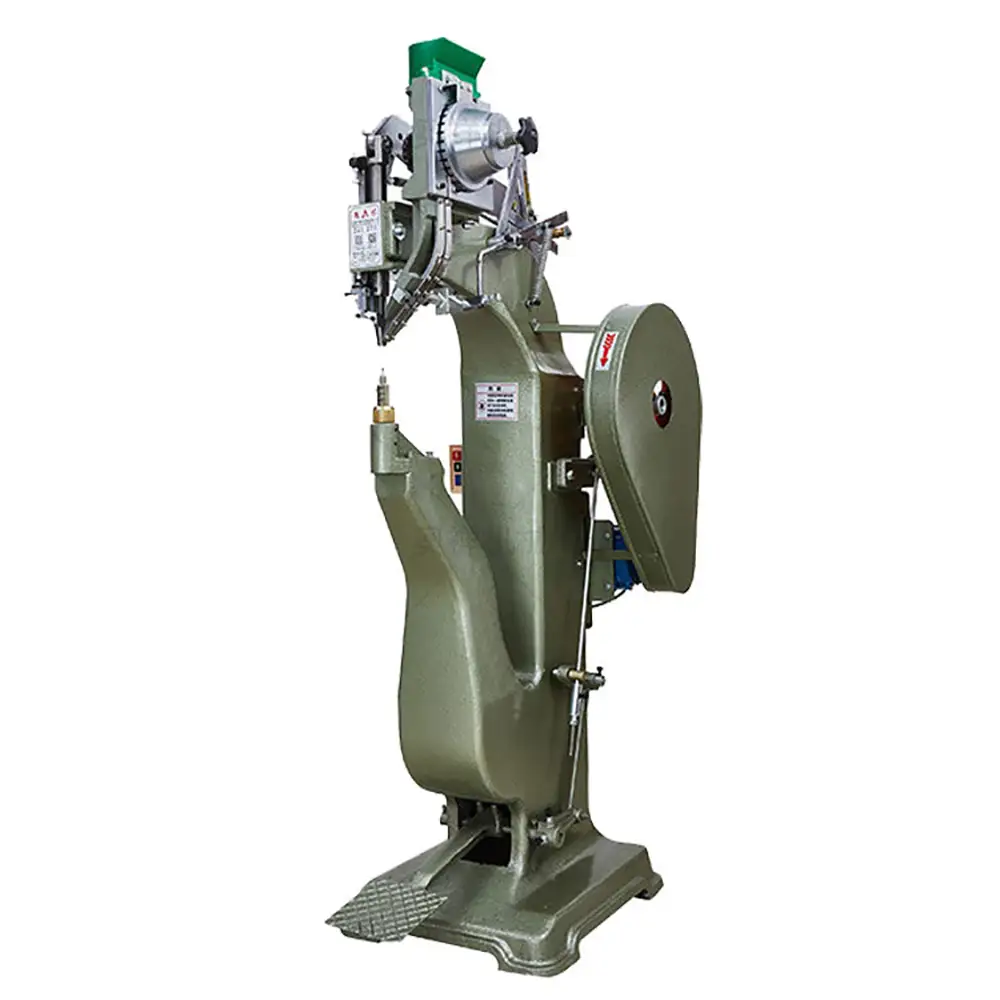

Drawbar Box Riveting Application

Drawbar boxes, luggage cases, rolling cases, and travel cases also require various hardware components during manufacturing. Rivets and gaskets can be used around handles, drawbar systems, wheels, mounting brackets, and reinforcement structures.

The Drawbar Box Riveting Machine can be adapted to different product structures and riveting locations. Customized fixtures can help position the workpiece accurately and improve repeatability between production cycles.

For manufacturers with multiple luggage or case models, tooling can be developed around different product dimensions and riveting positions.

Stable and Consistent Riveting

Consistency is important when installing small hardware components. Incorrect gasket positioning or uneven riveting can affect product appearance, assembly quality, and subsequent production processes.

An automatic riveting system provides controlled and repeatable riveting cycles. The machine can be configured according to the rivet and gasket specifications, workpiece material, and required fastening conditions.

The actual riveting parameters should be determined through testing based on the specific rivet, gasket, substrate material, and product construction. This helps ensure that the fastening force is appropriate for the application.

Improve Production Efficiency

Manual gasket feeding is repetitive and time-consuming, especially for high-volume production. By automating the feeding operation, manufacturers can reduce the number of manual steps required for each riveting cycle.

The Automatic Gasket Feeding Riveting Machine is suitable for production environments where consistent output and repeatable assembly are important. Depending on the machine configuration and product specifications, automatic feeding can help create a smoother production workflow.

The actual production capacity depends on gasket size, rivet specifications, product design, feeding method, operator loading time, riveting cycle time, and other production conditions. Therefore, capacity should be confirmed according to the customer's actual workpiece and production requirements.

Customized Fixtures and Tooling

Different golf bags, drawbar boxes, luggage cases, and hardware products have different shapes and riveting positions. A universal fixture may not always provide the required positioning accuracy.

For this reason, customized tooling and fixtures can be developed according to customer samples or drawings. The fixture can be designed to support the workpiece at the correct position while allowing convenient loading and unloading.

Customized feeding components can also be considered when the gasket has a special diameter, thickness, shape, or material.

Customers can provide product drawings, samples, gasket specifications, rivet dimensions, and production requirements for technical evaluation.

Wide Range of Applications

Although this machine is suitable for golf bags and drawbar boxes, the automatic gasket feeding and riveting concept can also be applied to other products requiring repetitive gasket and rivet installation.

Potential applications include:

Golf Bags
Golf Accessories
Drawbar Boxes
Luggage Cases
Travel Bags
Suitcases
Tool Cases
Equipment Cases
Leather Goods
Fabric Products
Bags and Backpacks
Outdoor Products
Hardware Accessories
Industrial Cases

The final application depends on the product structure, gasket specifications, rivet type, and machine configuration.

Easy Operation

The machine is designed for practical industrial production. Operators can load the workpiece, position it using the fixture, and initiate the riveting cycle according to the operating procedure.

An appropriate control system can help operators manage production parameters and monitor machine operation. Safety protection and operating procedures should be followed according to the machine configuration and manufacturer's instructions.

Routine maintenance may include checking the feeding system, riveting tooling, fixtures, moving components, fasteners, lubrication points, and electrical components.

Regular maintenance helps maintain stable machine performance and can reduce unexpected production interruptions.

Quality Control

For B2B manufacturers, consistent product quality is essential. The riveting process should be evaluated based on the finished rivet appearance, gasket position, fastening strength, rivet deformation, and product material.

Before mass production, sample testing can be performed using the customer's actual golf bag, drawbar box, gasket, and rivet components. This allows the machine configuration and tooling to be evaluated under realistic production conditions.

Production inspection can also be incorporated into the customer's quality-control process to verify critical dimensions and fastening results.

Why Choose Our Automatic Gasket Feeding Riveting Machine?

1. Automatic Gasket Feeding
The machine automatically supplies gaskets to the riveting position, reducing repetitive manual feeding operations.

2. Designed for B2B Production
Suitable for factories producing golf bags, drawbar boxes, luggage, cases, and related products.

3. Consistent Riveting
Controlled riveting cycles help provide repeatable fastening results.

4. Customized Tooling
Fixtures and feeding components can be designed according to the customer's product and gasket specifications.

5. Improved Labor Efficiency
Automation reduces repetitive gasket placement work and helps create a more efficient production process.

6. Flexible Applications
The machine can be adapted to different products and hardware applications depending on the machine configuration.

7. Sample-Based Development
Customers can provide samples or drawings for machine and tooling evaluation.

8. OEM & Custom Solutions
Customized machine configurations are available for manufacturers with special production requirements.

FAQ
1. What is an Automatic Gasket Feeding Riveting Machine?

It is a machine that automatically feeds gaskets to a specified position and then completes a riveting operation. It is designed to reduce manual gasket placement and improve production consistency.

2. Can this machine be used for golf bags?

Yes. The machine can be configured for golf bag hardware applications, including gasket and rivet installation, depending on the specific product structure.

3. Can it be used for drawbar boxes?

Yes. It can be designed for drawbar boxes, luggage cases, suitcases, and similar products that require automatic gasket feeding and riveting.

4. What types of gaskets can be automatically fed?

The suitable gasket type depends on its shape, diameter, thickness, material, and physical characteristics. Samples should be provided for feeding-system evaluation.

5. Can the machine use different rivet sizes?

Different rivet sizes may require different tooling and machine configurations. The appropriate range should be confirmed according to the specific rivet dimensions.

6. Can the fixture be customized?

Yes. Customized fixtures can be developed according to the product dimensions, riveting position, and workpiece structure.

7. How fast is the machine?

Production speed depends on the gasket, rivet, product structure, feeding system, riveting cycle, and operator loading method. Actual output should be confirmed through sample testing.

8. Can I send a sample before ordering?

Yes. Providing samples, drawings, gasket specifications, and rivet specifications is recommended when requesting a customized solution.

9. Is this machine fully automatic?

The machine can incorporate automatic gasket feeding and automatic riveting. The overall automation level depends on the selected configuration and production workflow.

10. What products can use this machine besides golf bags?

Potential applications include luggage, suitcases, drawbar boxes, travel bags, tool cases, leather goods, fabric products, backpacks, and other products requiring gasket and rivet assembly.

11. Can you provide OEM solutions?

Yes. OEM and customized machine solutions can be developed according to product samples, drawings, gasket specifications, rivet dimensions, and production requirements.

12. What information is needed for a quotation?

Customers should provide product samples or drawings, gasket dimensions, rivet specifications, material information, riveting position, desired production capacity, and the required level of automation.
