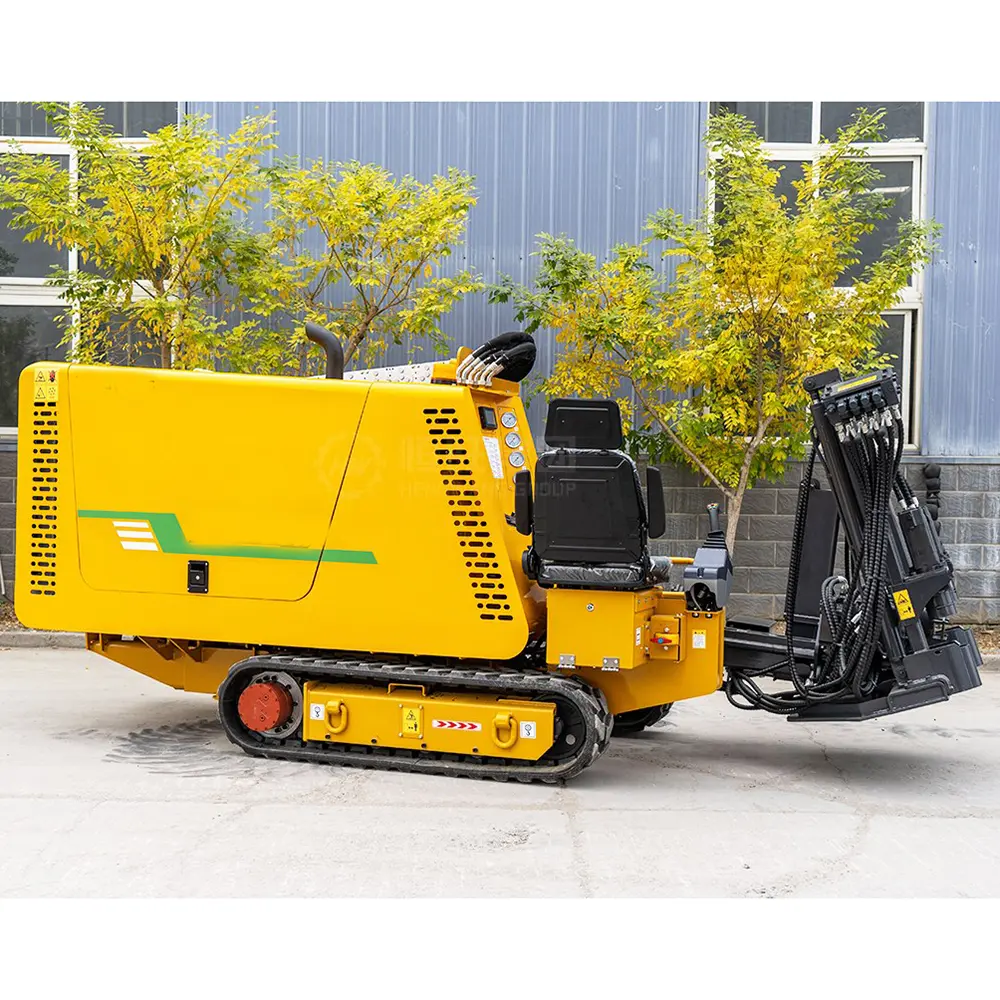

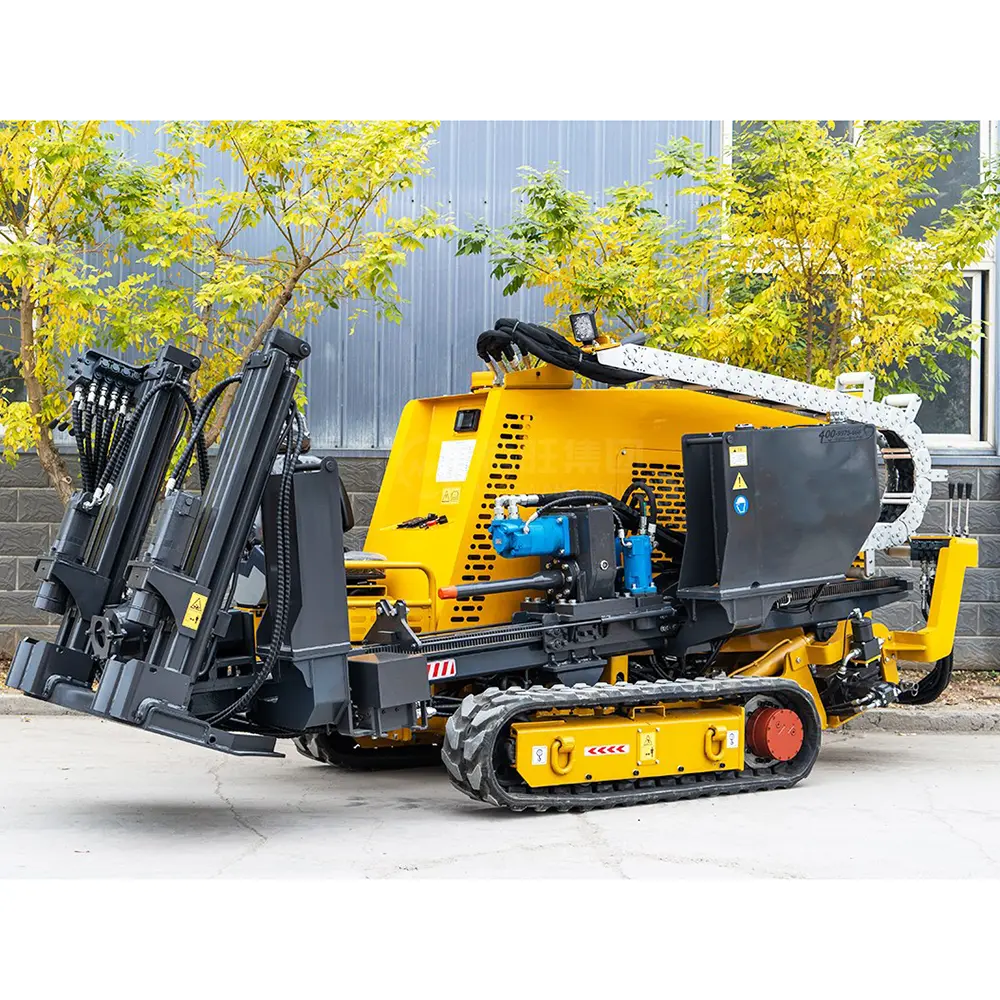

F50 Horizontal Directional Drilling Rig

rated power：46.2/2200 KW/R/MIN
maximum torque:2235N-M
maximum pressure：20MPA
1. Yanmar Stage IV Engine: Powerful performance with reliable operation.
2. Rubber Track Crawler: Suitable for various ground conditions, minimizing damage to the surface.
3. Compact Body: Ideal for projects with limited space or short-distance construction, solving the problem of working in narrow areas.
4. Equipped with Drill Rod Box: Allows for easy single-person operation, enhancing efficiency.
5. Automatic Hydraulic Anchoring: Convenient and efficient hydraulic anchoring system.

HW50F Horizontal Directional Drill
Machine Configuration	Operating Weight	3450kg
	Engine Brand	Yanmar
	Engine Model	4TNV98C-CSCTY
	Engine Power	46.2KW
	Fuel Tank Capacity	72L
	Main Pump Displacement	76ml/r
	Hydraulic Oil Tank Capacity	120L
	Working Pressure	20Mpa
	Dimensions	3880*1330*1800mm
	Hydraulic Anchoring Device	Standard Configuration
	Drill Rod Box	Rod Capacity: 44 rods (φ42 mm drill rods)
Technical Parameters	Powerhead Push/Pull	Drive Type	Single motor drive
		Maximum Pullback/Push Force	50/50KN
		Maximum Operating Speed of Powerhead	61m/min
	Powerhead Rotation	Drive Type	Single motor drive
		Maximum Rotation Speed	215r/min
		Maximum Torque of Powerhead	2235N·m
	Drill Rod	Standard Rod	φ42*1828mm
		Soil Entry Angle	16-20°
	Travel Drive	Drive Type	Rubber tracks
		Travel Speed	2.5km/h
	Mud Pump	Maximum Flow	75L/min
		Maximum Pressure	60Bar
		Rotation Diameter	φ150-400min
		Maximum Construction Distance	100m

F50 Horizontal Directional Drilling Rig

The F50 Horizontal Directional Drilling Rig is a compact professional HDD machine designed for efficient underground construction without traditional excavation. It provides an economical and practical solution for installing pipelines, cables, and utility systems while minimizing damage to roads, landscapes, and existing structures.

Using advanced Horizontal Directional Drilling (HDD) technology, the F50 creates underground passages through controlled drilling and accurately installs pipes or cables beneath obstacles such as roads, buildings, and urban infrastructure.

The F50 Horizontal Directional Drilling Rig is especially suitable for:

Small and medium underground pipeline projects
Municipal utility installation
Fiber optic cable laying
Power cable construction
Water supply pipelines
Communication network expansion
Residential and commercial utility projects

Compared with traditional open excavation methods, the F50 HDD Rig provides:

Faster construction speed
Lower labor requirements
Reduced surface damage
Less traffic interruption
Lower restoration costs
Better environmental protection

Its compact structure and reliable hydraulic system make it an excellent choice for contractors requiring flexible and cost-effective trenchless drilling equipment.

Efficient Trenchless Drilling Technology

The biggest advantage of the F50 Horizontal Directional Drilling Rig is its trenchless construction capability.

Traditional excavation methods often require:

Large construction areas
Road cutting
Traffic control
Additional restoration work

HDD technology allows underground installation with minimal surface disturbance.

The F50 HDD construction process includes three main steps:

1. Pilot Hole Drilling

The drill head creates a controlled underground pathway according to the designed route.

2. Hole Reaming

The drilled hole is enlarged using suitable reaming tools to prepare for pipeline installation.

3. Pipe Or Cable Pullback

The target pipeline or cable is pulled through the underground borehole.

This process improves project efficiency and reduces environmental impact.

Compact Design For Flexible Operation

The F50 Horizontal Directional Drilling Rig is designed for projects where space and mobility are important.

Compact design advantages:

Small working footprint
Easy transportation
Quick installation at job sites
Flexible operation in narrow areas
Reduced operating costs

The F50 is suitable for:

Urban streets
Residential areas
Industrial parks
Limited-access construction locations

Its compact size allows contractors to complete underground projects in areas where larger HDD machines cannot operate efficiently.

Reliable Hydraulic Drilling Performance

The F50 HDD Rig uses a hydraulic drive system to provide stable drilling performance.

The hydraulic system offers:

Smooth power transmission
Stable rotary operation
Reliable drilling control
Efficient energy utilization
Continuous working capability

Hydraulic controls manage:

Drill rod rotation
Forward and backward movement
Steering operation
Pullback process

The optimized hydraulic system helps improve drilling accuracy and machine reliability.

Accurate Directional Control

Precise underground navigation is essential for successful HDD projects.

The F50 Horizontal Directional Drilling Rig allows operators to control:

Drilling direction
Borehole depth
Underground route
Entry and exit points

With professional locating equipment, the drill head can accurately pass beneath:

Roads
Sidewalks
Buildings
Utility networks

This reduces construction risks and improves installation quality.

Wide Application Areas
Underground Water Pipeline Installation

The F50 HDD Rig is suitable for:

Water supply systems
Irrigation pipelines
Small municipal water projects

Advantages:

Faster installation
Less excavation
Reduced restoration work
Communication And Fiber Optic Cable Projects

Ideal for:

Internet infrastructure
Telecom cable installation
Data network expansion

The trenchless method protects existing surfaces and improves installation efficiency.

Power Cable Installation

Applications include:

Underground electrical cables
Renewable energy connections
Utility upgrades
Gas Pipeline Installation

Suitable for:

Small gas distribution projects
Underground energy systems
Municipal Construction Projects

Used for:

Urban utility improvements
Road crossing projects
Underground infrastructure upgrades
Adaptability To Different Ground Conditions

The F50 Horizontal Directional Drilling Rig can work in various soil conditions with proper drilling tools.

Suitable formations include:

Clay
Sand
Soil layers
Soft gravel
Mixed ground conditions

Different drill bits and reaming tools can be selected according to geological requirements.

This flexibility allows the F50 to handle a wide range of underground installation tasks.

Durable Structure And Long Service Life

The F50 HDD Rig is built for reliable operation in professional construction environments.

Main components include:

Strong steel frame
Durable drilling system
Reliable hydraulic components
High-quality drill rods
Reinforced machine structure

Advantages:

Long service life
Stable operation
Reduced maintenance costs
Better investment value

The durable design ensures dependable performance during repeated construction projects.

Easy Operation And Maintenance

The F50 Horizontal Directional Drilling Rig is designed for operator convenience.

Features include:

Simple hydraulic controls
Easy drilling adjustments
Convenient maintenance access
User-friendly operation
Reduced training requirements

The practical design helps contractors improve productivity and reduce downtime.

Main Features Of F50 Horizontal Directional Drilling Rig
Compact HDD drilling machine
Trenchless underground construction capability
Reliable hydraulic drilling system
Precise directional control
Flexible operation in small spaces
Suitable for pipeline and cable installation
Low operating cost
Durable construction design
Easy maintenance
Professional HDD performance
Why Choose Our F50 Horizontal Directional Drilling Rig?
1. Compact And Flexible Structure

Perfect for urban projects and limited working areas.

2. Efficient Underground Installation

Reduces excavation and improves construction speed.

3. Reliable Hydraulic System

Provides stable drilling power and smooth operation.

4. Accurate Drilling Control

Ensures better underground installation accuracy.

5. Wide Application Capability

Suitable for utilities, pipelines, and communication projects.

6. Professional Service Support

We provide technical support, spare parts, and customized solutions.

FAQS
1. What is the F50 Horizontal Directional Drilling Rig used for?

The F50 is used for underground pipeline installation, cable laying, and trenchless construction projects.

2. What materials can the F50 install?

It can install water pipes, communication cables, fiber optic cables, electrical cables, and utility conduits.

3. Why choose HDD instead of excavation?

HDD reduces surface damage, construction time, traffic disruption, and restoration costs.

4. Is the F50 suitable for urban construction?

Yes. Its compact structure makes it ideal for narrow spaces and city projects.

5. Can the F50 drill beneath roads?

Yes. It is designed for underground crossing projects such as roads and sidewalks.

6. What ground conditions can the F50 handle?

It can operate in common soil conditions including clay, sand, and mixed soils.

7. Is the F50 easy to operate?

Yes. The hydraulic control system allows simple operation and accurate adjustment.

8. Can the F50 HDD Rig be customized?

Yes. Drill tools, configurations, and accessories can be customized according to customer requirements.
