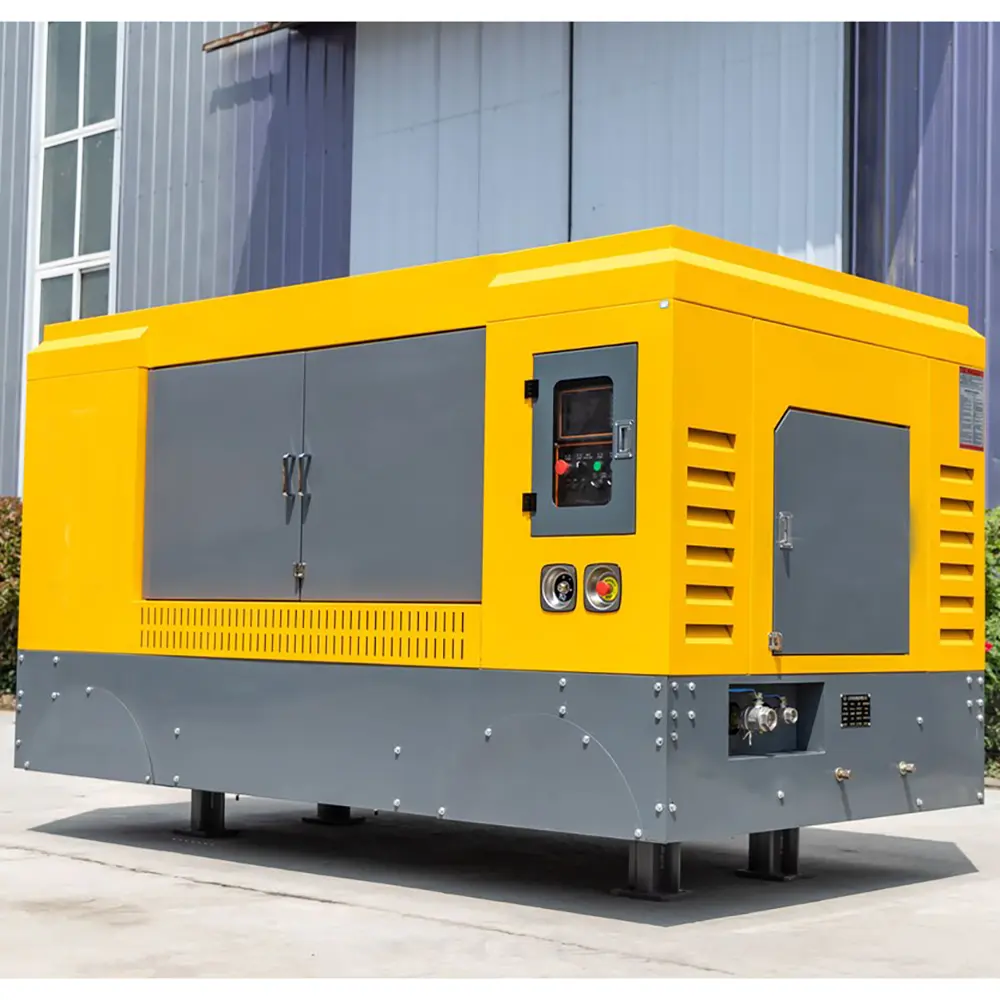

DXLHW-60 Screw Air Compressor

The DXLHW-60 Screw Air Compressor is a professional industrial compressor designed for high-demand drilling operations. With advanced screw compression technology, powerful diesel drive, efficient cooling system, and continuous air supply capability, it is ideal for mining, quarrying, geological exploration, water well drilling, and large construction projects requiring reliable compressed air.

Model	Capacity (m3/min)	Exhaust pressure (Mpa)	Model of engine	Weight (Kg)	Dimensions (mm)
HW5/8	5	0.8	YNE143RA/4DW91-56G2	1400/1300	2050×1000×1250
HW10/8	10	0.8	YCD4T22T-105A	1700	1900×1306×1552
HW13/8	13	0.8	YC4DK120-T301	1750	2441×1806×2059
HW15/15-1	15	1.5	QSB5.9-C190-31	2500	3050×2182×2500
HW15/15-2	15	1.5	6DF1-20GAG2	2450	3080×1650×2000
HW15/15-3	31	1.5	YC6J190-H300	2600	3250×1610×2470
HW60 18/18	18	1.8	QSB5.9-C220-30	2400	2900×1605×1797
HW19/20	19	2.0	6CTA8.3-C260	3200	2920×1780×2622
HW24/22	24	2.2	YC6L310-H300	3800	3200×1800×2285
HW29/23-1	29	2.3	CA6DL2-35G31-YM10	3600	3100×1900×1950
HW29/23-2	29	2.3	6DL2-35KG31-YM10	3900	3500×1980×2260
HW29/24	29	2.4	YC6MK400-H300	4200	3776×2000×2032
HW31/25-1	31	2.5	CA6DM2-42GAG2	4200	3500×2000×2150
HW31/25-2	31	2.5	CA6DM2-42GAG31-YM10	4200	3500×1980×2260

Enhanced Lubrication Efficiency:
Experience superior performance with our advanced "Convex-Convex" engagement design.
This innovative feature facilitates the formation of a hydrodynamic lubrication film, reducing horizontal leakage in the contact zone.
This not only enhances the efficiency of the compressor but also improves rotor processing and testing properties.


Quiet, Low-Vibration Operation:
Embrace the "large rotor, large bearing, and low-speed" design philosophy, setting our compressors apart from the rest.
With a 30-50% lower revolving speed compared to other brands, enjoy reduced noise, vibration, and exhaust temperature.
This design also enhances rotor rigidity, prolongs service life, and minimizes sensitivity to debris and oil carbide.


Versatile Power Range:
Our compressors cover a power range from 4 to 355KW. For compressor applications without a direct-coupled gearbox, choose from the 18.5 to 250KW range.
For those with Level 4 direct-coupled motors, opt for the 200KW and 250KW options, featuring an impressively low speed of 1480 rpm.


Exceeds Energy Efficiency Standards:
Rest easy knowing that our compressors fully conform to and surpass the requirements outlined in GB19153-2003.
We not only meet but exceed the Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation for Displacement Air Compressors.

DXLHW-60 Screw Air Compressor
Powerful High Capacity Air Supply Solution For Deep Drilling Applications

The DXLHW-60 Screw Air Compressor is a heavy-duty mobile compressor developed to meet the demanding requirements of modern drilling and mining industries. It provides stable and powerful compressed air for DTH drilling rigs, crawler drilling machines, pneumatic rock drills, mining equipment, and large-scale engineering projects.

In rock drilling operations, compressed air is the key energy source for driving DTH hammers and pneumatic drilling tools. A reliable compressor directly influences drilling speed, penetration efficiency, hole cleaning performance, and equipment productivity.

The DXLHW-60 Screw Air Compressor combines advanced rotary screw compression technology, powerful diesel engine performance, durable components, and efficient operation design to deliver continuous compressed air in challenging environments.

Unlike conventional compressors, rotary screw compressors are designed for long-duration industrial operation, providing smoother airflow, lower vibration, and improved reliability. Screw compressor systems are commonly used where stable compressed air delivery is required for continuous production environments.

Advanced Screw Compression Technology

The DXLHW-60 adopts an efficient rotary screw compression system designed for heavy-duty applications.

Working Principle

The compressor uses two precision-engineered screw rotors to compress air continuously.

The compression process includes:

Air enters through the intake filtration system.
Twin rotors rotate and compress the air.
Lubrication and cooling systems maintain stable operation.
Compressed air is delivered to drilling equipment.

This technology provides:

Continuous airflow output
Stable pressure performance
High compression efficiency
Reduced mechanical vibration
Extended service life
Powerful Air Supply For DTH Drilling

The DXLHW-60 Screw Air Compressor is designed specifically for demanding drilling applications.

Compatible Equipment

It can provide compressed air support for:

DTH drilling rigs
Crawler-mounted drilling rigs
Surface drilling machines
Pneumatic rock drills
Blast hole drilling equipment
Mining drilling tools
High Performance Drilling Advantages
Strong Impact Energy Support

Stable compressed air allows DTH hammers to operate efficiently and generate powerful impact force for hard rock penetration.

Excellent Hole Cleaning

High-volume airflow helps remove:

Rock dust
Drill cuttings
Broken rock particles
Debris from boreholes

This improves drilling speed and reduces hole blockage.

Improved Productivity

Continuous air supply helps achieve:

Faster drilling speed
Better drilling stability
Reduced downtime
Higher project efficiency

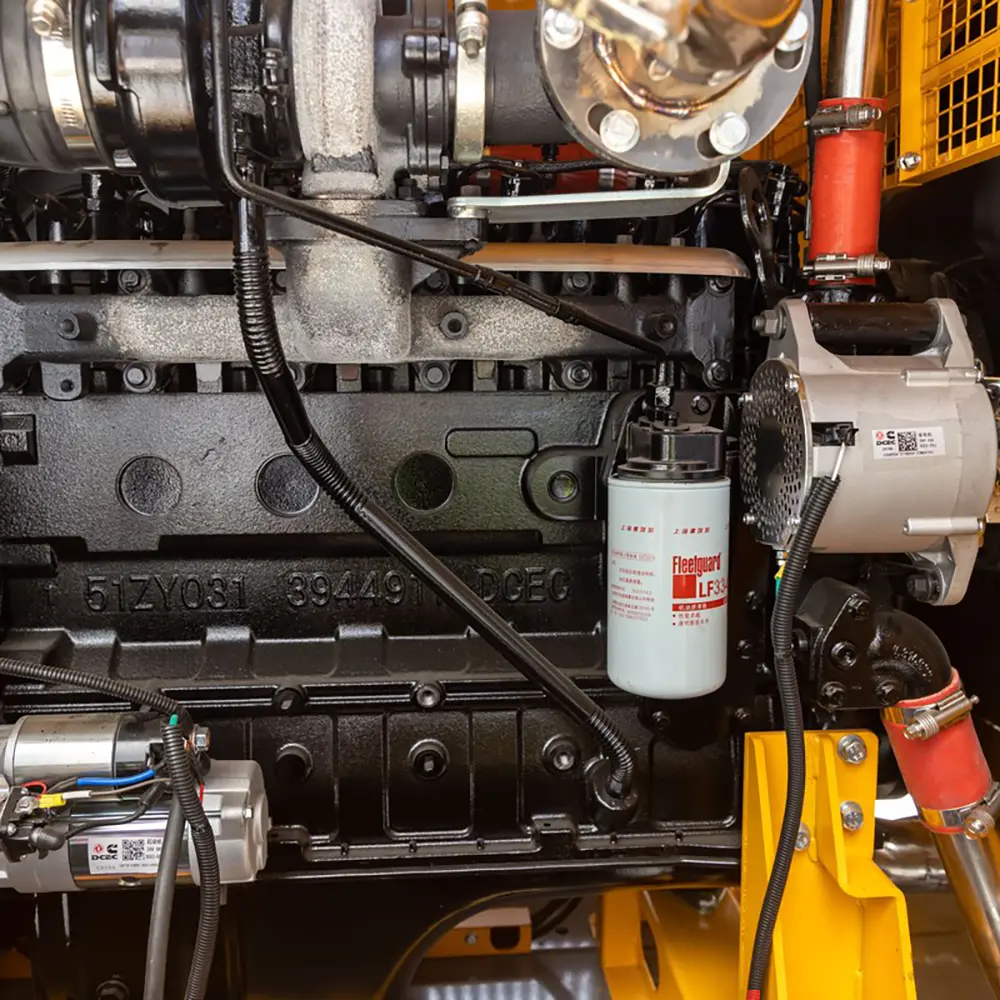

Heavy Duty Diesel Power System

The DXLHW-60 Screw Air Compressor uses a diesel-powered drive system designed for outdoor and remote operations.

Diesel Engine Advantages
Independent power supply
No requirement for electrical infrastructure
Suitable for remote mining locations
Strong environmental adaptability
Easy field operation

It is suitable for:

Mountain drilling sites
Open-pit mines
Quarry operations
Remote construction projects
High Efficiency And Energy Saving Design

The DXLHW-60 is engineered to reduce operating costs while maintaining strong performance.

Efficiency Features
Optimized Screw Rotor

The precision rotor design improves compression efficiency and reduces energy loss.

Efficient Cooling System

Advanced cooling helps maintain stable temperature during long working periods.

Reduced Mechanical Wear

Optimized internal components reduce friction and extend equipment life.

Durable Structure For Harsh Working Conditions

The DXLHW-60 Screw Air Compressor is designed for demanding industrial environments.

Heavy Duty Features

The compressor provides:

Strong structural frame
Reliable power system
Wear-resistant components
Efficient lubrication system
Long operating life

It can operate effectively in:

Dusty mining areas
Rocky terrain
High-load drilling conditions
Long-duration construction projects
Mobile Design And Easy Transportation

The DXLHW-60 provides excellent flexibility for different job sites.

Mobility Benefits
Easy relocation
Quick installation
Suitable for multiple projects
Reduced setup time

Contractors can move the compressor between different drilling locations according to project requirements.

Wide Applications Of DXLHW-60 Screw Air Compressor
Mining Industry

Used for:

Open-pit mining
Blast hole drilling
Mineral exploration
Rock excavation
Quarry Industry

Suitable for:

Granite drilling
Limestone extraction
Stone quarrying
Aggregate production
Water Well Drilling

Applications include:

Deep water well drilling
Groundwater exploration
Geological investigation
Construction Engineering

Used for:

Foundation drilling
Road construction
Tunnel projects
Slope reinforcement
Advantages Of DXLHW-60 Screw Air Compressor
High Air Capacity

Provides strong airflow support for large drilling equipment.

Stable Continuous Operation

Designed for long working hours in industrial environments.

Powerful Drilling Support

Suitable for large DTH hammers and deep-hole drilling.

Fuel Efficient Performance

Optimized compressor design reduces operating expenses.

Easy Maintenance

Convenient servicing reduces maintenance downtime.

Long Service Life

Heavy-duty construction ensures reliable operation.

How To Choose The Right Drilling Air Compressor

Selecting a compressor depends on:

Air Pressure Requirement

Different DTH hammers require different working pressures.

Air Volume Requirement

Large drilling tools require higher airflow capacity.

Drilling Depth

Deep drilling applications need stronger compressed air support.

Working Conditions

Consider:

Rock hardness
Project duration
Transportation conditions
Operating environment

The DXLHW-60 is designed for customers requiring powerful and stable compressed air for professional drilling operations.

Why Choose Us
Professional Drilling Equipment Manufacturer

We specialize in:

Screw air compressors
DTH drilling rigs
Rock drilling tools
Mining equipment solutions
Strict Quality Control

Every compressor is tested before delivery to ensure:

Stable operation
Reliable performance
Long service life
Consistent quality
Factory Direct Supply

Direct manufacturing provides:

Competitive pricing
Reliable products
Professional service
OEM & ODM Customization

Customized solutions are available for:

Air pressure requirements
Air capacity
Equipment configuration
Customer branding
Global Export Experience

Our drilling equipment is used by customers in mining, construction, and geological exploration industries worldwide.

Professional Technical Support

We provide:

Equipment selection advice
Installation guidance
Operation training
Maintenance support
Spare Parts Supply

Reliable spare parts service helps minimize equipment downtime.

FAQs
1. What is the DXLHW-60 Screw Air Compressor used for?

It is mainly used for DTH drilling, mining, quarrying, water well drilling, and large construction projects.

2. Why use a screw air compressor for drilling?

Screw compressors provide continuous airflow, stable pressure, low vibration, and reliable performance for long drilling operations.

3. Can the DXLHW-60 power DTH hammers?

Yes. It is designed to supply compressed air for large DTH drilling systems.

4. Is the DXLHW-60 suitable for mining operations?

Yes. It is designed for heavy-duty mining and quarry environments.

5. What are the advantages of diesel-powered compressors?

Diesel compressors can operate independently without external electricity and are suitable for remote locations.

6. How does compressed air improve drilling efficiency?

Compressed air drives the hammer, cools drilling tools, and removes rock debris from boreholes.

7. Does the compressor require regular maintenance?

Yes. Regular inspection, lubrication, and filter replacement help extend service life.

8. Can the compressor be customized?

Yes. OEM customization is available according to customer requirements.

9. What drilling equipment can use this compressor?

It can support DTH rigs, pneumatic drills, mining equipment, and rock drilling systems.

10. Do you provide technical support?

Yes. Professional technical support and spare parts service are available.
