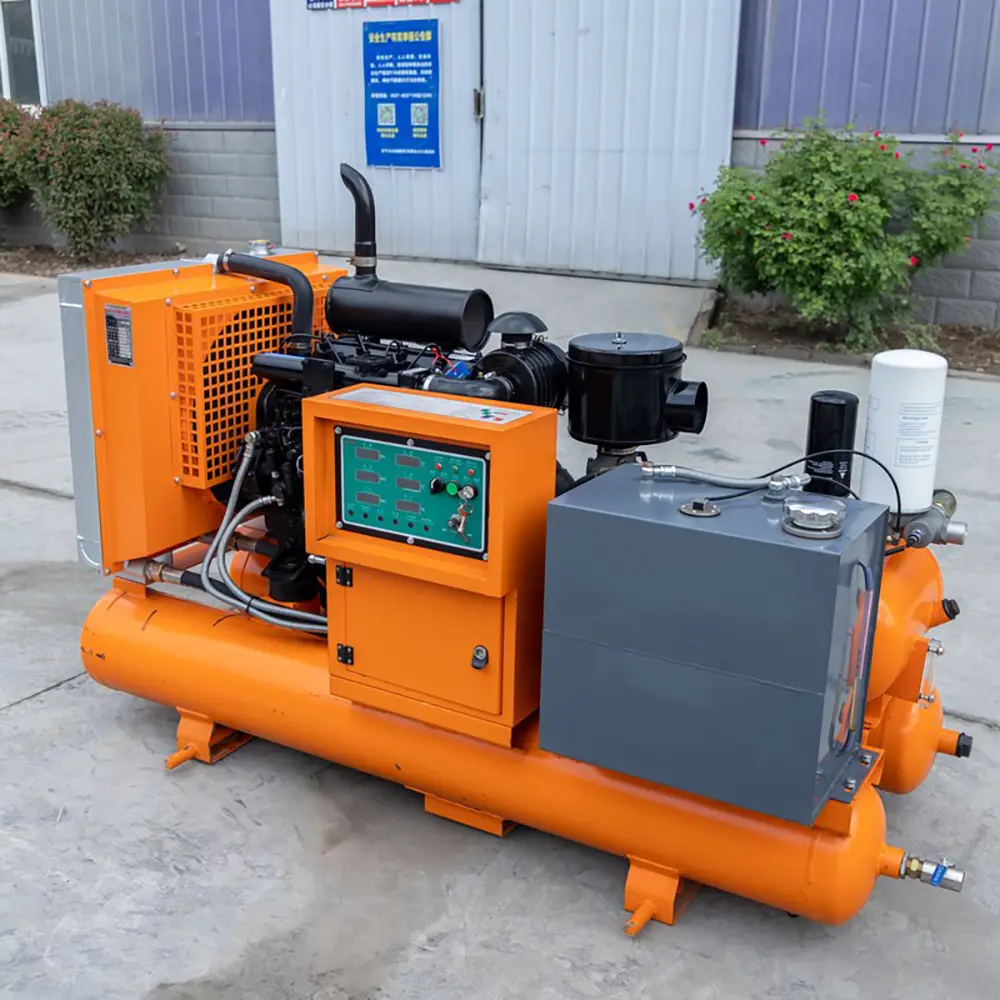

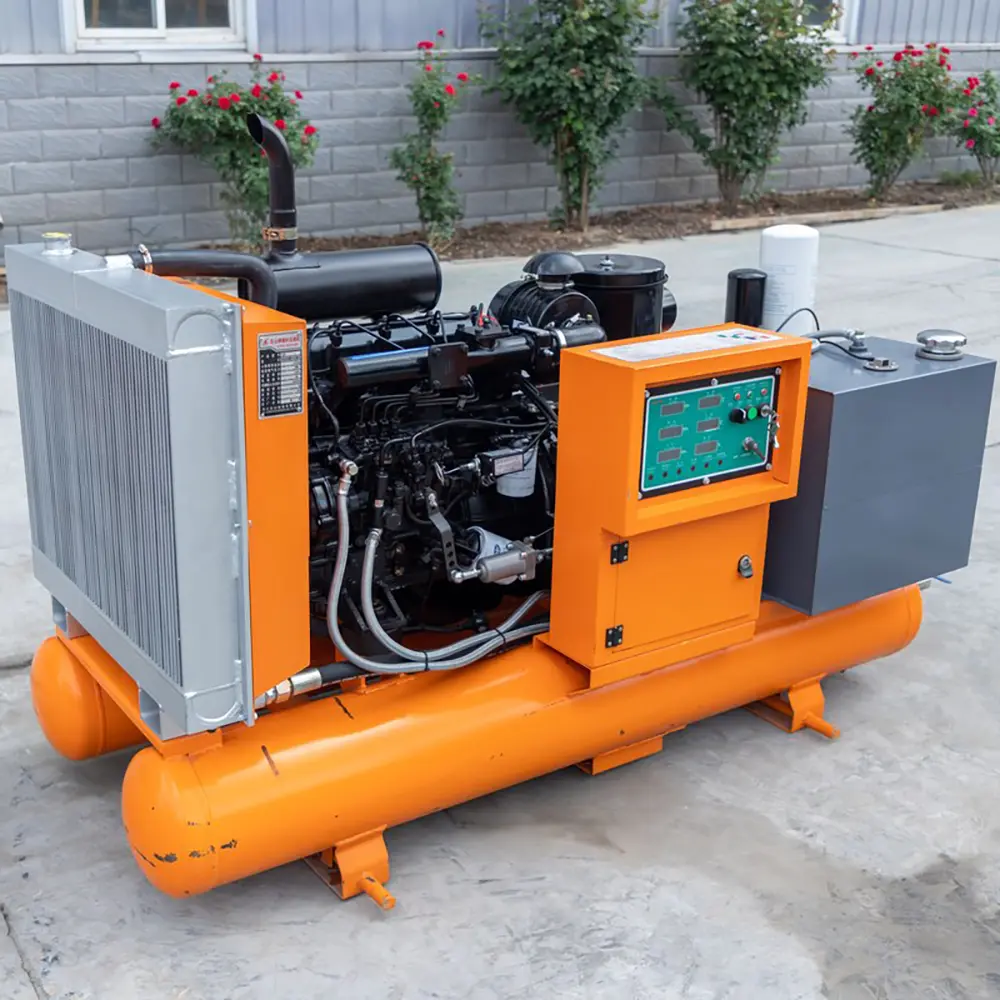

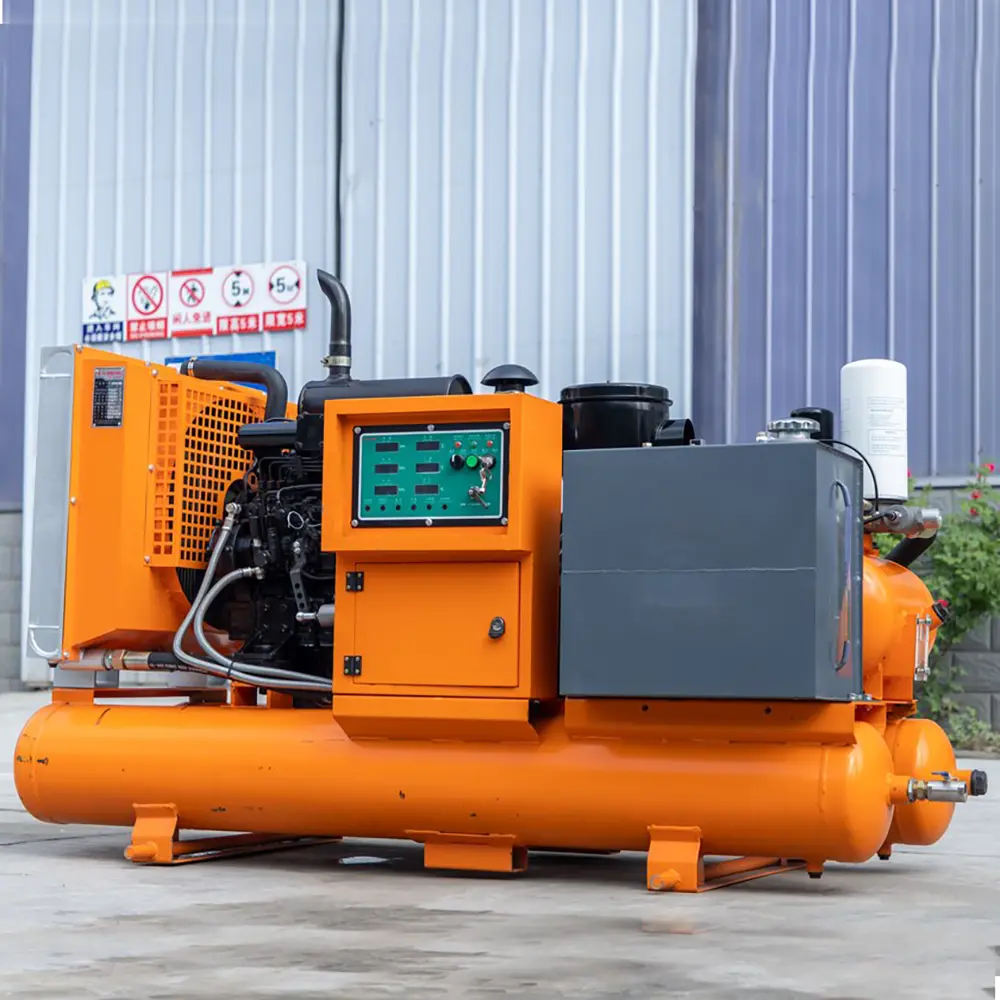

DXLHW-5/8 Air Compressor Technical Parameters

Enhanced Lubrication Efficiency: Experience superior performance with our advanced Convex-Convex engagement design. This innovative feature facilitates the formation of a hydrodynamic lubrication film, reducing horizontal leakage in the contact zone..

Enhanced Lubrication Efficiency:
Experience superior performance with our advanced "Convex-Convex" engagement design. This innovative feature facilitates the formation of a hydrodynamic lubrication film, reducing horizontal leakage in the contact zone. This not only enhances the efficiency of the compressor but also improves rotor processing and testing properties.


Quiet, Low-Vibration Operation:
Embrace the "large rotor, large bearing, and low-speed" design philosophy, setting our compressors apart from the rest. With a 30-50% lower revolving speed compared to other brands, enjoy reduced noise, vibration, and exhaust temperature. This design also enhances rotor rigidity, prolongs service life, and minimizes sensitivity to debris and oil carbide.


Versatile Power Range:
Our compressors cover a power range from 4 to 355KW. For compressor applications without a direct-coupled gearbox, choose from the 18.5 to 250KW range. For those with Level 4 direct-coupled motors, opt for the 200KW and 250KW options, featuring an impressively low speed of 1480 rpm.


Exceeds Energy Efficiency Standards:
Rest easy knowing that our compressors fully conform to and surpass the requirements outlined in GB19153-2003. We not only meet but exceed the Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation for Displacement Air Compressors.


Upgrade to Peak Performance Today – Seize the Exclusive Offer!


Model Capacity (m3/min) Exhaust pressure (Mpa) Model of engine Weight (Kg) Dimensions (mm)
HW5/8 5 0.8 YNE143RA/4DW91-56G2 1400/1300 2050×1000×1250
HW10/8 10 0.8 YCD4T22T-105A 1700 1900×1306×1552
HW13/8 13 0.8 YC4DK120-T301 1750 2441×1806×2059
HW15/15-1 15 1.5 QSB5.9-C190-31 2500 3050×2182×2500
HW15/15-2 15 1.5 6DF1-20GAG2 2450 3080×1650×2000
HW15/15-3 31 1.5 YC6J190-H300 2600 3250×1610×2470
HW60 18/18 18 1.8 QSB5.9-C220-30 2400 2900×1605×1797
HW19/20 19 2.0 6CTA8.3-C260 3200 2920×1780×2622
HW24/22 24 2.2 YC6L310-H300 3800 3200×1800×2285
HW29/23-1 29 2.3 CA6DL2-35G31-YM10  3600 3100×1900×1950
HW29/23-2 29 2.3 6DL2-35KG31-YM10 3900 3500×1980×2260
HW29/24 29 2.4 YC6MK400-H300 4200 3776×2000×2032
HW31/25-1 31 2.5 CA6DM2-42GAG2 4200 3500×2000×2150
HW31/25-2 31 2.5 CA6DM2-42GAG31-YM10 4200 3500×1980×2260
