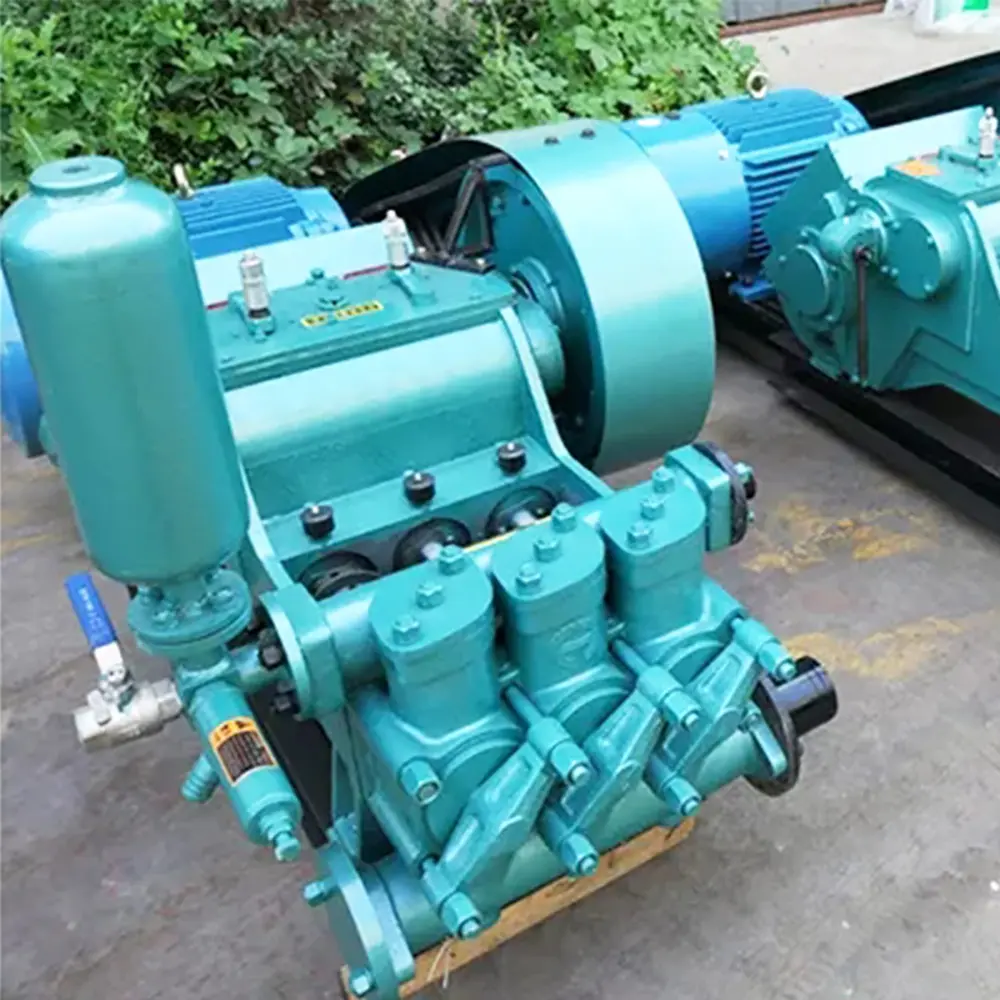

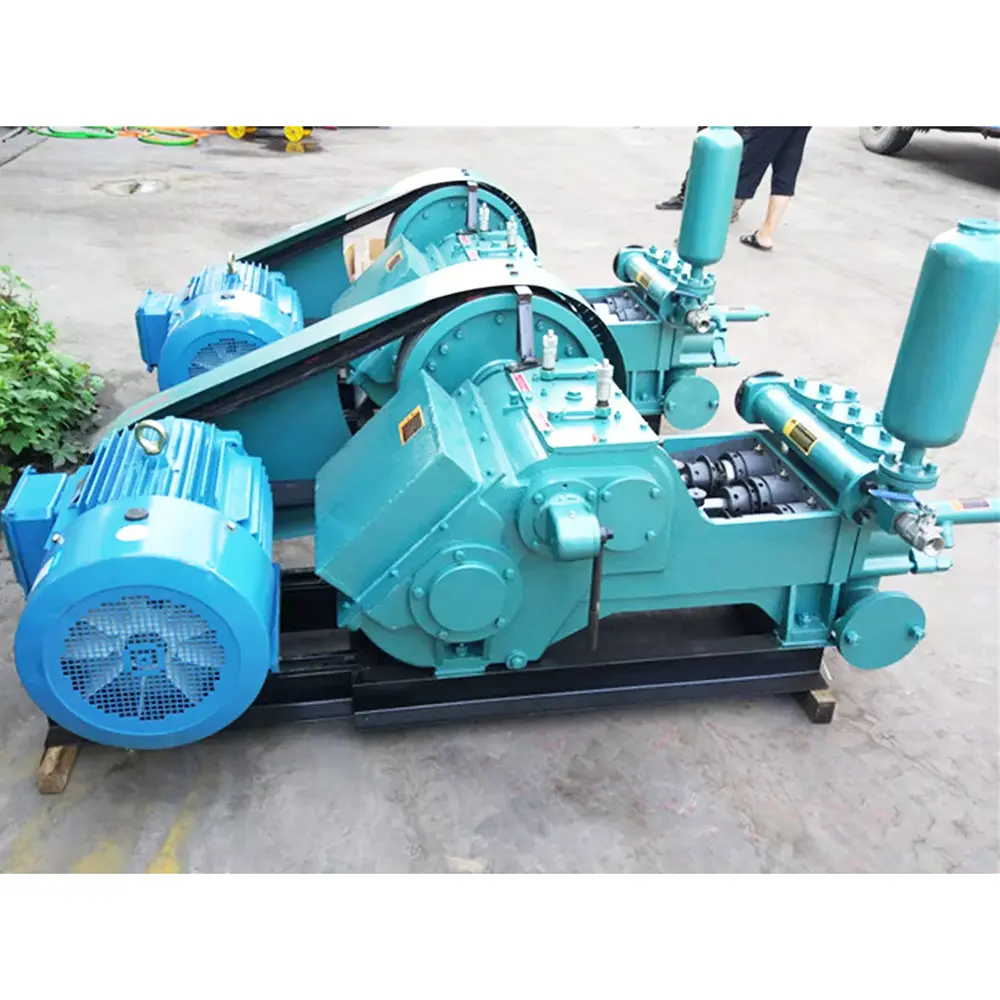

BW Series Mud Pump

Max. flow: 150L/min~ 320L/min
Max. pressure: 7Mpa~10Mpa
Power: 7.5kw~30kwBW Series Mud Pump Features:
1. BW mud pump is horizontal triplex grout pump with high stability and high pressure.
2. Eight gear shift to adjust the flow, large output capacity, simple operation.
3. High quality pump parts, less wearing parts, long service life, low construction cost.
4. Fast suction-discharge speed, high pump efficiency.
5. Less noise and dust, environmental operation.

Model	BW150	BW160	BW250	BW320
Max. flow	150L/min	160L/min	250L/min	320L/min
Max. pressure	7Mpa	10Mpa	6Mpa	8Mpa
Power	7.5kw	11kw	15kw	30kw
Inlet pipe diameter	51mm	51mm	76mm	76mm
Outlet pipe diameter	32mm	32mm	51mm	51mm
Weight	560kg	480kg	760kg	1000kg

BW Series Mud Pump
Reliable Drilling Fluid Solution For Geological And Industrial Applications

The BW Series Mud Pump is an advanced reciprocating drilling pump designed to provide continuous circulation of drilling fluids during drilling operations. As an essential part of drilling systems, the mud pump delivers water, mud, and other drilling fluids into the borehole to cool drilling tools, remove rock cuttings, stabilize the well wall, and improve overall drilling efficiency.

Widely used in water well drilling, geological exploration, mining drilling, foundation construction, and core drilling projects, the BW Series Mud Pump combines strong pressure performance, stable operation, and long service life.

During drilling operations, efficient mud circulation is critical. The BW Series Mud Pump ensures that drilling fluid reaches the bottom of the hole with sufficient pressure and flow, helping remove debris and maintaining smooth drilling progress.

Designed with practical engineering concepts, the BW Series Mud Pump features a compact structure, easy transportation, convenient maintenance, and excellent adaptability for different drilling environments.

Advanced Reciprocating Pump Technology

The BW Series Mud Pump uses a reciprocating piston pump design to provide stable drilling fluid delivery.

Working Principle

The pump converts mechanical power into hydraulic energy through continuous piston movement.

During operation:

The piston moves backward to create suction.
Drilling fluid enters the pump chamber.
The piston moves forward to compress and discharge the fluid.
Continuous circulation maintains drilling efficiency.

This working principle provides:

Stable pressure output
Reliable mud circulation
Improved drilling performance
Reduced drilling downtime
High Performance Drilling Fluid Delivery

The BW Series Mud Pump is designed to meet demanding drilling requirements.

Key Performance Advantages
Stable Pressure Supply

The pump provides consistent pressure to support deep drilling operations.

Adjustable Flow Output

Different drilling conditions require different fluid volumes. The BW Series allows flexible flow adjustment to meet various applications.

Efficient Hole Cleaning

Proper mud circulation helps remove:

Rock fragments
Drilling debris
Sediment particles

This improves drilling speed and reduces the risk of hole blockage.

Durable Structure And Reliable Components

The BW Series Mud Pump is manufactured with high-quality materials and precision engineering.

Main Structural Advantages
Heavy-Duty Pump Body

Provides:

High pressure resistance
Long service life
Excellent durability
Wear-Resistant Components

Key internal parts are designed to withstand continuous operation and abrasive drilling fluids.

Reliable Power Transmission

The mechanical drive system ensures smooth operation and efficient energy transfer.

Wide Range Of Applications

The BW Series Mud Pump is suitable for various drilling industries.

Water Well Drilling

Used for:

Deep water wells
Groundwater exploration
Agricultural wells
Industrial water projects

The pump provides stable circulation during drilling and improves drilling efficiency.

Geological Exploration

Suitable for:

Mineral exploration
Geological investigation
Core drilling projects

The mud circulation system helps maintain clean drilling conditions and protects drilling tools.

Mining Operations

Used for:

Exploration drilling
Mine development
Rock investigation

Reliable mud supply improves drilling stability in mining environments.

Foundation Engineering

Suitable for:

Construction drilling
Pile foundation projects
Ground investigation
Oil And Gas Drilling Support

The BW Series Mud Pump can support various drilling fluid circulation requirements in industrial drilling applications.

Advantages Of BW Series Mud Pump
High Pressure Performance

Designed to provide strong fluid circulation capability for deep drilling operations.

Stable Operation

Reliable mechanical structure ensures continuous working performance.

Easy Maintenance

Simple design allows convenient inspection and repair.

Compact Design

Suitable for transportation and installation in different job sites.

Long Service Life

Durable components reduce replacement frequency and operating costs.

Flexible Application

Compatible with different drilling rigs and drilling methods.

Efficient Mud Circulation System

A high-quality mud pump plays an important role in drilling efficiency.

The BW Series Mud Pump helps:

Cool drilling tools
Remove drilling cuttings
Stabilize borehole walls
Reduce drilling resistance
Improve drilling speed

Effective circulation improves drilling quality and reduces operational problems.

User-Friendly Maintenance Design

The BW Series Mud Pump is designed for easy servicing.

Maintenance Benefits
Convenient component inspection
Simple structure
Easy replacement of wearing parts
Reduced maintenance time
Lower operating expenses

This makes it suitable for contractors requiring reliable equipment with minimal downtime.

Why Choose Us
Professional Drilling Equipment Manufacturer

We specialize in drilling rigs, mud pumps, drilling tools, and complete drilling solutions.

Strict Quality Control

Every BW Series Mud Pump is tested before delivery to ensure:

Stable performance
Reliable pressure output
Long service life
Consistent quality
Factory Direct Supply

Direct manufacturing provides competitive prices and dependable product quality.

OEM & ODM Customization

Customized solutions are available according to:

Pump specifications
Flow requirements
Pressure requirements
Customer branding
Global Export Experience

Our drilling equipment serves customers in mining, construction, geological exploration, and water drilling industries worldwide.

Professional Technical Support

We provide:

Product selection guidance
Installation support
Operation training
Maintenance assistance
Reliable Spare Parts Supply

Fast spare parts support helps reduce equipment downtime.

FAQs
1. What is a BW Series Mud Pump?

A BW Series Mud Pump is a reciprocating drilling pump used to circulate drilling fluids during drilling operations.

2. What applications use BW Series Mud Pumps?

They are widely used in water well drilling, geological exploration, mining, core drilling, and construction projects.

3. Why is a mud pump important for drilling?

A mud pump provides drilling fluid circulation to cool tools, remove cuttings, and stabilize the borehole.

4. What type of fluid can the BW Series Mud Pump handle?

It can handle water, mud, and other suitable drilling fluids depending on project requirements.

5. Is the BW Series Mud Pump suitable for deep drilling?

Yes. It provides stable pressure and flow performance for various drilling depths.

6. How often does the mud pump require maintenance?

Maintenance frequency depends on working conditions, drilling fluid type, and operating hours.

7. Can the pump be used with different drilling rigs?

Yes. The BW Series Mud Pump can be matched with various drilling systems.

8. What are the advantages compared with ordinary pumps?

It provides higher pressure, better durability, and more stable performance for drilling applications.

9. Can customers request customized configurations?

Yes. OEM customization is available according to customer requirements.

10. Do you provide technical support and spare parts?

Yes. Professional technical support and spare parts supply are available.

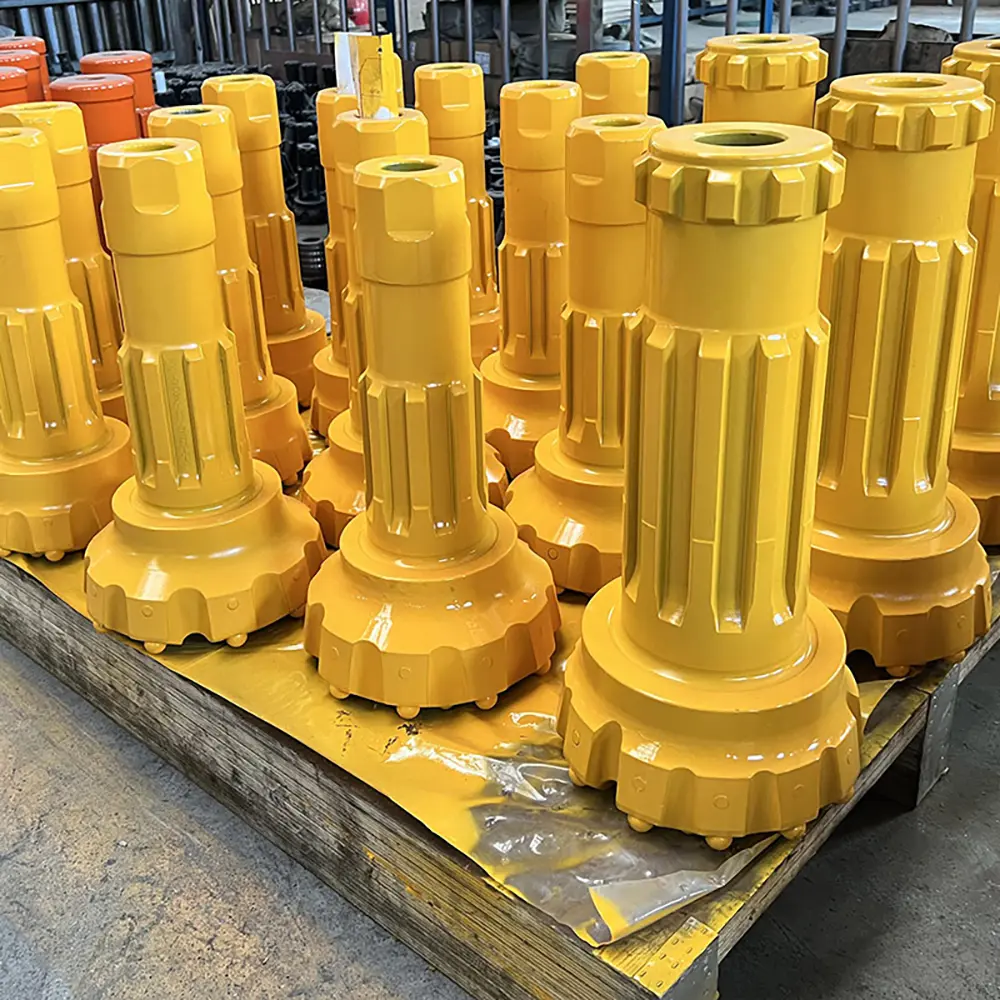

Prev：DTH Drill Bit

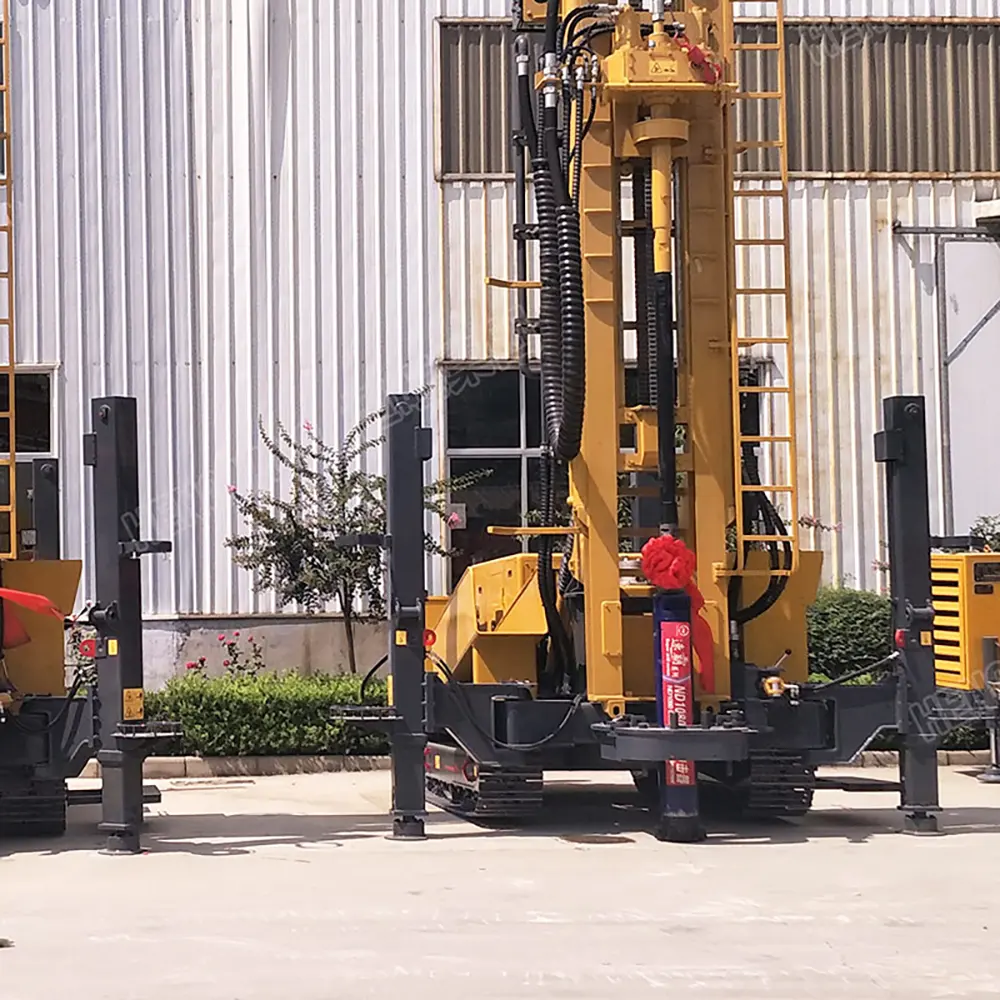

Next：SP480 DTH Hammer
