DXL935 Integrated DTH Surface Drill Rig Technical Parameters

DXL935 Integrated DTH Surface Drill Rig is a high-performance integrated down-the-hole drilling machine designed for mining, quarrying, road construction, and rock blasting projects. Featuring an onboard air compressor.

The DXL935 Integrated DTH Surface Drill Rig is a professional hydraulic drilling solution that combines the drilling system and air compressor into one integrated unit. Designed for open-pit mining, quarrying, infrastructure construction, and foundation engineering, it offers high drilling efficiency, excellent mobility, reduced fuel consumption, and simplified maintenance. Its powerful DTH drilling technology ensures superior penetration rates and outstanding hole quality in medium and hard rock formations.

Rated Power: 162kW
Propulsion: 7.5kN
Drill Diameter: 90-127 mm
model HW935
engine Yuchai
power(KW) 162
Drill pipe type(mm) φ60*3000
Drilling diameter(mm) φ90-127
Maximum working torque(N.m) 1500
Swing speed(rpm) 0-135
Propulsion(kN) 7.5
Lifting power(kN) 31
Propulsion method oil cylinder chain
Leveling angle ±10°
Walking speed(km/h) 3
Gradeability 30°
gross weight(kg) 7150
Shipping dimensions(mm) 7480*2300*2750
Dust collection method Dry dust collection
exhaust volume Displacement 15m³/min. Pressure 12bar
Power Head 10/15

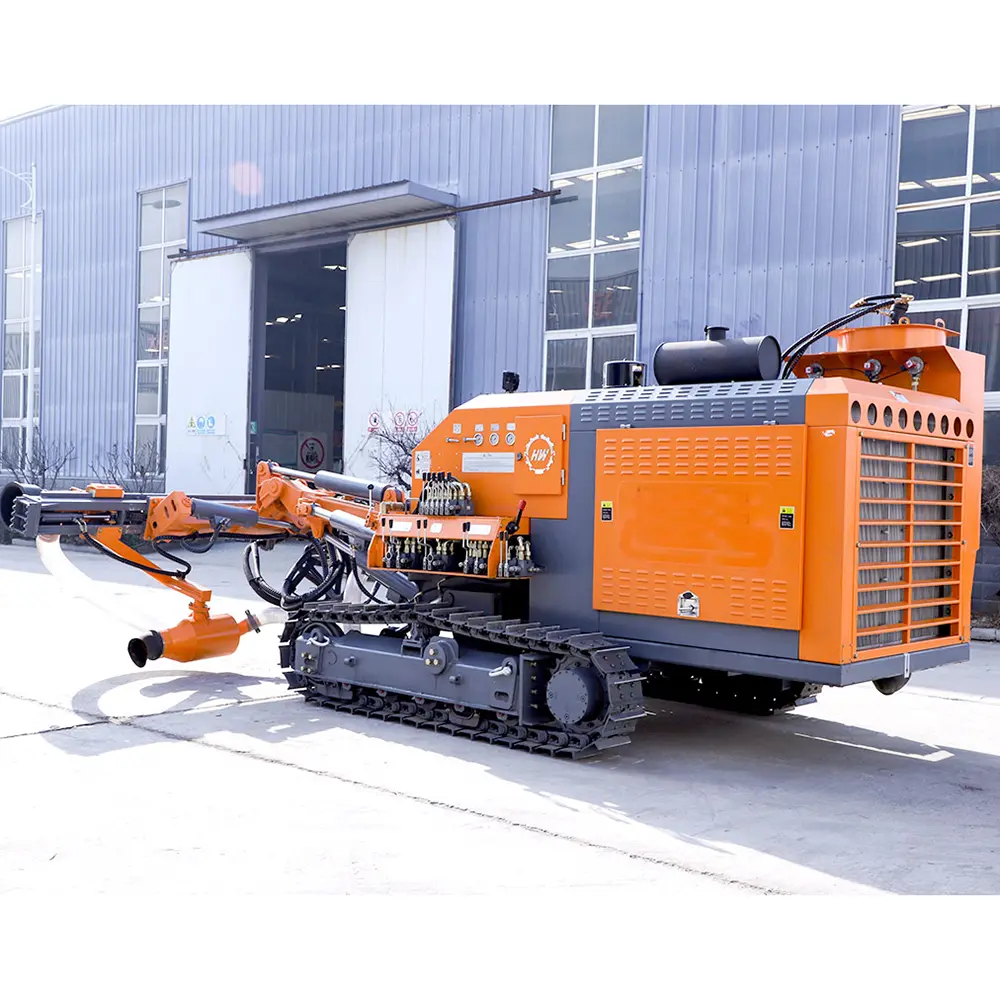

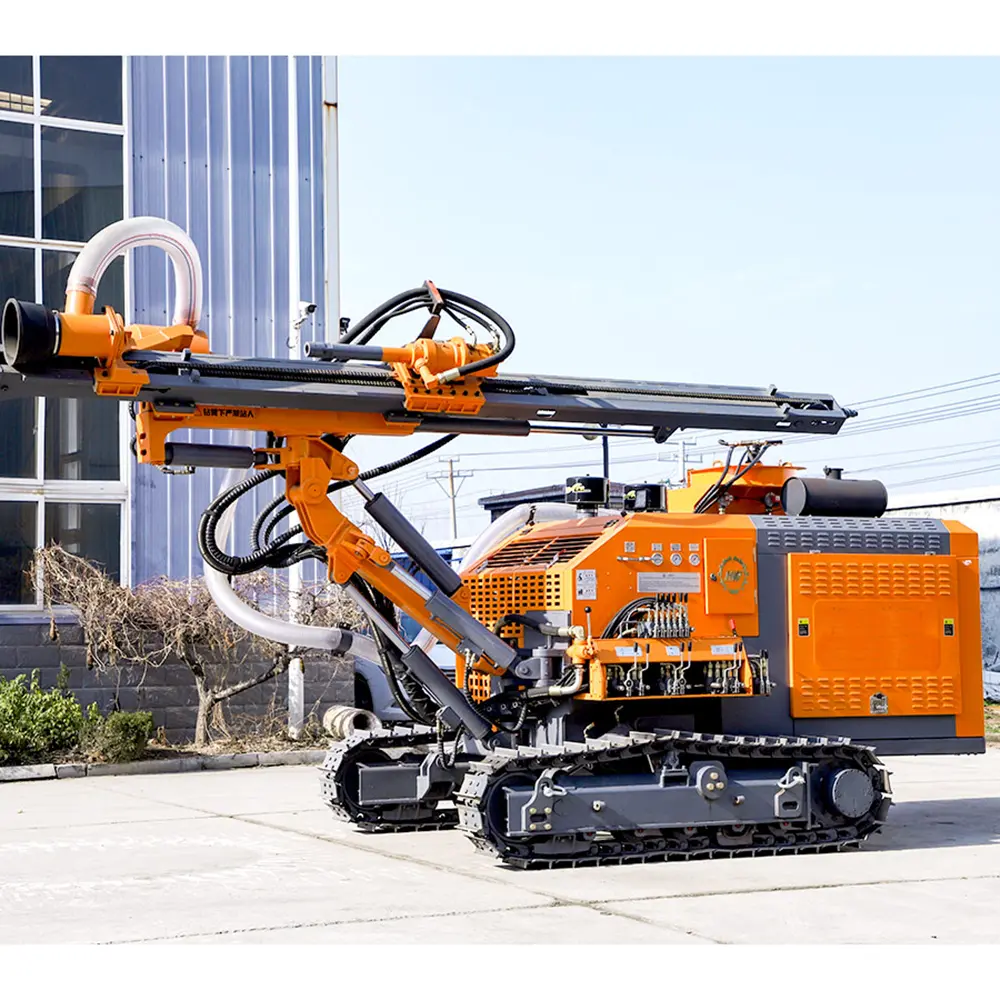

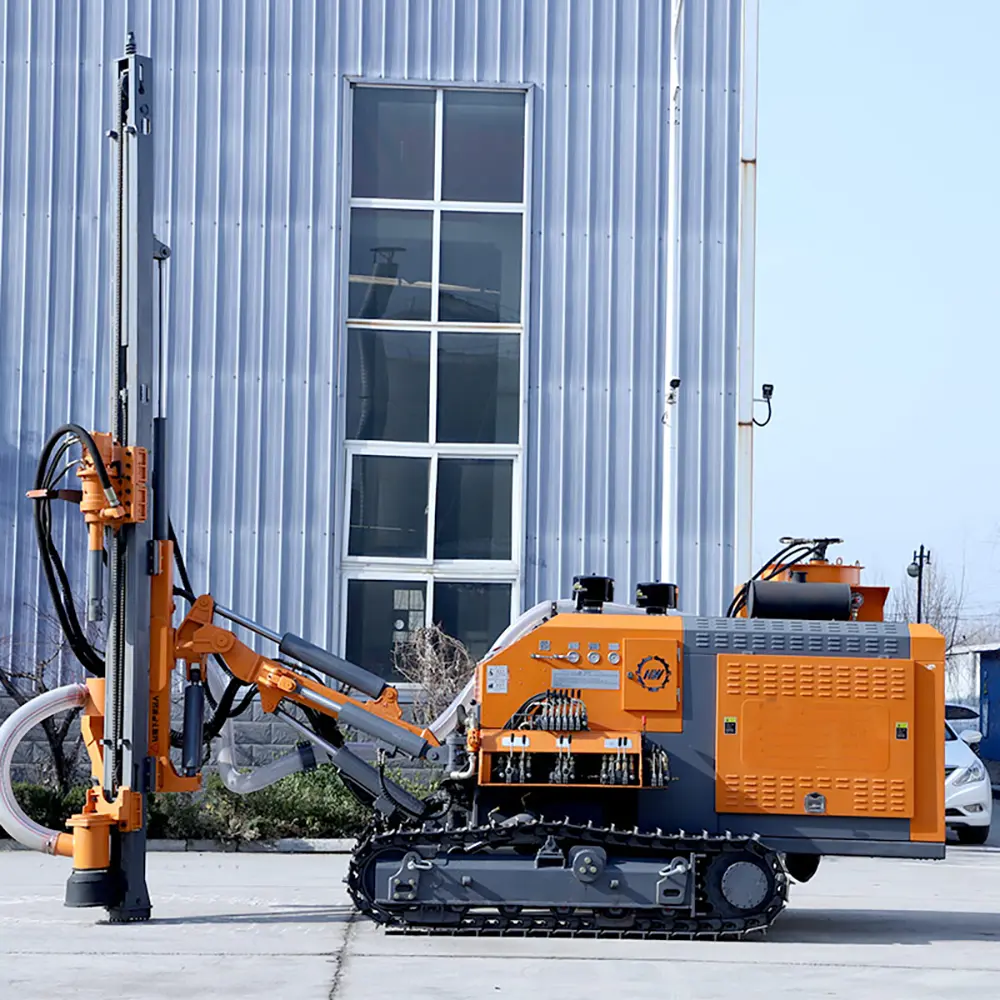

DXL935 Integrated DTH Surface Drill Rig
Advanced Integrated Drilling Solution For Modern Mining Operations

The DXL935 Integrated DTH Surface Drill Rig is engineered to provide maximum drilling productivity and operational efficiency for demanding surface drilling applications. Combining a powerful hydraulic drilling system, integrated air compressor, heavy-duty crawler chassis, and intelligent control technology, the DXL935 delivers exceptional performance in mining, quarrying, construction, and infrastructure projects.

Unlike separated DTH drilling rigs, the DXL935 integrates the compressor and drilling unit into a single machine. This design significantly reduces transportation complexity, lowers fuel consumption, minimizes air pressure losses, and improves overall operational efficiency.

With its advanced DTH drilling technology, robust structural design, and operator-friendly controls, the DXL935 is capable of maintaining high productivity even under the most challenging geological and environmental conditions.

Whether drilling blast holes in open-pit mines, producing aggregate in quarries, excavating roadways, or supporting large infrastructure developments, the DXL935 provides reliable performance and long-term value.

Integrated Design Advantages

One of the most important features of the DXL935 is its fully integrated configuration.

Benefits Of An Integrated Drill Rig
Reduced Fuel Consumption

The integrated design optimizes power utilization and improves overall efficiency.

Lower Air Pressure Loss

Shorter air delivery paths maximize hammer performance.

Simplified Transportation

One machine is easier to transport and deploy.

Reduced Maintenance Costs

Fewer external connections reduce maintenance requirements.

Faster Jobsite Setup

Operators can begin drilling quickly with minimal preparation.

Improved Equipment Management

A single integrated unit simplifies fleet management and logistics.

These advantages help contractors reduce operating costs while increasing productivity.
