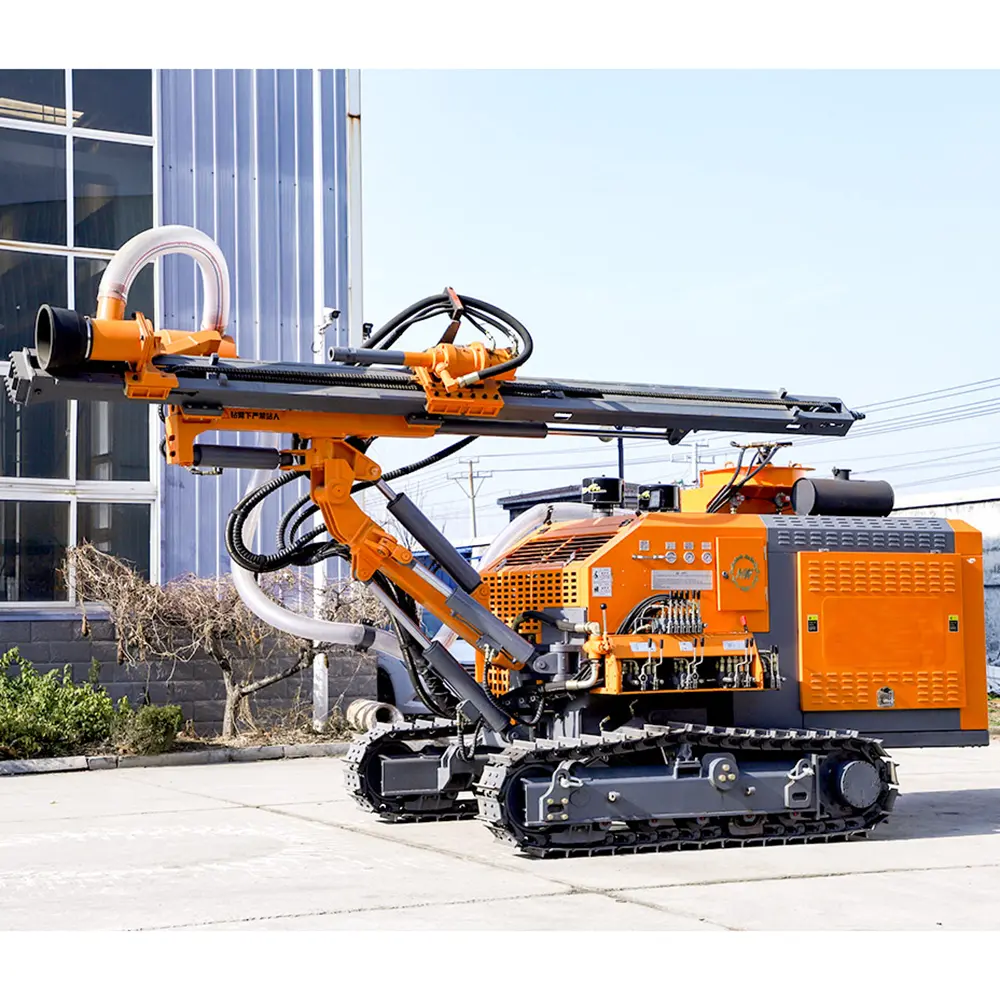

DXL421T Integrated DTH Drill Rig

Rated Power: 162KW
Drill Depth: 30m
Drill Diameter: 65-120 mm

Model	921T
Power (KW)	162
Drilling diameter (mm)	φ65-120
Maximum torque (Nm)	2000
Rotation speed (rpm)	0-110
Feed type	Chain cylinder
Total weight (kg)	6800

Main feature:
1. It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
2. Equipped with two-stage dry dust removal device, the environmental pollution is small.
3. It is easy to connect and unload the drill pipe, shorten the auxiliary time, and also facilitate the drilling with the pipe.

DXL421T Integrated DTH Drill Rig
Compact Integrated Drilling Solution For Mining And Rock Excavation

The DXL421T Integrated DTH Drill Rig is a professional-grade surface drilling machine developed for contractors, mining companies, and quarry operators who require efficient, flexible, and cost-effective rock drilling equipment.

Designed with advanced Down-The-Hole (DTH) drilling technology, the DXL421T combines a powerful drilling system with an onboard air compressor, hydraulic control system, crawler undercarriage, and dust removal system into a single mobile platform. This integrated structure eliminates the need for external compressor connections, reduces setup time, and improves overall drilling efficiency.

Compared with traditional separated drilling rigs, the integrated design provides better energy utilization, lower transportation costs, easier operation, and simplified maintenance. The machine is especially suitable for small and medium-scale mining operations, quarry production, slope reinforcement, road construction, and foundation drilling projects.

With reliable performance, compact dimensions, and excellent off-road capability, the DXL421T Integrated DTH Drill Rig provides an ideal solution for modern surface drilling applications.

Integrated DTH Drill Rig Design Advantages

The DXL421T adopts a fully integrated structure that combines multiple systems into one efficient drilling platform.

All-In-One Configuration

The machine integrates:

Hydraulic drilling system
Screw air compressor
Diesel power system
Crawler chassis
Dust collection system
Operator control system

This design improves equipment efficiency and simplifies transportation and operation.

Lower Operating Costs

The integrated structure provides significant cost advantages:

Reduced Fuel Consumption

Optimized engine power distribution improves fuel efficiency.

Lower Maintenance Requirements

Fewer external connections reduce maintenance workload.

Improved Energy Efficiency

Direct power transmission improves compressor and drilling performance.

Reduced Transportation Costs

One compact machine is easier to transport between job sites.

Advanced Down-The-Hole Drilling Technology

The DXL421T uses advanced DTH drilling technology, where the hammer is positioned close to the drill bit to maximize impact energy transfer.

Benefits Of DTH Drilling
High penetration speed
Excellent drilling accuracy
Straight blast holes
Reduced drilling deviation
Better rock fragmentation
Lower drilling costs

DTH technology is highly effective for medium and hard rock formations including granite, limestone, basalt, and other quarry materials.

Powerful Drilling Performance

The DXL421T is designed to provide reliable drilling performance in demanding environments.

Efficient Rotary System

The rotary head provides stable torque output and smooth drilling operation.

Strong Feed System

The feed mechanism maintains consistent drilling pressure for improved penetration.

High-Efficiency Air Compressor

The integrated compressor supplies stable compressed air for the DTH hammer.

Optimized Drilling Control

Operators can adjust drilling parameters according to different geological conditions.

Advanced Hydraulic System

The hydraulic system controls major machine operations with high precision.

Hydraulic Advantages
Smooth boom movement
Stable rotation control
Accurate feed adjustment
Reliable performance
Reduced component wear

The optimized hydraulic system improves productivity while extending equipment service life.

Heavy-Duty Crawler Chassis

The DXL421T features a crawler-mounted structure designed for challenging terrain.

Crawler Benefits
Excellent climbing ability
Strong ground traction
Stable drilling platform
Flexible movement
Long service life

The machine can operate effectively in:

Mining areas
Quarry sites
Mountain terrain
Construction locations
Uneven rocky surfaces

Its compact design allows access to areas where larger drilling equipment cannot easily operate.

Efficient Dust Collection System

Environmental protection is becoming increasingly important in mining and construction operations.

The DXL421T is equipped with an efficient dust removal system to improve workplace conditions.

Dust Collection Benefits
Reduces airborne dust
Improves operator visibility
Protects machine components
Supports environmental requirements
Creates a cleaner working environment

This makes the machine suitable for modern green mining applications.

Easy Operation And Maintenance

The DXL421T is designed with operator convenience in mind.

User-Friendly Controls

The centralized control layout allows operators to easily monitor and control drilling operations.

Simple Maintenance

Integrated system design reduces complicated connections and makes daily inspection easier.

High Equipment Availability

Reliable components reduce downtime and improve production efficiency.

Applications Of DXL421T Integrated DTH Drill Rig
Open-Pit Mining

Used for blast hole drilling in:

Metal mines
Non-metal mines
Small and medium mining operations
Quarry Operations

Suitable for:

Granite quarrying
Limestone extraction
Aggregate production
Stone processing
Road Construction

Used for:

Rock excavation
Highway construction
Slope blasting
Foundation Engineering

Suitable for:

Ground reinforcement
Anchor drilling
Construction preparation
Infrastructure Projects

Used in:

Hydropower construction
Railway projects
Civil engineering applications
Advantages Of Choosing DXL421T Integrated DTH Drill Rig
Compact And Flexible

Small footprint allows operation in limited spaces.

High Drilling Efficiency

Advanced DTH technology improves drilling productivity.

Low Fuel Consumption

Integrated power design improves energy efficiency.

Easy Transportation

Compact crawler design simplifies movement.

Reliable Performance

Designed for continuous industrial operation.

Simple Maintenance

Integrated structure reduces service complexity.

Why Choose Us
Professional Drilling Equipment Manufacturer

We specialize in DTH drilling rigs, mining machinery, construction equipment, and quarry solutions.

Strict Quality Control

Every drilling rig is tested and inspected before shipment.

Competitive Factory Pricing

Direct manufacturing ensures cost-effective solutions.

OEM And Custom Solutions

Available customization includes:

Machine color
Customer logo
Technical specifications
Configuration options
Global Export Experience

Our equipment serves customers in mining and construction markets worldwide.

Reliable Spare Parts Supply

Fast spare parts support helps reduce machine downtime.

Professional After-Sales Service

We provide:

Installation guidance
Technical consultation
Operator training
Maintenance support
FAQs
1. What is the DXL421T Integrated DTH Drill Rig used for?

It is mainly used for mining, quarrying, blasting, road construction, and rock excavation projects.

2. What does DTH mean?

DTH means Down-The-Hole drilling, a technology that uses a hammer located near the drill bit for efficient rock breaking.

3. What is the advantage of an integrated DTH drill rig?

It combines the compressor and drilling system into one machine, reducing setup time and improving efficiency.

4. Is the DXL421T suitable for hard rock?

Yes. It performs well in medium and hard rock formations.

5. Does the machine include an air compressor?

Yes. The air compressor is integrated into the drilling system.

6. Can it work on rough terrain?

Yes. The crawler chassis provides excellent mobility and stability.

7. Is maintenance easy?

Yes. The integrated structure simplifies inspection and maintenance.

8. What industries use this drill rig?

Mining, quarrying, construction, infrastructure, and rock excavation industries.

9. Can the machine be customized?

Yes. OEM customization options are available.

10. Do you provide technical support?

Yes. Professional after-sales service and spare parts support are available.
