DXL925 Separated DTH Surface Drill Rig

Rated Power: 58KW
Drill Depth: 30m
Drill Diameter: 110-138 mm

Model	925
Power (KW)	58
Drilling diameter (mm)	φ110-140
Maximum torque (Nm)	3200
Propulsion (kN)	20
Lifting force (kN)	45
Shipping Dimensions (mm)	5700*20324*2550

The biggest advantage of the down-the-hole drilling rig is that in the process of rock drilling, the impactor dives into the hole to reduce the energy loss caused by the impact energy transmitted by the drill pipe, thereby reducing the impact of the hole depth on the rock drilling efficiency. The down-the-hole drilling rig is equipped with an air compressor, which greatly improves the work efficiency.



Main feature:
1. It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
2. The rig is equipped with dry dust collector, drill pipe changer, and adopts the most advanced design and layout.
3. Robust yet compact design provides it with better manoeuvrability in tight corners and higher spacing – burden range.
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.

DXL920 Separated DTH Surface Drill Rig
Professional Surface Drilling Equipment For High-Efficiency Rock Drilling

The DXL920 Separated DTH Surface Drill Rig is engineered to deliver reliable and efficient drilling performance for today's demanding mining, quarrying, and construction industries. Combining advanced Down-The-Hole (DTH) drilling technology with a robust crawler platform and intelligent hydraulic control system, the DXL920 is designed to maximize productivity while minimizing operating costs.

Surface drilling projects require equipment capable of producing accurate blast holes under challenging geological conditions. The DXL920 achieves this through its powerful rotary drive, efficient feed system, durable boom structure, and stable hydraulic performance. Whether drilling in granite, basalt, limestone, marble, or other hard rock formations, the machine maintains excellent penetration rates and drilling accuracy.

The separated configuration allows the drilling rig and air compressor to operate independently, offering greater flexibility for transportation, maintenance, and equipment matching. Contractors can select compressors based on specific project requirements, improving utilization while reducing ownership costs.

The DXL920 is widely used in open-pit mines, aggregate quarries, road construction, railway projects, hydropower developments, municipal engineering, and infrastructure construction projects around the world.

Advanced Down-The-Hole Drilling Technology

The DXL920 adopts proven DTH drilling technology that places the pneumatic hammer directly behind the drill bit, maximizing impact energy transfer.

Benefits Include
High penetration speed
Straight and accurate blast holes
Reduced energy loss
Excellent drilling efficiency
Lower drilling costs
Superior performance in hard rock

Compared with conventional top hammer drilling systems, DTH technology delivers greater drilling depth, improved hole quality, and lower wear on drilling components.

Powerful Drilling Performance

Designed for demanding production drilling, the DXL920 provides outstanding operational efficiency.

Key Advantages
Fast Penetration Rate

Powerful impact energy accelerates drilling progress.

Stable Rotary System

Ensures smooth and consistent drilling performance.

High Feed Force

Maintains efficient drilling in difficult rock formations.

Excellent Hole Quality

Produces uniform blast holes with minimal deviation.

Continuous Heavy-Duty Operation

Built for long working hours with dependable performance.

These capabilities significantly improve productivity while lowering project costs.

High-Efficiency Hydraulic System

The advanced hydraulic system delivers smooth, reliable, and precise control over all drilling operations.

Hydraulic Features
Stable drilling pressure
Smooth boom movement
Adjustable rotation speed
Accurate feed control
Reliable hydraulic components

The optimized hydraulic circuit reduces energy consumption while increasing drilling efficiency.

Heavy-Duty Crawler Undercarriage

The crawler chassis provides excellent mobility and operational stability across rugged terrain.

Benefits
Outstanding climbing ability
Excellent ground traction
Stable drilling platform
Reliable off-road performance
Long service life

The DXL920 performs efficiently on:

Open-pit mines
Granite quarries
Limestone quarries
Mountain construction sites
Infrastructure projects
Uneven rock surfaces
Durable Drill Boom And Feed Beam

Manufactured from high-strength steel, the boom system is engineered for long-term durability.

Features
Wide drilling coverage
Flexible positioning
Accurate hole alignment
Stable feed movement
Reduced repositioning time

This improves drilling precision while increasing production efficiency.

Intelligent Control System

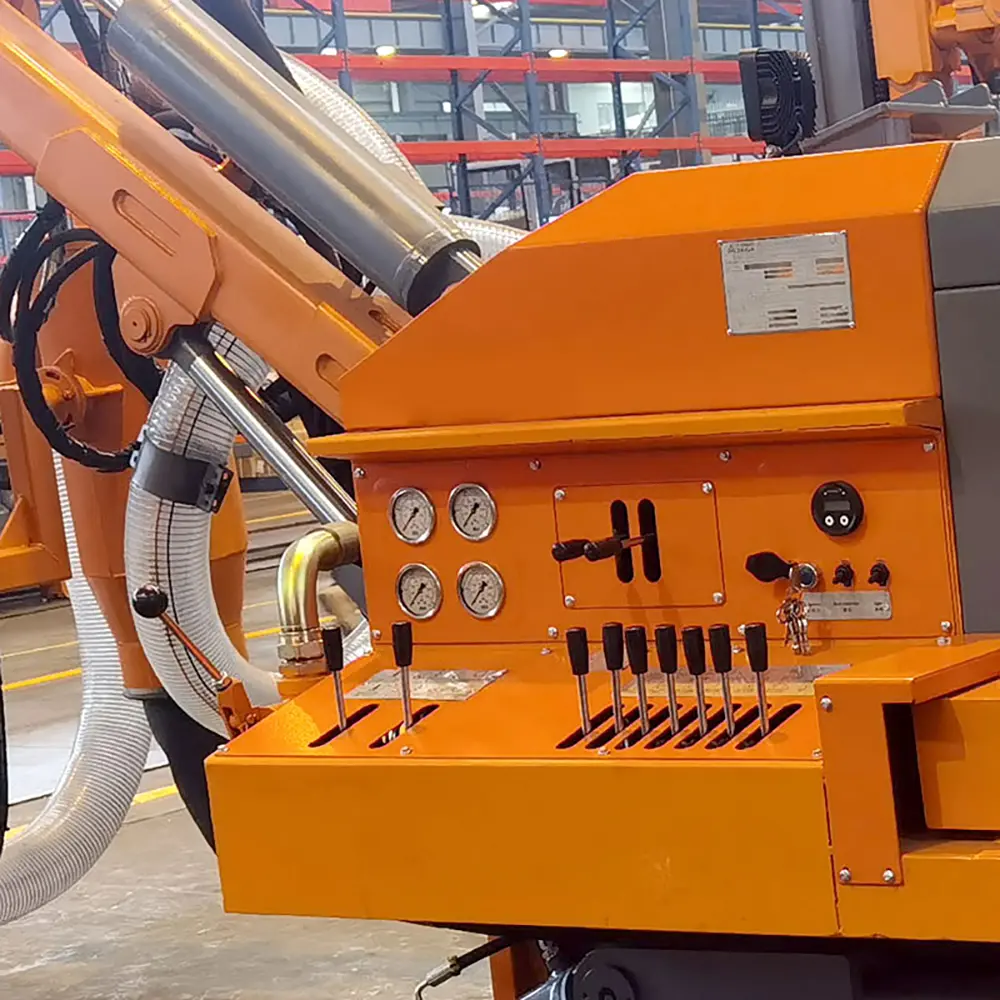

The operator-friendly control system improves drilling accuracy and simplifies machine operation.

Advantages
Easy-to-use interface
Real-time machine monitoring
Precise drilling parameter adjustment
Reduced operator fatigue
Enhanced operational safety

The ergonomic layout increases operator comfort during extended working hours.

Efficient Dust Collection System

The integrated dust collection system improves workplace safety and environmental performance.

Benefits
Reduces airborne dust
Improves operator visibility
Protects drilling components
Supports environmental compliance
Creates cleaner working conditions

This system is especially valuable in quarry and urban construction projects.

Flexible Separated Design

The separated design offers significant operational advantages over integrated drilling rigs.

Key Benefits
Independent compressor selection
Easier transportation
Simplified maintenance
Greater equipment flexibility
Lower ownership costs

This configuration is ideal for contractors managing multiple drilling projects.

Applications Of DXL920 Separated DTH Surface Drill Rig
Open-Pit Mining

Production drilling for coal, gold, iron ore, copper, and other mineral resources.

Quarry Operations

Granite, marble, limestone, basalt, sandstone, and aggregate production.

Road Construction

Rock excavation for highways, bridges, and tunnels.

Railway Engineering

Foundation drilling and rock cutting for railway infrastructure.

Hydropower Projects

Tunnel entrances, dam foundations, and excavation work.

Foundation Engineering

Rock anchoring, slope stabilization, and pile foundation preparation.

Municipal Infrastructure

Urban excavation and public utility construction.

Large Construction Projects

Site preparation and rock blasting before structural development.

Advantages Of Choosing The DXL920
High Drilling Efficiency

Advanced drilling technology increases productivity.

Precise Hole Quality

Produces straight and consistent blast holes.

Low Operating Cost

Optimized systems reduce fuel consumption and maintenance expenses.

Reliable Performance

Designed for continuous industrial operation.

Easy Maintenance

Separated configuration simplifies servicing procedures.

Excellent Mobility

Crawler undercarriage handles rough terrain with ease.

Long Equipment Life

Industrial-grade components provide exceptional durability.

Built For Tough Working Environments

The DXL920 is designed for demanding mining and construction conditions.

Key structural features include:

Reinforced steel frame
Heavy-duty hydraulic system
Wear-resistant drilling components
High-capacity cooling system
Durable crawler tracks
Industrial-grade rotary head

These features ensure reliable performance under continuous heavy-duty workloads.

Why Choose Us
Professional Mining Equipment Manufacturer

We specialize in DTH drilling rigs, mining machinery, construction equipment, and quarry solutions.

Strict Quality Inspection

Every drilling rig undergoes comprehensive testing before delivery.

Factory Direct Pricing

Competitive pricing with reliable product quality.

OEM & ODM Customization

Customized colors, logos, specifications, and configurations are available.

Rich Global Export Experience

Machines exported to Asia, Europe, Africa, South America, and the Middle East.

Complete Spare Parts Support

Fast delivery of genuine replacement parts minimizes downtime.

Professional After-Sales Service

Experienced engineers provide technical consultation, installation guidance, operator training, and lifetime support.

FAQs
1. What drilling method does the DXL920 use?

It uses advanced Down-The-Hole (DTH) drilling technology.

2. What industries use the DXL920?

Mining, quarrying, road construction, railway engineering, hydropower, and infrastructure development.

3. Is it suitable for hard rock drilling?

Yes. It is specifically designed for medium and hard rock formations.

4. What are the advantages of the separated design?

Greater flexibility, easier transportation, lower maintenance costs, and independent compressor selection.

5. Does it include a dust collection system?

Yes. An efficient dust collection system improves environmental protection and operator safety.

6. Can the machine operate on rough terrain?

Yes. The heavy-duty crawler undercarriage provides excellent mobility and stability.

7. Is routine maintenance convenient?

Yes. The separated structure simplifies inspection and servicing.

8. Can drilling parameters be adjusted?

Yes. Feed pressure, rotation speed, and drilling force can be adjusted according to rock conditions.

9. Is OEM customization supported?

Yes. OEM and ODM services are available.

10. Do you provide spare parts and technical support?

Yes. We provide complete spare parts supply and comprehensive after-sales technical support.
