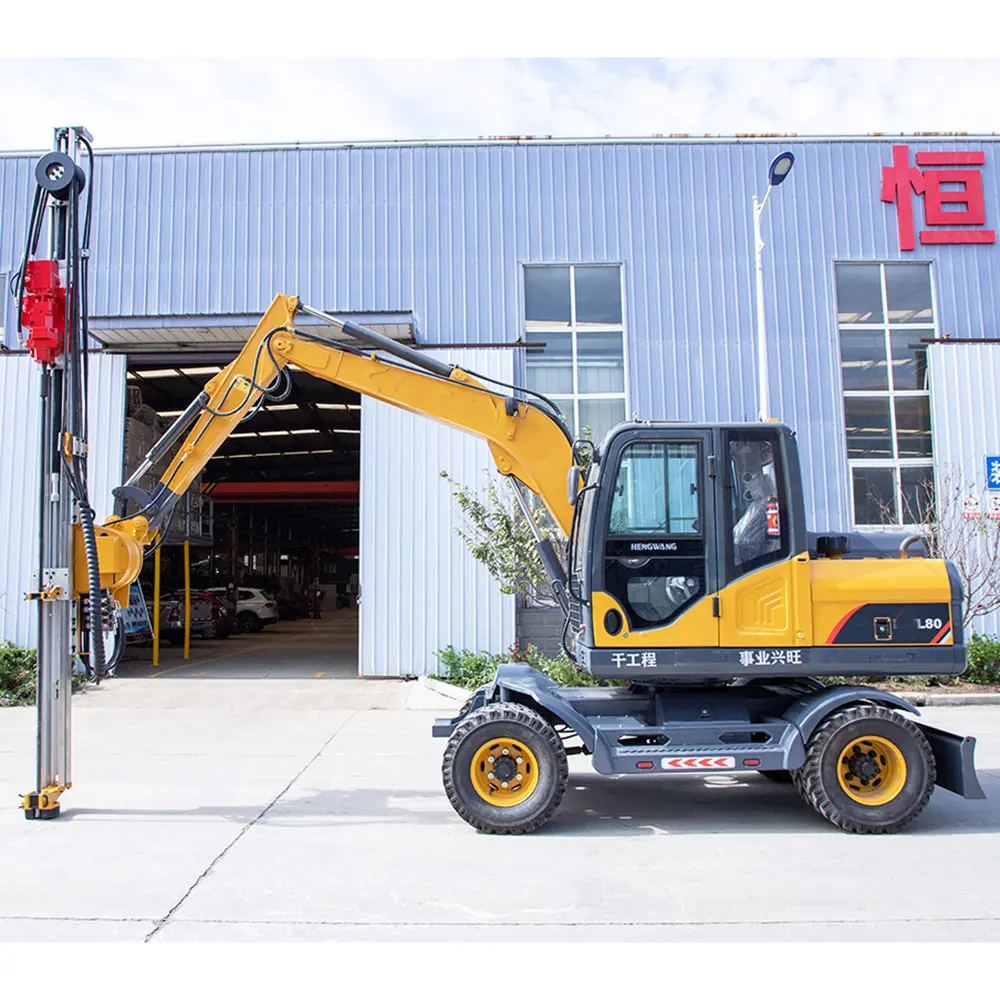

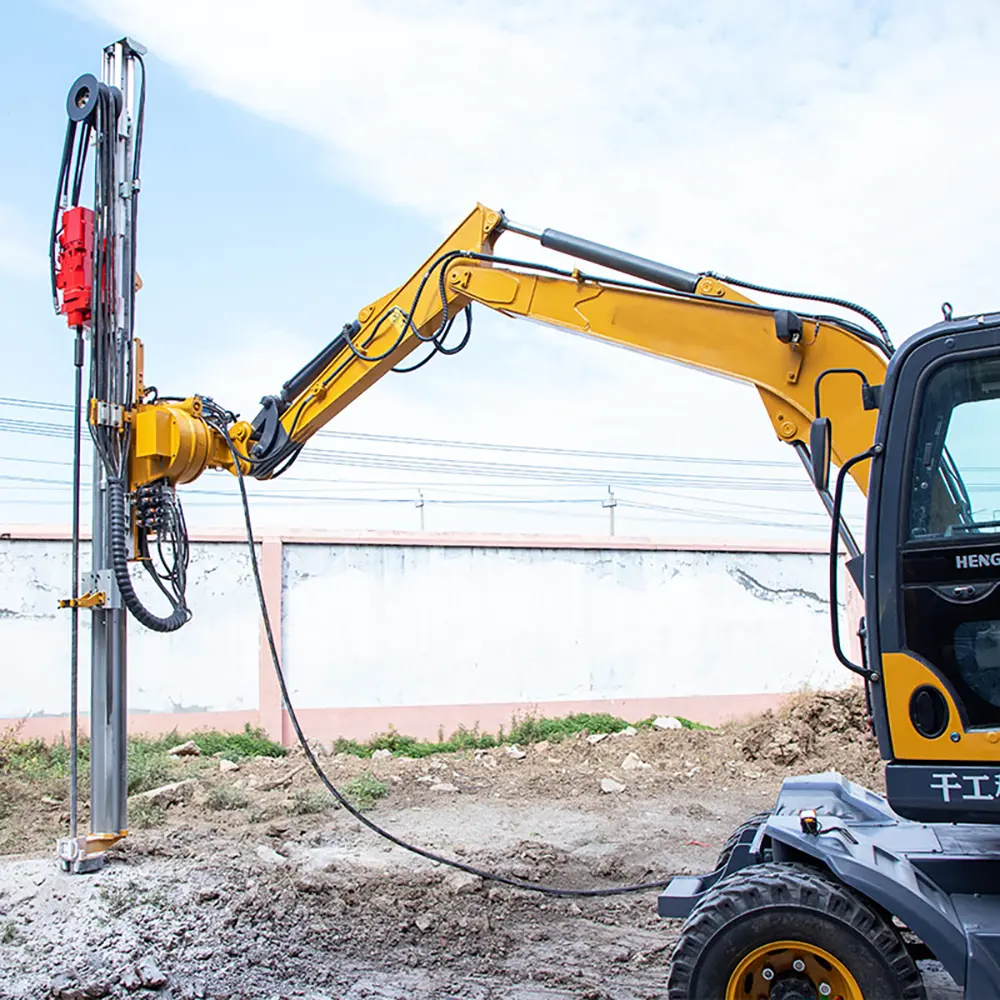

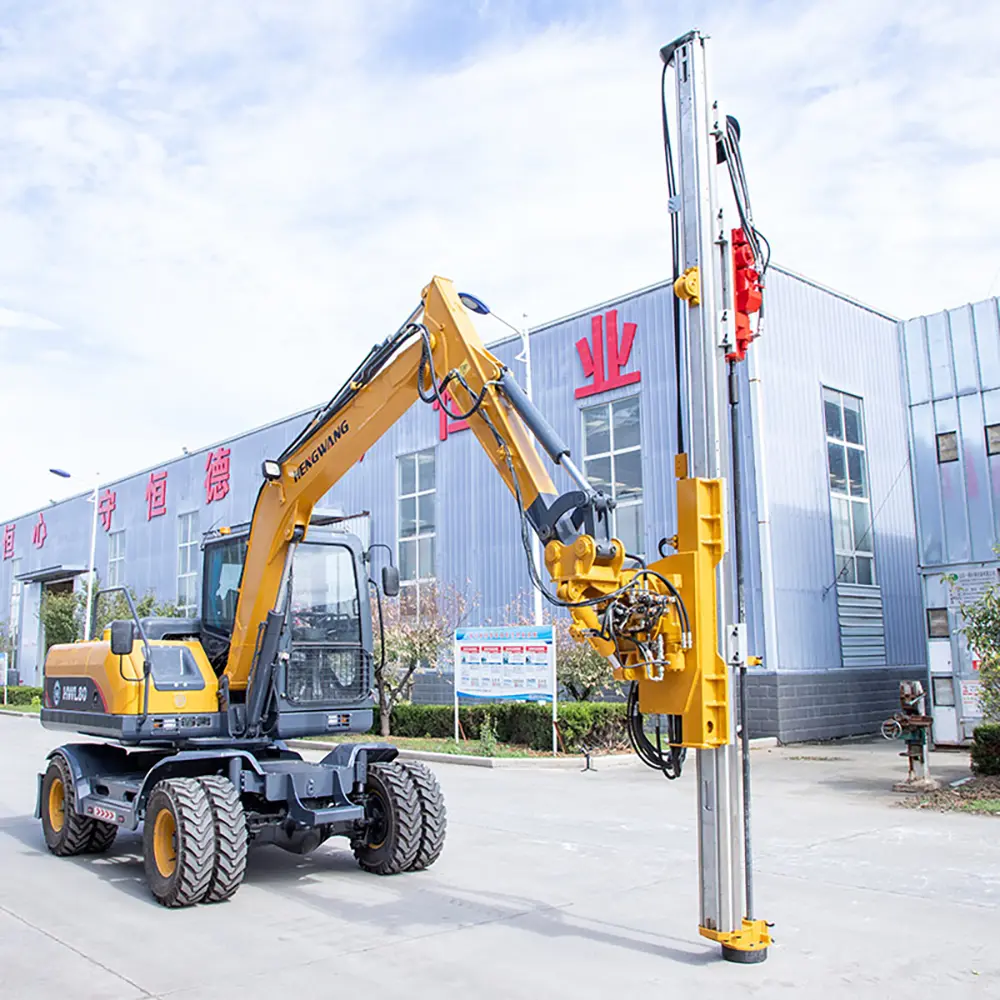

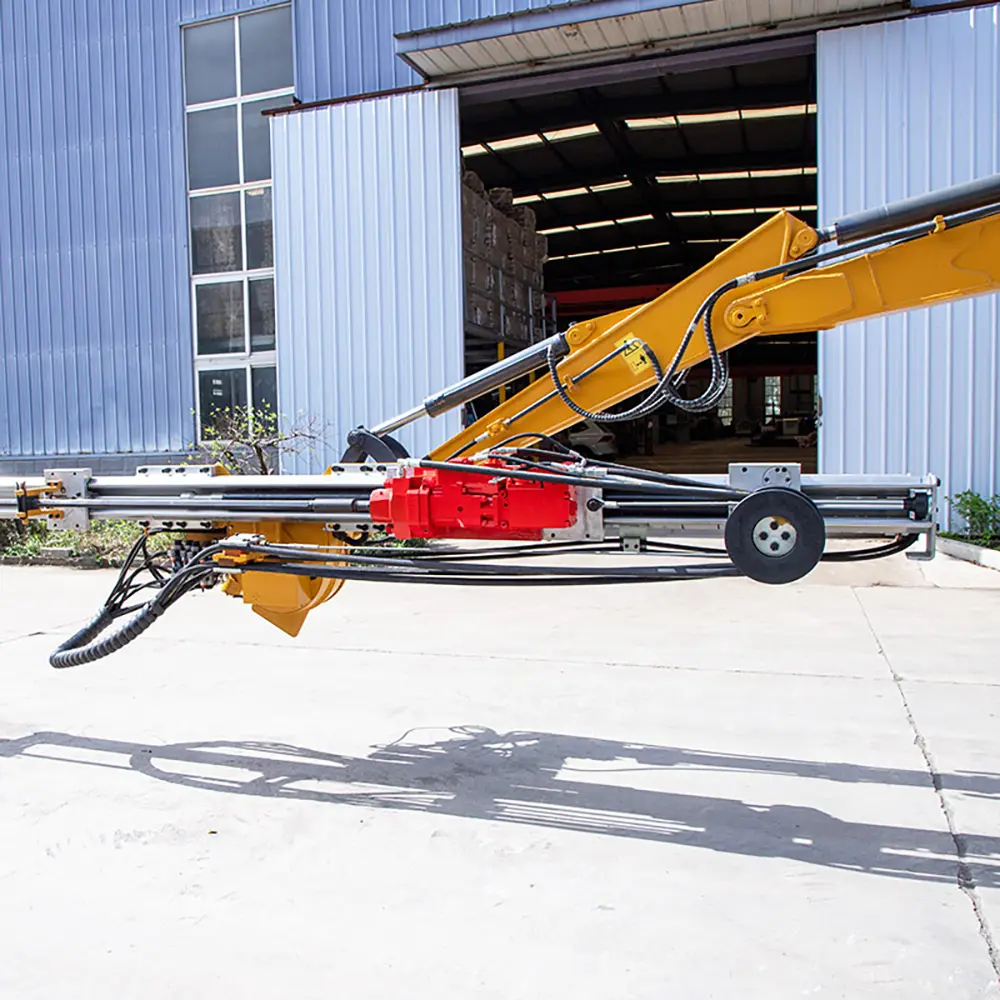

DXL200 Excavator Mounted DTH Drilling Rig

Rated Power: 7KW
Drill Depth: 30m
Drill Diameter: 27-55mm
1. The hydraulic system of the excavator is used for the drilling and slag removal of the Hengwang excavation and modification rock drill. The air compressor for slag removal is installed on the excavator, which is convenient to move.

2. The hydraulic rock drill is used to fully improve the drilling efficiency. The drilling speed can reach 1 minute and 1 meter on the rock with a hardness of 8.9 degrees, which is 8-10 times that of pneumatic equipment.

3. Digging and changing the rock drill does not affect the function of the excavator itself, and because the climbing performance of the excavator and the adjustment of the drilling angle are better than the rock drill, it is more flexible.

4. The operating panel is placed in the cab of the excavator, and the driver can operate after simple training.Main features:
1. Utilizes the hydraulic system of the excavator for drilling and slag removal, with the air compressor for slag removal conveniently mounted on the excavator for mobility.

2. Hydraulic rock drill significantly improves drilling efficiency, achieving a drilling speed of 1 meter per minute on rock with a hardness of 8.9, which is 8-10 times faster than pneumatic equipment.

3. The rock drill does not affect the excavator's functionality, and the excavator's climbing performance and drilling angle adjustment provide greater flexibility.

4. The operating panel is located in the excavator's cab, allowing the operator to control the rock drill after simple training.





Parameter

Model	HW-200
Dimension	5150*1200*860mm
Weight	1100Kg
Impact working pressure	12-18Mpa
Impact frequency	27-47Hz
Rotation speed	180-220rpm
Rotation torque	300N.M
Rotation power	7Kw
Drill diameter	27-55mm
Drill depth	30m

Certainly, technological advancements and continuous updates can result in differences between the technical parameters and configuration provided and the actual product delivered. To obtain the most accurate and up-to-date information regarding the specific technical parameters and configuration of a product, it is advisable to consult with the manufacturer or authorized distributors directly. They will be able to provide you with the latest details and assist you in making an informed decision based on your requirements.

Excavator Mounted DTH Drill Rig,DTH Excavator Drill,Hydraulic Rock Drill Attachment

DXL200 Excavator Mounted DTH Drilling Rig
Efficient Excavator-Based Rock Drilling Solution For Mining And Construction

The DXL200 Excavator Mounted DTH Drilling Rig is a professional hydraulic drilling attachment designed for customers who require high-performance rock drilling capability without investing in a complete standalone drilling machine.

By combining the power and mobility of an excavator with advanced Down-The-Hole (DTH) drilling technology, the DXL200 provides an economical and practical solution for various drilling applications. The system utilizes the excavator’s hydraulic power source to operate the drilling mechanism, while the compressor system supplies compressed air for efficient rock breaking and slag removal.

Compared with traditional drilling equipment, the excavator-mounted design offers significant advantages in mobility, flexibility, and cost efficiency. The excavator can quickly move between drilling locations, adjust drilling angles easily, and work effectively on uneven terrain.

The DXL200 Excavator Mounted DTH Drilling Rig is widely used in quarry operations, mining projects, road construction, foundation engineering, slope reinforcement, and rock excavation applications.

Excavator Mounted Design Advantages

The DXL200 is designed as an attachment system that converts an excavator into a multi-purpose drilling machine.

Cost-Effective Equipment Solution

Instead of purchasing a separate drilling rig, customers can utilize an existing excavator platform.

Benefits include:

Lower equipment investment
Reduced transportation costs
Better equipment utilization
Simplified maintenance
Flexible project deployment
Excellent Mobility

The excavator provides outstanding movement capability compared with traditional drilling platforms.

The DXL200 can easily operate in:

Mountain areas
Quarry benches
Construction sites
Uneven terrain
Restricted working areas

The excavator’s climbing ability and flexible boom movement improve drilling accessibility.

Advanced DTH Drilling Technology

The DXL200 adopts Down-The-Hole drilling technology, which delivers impact energy directly near the drill bit.

DTH Drilling Advantages
High penetration speed
Strong rock-breaking ability
Accurate drilling holes
Reduced deviation
Improved blasting performance
Longer drilling efficiency

DTH technology is especially suitable for hard rock conditions such as granite, limestone, basalt, and other geological formations.

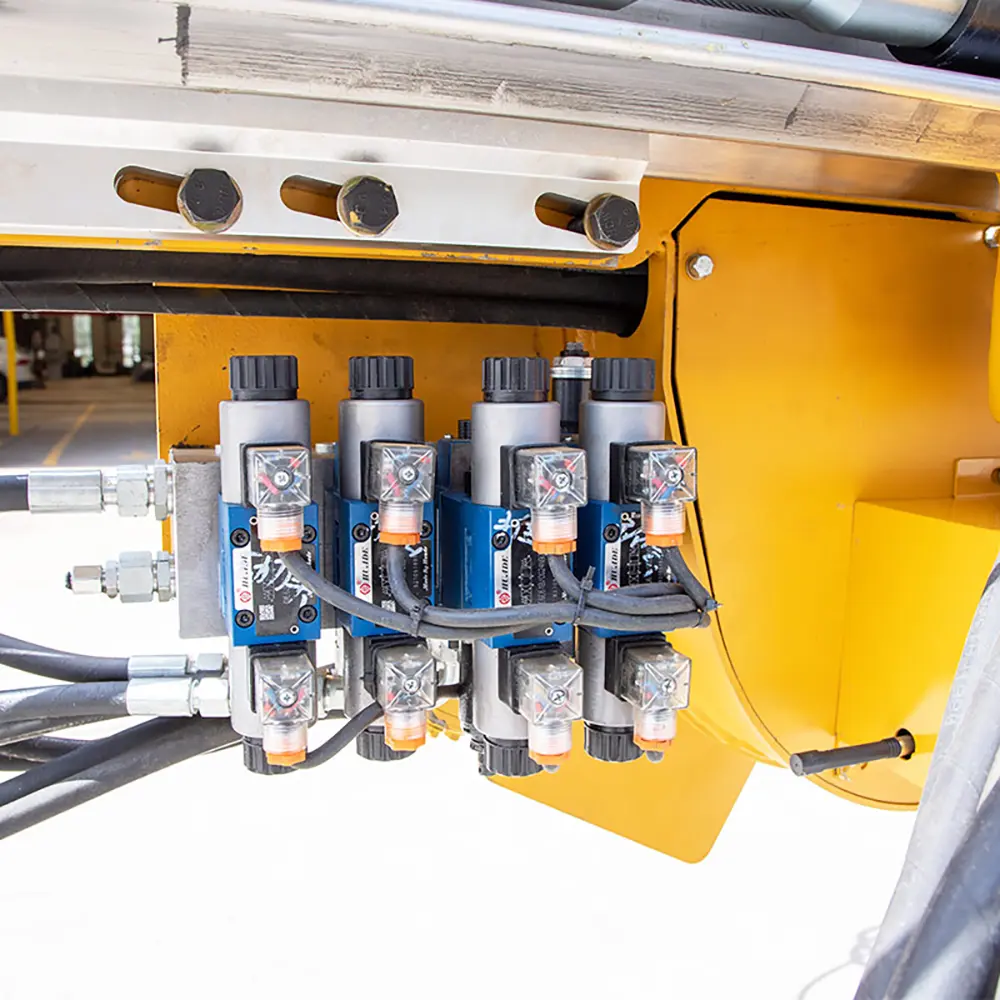

Powerful Hydraulic Rock Drilling System

The DXL200 uses hydraulic power from the excavator to drive the drilling system.

Hydraulic System Benefits
High Drilling Efficiency

The hydraulic rock drill provides stronger performance compared with traditional pneumatic drilling methods.

Stable Operation

The hydraulic system ensures:

Smooth drilling control
Adjustable drilling pressure
Reliable performance
Reduced energy loss
Easy Integration

The drilling attachment can be installed on suitable excavators without affecting normal excavation functions.

Efficient Rock Penetration Performance

The DXL200 is designed for fast and stable drilling operations.

Key Performance Features
Strong Impact Energy

The DTH hammer provides powerful impact force for breaking hard rock.

Stable Rotation

The rotary system maintains consistent drill speed.

Effective Slag Removal

Compressed air removes drilling debris and improves drilling efficiency.

Accurate Hole Formation

The stable drilling structure helps achieve precise hole positioning.

Flexible Drilling Angle Adjustment

One of the major advantages of an excavator-mounted drilling system is its excellent positioning capability.

Flexible Operation Benefits
Wide working range
Easy angle adjustment
Improved drilling accessibility
Reduced machine repositioning

The excavator boom allows operators to reach complex drilling areas that may be difficult for conventional drilling rigs.

Easy Operation And Maintenance

The DXL200 is designed for simple operation.

Operator Advantages

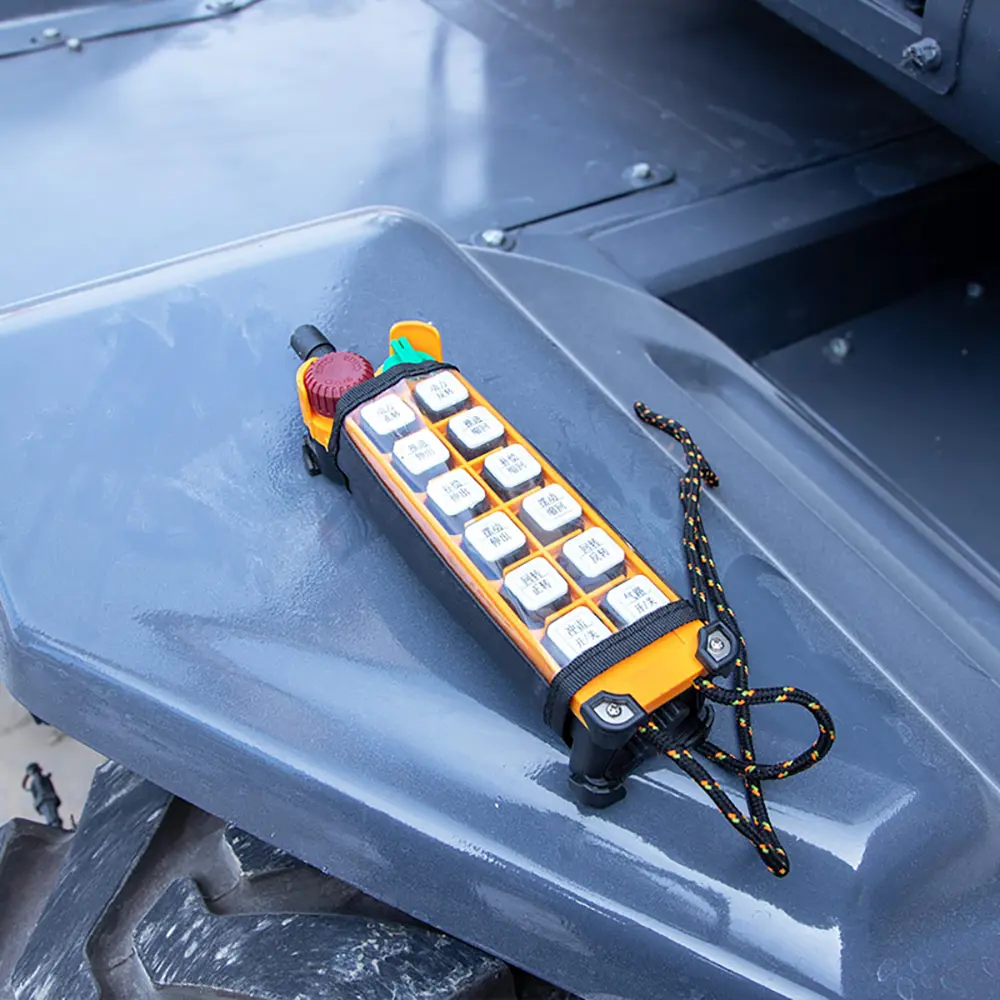

Excavator cabin control
Familiar operating environment
Reduced training requirements
Improved working efficiency

The operator can control drilling functions through the excavator system after basic training.

Maintenance Advantages
Simple structure
Easy component inspection
Convenient spare parts replacement
Reduced downtime
Applications Of DXL200 Excavator Mounted DTH Drilling Rig
Quarry Drilling

Suitable for:

Stone quarry blasting
Granite extraction
Limestone mining
Aggregate production
Mining Operations

Used for:

Open-pit mining
Rock blasting holes
Mineral extraction preparation
Mining development work
Road Construction

Ideal for:

Highway construction
Rock excavation
Slope cutting
Foundation preparation
Slope Stabilization

Used for:

Anchor drilling
Rock reinforcement
Geological protection projects
Foundation Engineering

Suitable for:

Construction drilling
Ground reinforcement
Infrastructure projects
Advantages Of Choosing DXL200 Excavator Mounted DTH Drilling Rig
Lower Investment Cost

Uses an existing excavator platform to reduce equipment purchasing expenses.

High Working Flexibility

Quick movement and excellent positioning ability improve jobsite efficiency.

Powerful Rock Drilling Capability

DTH technology provides strong performance in hard rock.

Easy Transportation

No need for separate large drilling equipment transportation.

Multi-Purpose Excavator Utilization

The excavator can continue performing normal functions after removing the drilling attachment.

Reliable Performance

Durable hydraulic components ensure long service life.

Why Choose Us
Professional Drilling Equipment Manufacturer

We specialize in hydraulic drilling equipment, DTH drilling rigs, mining machinery, and construction solutions.

Strict Quality Control

Each drilling system is tested to ensure reliable performance and durability.

Factory Direct Supply

Competitive pricing with professional manufacturing support.

OEM & ODM Services

Customized solutions are available for:

Excavator models
Drilling configurations
Customer branding
Project requirements
Global Export Experience

Our drilling equipment is supplied to mining and construction industries worldwide.

Reliable Spare Parts Support

Fast spare parts supply helps reduce equipment downtime.

Professional Technical Service

We provide:

Installation guidance
Operator training
Technical support
Maintenance assistance
FAQs
1. What is the DXL200 Excavator Mounted DTH Drilling Rig used for?

It is mainly used for quarry drilling, mining, construction, slope stabilization, and rock excavation projects.

2. How does an excavator-mounted drill rig work?

It uses the excavator hydraulic system to power the drilling attachment and compressed air for rock drilling and slag removal.

3. What are the advantages of an excavator-mounted drilling rig?

It provides better mobility, lower investment costs, flexible operation, and easier transportation.

4. Can the DXL200 drill hard rock?

Yes. The DTH drilling system is designed for medium and hard rock formations.

5. Does installing the drilling attachment affect excavator operation?

No. The excavator can return to normal excavation work after removing the drilling attachment.

6. What excavators are suitable for the DXL200?

The system can be customized according to excavator size and hydraulic specifications.

7. Is the drilling operation difficult?

No. Operators familiar with excavators can learn the drilling operation quickly.

8. What industries use this equipment?

Mining, quarrying, construction, road engineering, and foundation industries.

9. Can the drilling system be customized?

Yes. OEM customization is available according to customer requirements.

10. Do you provide technical support?

Yes. Professional installation guidance, spare parts, and after-sales support are available.
